Product no. M-2834

Container 3.500 liters made of V4A single-walled, unused, standing

EUR 7.200,00

add. 19 % VAT excl. shipping costs


Volume approx. 3,500.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details   Downloads

Product description

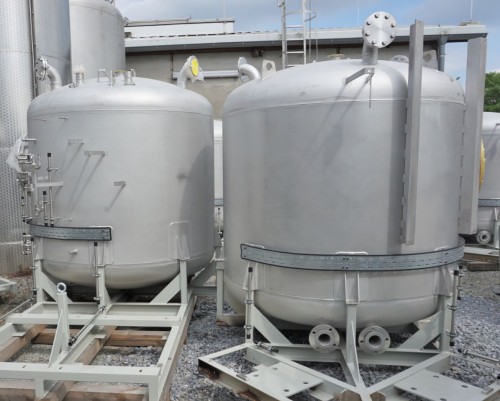

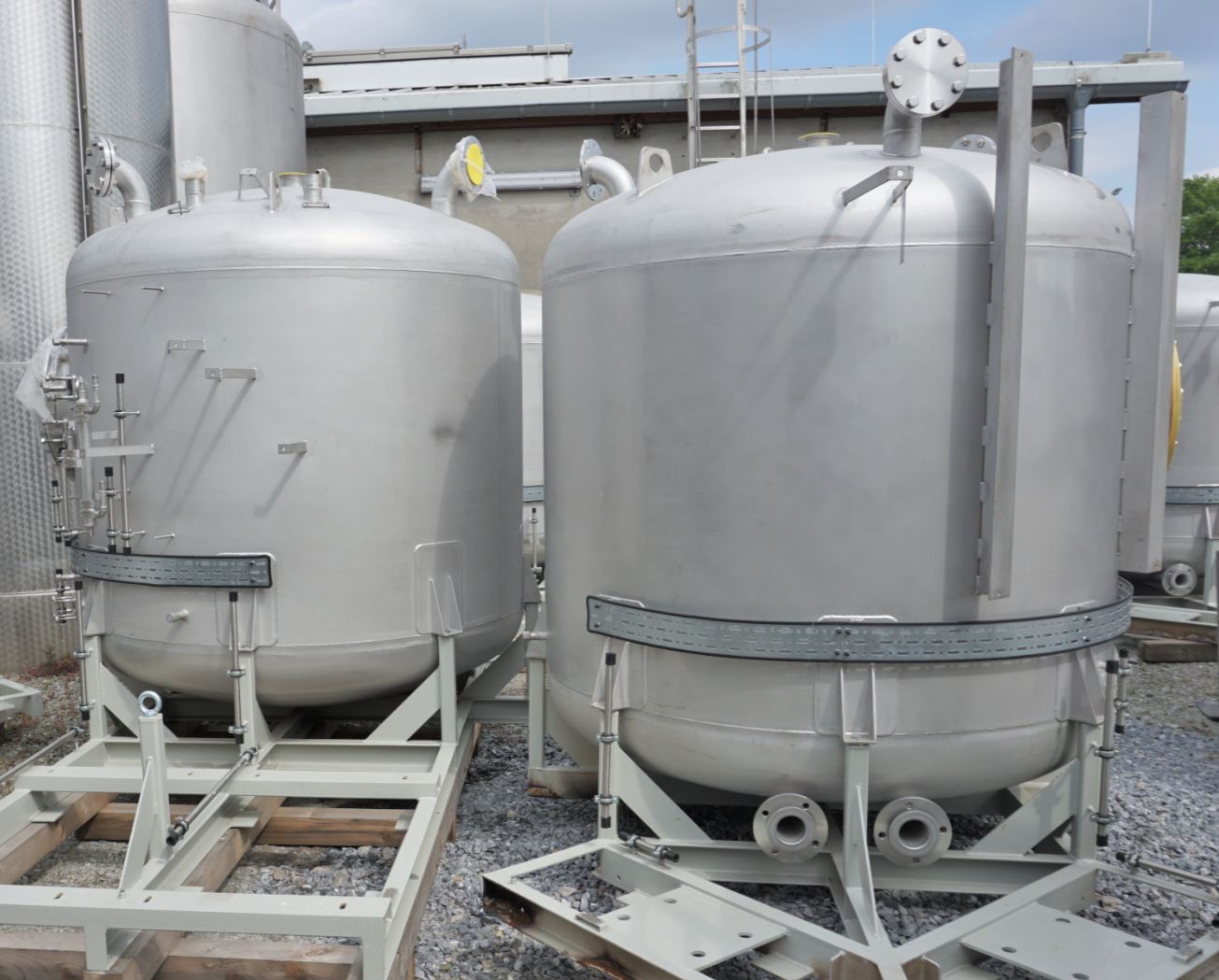

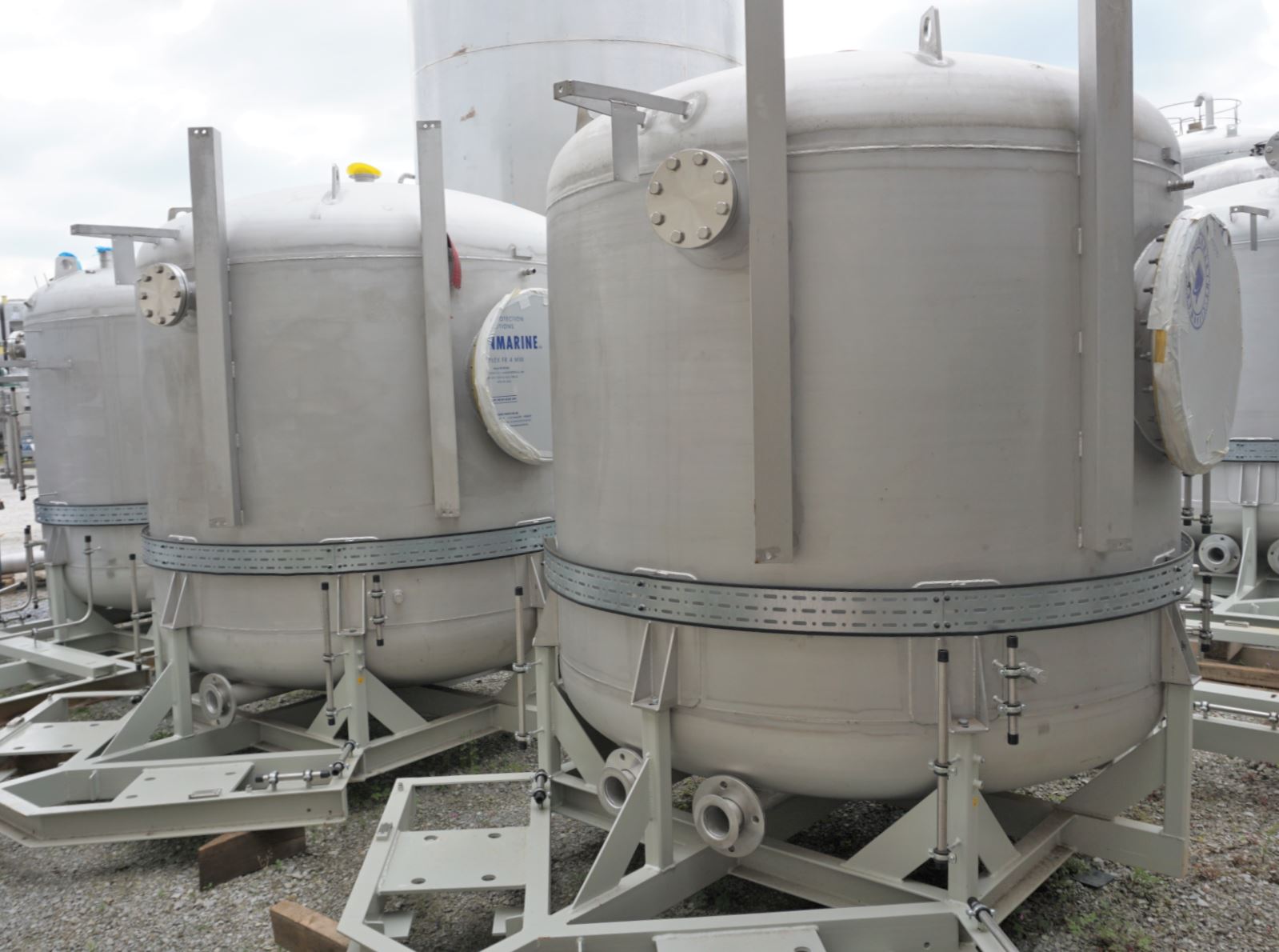

Container 3.500 liters made of V4A single-walled, unused consists of the material 1.4401(AISI316) V4A. The volume is approx. 3,500.00 litres. Container 3.500 liters made of V4A single-walled, unused has the following dimensions: length 3,700 mm, width 2,000 mm, Delivery can take place worldwide.

This product is suitable for the following applications:

Storage,

General

  • Volume approx.

  • 3.500,00 litres

  • Structure

  • Standing

  • Manufacturer

  • Evac

  • Condition

  • Unused

Dimensions approx.

  • External diameter

  • 1.800 mm

  • Cyl. height

  • 1.200 mm

  • Total height

  • 2.620 mm

  • Length

  • 3.700 mm

  • Width

  • 2000 mm

Design

  • Weight approx.

  • 2.500,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Supports

  • Supports

  • Bracket supports

  • Number of feet

  • 8 (piece)

  • Note on supports

  • Behälter auf einem Stahlkonstrukion montiert

Fixtures and fittings

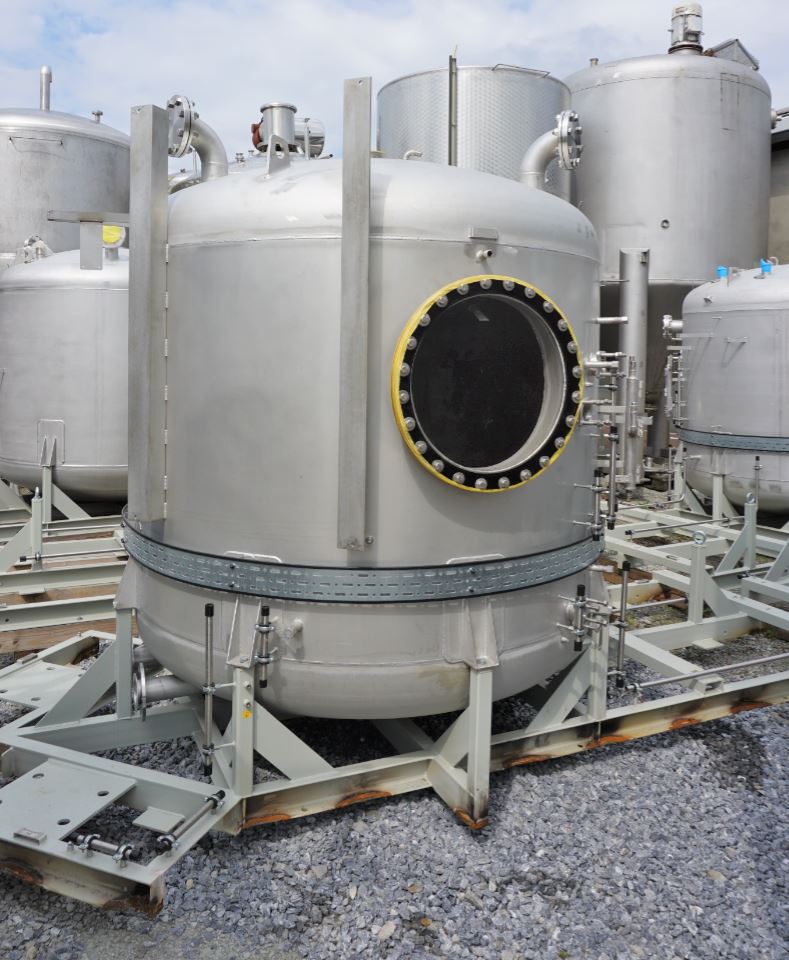

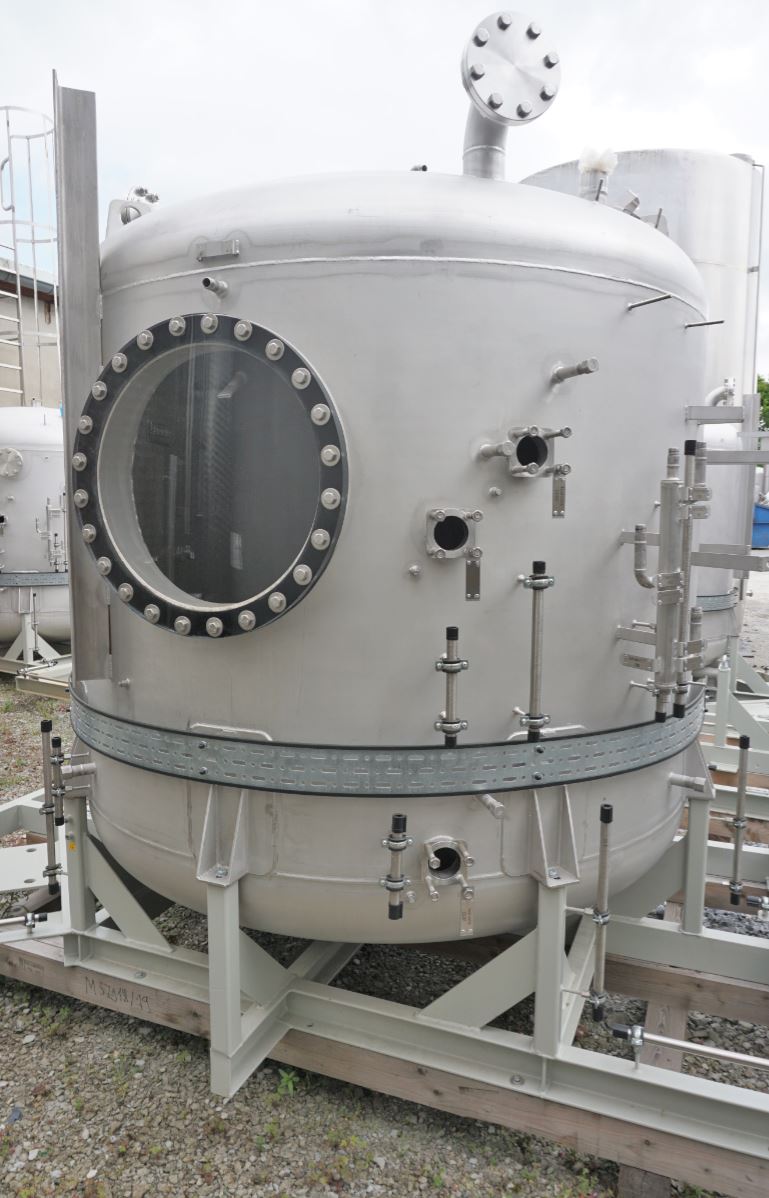

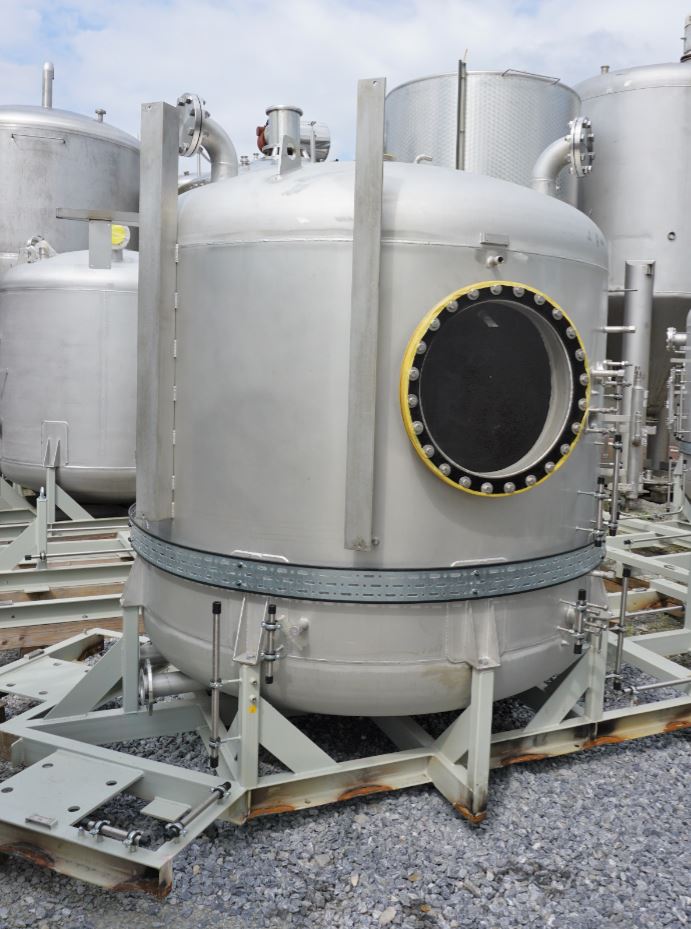

  • Manway position

  • In shell

  • Nozzle connector

  • Flange

  • Nozzles/connectors in shell

  • div. Anschlüsse (piece)

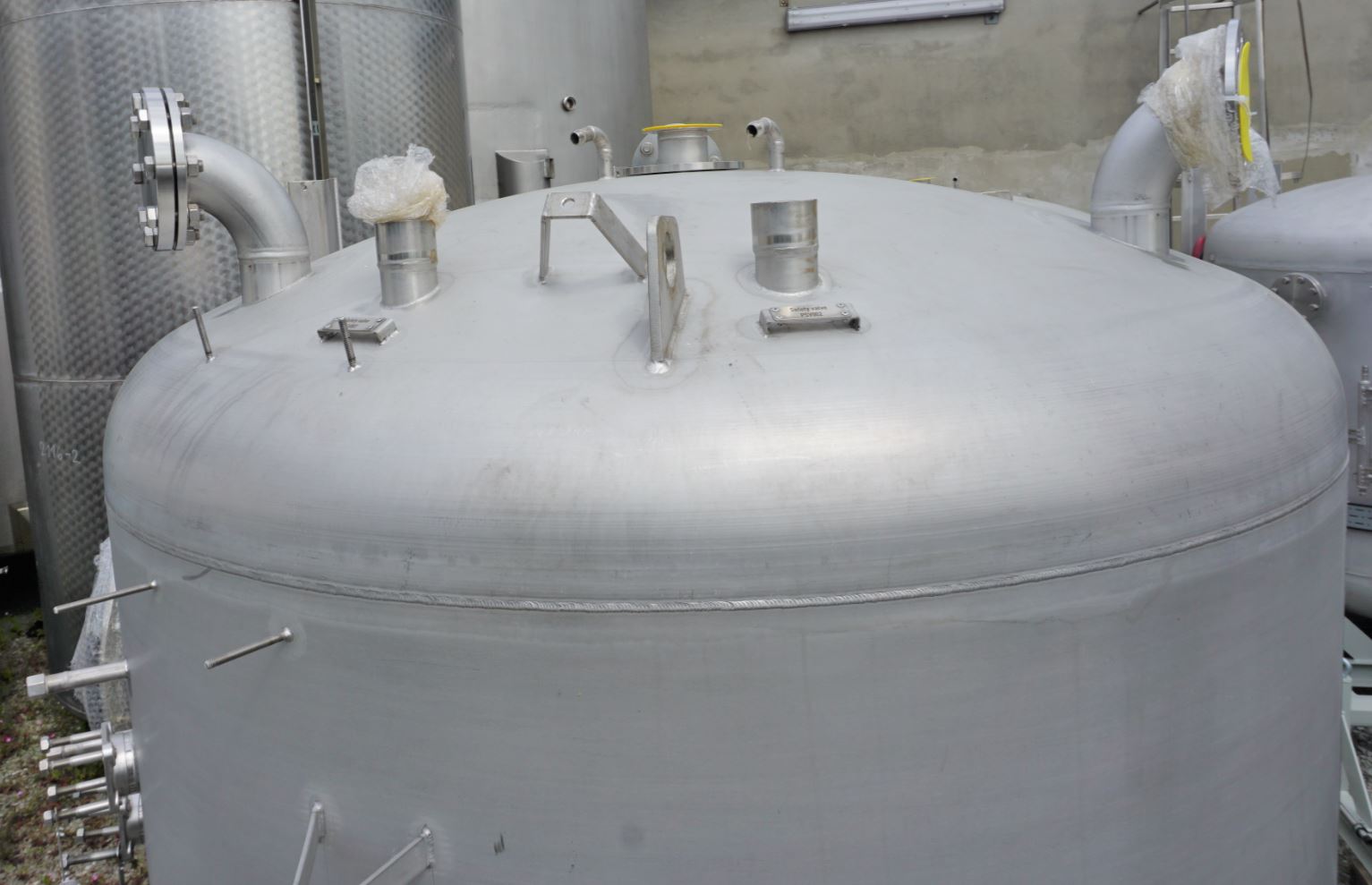

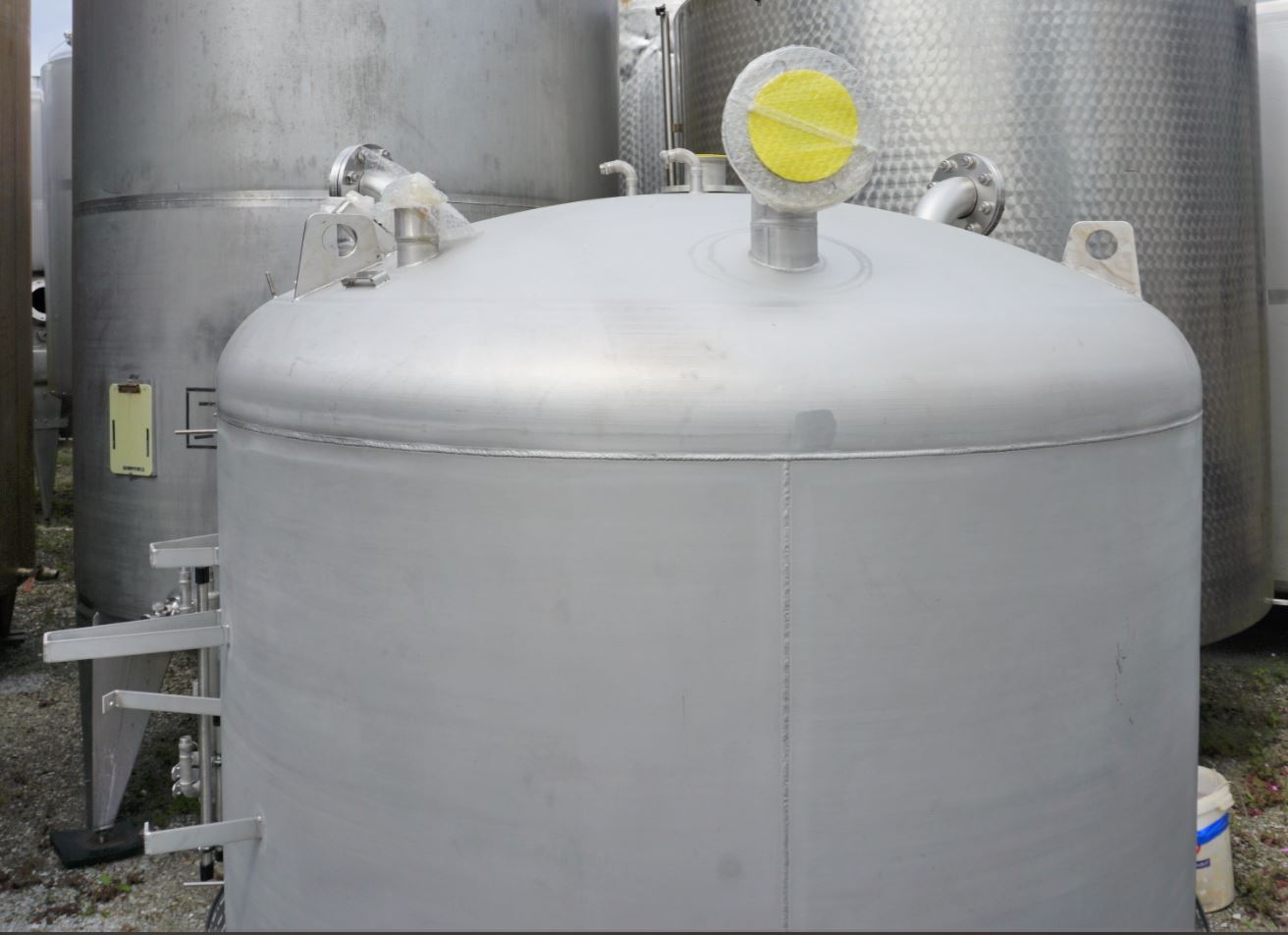

  • Nozzles/connectors in head

  • 3xDN80 (piece)

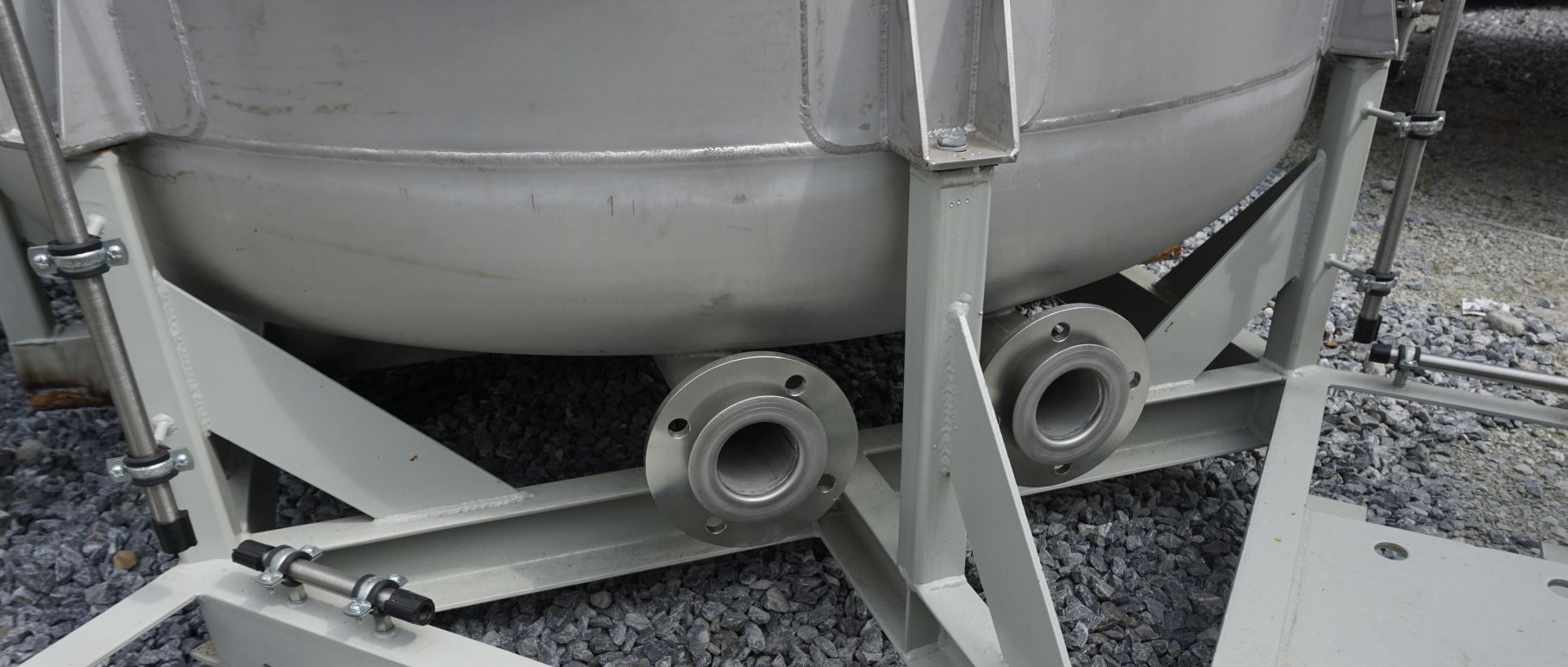

  • Nozzles/connectors in floor

  • 2xDN80 (piece)

  • Fixtures and fittings

  • Lifting lugs

Technical documentation

  • Technical documentation

  • None

Other

  • Note

  • Anschlüsse sind bei den Behälter unterschiedlich.

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank,
