Product no. M-2956

Container 3.000 liters made of V4A, temperature-controllable, used, standing

EUR 5.200,00

add. 19 % VAT excl. shipping costs


Volume approx. 3,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

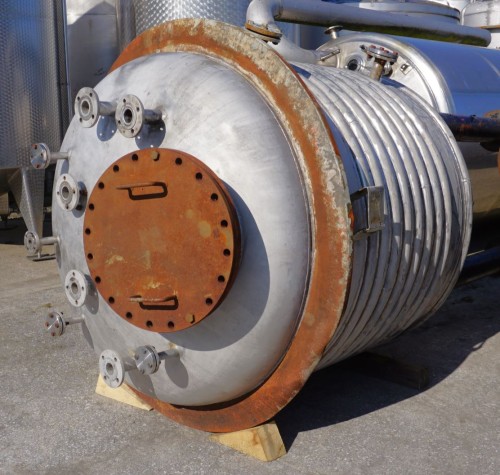

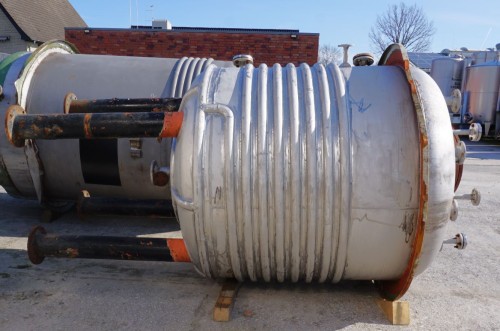

Container 3.000 liters made of V4A, temperature-controllable, used consists of the material 1.4571(AISI316) V4A. The volume is approx. 3,000.00 litres. The diameter inside includes 1,600 mm.  Container 3.000 liters made of V4A, temperature-controllable, used was last used in the following area: Chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Tempering, Under/over-pressure, Processes,

General

  • Volume approx.

  • 3.000,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.600 mm

  • External diameter

  • 1.800 mm

  • Cyl. height

  • 1.300 mm

  • Foot height

  • 1.370 mm

  • Total height

  • 3.270 mm

  • Wall thickness of product chamber head

  • 10,00 mm

  • Wall thickness of product chamber shell

  • 7,00 mm

  • Wall thickness of product chamber floor

  • 10,00 mm

Design

  • Weight approx.

  • 1.240,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

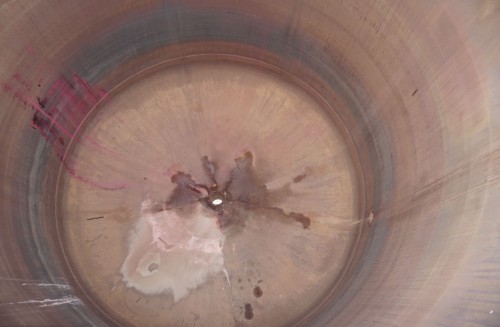

  • Interior surface

  • Matt

  • Exterior surface

  • Matt

  • Floor type

  • Torispherical bottom

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell and floor area

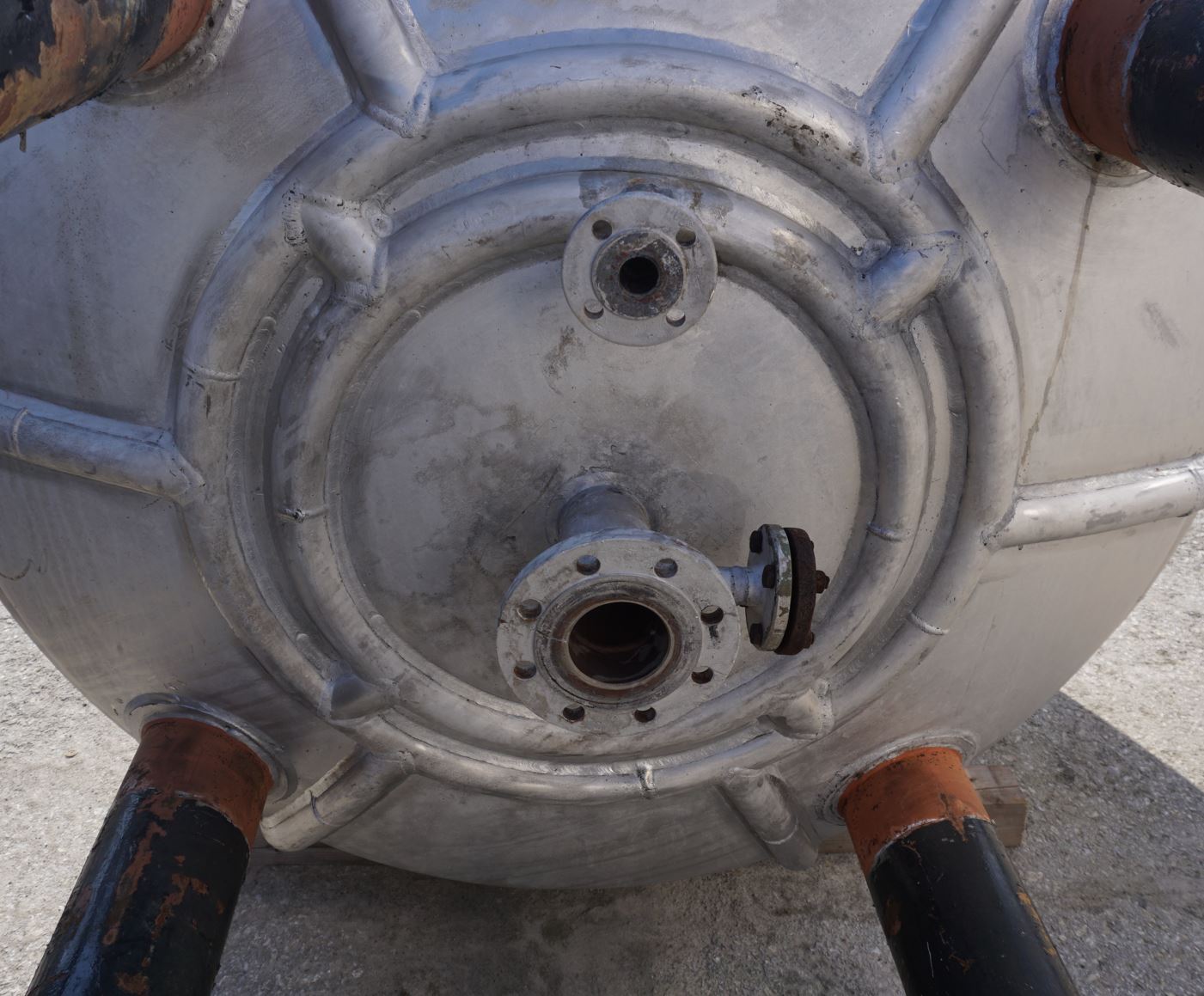

  • Temperature control system

  • Half-pipe coils

Supports

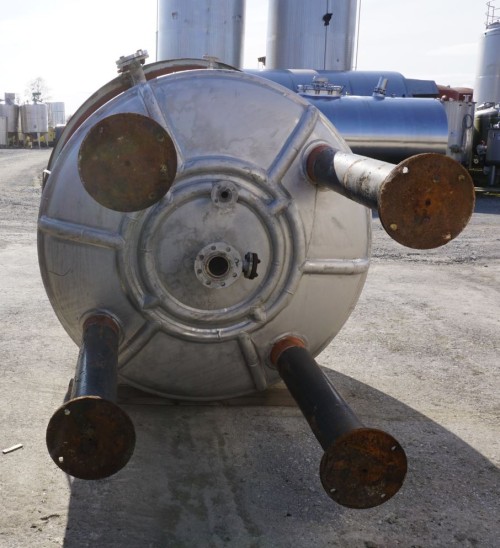

  • Supports

  • Steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

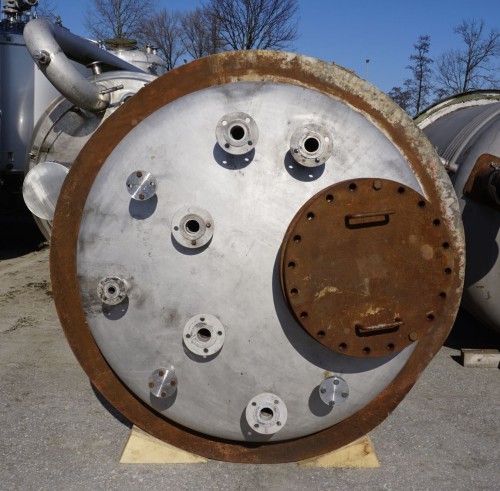

  • Manway 1 size

  • 500 DN mm

  • Manway position

  • In head

  • Nozzles/connectors in shell

  • 2xDN50 (piece)

  • Nozzles/connectors in head

  • 5xDN50 4xDN25 (piece)

  • Outlet nozzle

  • 80

Technical documentation

  • Technical documentation

  • None

Other

  • Note

  • ohne Typenschild

  • Last usage

  • Chemistry

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank, Process tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Chemical tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank,
