Product no. M-2808

Container 3.000 liters made of V2A isolated, used, standing

EUR 2.900,00

add. 19 % VAT excl. shipping costs


Volume approx. 3,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

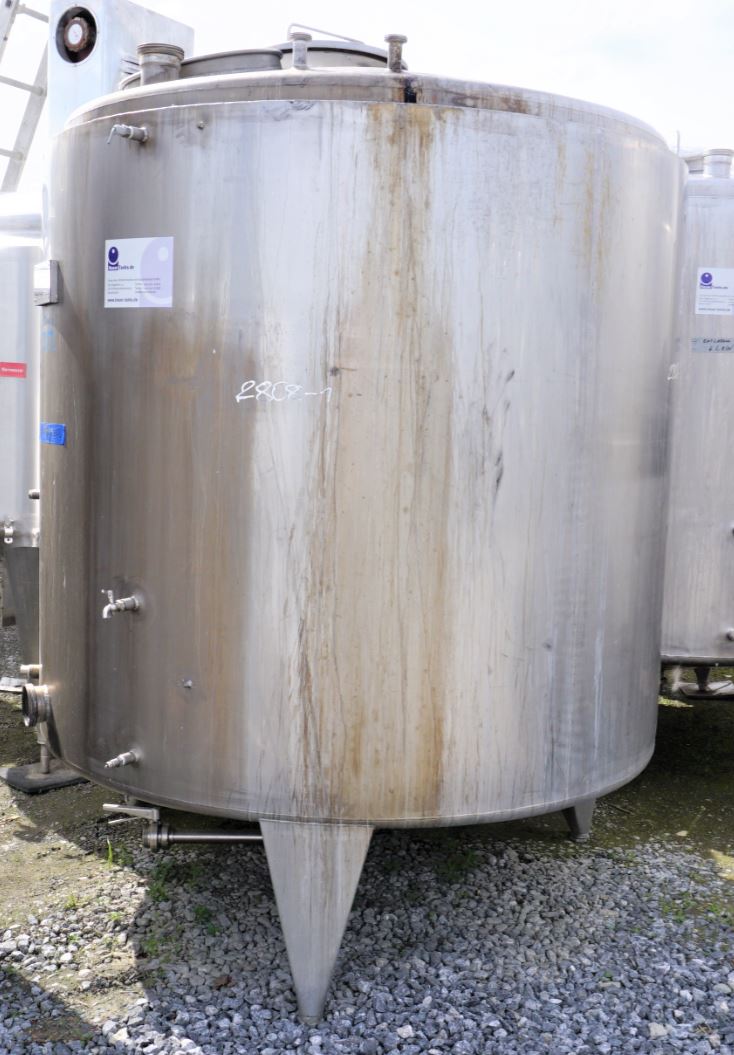

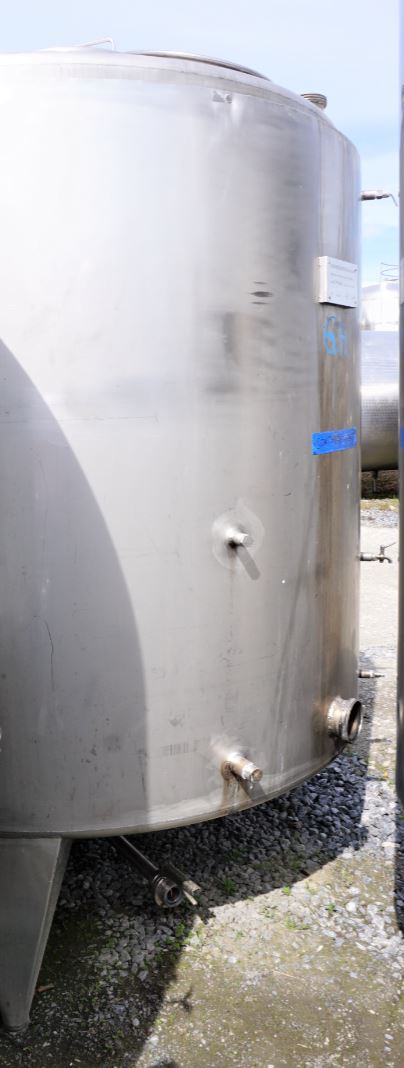

Container 3.000 liters made of V2A isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 3,000.00 litres. The diameter inside includes 1,600 mm.  Container 3.000 liters made of V2A isolated, used was last used in the following area: CIP/cleaning system. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Cleaning/CIP,

General

  • Volume approx.

  • 3.000,00 litres

  • Structure

  • Standing

  • Manufacturer

  • Scherzberg Tettnang

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.600 mm

  • External diameter

  • 1.700 mm

  • Cyl. height

  • 1.500 mm

  • Foot height

  • 500 mm

  • Total height

  • 2.400 mm

Design

  • Weight approx.

  • 500,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

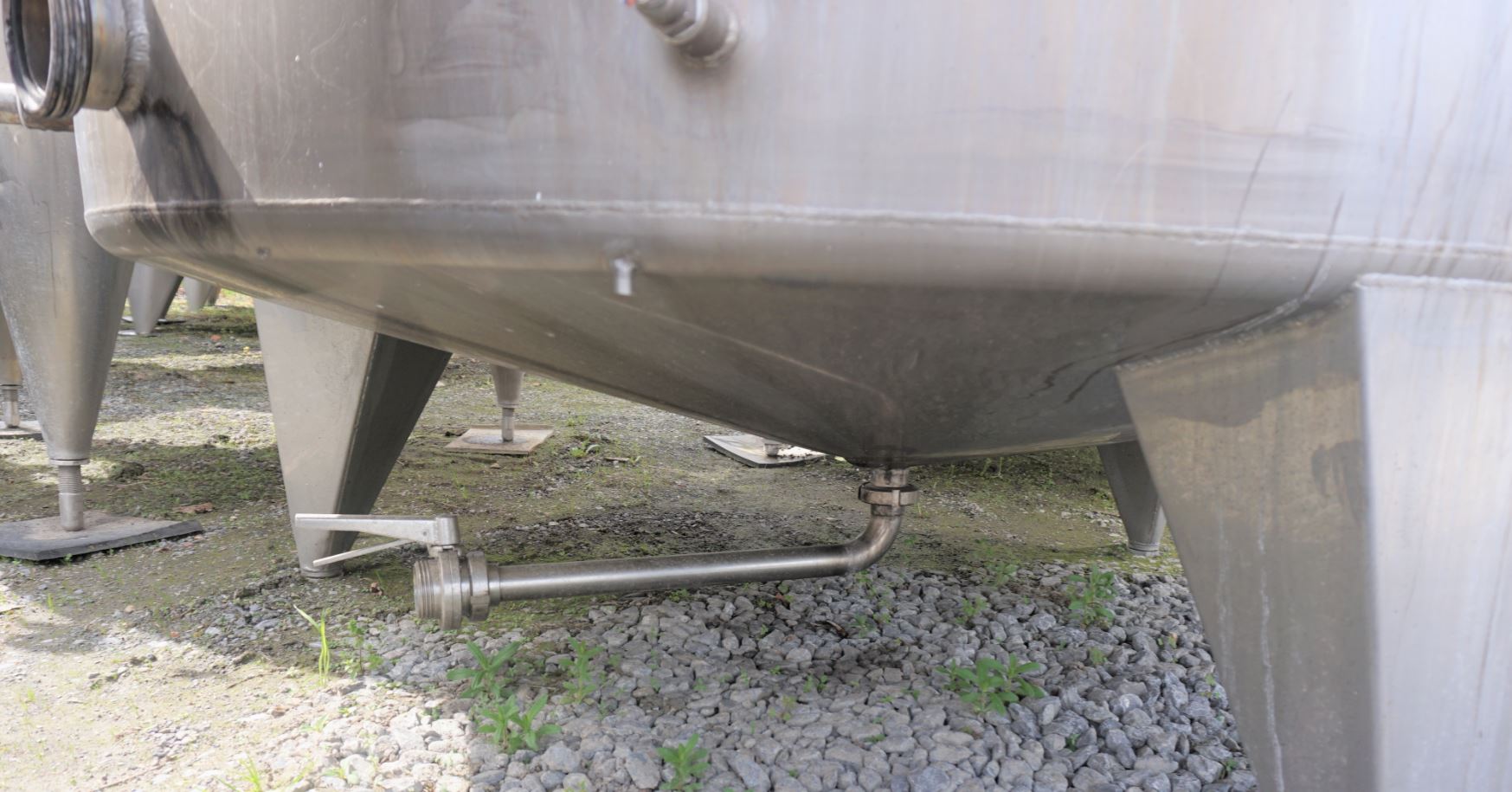

  • Floor type

  • Conical bottom

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

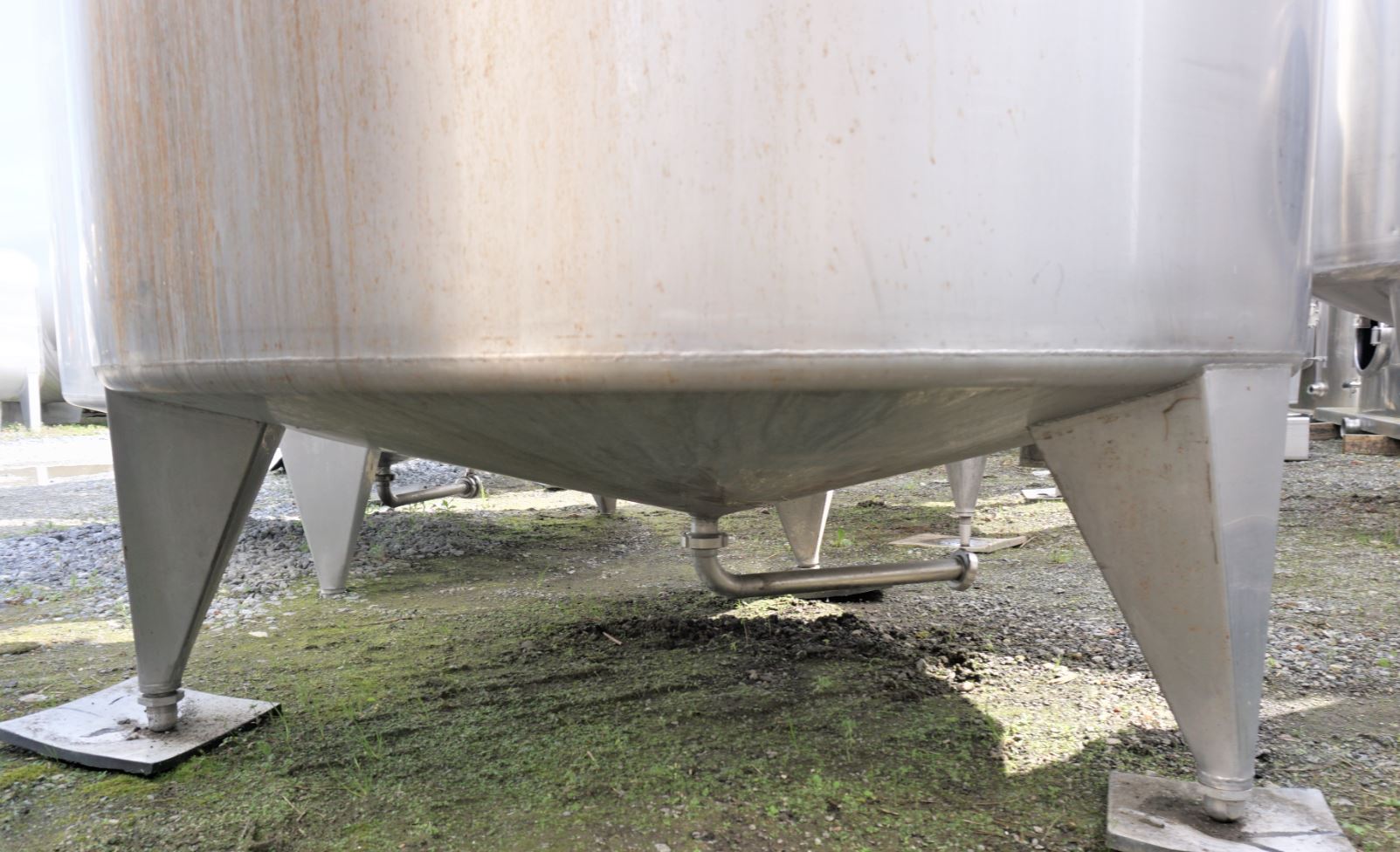

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

  • Note on supports

  • hoehenverstellbar

Fixtures and fittings

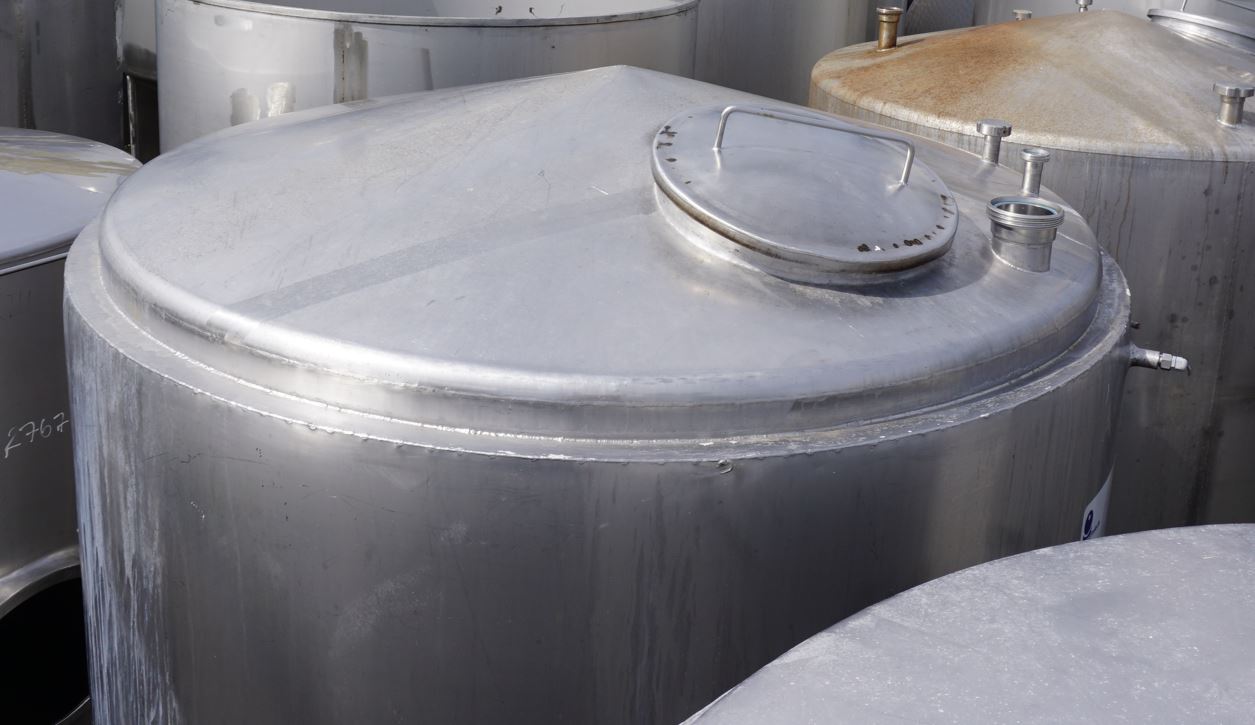

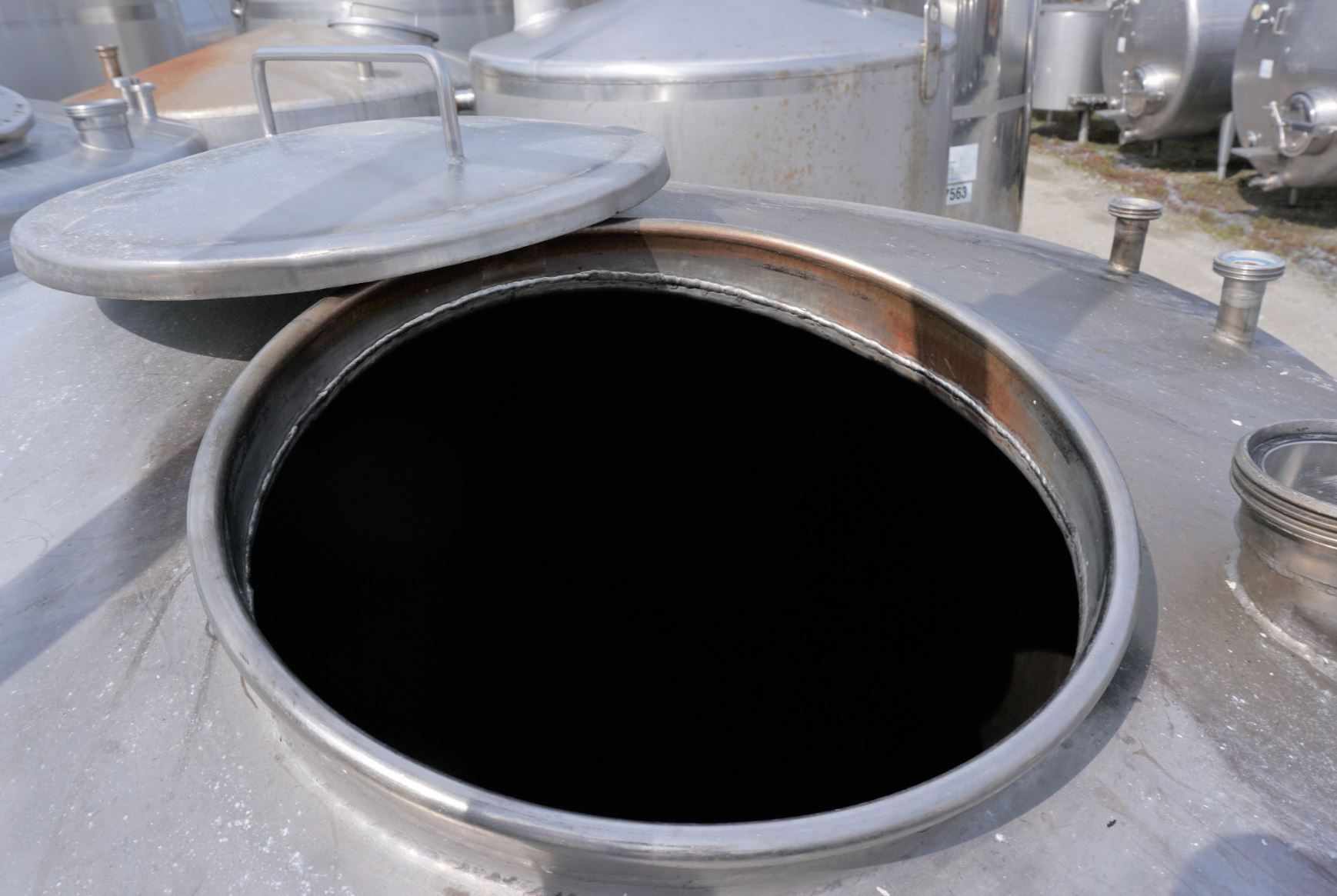

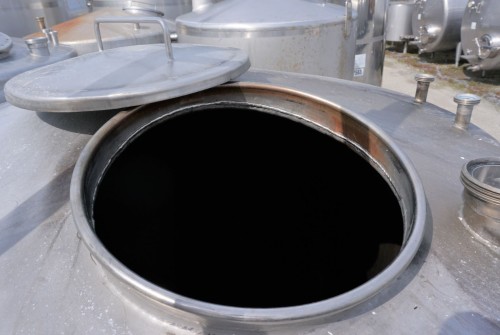

  • Manway position

  • In head

  • Nozzles/connectors in head

  • 2xDN32 1xDN80 (piece)

  • Outlet nozzle

  • 40

  • Additional fixtures and fittings

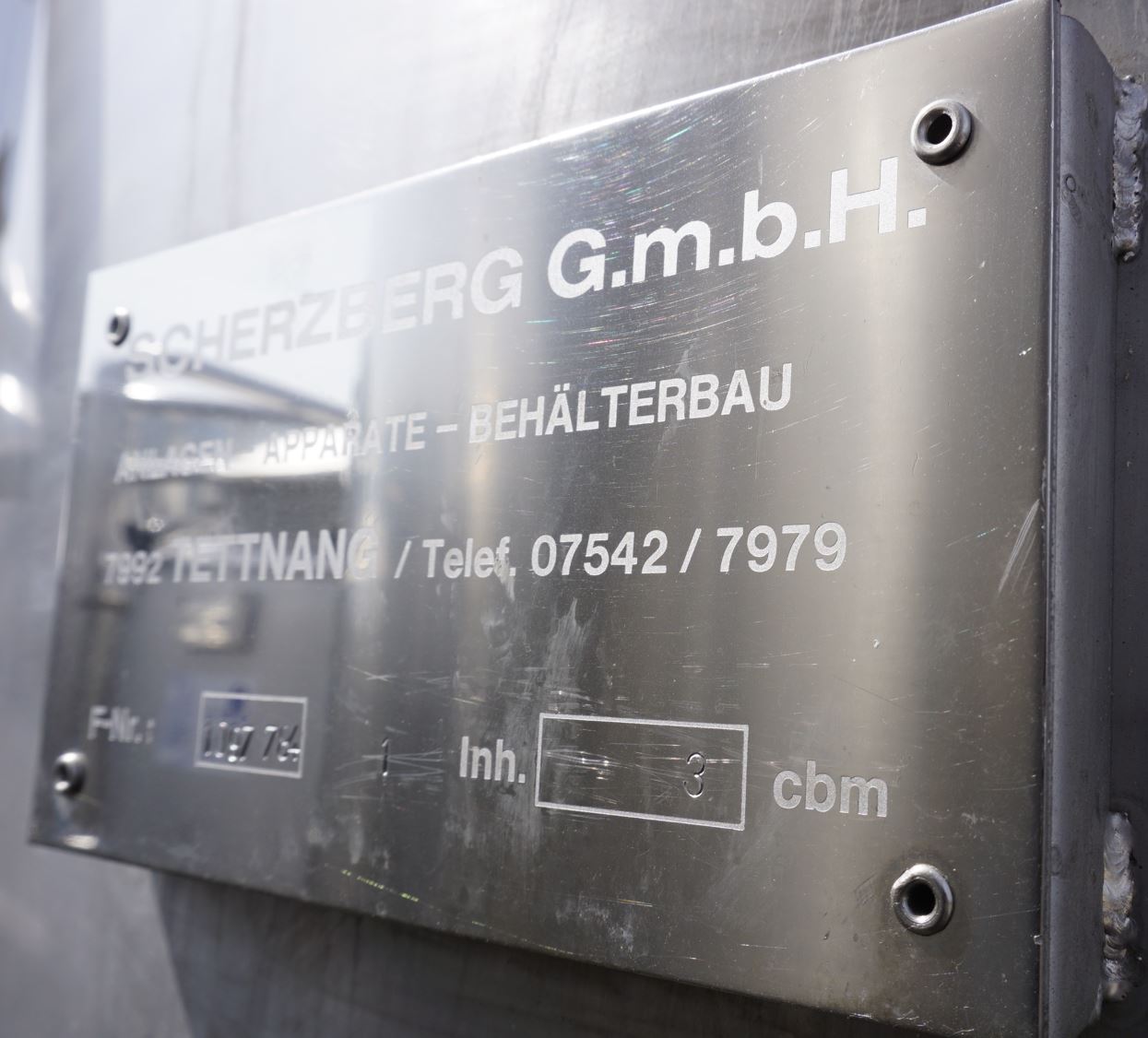

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Note

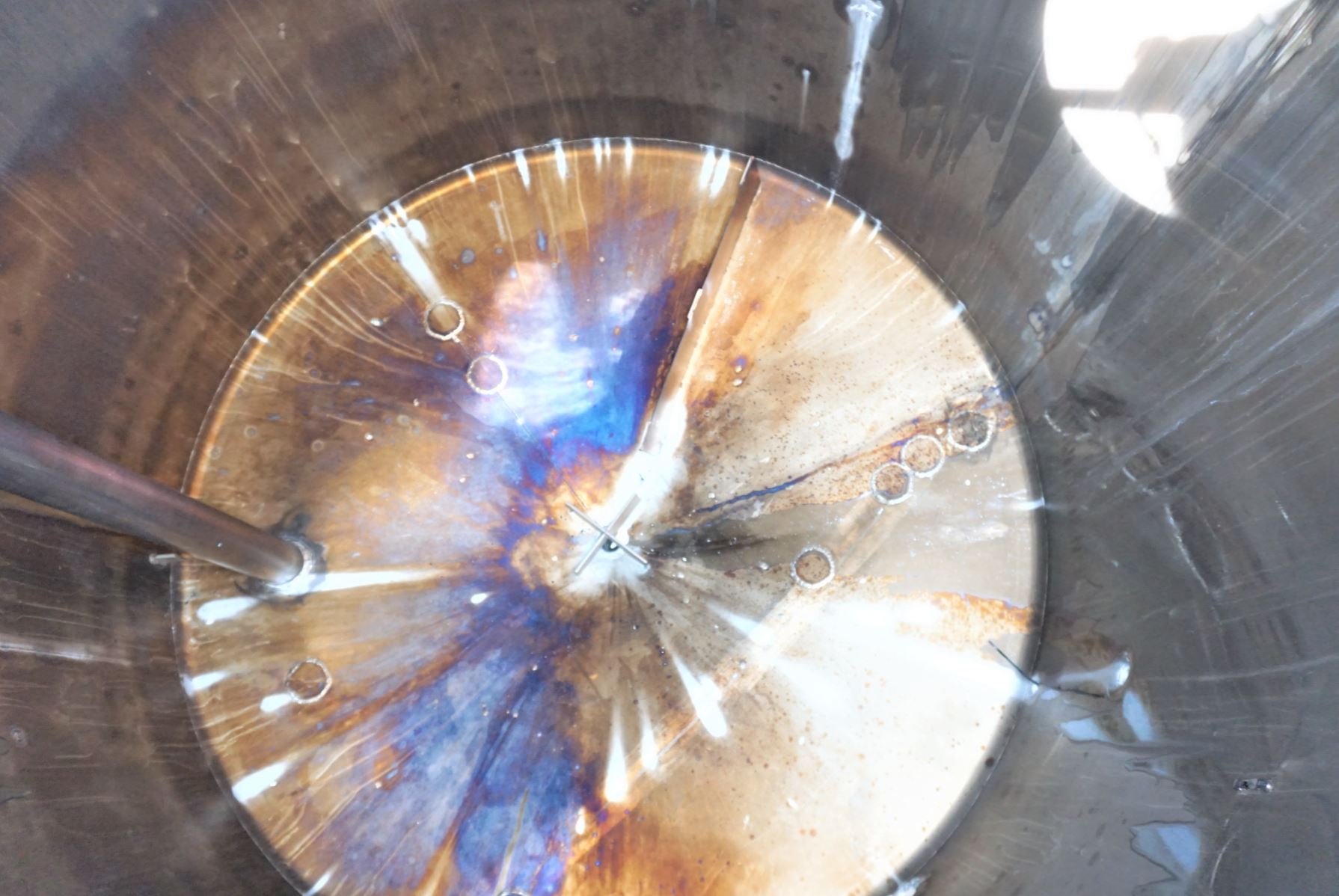

  • innen braun verfärbt

  • Last usage

  • CIP/cleaning system

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank,

Chemistry and pharmaceuticals : Pharmaceuticals tank, Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank, Cold water tank,
