Product no. M-3033

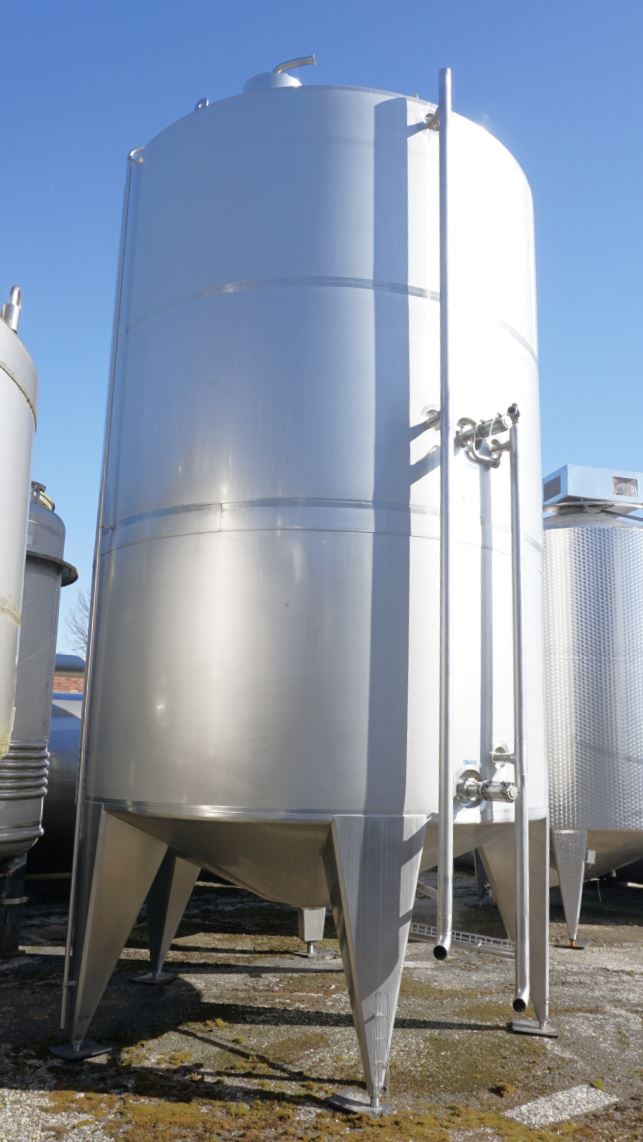

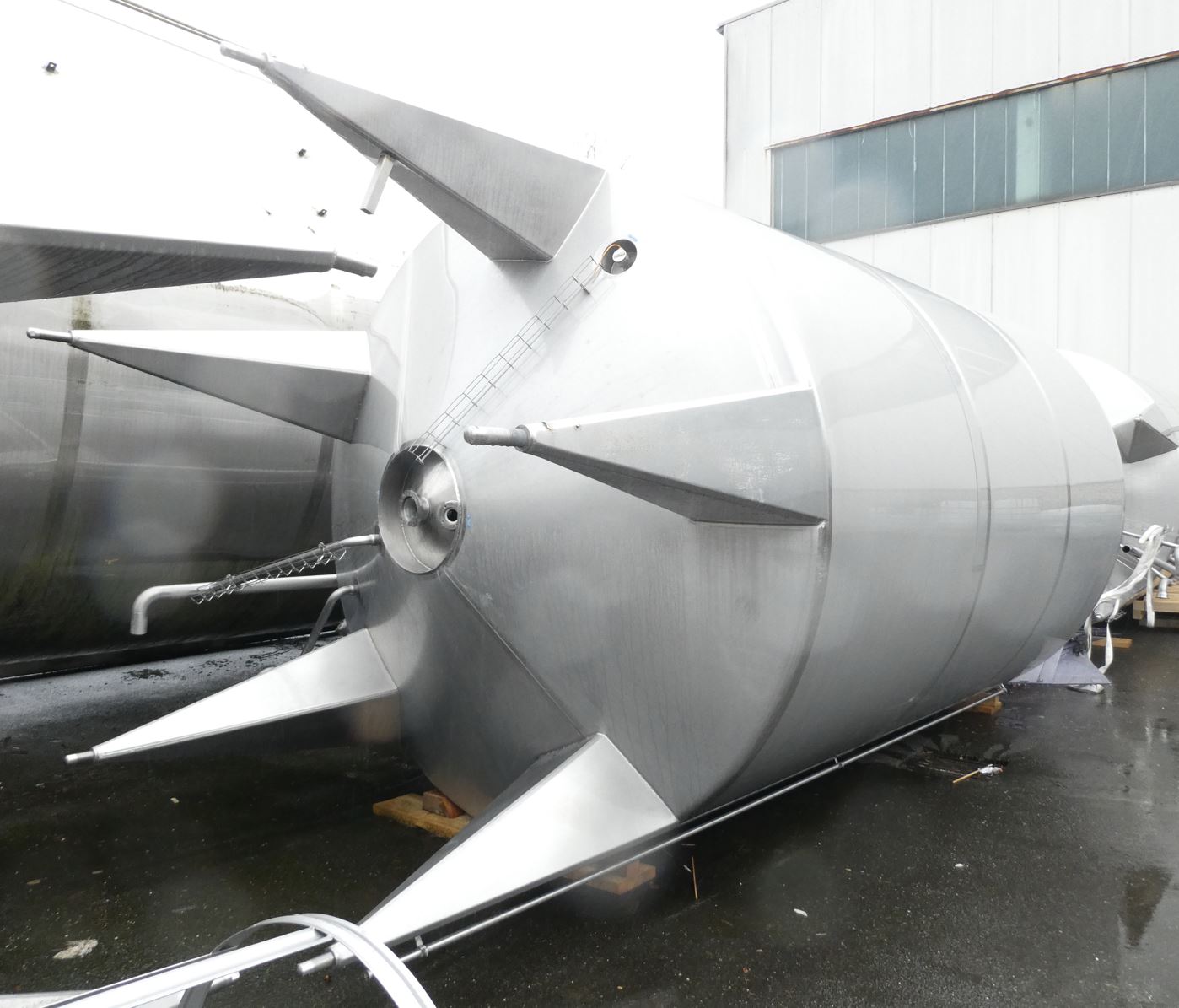

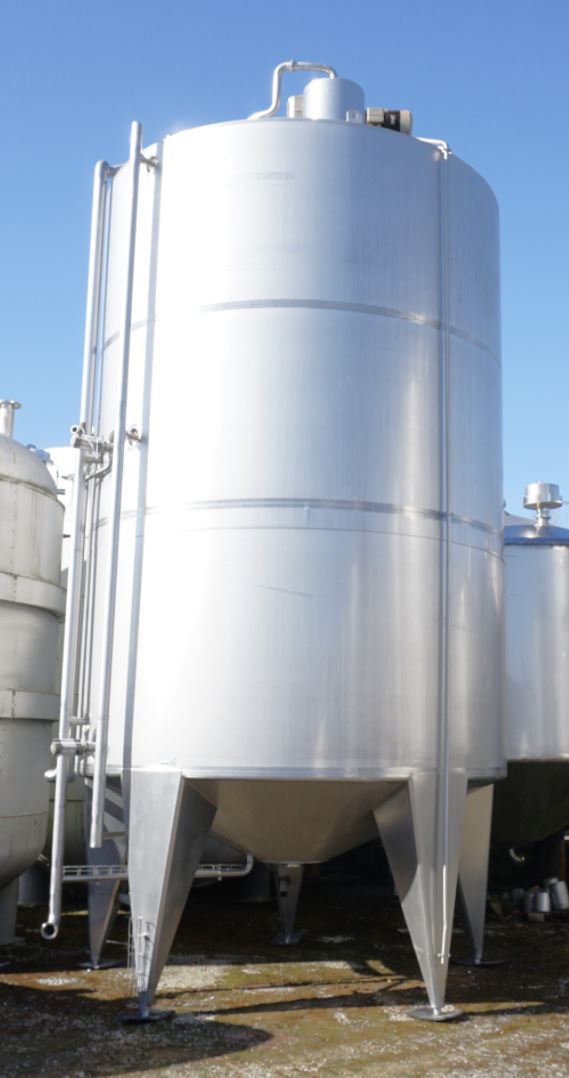

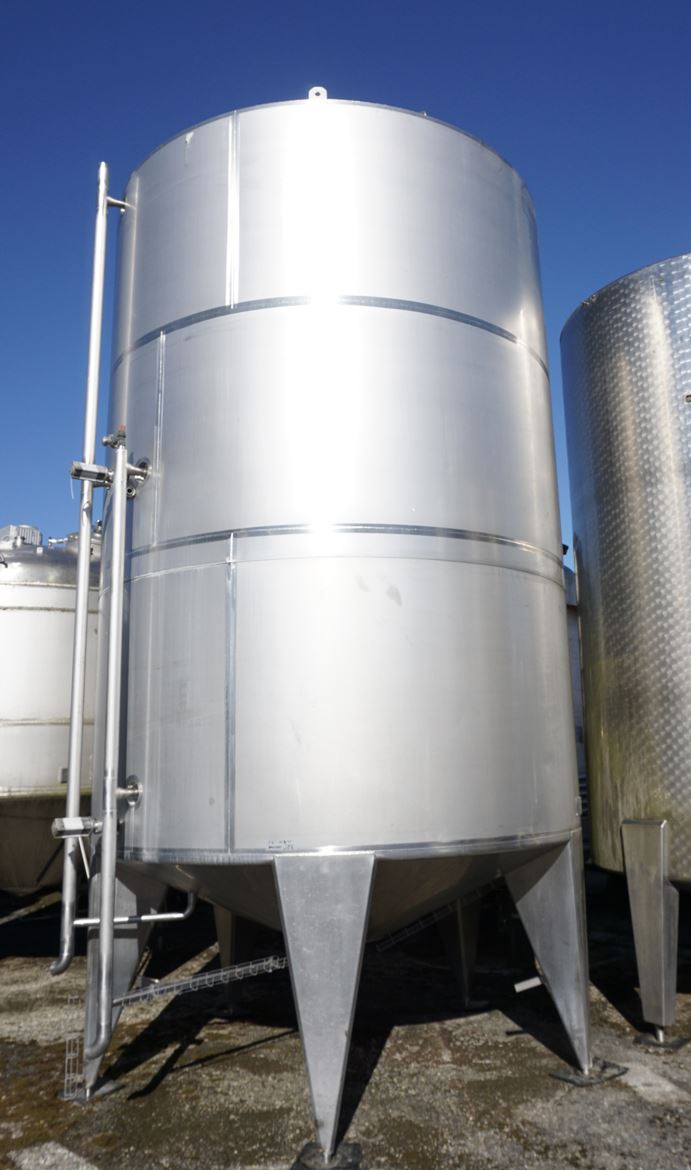

Container 25.000 liters made of V4A, temperature-controllable, isolated, used, standing

EUR 31.700,00

add. 19 % VAT excl. shipping costs


Volume approx. 25,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details   Downloads

Product description

Container 25.000 liters made of V4A, temperature-controllable, isolated, used consists of the material 1.4571(AISI316) V4A. The volume is approx. 25,000.00 litres. The diameter inside includes 2,750 mm. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Boiling, Cooling, Tempering, Mixing, Processes,

General

  • Note on material

  • 1.4404

  • Volume approx.

  • 25.000,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 2007

  • Manufacturer

  • Ullmann

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 2.750 mm

  • External diameter

  • 2.925 mm

  • Cyl. height

  • 4.000 mm

  • Total height

  • 6.500 mm

  • Wall thickness of product chamber head

  • 4,00 mm

  • Wall thickness of product chamber shell

  • 4,00 mm

  • Wall thickness of product chamber floor

  • 4,00 mm

Design

  • Weight approx.

  • 2.500,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

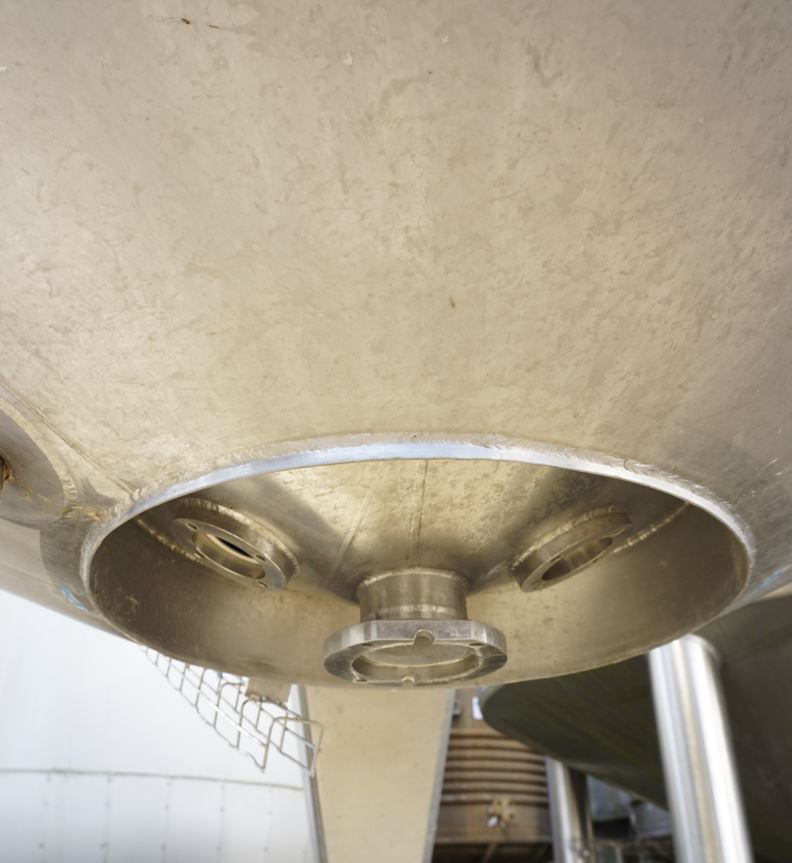

  • Floor type

  • Conical bottom

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

  • Product chamber operating temperature

  • 55,00 °C

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell and floor area

  • Operating temperature

  • 55 °C

  • Temperature control system operating pressure/pipe chamber

  • 3,0 bar

  • Temperature control system operating temperature/pipe chamber

  • 15 °C

  • Temperature control system/pipe chamber capacity

  • 469 litres

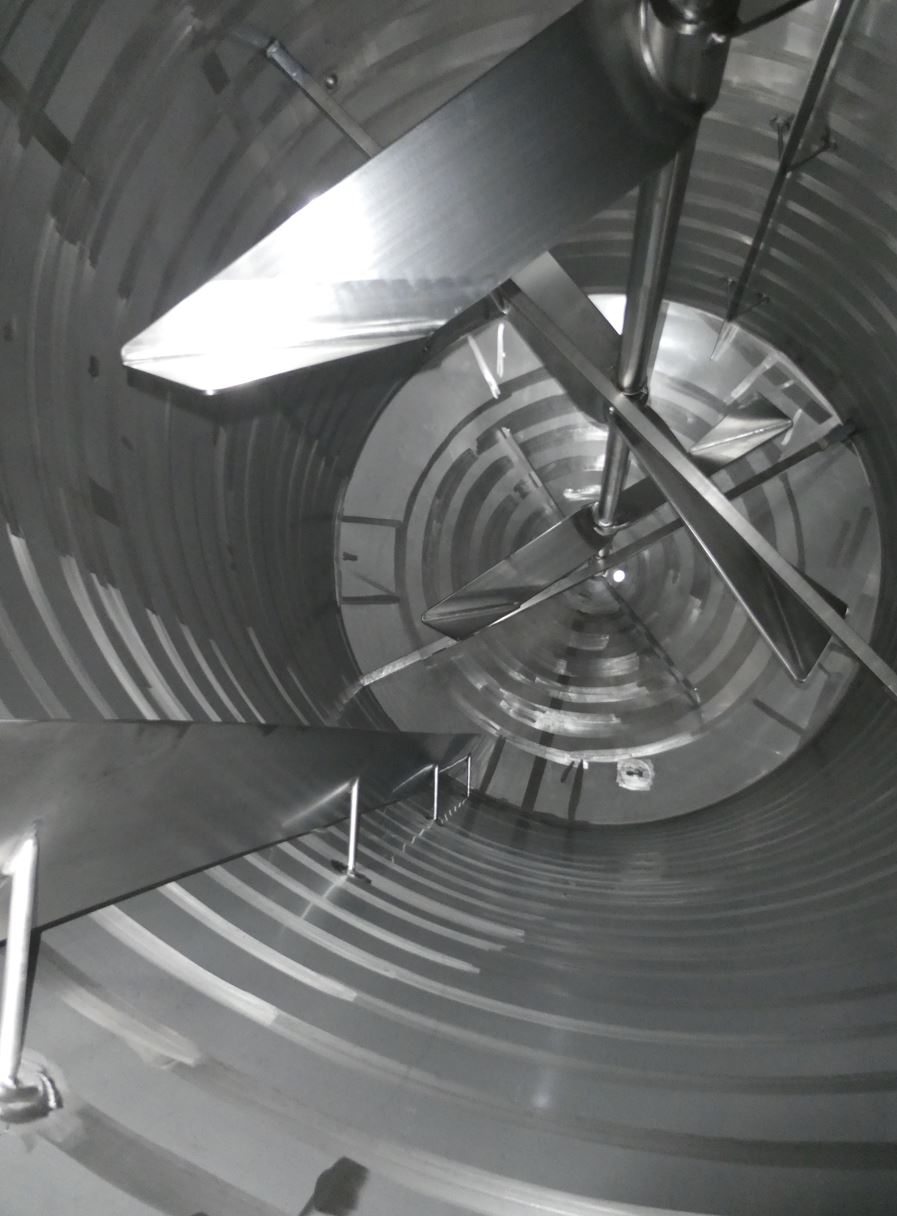

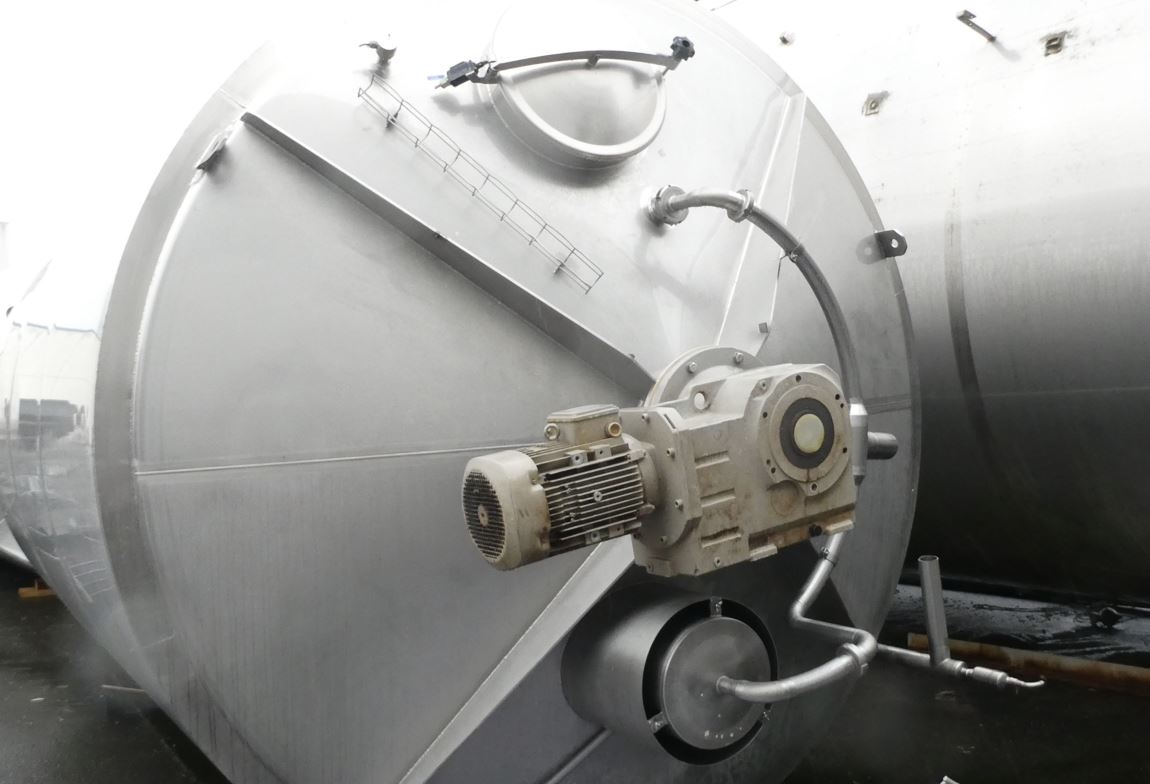

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Zeta agitator

  • Agitator position

  • Head central

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 5 (piece)

  • Note on supports

  • höhenverstellbar

Fixtures and fittings

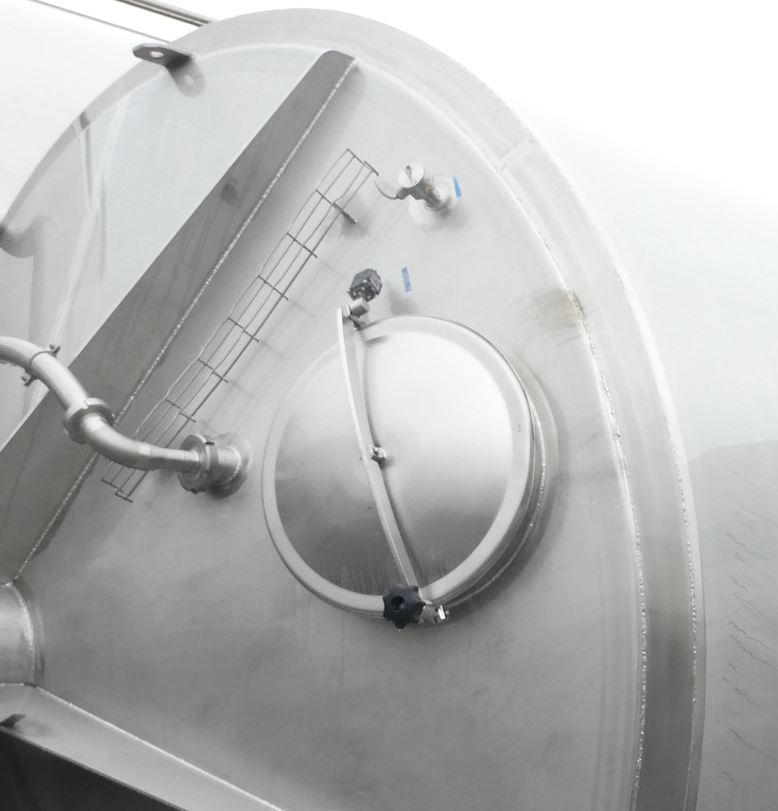

  • Manway 1 size

  • 500 DN mm

  • Manway position

  • In head

  • Outlet nozzle

  • 80

  • Cleaning/CIP nozzle

  • in head

  • Additional fixtures and fittings

  • Air vent

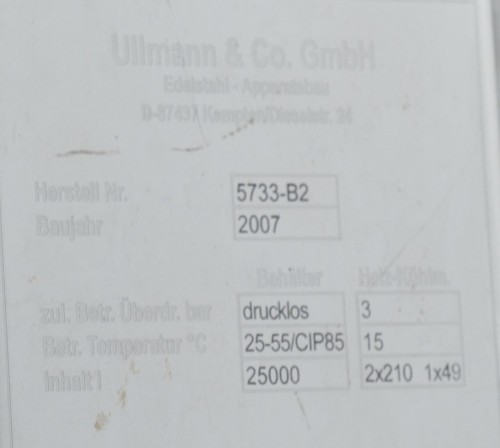

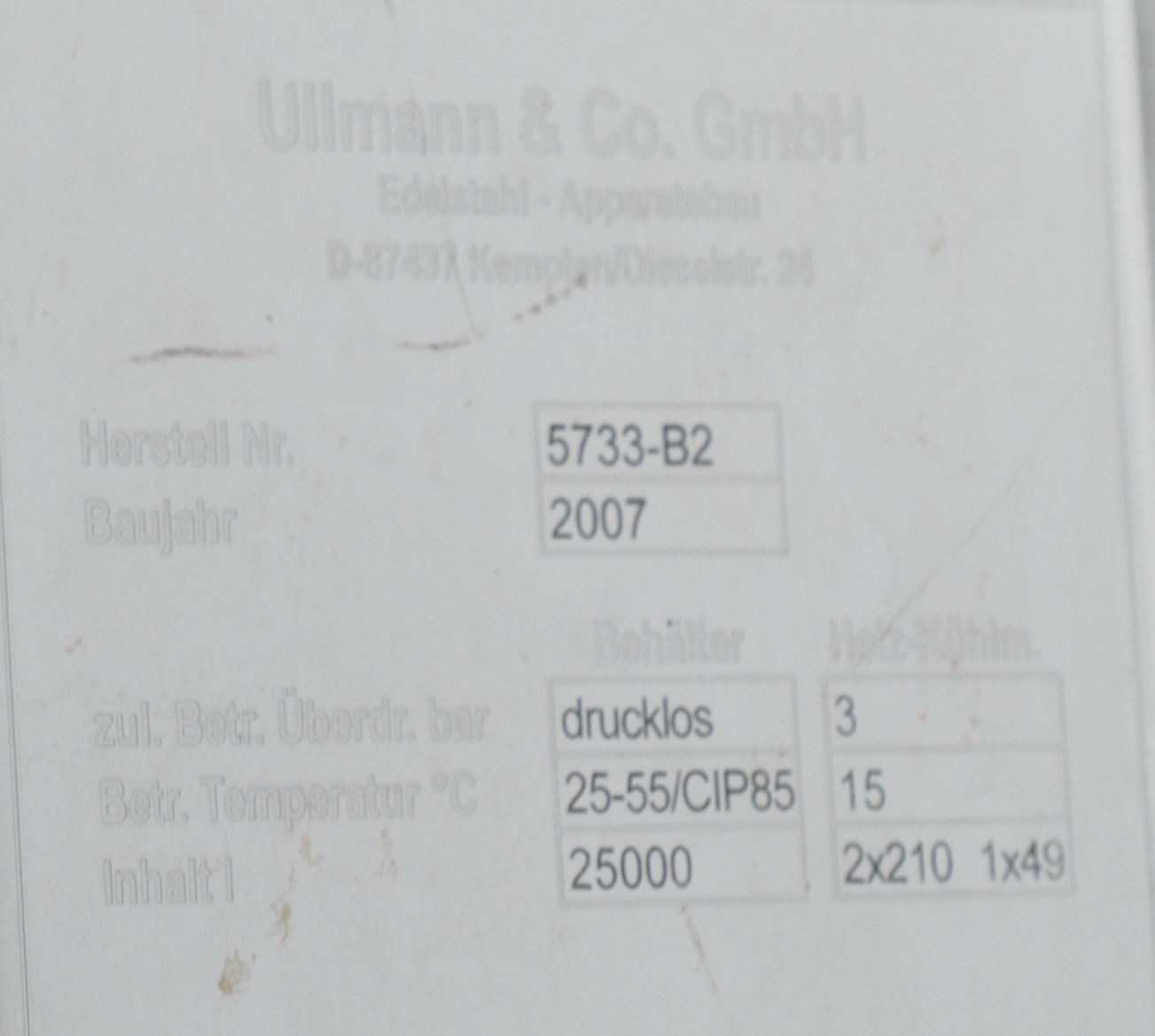

  • Nameplate

Technical documentation

  • Technical documentation

  • Designation

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Wine tank, Mash tank, Fruit juice tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank, Boiling tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank, Cooling tank, Boiling tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank, Cooling tank,

Downloads

filefile size
  3033-13.pdf0.37 MB
