Product no. M-3014

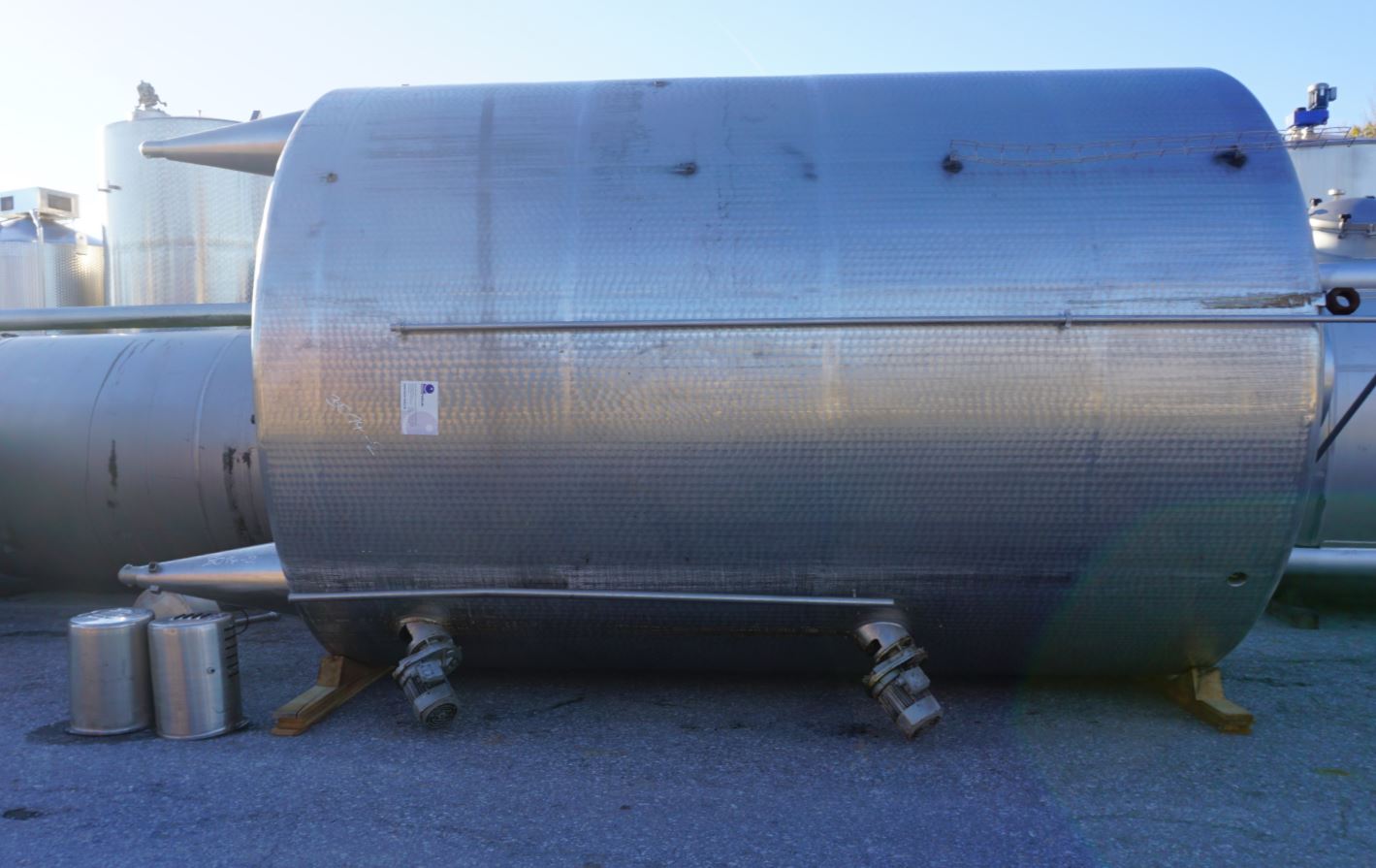

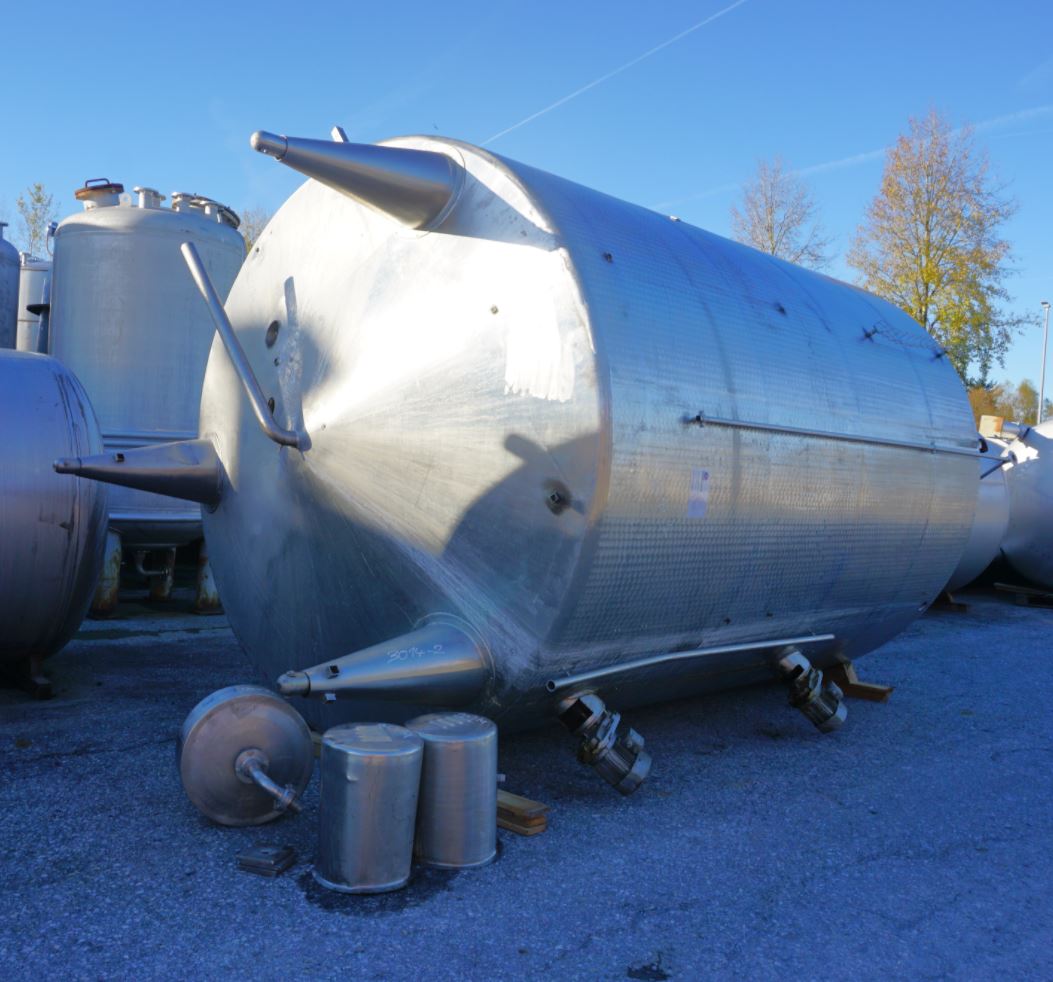

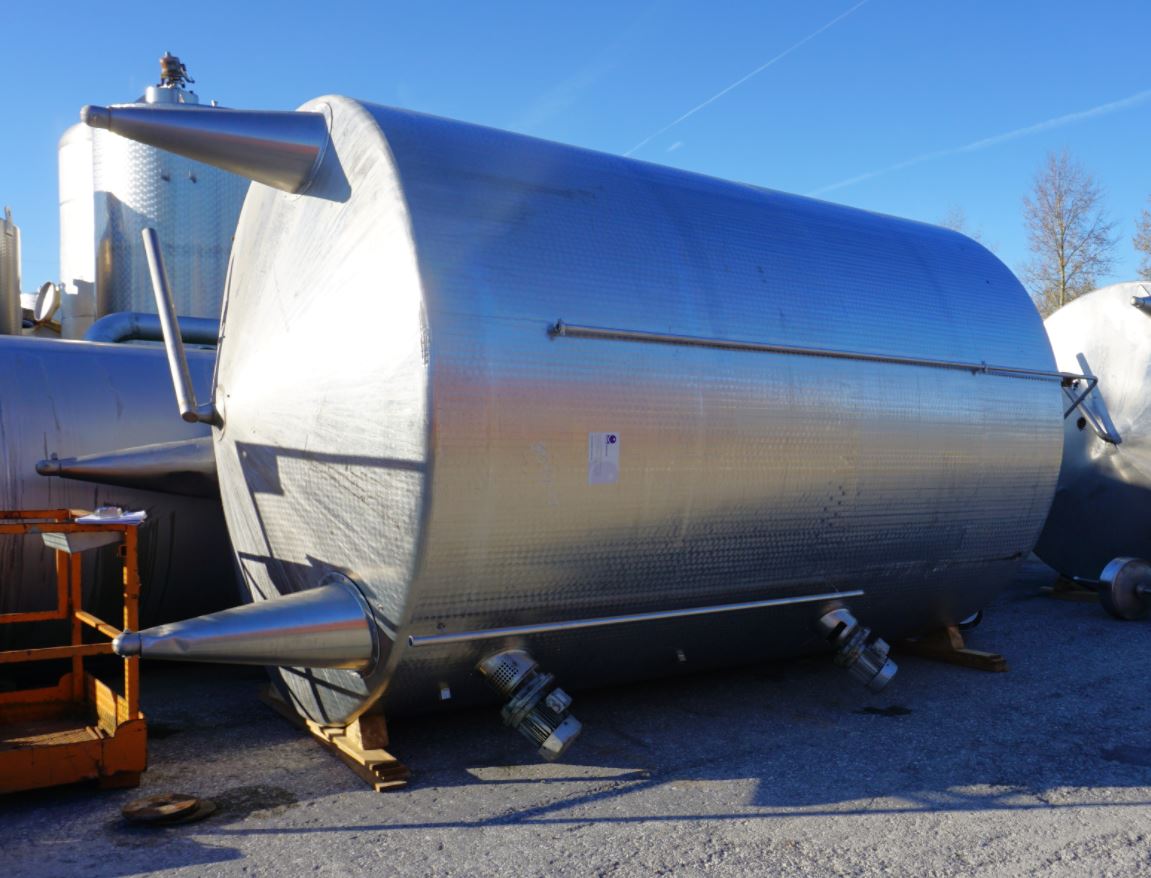

Container 25.000 liters made of V2A, isolated, used, standing
EUR 12.800,00
add. 19 % VAT excl. shipping costs
Volume approx. 25,000.00 litres
Product description
Container 25.000 liters made of V2A, isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 25,000.00 litres. The diameter inside includes 2,780 mm. Container 25.000 liters made of V2A, isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage, Mixing,General
Volume approx.
25.000,00 litres
Structure
Standing
Manufacturer
TUS Tschechien
Condition
Used
Dimensions approx.
Internal diameter
2.780 mm
External diameter
2.900 mm
Cyl. height
4.100 mm
Foot height
1.000 mm
Total height
6.000 mm
Design
Weight approx.
3.000,00 kg
Weight per unit volume approx.
1.000,00 kg/m³
Insulation
yes
Insulated area
Shell and floor
Insulation cladding
Fully welded stainless steel
Interior surface
Smoothed
Exterior surface
Marbled

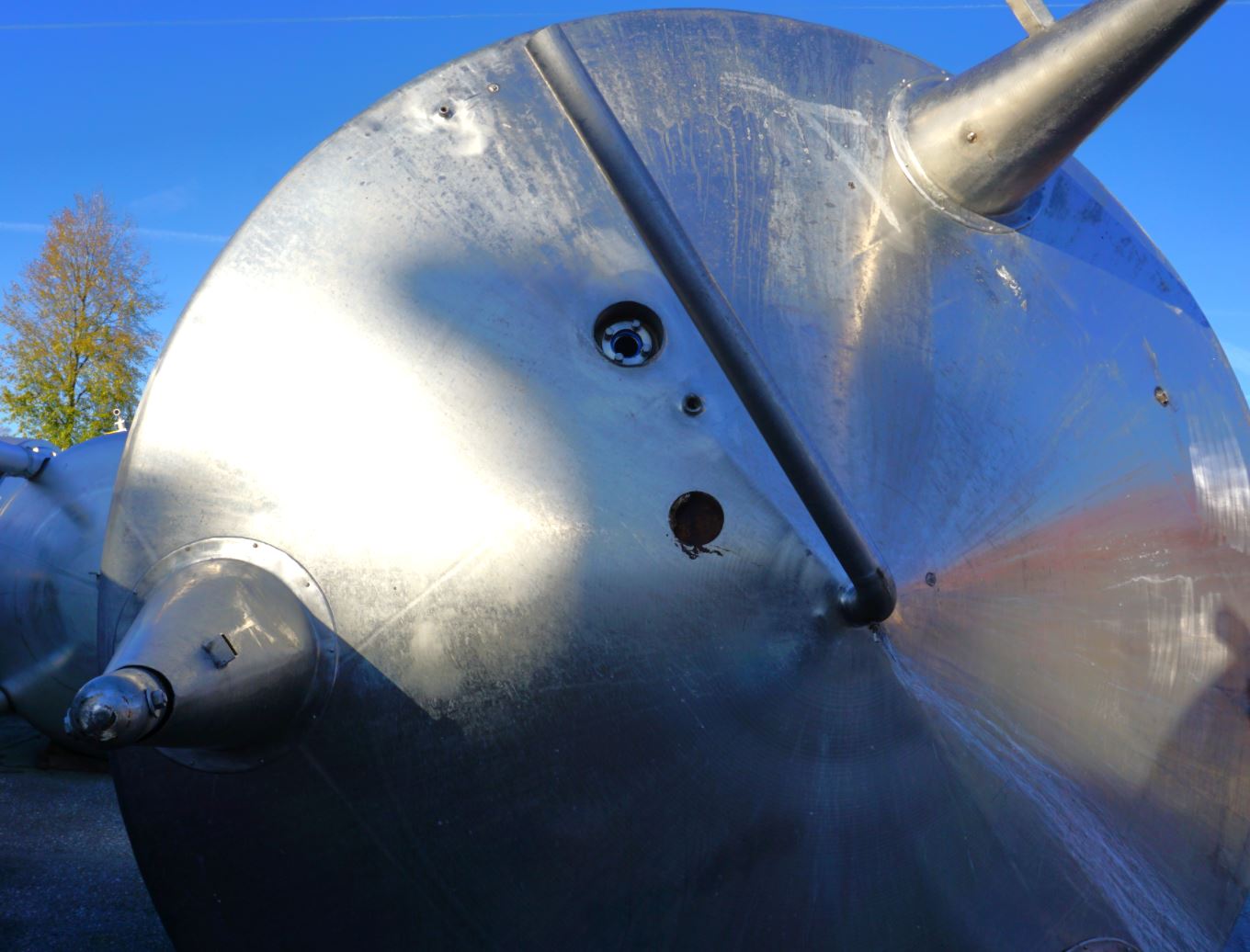

Floor type
Conical bottom
Head design
Conical bottom

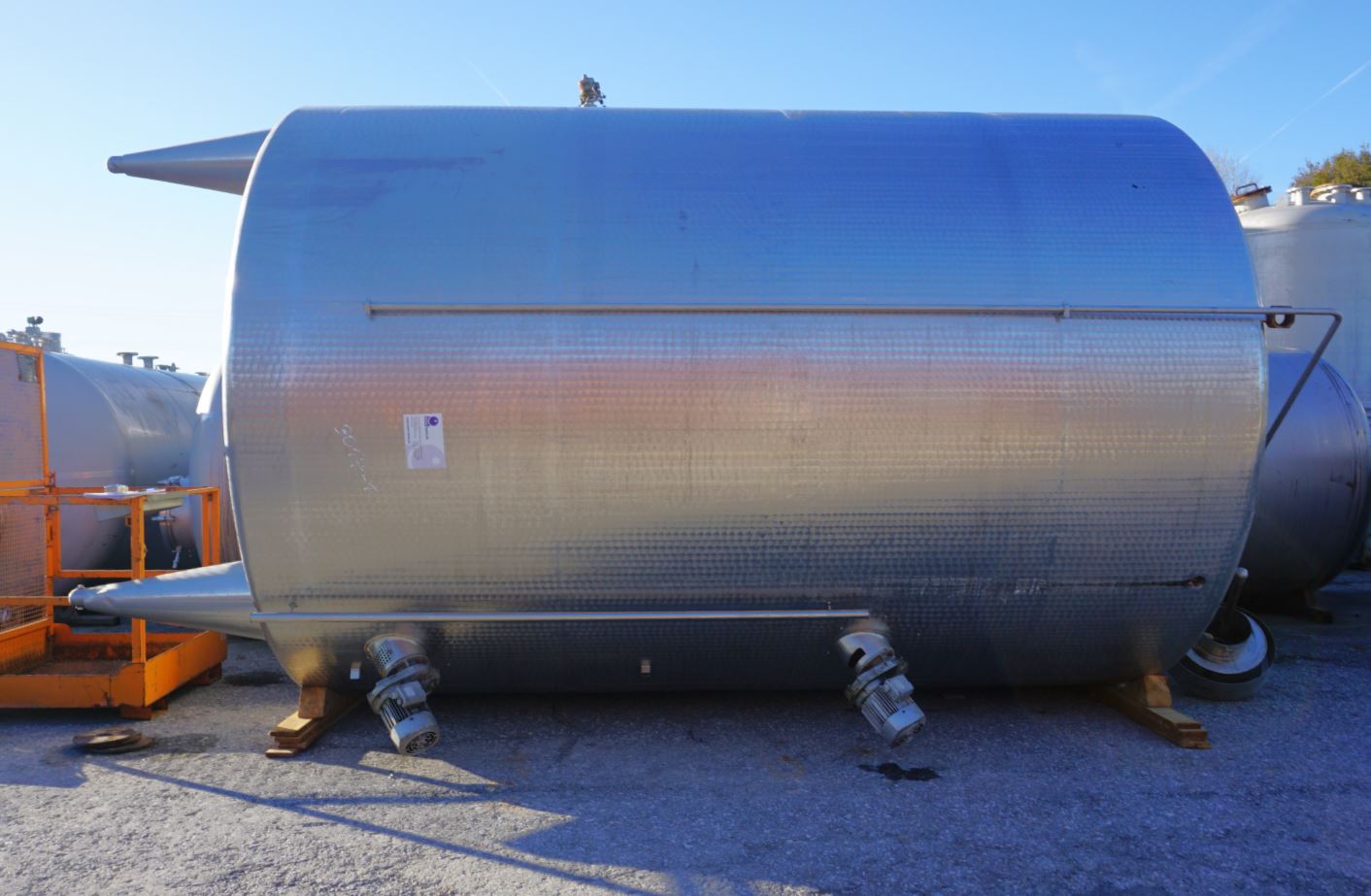

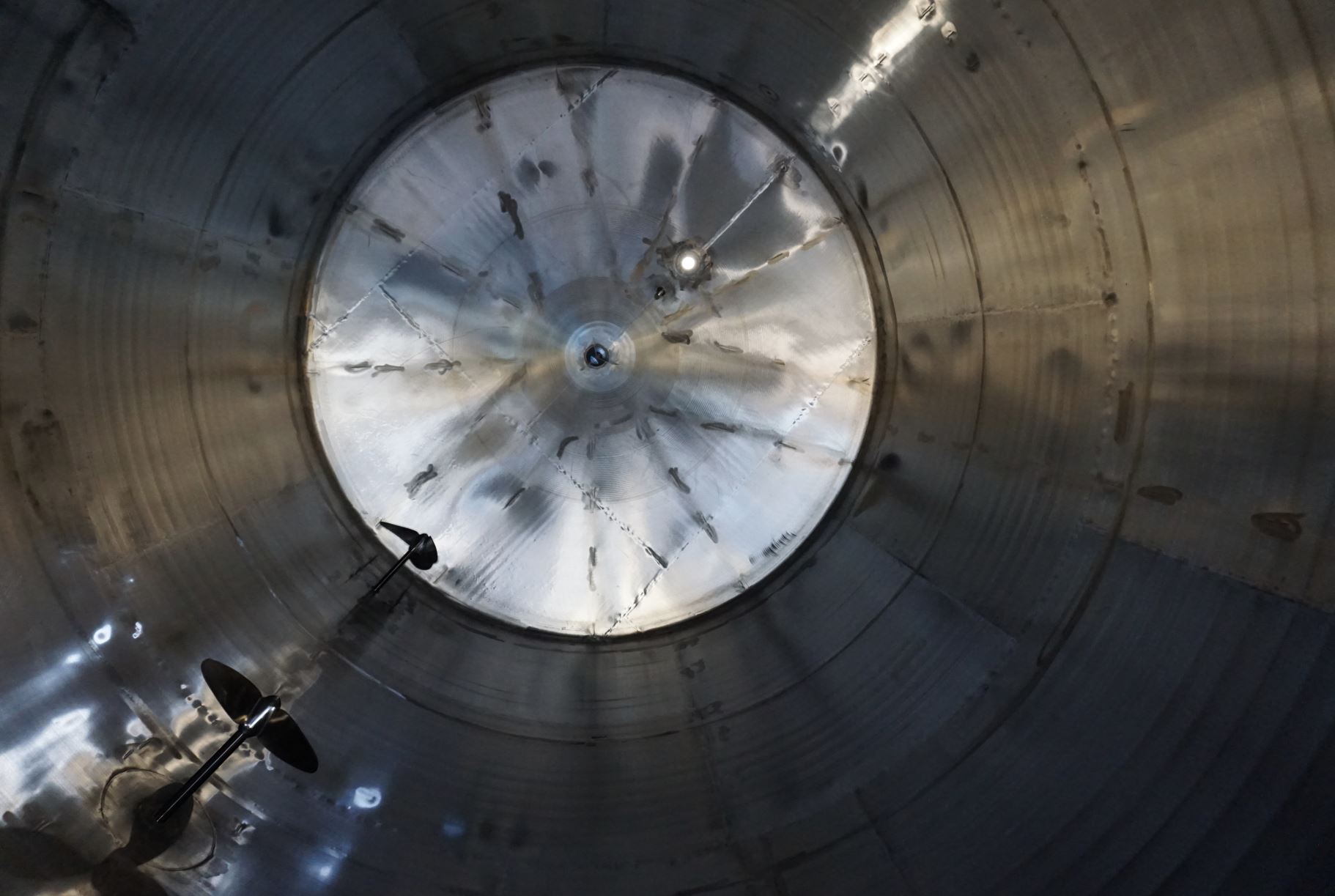

Agitator
Agitator quantity
2 (piece)
Agitator type
Propeller
Agitator position
Central at the side in shell
Supports
Supports
Stainless steel feet
Number of feet
3 (piece)
Note on supports
höhenverstellbar, 1 Fuß leicht verbeult
Fixtures and fittings

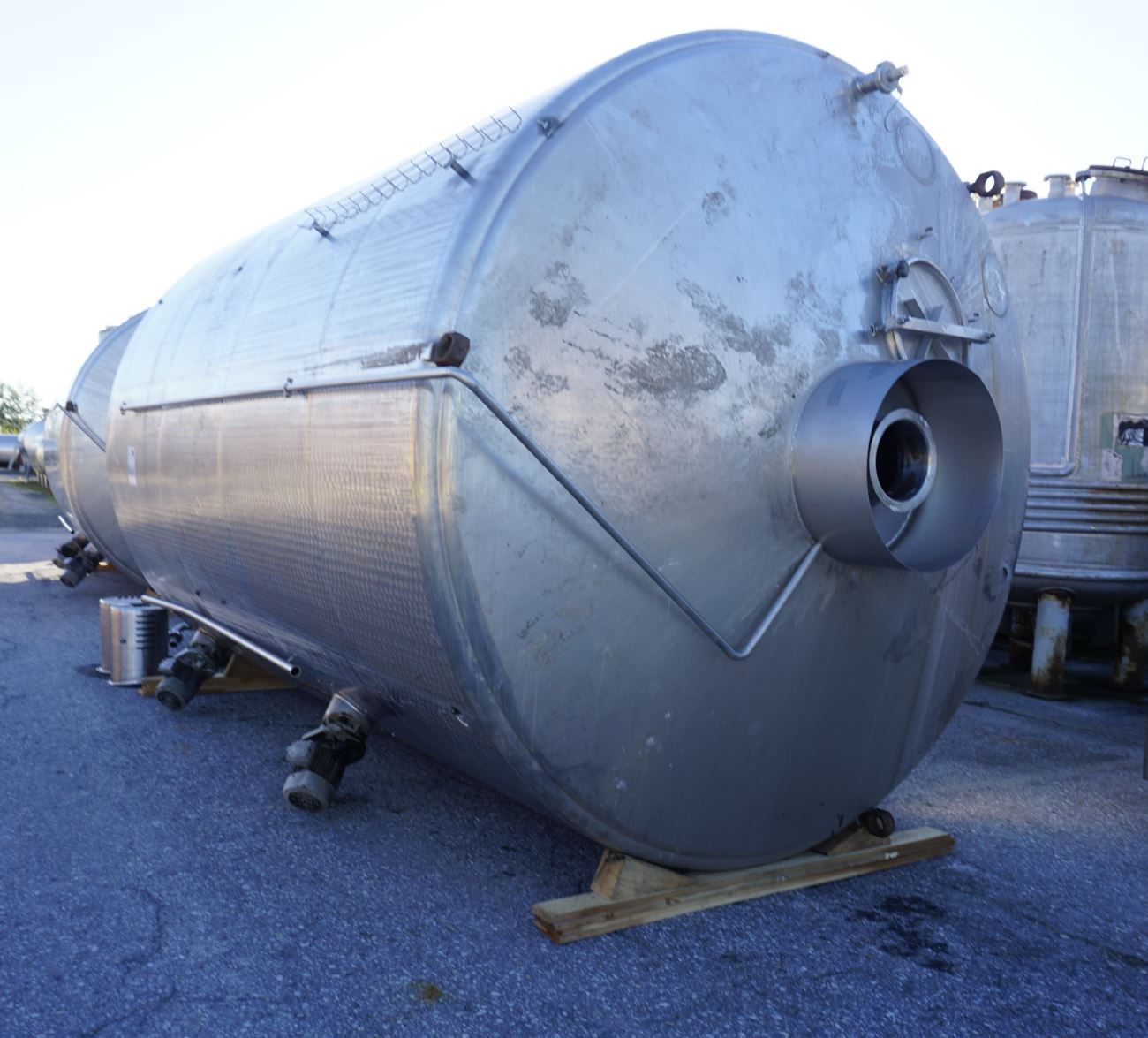

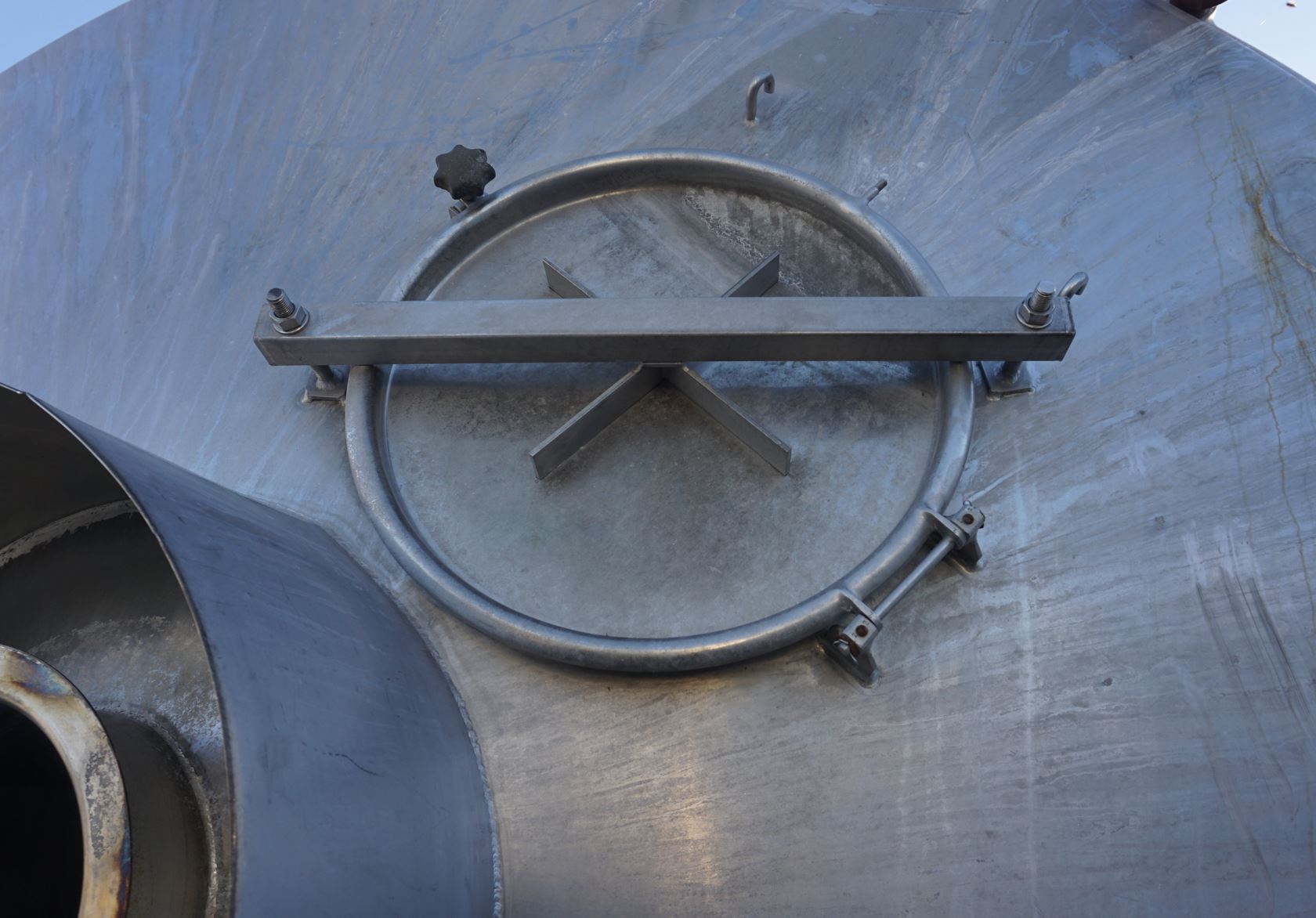

Manway position
In head

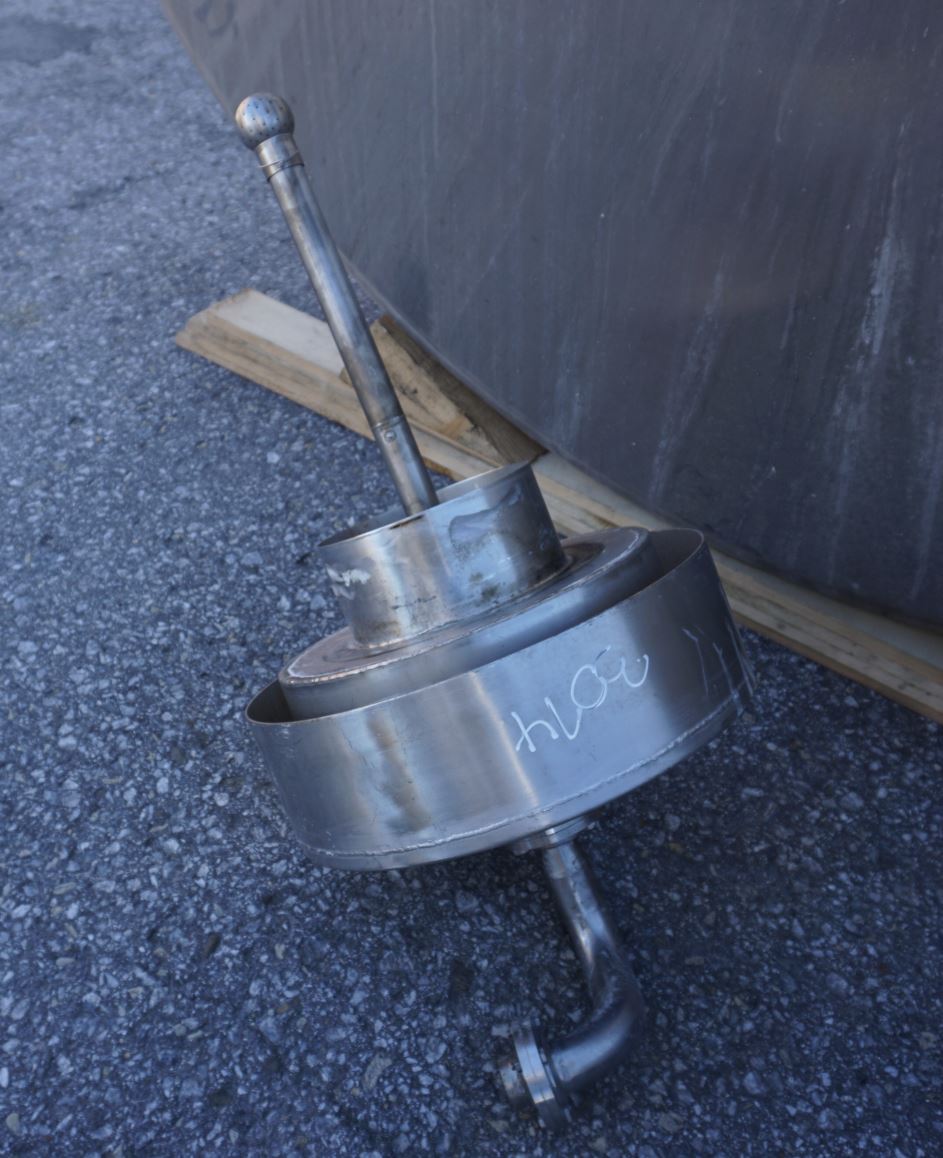

Outlet nozzle
65
Cleaning/CIP nozzle
in head
Fixtures and fittings
Lifting lugs
Additional fixtures and fittings
Air vent
Technical documentation
Technical documentation
None
Other
Note
1 Fuß mit kleiner Beule, VA-abgedeckte Unterkonstruktion/Abstandshalter in Stahl.
Last usage
Foodstuffs
This product is suitable for use as:
Foodstuffs: Foodstuffs tank, Water tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
Chemistry and pharmaceuticals : Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
