Product no. M-2587

Container 24.500 liters made of V2A single-walled, used, standing

EUR 13.200,00

add. 19 % VAT excl. shipping costs


Volume approx. 24,500.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details   Downloads

Product description

Container 24.500 liters made of V2A single-walled, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 24,500.00 litres.  Container 24.500 liters made of V2A single-walled, used was last used in the following area: Chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage,

General

  • Volume approx.

  • 24.500,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1998

  • Manufacturer

  • Hagemann

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 2.100 mm

  • Cyl. height

  • 6.500 mm

  • Foot height

  • 850 mm

  • Total height

  • 7.000 mm

  • Wall thickness of product chamber head

  • 3,00 mm

  • Wall thickness of product chamber shell

  • 3,00 mm

  • Wall thickness of product chamber floor

  • 3,00 mm

Design

  • Weight approx.

  • 1.850,00 kg

  • Weight per unit volume approx.

  • 1.300,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

  • Product chamber operating temperature

  • 100,00 °C

Supports

  • Supports

  • Steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Manway 1 size

  • 500 DN mm

  • Manway 2 size

  • 520 DN mm

  • Manway 3 size

  • 400 DN mm

  • Manway position

  • In shell and head

  • Nozzle connector

  • Flange

  • Outlet nozzle

  • 50

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

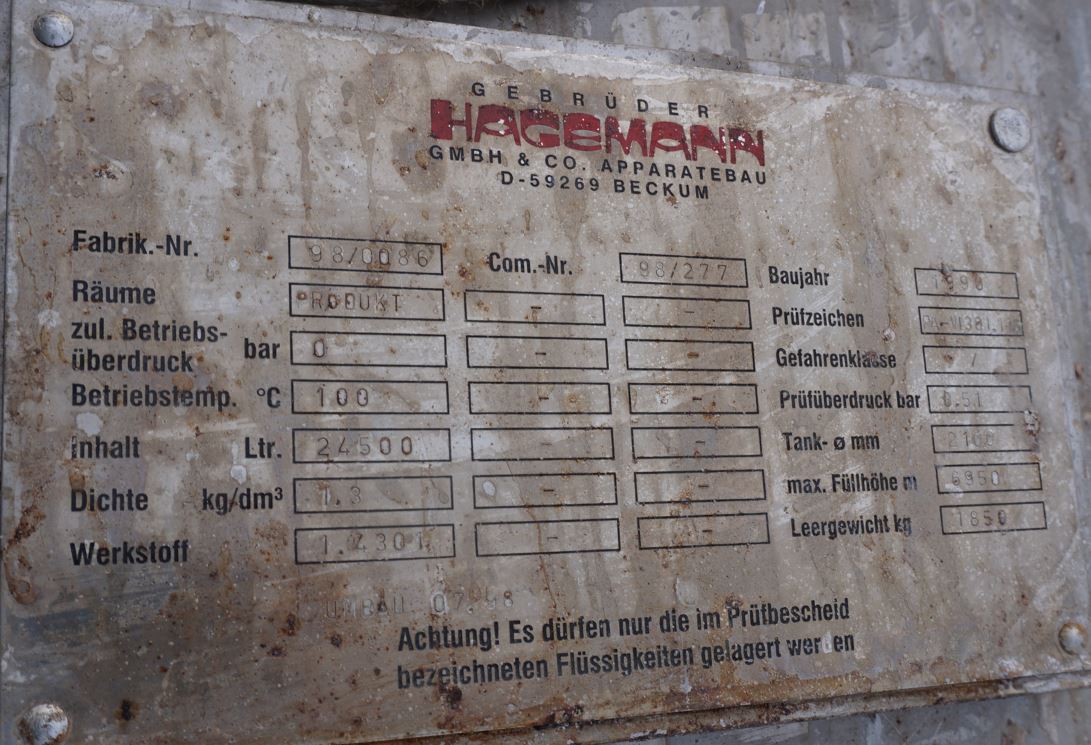

  • Nameplate

Technical documentation

  • Technical documentation

  • Designation

Other

  • Note

  • Außendurchmesser 2400 mm incl. der Verstärkungsringe.

  • Last usage

  • Chemistry

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Pre-buffer tank, Settling tank,

Downloads

filefile size
  2587-6.pdf0.09 MB
  2587-7.pdf0.20 MB
