Product no. M-2632

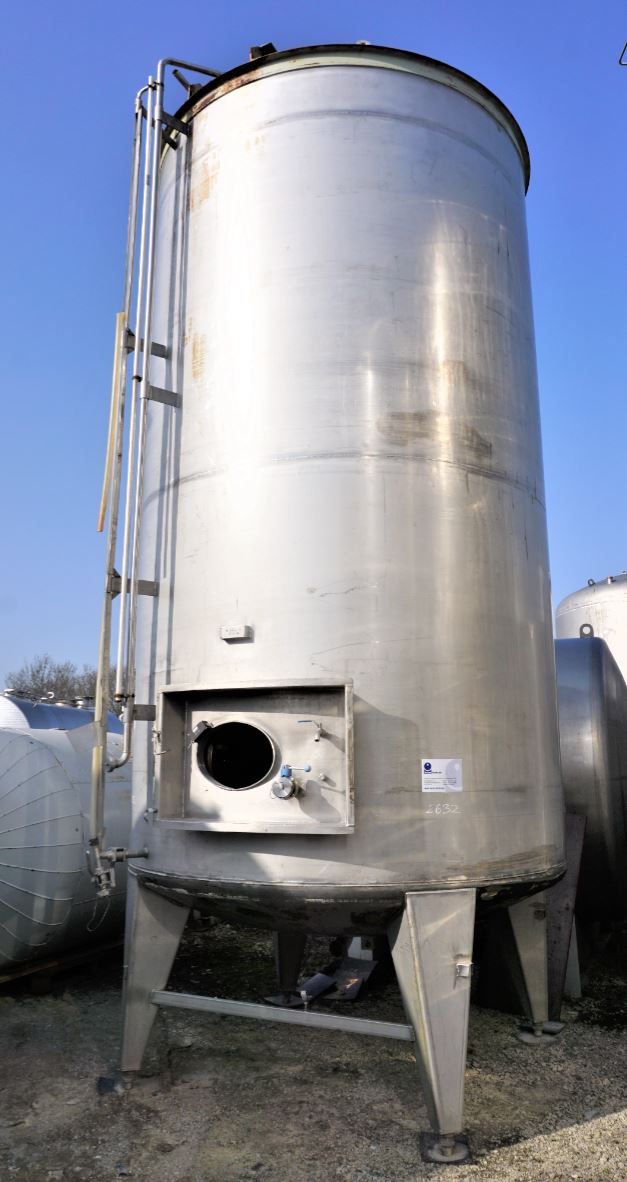

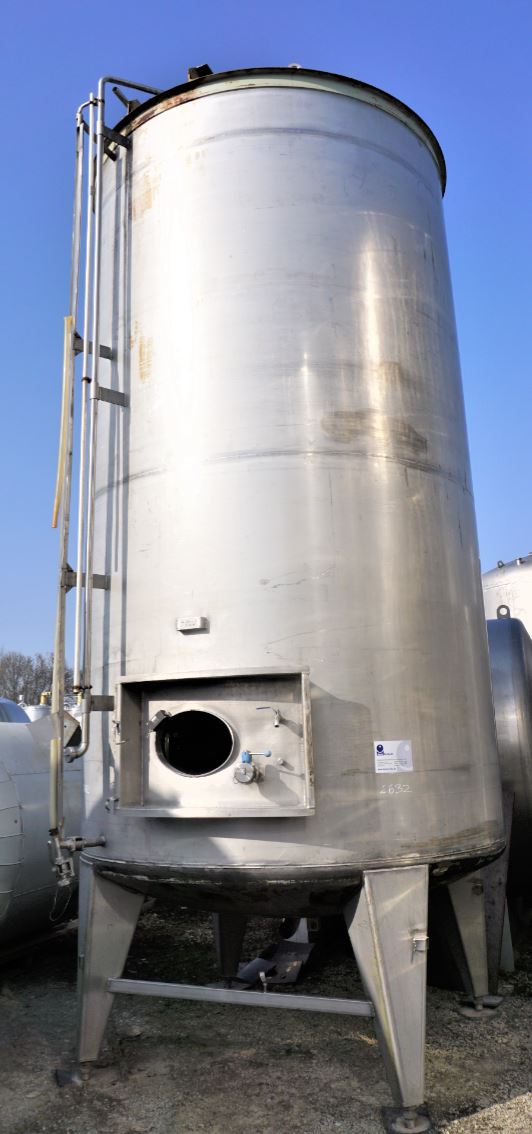

Container 22.000 liters made of V2A, single-walled, used, standing

EUR 13.200,00

add. 19 % VAT excl. shipping costs


Volume approx. 22,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 22.000 liters made of V2A, single-walled, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 22,000.00 litres.  Container 22.000 liters made of V2A, single-walled, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage,

General

  • Volume approx.

  • 22.000,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 2.500 mm

  • Cyl. height

  • 4.420 mm

  • Foot height

  • 1.115 mm

  • Total height

  • 6.100 mm

Design

  • Weight approx.

  • 2.000,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

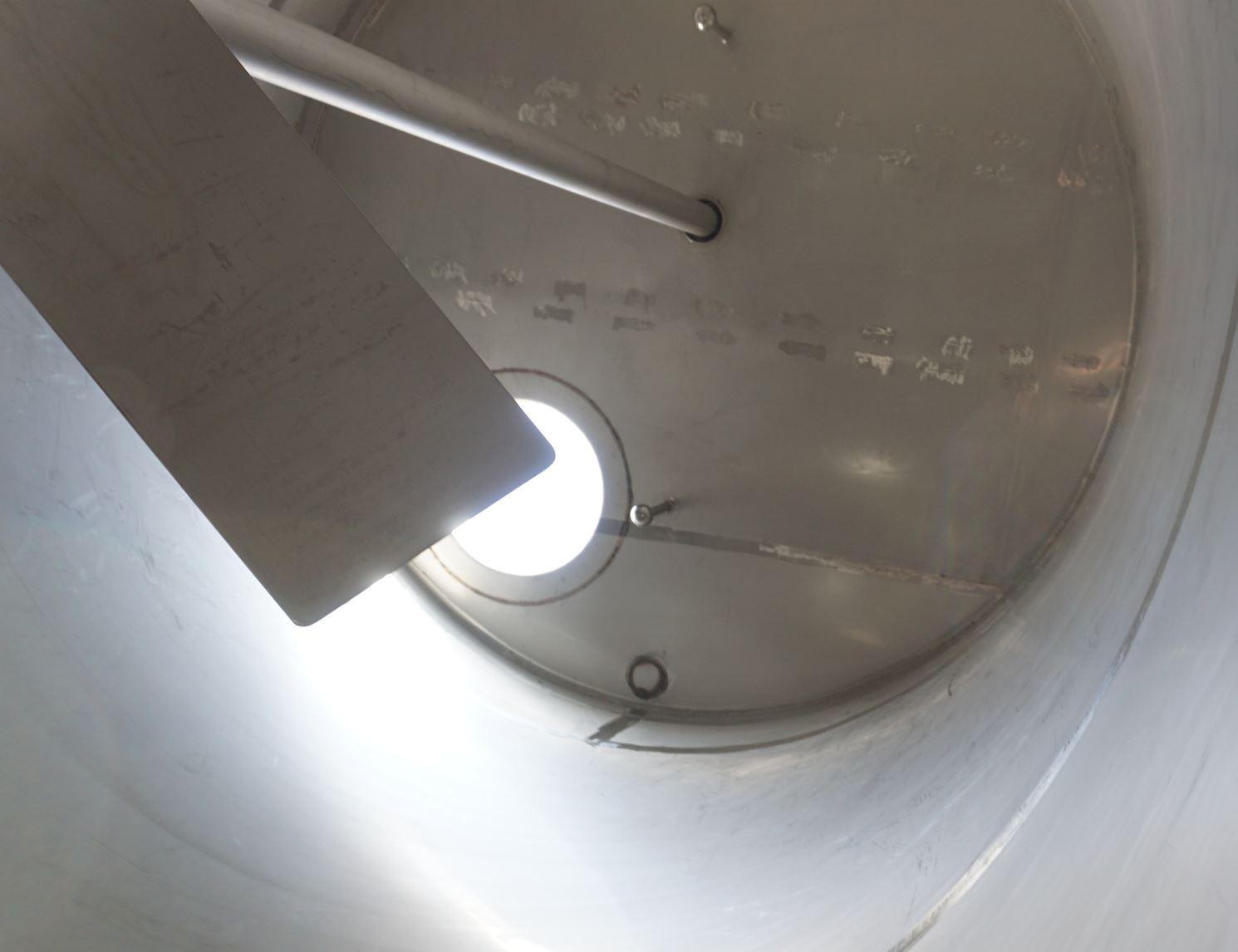

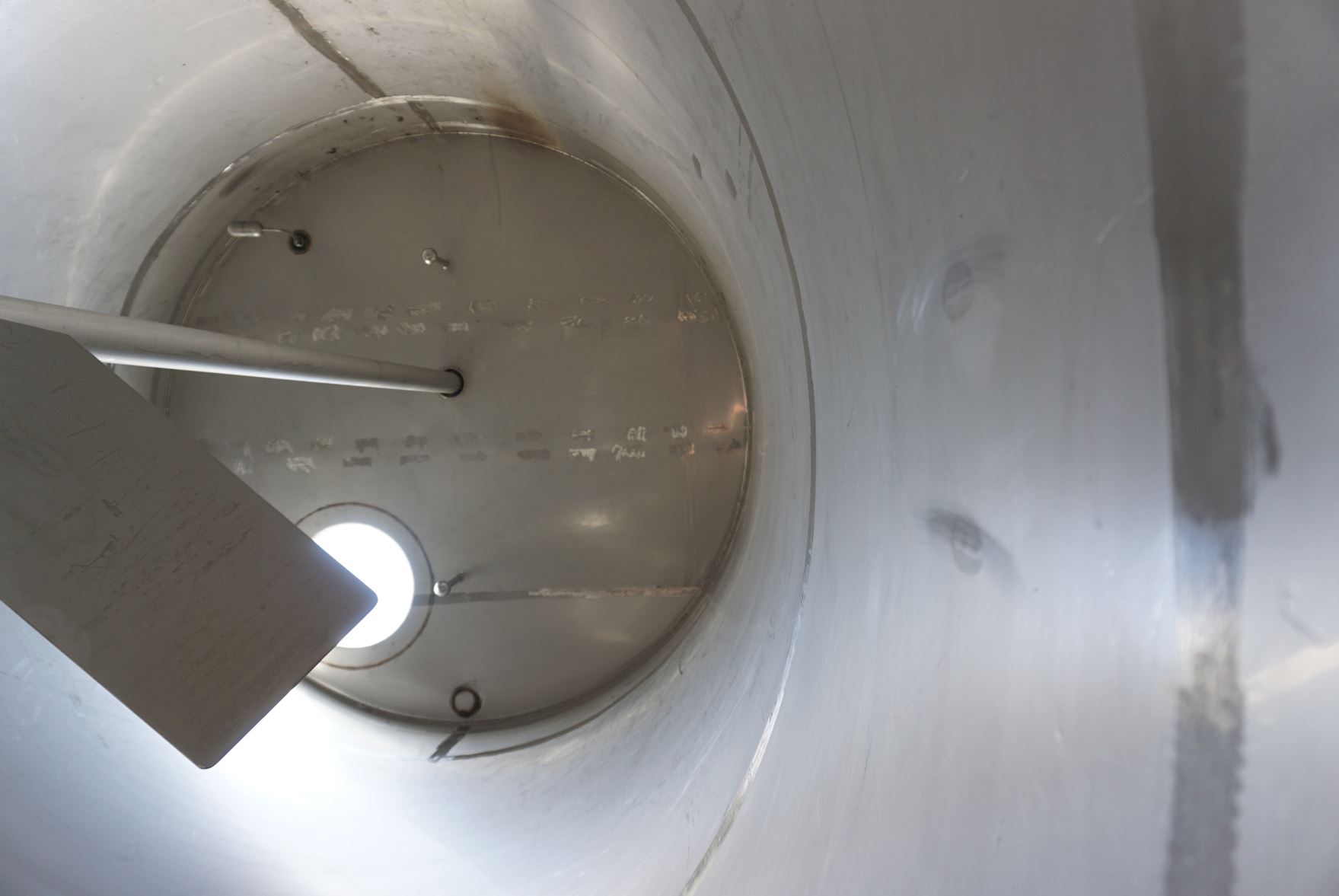

  • Interior surface

  • Smoothed

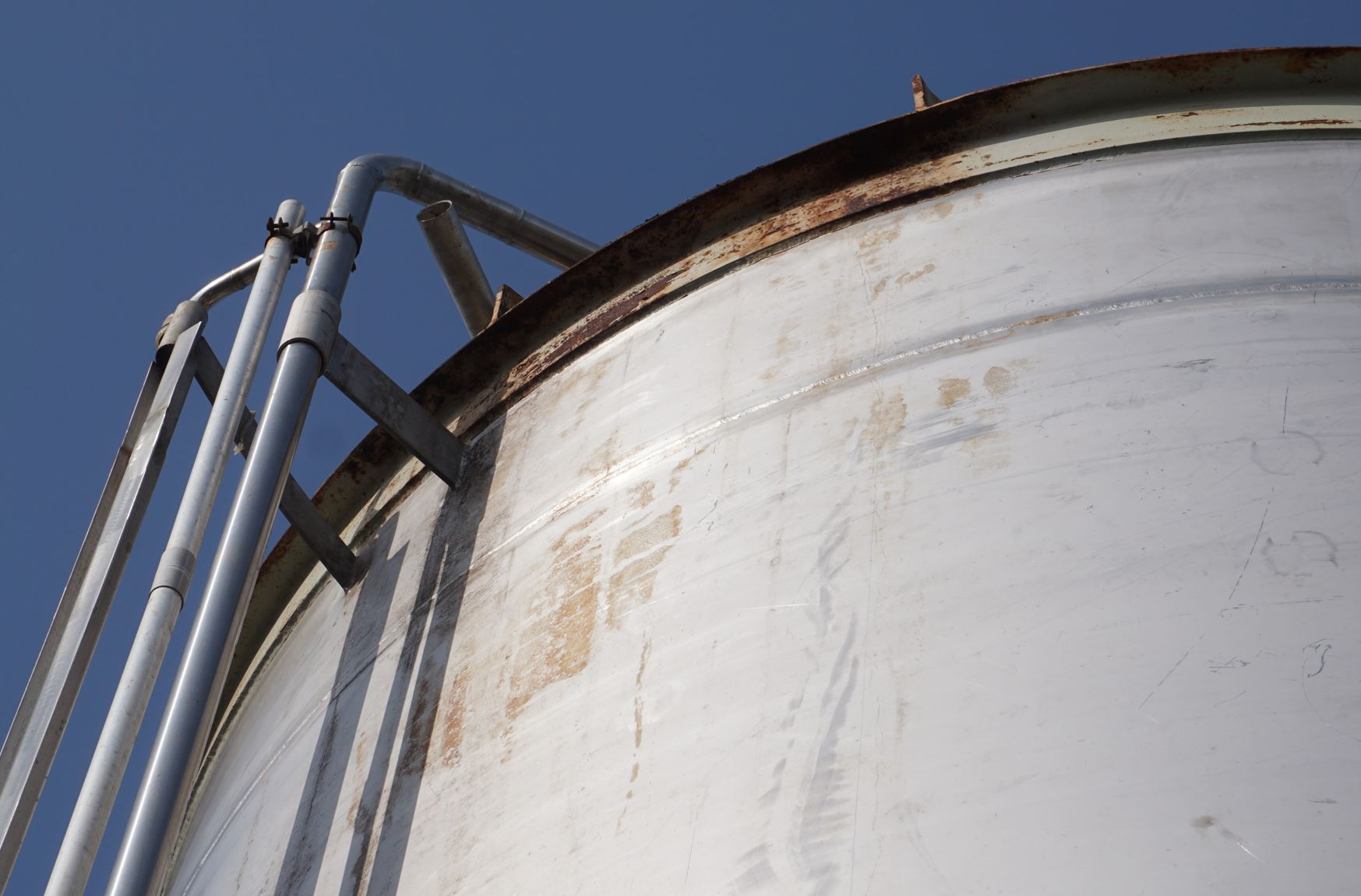

  • Exterior surface

  • Smoothed

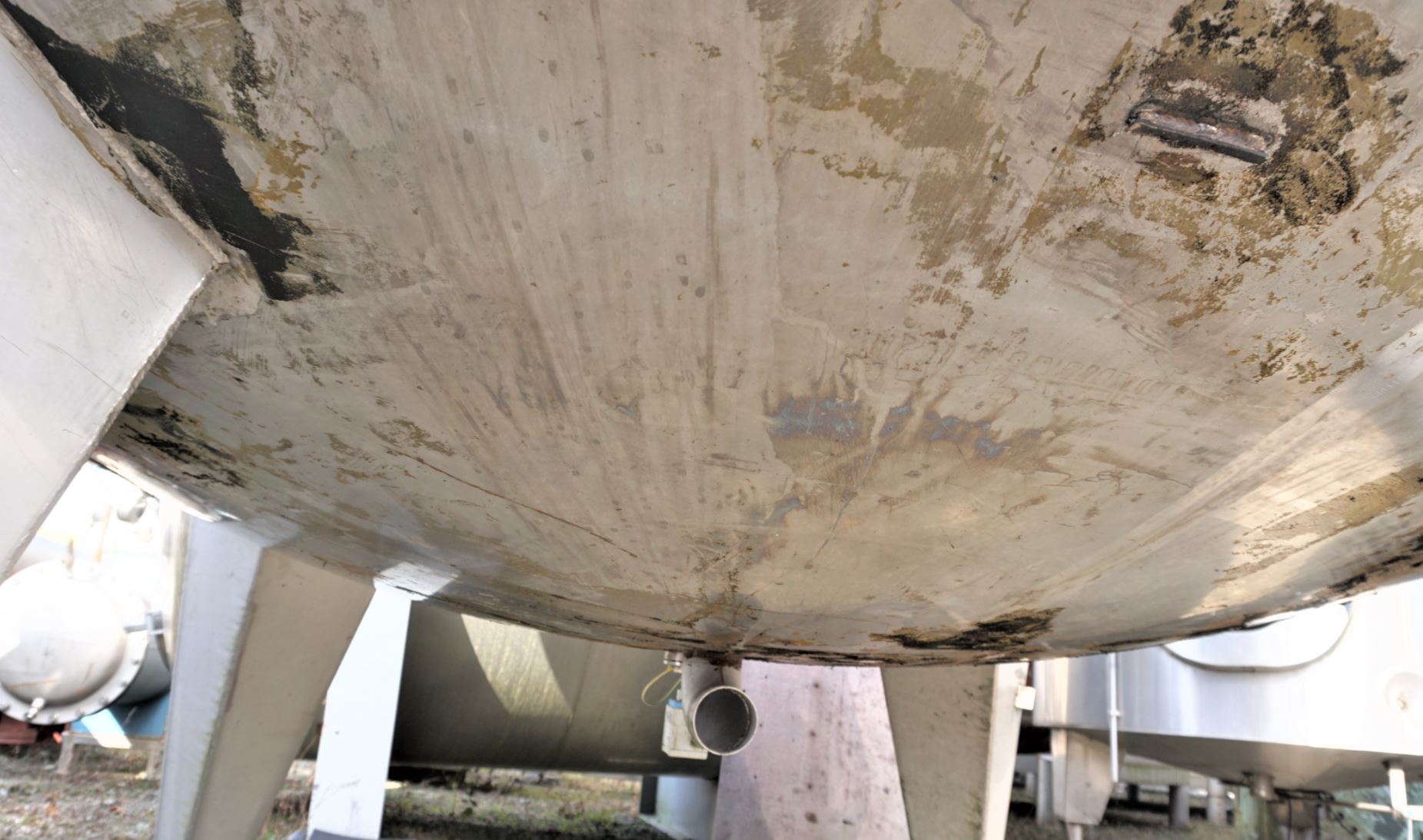

  • Floor type

  • Torispherical bottom

  • Head design

  • Flat bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Agitator

  • Agitator quantity

  • 1 (piece)

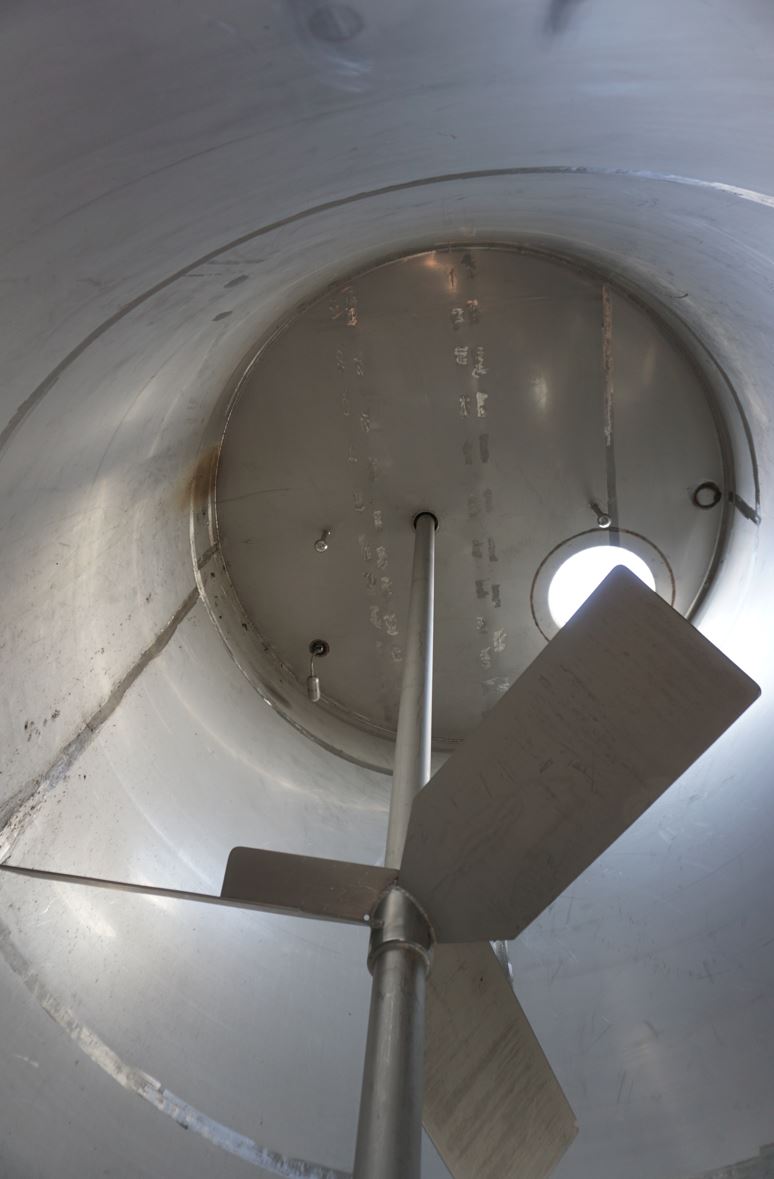

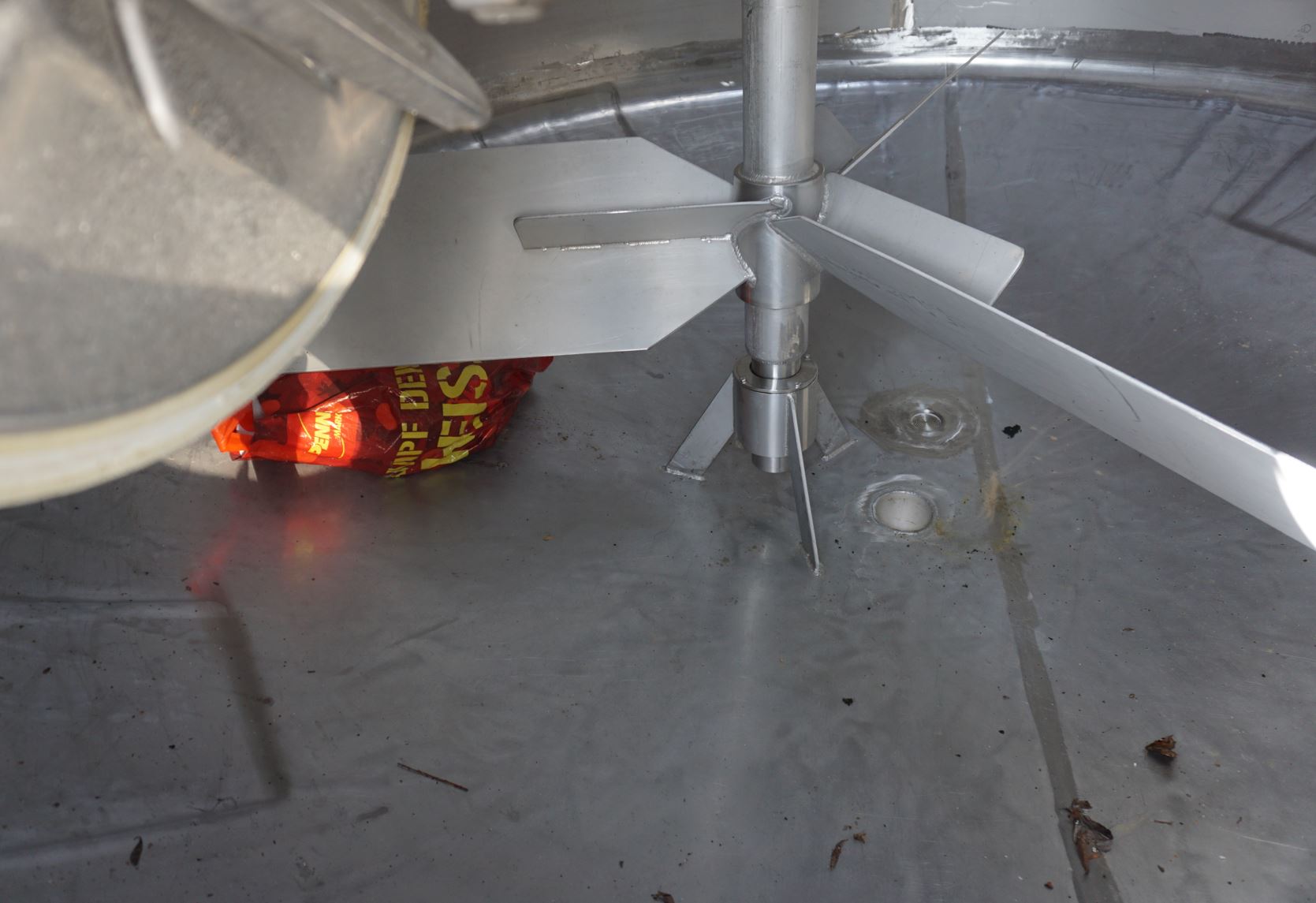

  • Agitator type

  • Zeta agitator

  • Agitator position

  • Head off-centre

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

  • Note on supports

  • höhenverstellbar

Fixtures and fittings

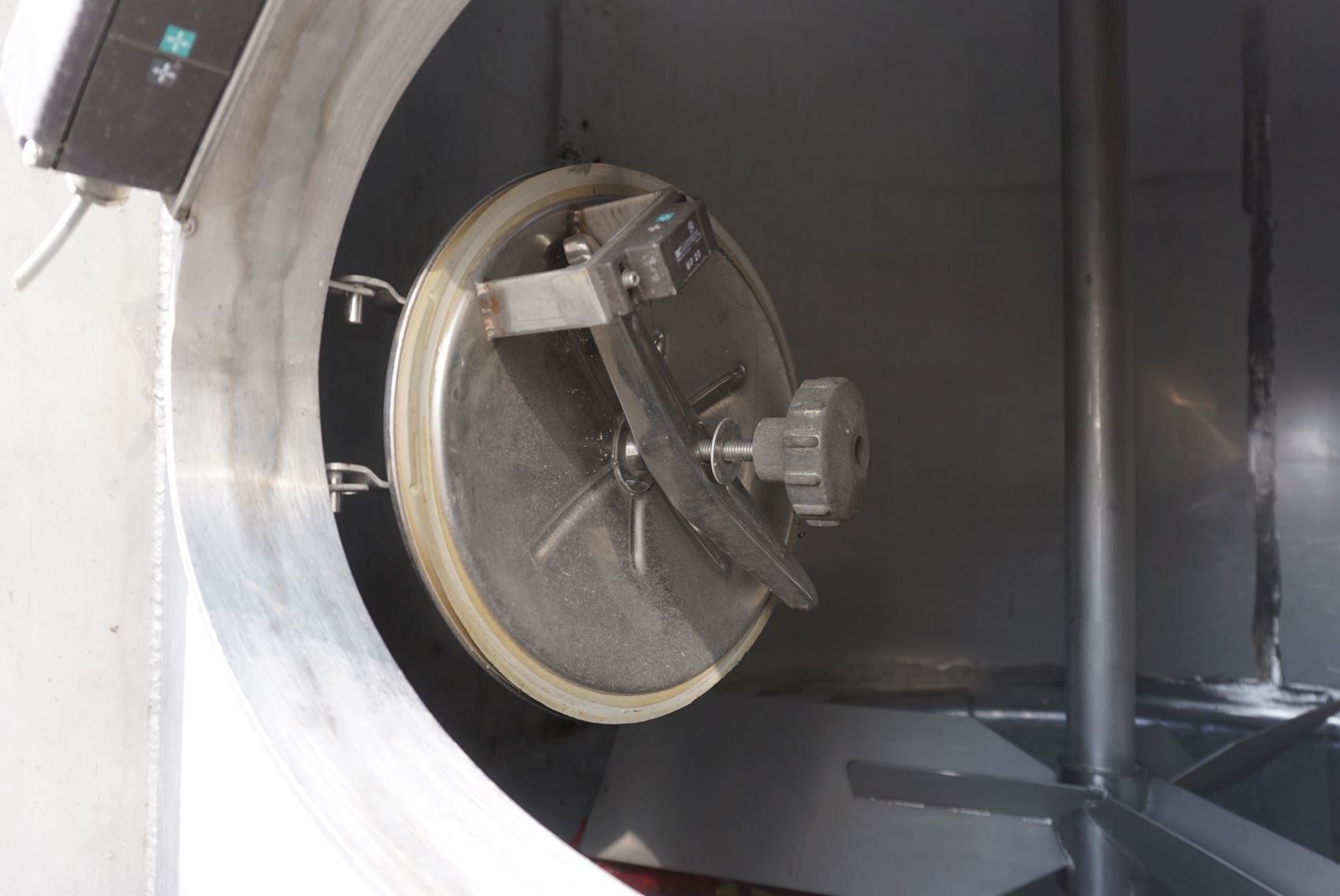

  • Manway position

  • In head

  • Nozzles/connectors in shell

  • 1xDN50 (piece)

  • Outlet nozzle

  • 100

Other

  • Note

  • Entlüftungshaube nicht vorhanden

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Mixing tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
