Product no. M-2606

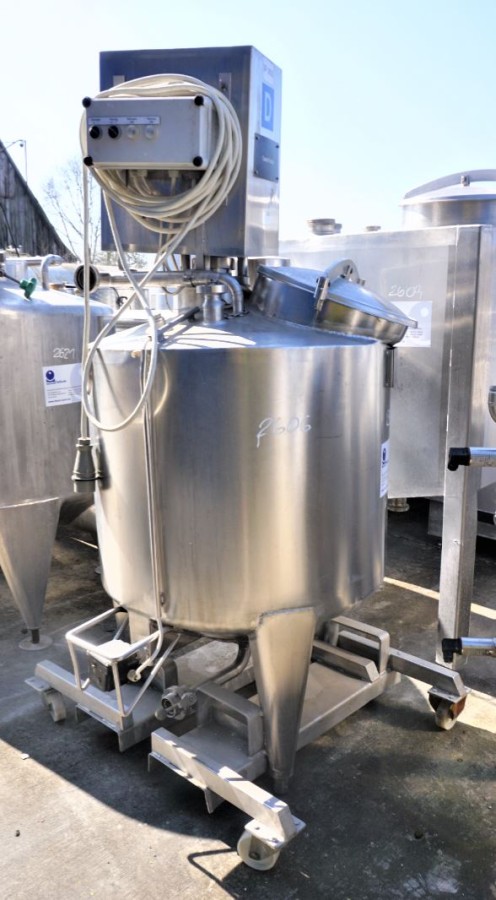

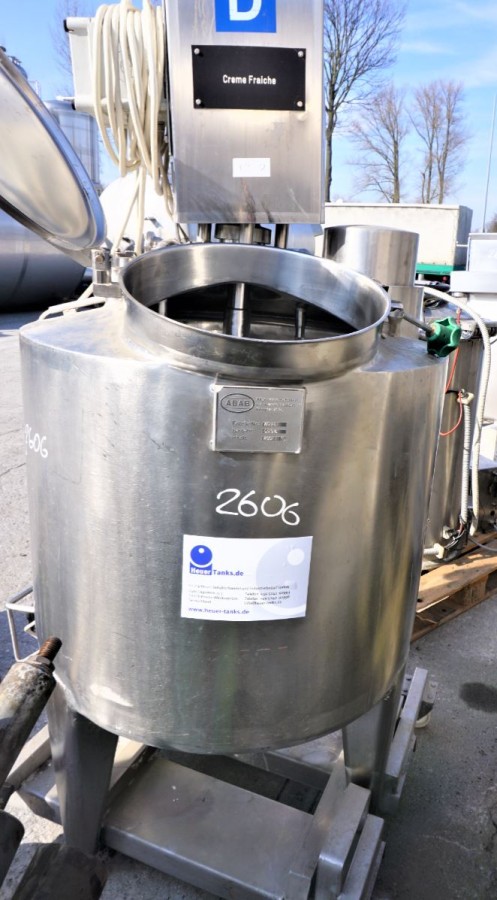

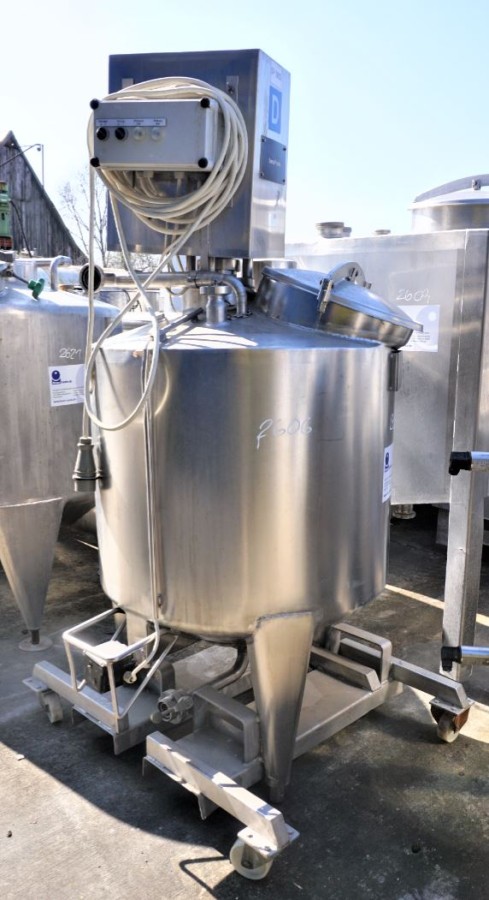

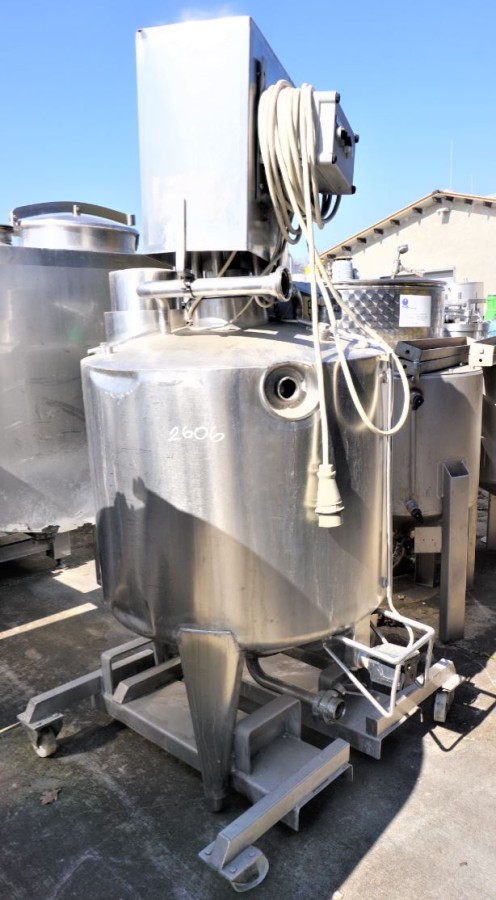

Container 200 liters made of V2A isolated, temperature-controllable, used, standing
EUR 7.200,00
add. 19 % VAT excl. shipping costs
Volume approx. 200.00 litres
Product description
Container 200 liters made of V2A isolated, temperature-controllable, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 200.00 litres. The diameter inside includes 670 mm. Container 200 liters made of V2A isolated, temperature-controllable, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage, Cooling, Tempering, Mixing, Processes,General
Volume approx.
200,00 litres
Structure
Standing
Year of manufacture
1996
Manufacturer
ABAB
Condition
Used
Dimensions approx.
Internal diameter
670 mm
External diameter
870 mm
Cyl. height
700 mm
Foot height
600 mm
Total height
2.000 mm
Design
Weight approx.
500,00 kg
Weight per unit volume approx.
1.000,00 kg/m³
Insulation
yes
Insulated area
Shell and floor
Insulation cladding
Fully welded stainless steel
Interior surface
Smoothed
Exterior surface
Smoothed
Floor type
Conical bottom
Head design
Conical bottom
Equipment
Temperature-controllable
Yes
Temperature control area
Shell and floor area
Temperature control system
Electric

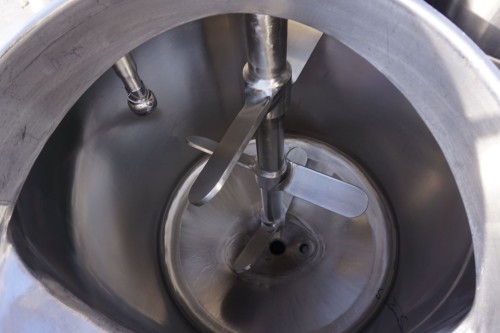

Agitator
Agitator quantity
1 (piece)
Agitator type
Wall scraper
Agitator position
Head central
Supports
Supports
Stainless steel feet
Number of feet
4 (piece)
Note on supports
mit Stapleraufnahme und Rollen
Fixtures and fittings

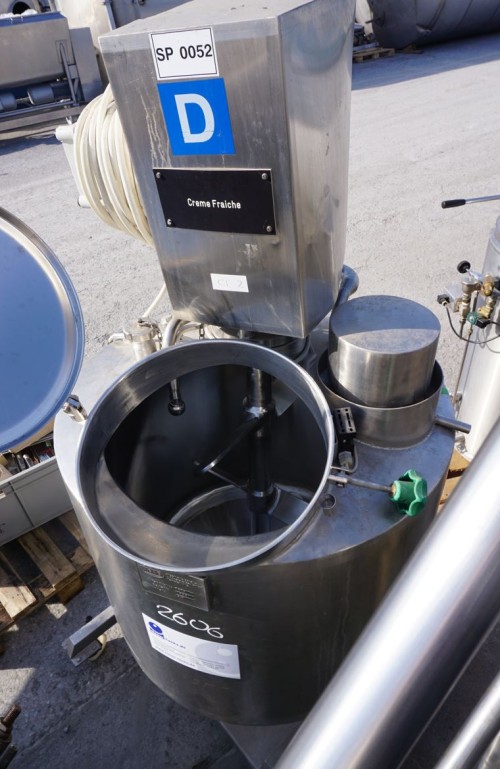

Manway position
In head

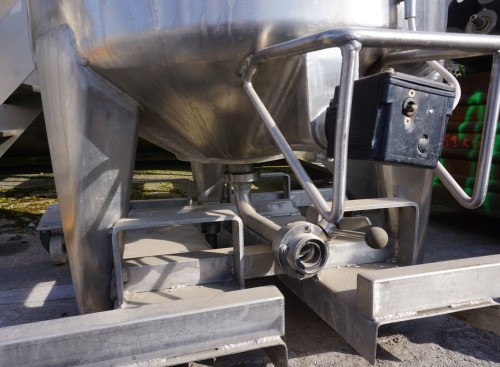

Outlet nozzle
50
Cleaning/CIP nozzle
in head
Additional fixtures and fittings
Air vent

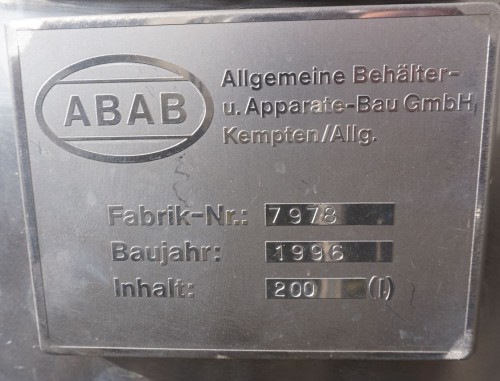

Nameplate
Technical documentation
Technical documentation
None
Other
Note
Kleine Beulen im Isoliermantel, Elektroheizung und Schaltkasten ohne Gewaehr.
Last usage
Foodstuffs
This product is suitable for use as:
Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank,
Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank, Cooling tank,
Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank,
