Product no. M-2945

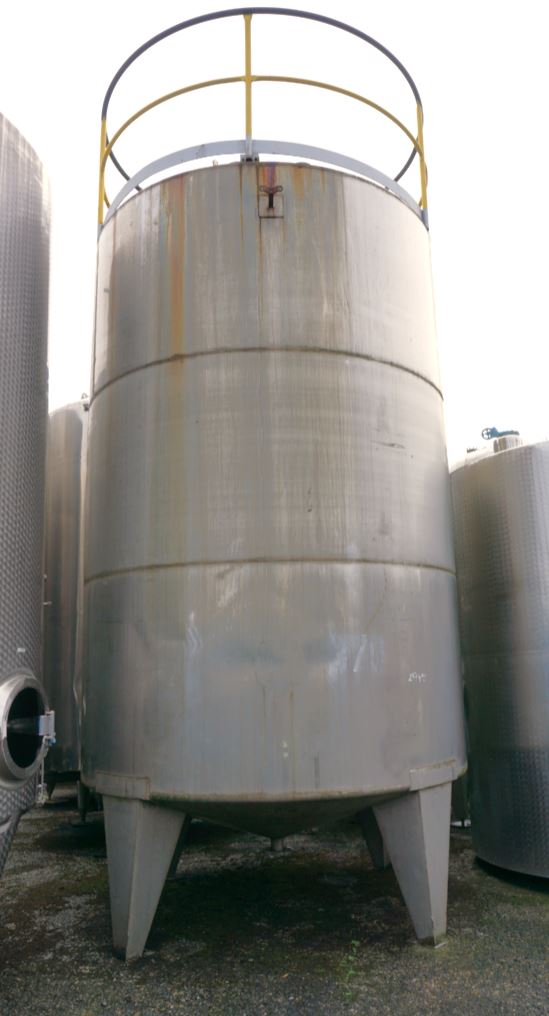

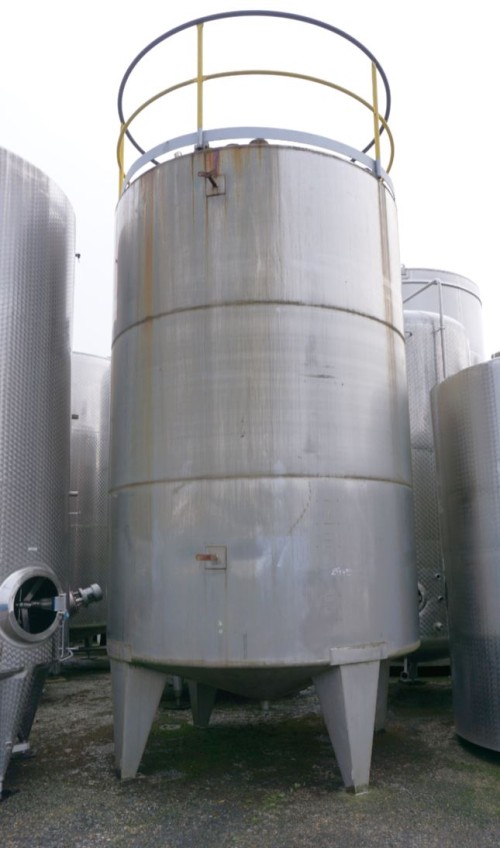

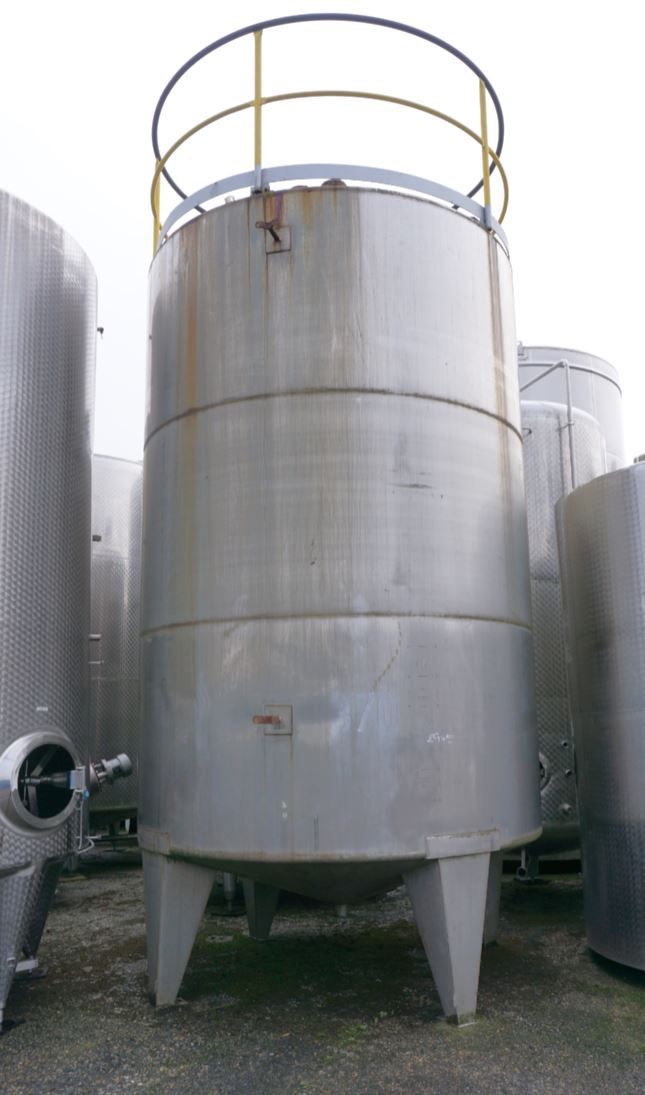

Container 20.000 liters made of V2A, single-walled, used, standing

EUR 10.500,00

add. 19 % VAT excl. shipping costs


Volume approx. 20,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 20.000 liters made of V2A, single-walled, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 20,000.00 litres.  Container 20.000 liters made of V2A, single-walled, used was last used in the following area: Unknown. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage,

General

  • Volume approx.

  • 20.000,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1991

  • Manufacturer

  • Sielmann

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 2.600 mm

  • Cyl. height

  • 3.700 mm

  • Foot height

  • 900 mm

  • Total height

  • 6.100 mm

Design

  • Weight approx.

  • 1.100,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

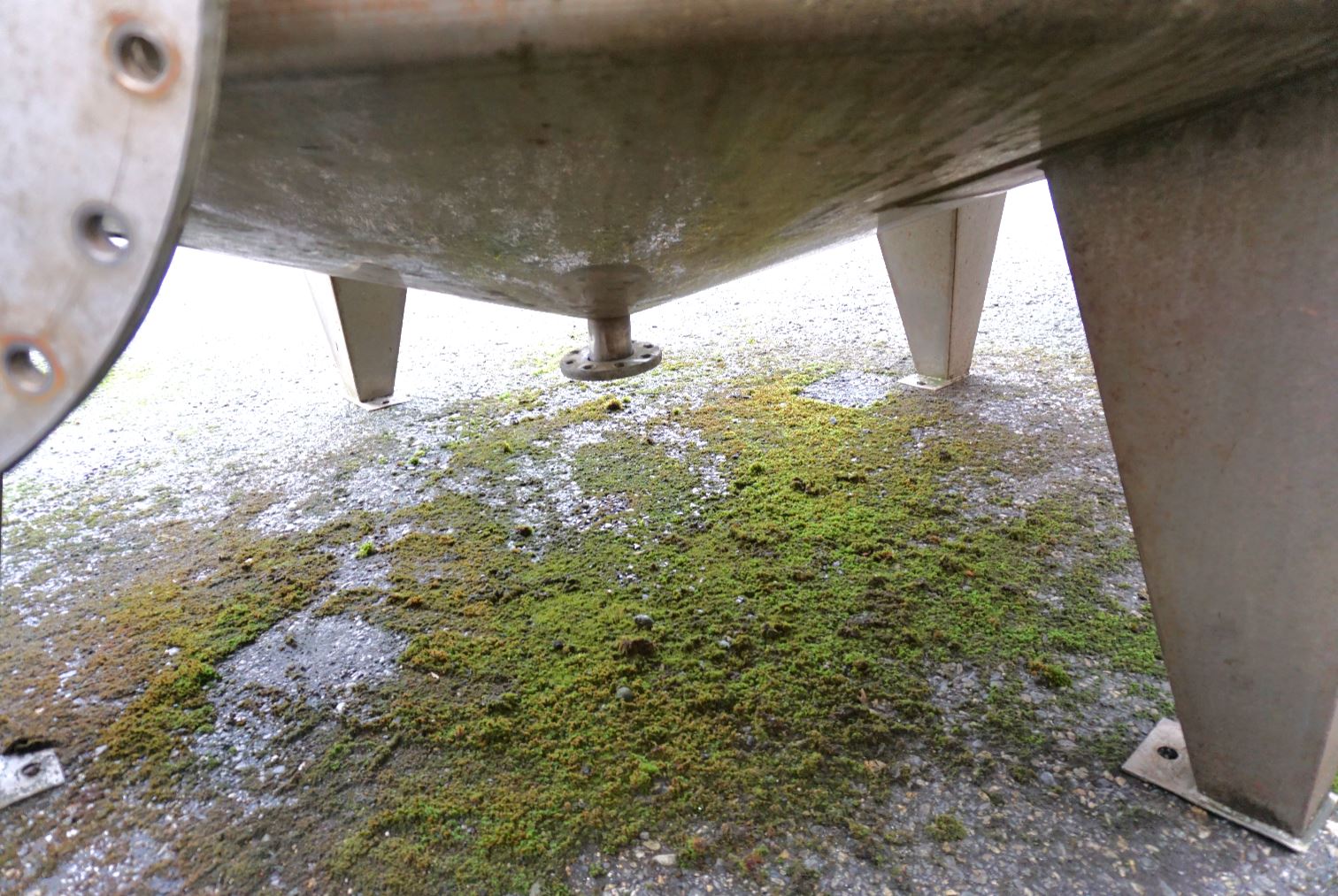

  • Floor type

  • Cone

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

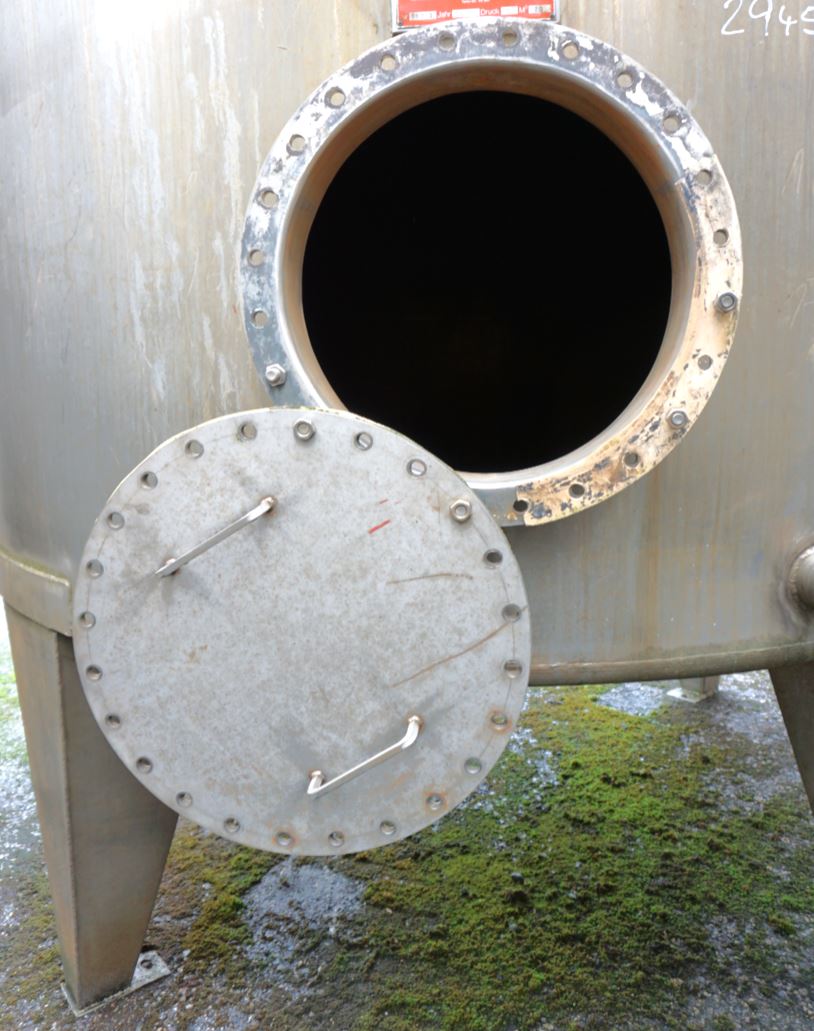

  • Manway 1 size

  • 500 DN mm

  • Manway position

  • In shell

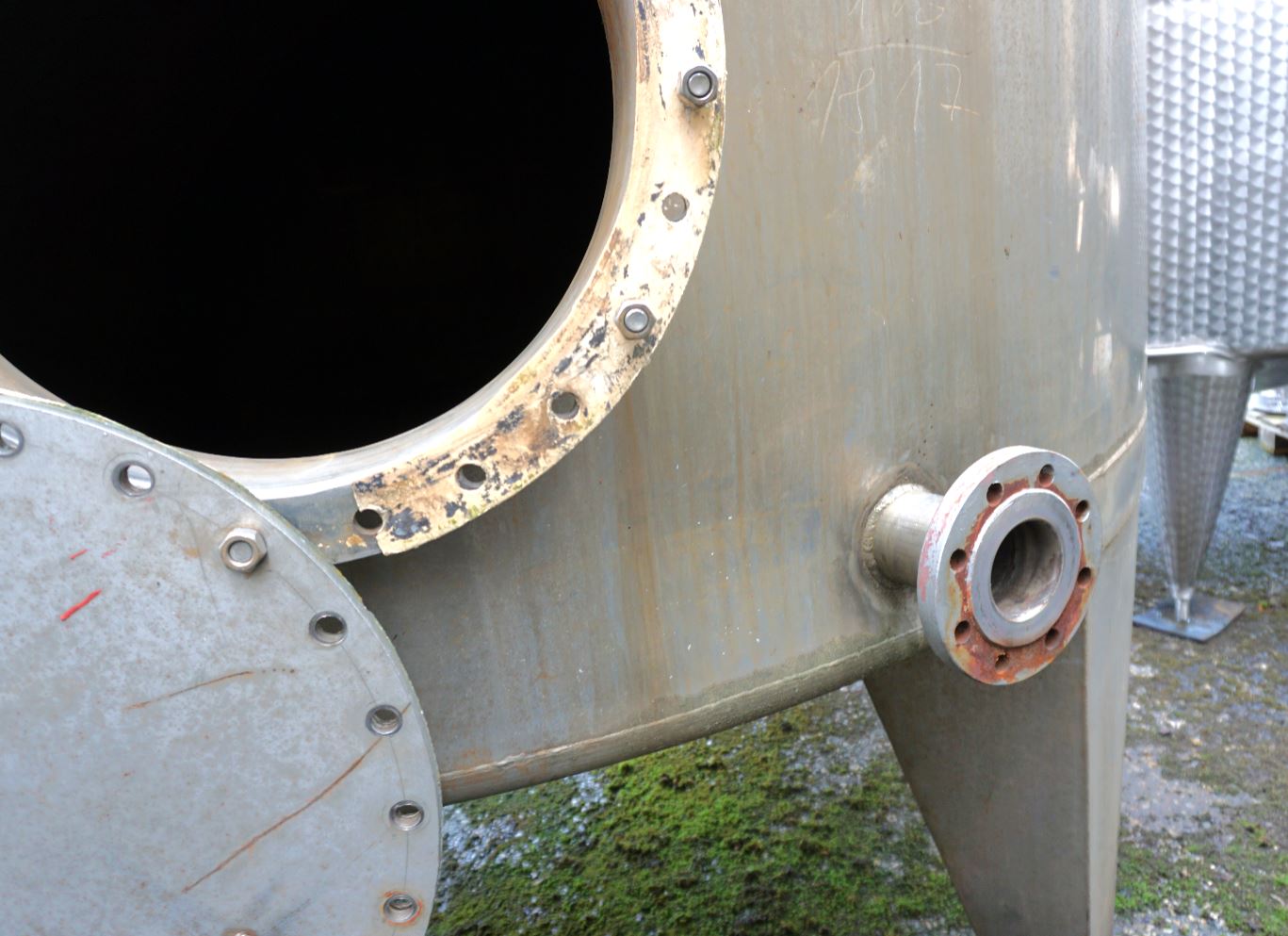

  • Nozzles/connectors in shell

  • 1xDN80 (piece)

  • Outlet nozzle

  • 80

  • Additional fixtures and fittings

  • Handrails

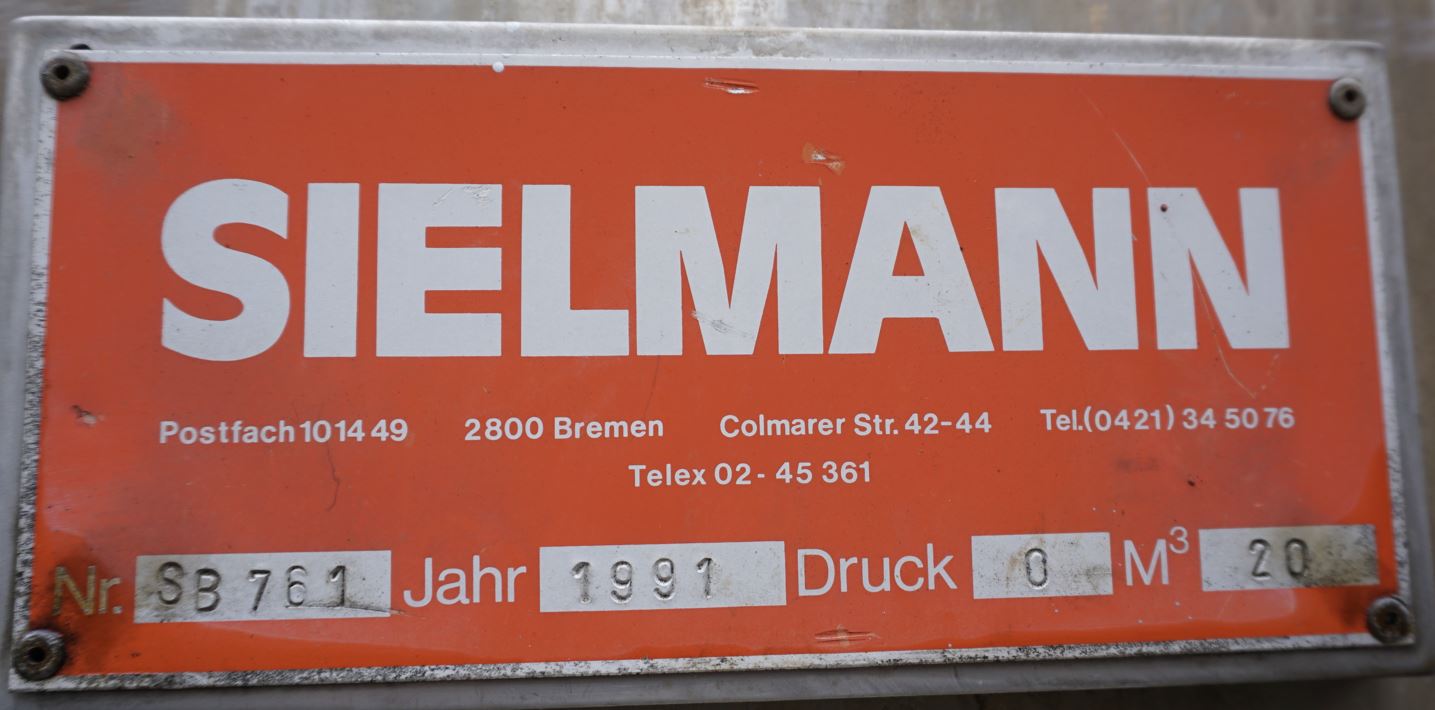

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Note

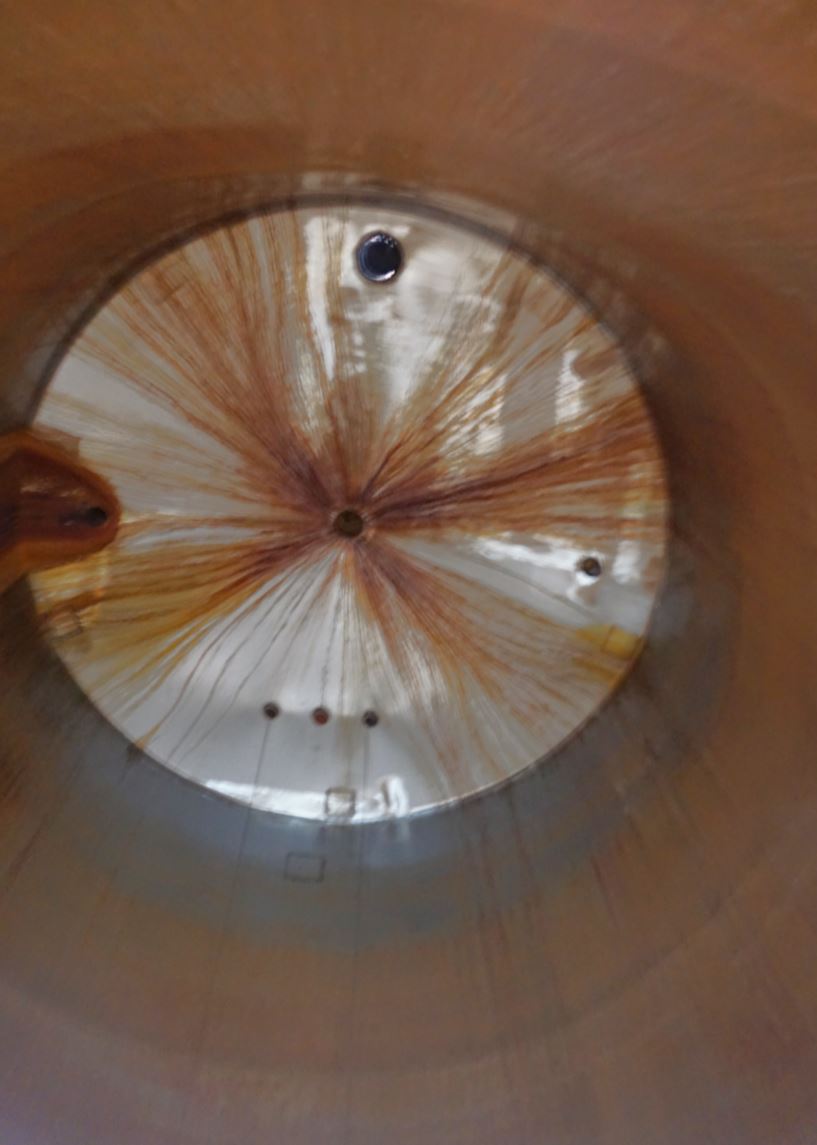

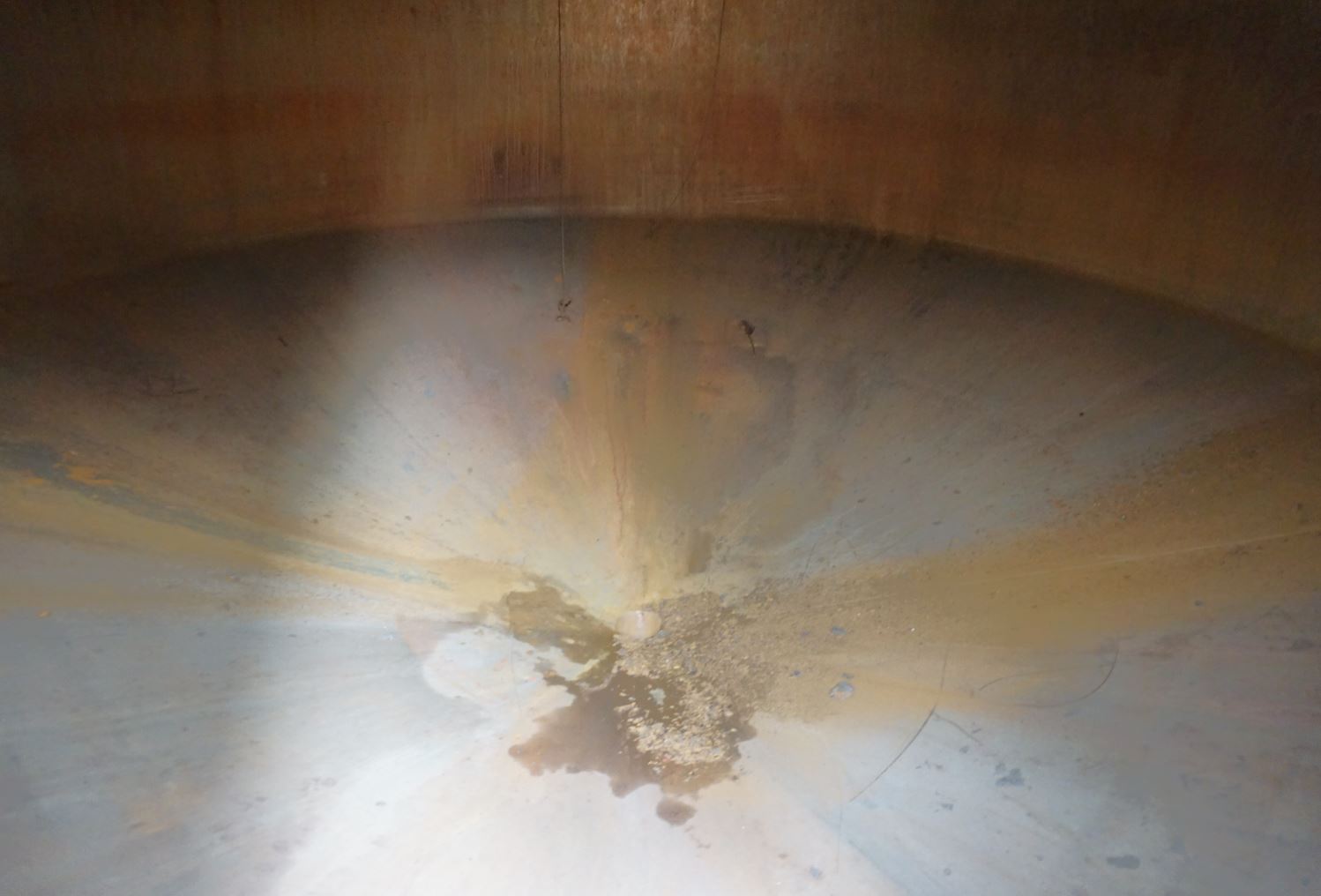

  • innen leicht braun verfärbt

  • Last usage

  • Unknown

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank,

Agriculture: Storage tank, Pre-buffer tank, Settling tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Cold water tank,
