Product no. M-2902

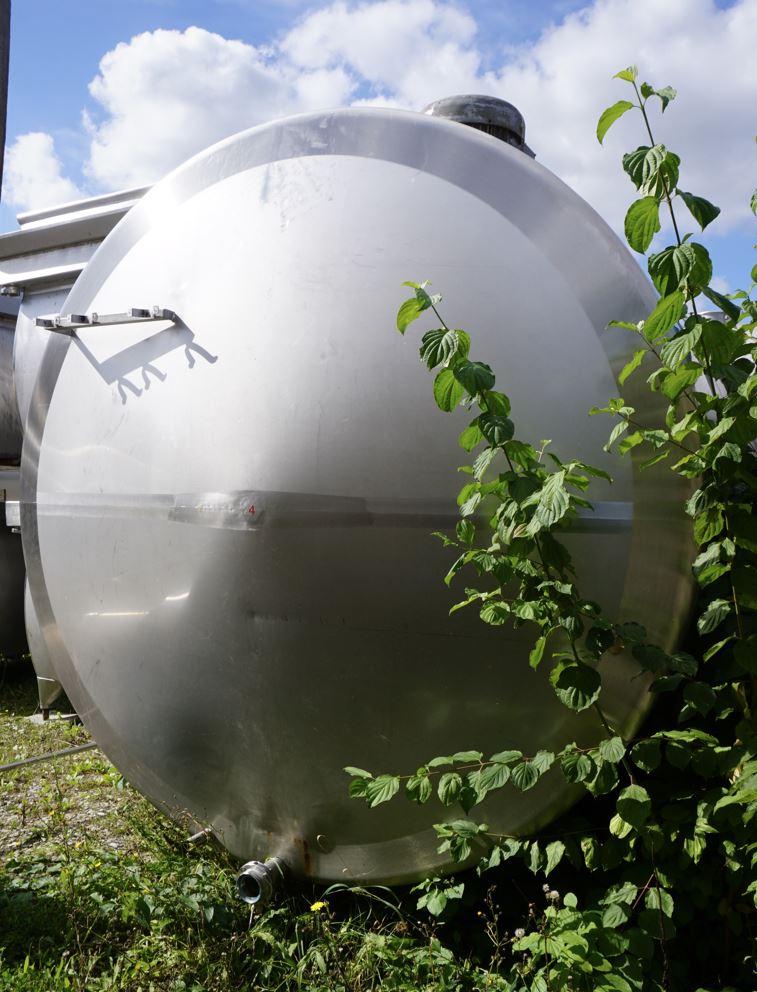

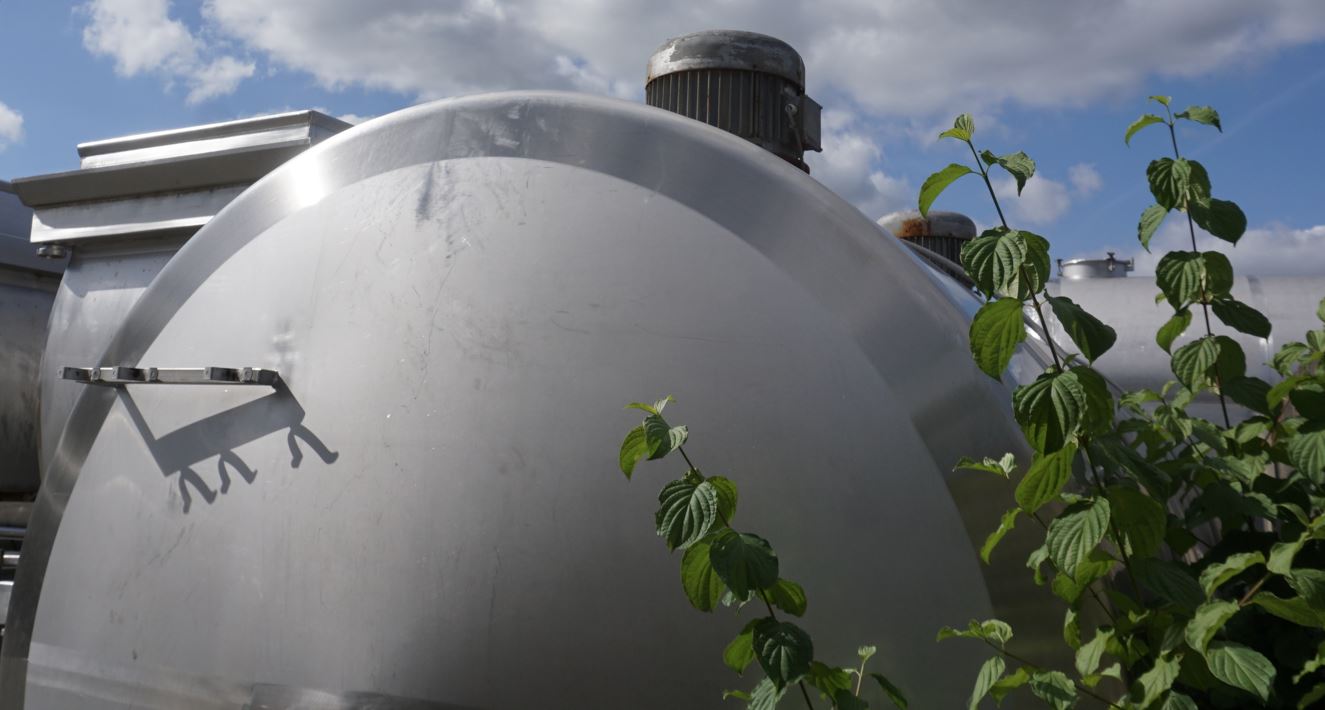

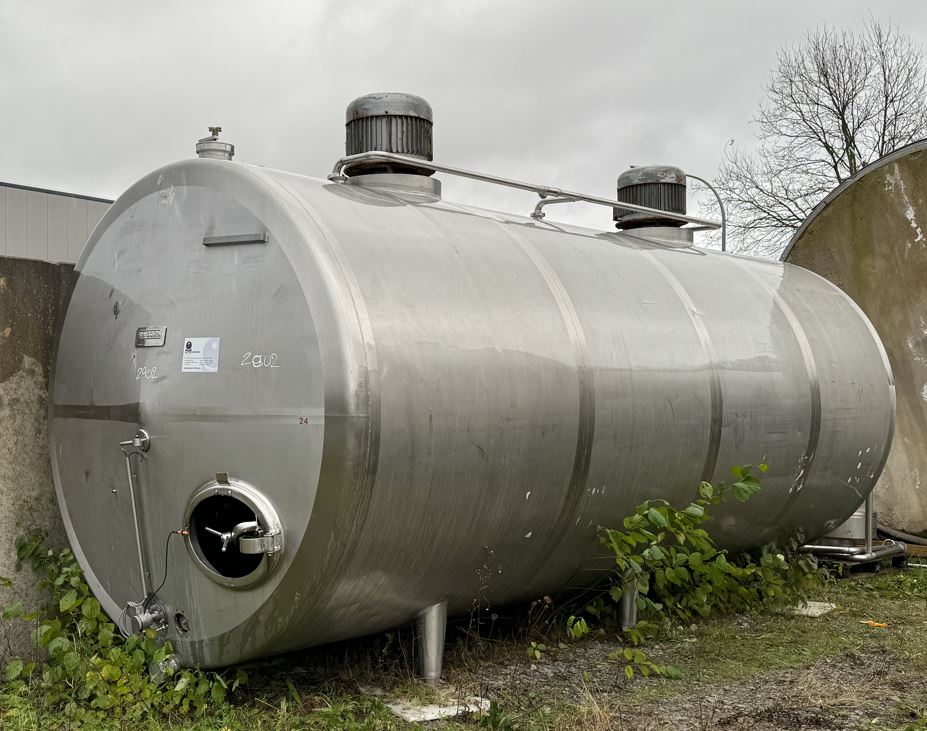

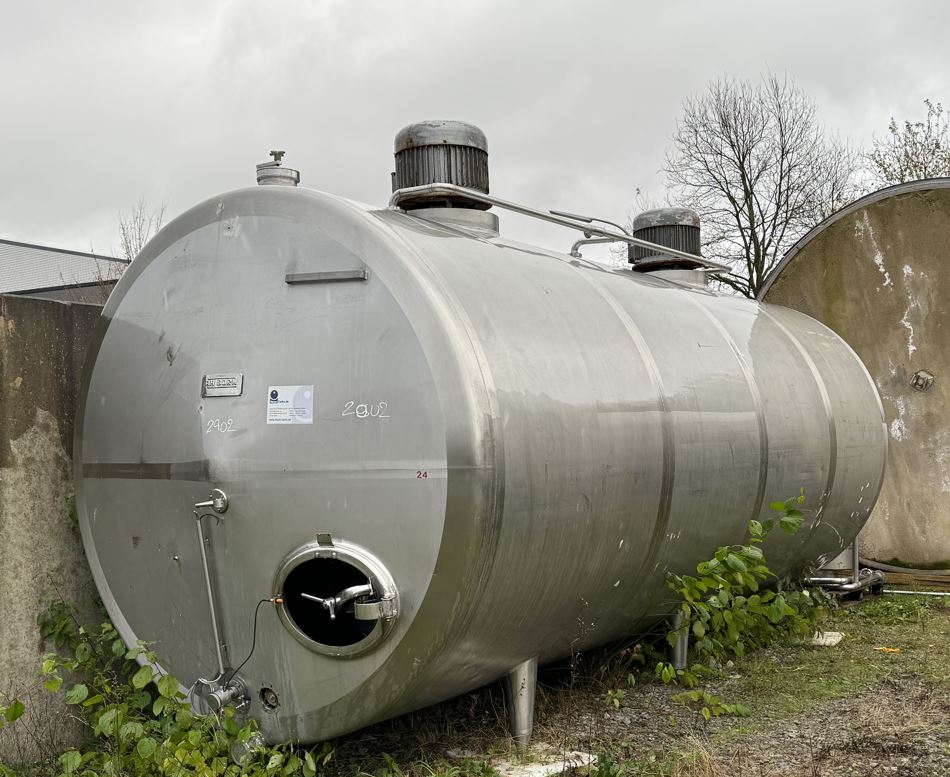

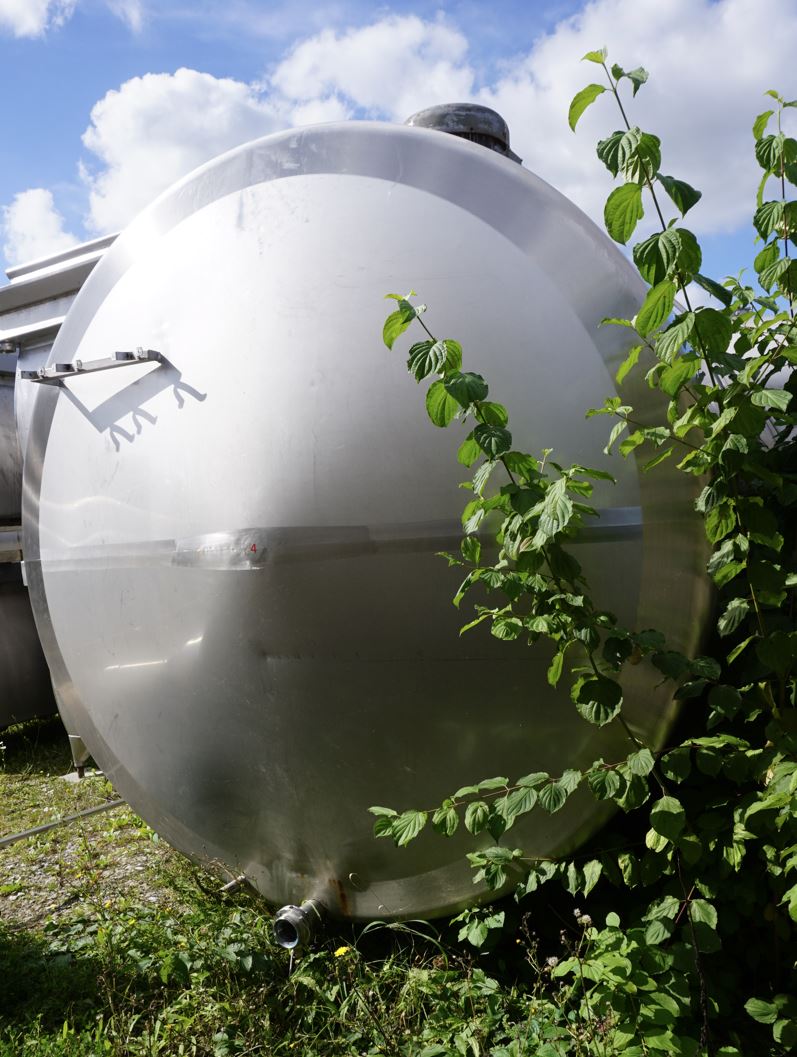

Container 20.000 liters made of V2A, single-walled, used, horizontal
EUR 12.300,00
add. 19 % VAT excl. shipping costs
Volume approx. 20,000.00 litres
Product description
Container 20.000 liters made of V2A, single-walled, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 20,000.00 litres. The diameter inside includes 2,300 mm. Container 20.000 liters made of V2A, single-walled, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage, Mixing,General
Volume approx.
20.000,00 litres
Structure
Horizontal

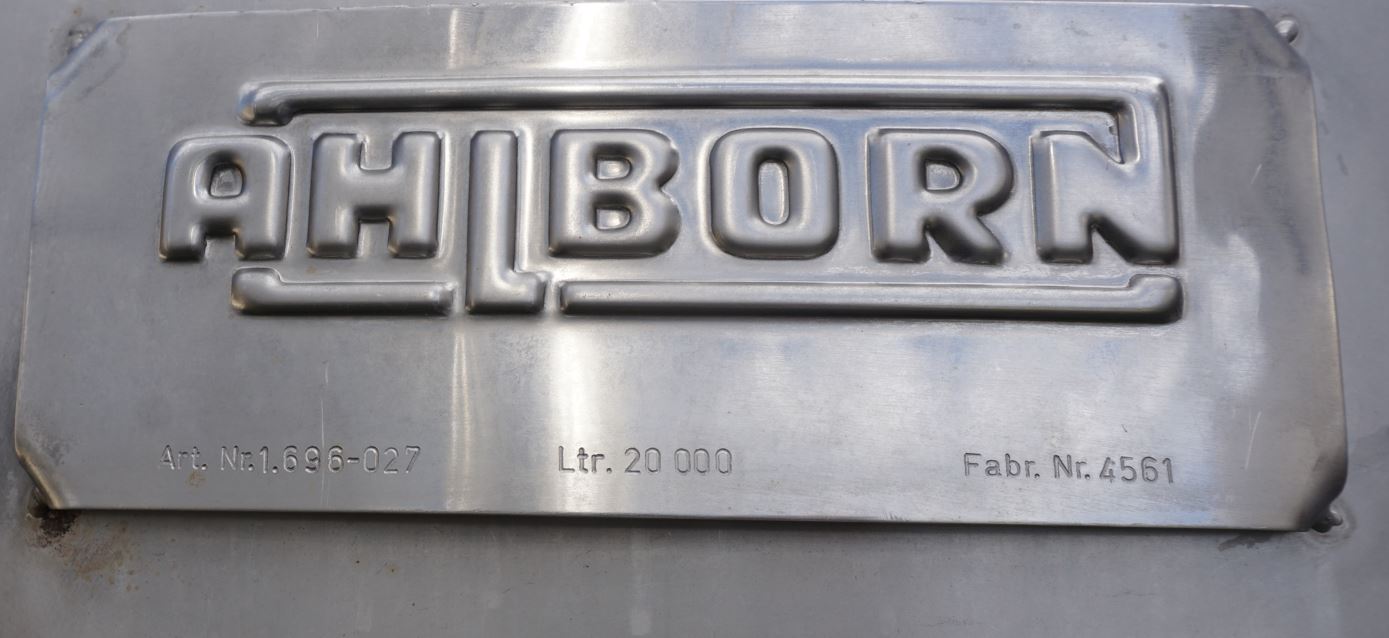

Manufacturer
Ahlborn
Condition
Used
Dimensions approx.
Internal diameter
2.300 mm
External diameter
2.400 mm
Cyl. length
4.430 mm
Foot height
250 mm
Total height
3.100 mm
Total length
5.000 mm
Design
Weight approx.
2.000,00 kg
Weight per unit volume approx.
1.000,00 kg/m³
Insulation
yes
Insulated area
Complete
Insulation cladding
Fully welded stainless steel
Interior surface
Smoothed
Floor type
Conical bottom

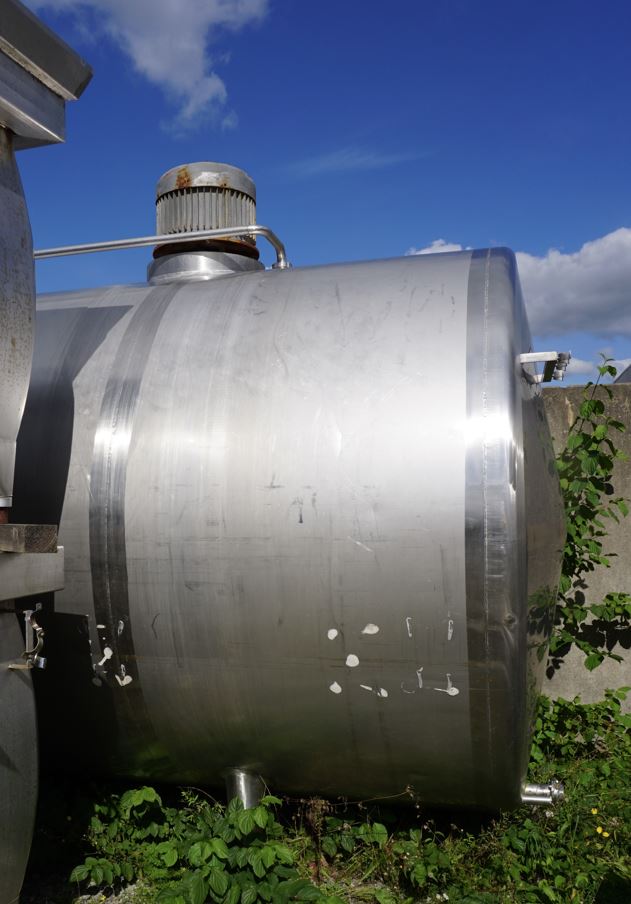

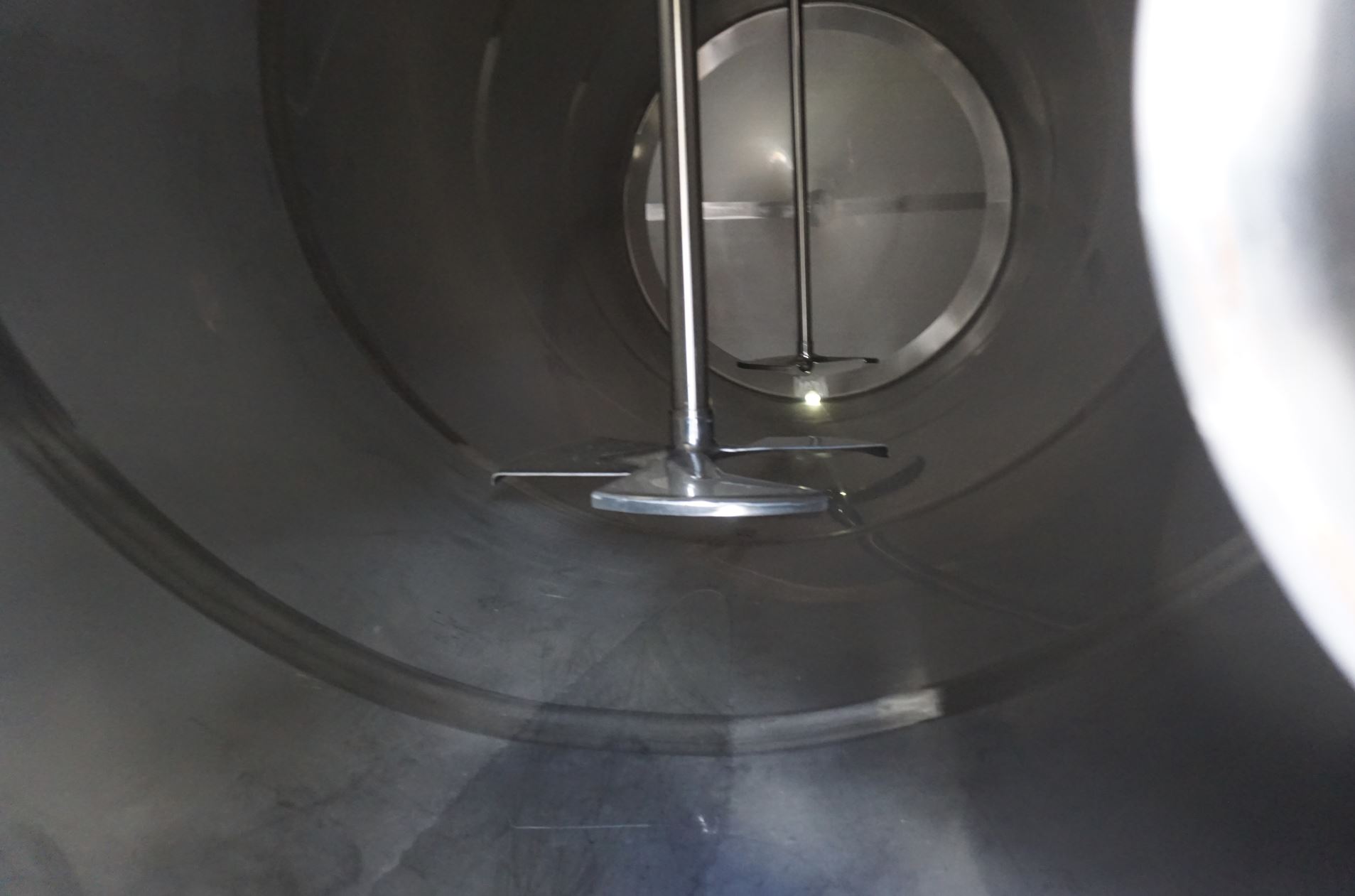

Agitator
Agitator quantity
2 (piece)
Agitator type
Propeller
Agitator position
Head off-centre
Supports
Supports
Stainless steel feet
Number of feet
4 (piece)
Note on supports
hoehenverstellbar
Fixtures and fittings

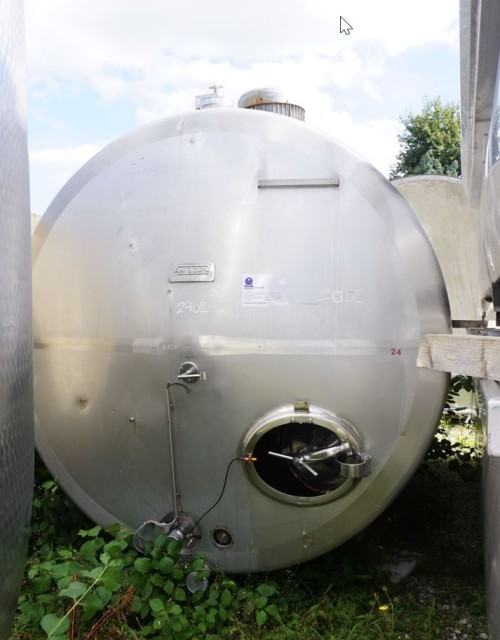

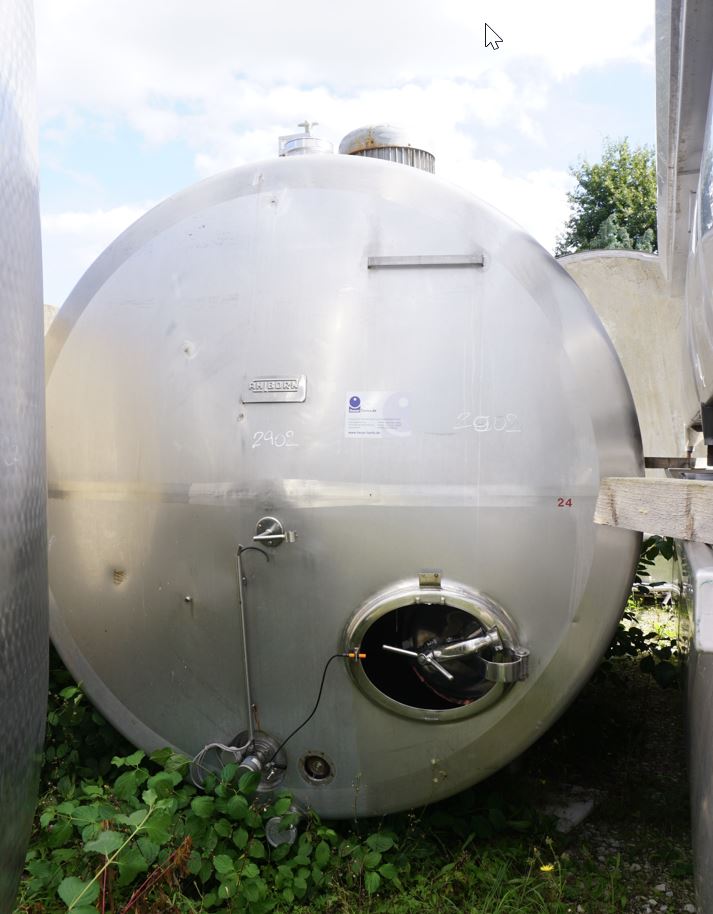

Manway position
Front face
Handlochposition Handhole position
In head

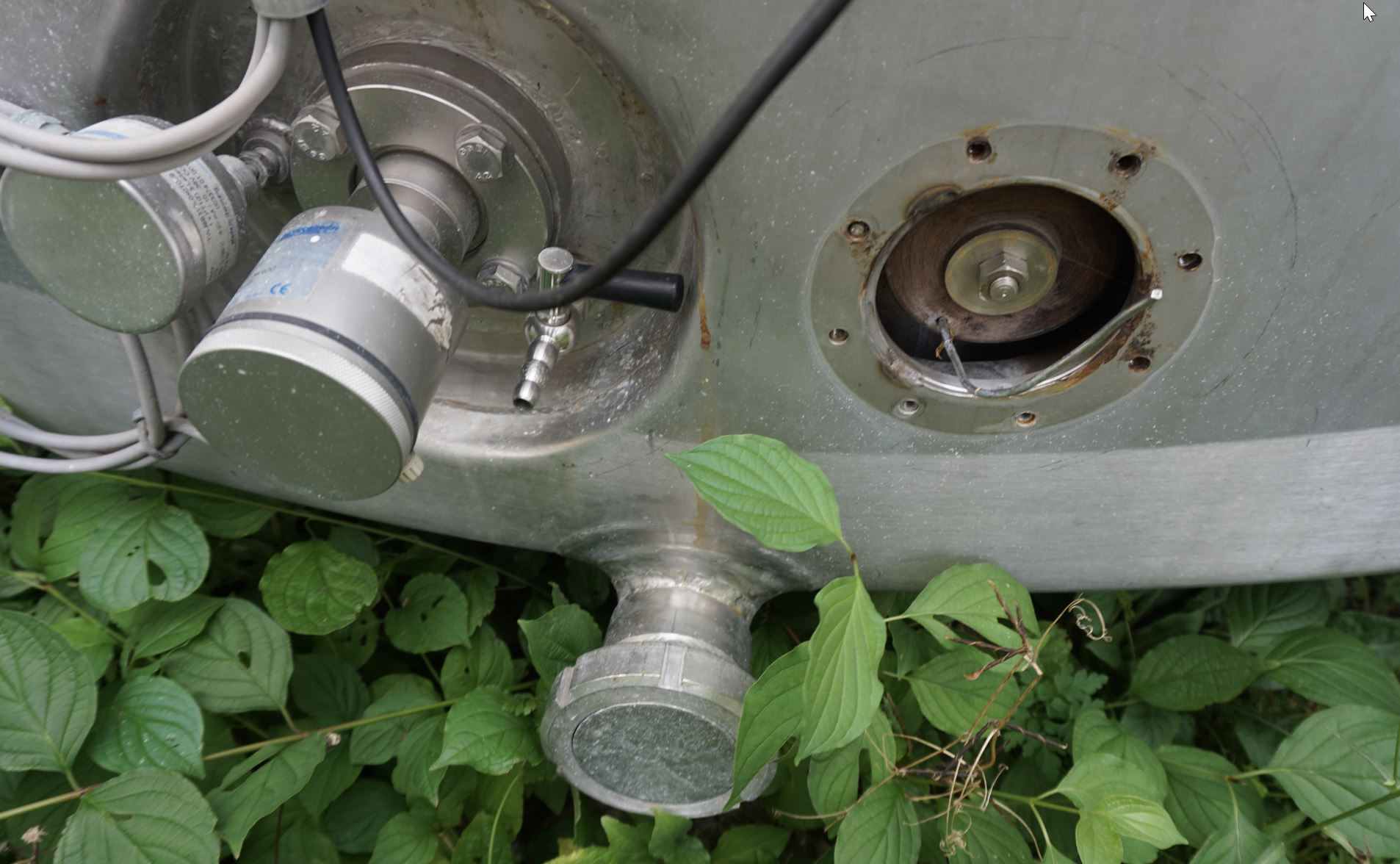

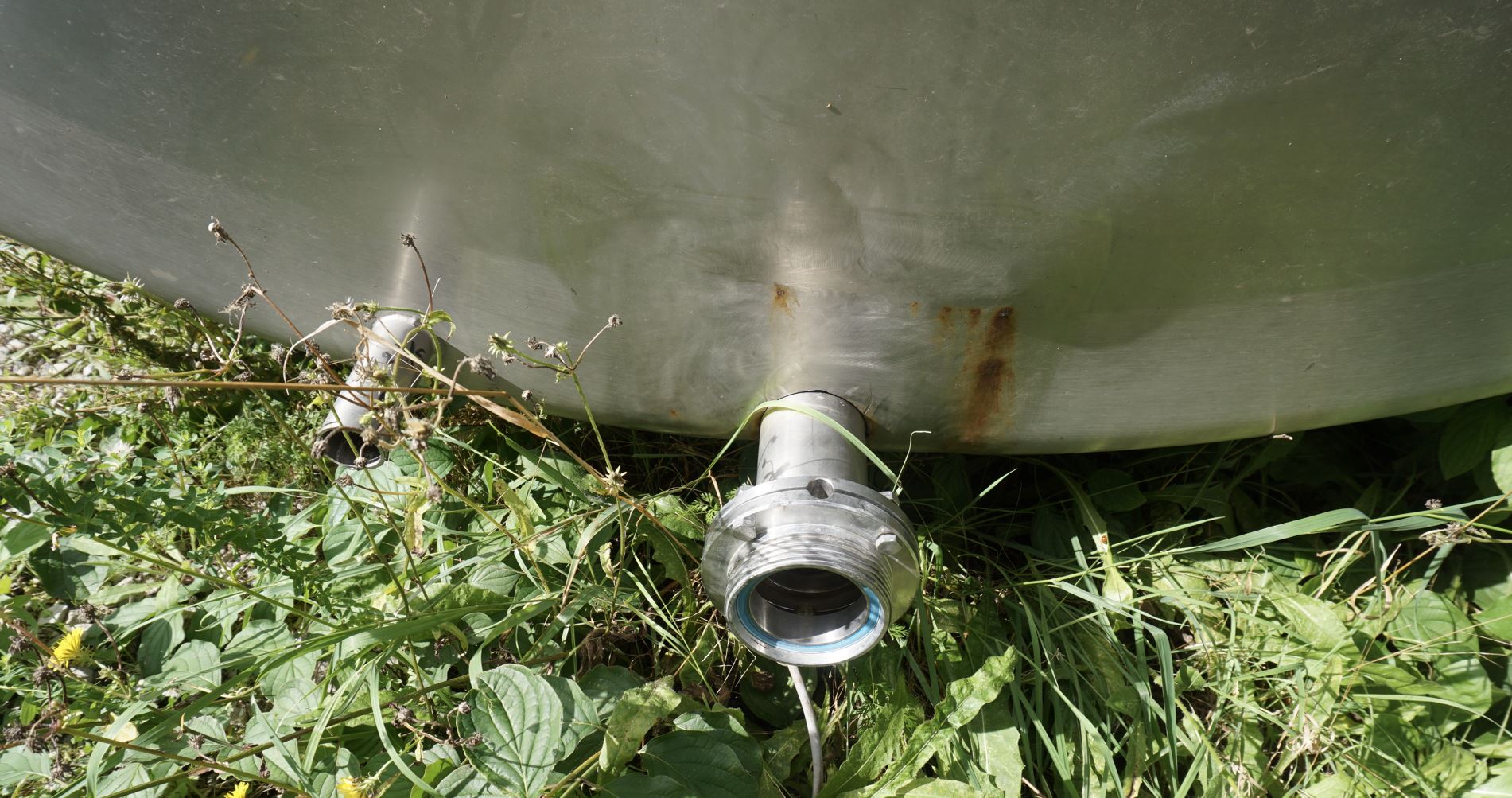

Nozzles/connectors in floor
1xDN65 (piece)
Outlet nozzle
65
Cleaning/CIP nozzle
in head
Additional fixtures and fittings
Air vent
Technical documentation
Technical documentation
None
Other
Note
kleine Beulen i m Mantel
Last usage
Foodstuffs
This product is suitable for use as:
Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank, Hot water tank, Thermal buffer, Cold water tank,
Agriculture: Substrate tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank, Hot water tank,
Chemistry and pharmaceuticals : Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank, Hot water tank, Thermal buffer, Cold water tank,
