Product no. M-2799

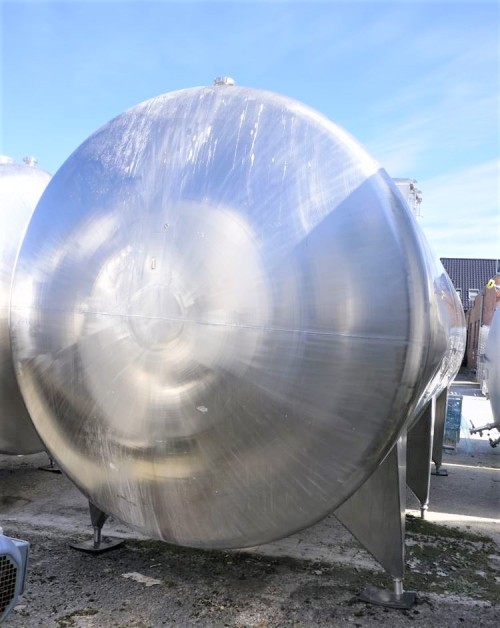

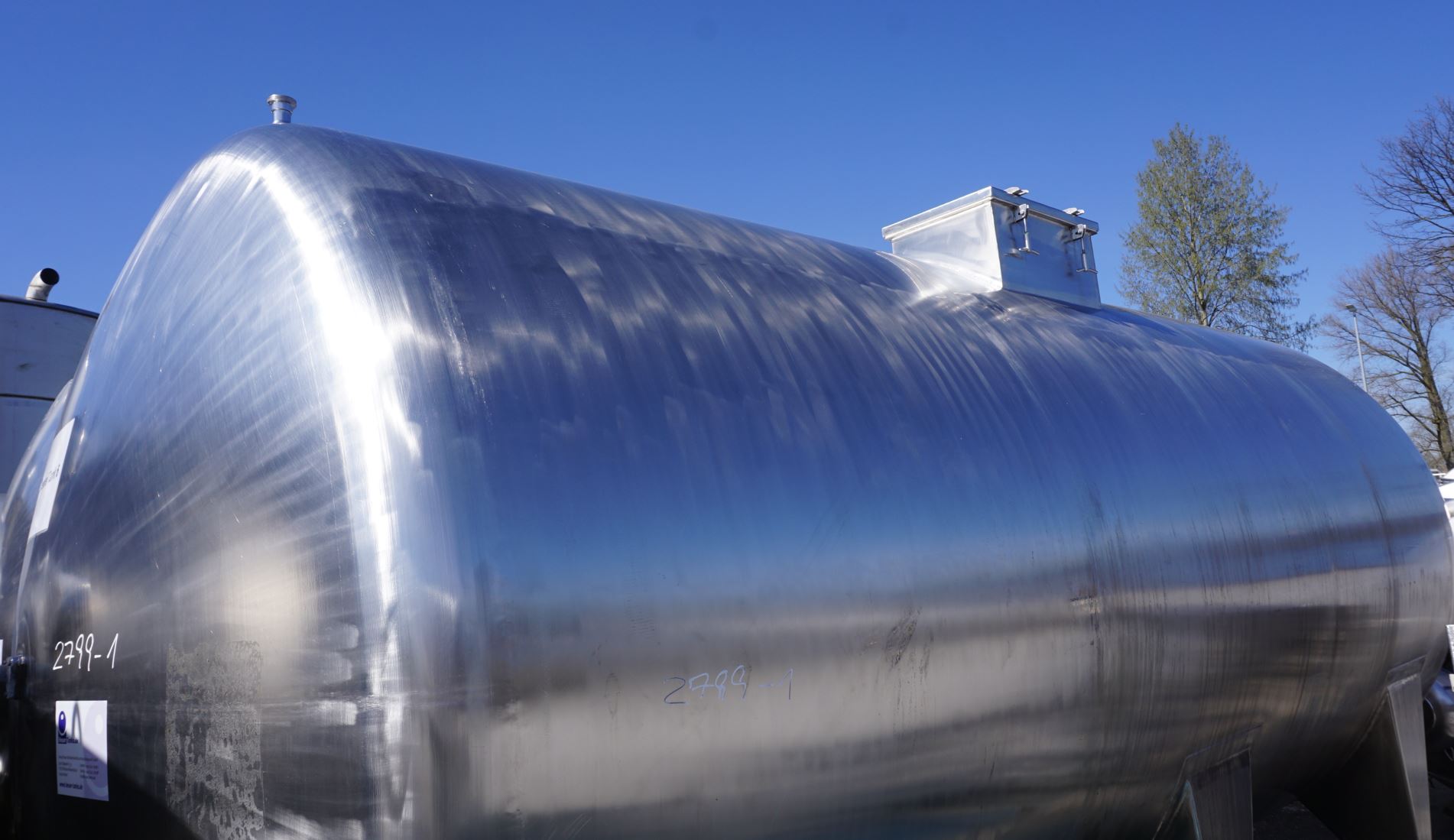

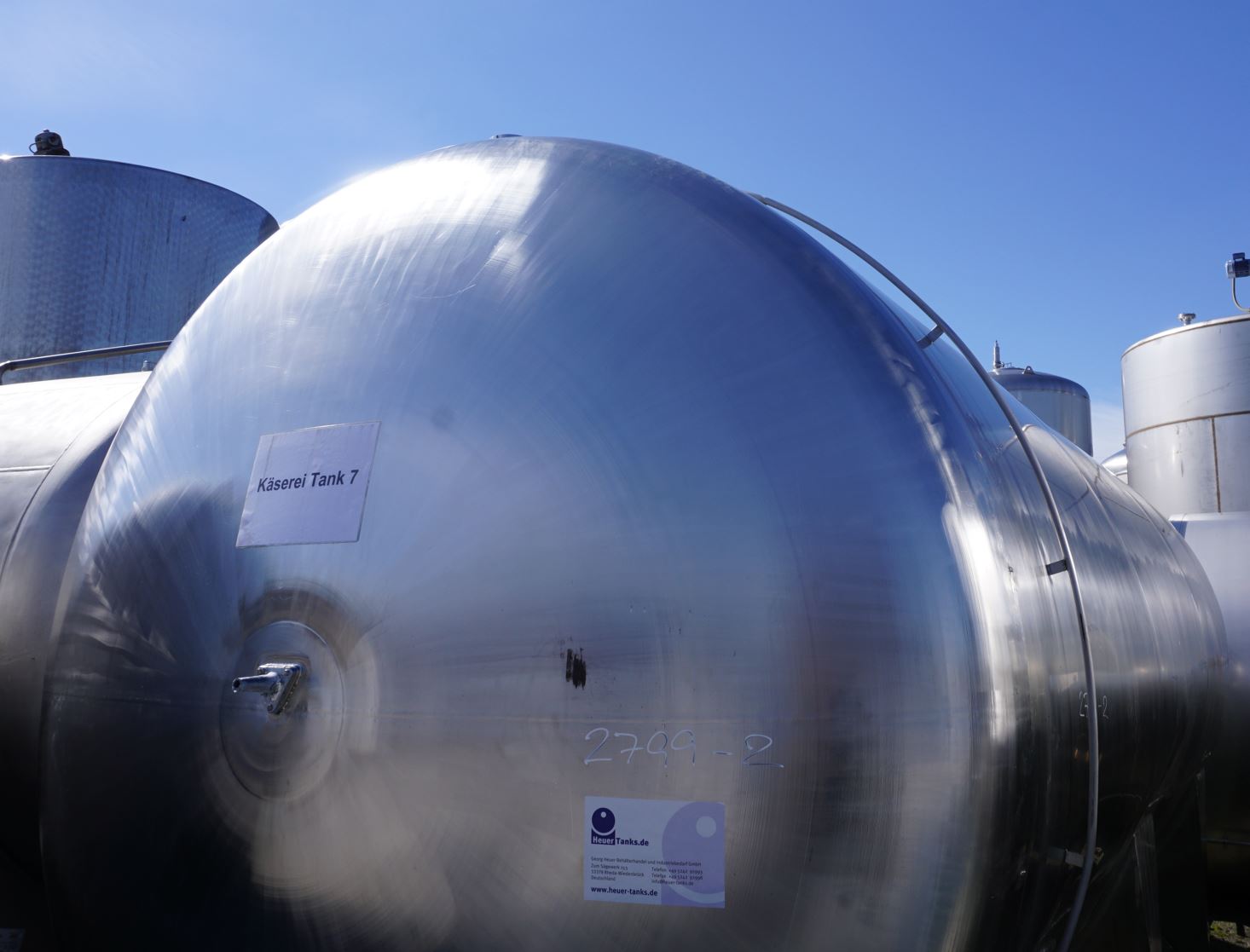

Container 20.000 liters made of V2A, single-walled, used, horizontal
EUR 12.300,00
add. 19 % VAT excl. shipping costs
Volume approx. 20,000.00 litres
Product description
Container 20.000 liters made of V2A, single-walled, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 20,000.00 litres. Container 20.000 liters made of V2A, single-walled, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage, Mixing,General
Volume approx.
20.000,00 litres
Structure
Horizontal
Condition
Used
Dimensions approx.
External diameter
2.300 mm
Cyl. length
4.550 mm
Outlet height
400 mm
Total height
3.200 mm
Total length
5.250 mm
Design
Weight approx.
2.000,00 kg
Weight per unit volume approx.
1.000,00 kg/m³
Insulation
no
Interior surface
Smoothed
Exterior surface
Marbled
Floor type
Torispherical bottom

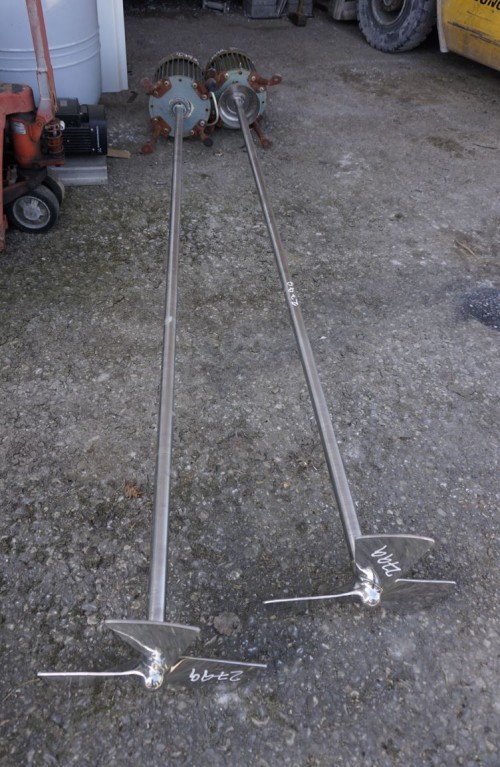

Agitator
Agitator quantity
1 (piece)
Agitator type
Propeller
Agitator position
Head off-centre

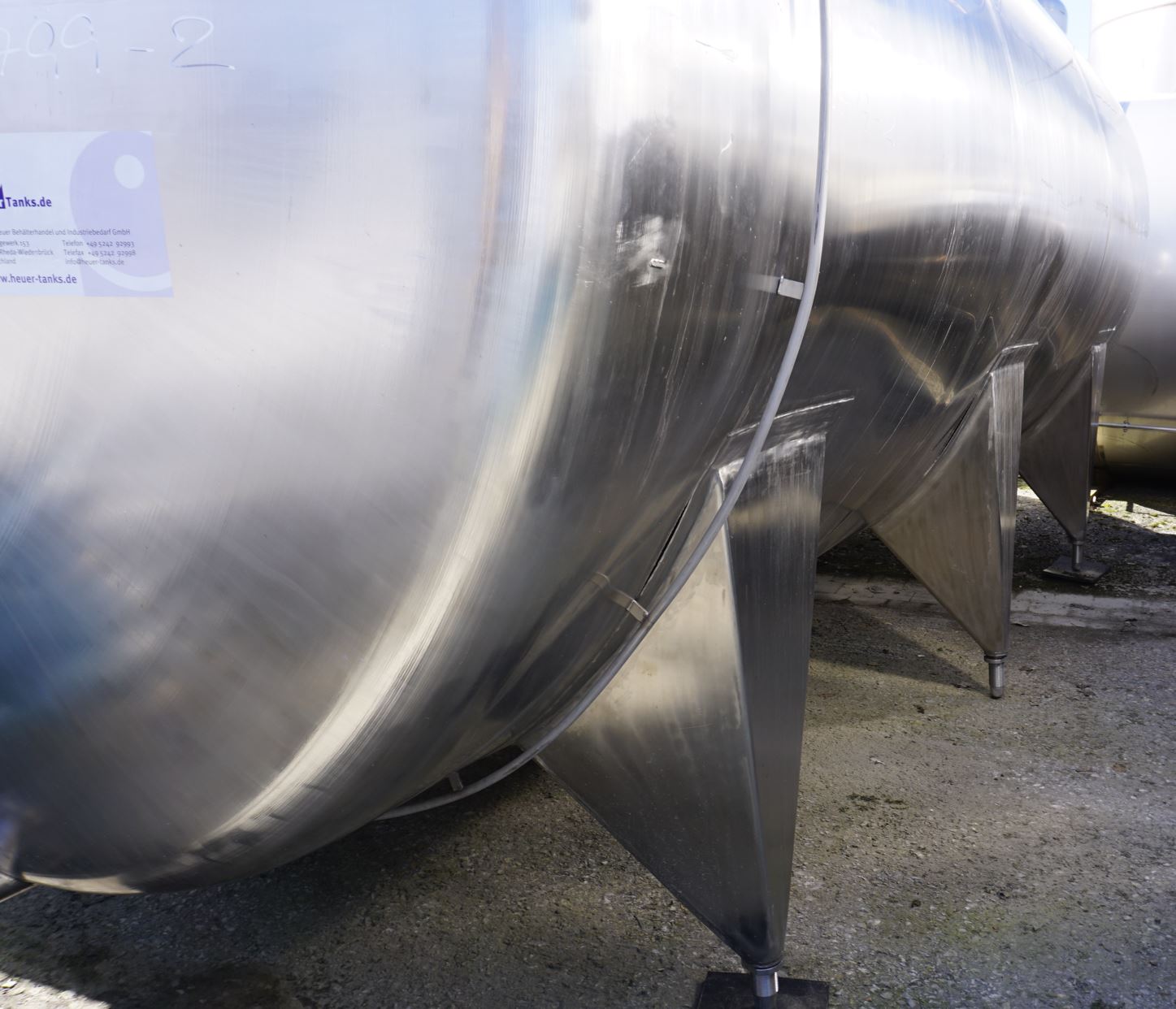

Supports
Supports
Stainless steel feet
Number of feet
6 (piece)
Note on supports
hoehenverstellbar
Fixtures and fittings
Manway position
In head
Nozzle connector
Screw thread
Nozzles/connectors in head
2xDN65 (piece)

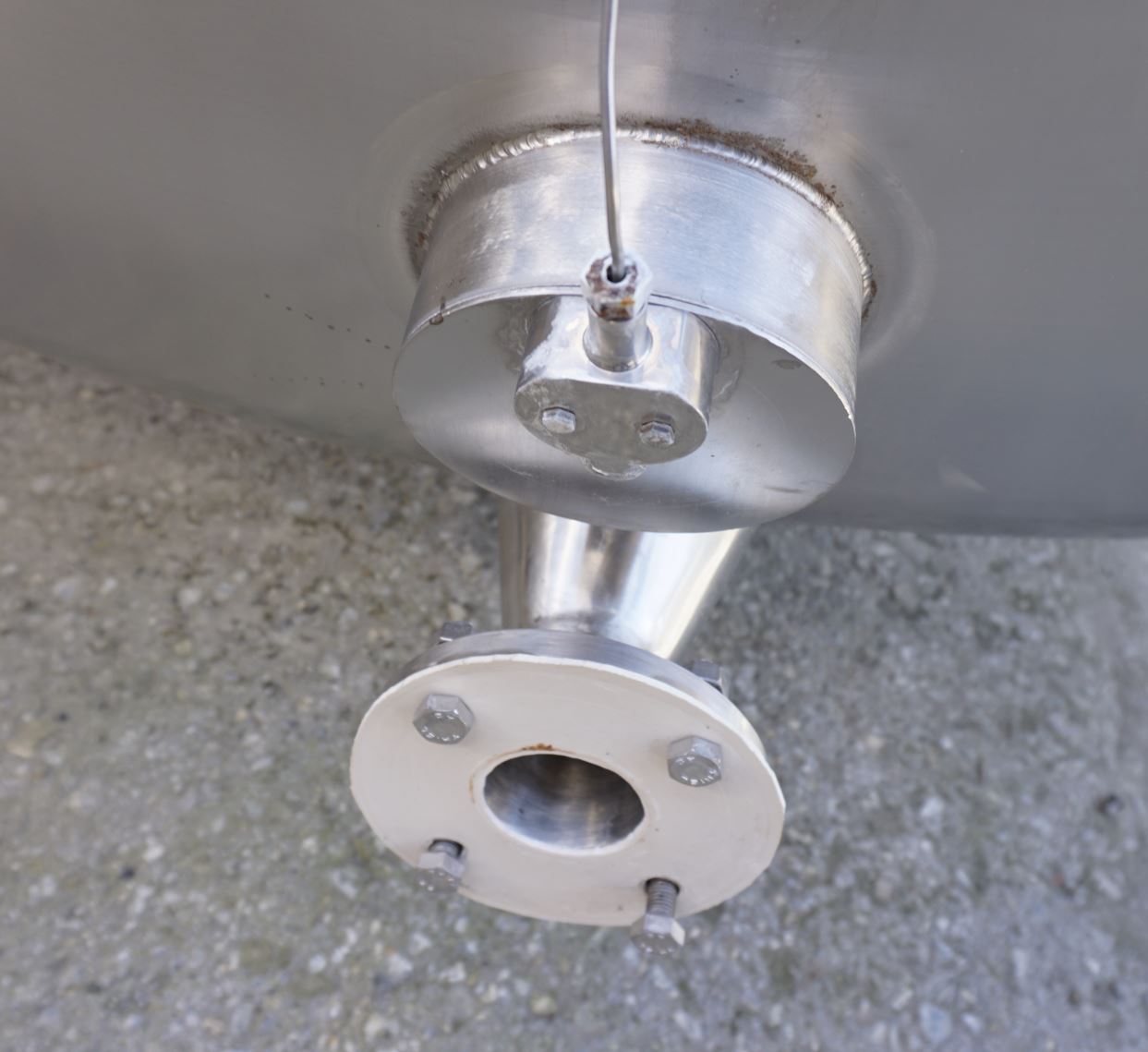

Outlet nozzle
50
Cleaning/CIP nozzle
in head
Technical documentation
Technical documentation
None
Other
Last usage
Foodstuffs
This product is suitable for use as:
Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank, Cold water tank,
Agriculture: Substrate tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank,
Chemistry and pharmaceuticals : Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank, Cold water tank,
