Product no. M-2810

Container 2.000 liters made of V2A isolated, used, standing

EUR 4.600,00

add. 19 % VAT excl. shipping costs


Volume approx. 2,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

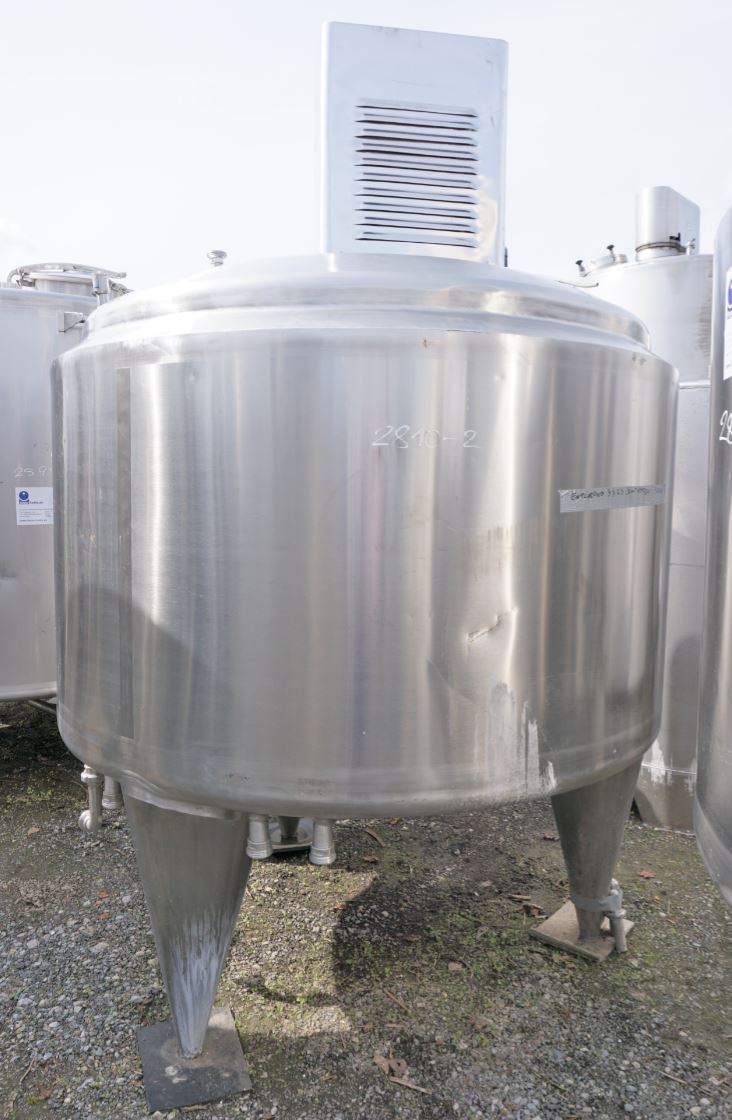

Container 2.000 liters made of V2A isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 2,000.00 litres. The diameter inside includes 1,600 mm.  Container 2.000 liters made of V2A isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 2.000,00 litres

  • Structure

  • Standing

  • Manufacturer

  • abo

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.600 mm

  • External diameter

  • 1.800 mm

  • Cyl. height

  • 1.000 mm

  • Foot height

  • 880 mm

  • Total height

  • 3.200 mm

Design

  • Weight approx.

  • 800,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

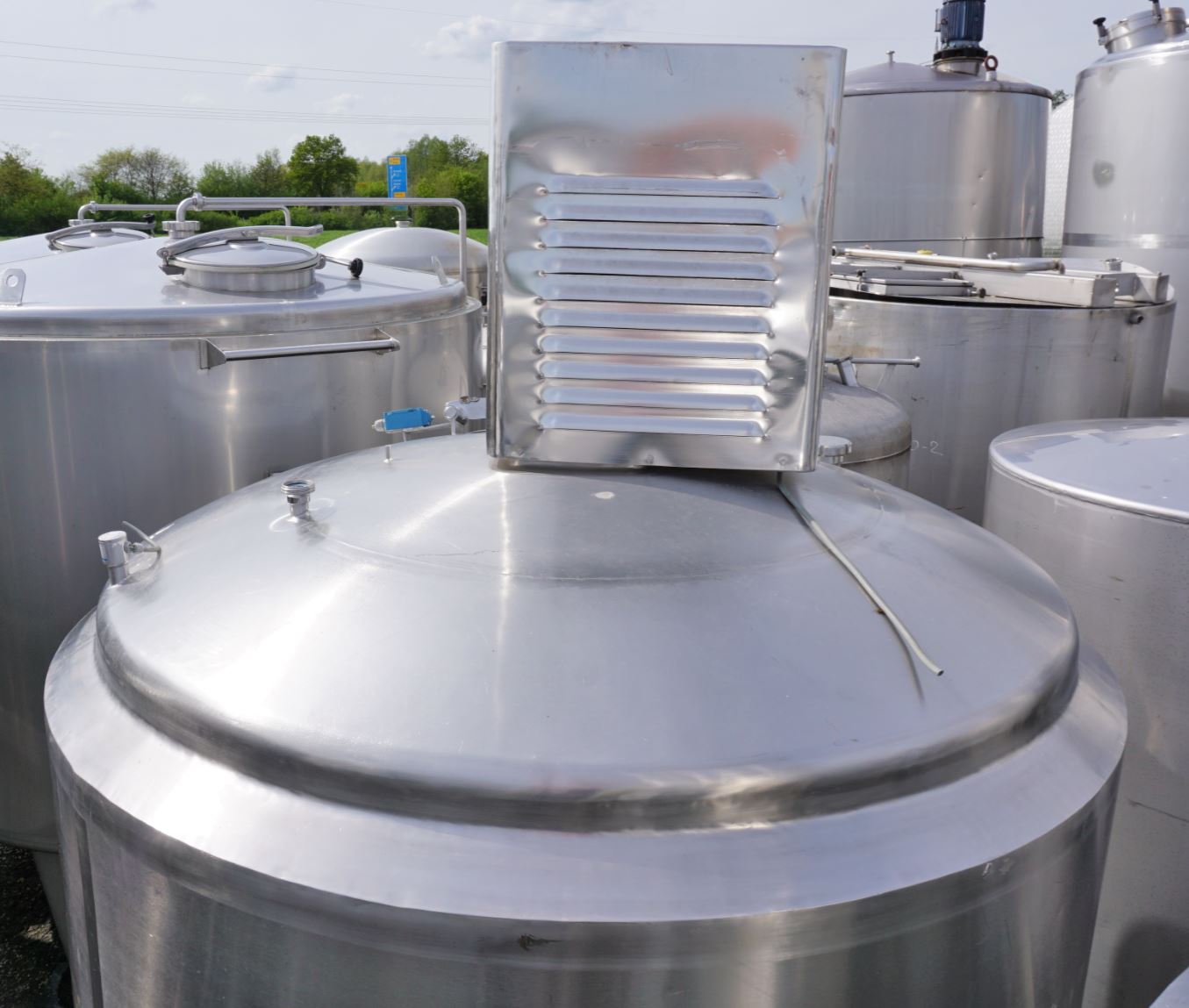

Agitator

  • Agitator quantity

  • 1 (piece)

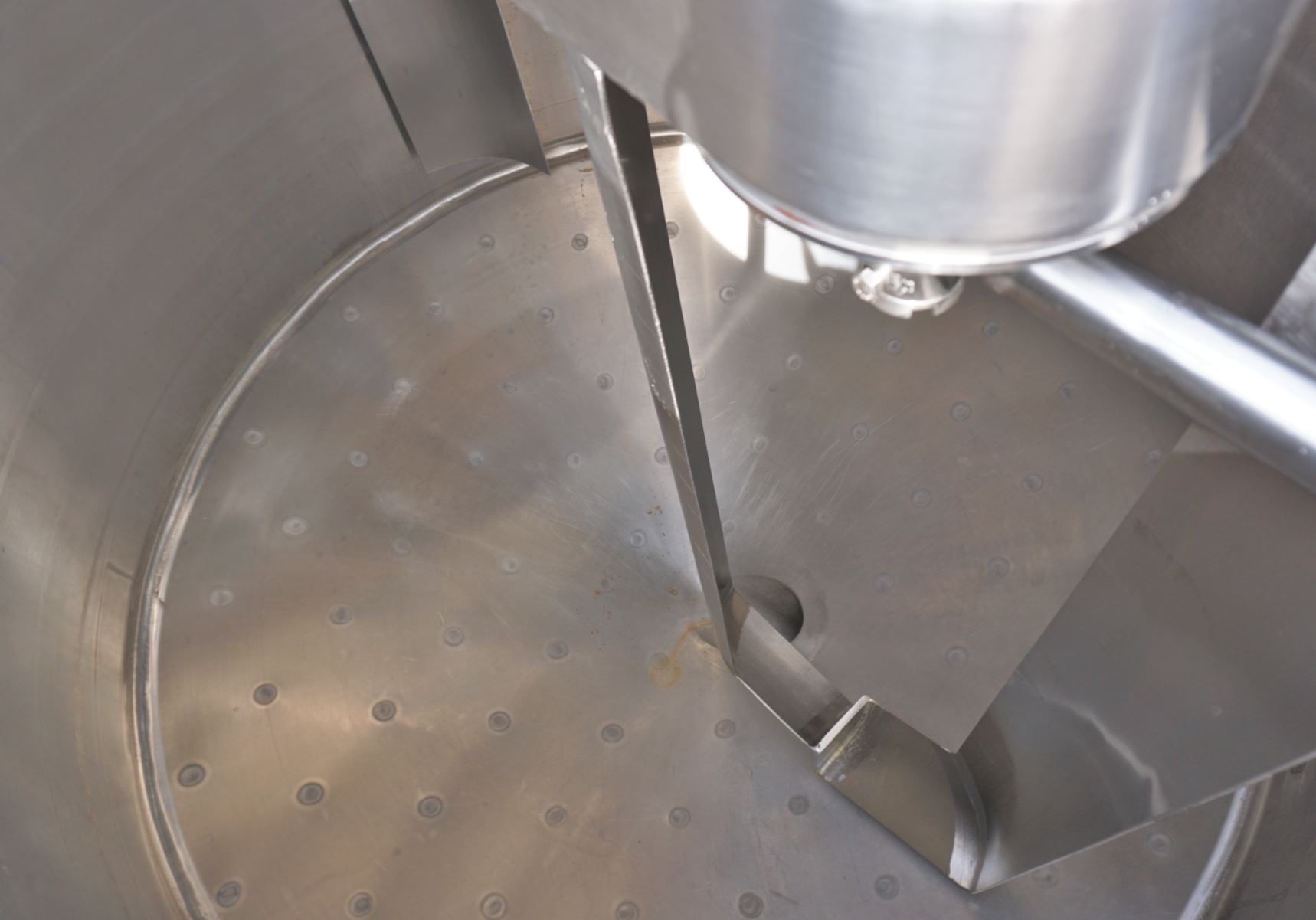

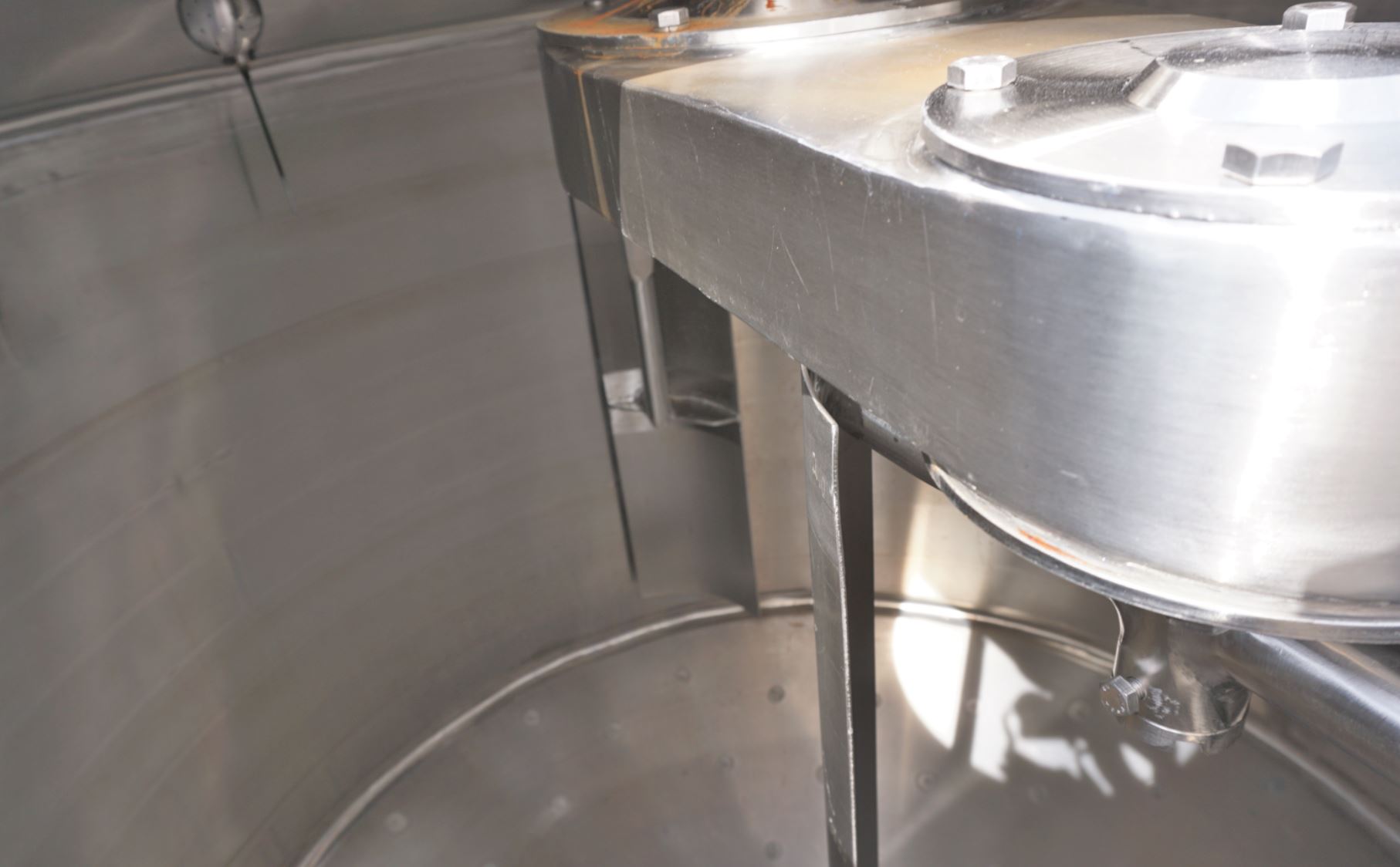

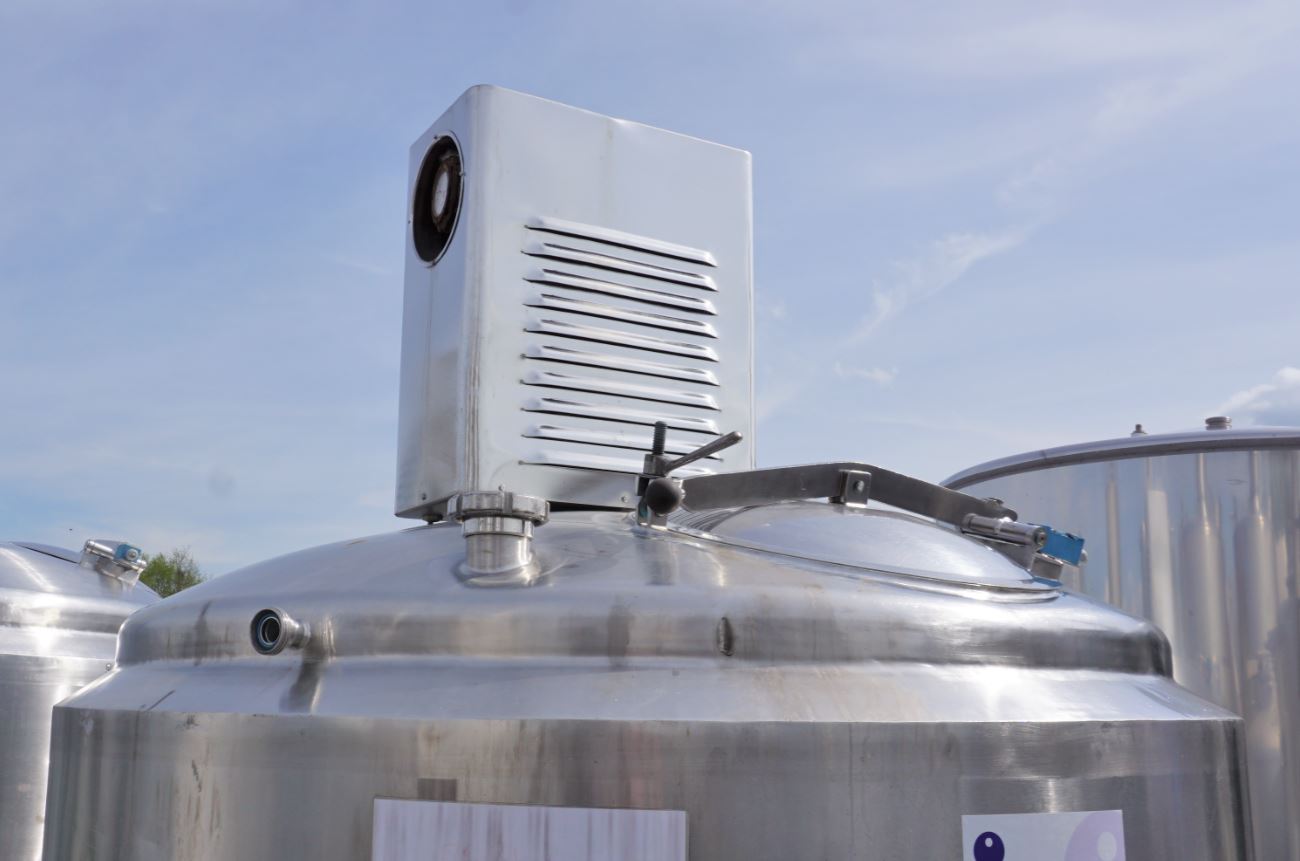

  • Agitator type

  • Planetary agitator

  • Agitator position

  • Head central

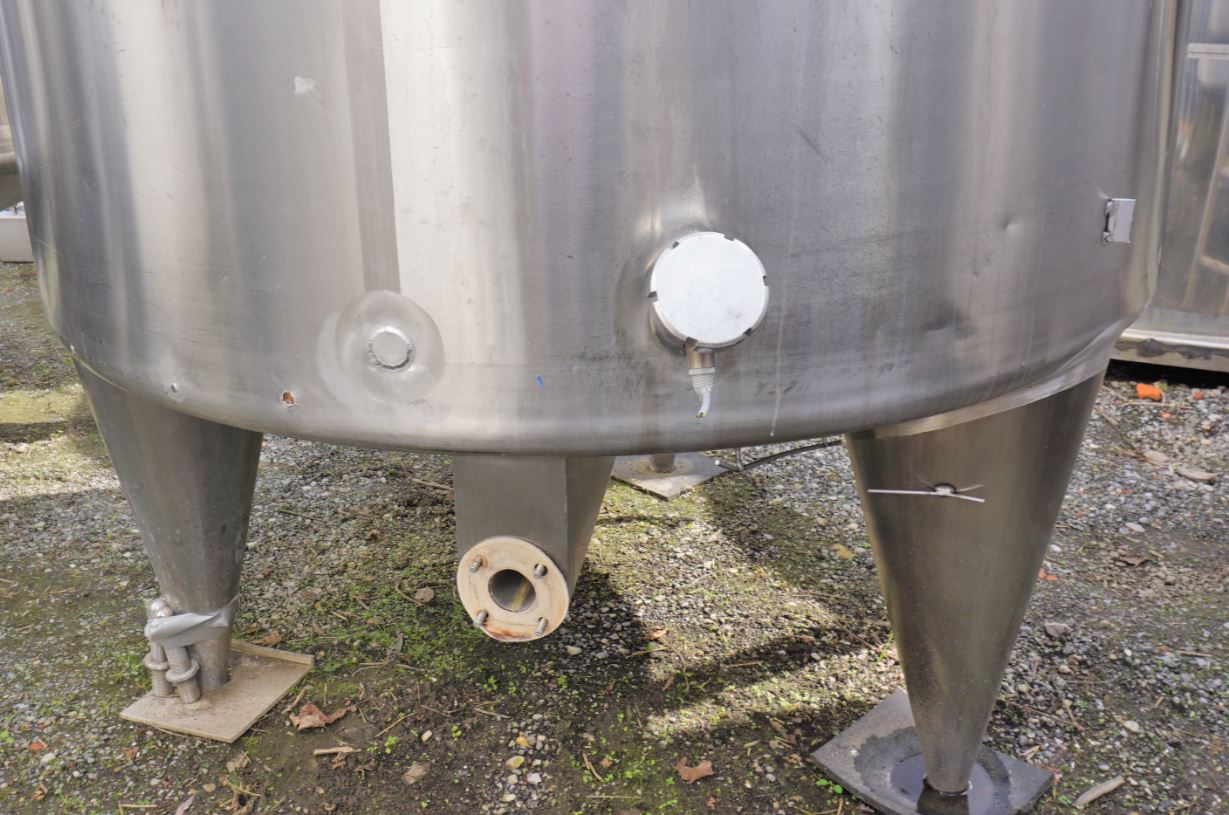

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

  • Note on supports

  • hoehenstellbar

Fixtures and fittings

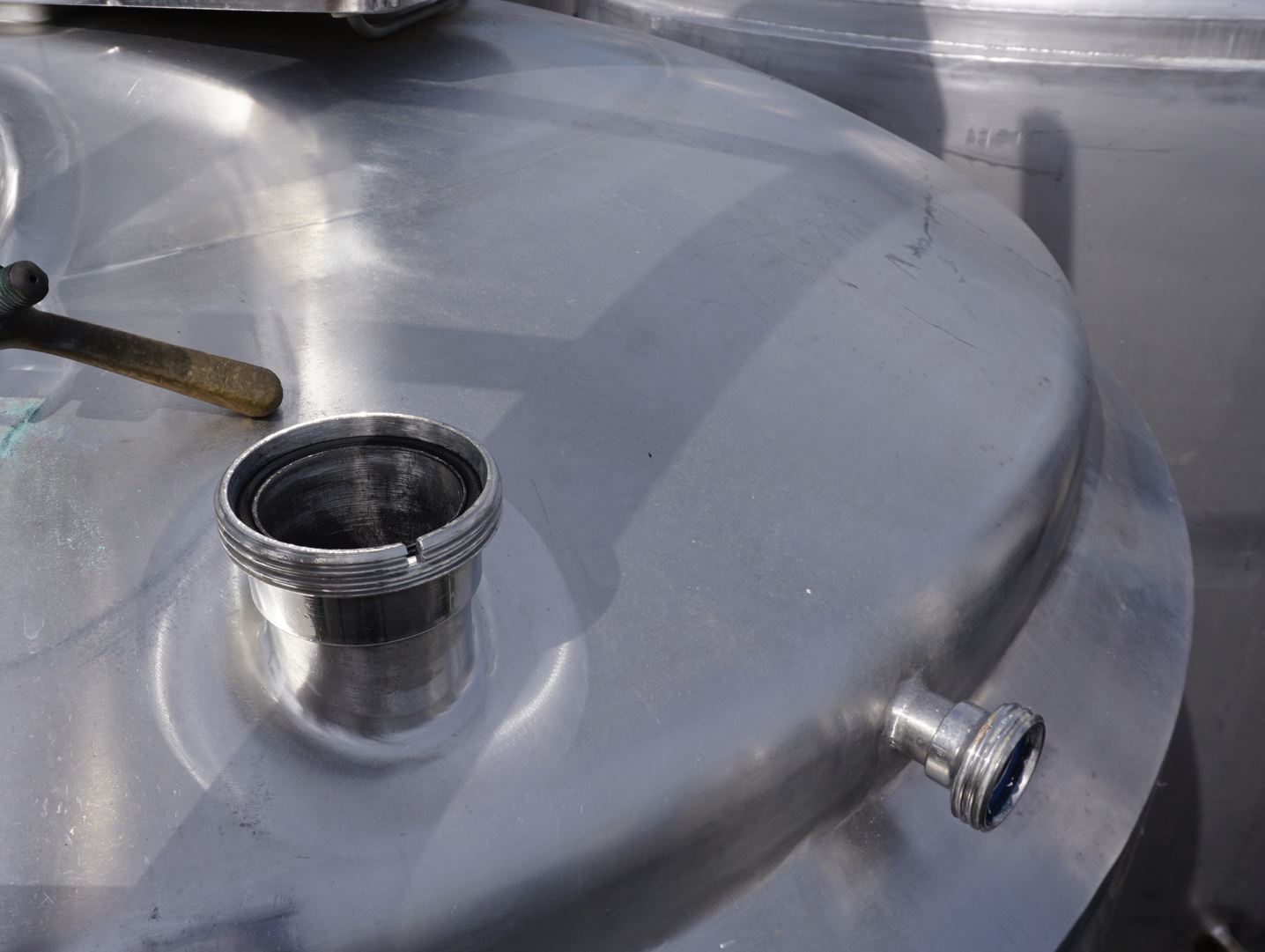

  • Manway position

  • In head

  • Nozzle connector

  • Screw thread

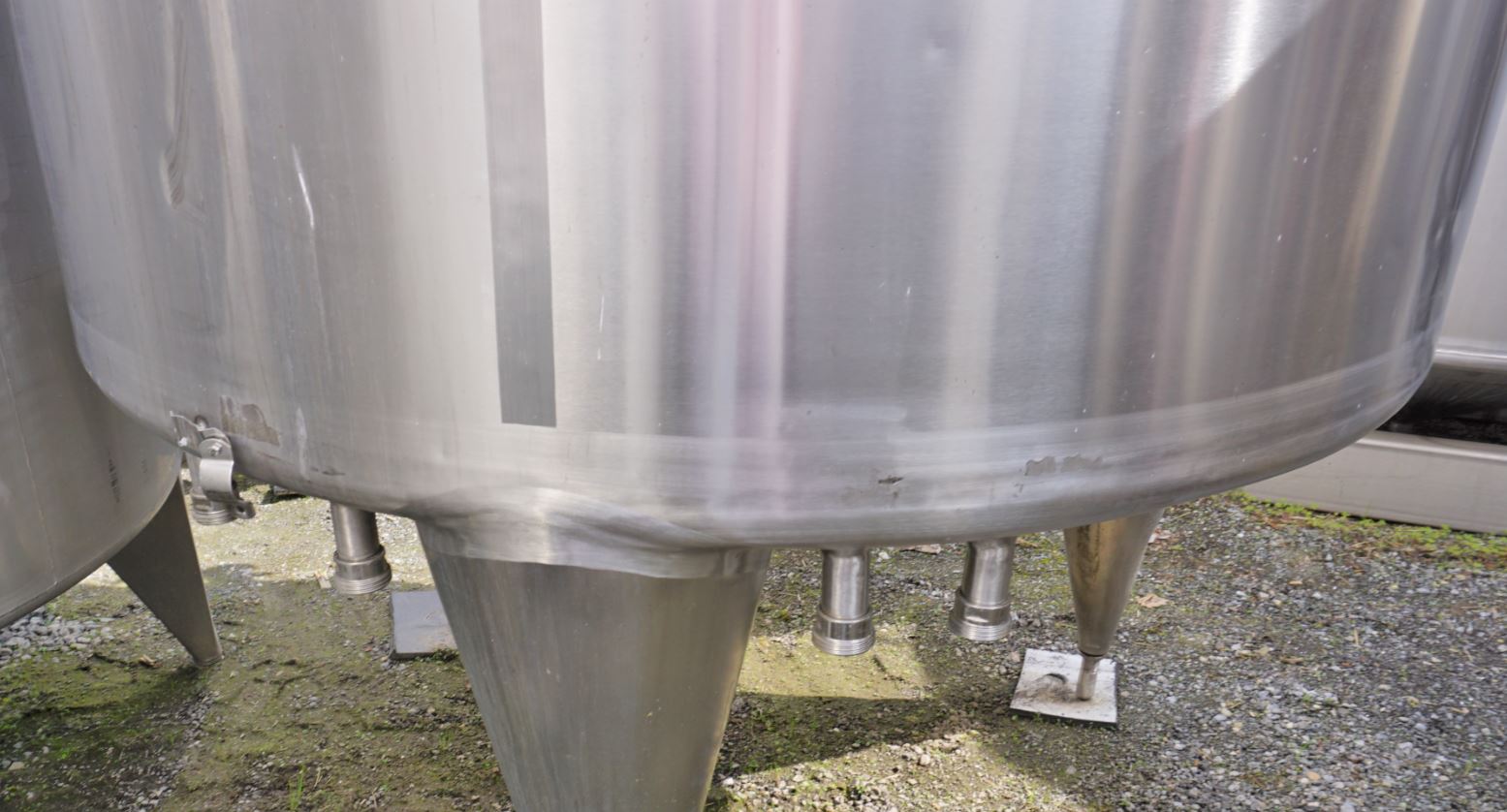

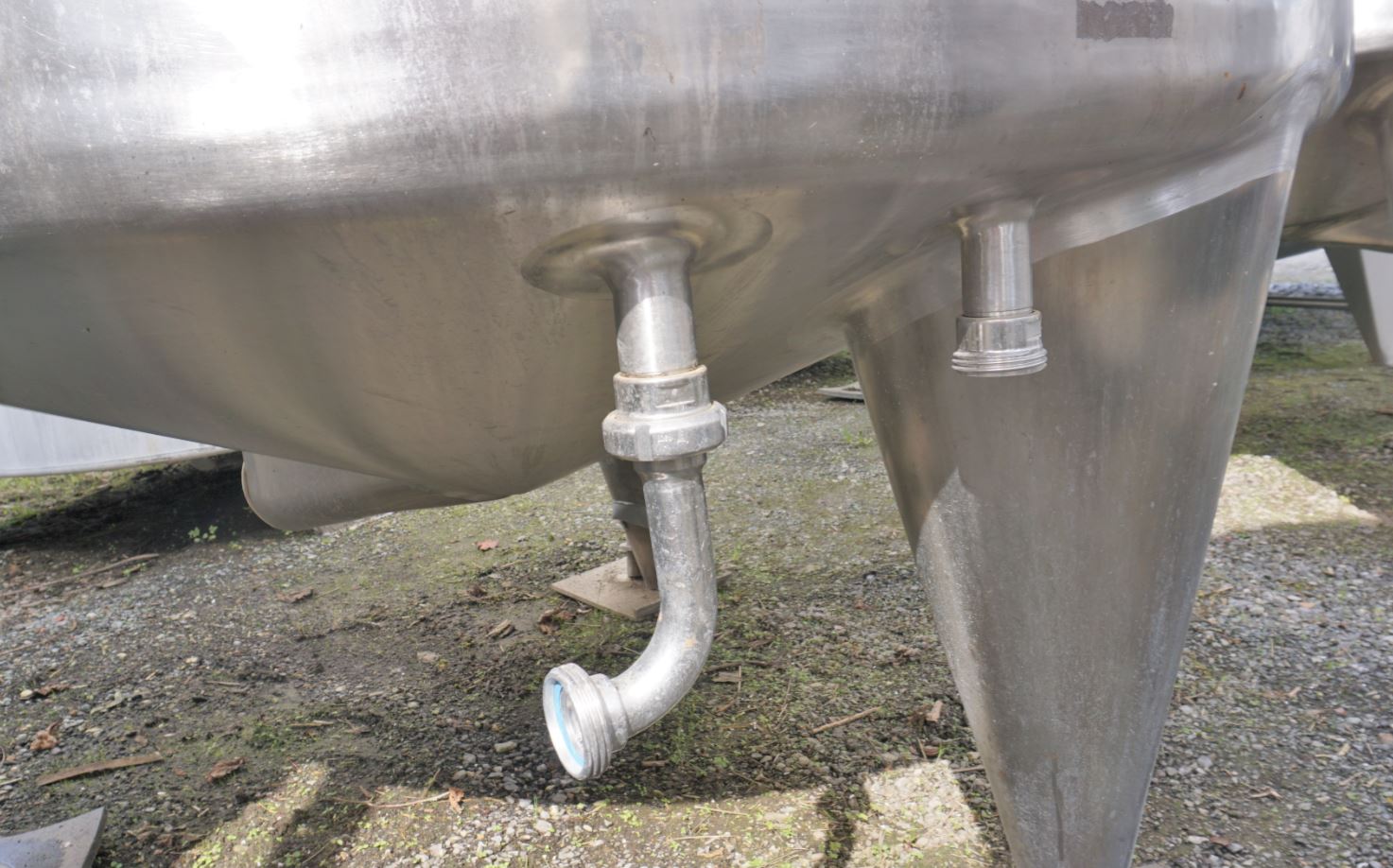

  • Outlet nozzle

  • 50

  • Cleaning/CIP nozzle

  • in shell and head

Technical documentation

  • Technical documentation

  • None

Other

  • Note

  • vorhandene Temperiermantel defekt

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Mixing tank, Boiling tank, Cooling tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank, Cooling tank, Boiling tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Cooling tank,
