Product no. M-2625

Container 2.000 liters made of V2A isolated, used, standing

EUR 6.200,00

add. 19 % VAT excl. shipping costs


Volume approx. 2,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

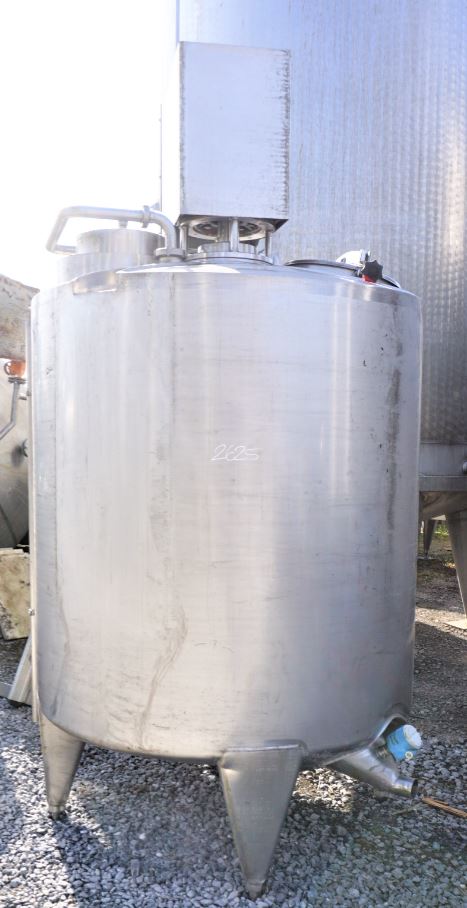

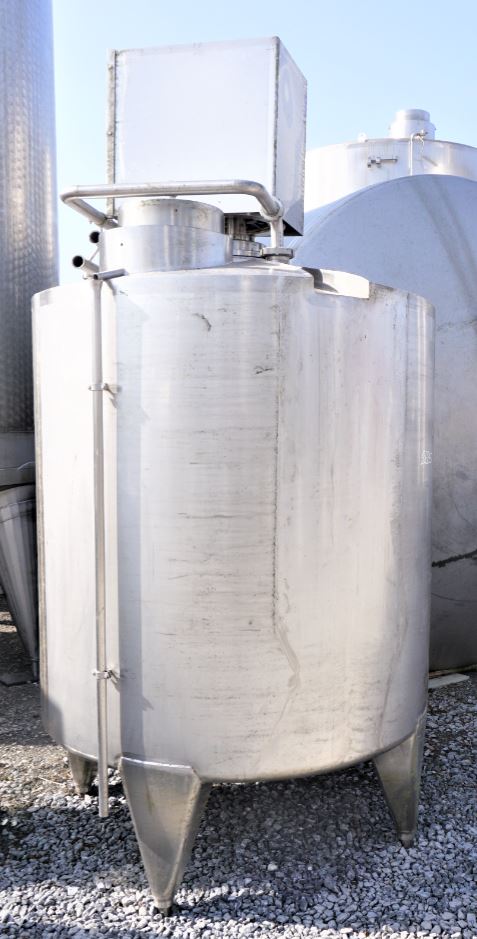

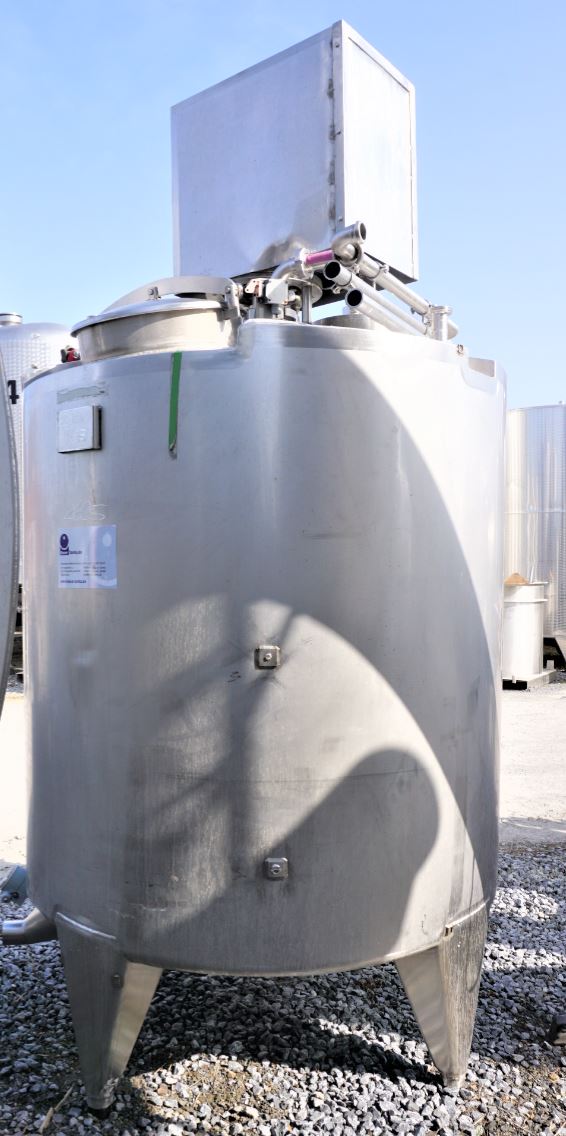

Container 2.000 liters made of V2A isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 2,000.00 litres. The diameter inside includes 1,300 mm.  Container 2.000 liters made of V2A isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 2.000,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 2000

  • Manufacturer

  • ABAB

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.300 mm

  • External diameter

  • 1.470 mm

  • Cyl. height

  • 1.450 mm

  • Foot height

  • 480 mm

  • Total height

  • 3.130 mm

Design

  • Weight approx.

  • 800,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

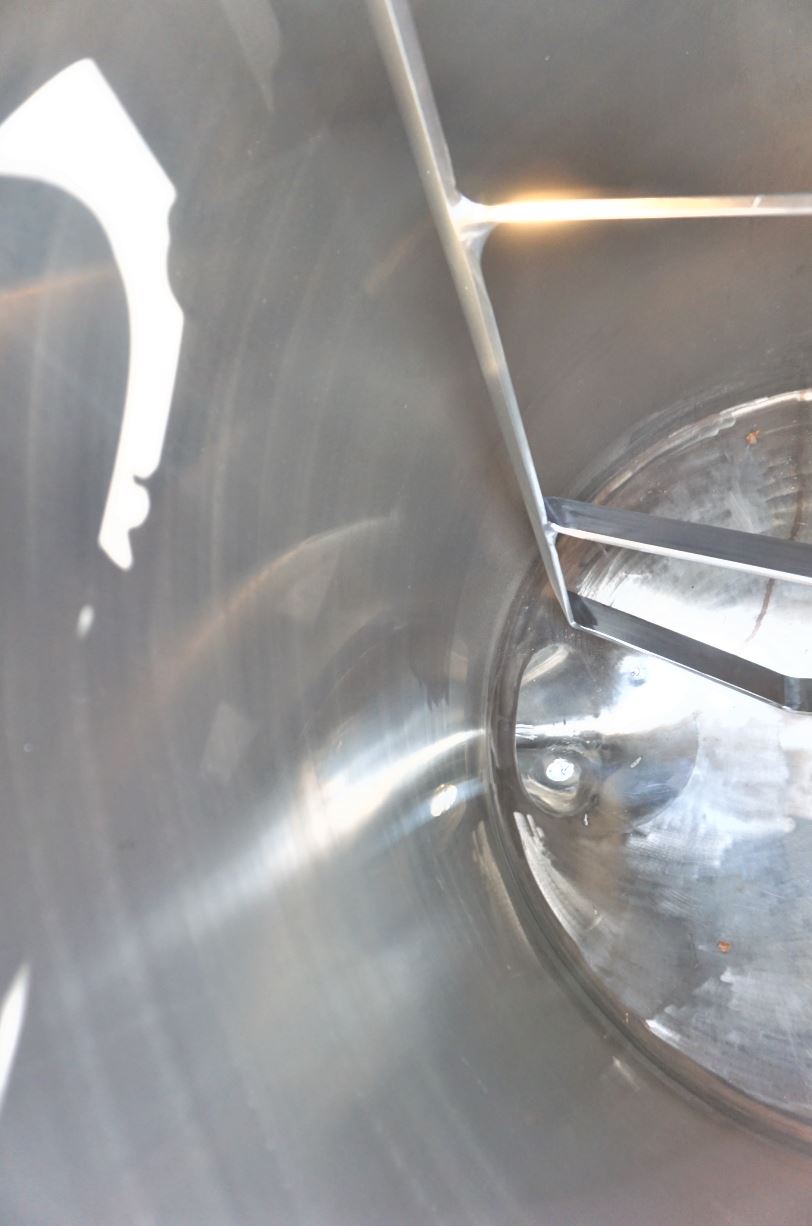

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

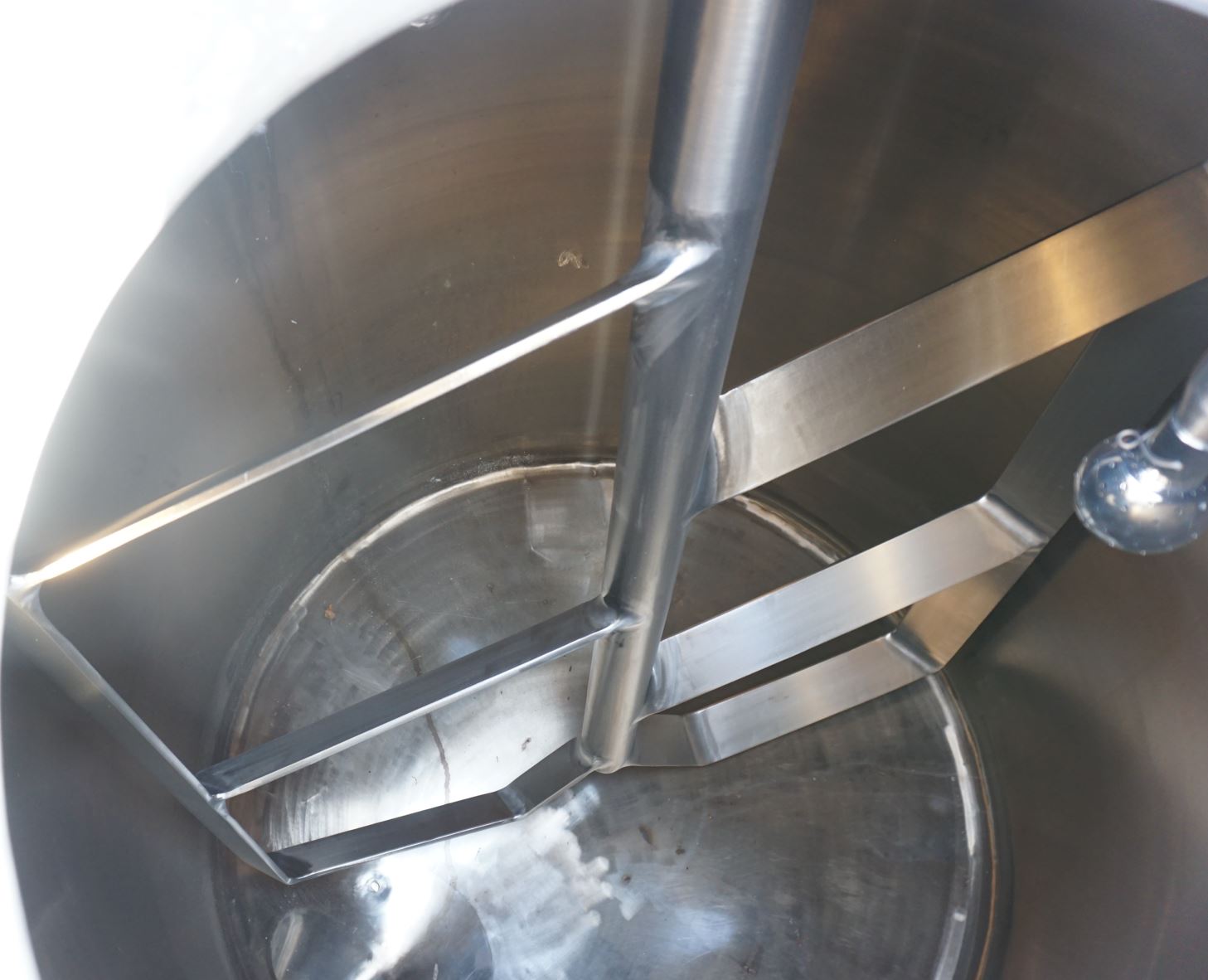

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Wall scraper

  • Agitator position

  • Head central

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

  • Note on supports

  • höhenverstellbar

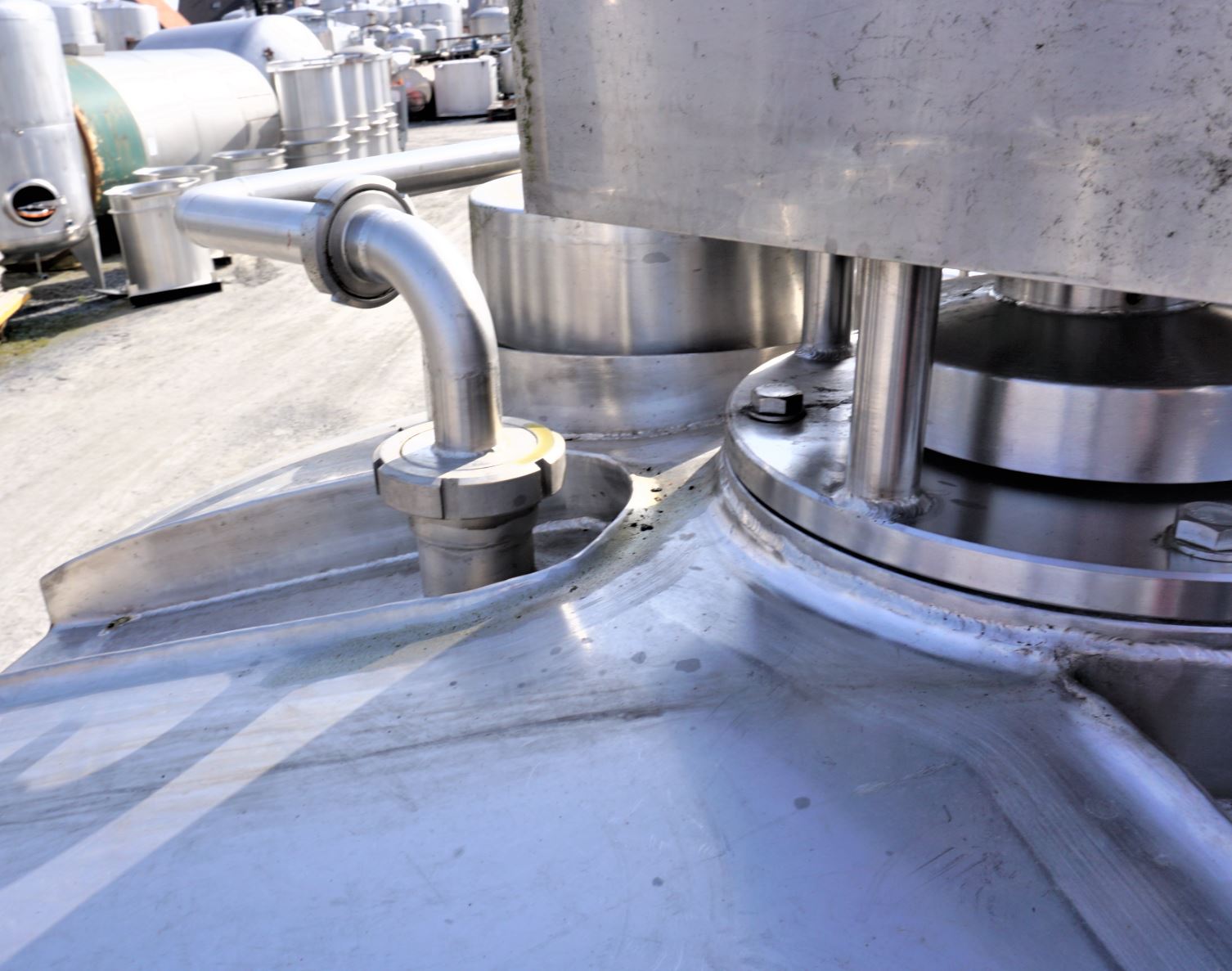

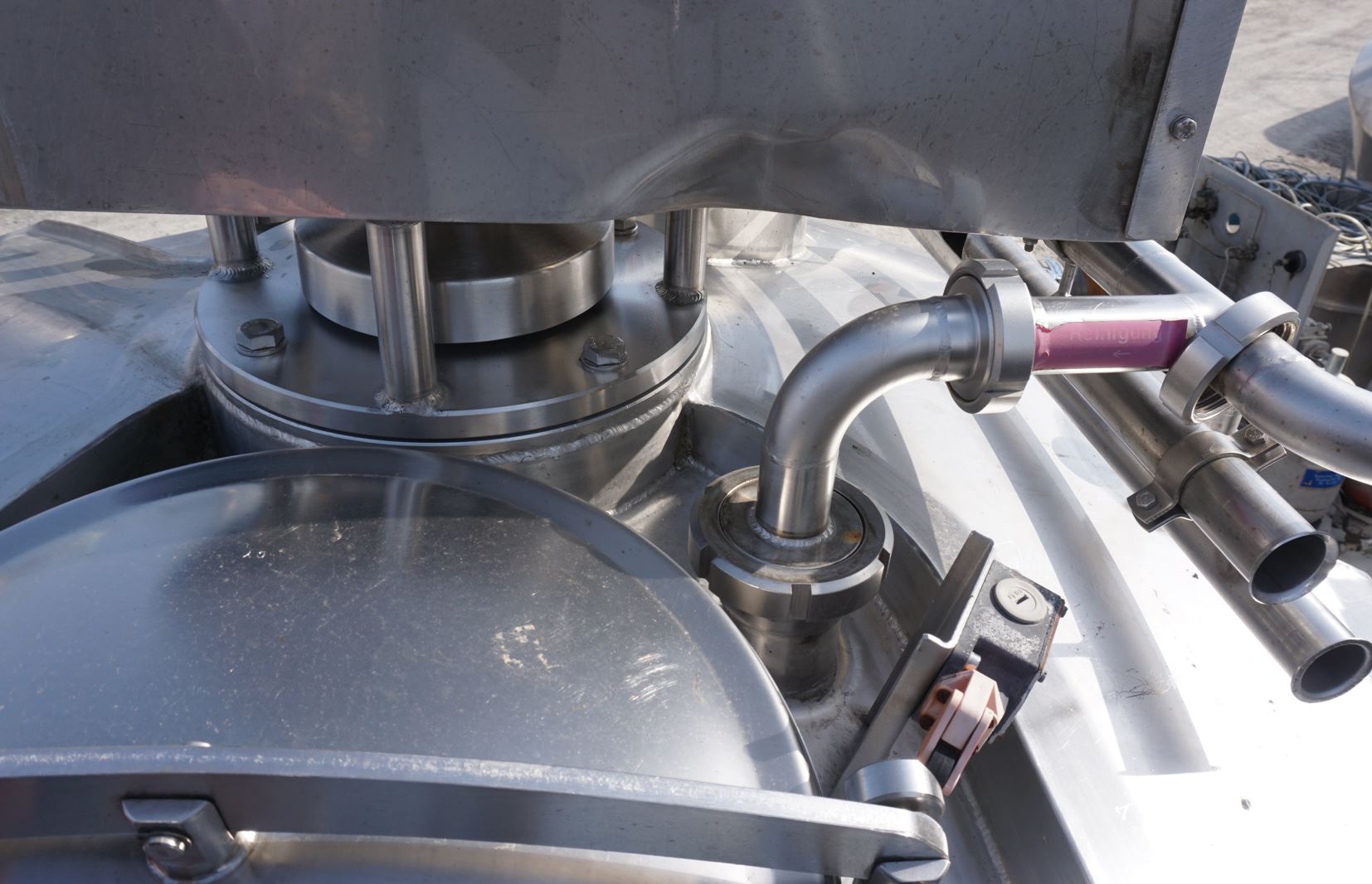

Fixtures and fittings

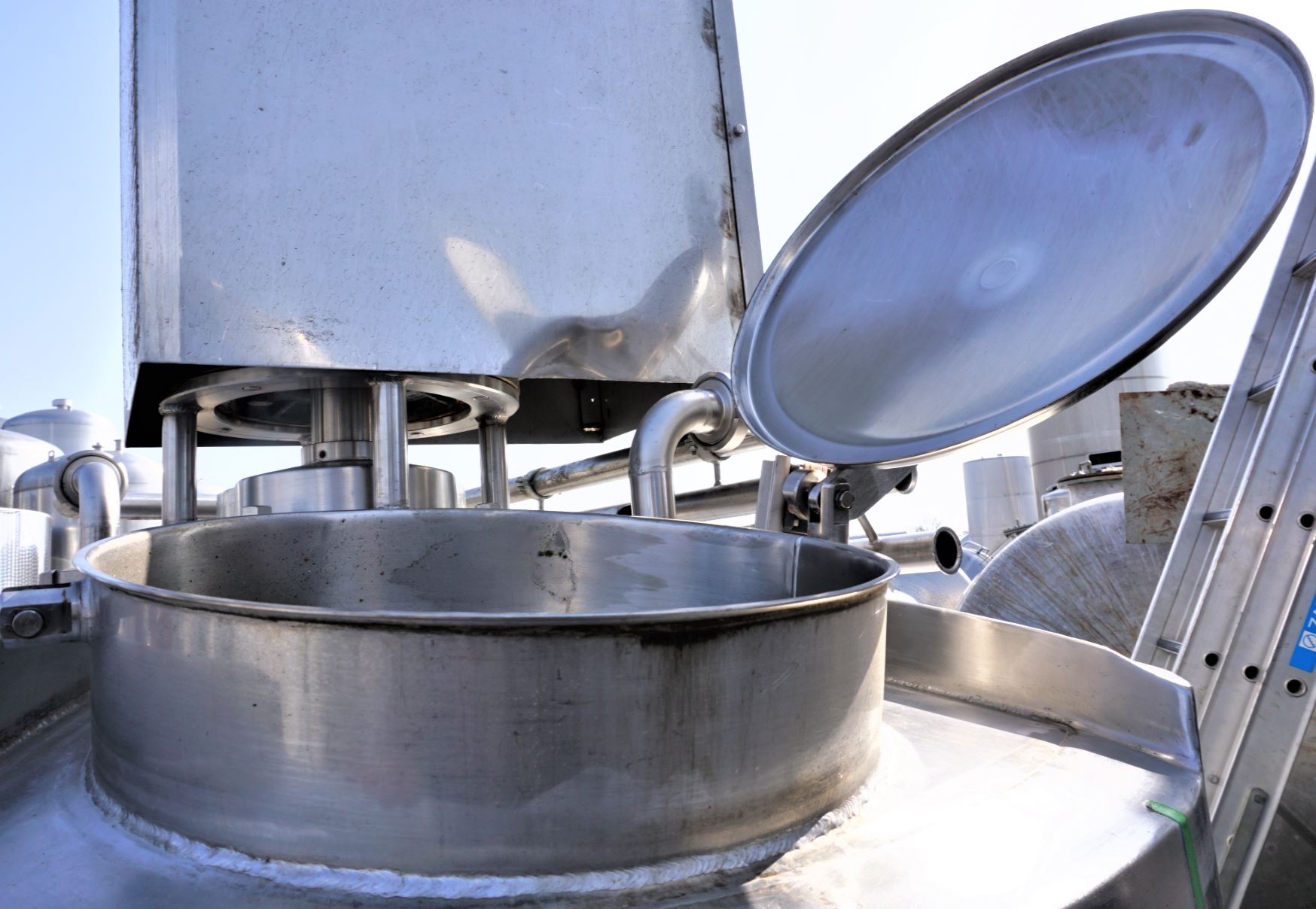

  • Manway 1 size

  • 430 DN mm

  • Manway position

  • In head

  • Nozzle connector

  • Screw thread

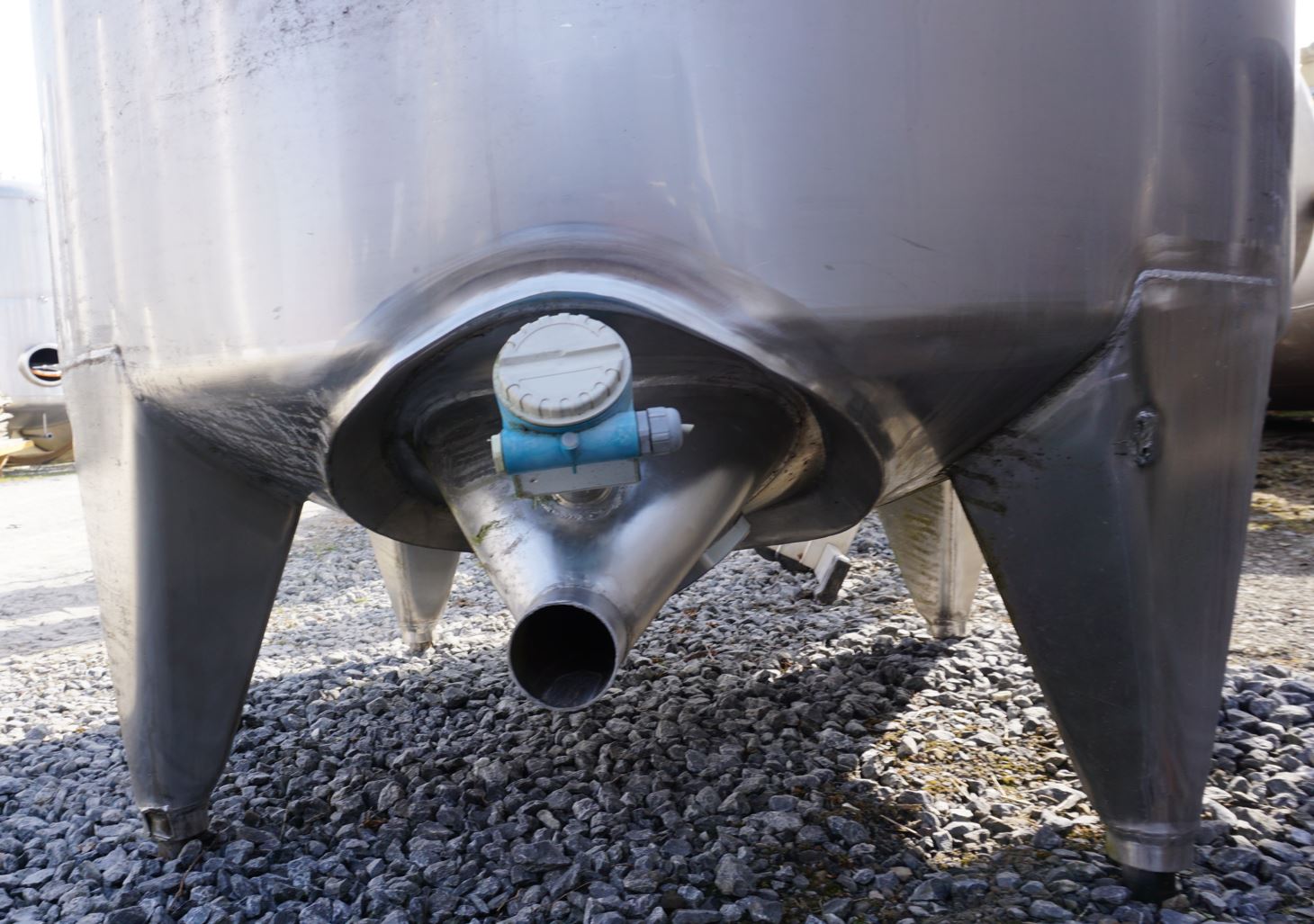

  • Outlet nozzle

  • 65

  • Cleaning/CIP nozzle

  • in head

  • Additional fixtures and fittings

  • Air vent

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Cooling tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
