Product no. M-1389

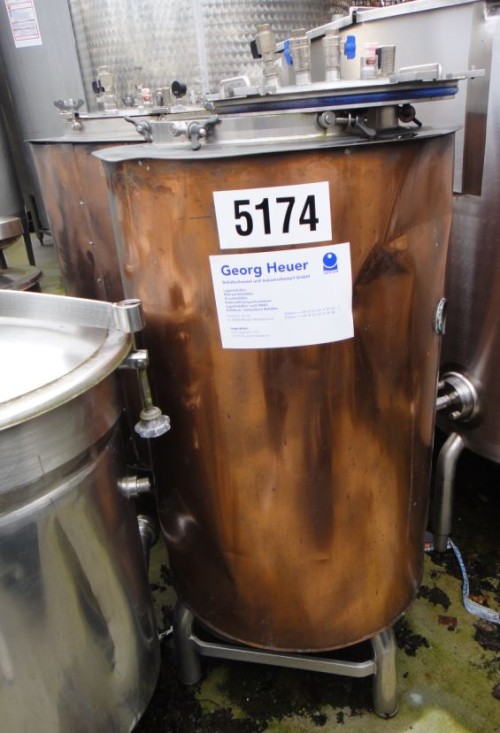

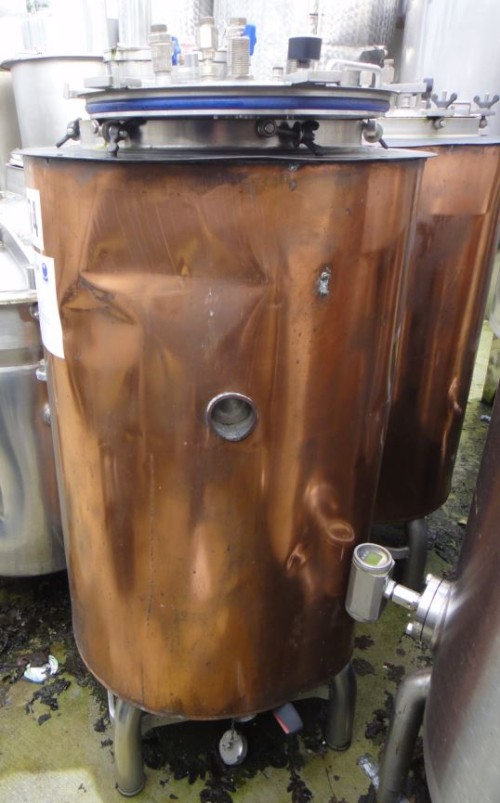

Container 180 liters made of V2A, isolated, temperature-controllable, used, standing
EUR 1.500,00
add. 19 % VAT excl. shipping costs
Volume approx. 180.00 litres
Product description
Container 180 liters made of V2A, isolated, temperature-controllable, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 180.00 litres. The diameter inside includes 540 mm. Container 180 liters made of V2A, isolated, temperature-controllable, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage, Boiling, Cooling, Tempering, Processes,General
Volume approx.
180,00 litres
Structure
Standing
Condition
Used
Dimensions approx.
Internal diameter
540 mm
External diameter
740 mm
Cyl. height
920 mm
Foot height
240 mm
Total height
1.300 mm
Design
Weight approx.
100,00 kg
Insulation
yes
Insulated area
Shell and floor
Interior surface
Smoothed
Exterior surface
Smoothed
Floor type
Torispherical bottom
Head design
Torispherical bottom
Equipment
Temperature-controllable
Yes
Temperature control area
Interior

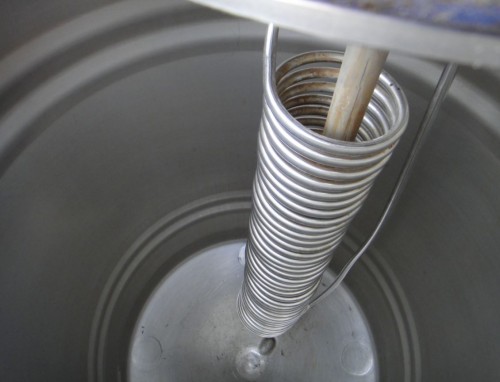

Temperature control system
Interior pipe coils

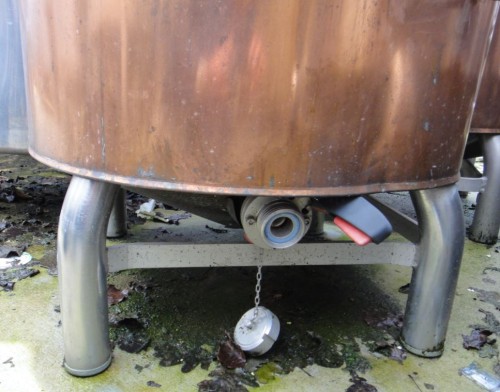

Supports
Supports
Stainless steel feet
Number of feet
4 (piece)
Fixtures and fittings
Manway position
In head
Outlet nozzle
32
Technical documentation
Technical documentation
None
Other
Note
leichte Druckstellen in der Isolierverkleidung
Last usage
Foodstuffs
This product is suitable for use as:
Foodstuffs: Foodstuffs tank, Wine tank, Mash tank, Spirituous beverages tank, Storage tank, Buffer tank, Pre-buffer tank, Process tank, Fermentation tank, Anaerobic digestion tank,
Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Process tank,
Chemistry and pharmaceuticals : Chemical tank, Storage tank, Process tank, Fermentation tank, Anaerobic digestion tank,
