Product no. M-2990

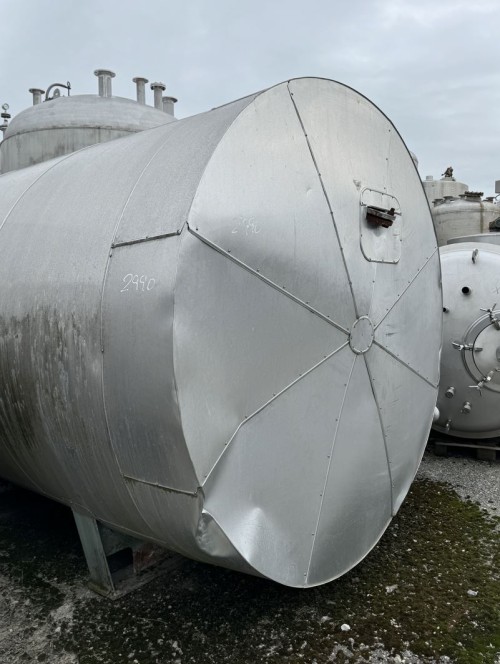

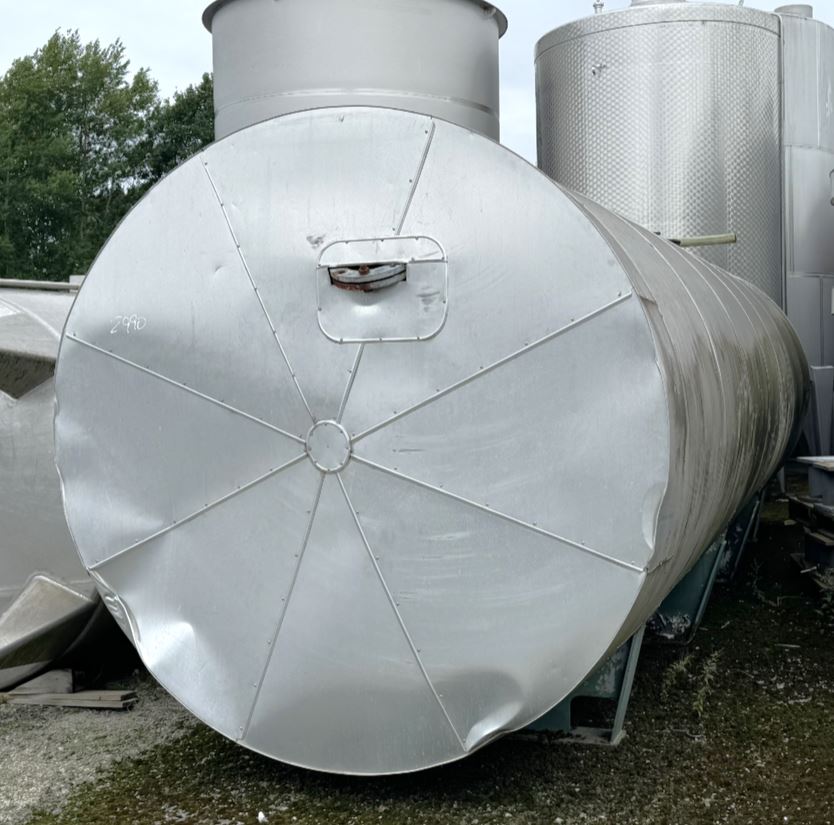

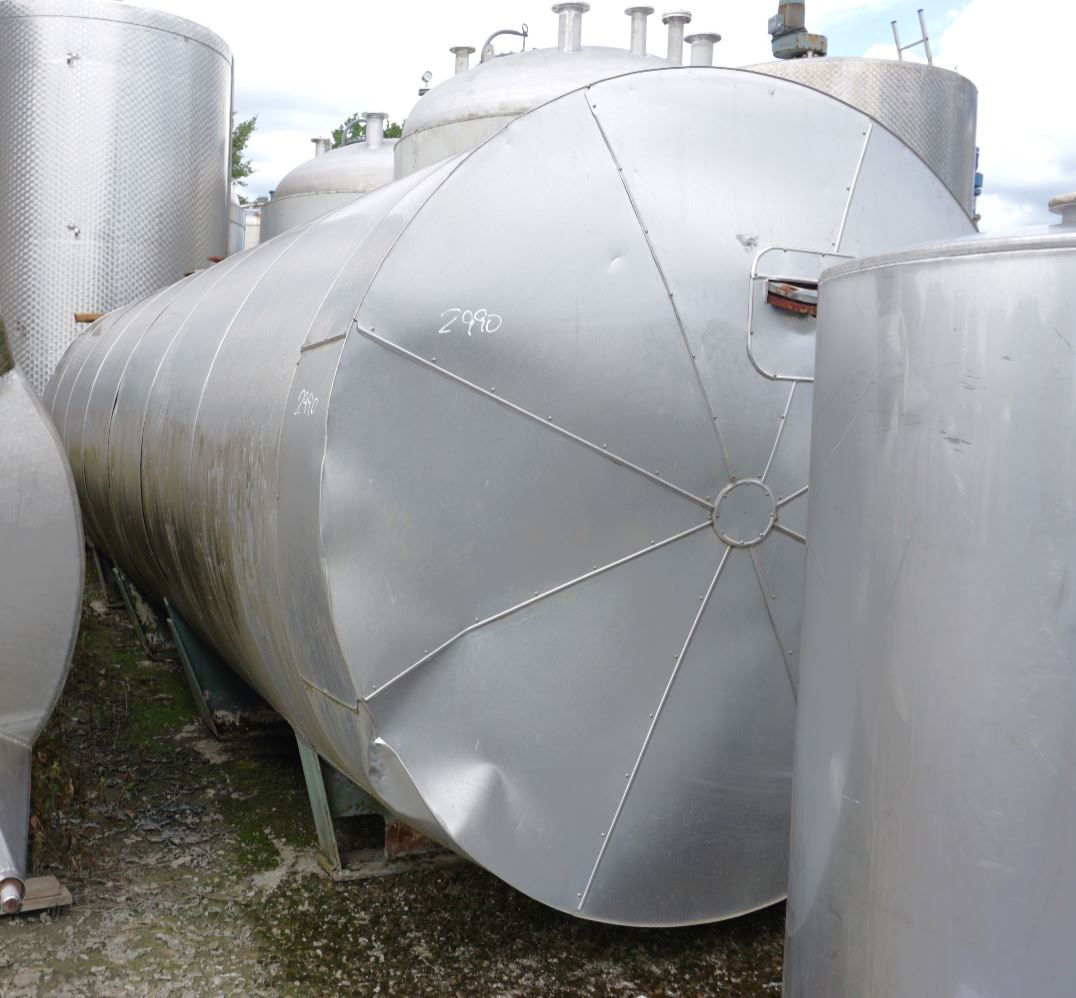

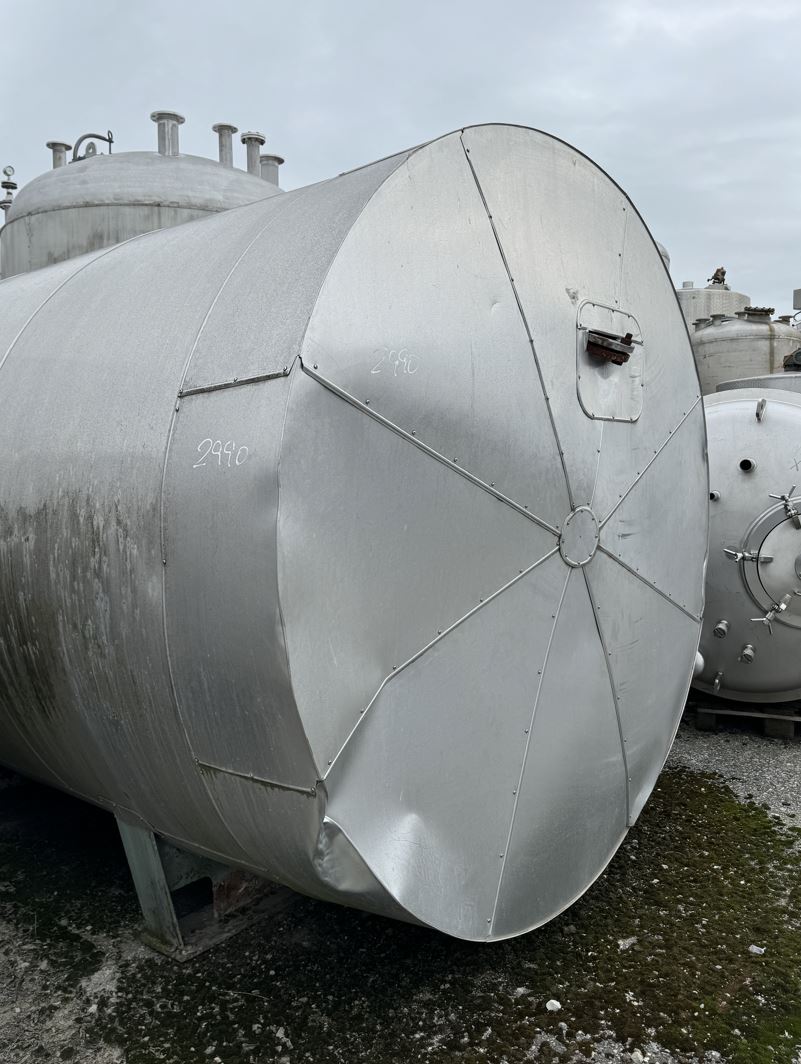

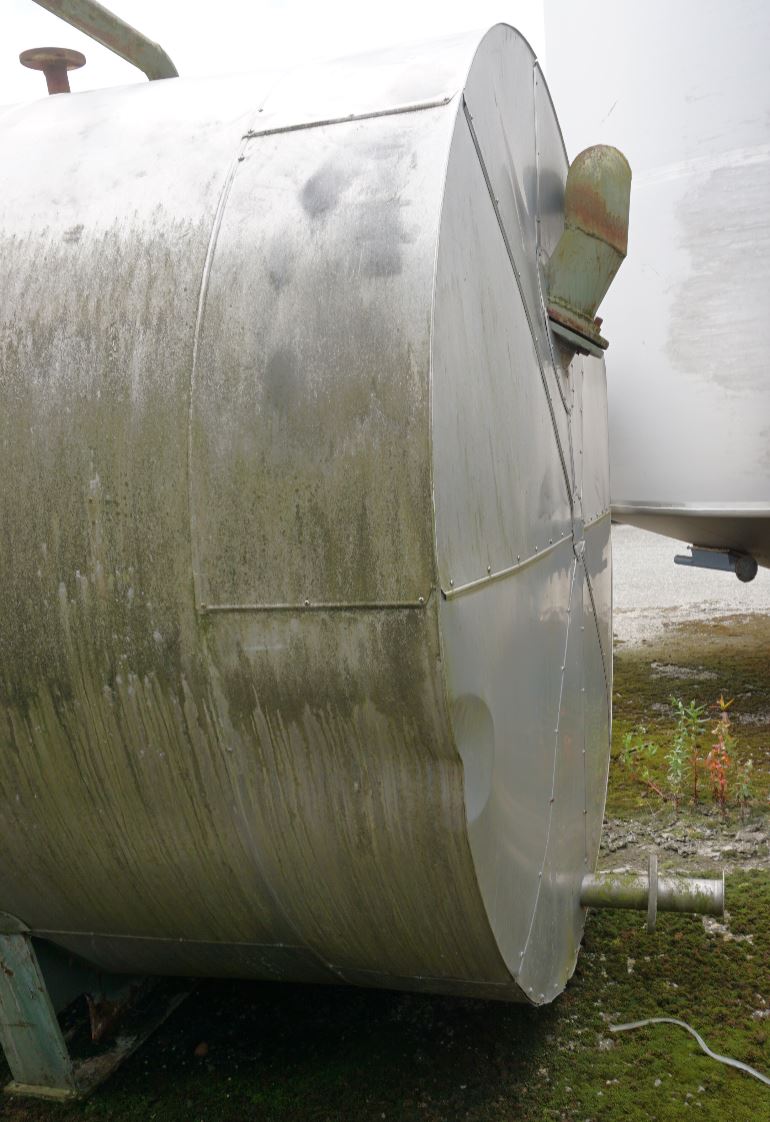

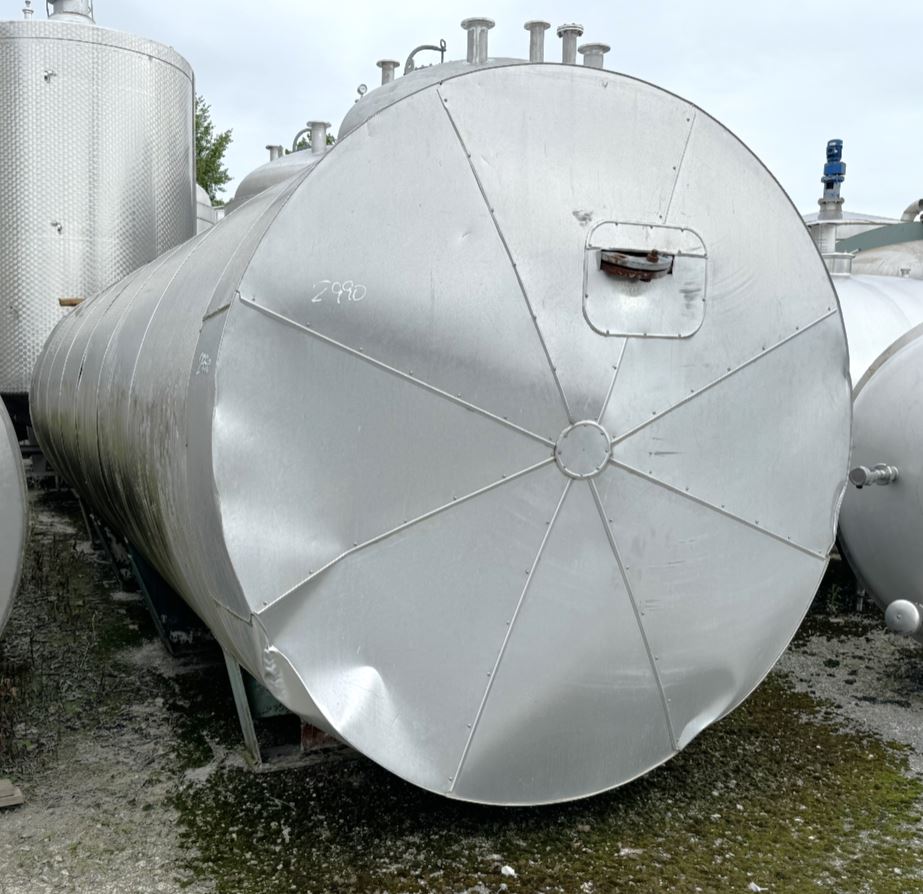

Container 17.000 liters made of V4A, isolated, used, horizontal
EUR 9.200,00
add. 19 % VAT excl. shipping costs
Volume approx. 17,000.00 litres
Product description
Container 17.000 liters made of V4A, isolated, used consists of the material 1.4571(AISI316) V4A. The volume is approx. 17,000.00 litres. Container 17.000 liters made of V4A, isolated, used was last used in the following area: Unknown. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage,General
Volume approx.
17.000,00 litres
Structure
Horizontal
Condition
Used
Dimensions approx.
External diameter
2.200 mm
Total height
2.800 mm
Total length
7.000 mm
Design
Weight approx.
2.000,00 kg
Weight per unit volume approx.
1.000,00 kg/m³
Insulation
yes
Insulated area
Complete
Insulation cladding
Bolted aluminium

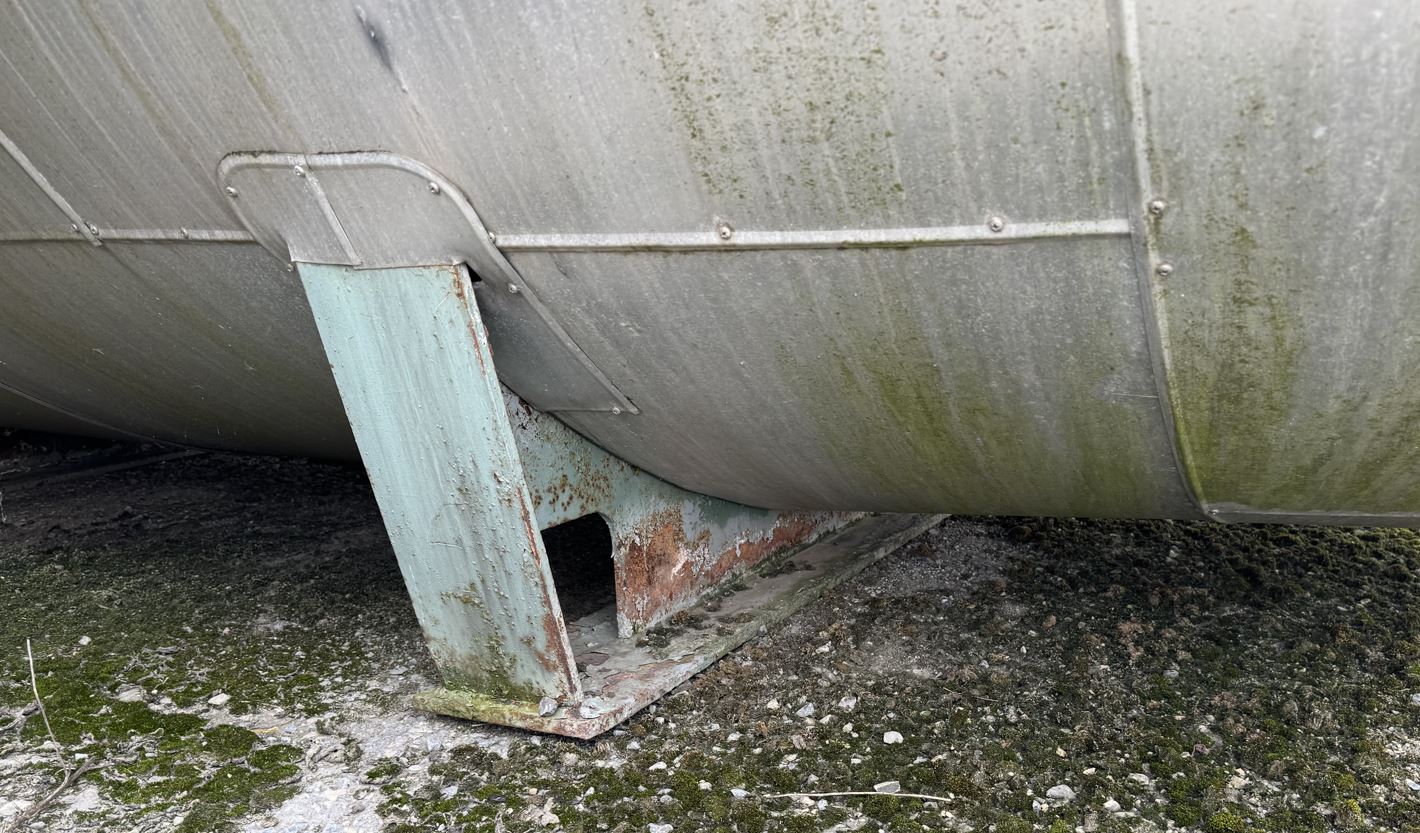

Supports
Supports
Steel storage consoles
Number of feet
4 (piece)
Fixtures and fittings

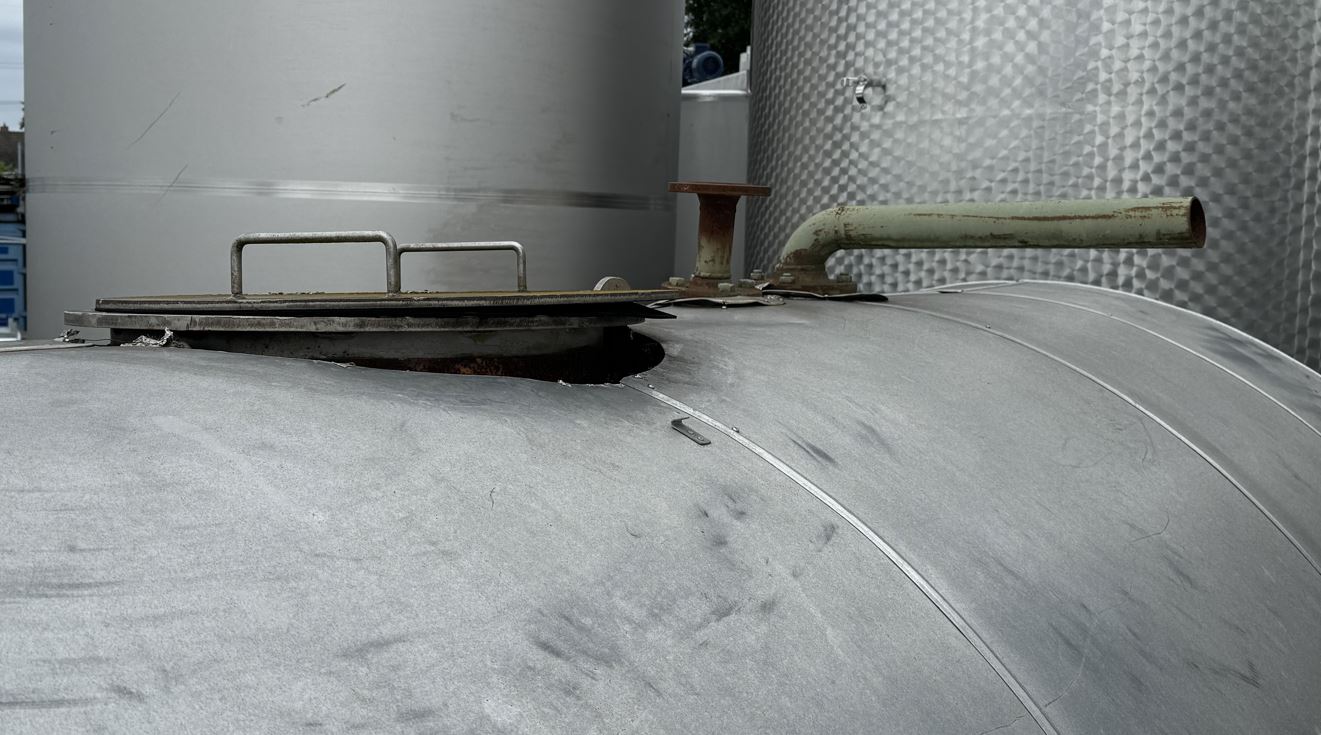

Manway position
In head
Nozzles/connectors in head
3xDN50 1xDN65 1xDN100 (piece)

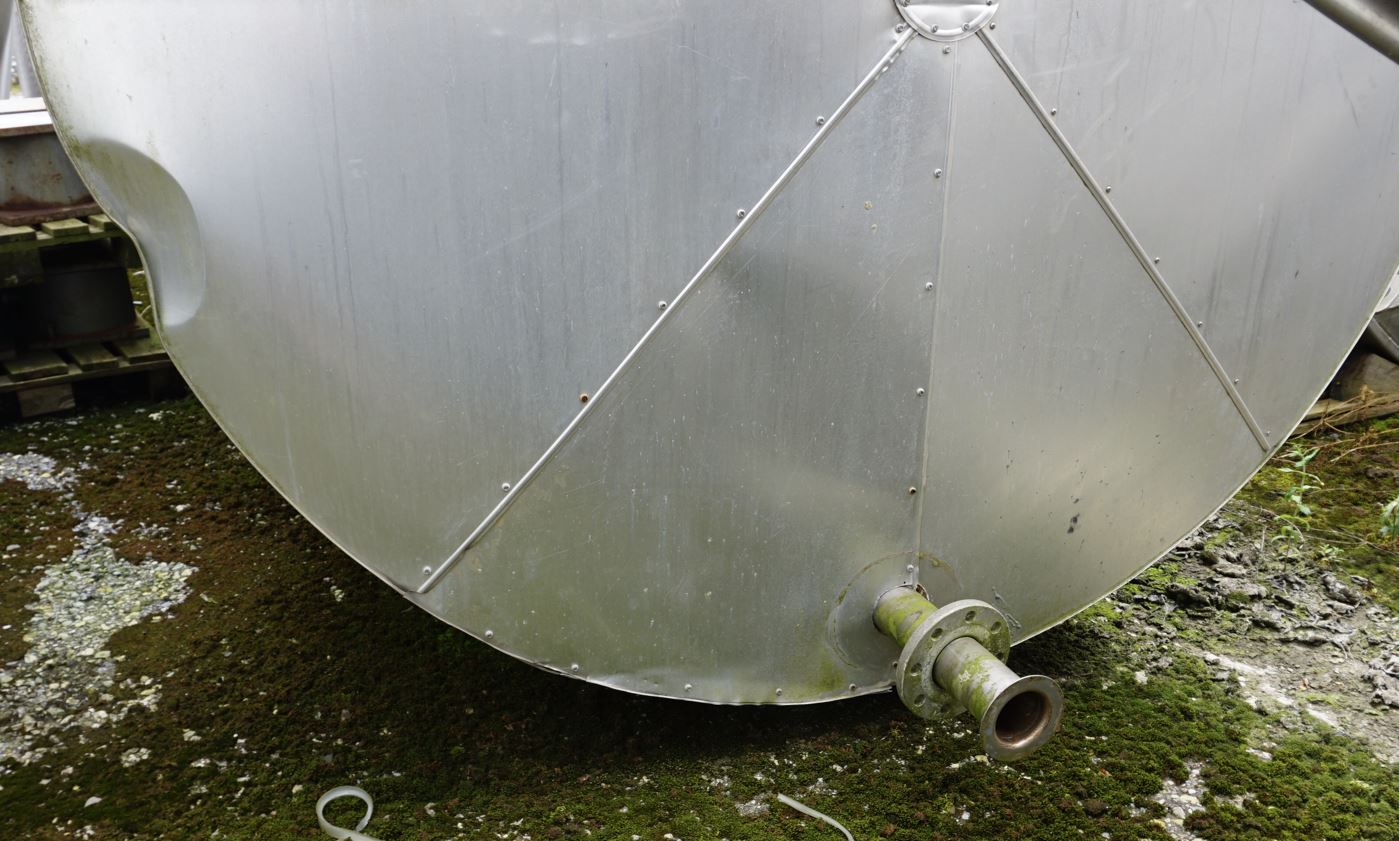

Outlet nozzle
80
Fixtures and fittings
Lifting lugs
Technical documentation
Technical documentation
None
Other
Note

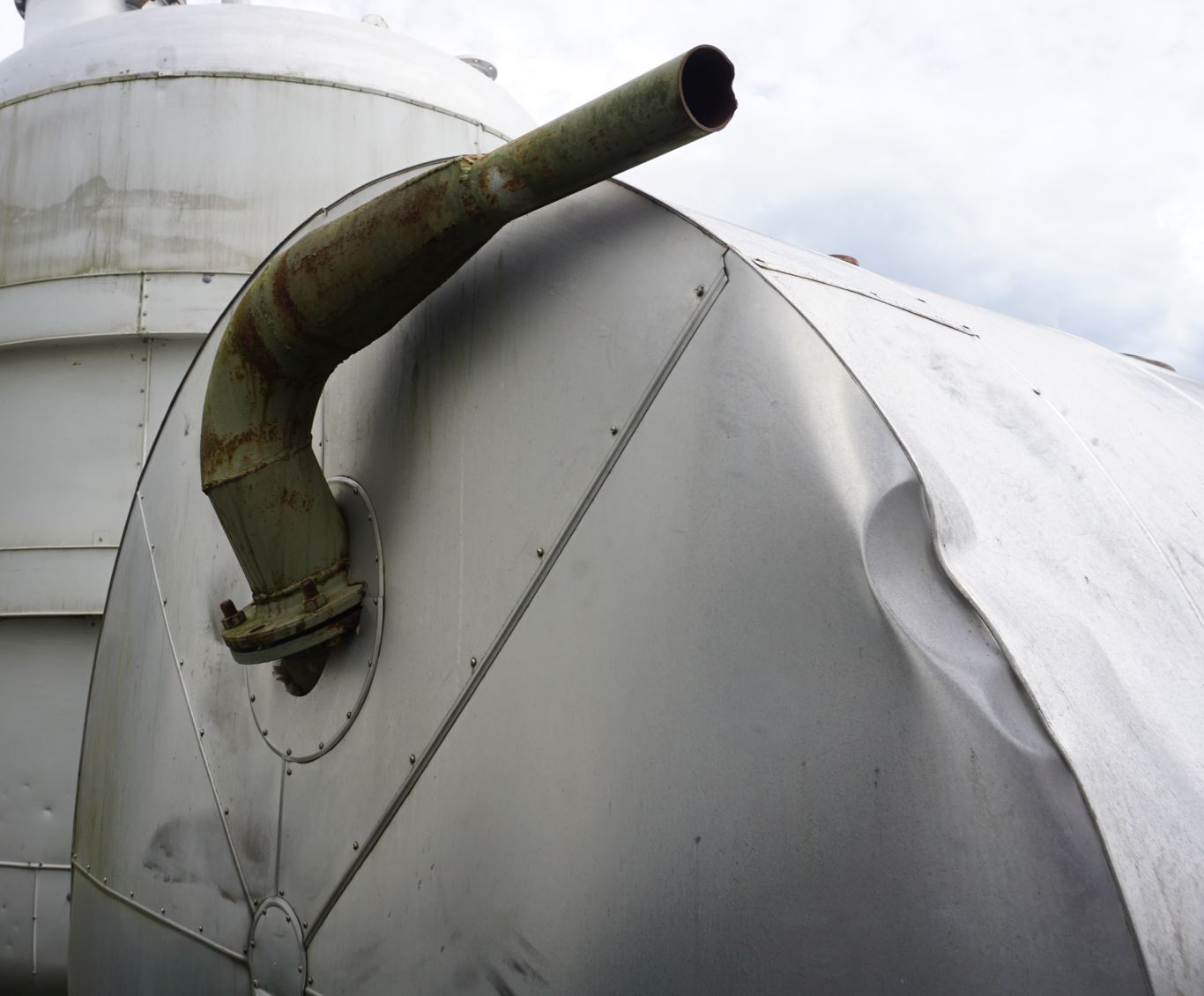

Isolierverkleidung teilweise eingedrückt
Last usage
Unknown
This product is suitable for use as:
Foodstuffs:
Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank,
Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank,
