Product no. M-2930
Container 15.000 liters made of V2A, isolated, used, standing
EUR 15.200,00
add. 19 % VAT excl. shipping costs
Volume approx. 15,000.00 litres
Product description

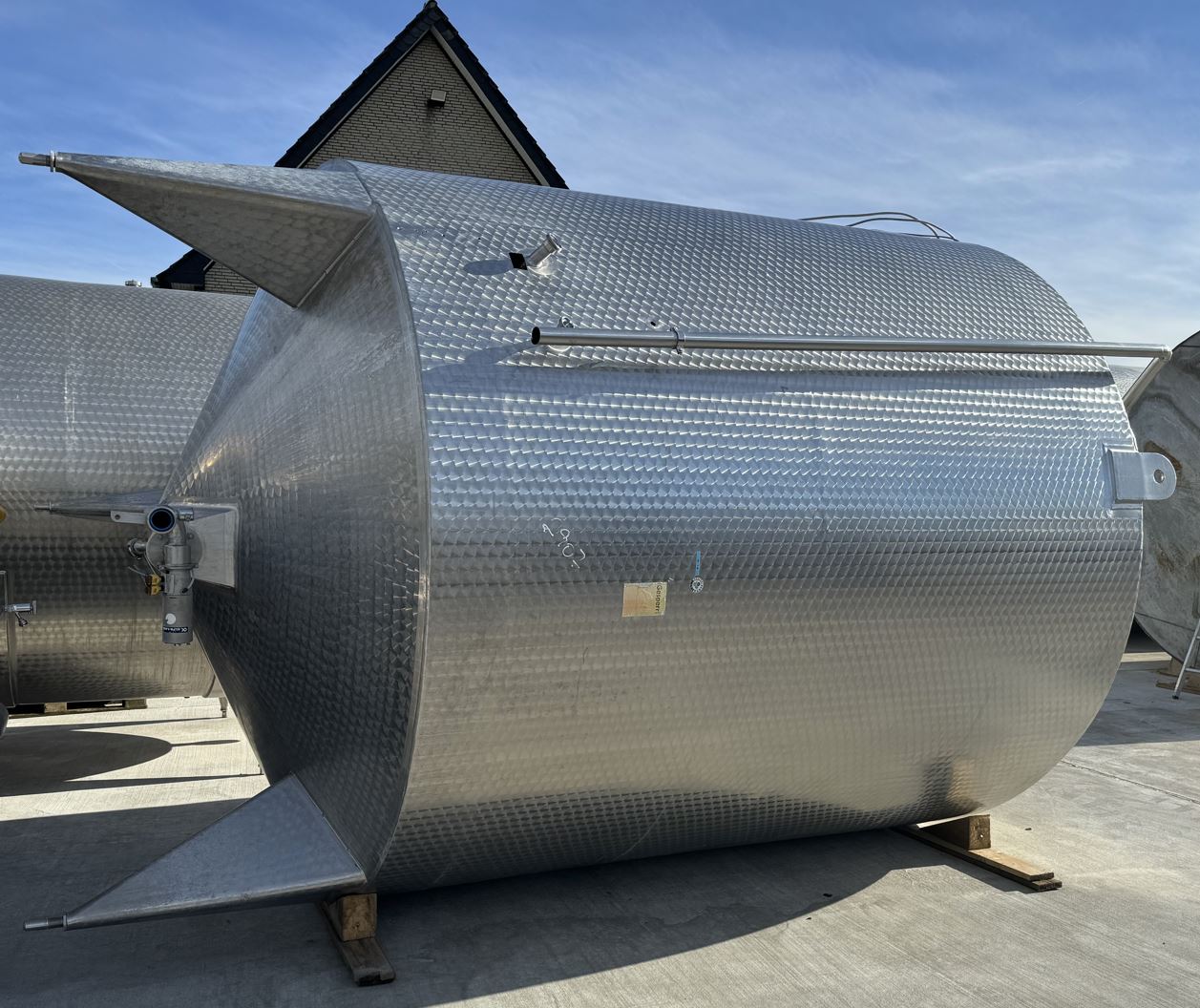

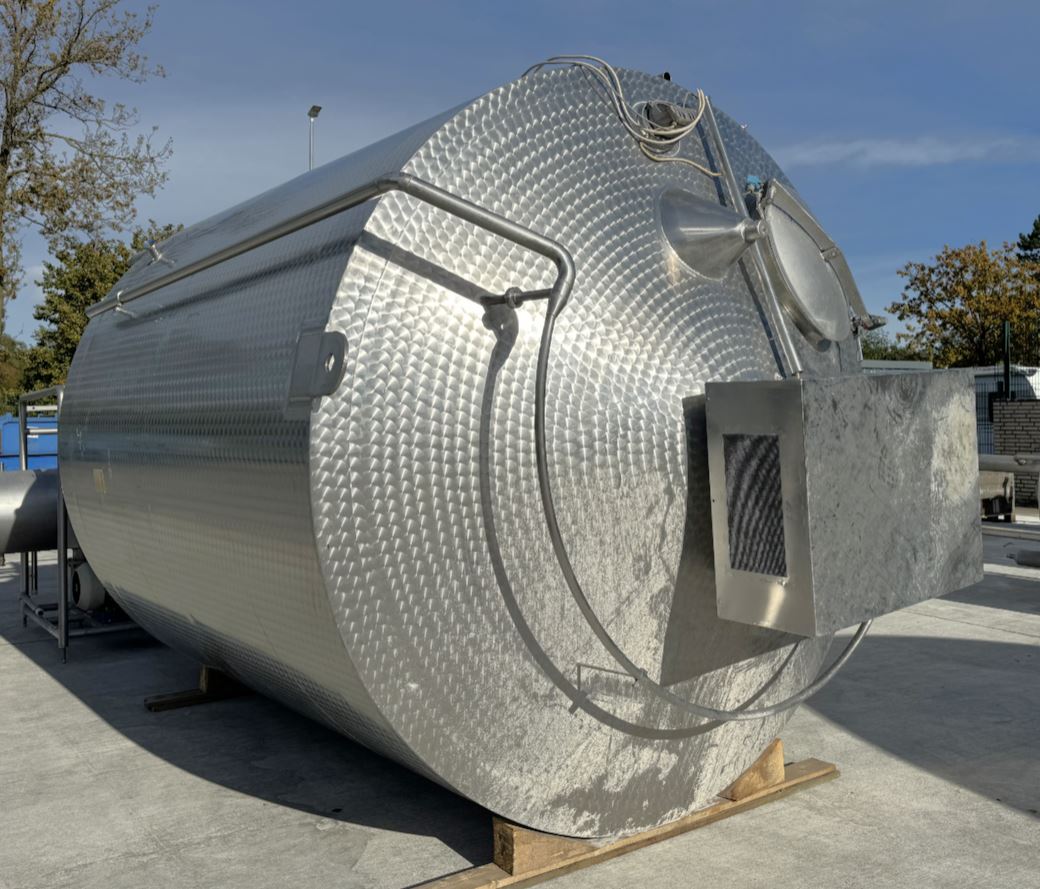

Container 15.000 liters made of V2A, isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 15,000.00 litres. The diameter inside includes 2,520 mm. Container 15.000 liters made of V2A, isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage, Mixing,General
Volume approx.
15.000,00 litres
Structure
Standing
Year of manufacture
1982
Manufacturer
ahrens + bode
Condition
Used
Dimensions approx.
Internal diameter
2.520 mm
External diameter
2.700 mm
Cyl. height
2.750 mm
Foot height
1.050 mm
Total height
4.800 mm
Design
Weight approx.
3.000,00 kg
Weight per unit volume approx.
1.000,00 kg/m³
Insulation
yes
Insulated area
Shell and floor
Insulation cladding
Fully welded stainless steel
Interior surface
Smoothed
Exterior surface
Marbled
Floor type
Conical bottom
Head design
Dished

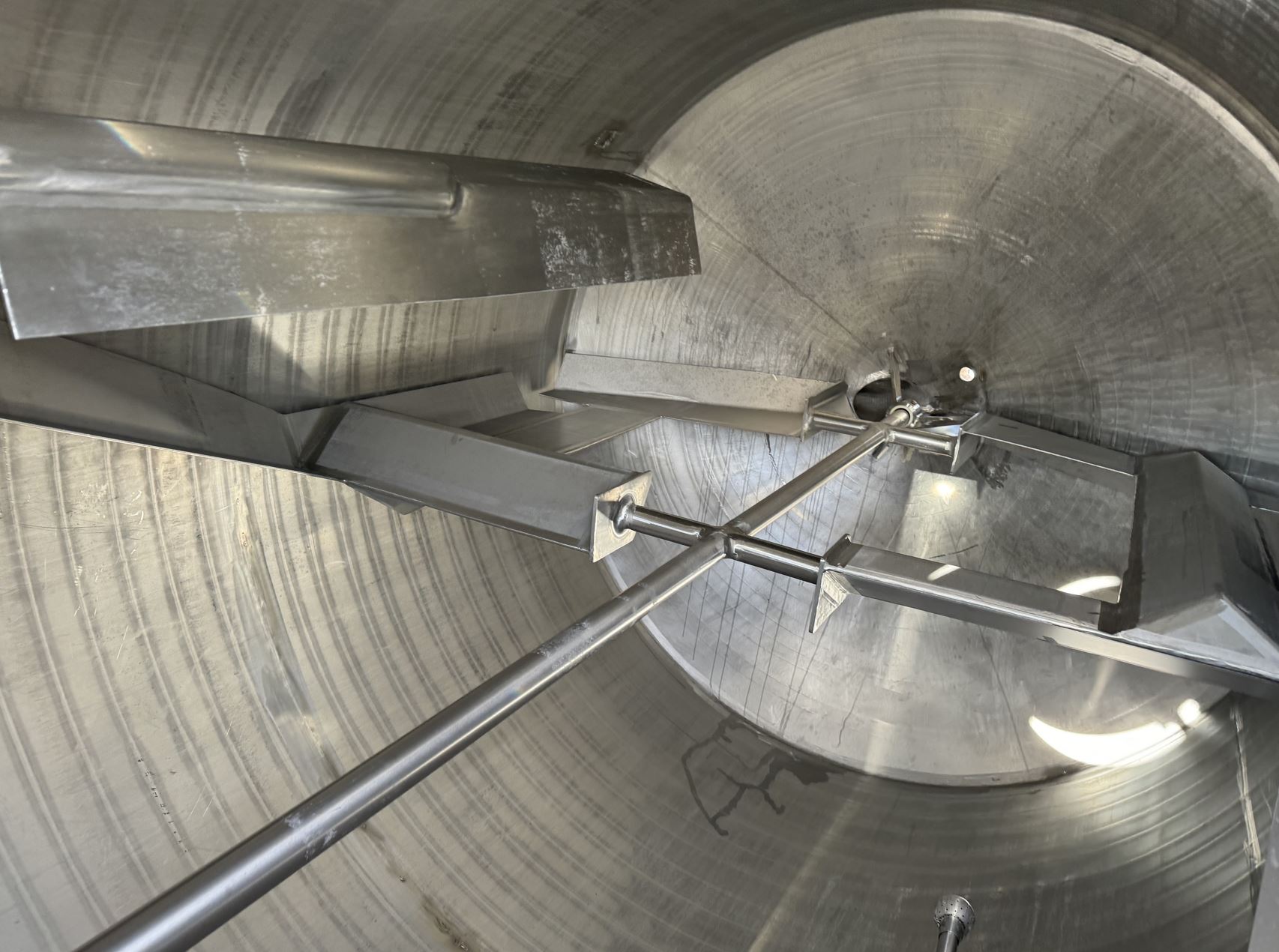

Agitator
Agitator quantity
1 (piece)
Agitator type
Wall scraper
Agitator position
Head central
Supports
Supports
Stainless steel feet
Number of feet
3 (piece)
Note on supports
höhenverstellbar
Fixtures and fittings

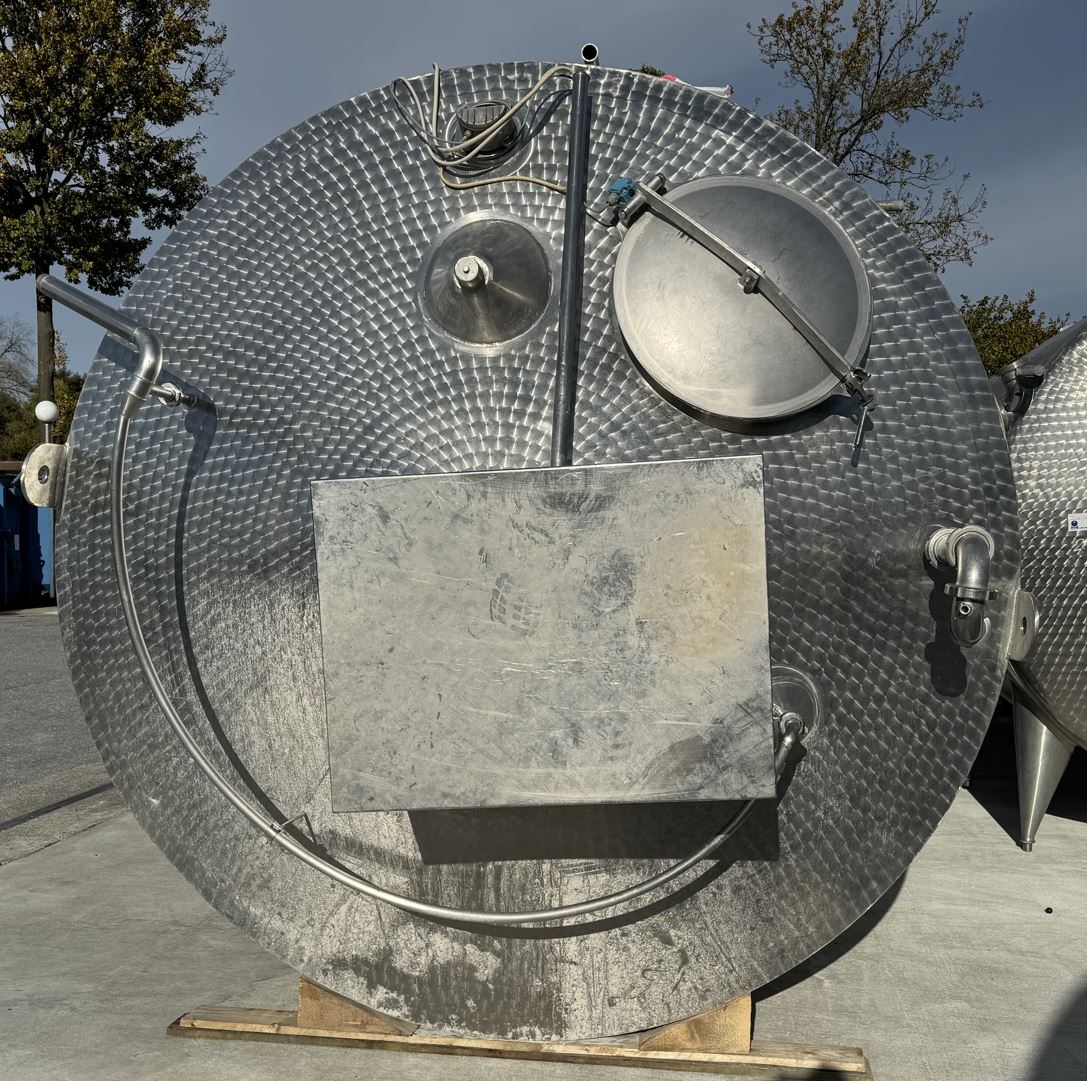

Manway 1 size
600 DN mm
Manway position
In head
Outlet nozzle
50
Cleaning/CIP nozzle
in head
Fixtures and fittings
Lifting lugs
Additional fixtures and fittings
Nameplate
Technical documentation
Technical documentation
None
Other
Last usage
Foodstuffs
This product is suitable for use as:
Foodstuffs: Foodstuffs tank, Fruit juice tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Mixing tank,
Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Mixing tank,
