Product no. M-2982

Container 130.000 liters made of V2A isolated, used, standing

EUR 43.100,00

add. 19 % VAT excl. shipping costs


Volume approx. 130,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

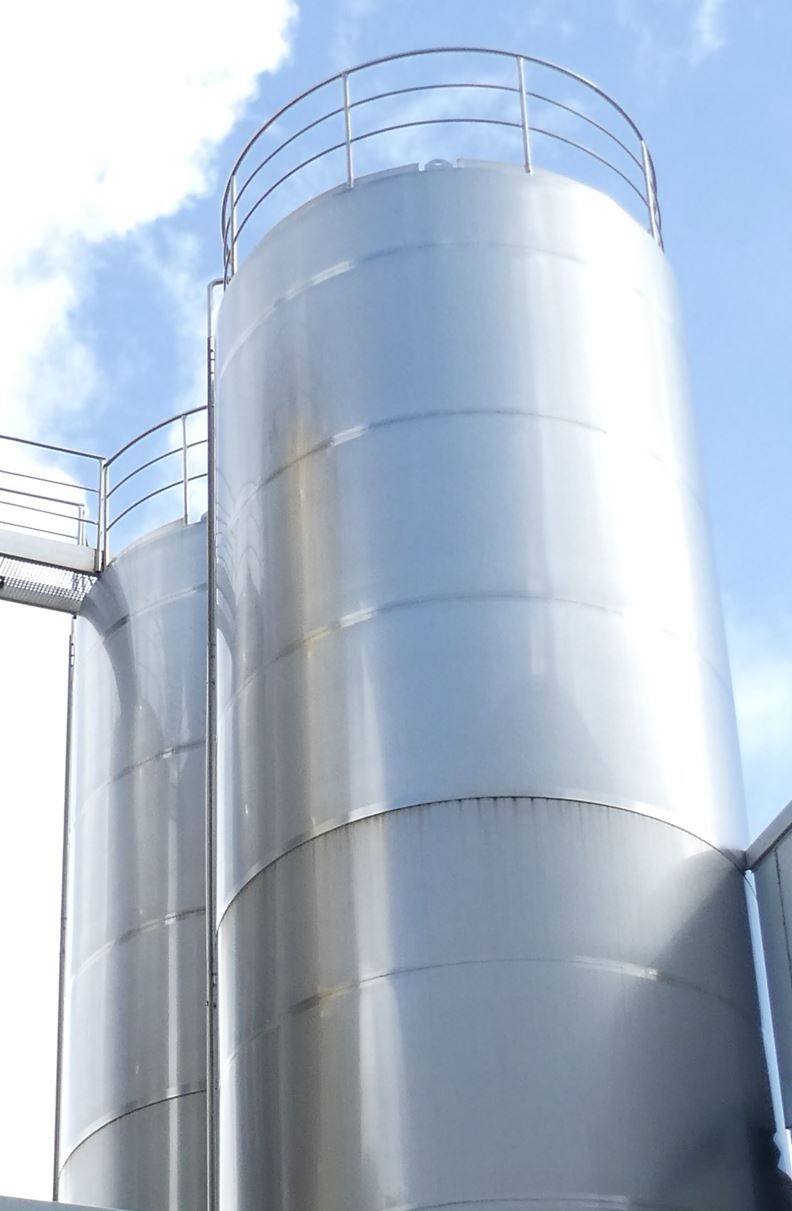

Container 130.000 liters made of V2A isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 130,000.00 litres. The diameter inside includes 3,400 mm.  Container 130.000 liters made of V2A isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 130.000,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1991

  • Manufacturer

  • Ritter

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 3.400 mm

  • External diameter

  • 3.500 mm

  • Total height

  • 16.500 mm

Design

  • Weight approx.

  • 10.000,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

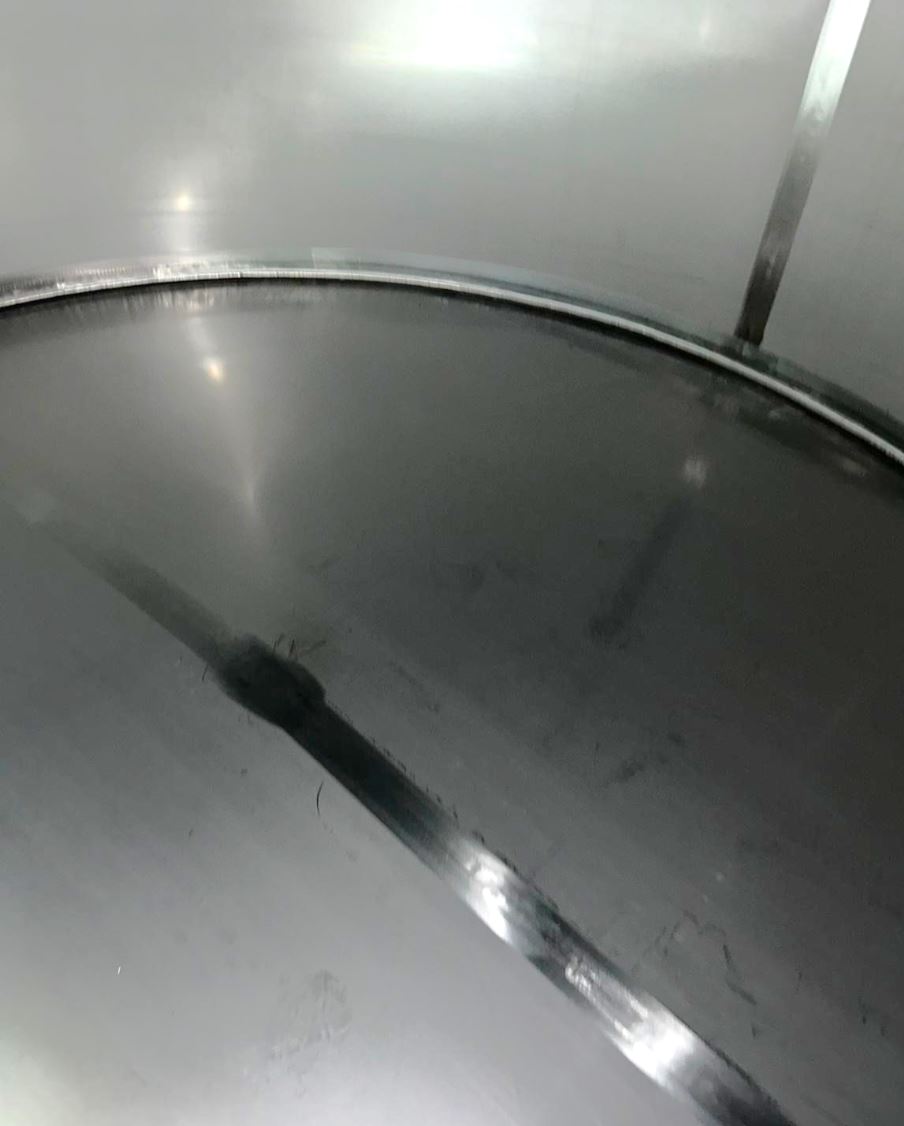

  • Smoothed

  • Exterior surface

  • Smoothed

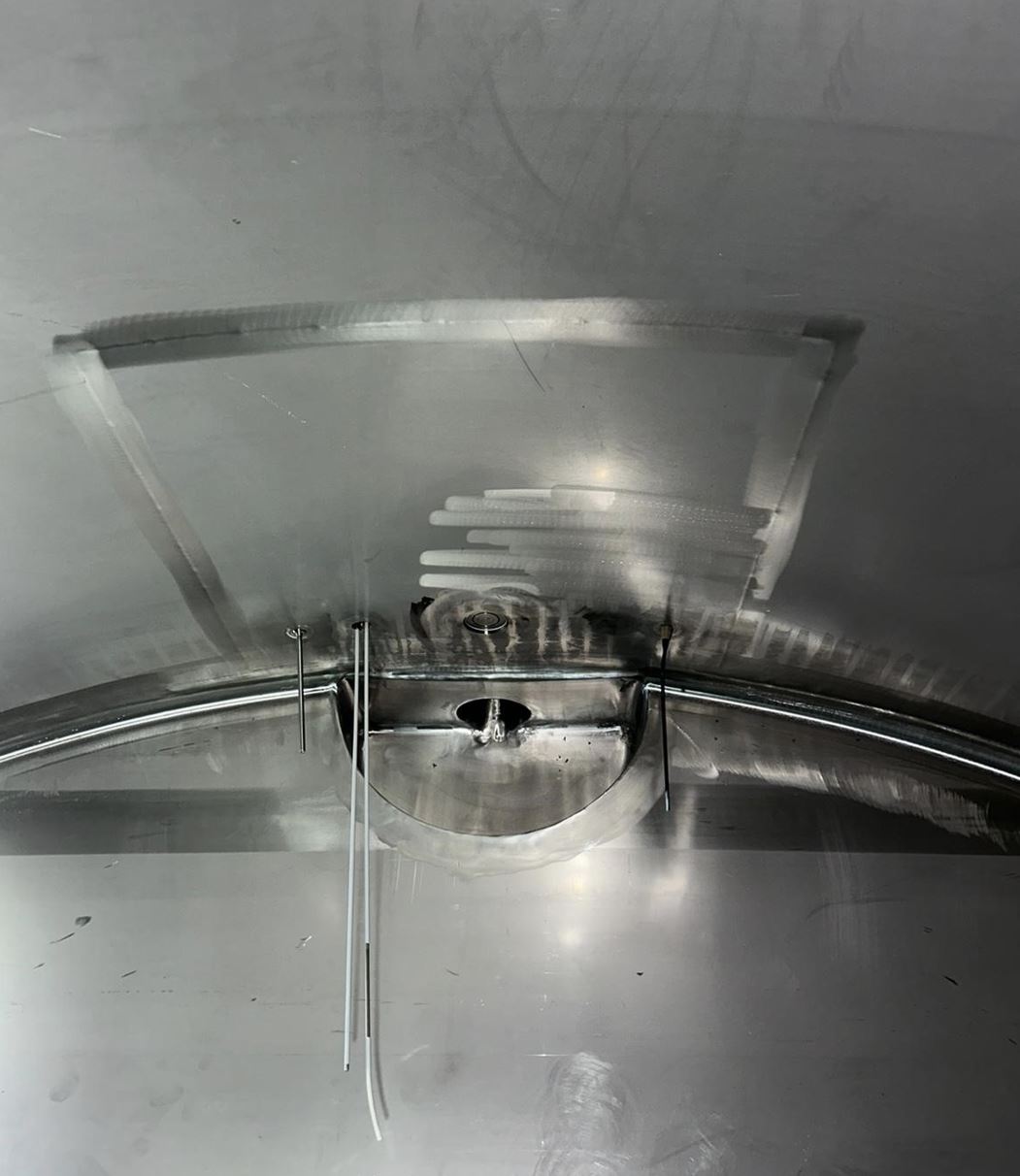

  • Floor type

  • Flat bottom with slope towards outlet

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

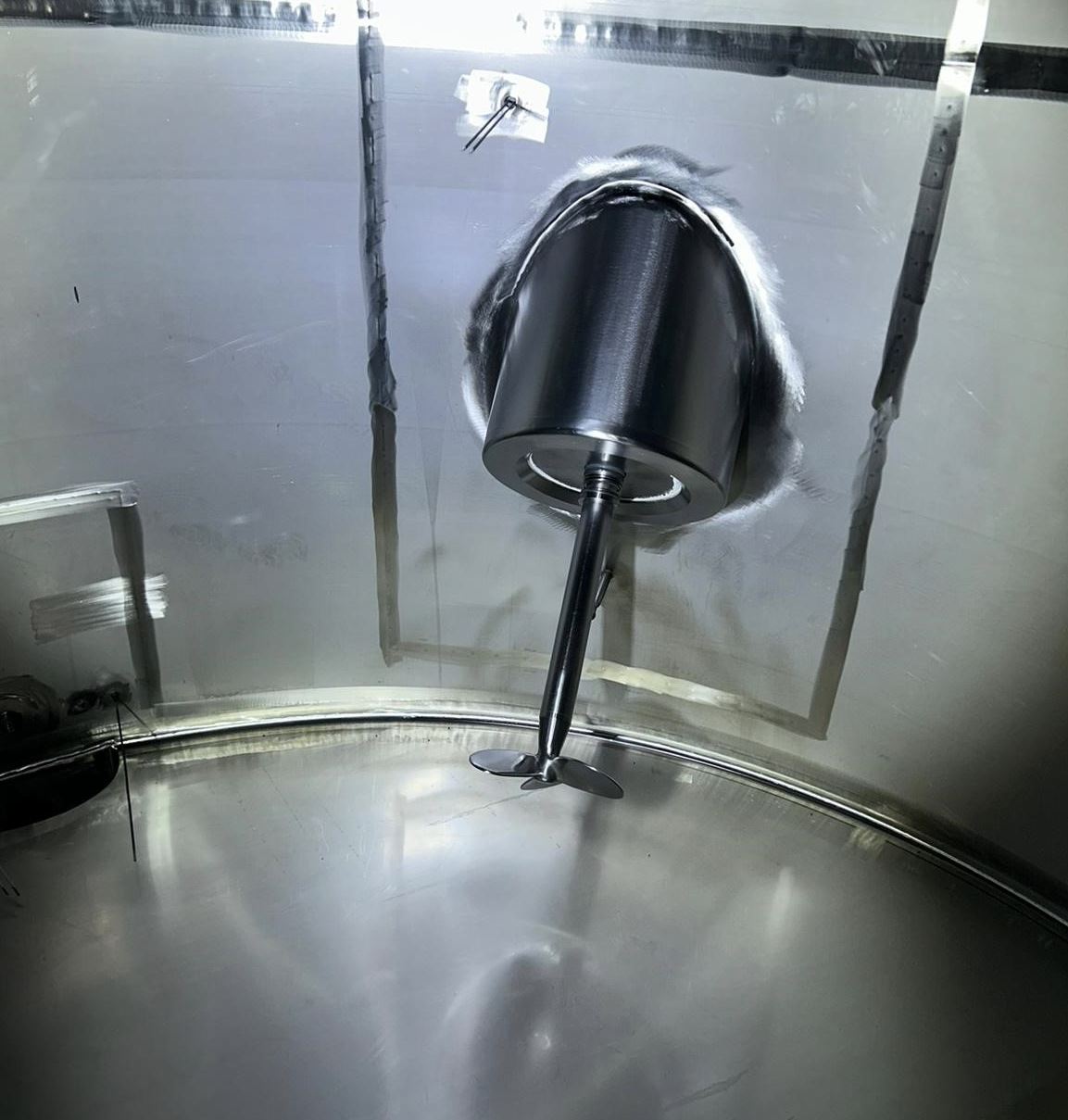

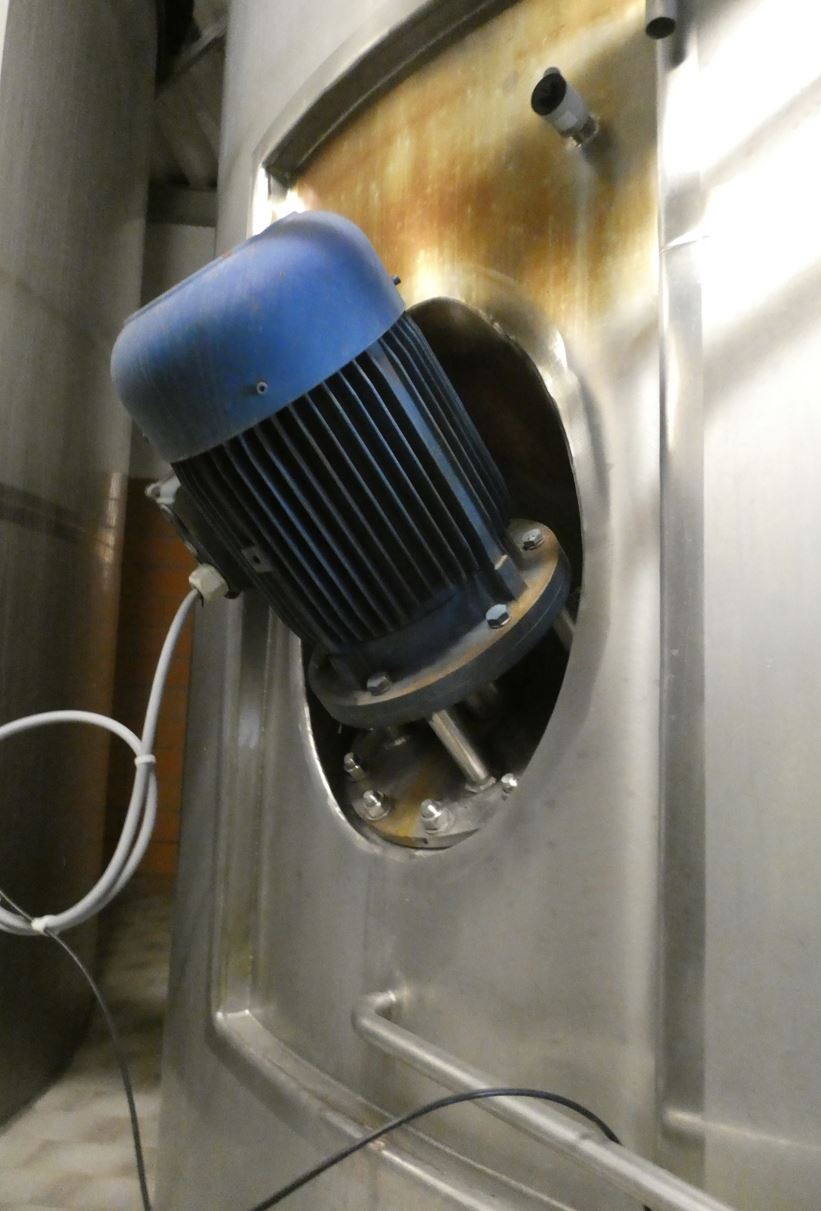

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Agitator position

  • At bottom at the side in shell

Supports

  • Supports

  • Stainless steel support skirt

Fixtures and fittings

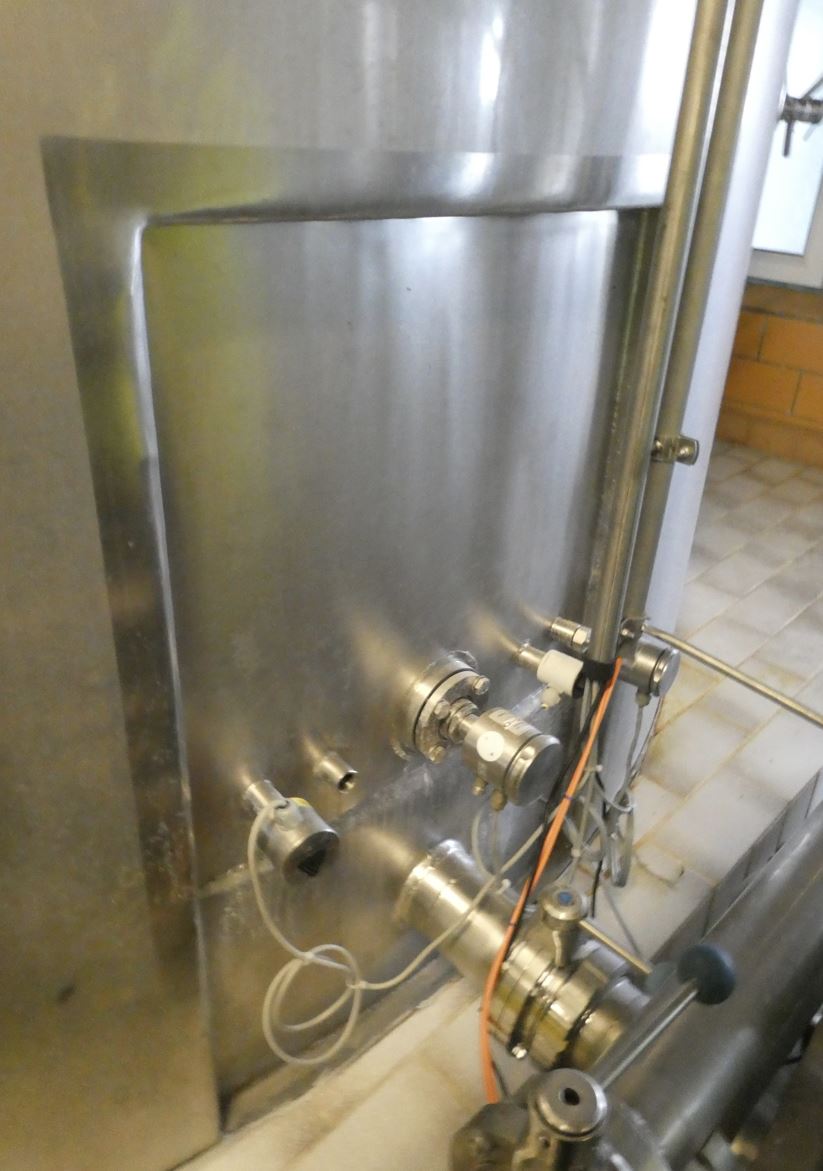

  • Manway position

  • In shell

  • Cleaning/CIP nozzle

  • in head

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

  • Air vent

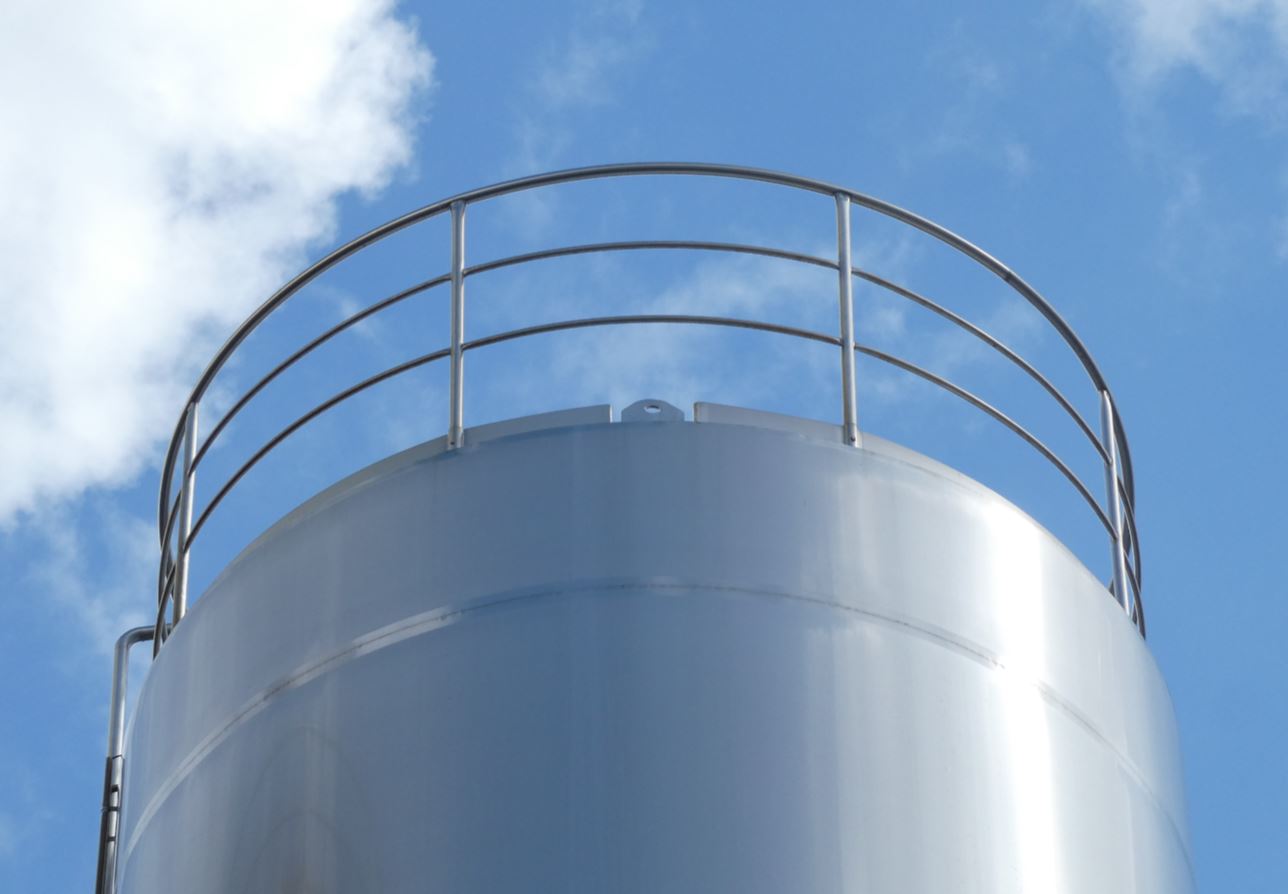

  • Handrails

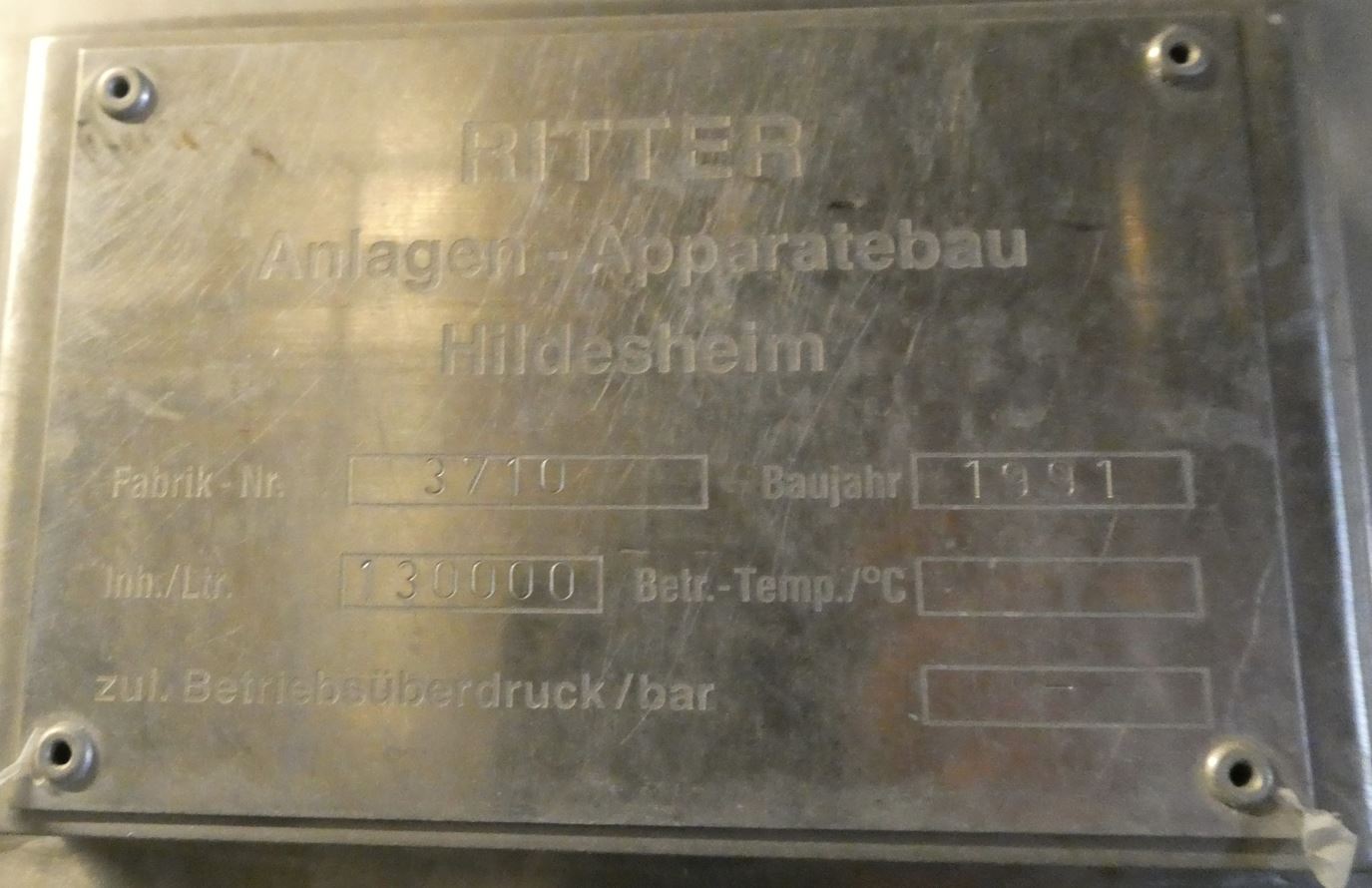

  • Nameplate

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
