Product no. M-1794

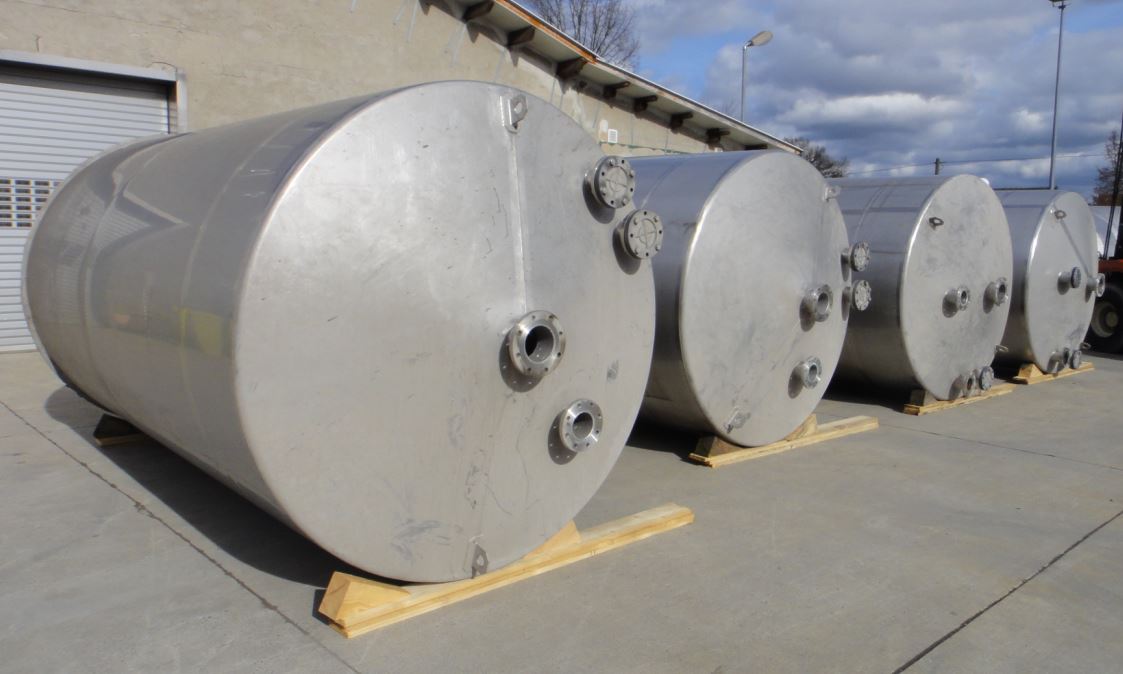

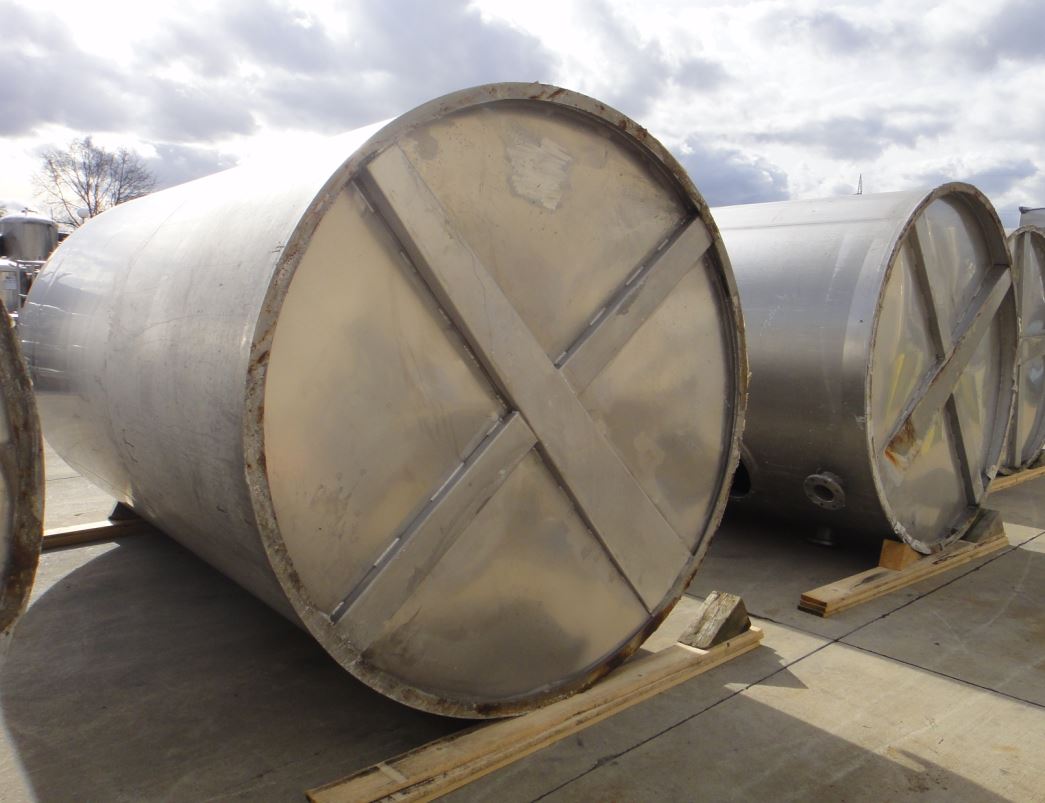

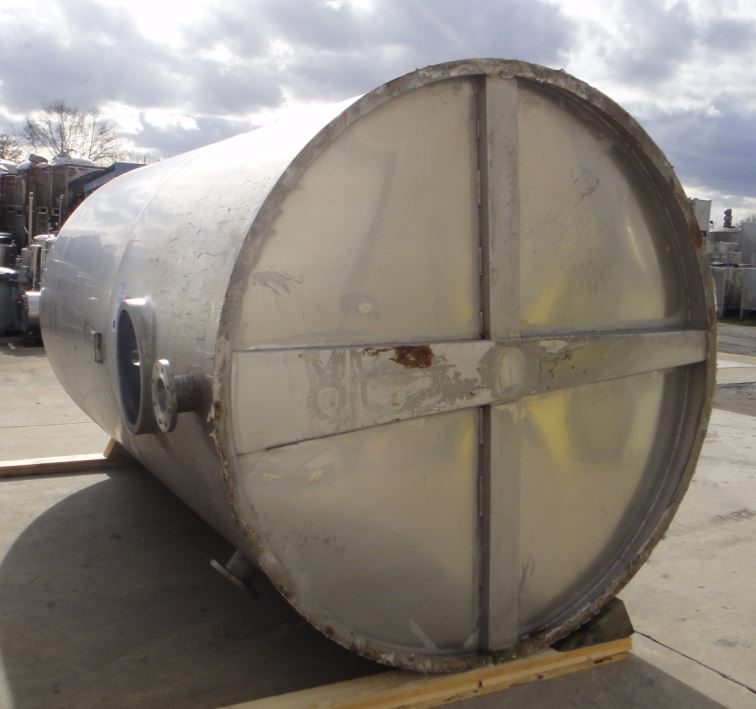

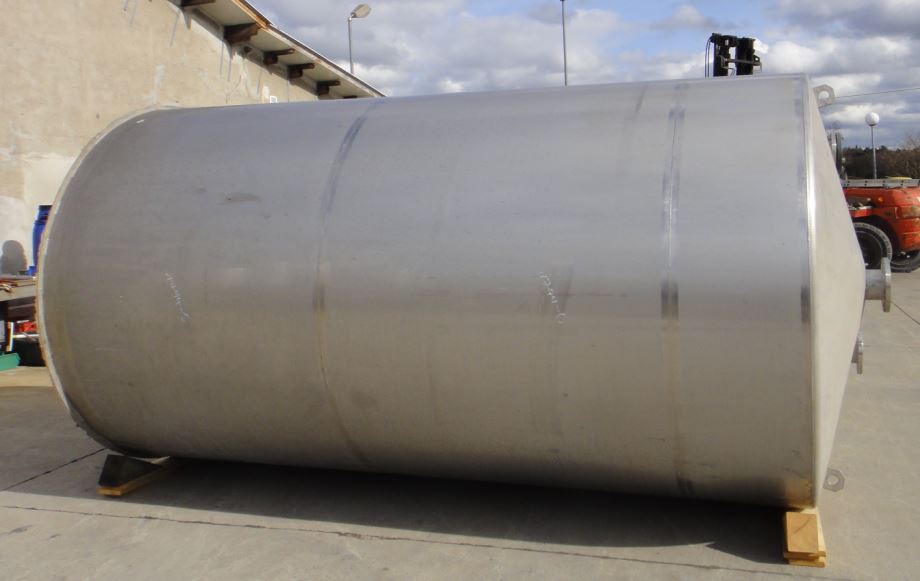

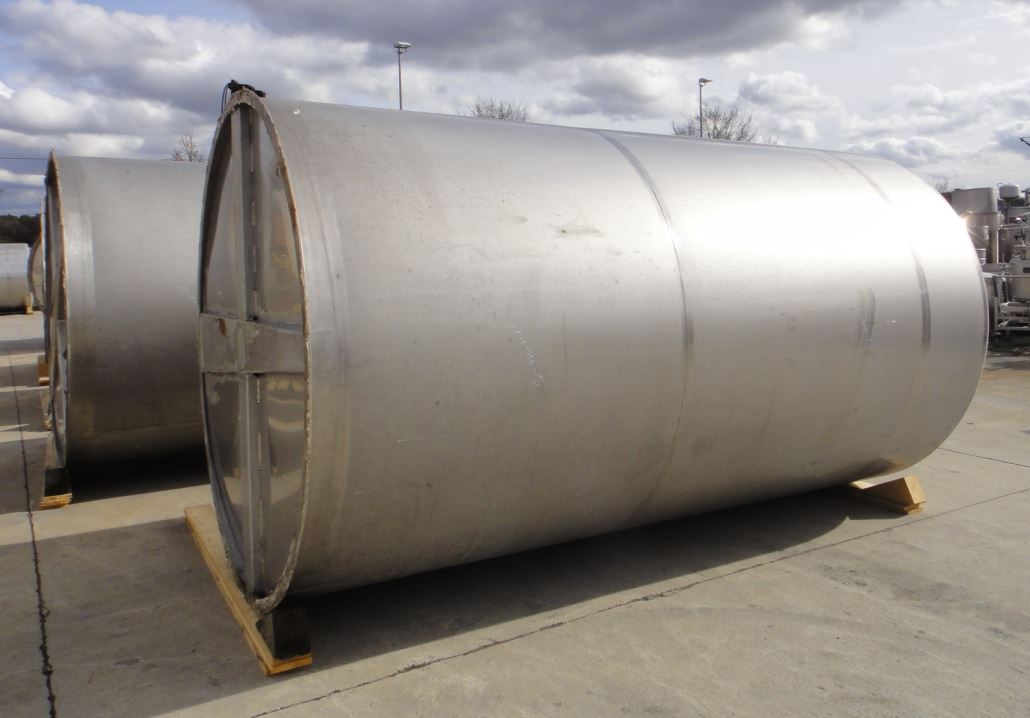

Container 11.000 liters made of V4A single-walled, used, standing
EUR 4.800,00
add. 19 % VAT excl. shipping costs
Volume approx. 11,000.00 litres
Product description
Container 11.000 liters made of V4A single-walled, used consists of the material 1.4571(AISI316) V4A. The volume is approx. 11,000.00 litres. Container 11.000 liters made of V4A single-walled, used was last used in the following area: Chemistry. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage,General
Volume approx.
11.000,00 litres
Structure
Standing
Condition
Used
Dimensions approx.
External diameter
2.000 mm
Cyl. height
3.430 mm
Total height
3.850 mm
Design
Weight approx.
800,00 kg
Weight per unit volume approx.
1.000,00 kg/m³
Insulation
no
Interior surface
Smoothed
Exterior surface
Smoothed
Floor type
Flat bottom with slope towards outlet
Head design
Conical bottom
Supports
Supports
Stainless steel support skirt
Number of feet
1 (piece)
Fixtures and fittings
Manway position
In shell

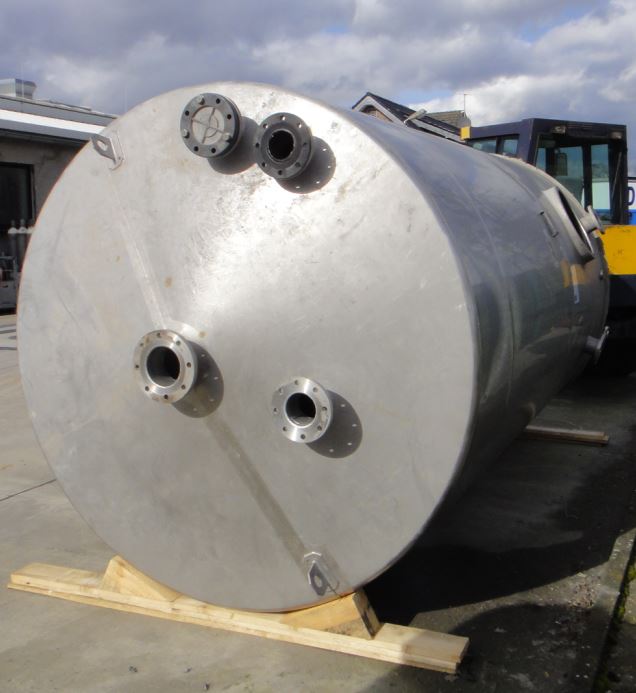

Nozzles/connectors in head
3xDN100 1xDN125 (piece)
Outlet nozzle
100
Fixtures and fittings
Lifting lugs
Technical documentation
Technical documentation
None
Other
Last usage
Chemistry
This product is suitable for use as:
Foodstuffs:
Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank,
Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank,
