Product no. M-3018

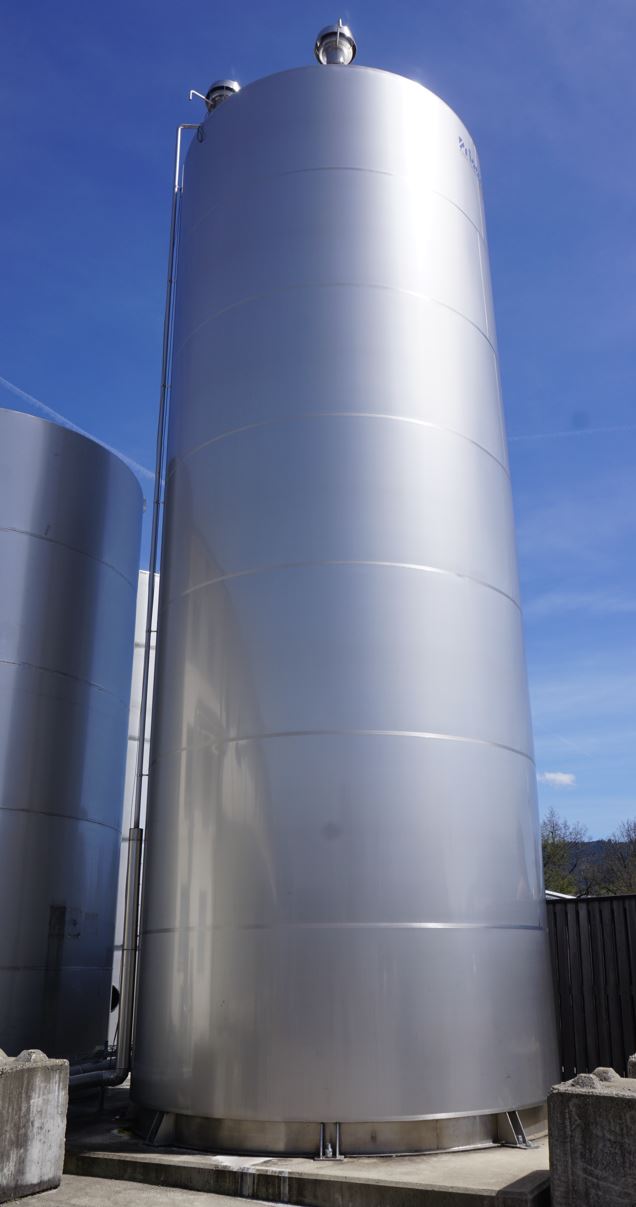

Container 100.000 liters made of V2A isolated, used, standing

EUR 57.300,00

add. 19 % VAT excl. shipping costs


Volume approx. 100,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

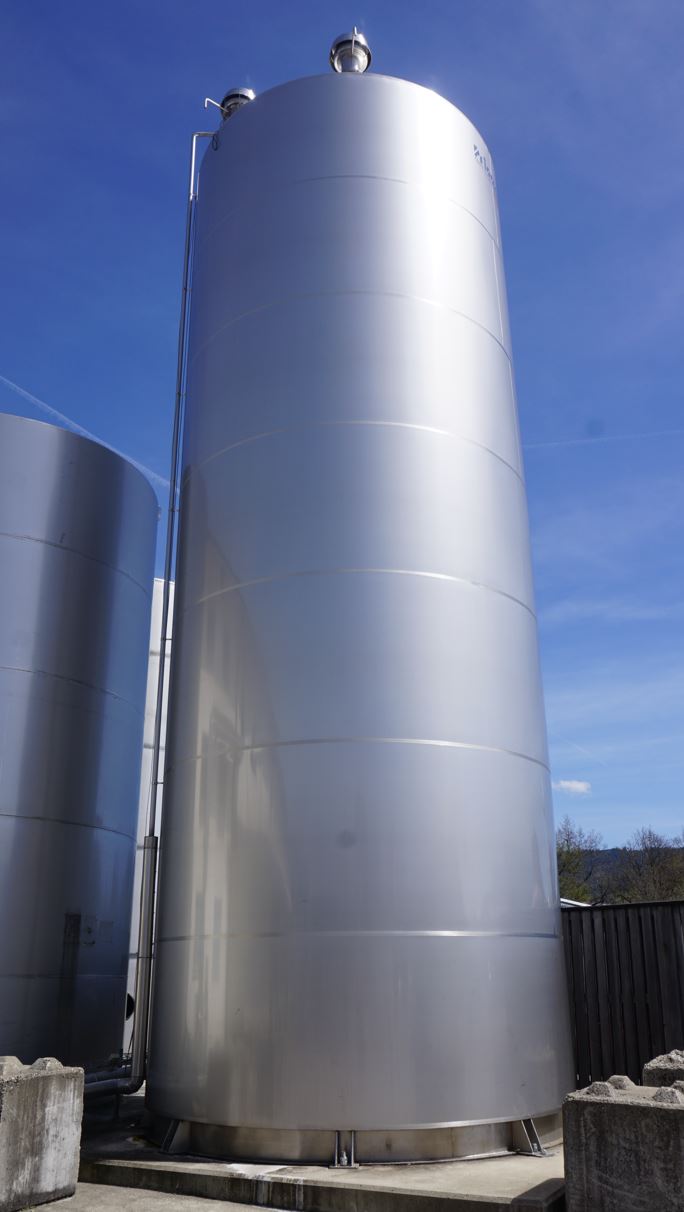

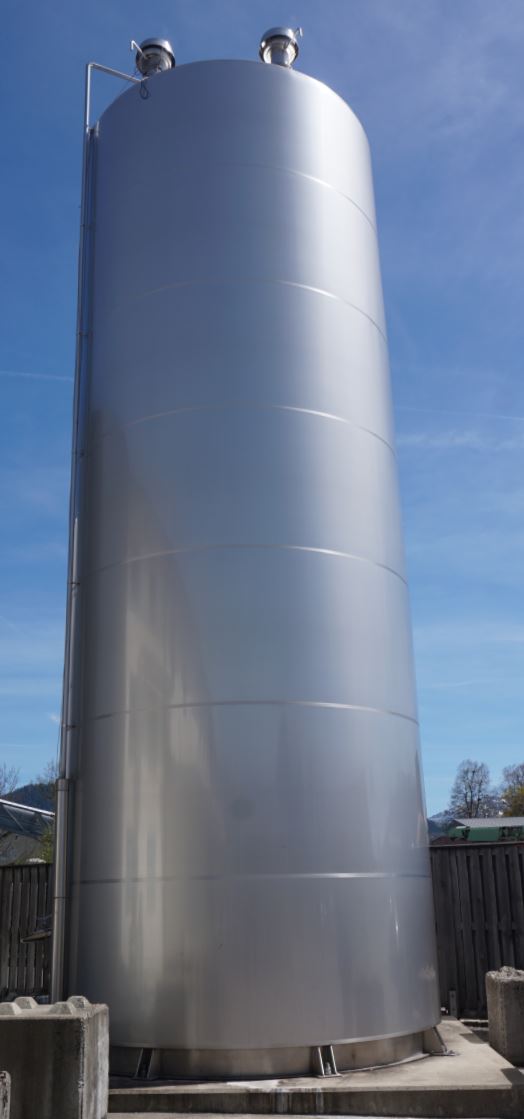

Container 100.000 liters made of V2A isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 100,000.00 litres. The diameter inside includes 3,600 mm.  Container 100.000 liters made of V2A isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage,

General

  • Volume approx.

  • 100.000,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 2019

  • Manufacturer

  • EM INOX

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 3.600 mm

  • External diameter

  • 3.810 mm

  • Cyl. height

  • 10.000 mm

  • Outlet height

  • 400 mm

  • Frame height

  • 670 mm

  • Total height

  • 11.454 mm

Design

  • Weight approx.

  • 8.000,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and head

  • Insulation cladding

  • Fully welded stainless steel

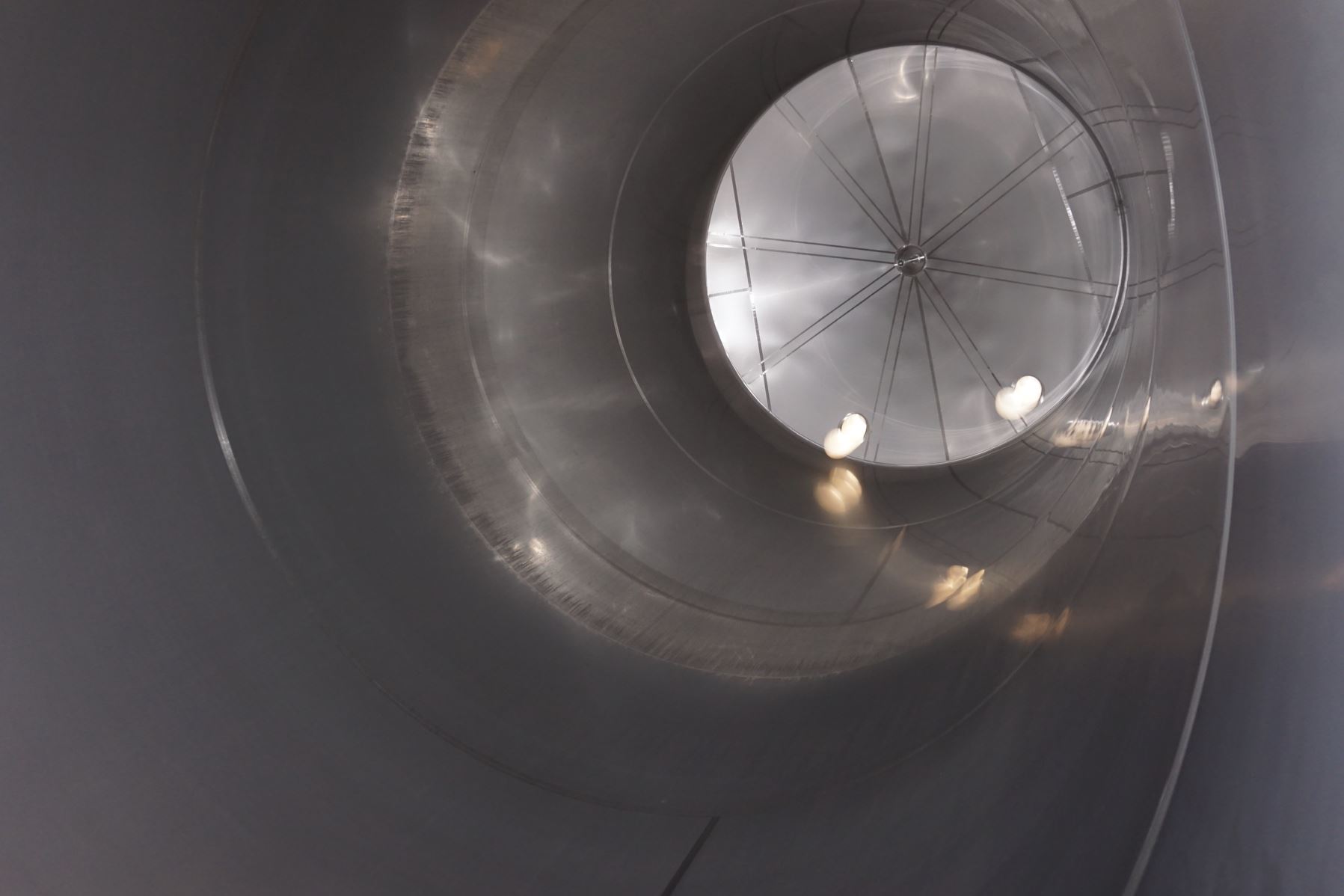

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

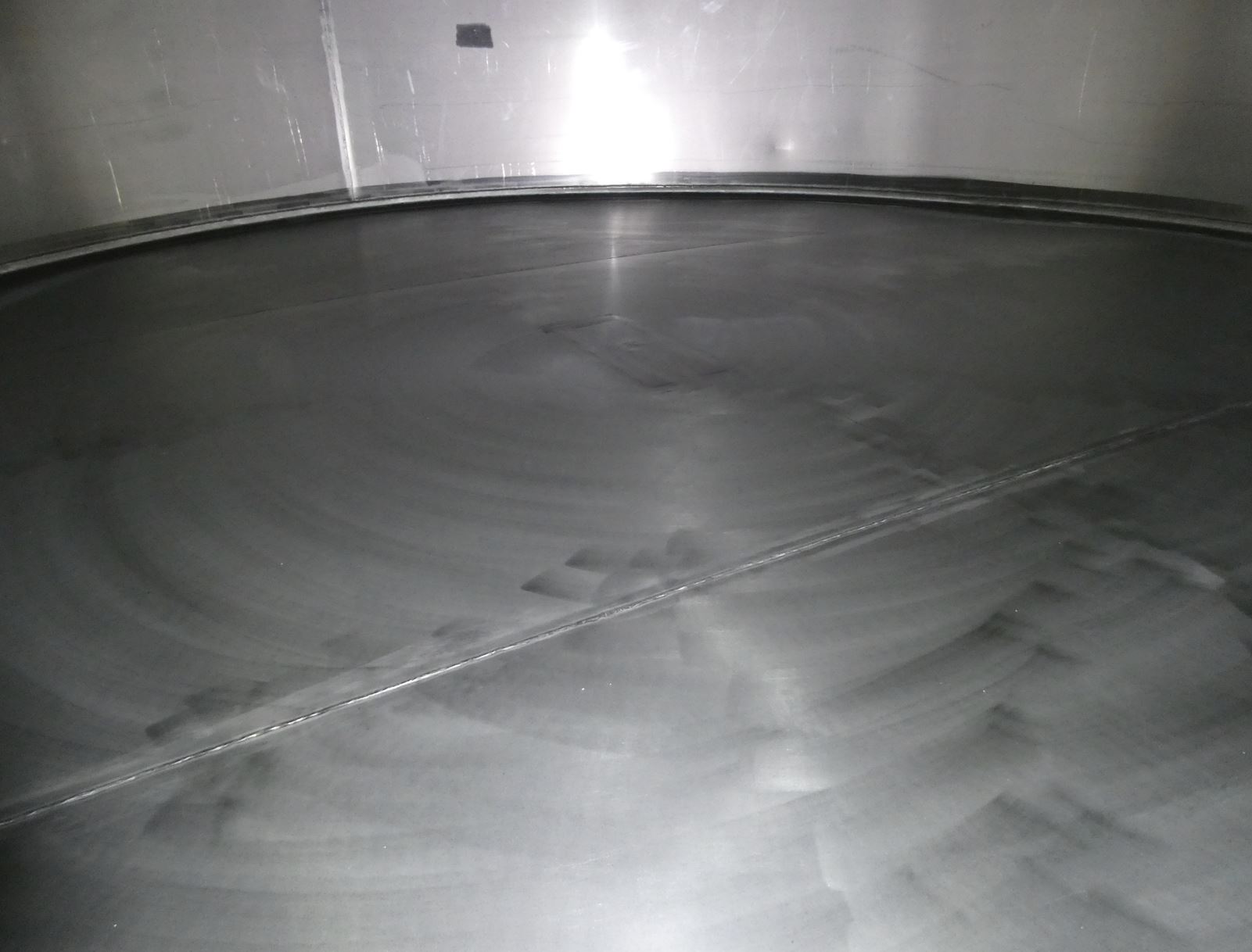

  • Floor type

  • Flat bottom with slope towards outlet

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

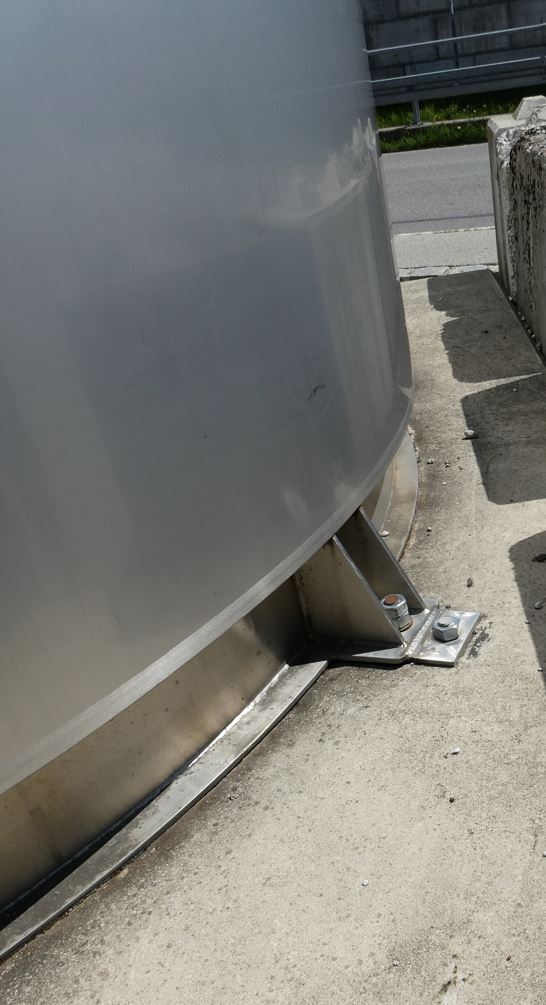

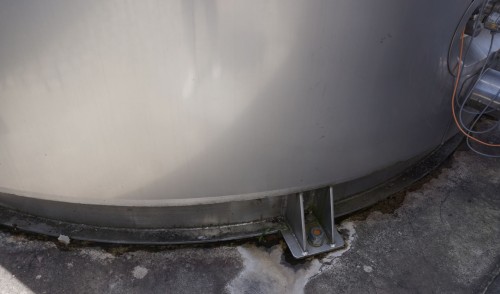

Supports

  • Supports

  • Stainless steel support skirt

  • Number of feet

  • 1 (piece)

  • Note on supports

  • Außendurchmesser Standzarge 4185 mm

Fixtures and fittings

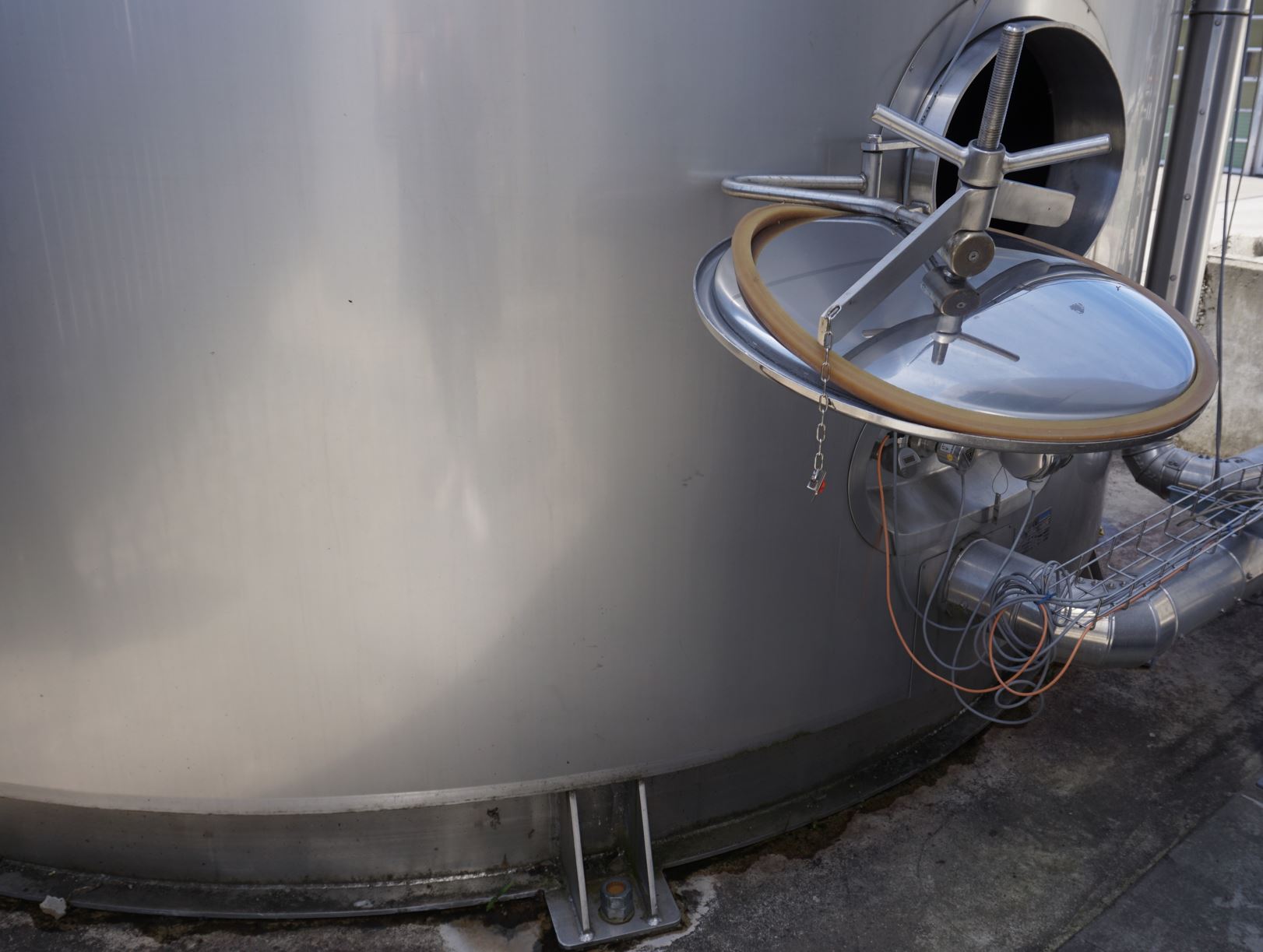

  • Manway 1 size

  • 542x442 DN mm

  • Manway position

  • In shell

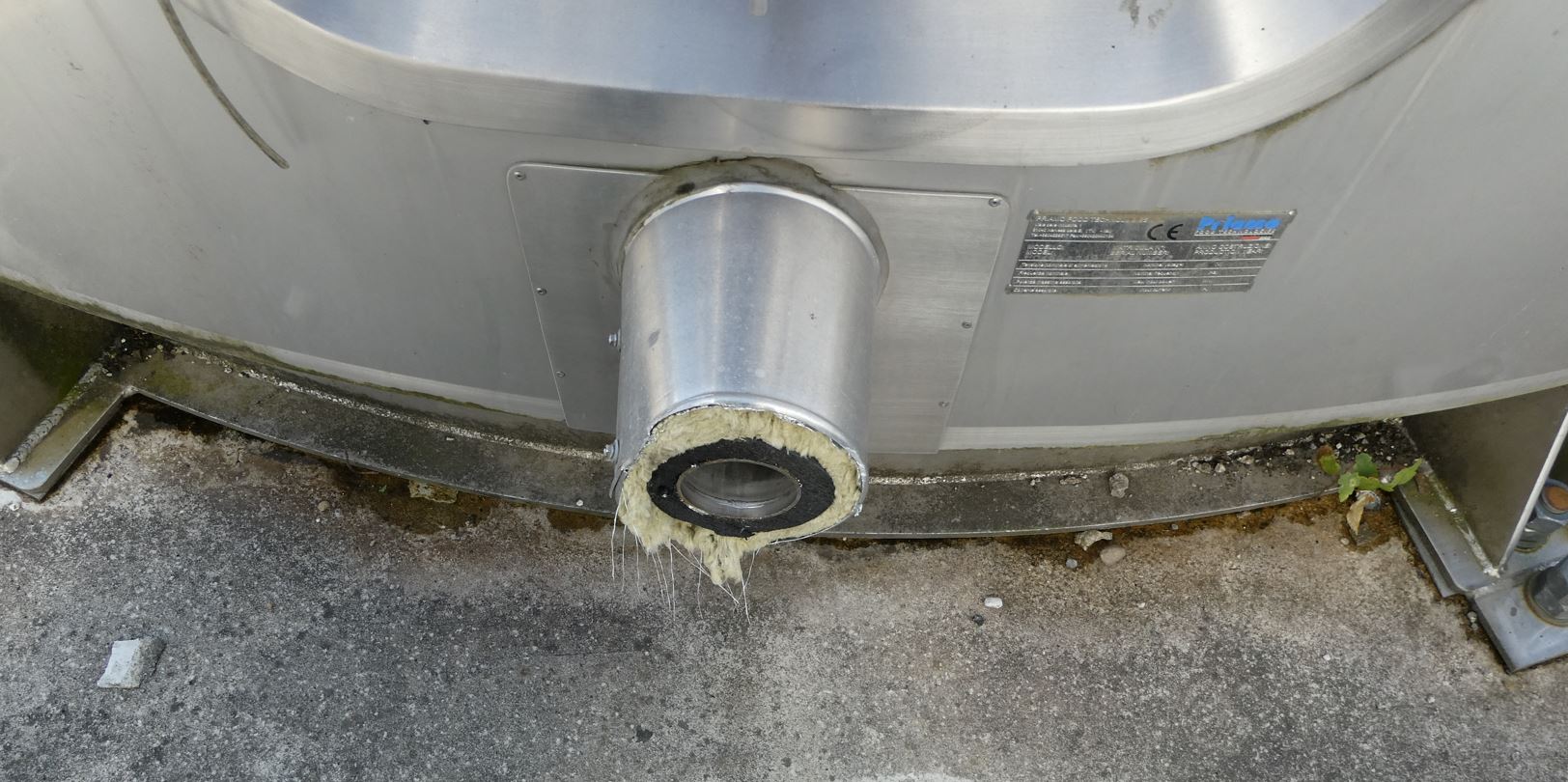

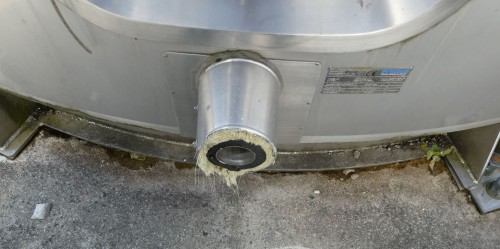

  • Outlet nozzle

  • 85

  • Cleaning/CIP nozzle

  • in head

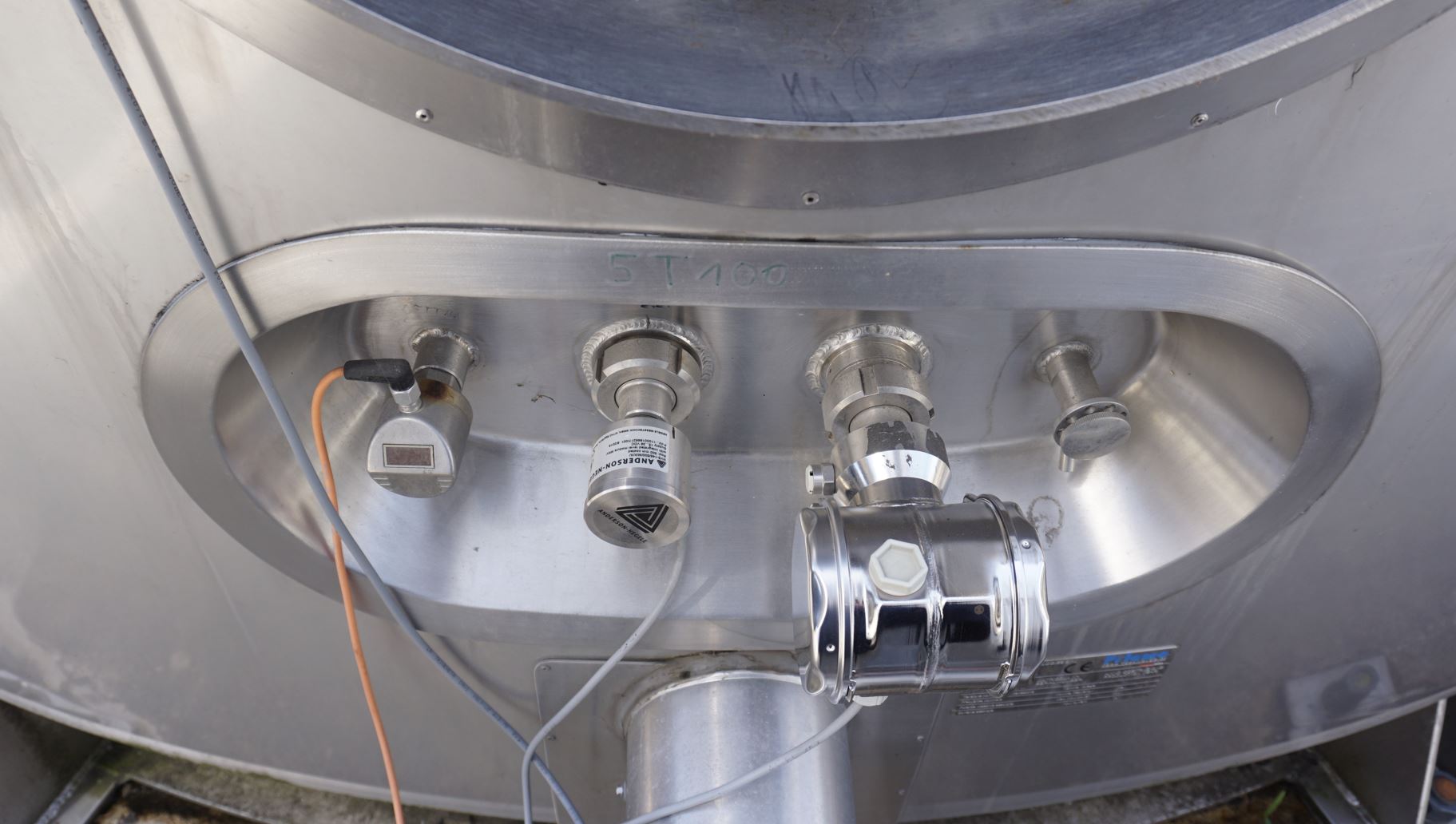

  • Additional fixtures and fittings

  • Air vent

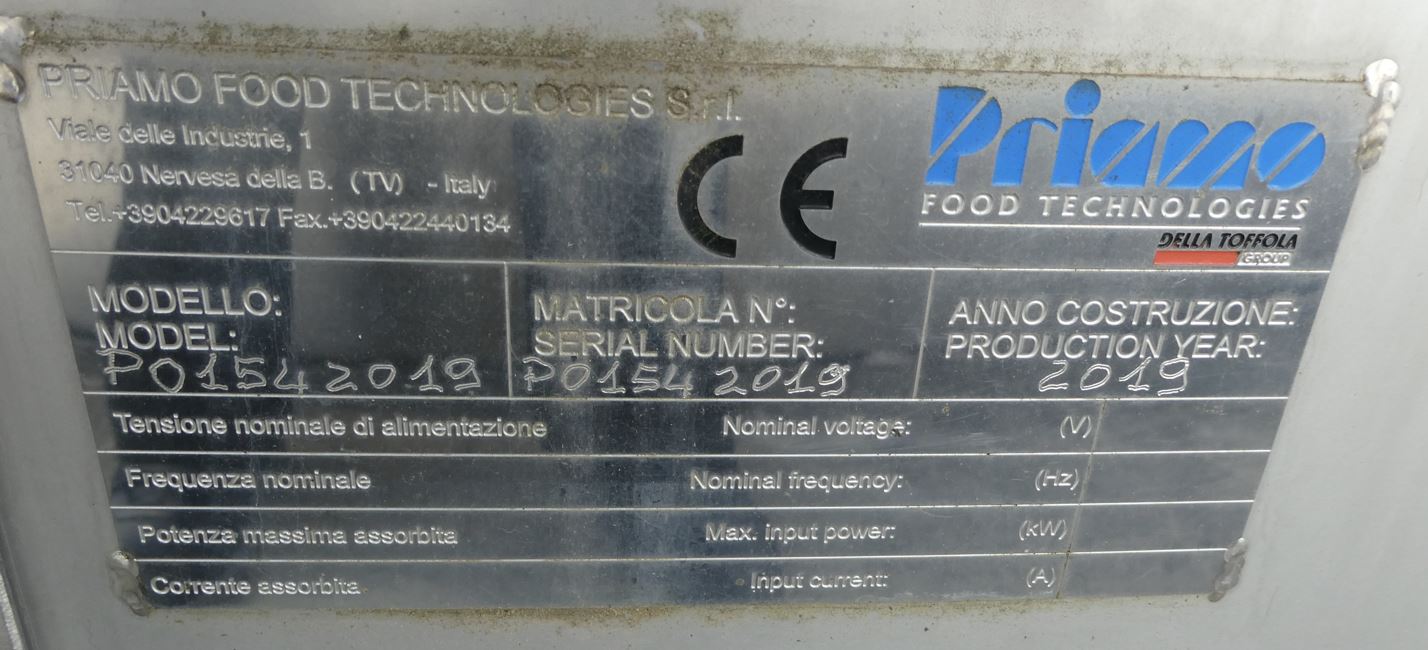

  • Nameplate

Technical documentation

  • Technical documentation

  • Designation

Other

  • Note

  • Auslauf abgeflext. Preis versteht sich zzgl. Demontage- u. Verladekosten.

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank,
