Product no. M-2921

Container 100.000 liters made of V2A isolated, used, standing

EUR 37.500,00

add. 19 % VAT excl. shipping costs


Volume approx. 100,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

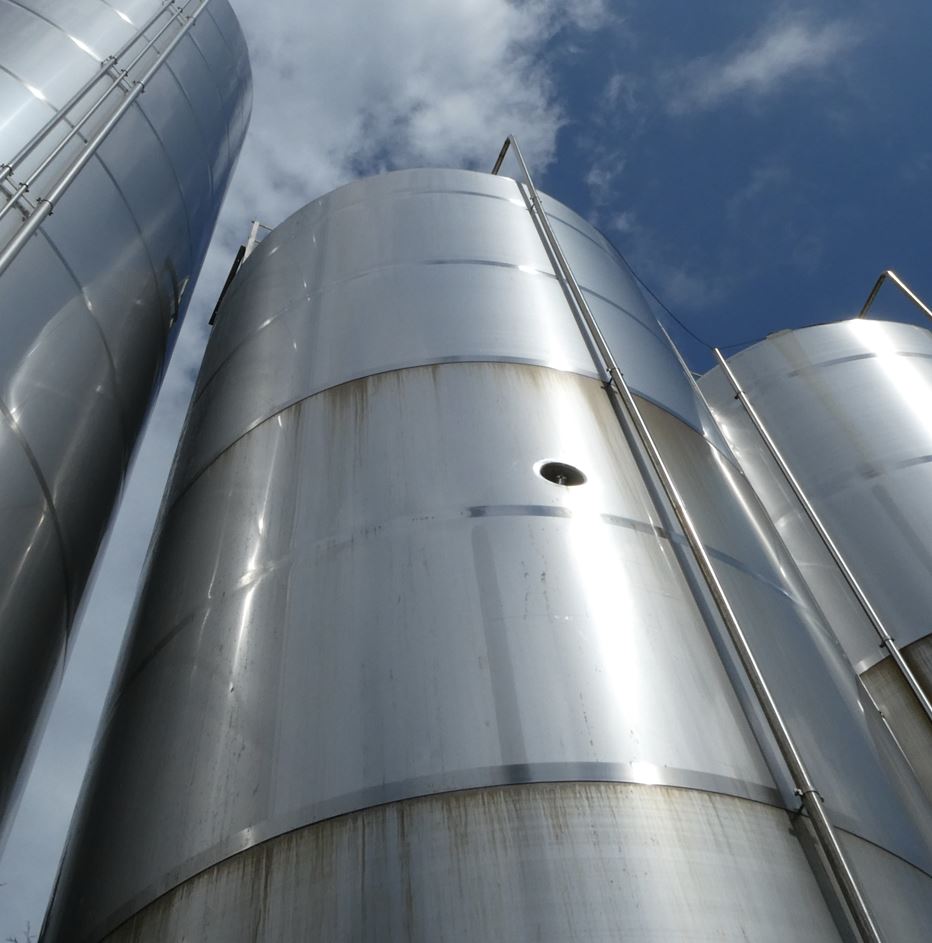

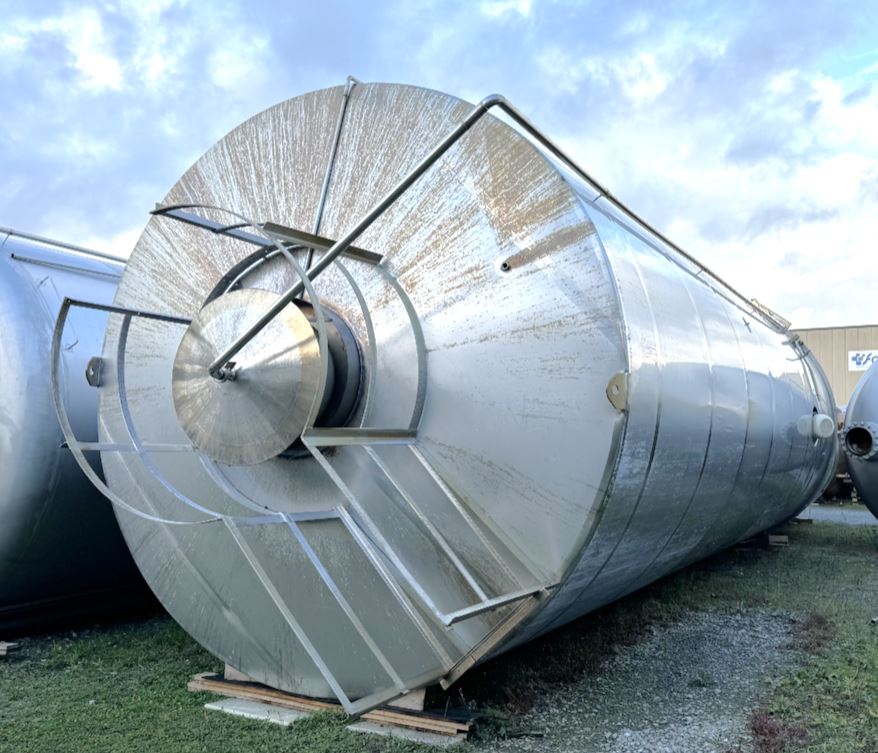

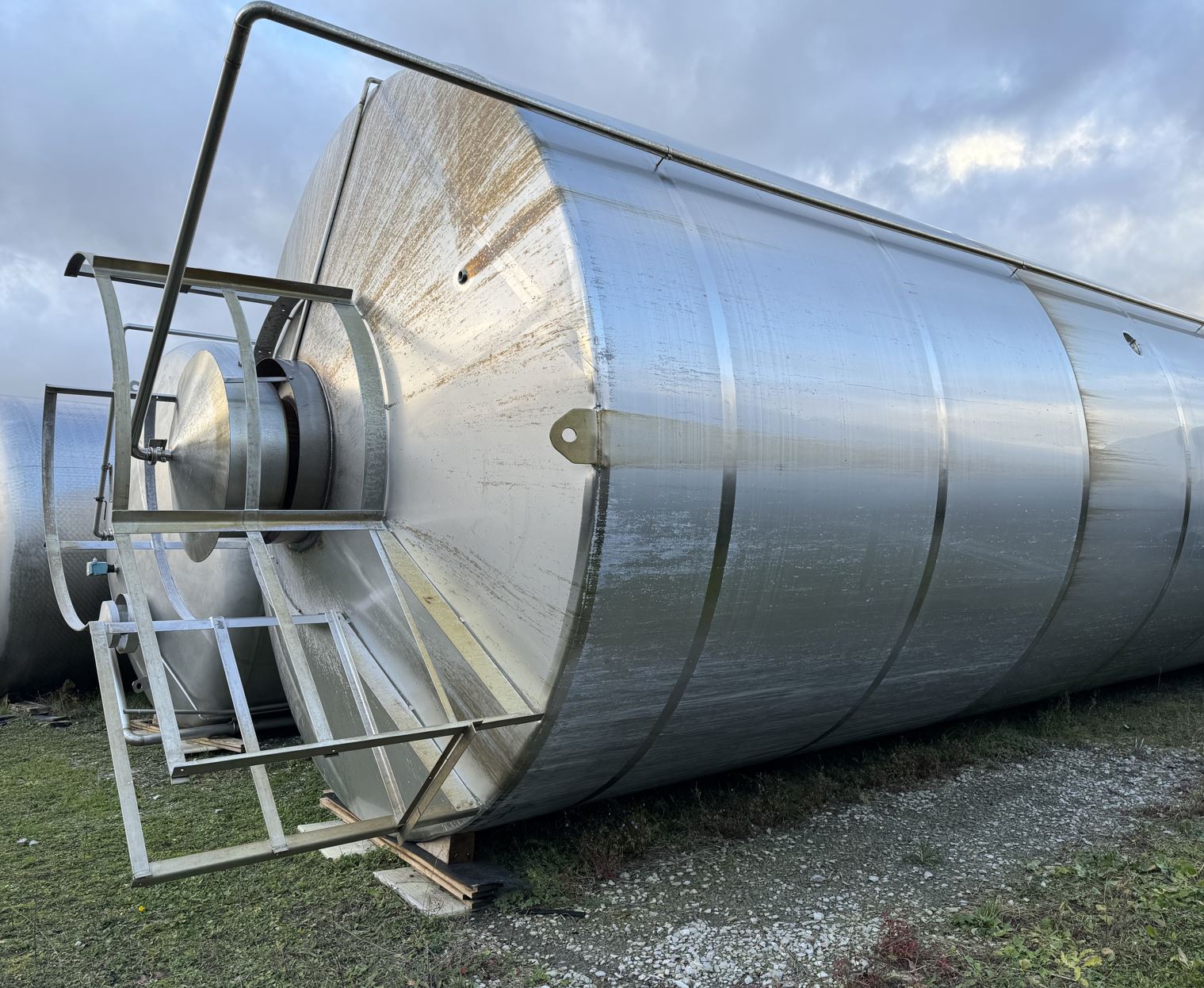

Container 100.000 liters made of V2A isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 100,000.00 litres. The diameter inside includes 3,600 mm.  Container 100.000 liters made of V2A isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 100.000,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 3.600 mm

  • External diameter

  • 3.800 mm

  • Total height

  • 12.300 mm

Design

  • Weight approx.

  • 7.000,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Complete

  • Insulation cladding

  • Fully welded stainless steel

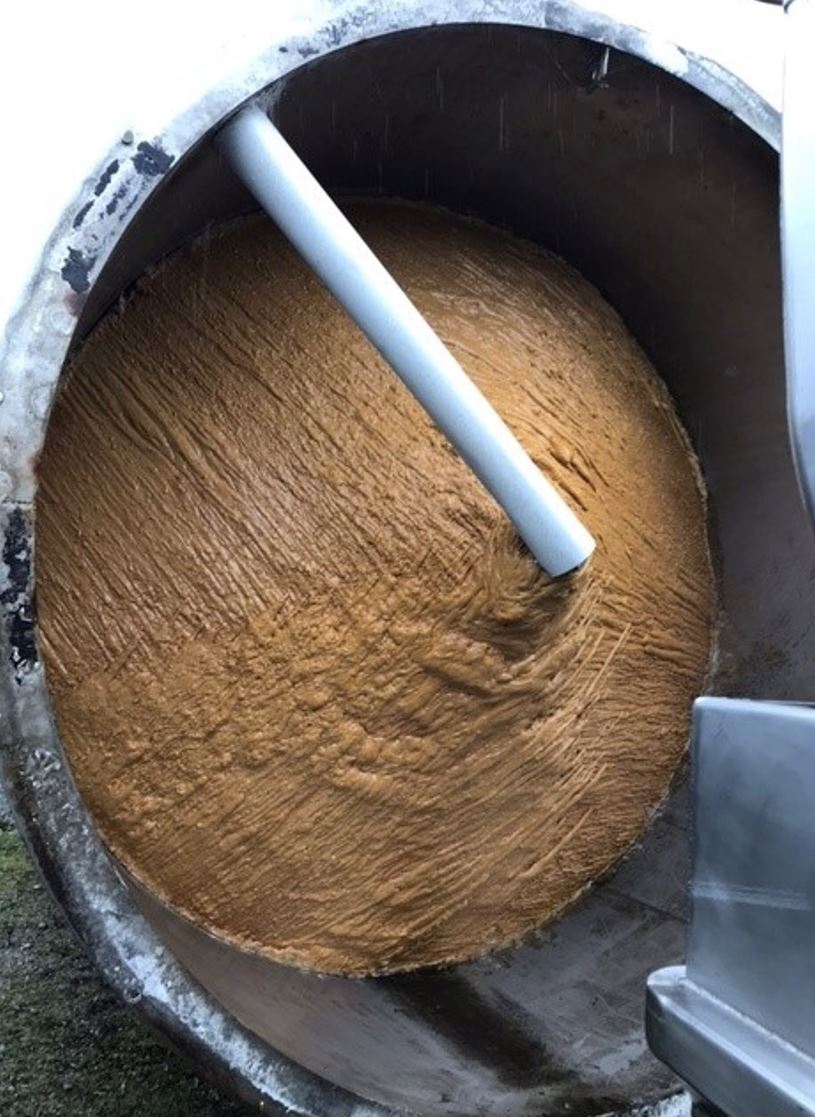

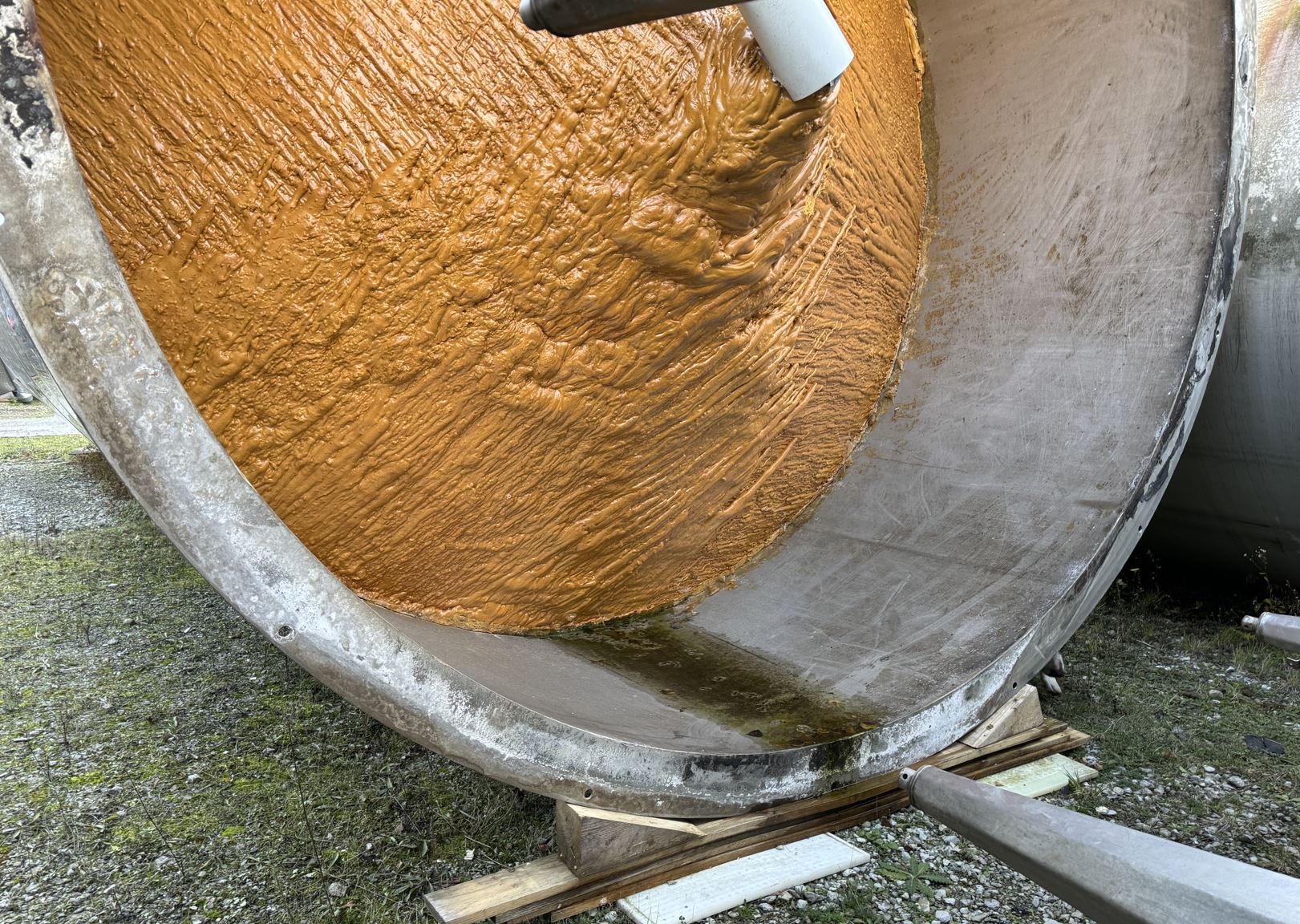

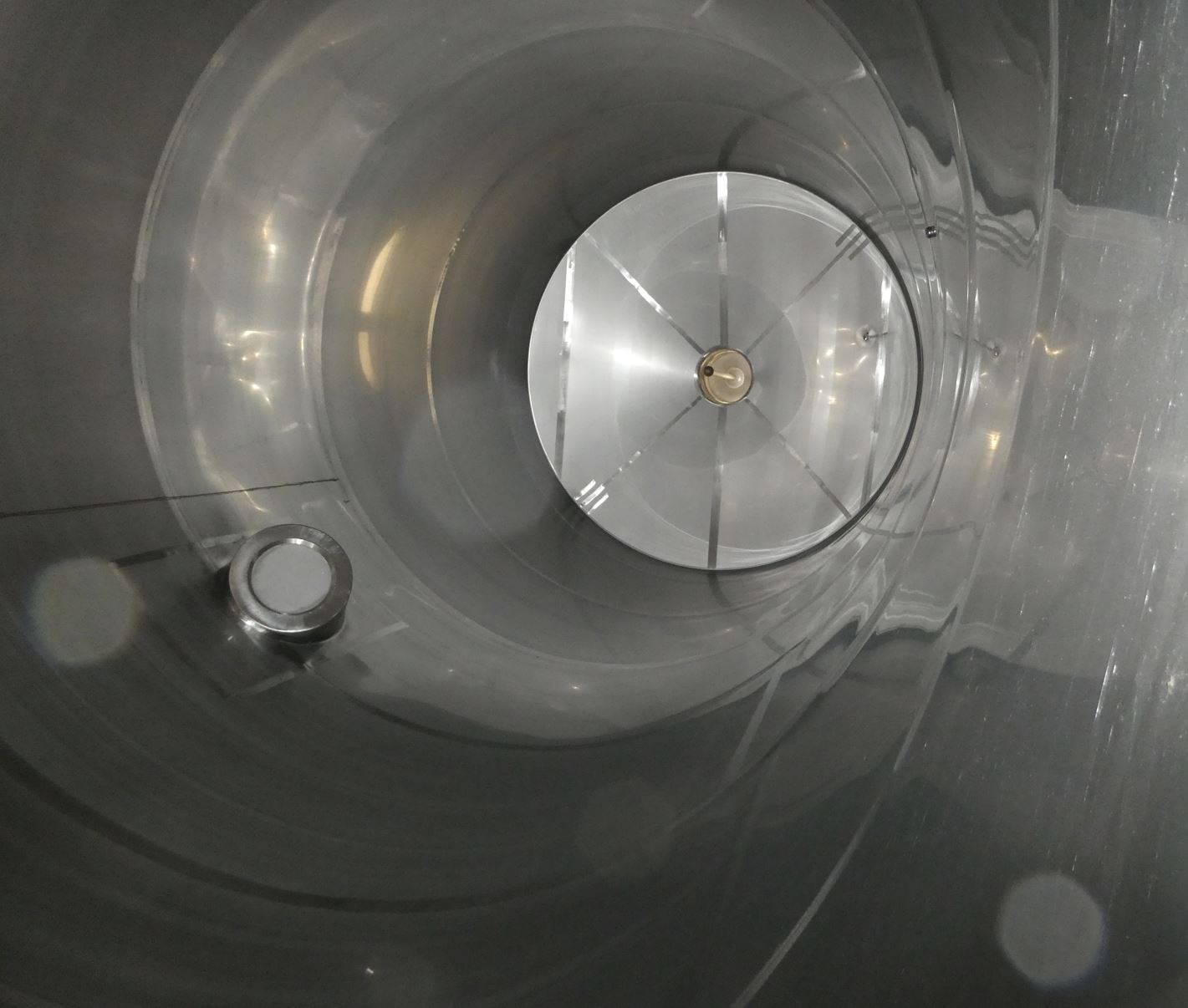

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

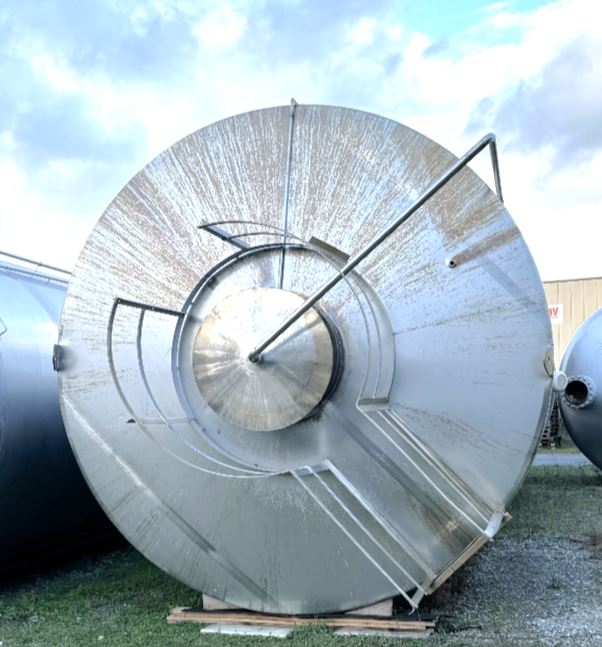

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

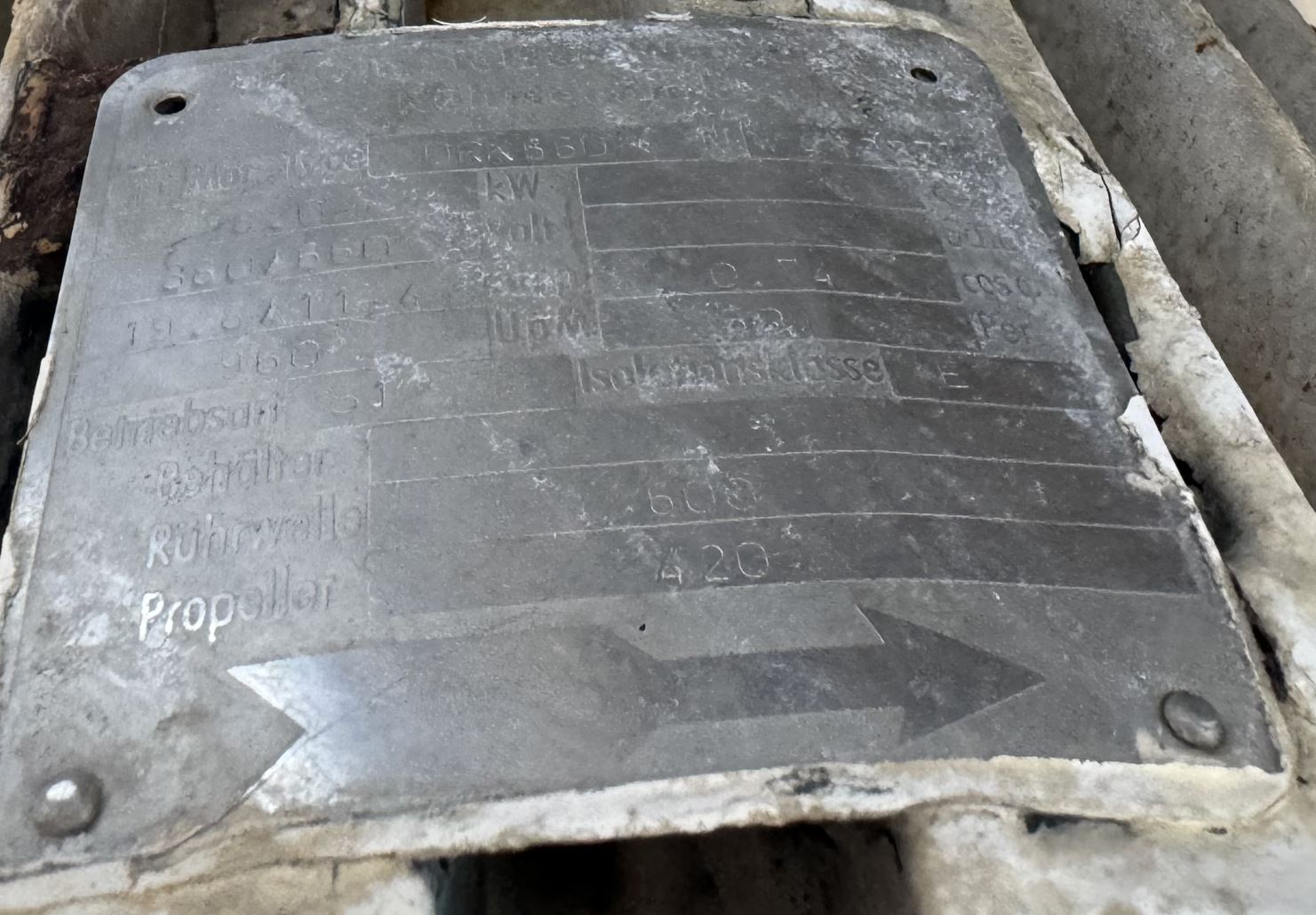

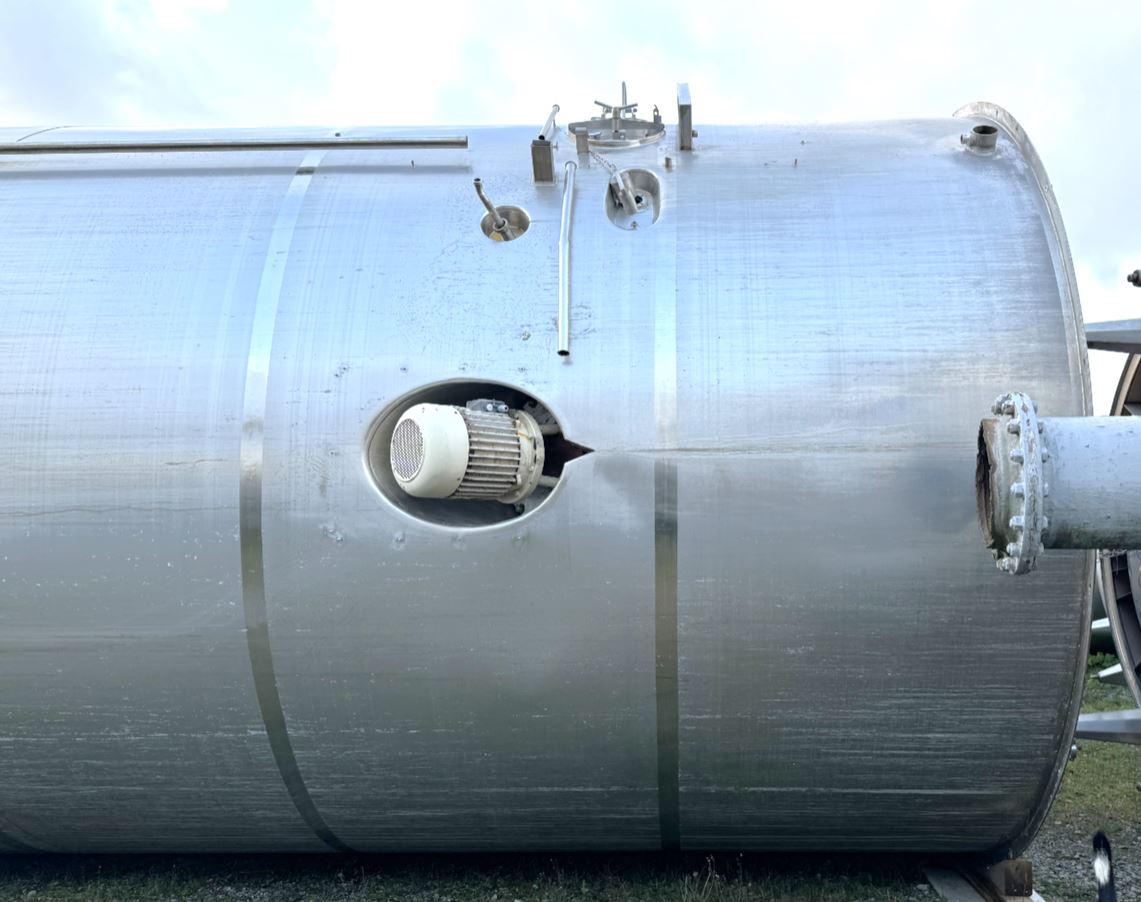

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Note on agitator

  • 2. Rührwerksanschluss vorhanden mit Blinddeckel

  • Agitator position

  • At bottom at the side in shell

Supports

  • Supports

  • Stainless steel support skirt

Fixtures and fittings

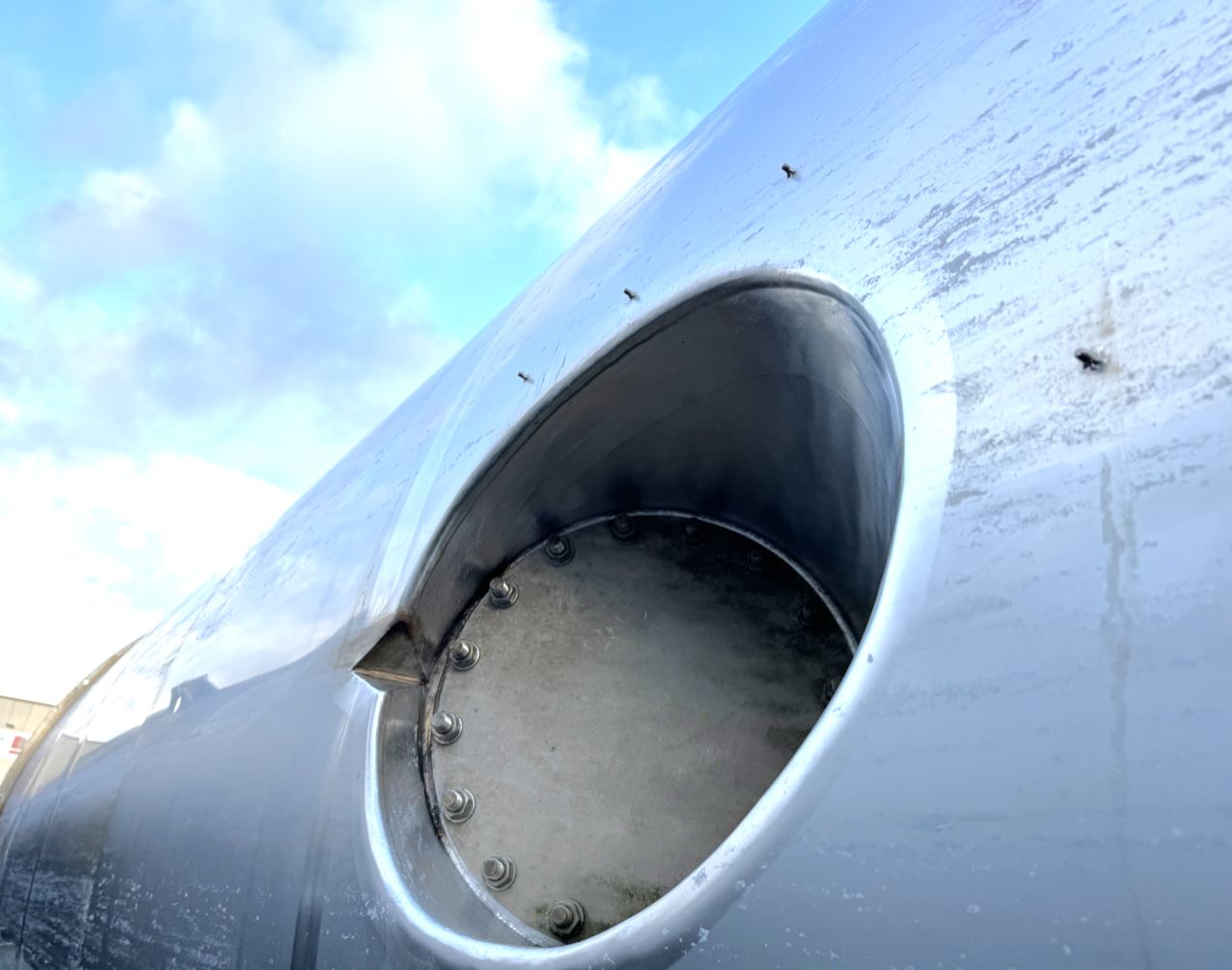

  • Manway position

  • In shell

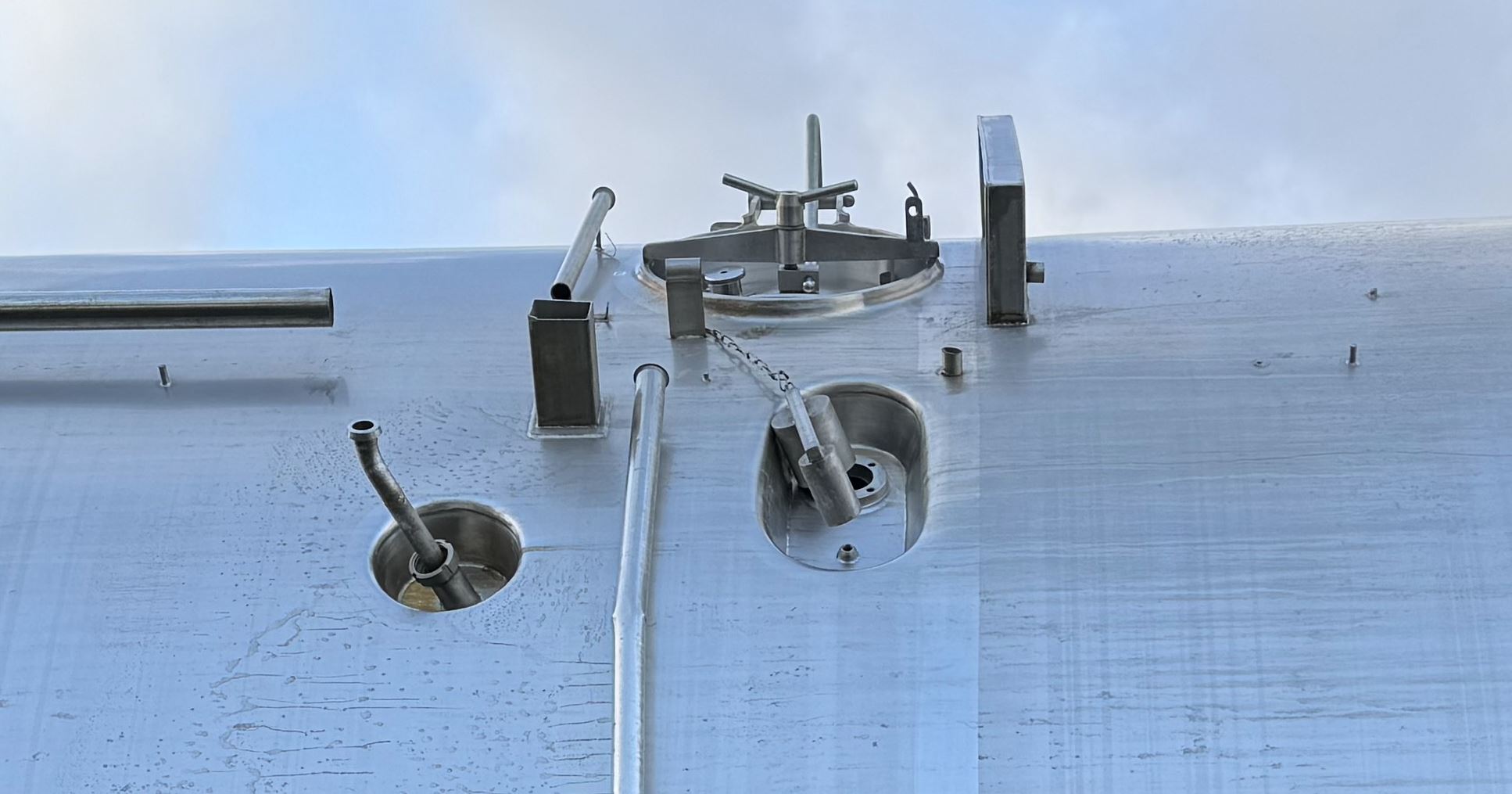

  • Cleaning/CIP nozzle

  • in head

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

  • Air vent

Technical documentation

  • Technical documentation

  • None

Other

  • Note

  • Kegelboden aussen mit PU-Schaum isoliert

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank,
