Product no. M-2752

Container 100.000 liters made of V2A isolated, used, standing

EUR 32.500,00

add. 19 % VAT excl. shipping costs


Volume approx. 100,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details   Downloads

Product description

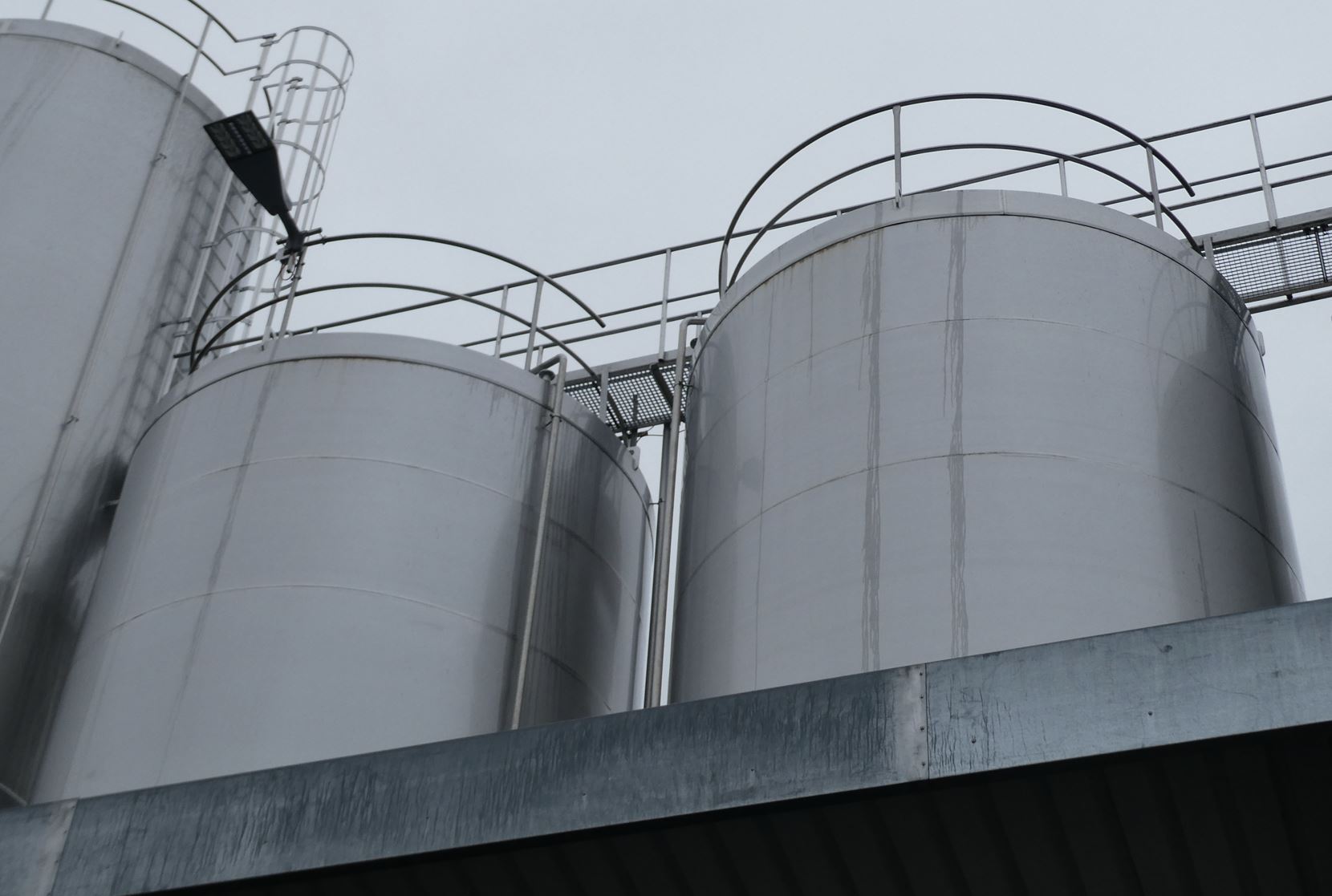

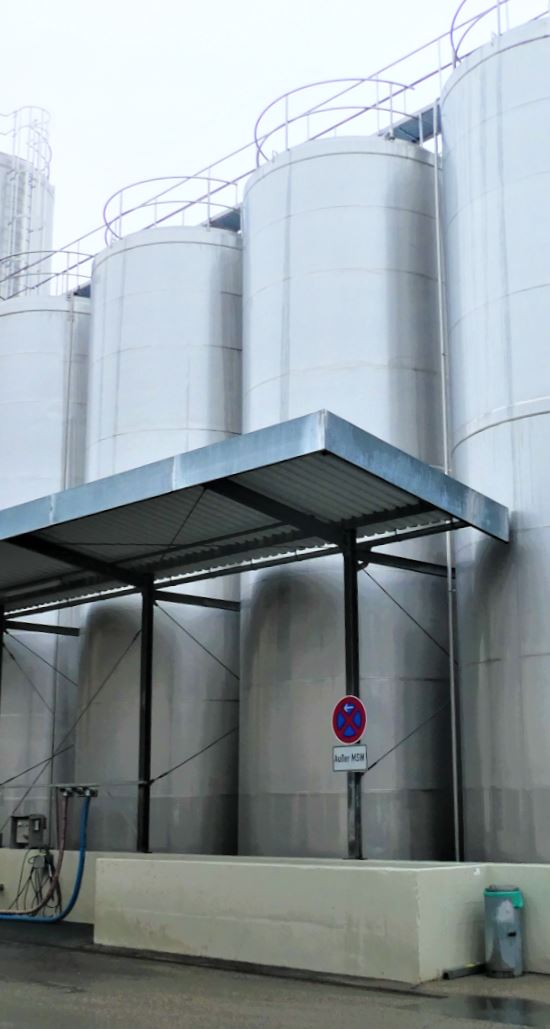

Container 100.000 liters made of V2A isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 100,000.00 litres. The diameter inside includes 3,600 mm.  Container 100.000 liters made of V2A isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 100.000,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1991

  • Manufacturer

  • ABAB

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 3.600 mm

  • External diameter

  • 3.700 mm

  • Cyl. height

  • 11.500 mm

  • Total height

  • 13.000 mm

Design

  • Weight approx.

  • 10.000,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and head

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

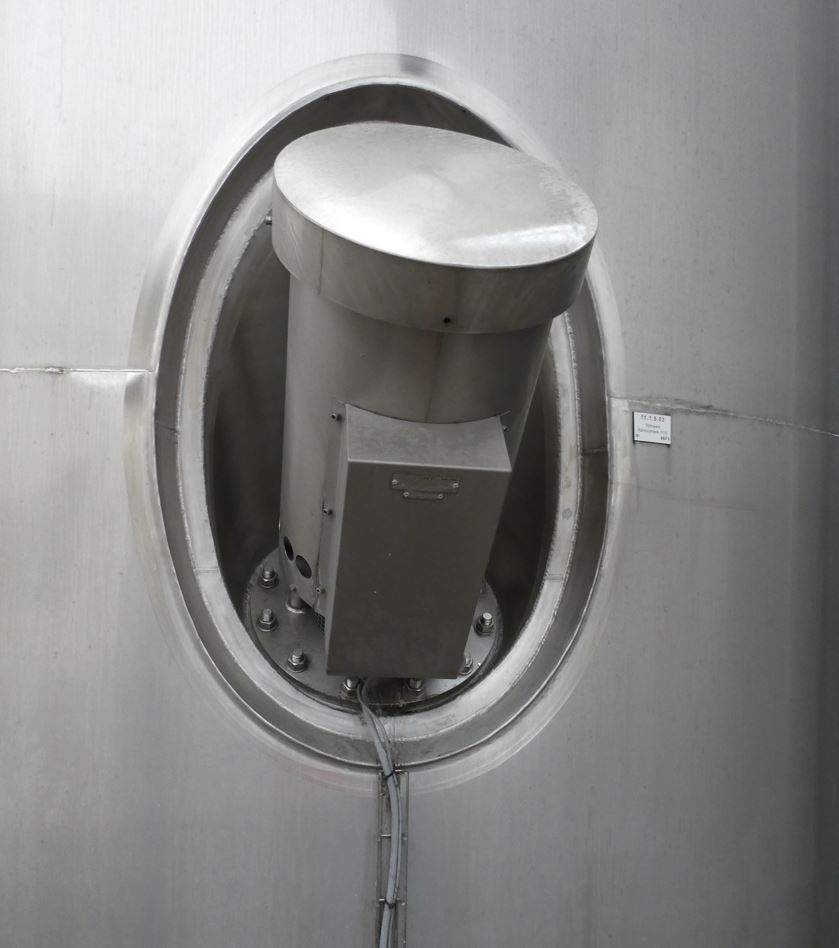

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Agitator position

  • At bottom at the side in shell

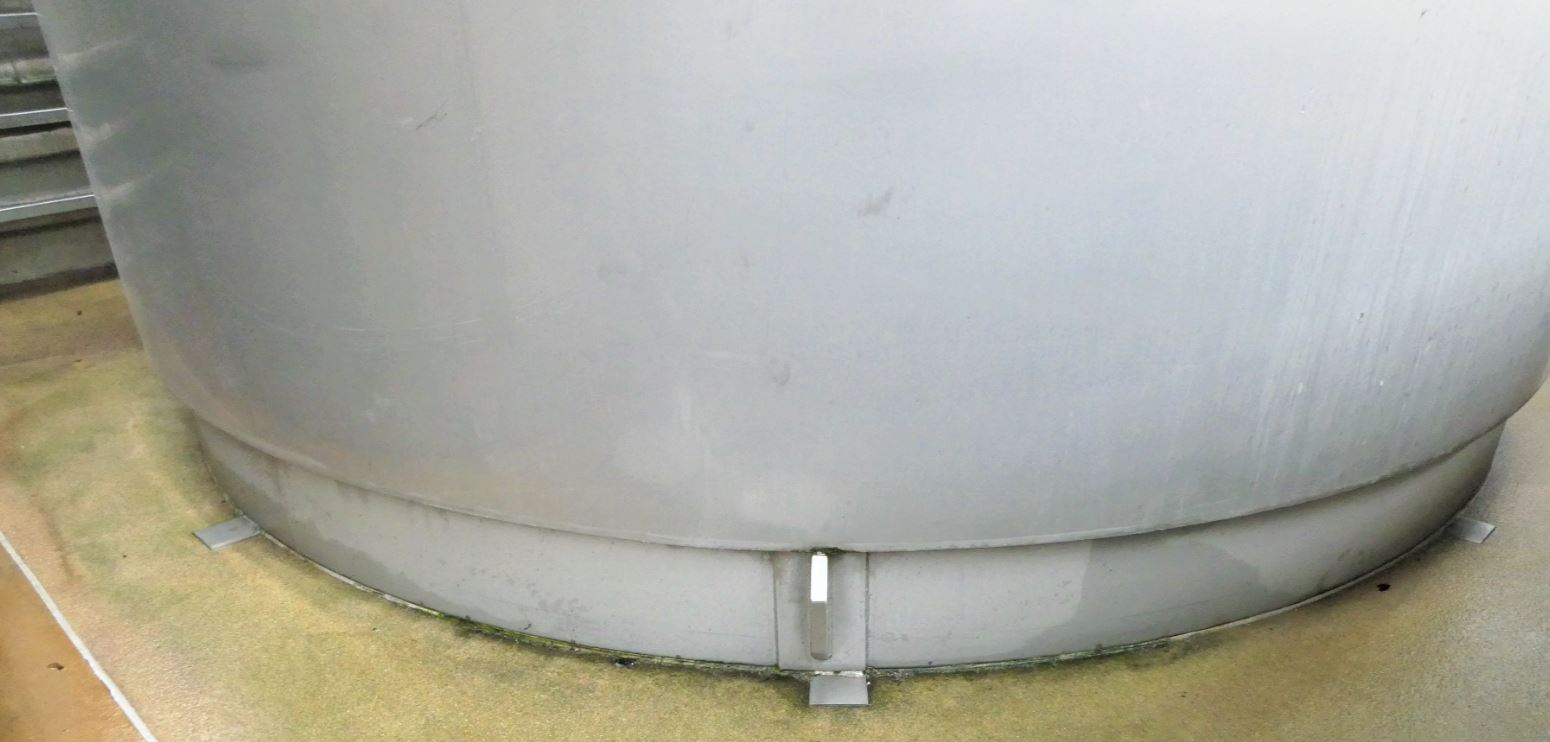

Supports

  • Supports

  • Concrete support skirt

  • Number of feet

  • 1 (piece)

Fixtures and fittings

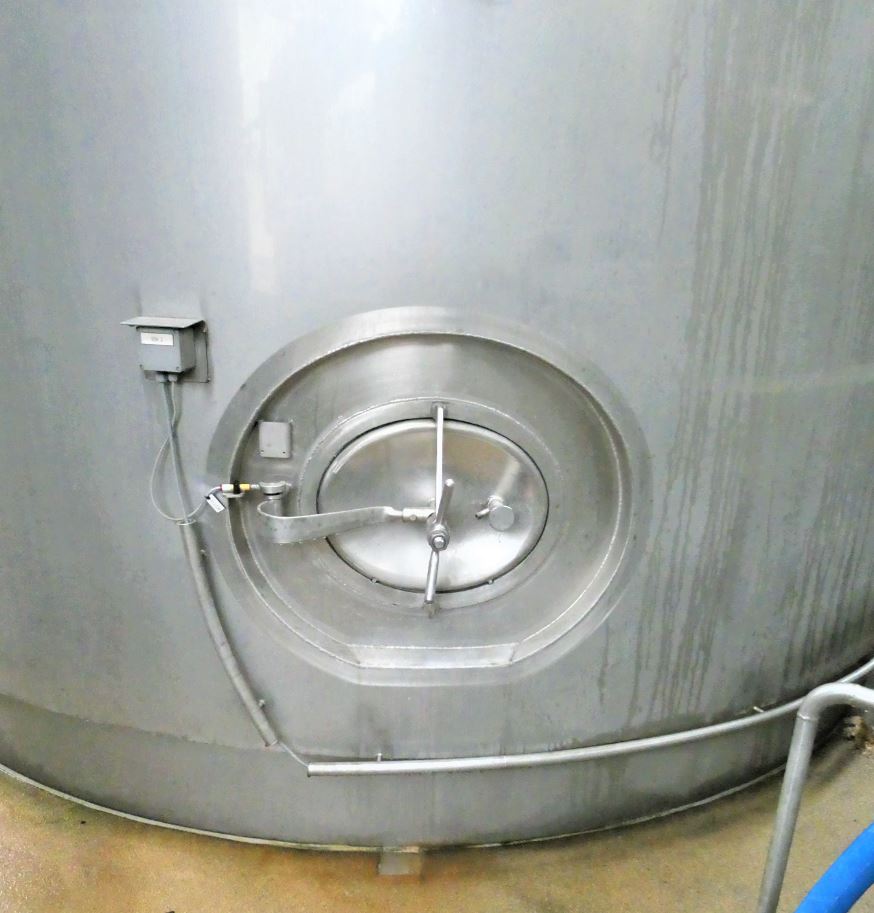

  • Manway 1 size

  • 350x450 DN mm

  • Manway position

  • In shell

  • Outlet nozzle

  • 125

  • Cleaning/CIP nozzle

  • in head

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

  • Air vent

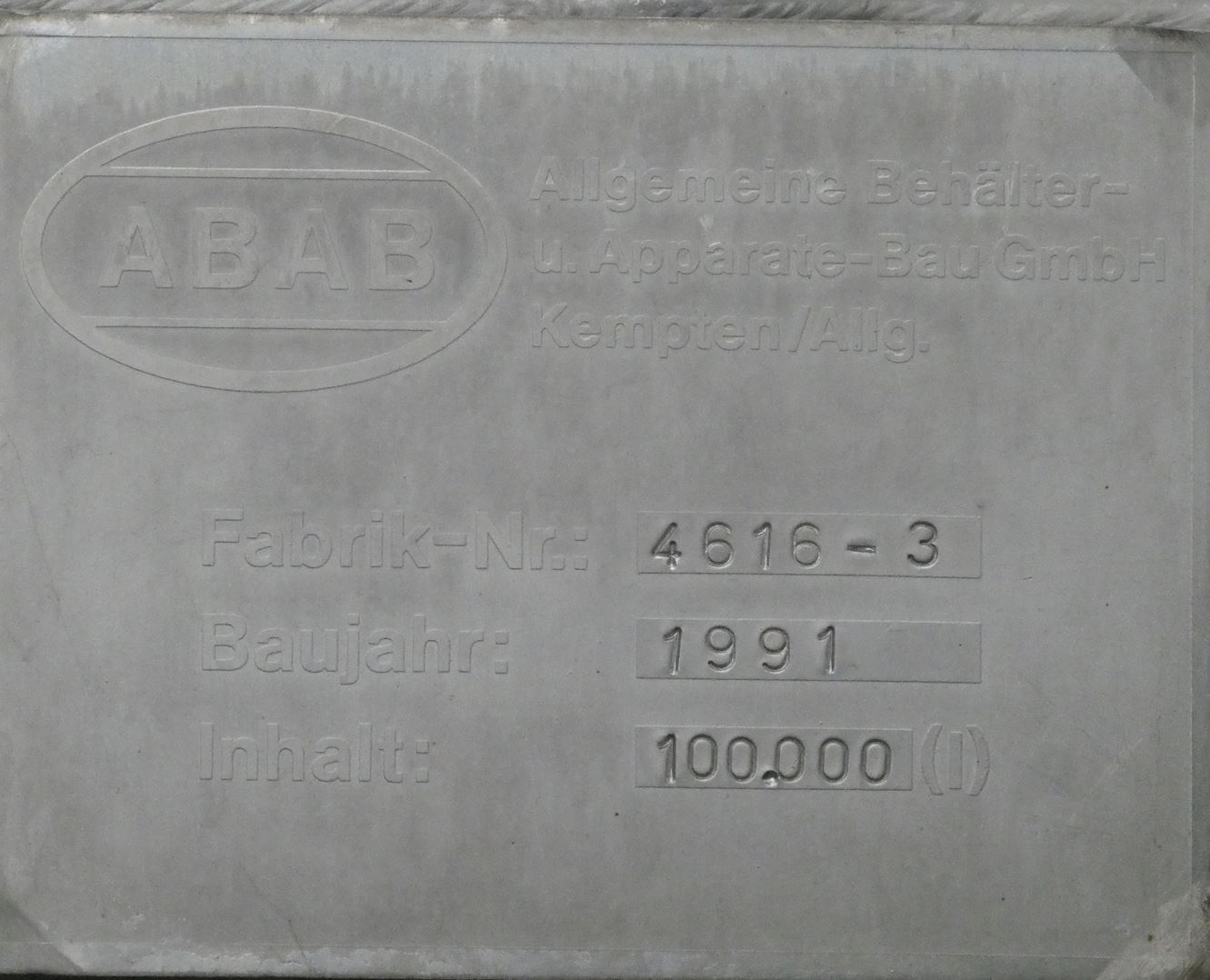

  • Nameplate

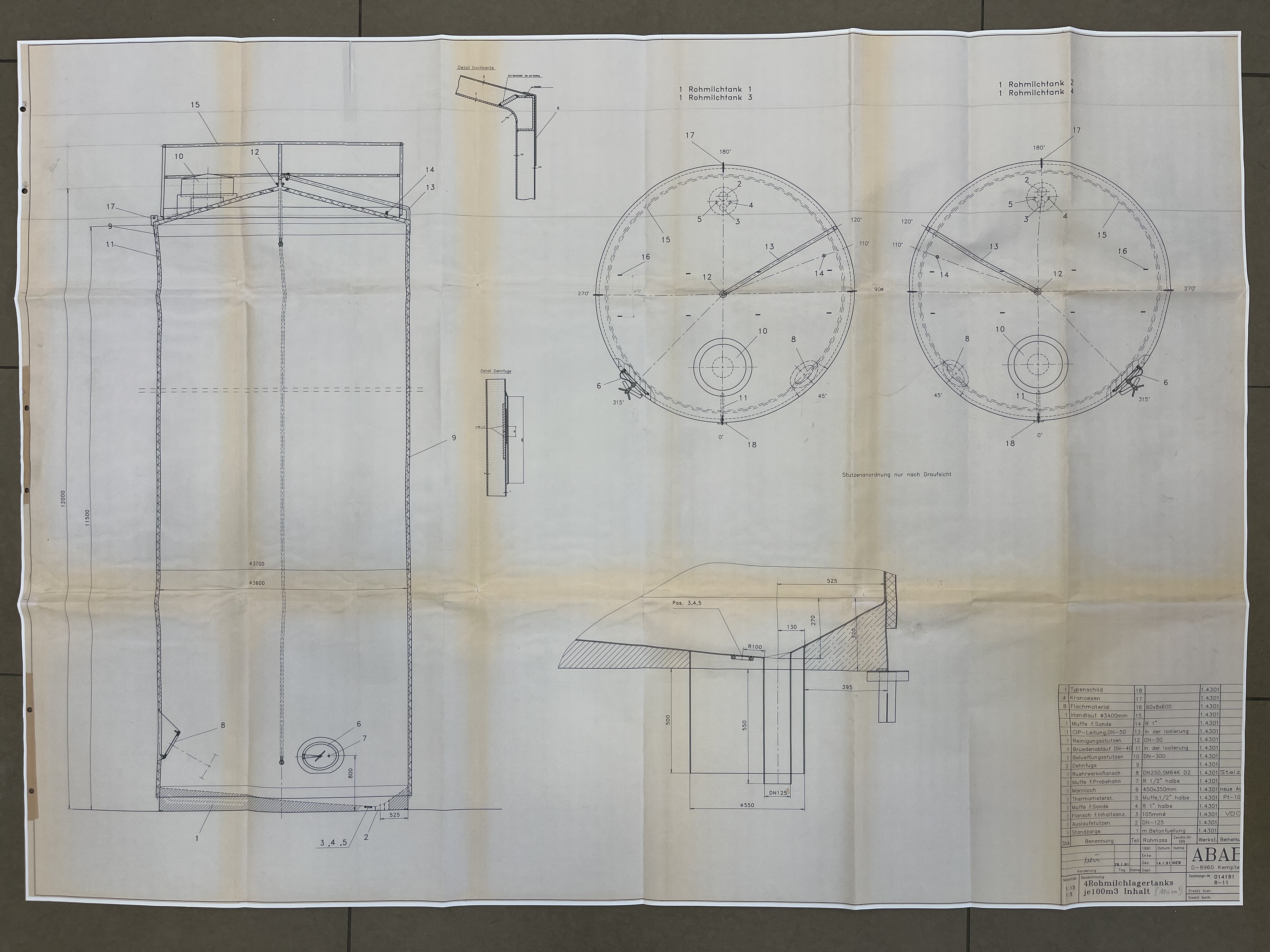

Technical documentation

  • Technical documentation

  • Designation

Other

  • Note

  • Auslaufstutzen senkrecht nach unten verbaut

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
