Product no. M-2633

Container 100.000 liters made of V2A single-walled, standing

EUR 18.200,00

add. 19 % VAT excl. shipping costs


Volume approx. 100,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

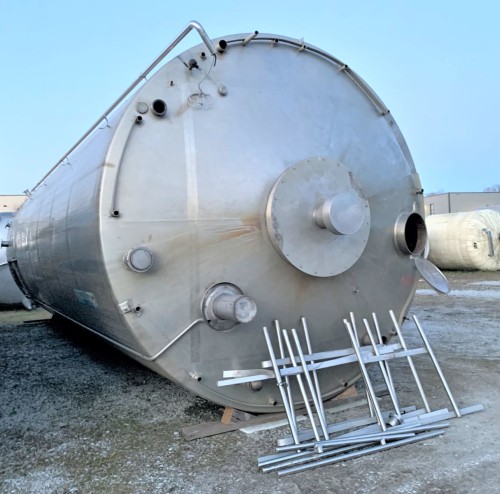

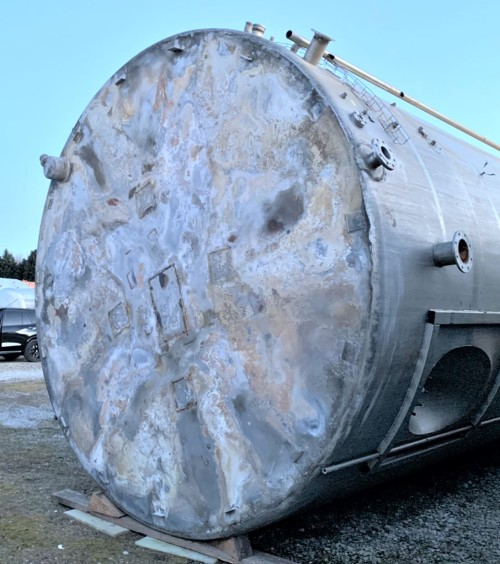

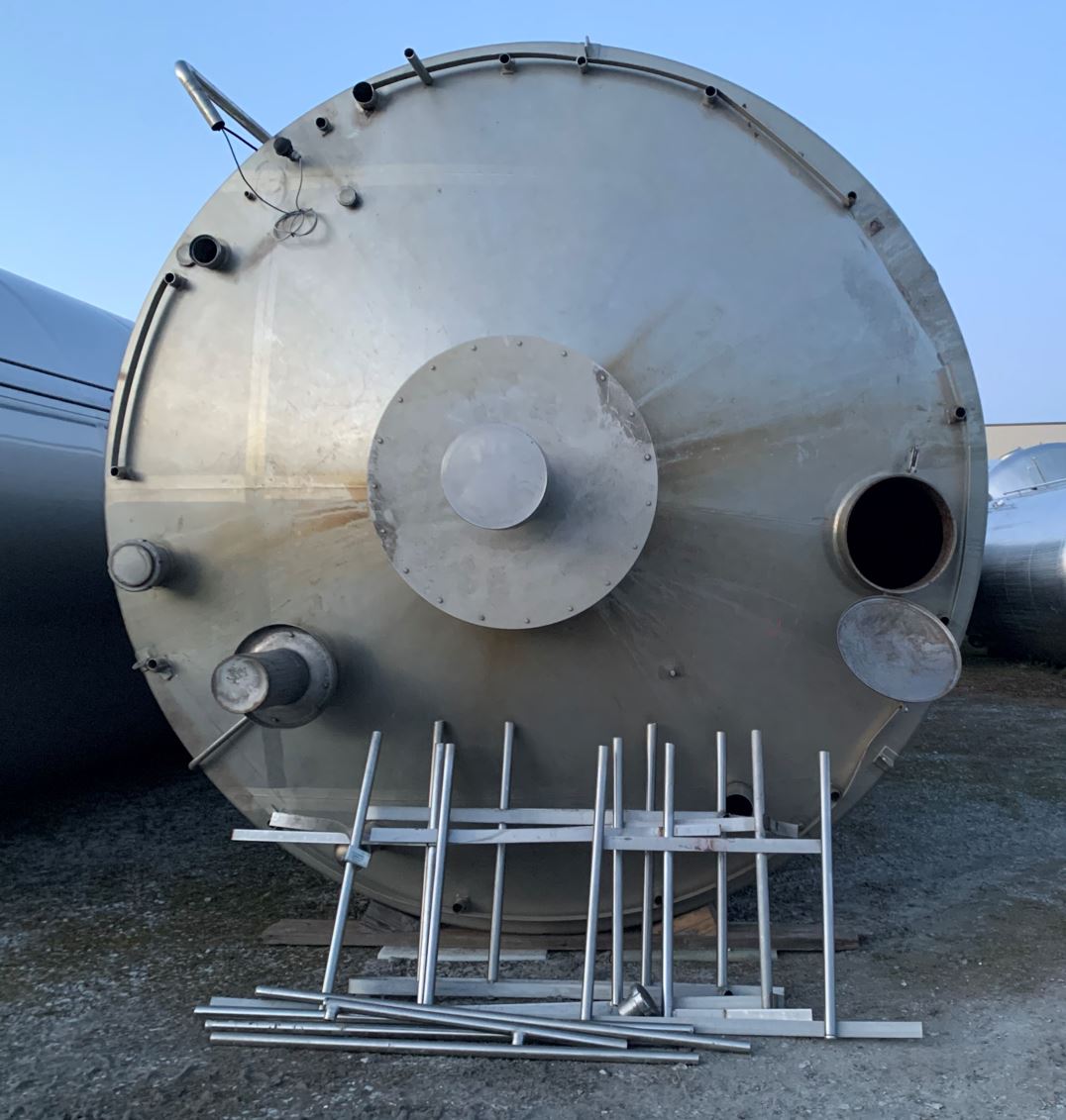

Container 100.000 liters made of V2A single-walled consists of the material 1.4301(AISI304) V2A. The volume is approx. 100,000.00 litres.  Container 100.000 liters made of V2A single-walled was last used in the following area: Abwasser {Wastewater. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 100.000,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1974

  • Manufacturer

  • Alfa-LAval

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 3.600 mm

  • Total height

  • 10.150 mm

  • Total length

  • 13.000 mm

Design

  • Weight approx.

  • 4.000,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

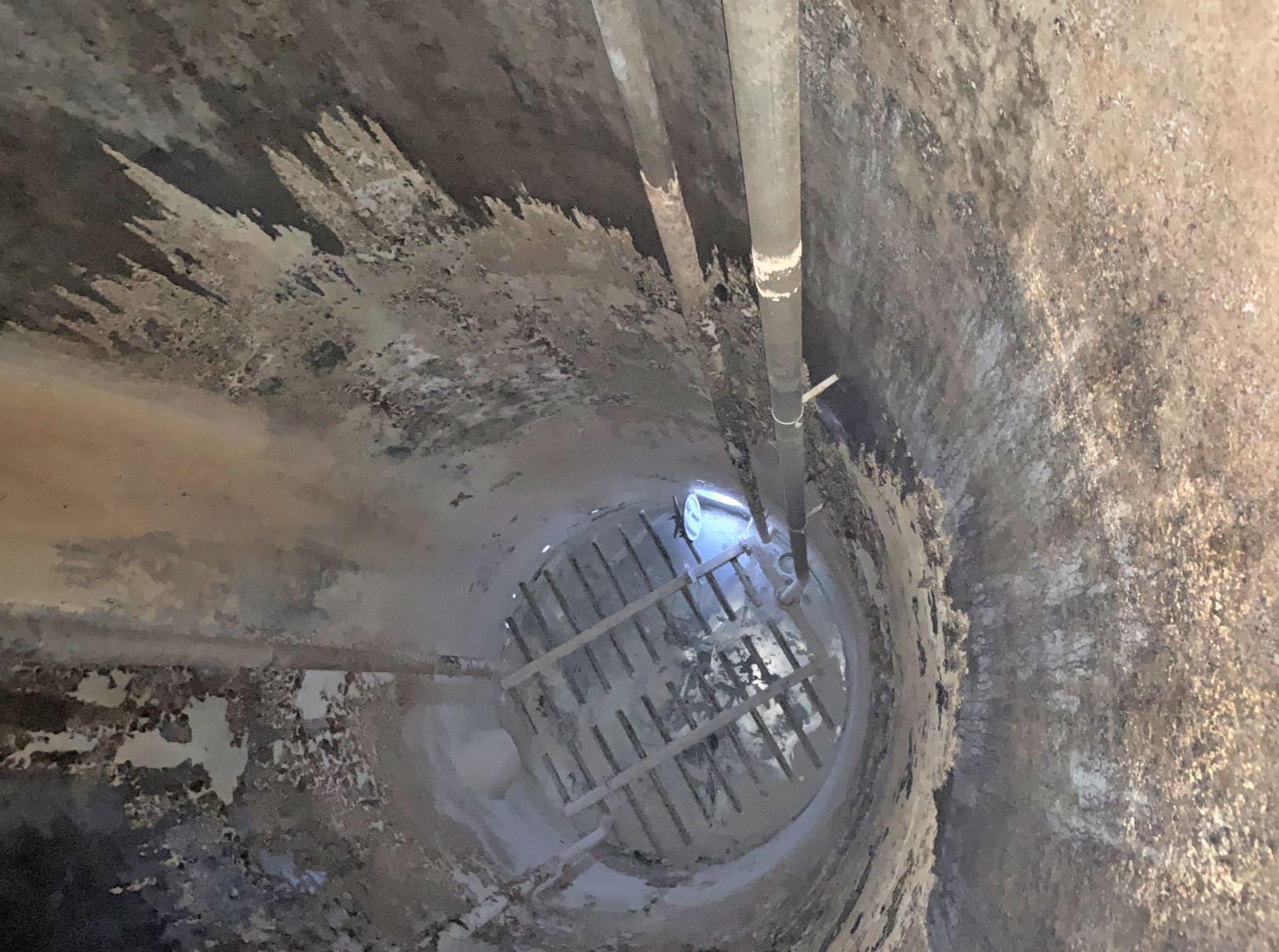

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Flat bottom with slope towards outlet

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Note on agitator

  • Rührwerkspropeller nicht vorhanden

  • Agitator position

  • At bottom at the side in shell

Fixtures and fittings

  • Manway position

  • In shell and head

  • Outlet nozzle

  • 65

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

  • Handrails

  • Nameplate

Other

  • Note

  • Anhaftungen im Produktraum

  • Last usage

  • Abwasser {Wastewater

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
