Product no. M-2852

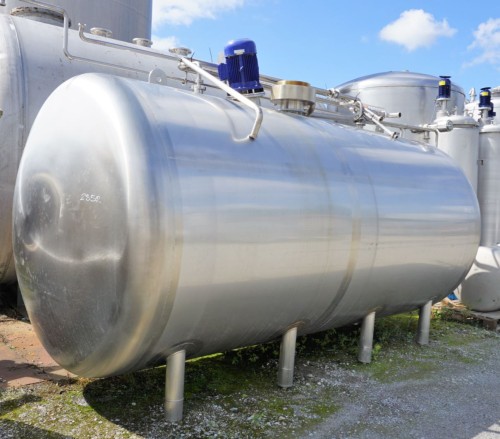

Container 10.700 liters made of V2A, isolated, used, horizontal

EUR 14.500,00

add. 19 % VAT excl. shipping costs


Volume approx. 10,700.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

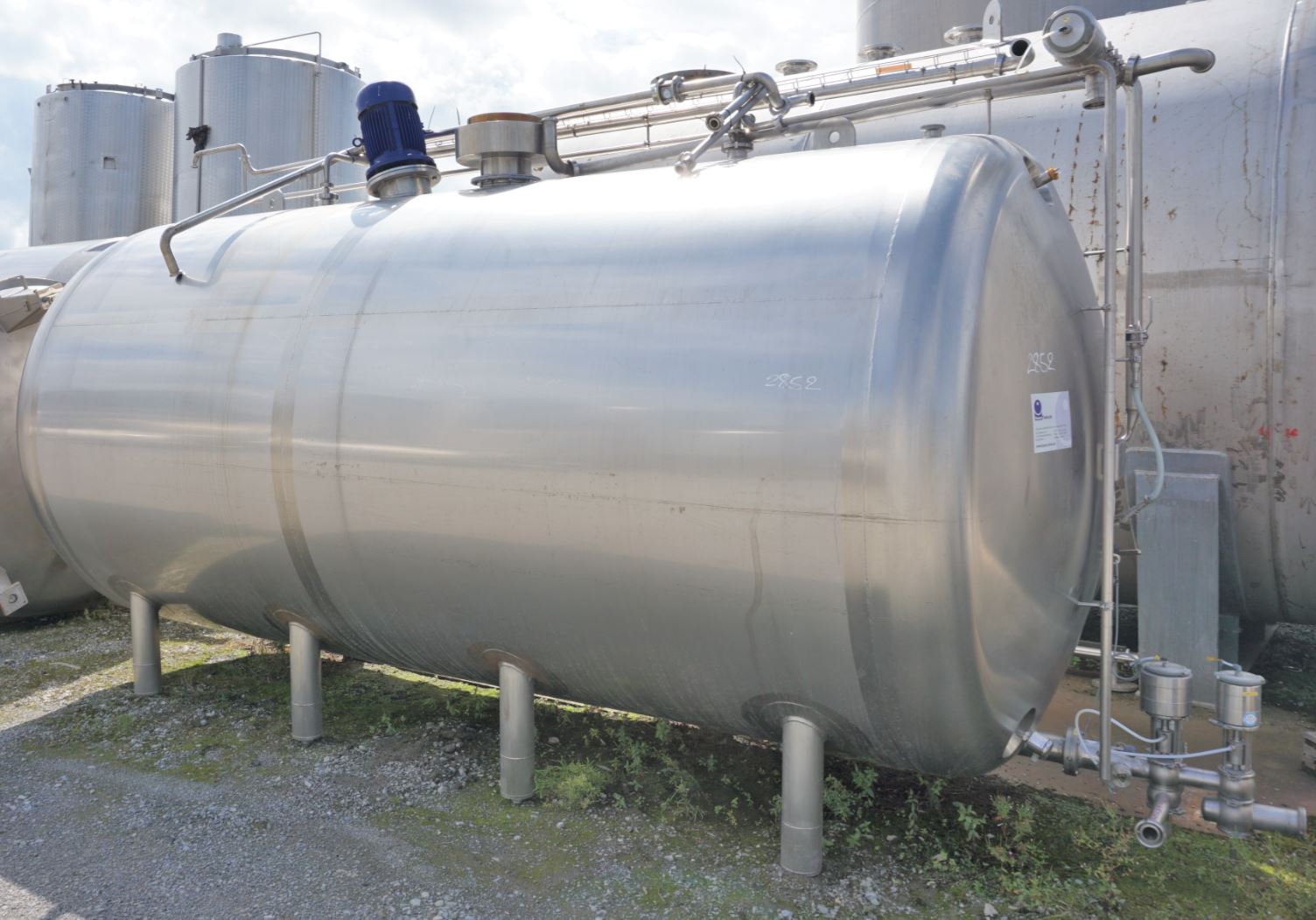

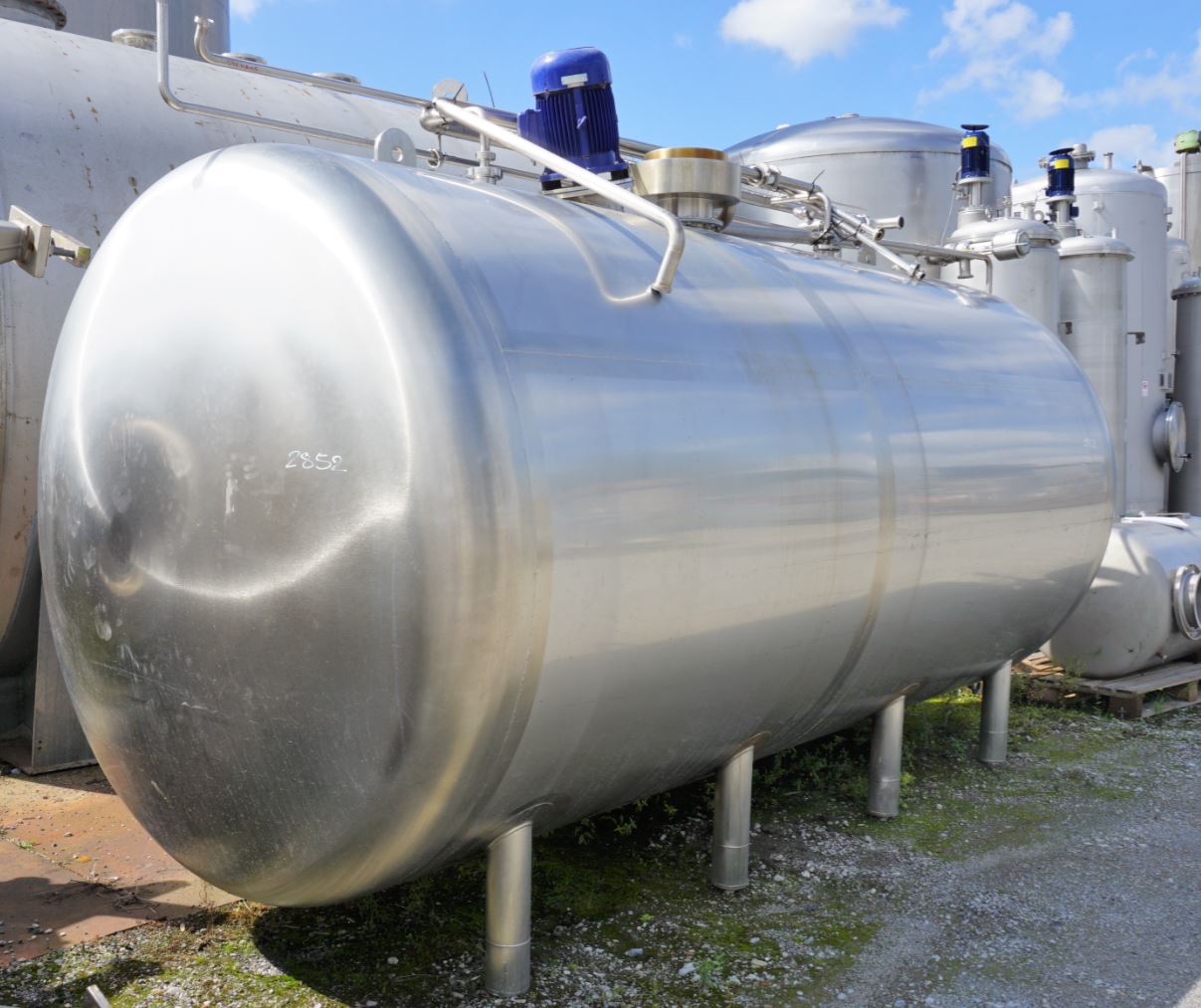

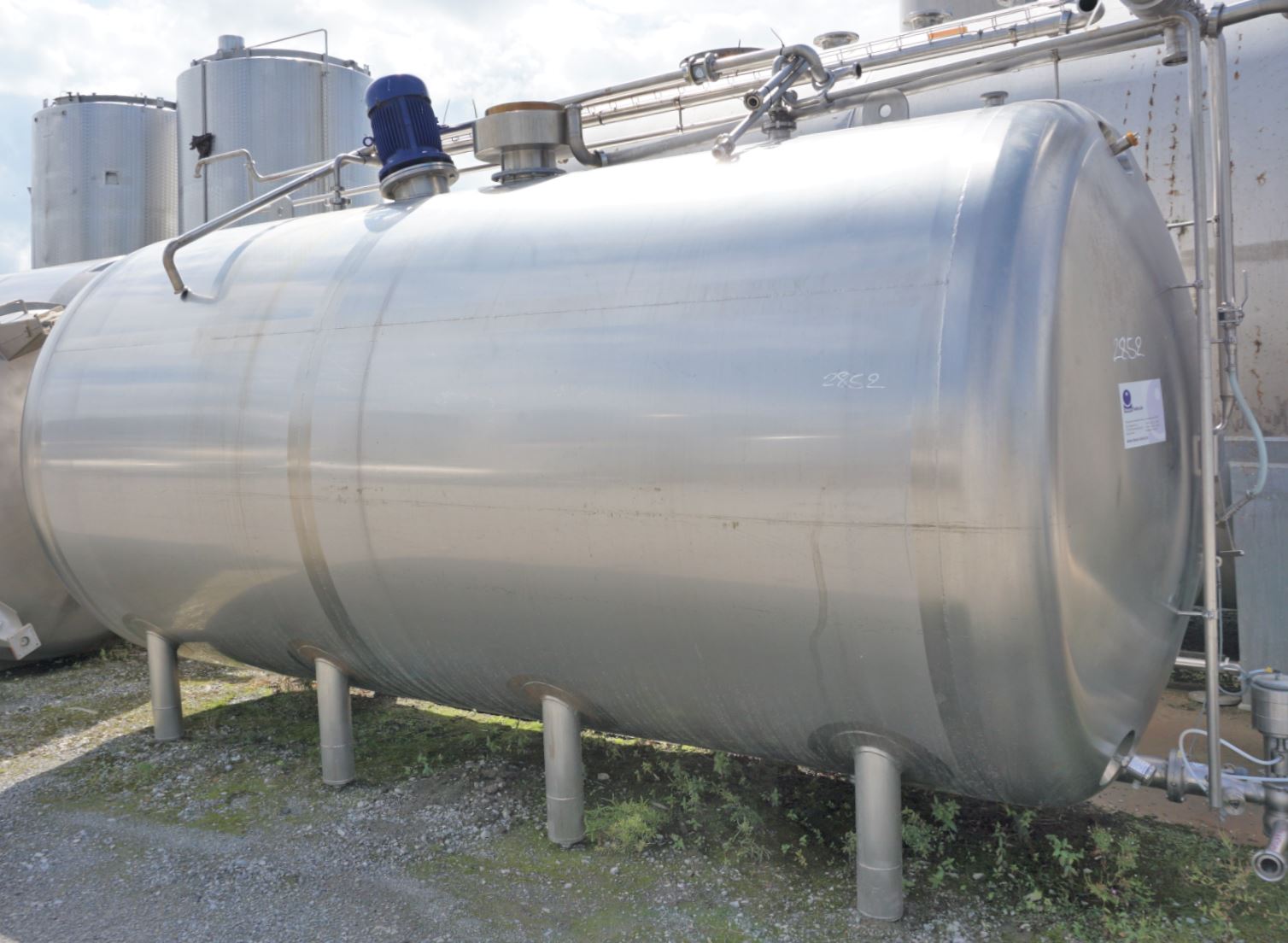

Container 10.700 liters made of V2A, isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 10,700.00 litres. The diameter inside includes 1,850 mm.  Container 10.700 liters made of V2A, isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 10.700,00 litres

  • Structure

  • Horizontal

  • Year of manufacture

  • 2014

  • Manufacturer

  • Helmes

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.850 mm

  • External diameter

  • 1.954 mm

  • Cyl. length

  • 3.565 mm

  • Outlet height

  • 334 mm

  • Total height

  • 2.700 mm

  • Total length

  • 4.367 mm

  • Wall thickness of product chamber shell

  • 5,00 mm

  • Wall thickness of product chamber floor

  • 3,00 mm

Design

  • Weight approx.

  • 1.500,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Complete

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

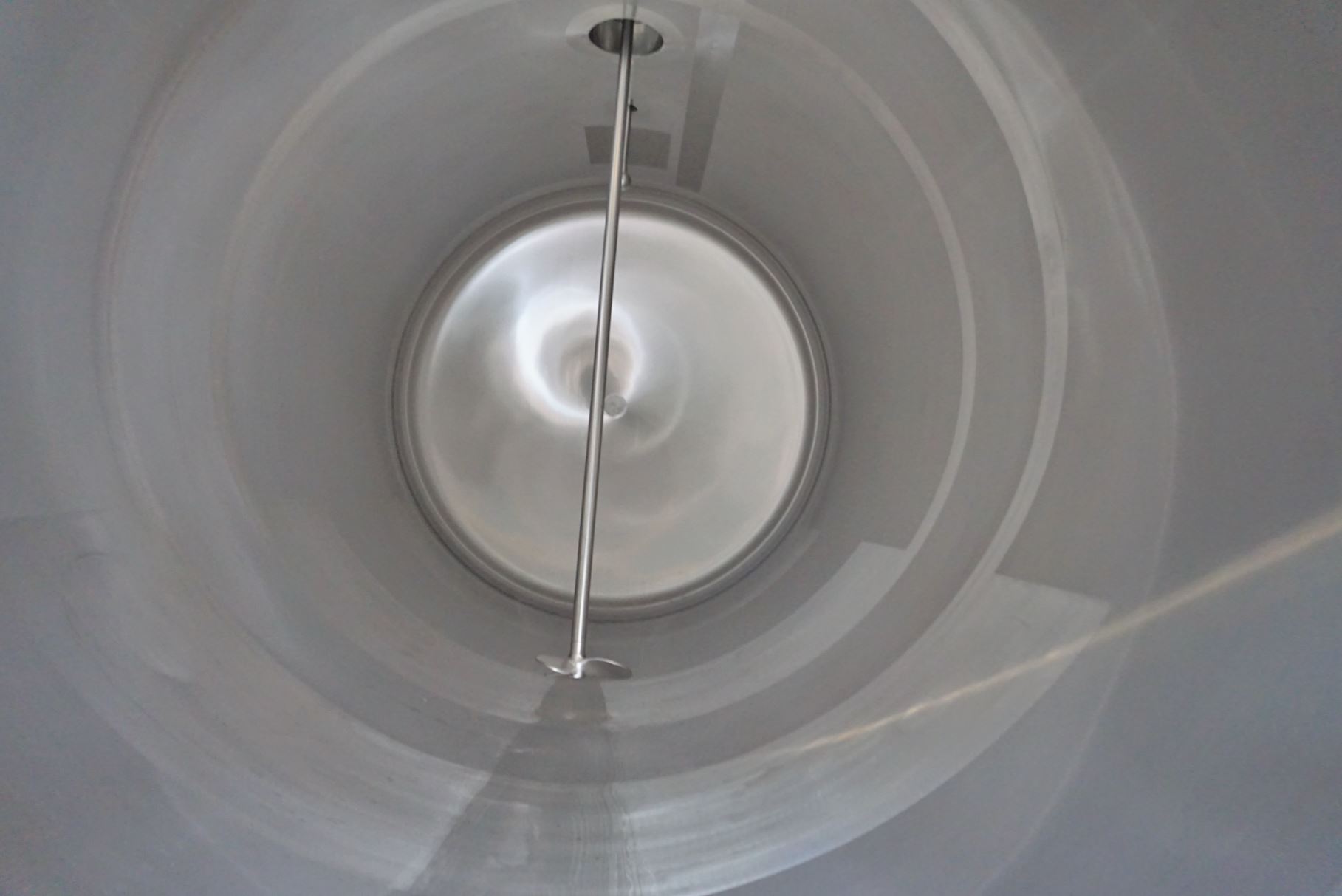

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Agitator position

  • Head off-centre

  • Agitator manufacturer

  • PRG

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 8 (piece)

  • Note on supports

  • hoehenverstellbar

Fixtures and fittings

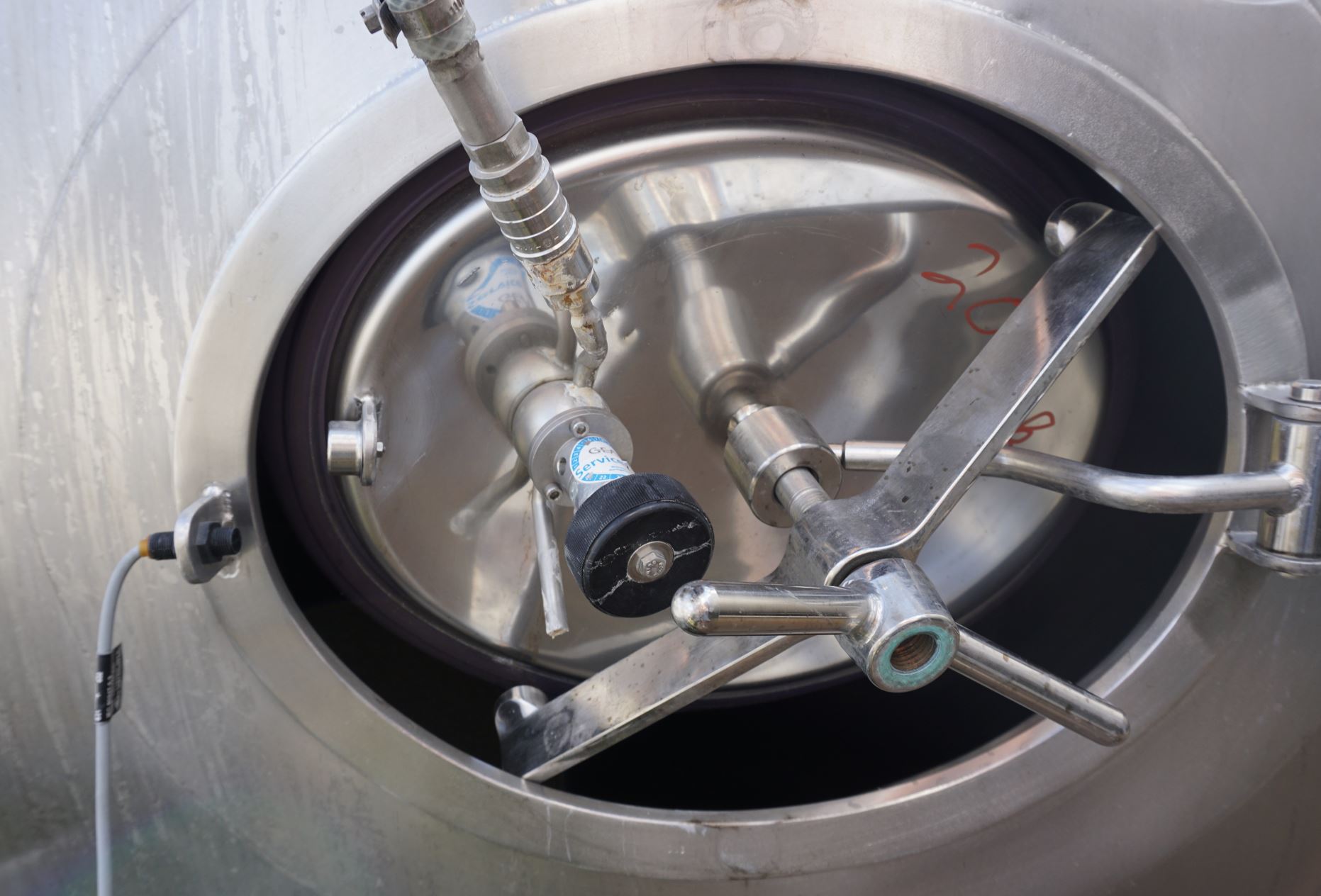

  • Manway 1 size

  • 340x440 DN mm

  • Manway position

  • Front face

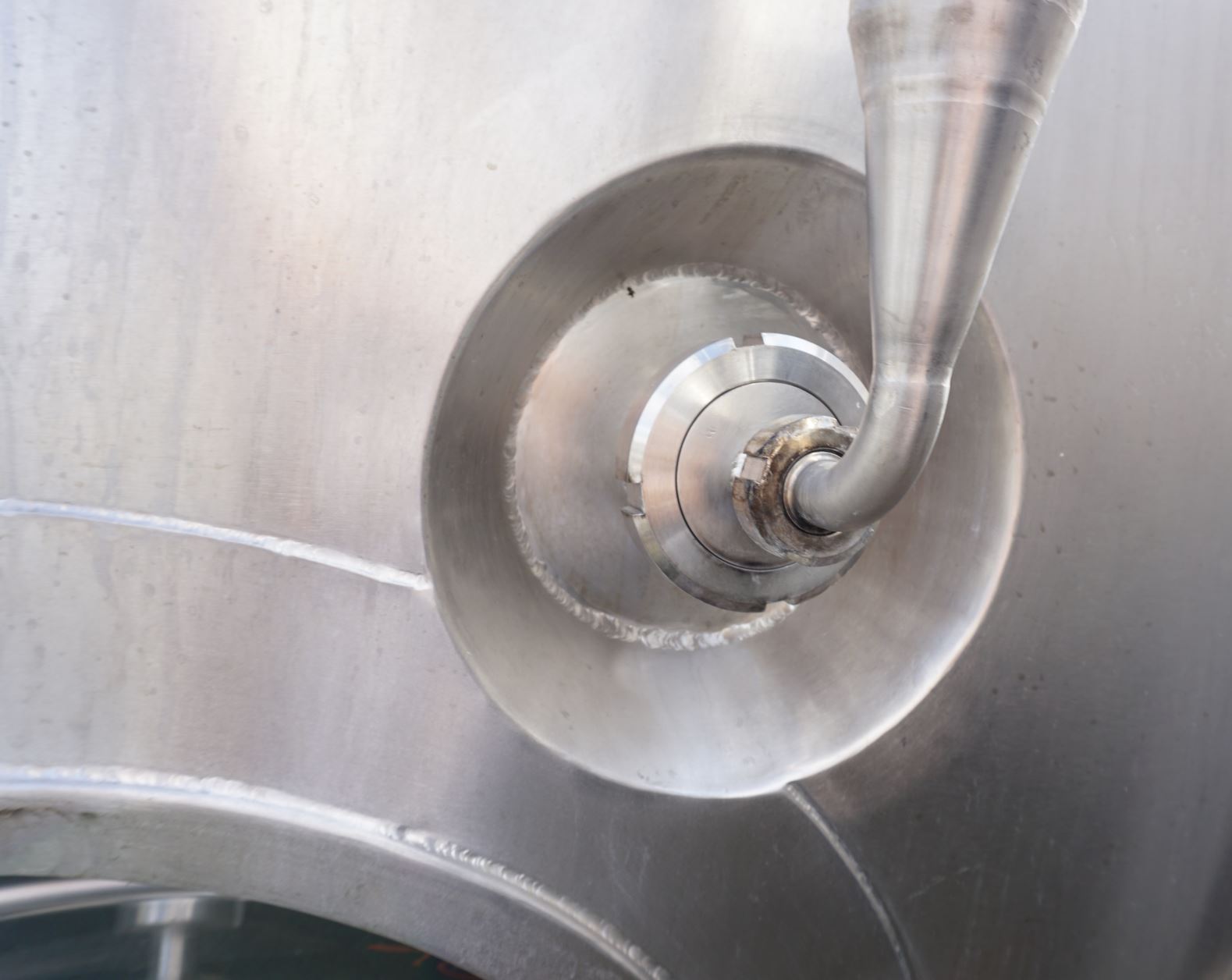

  • Nozzle connector

  • Screw thread

  • Nozzles/connectors in head

  • 1xDN50 (piece)

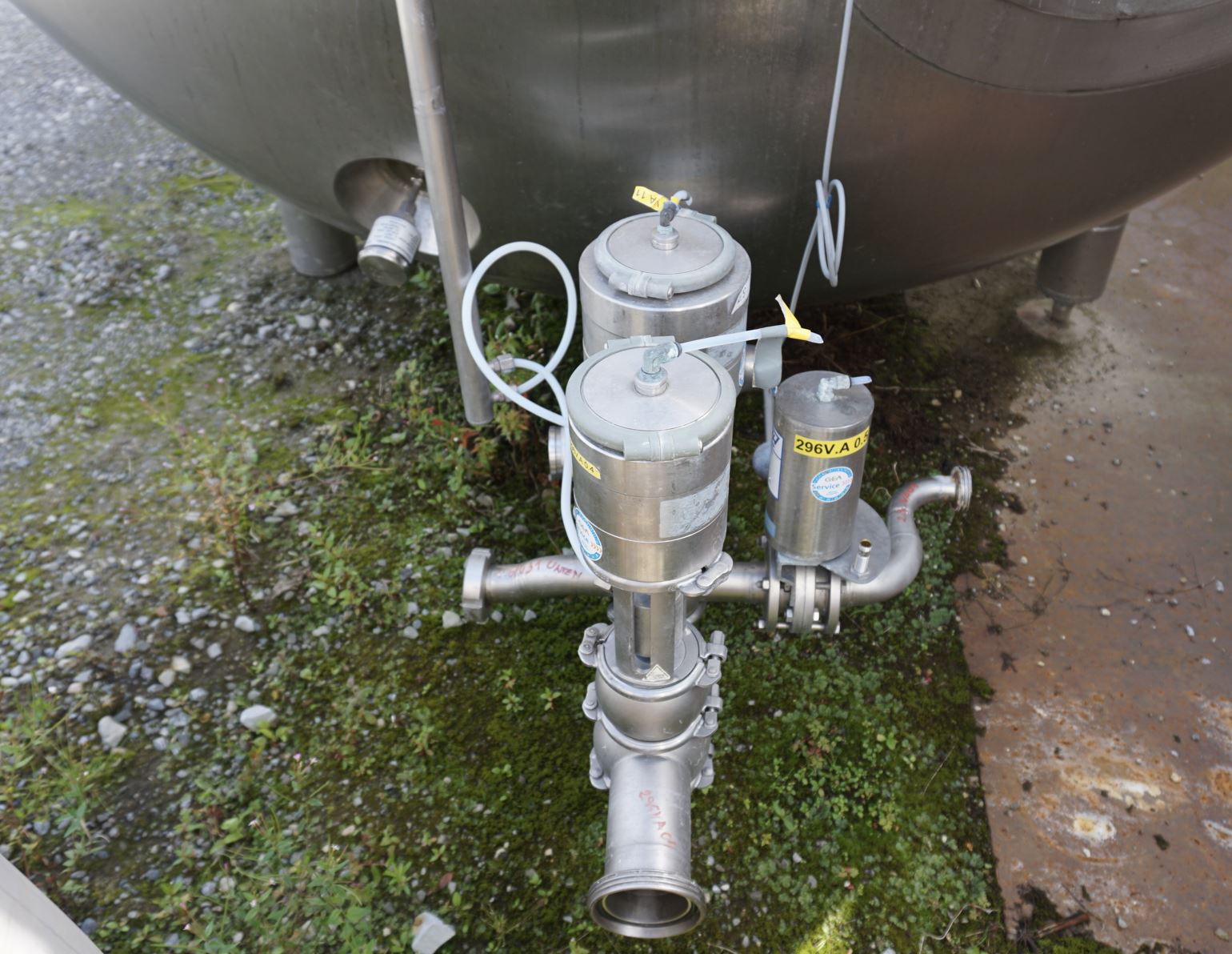

  • Outlet nozzle

  • 80

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

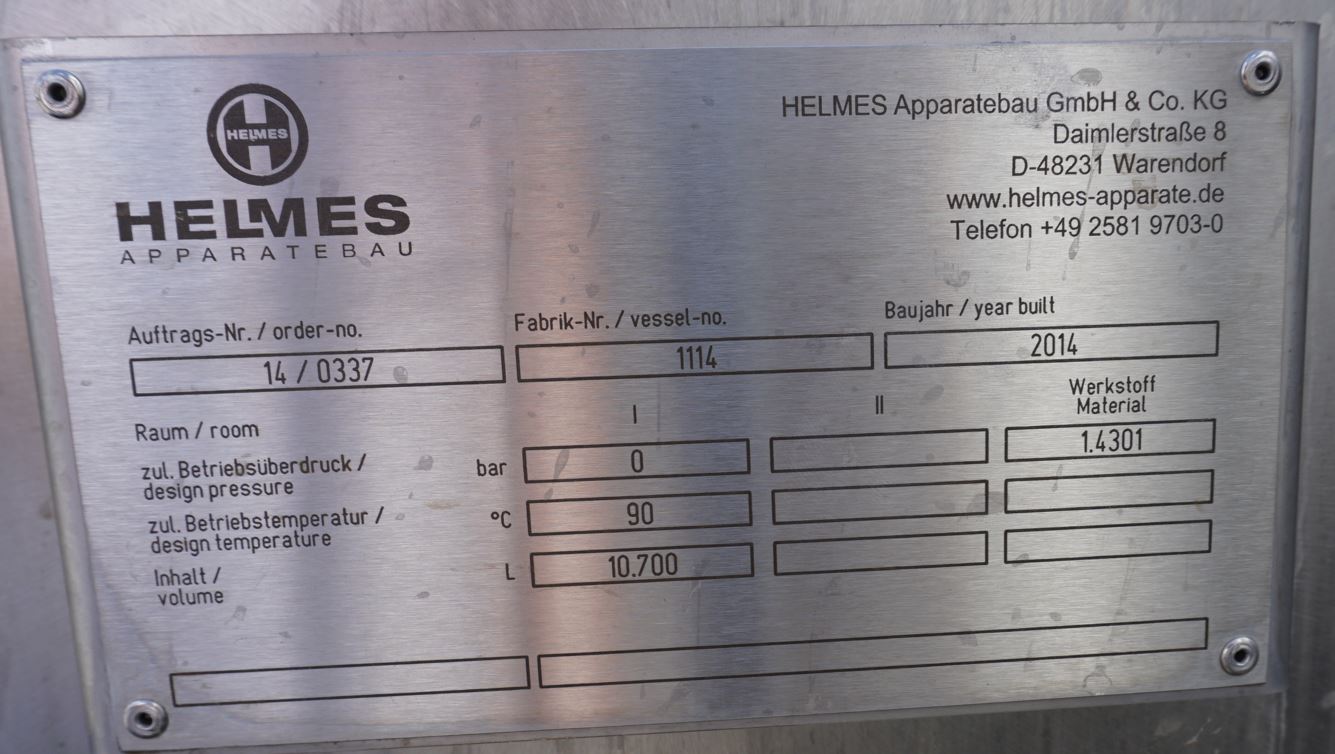

  • Nameplate

Technical documentation

  • Technical documentation

  • Designation

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank, Hot water tank, Thermal buffer, Cold water tank,

Agriculture: Substrate tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank, Hot water tank,

Chemistry and pharmaceuticals : Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank, Hot water tank, Thermal buffer, Cold water tank,
