Product no. M-2958

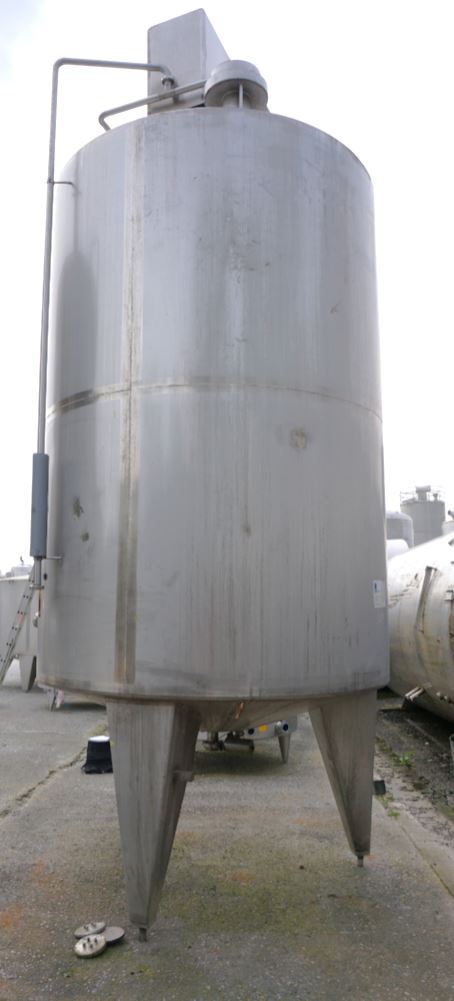

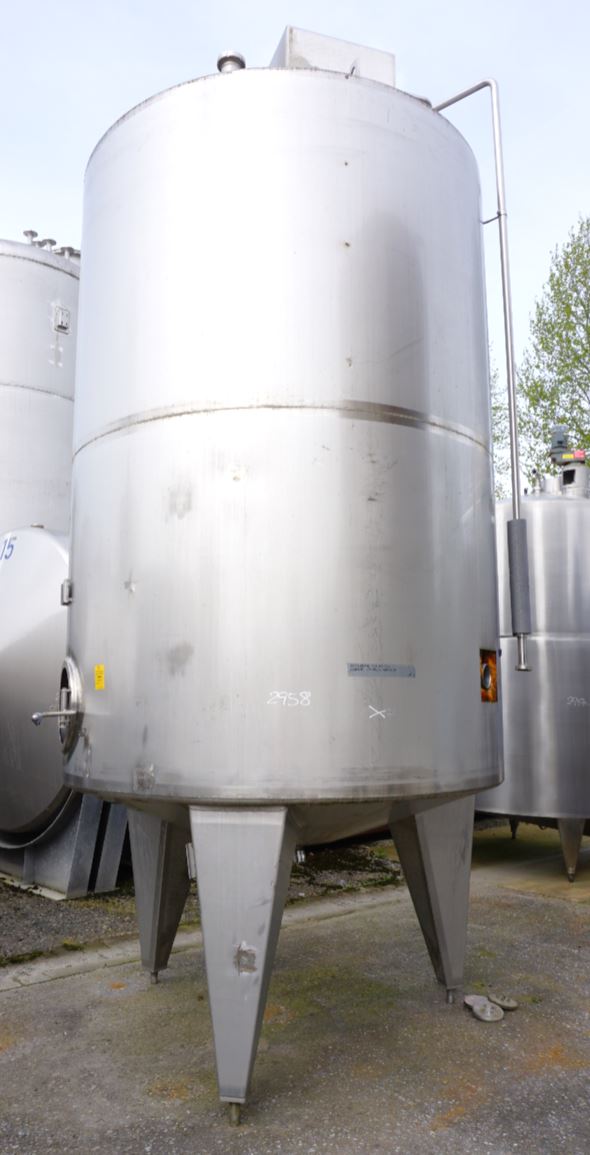

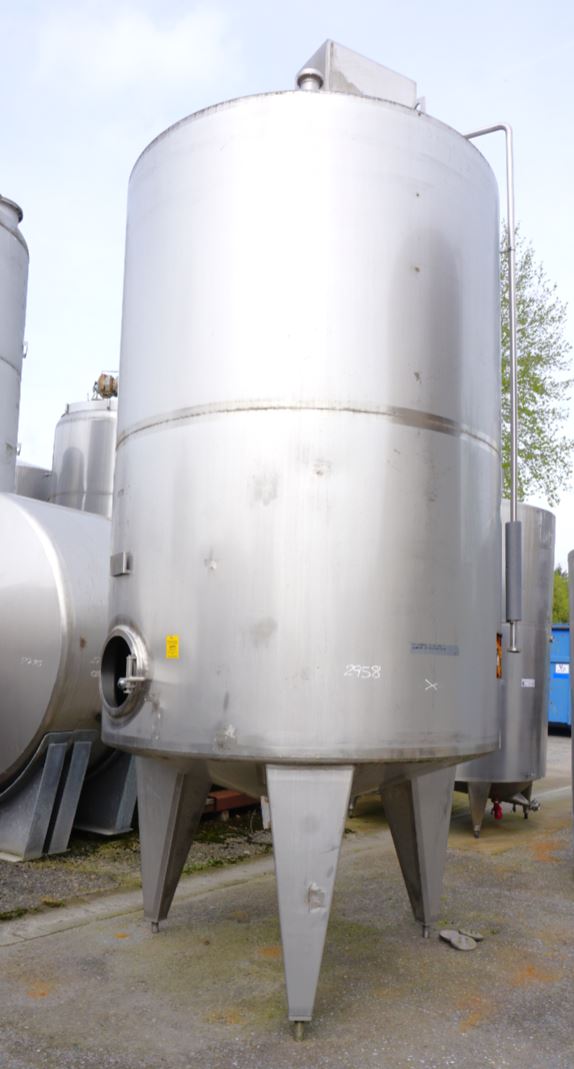

Container 10.150 liters made of V2A, isolated, used, standing

EUR 8.900,00

add. 19 % VAT excl. shipping costs


Volume approx. 10,150.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 10.150 liters made of V2A, isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 10,150.00 litres. The diameter inside includes 2,000 mm.  Container 10.150 liters made of V2A, isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 10.150,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1993

  • Manufacturer

  • Aurich

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 2.000 mm

  • External diameter

  • 2.100 mm

  • Cyl. height

  • 3.000 mm

  • Foot height

  • 1.200 mm

  • Total height

  • 5.000 mm

Design

  • Weight approx.

  • 1.500,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

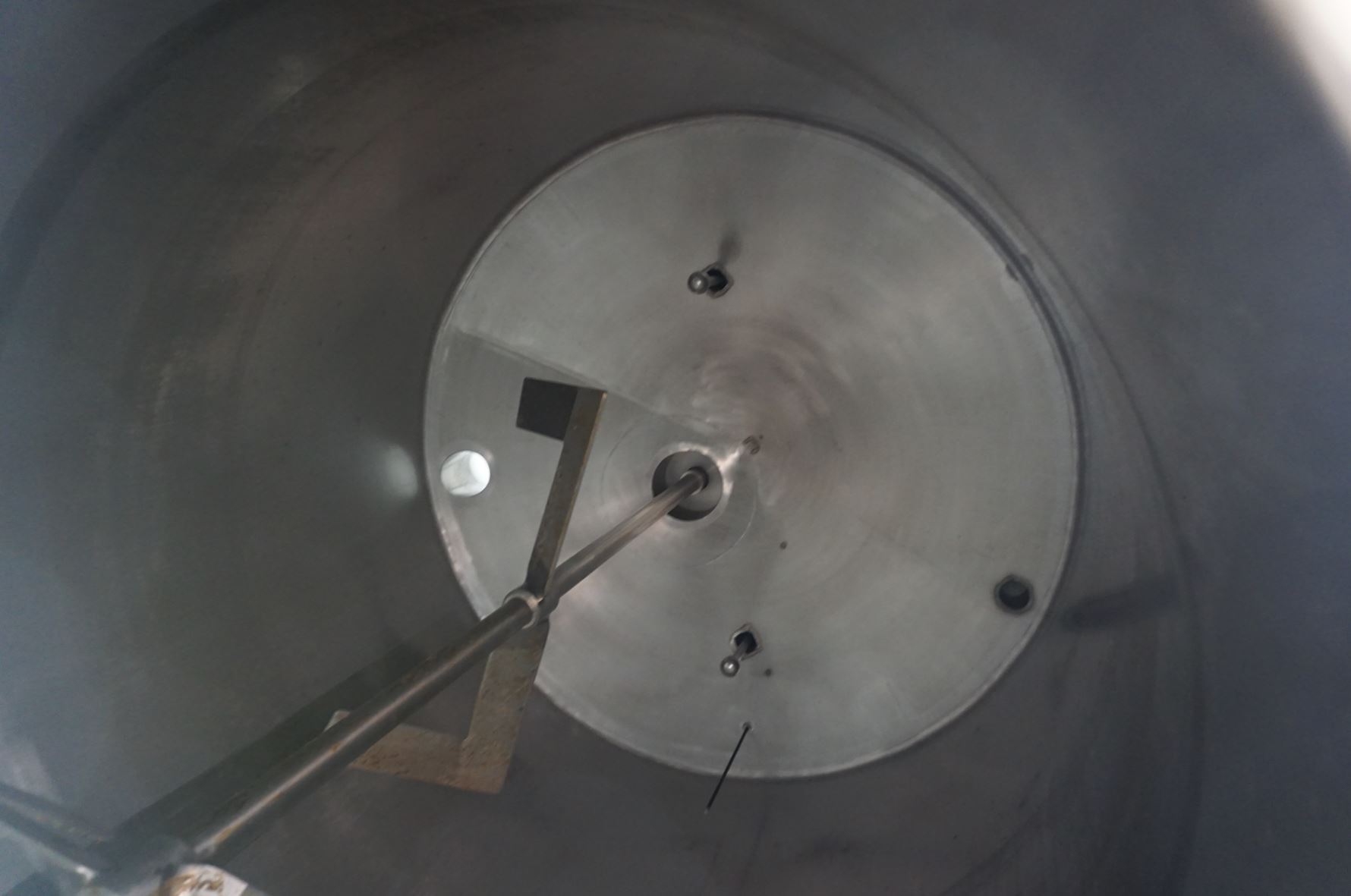

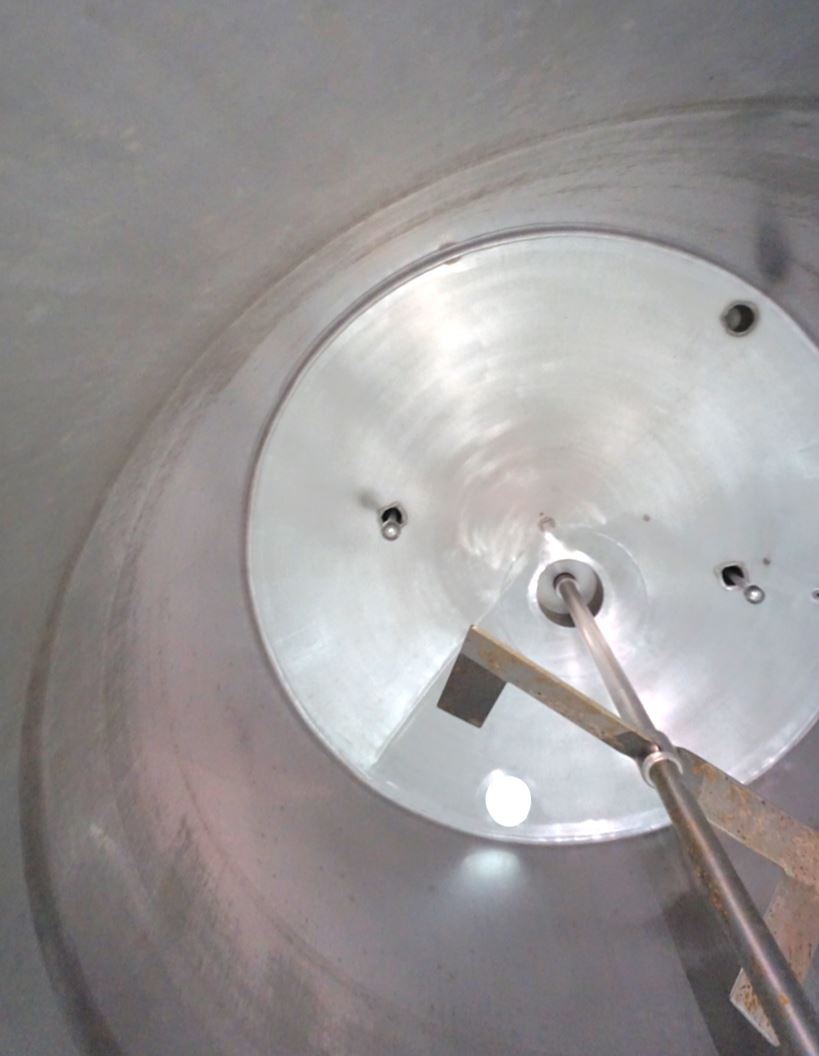

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

  • Head design

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

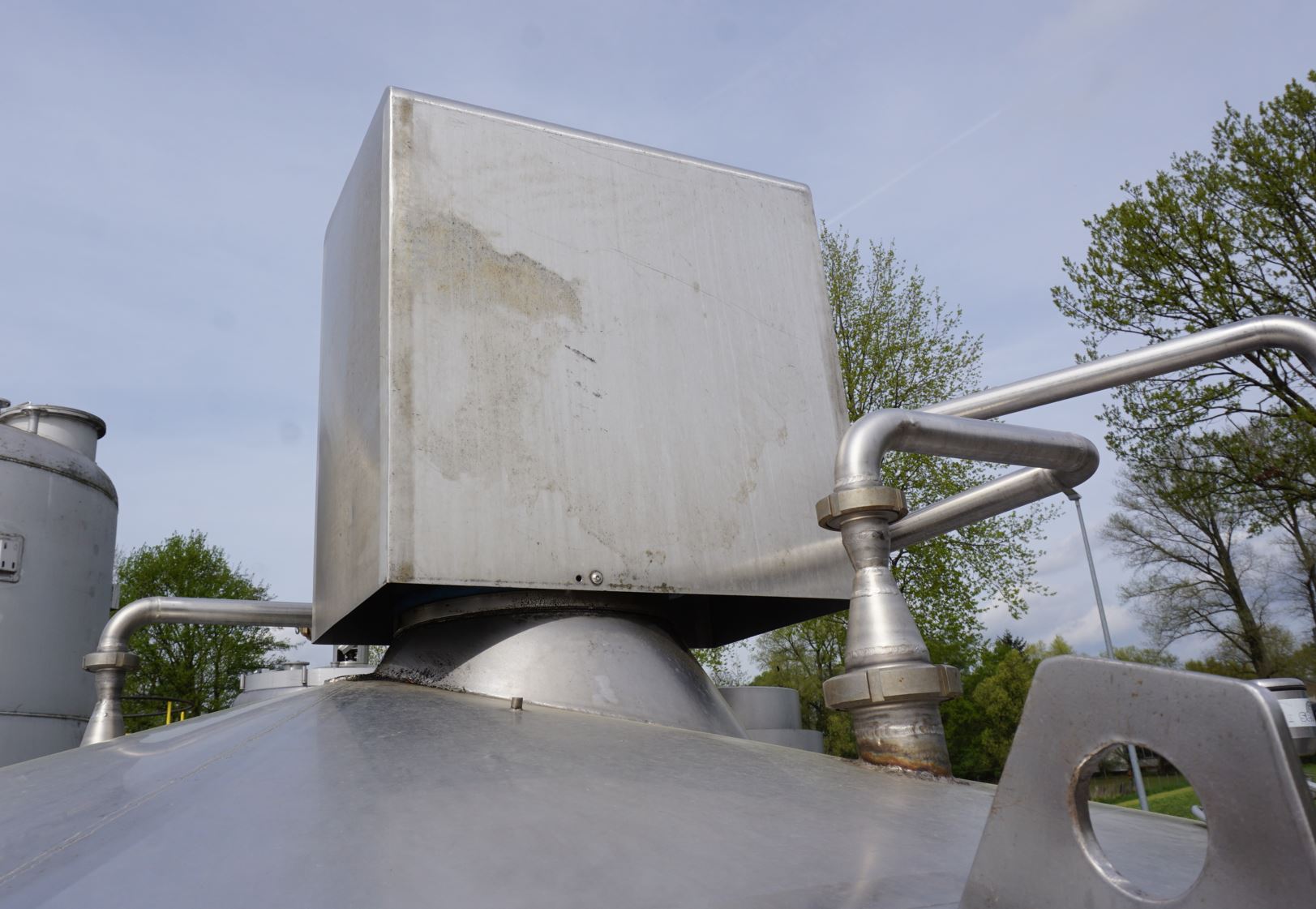

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Zeta agitator

  • Agitator position

  • Head off-centre

  • Agitator 1 - Output

  • 1 / 2 kW

  • Agitator 1 - RPM

  • 25 / 49 UpM

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

  • Note on supports

  • höhenverstellbar

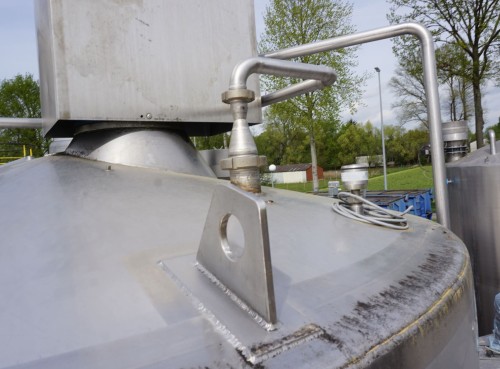

Fixtures and fittings

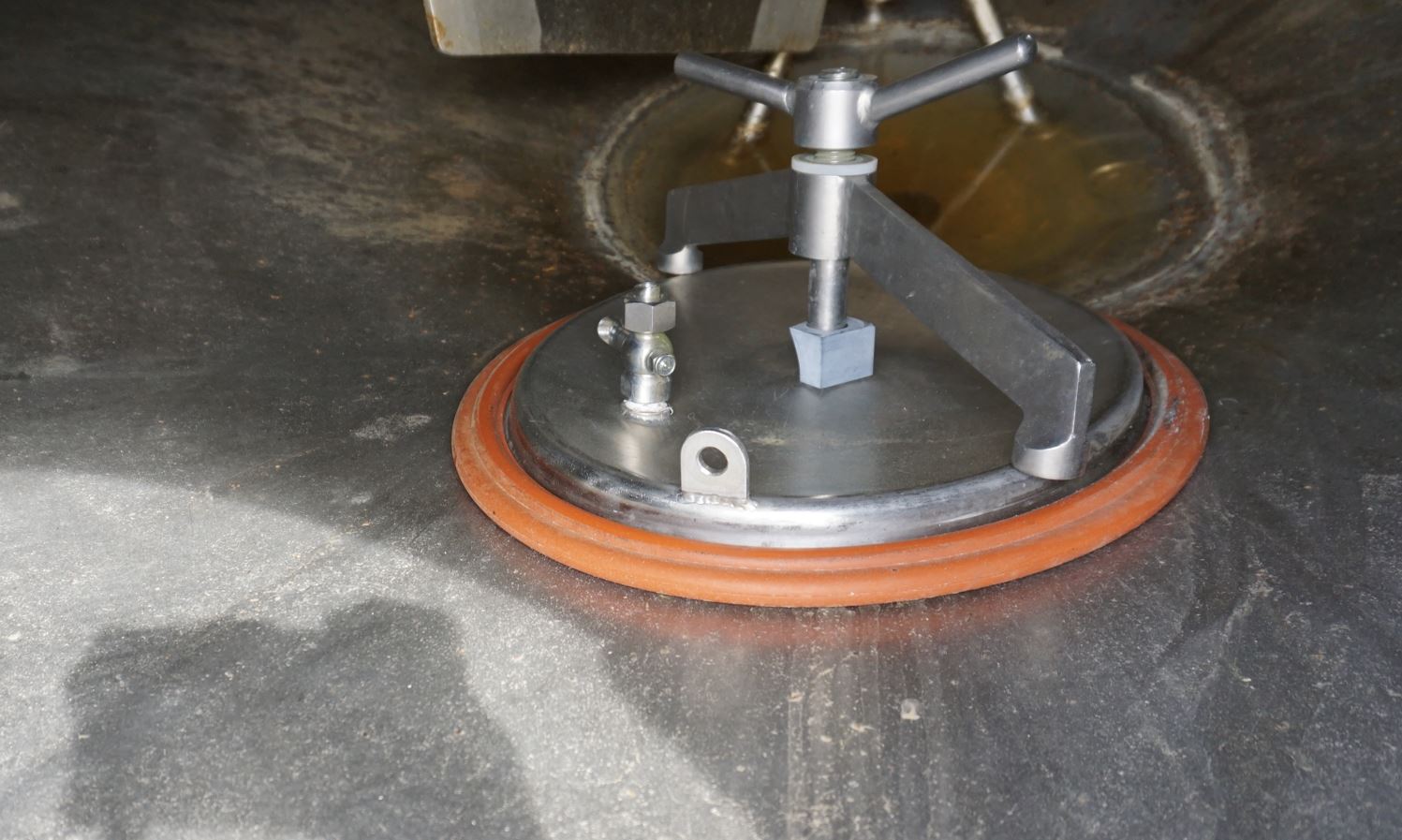

  • Manway position

  • In shell

  • Outlet nozzle

  • 80

  • Cleaning/CIP nozzle

  • in head

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

  • Air vent

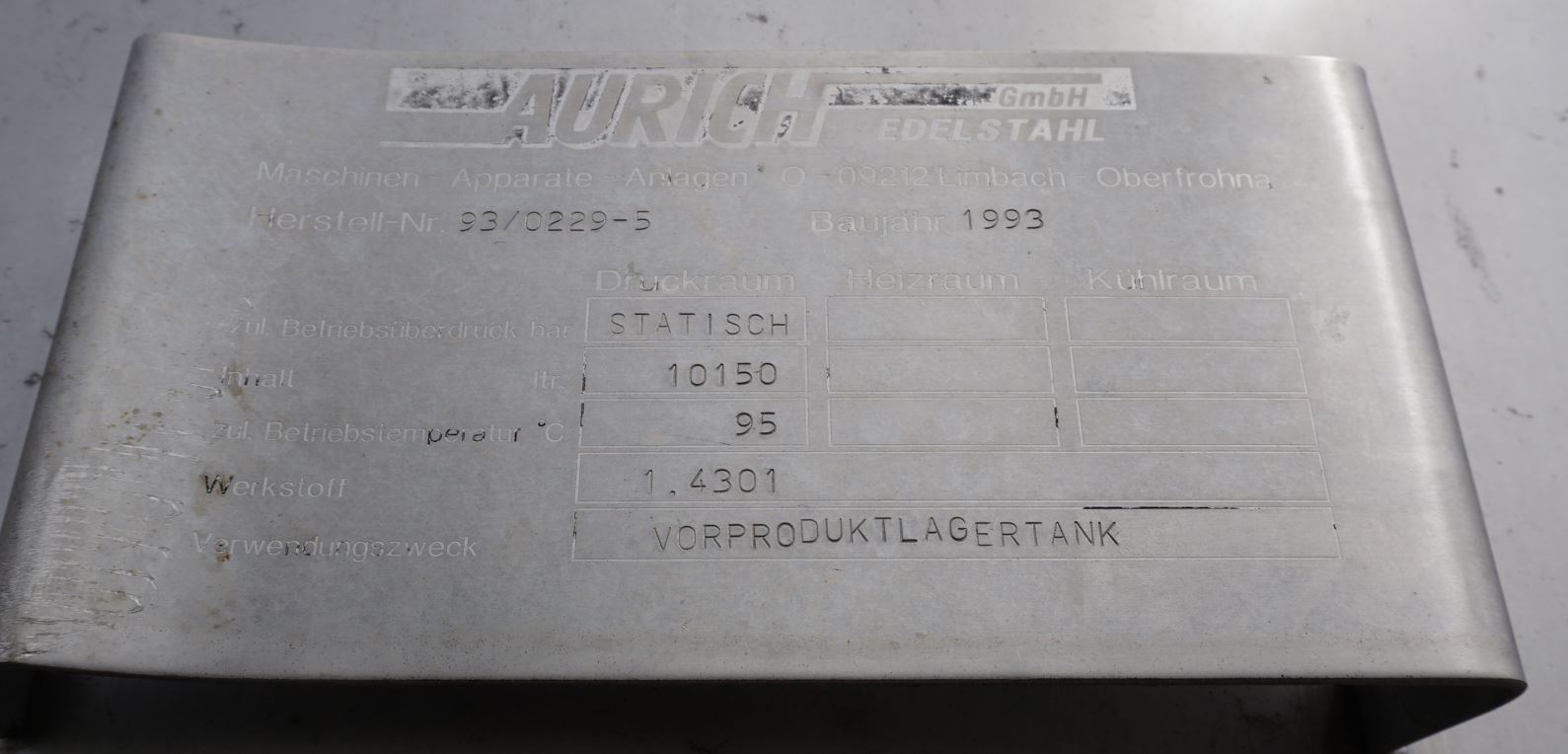

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Note

  • Isolierverkleidung seitlich aufgeschnitten.

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Chemistry and pharmaceuticals : Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,
