Product no. M-2908

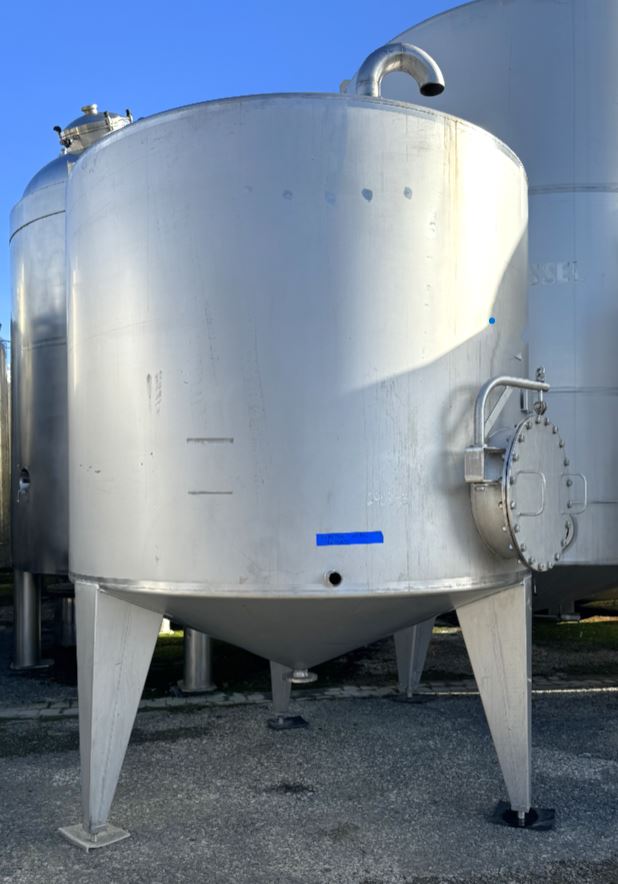

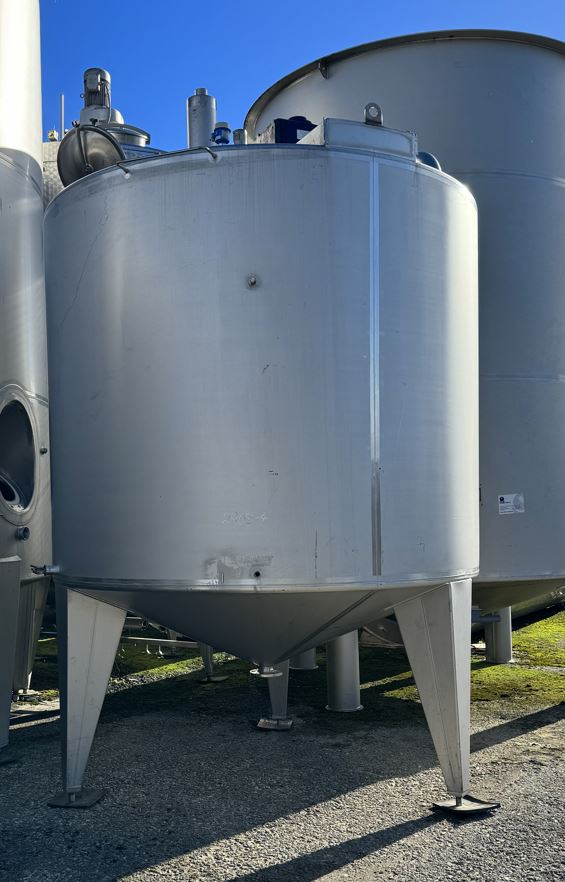

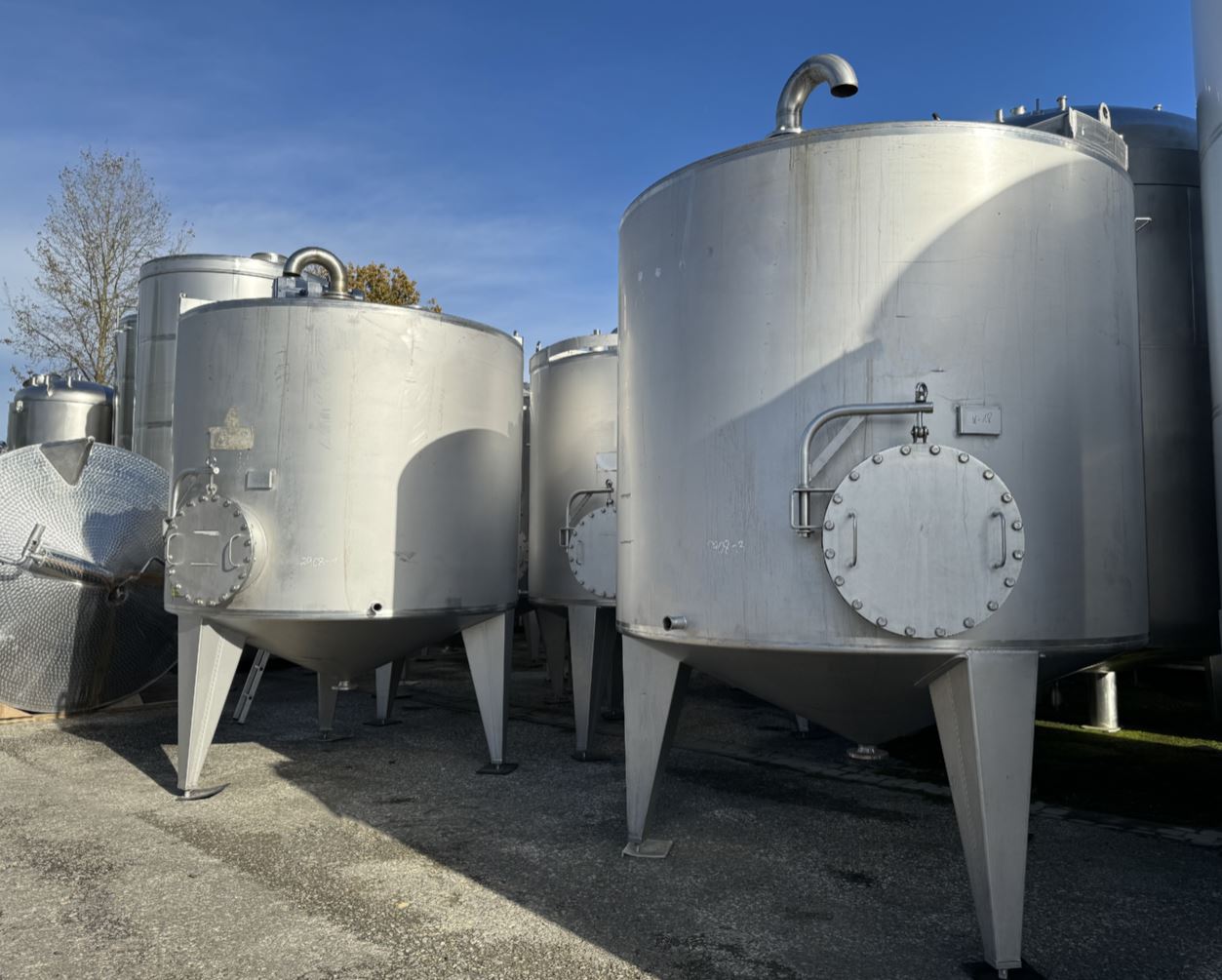

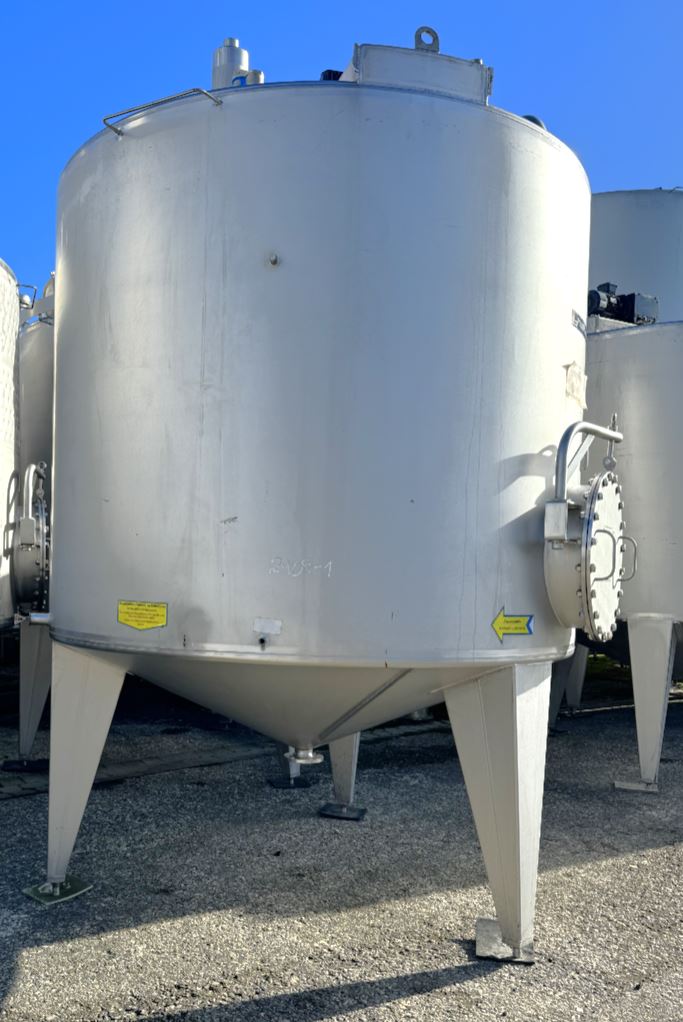

Container 10.000 liters made of V4A, single-walled, used, standing

EUR 9.200,00

add. 19 % VAT excl. shipping costs

Volume approx. 10,000.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details   Downloads

Product description

Container 10.000 liters made of V4A, single-walled, used consists of the material 1.4404(AISI316) V4A. The volume is approx. 10,000.00 litres.  Container 10.000 liters made of V4A, single-walled, used was last used in the following area: Chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 10.000,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 2006

  • Manufacturer

  • A & B Heldrungen

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 2.500 mm

  • Cyl. height

  • 2.000 mm

  • Foot height

  • 1.120 mm

  • Outlet height

  • 600 mm

  • Total height

  • 4.000 mm

  • Wall thickness of product chamber head

  • 4,00 mm

  • Wall thickness of product chamber shell

  • 3,00 mm

  • Wall thickness of product chamber floor

  • 4,00 mm

Design

  • Weight approx.

  • 1.300,00 kg

  • Weight per unit volume approx.

  • 1.800,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

  • Head design

  • Flat bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Agitator

  • Agitator quantity

  • 1 (piece)

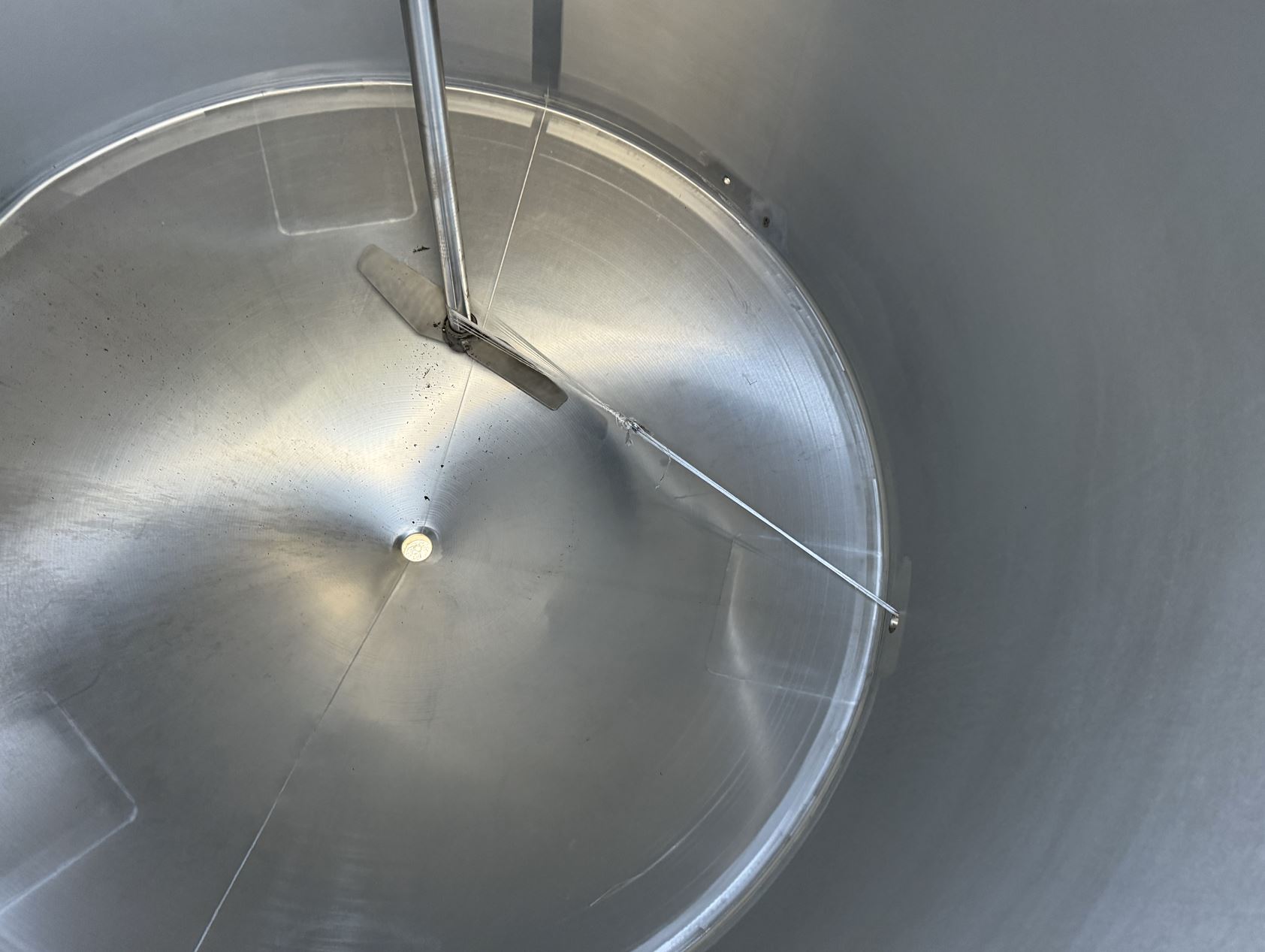

  • Agitator type

  • Propeller

  • Agitator position

  • Head off-centre

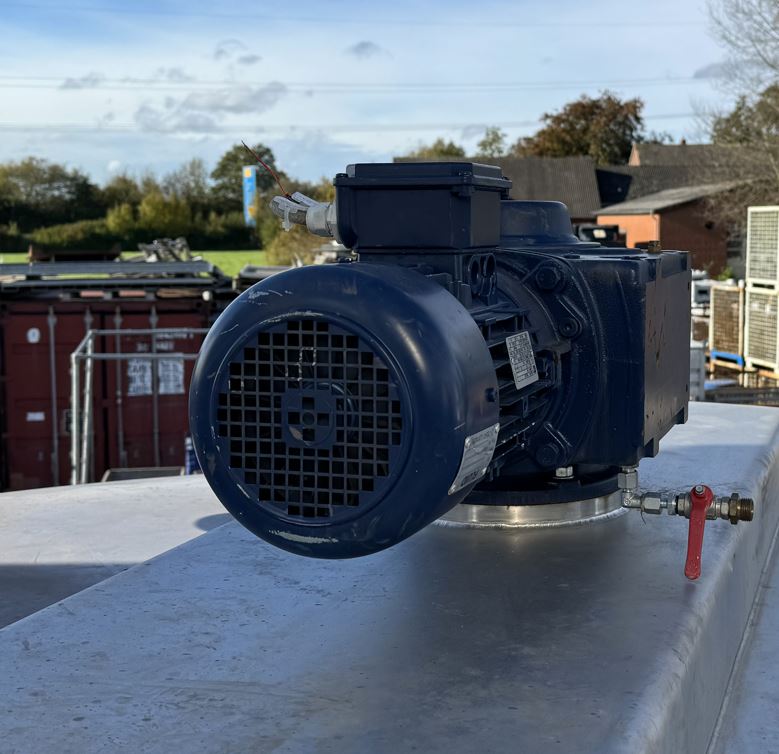

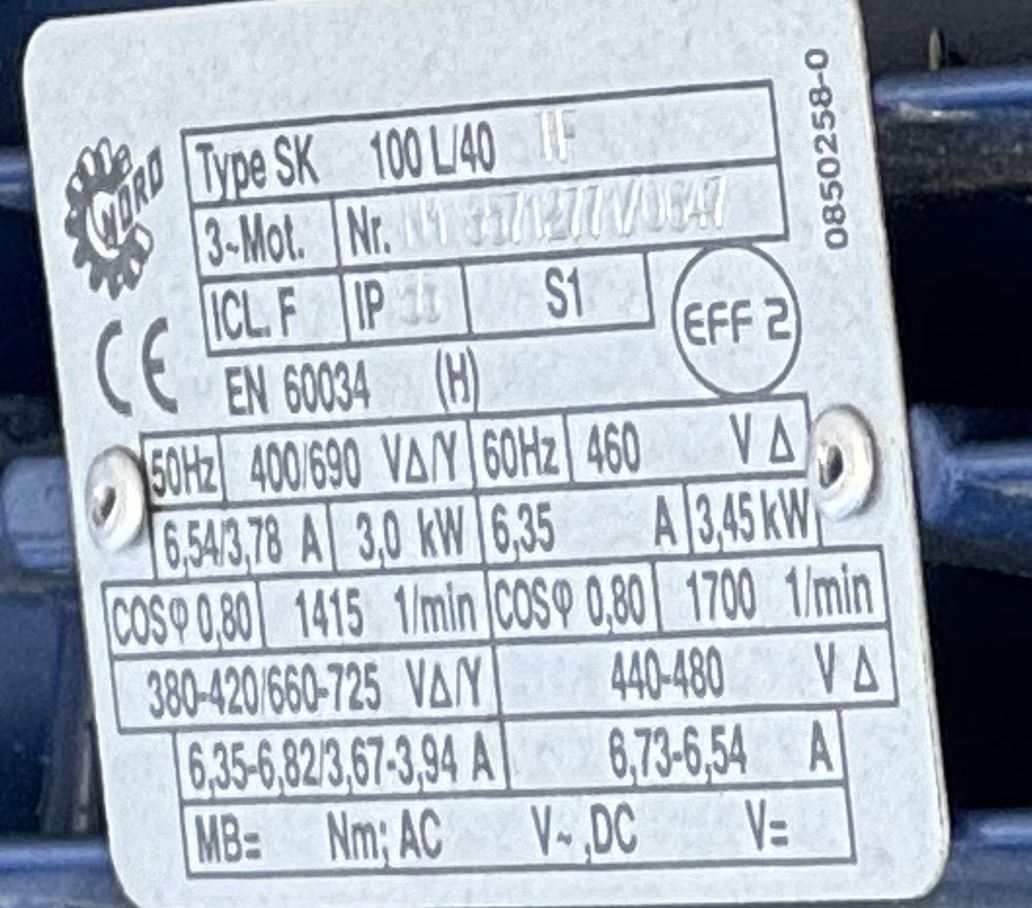

  • Agitator 1 - Output

  • 3,0 / 3,45 kW

  • Agitator 1 - Voltage

  • 380-420 V

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

  • Note on supports

  • höhenverstellbar

Fixtures and fittings

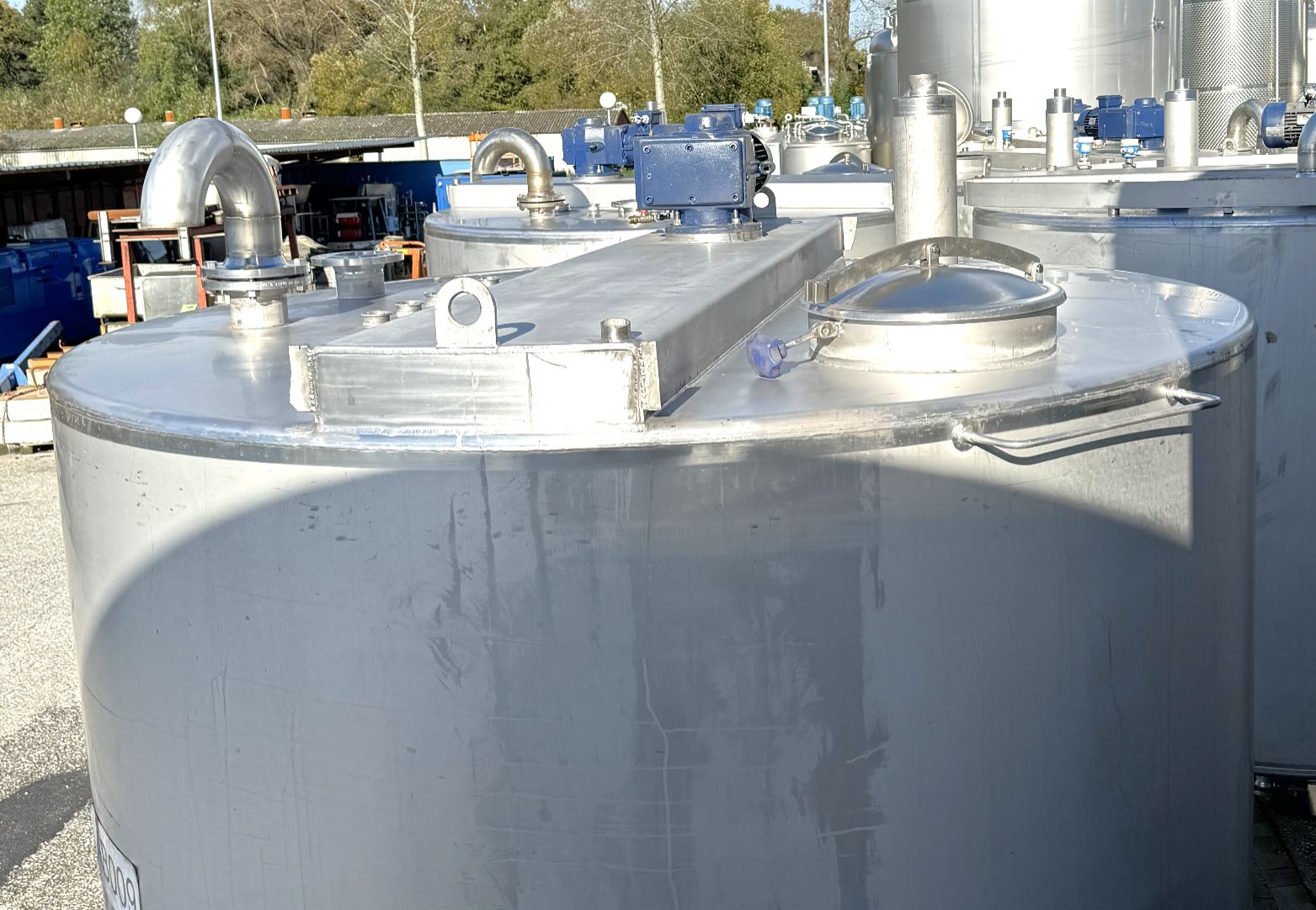

  • Manway 1 size

  • 430 DN mm

  • Manway 2 size

  • 600 DN mm

  • Manway position

  • In shell and head

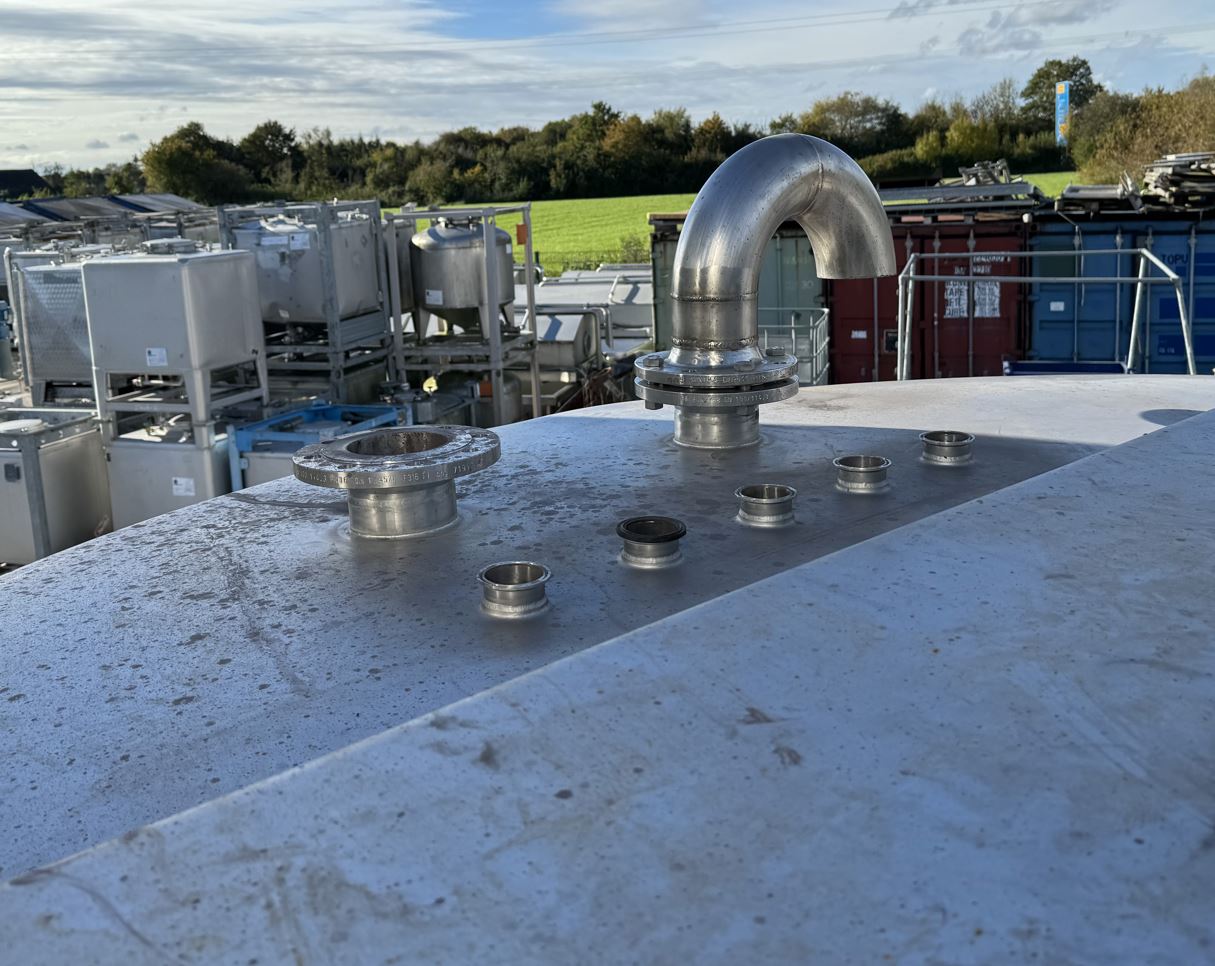

  • Outlet nozzle

  • 80

  • Fixtures and fittings

  • Lifting lugs

Technical documentation

  • Technical documentation

  • Designation

Other

  • Note

  • 1 Behälter seitlich eine kleine Beule.

  • Last usage

  • Chemistry

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Cold water tank, Concentrate tank,

Downloads

filefile size
  2908-11.pdf0.32 MB
