Product no. M-2906

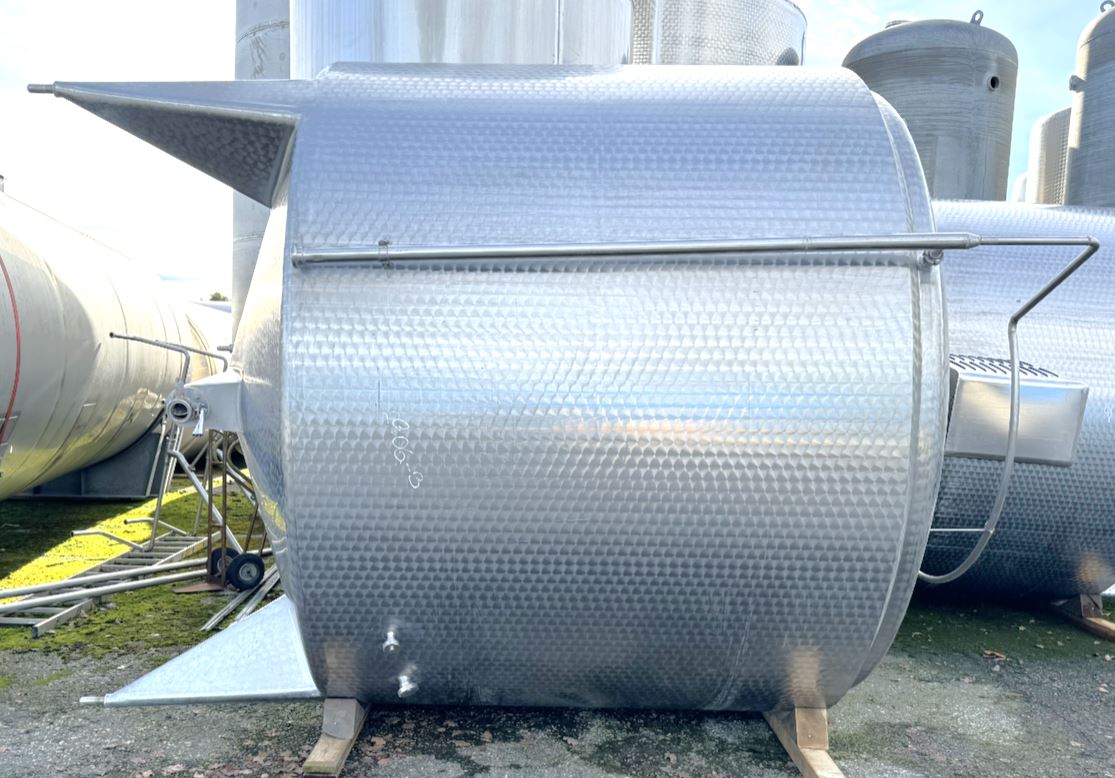

Container 10.000 liters made of V2A temperature-controllable, isolated, used, standing

EUR 10.800,00

add. 19 % VAT excl. shipping costs

Volume approx. 10,000.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

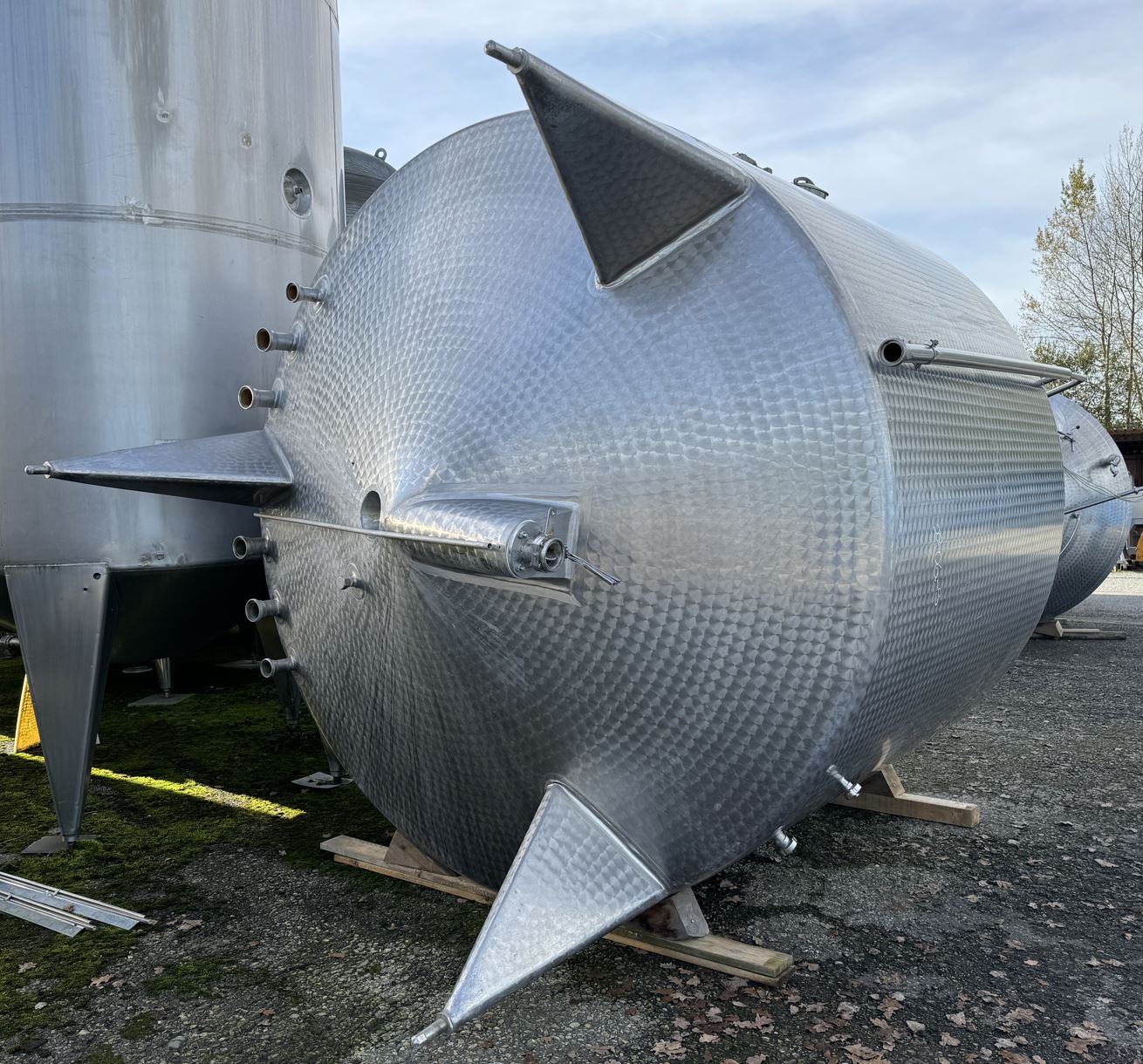

Container 10.000 liters made of V2A temperature-controllable, isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 10,000.00 litres. The diameter inside includes 2,540 mm.  Container 10.000 liters made of V2A temperature-controllable, isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Tempering, Mixing, Processes,

General

  • Volume approx.

  • 10.000,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 2.540 mm

  • External diameter

  • 2.700 mm

  • Cyl. height

  • 2.050 mm

  • Foot height

  • 1.000 mm

  • Total height

  • 4.100 mm

Design

  • Weight approx.

  • 2.000,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Shell and floor

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Marbled

  • Floor type

  • Conical bottom

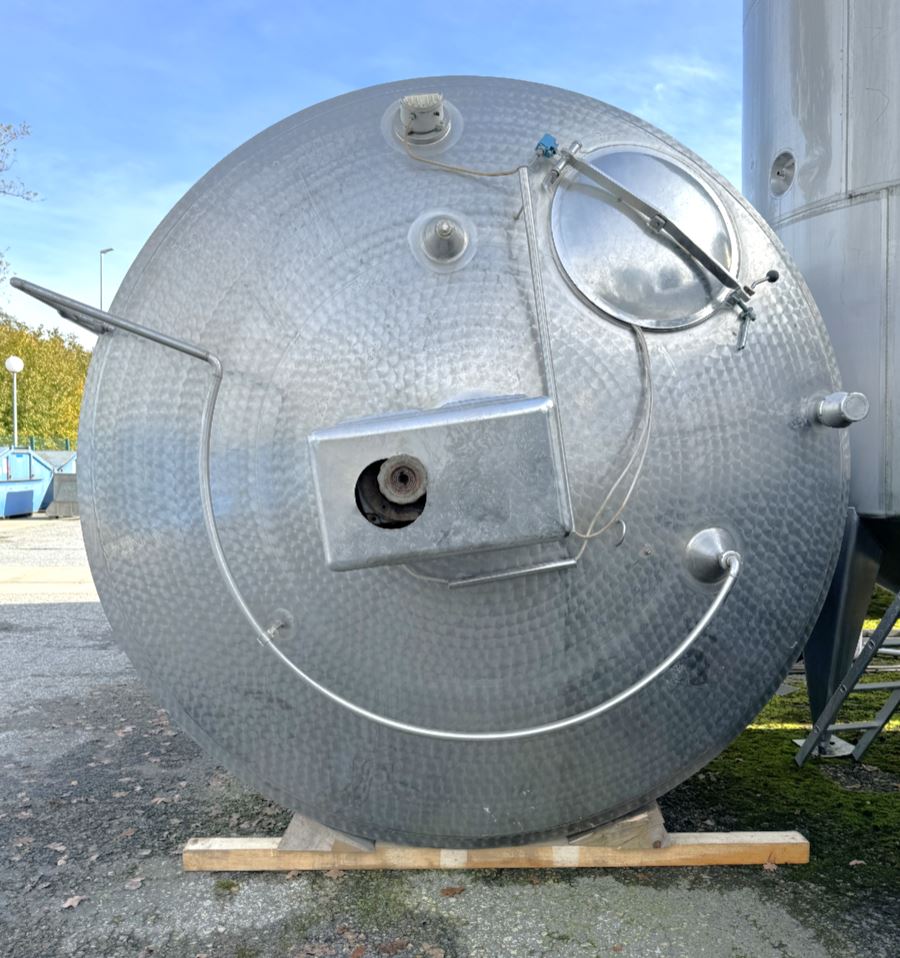

  • Head design

  • Dished

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Floor area

  • Heating medium

  • Water

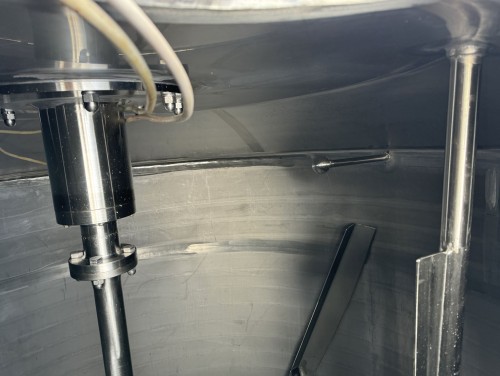

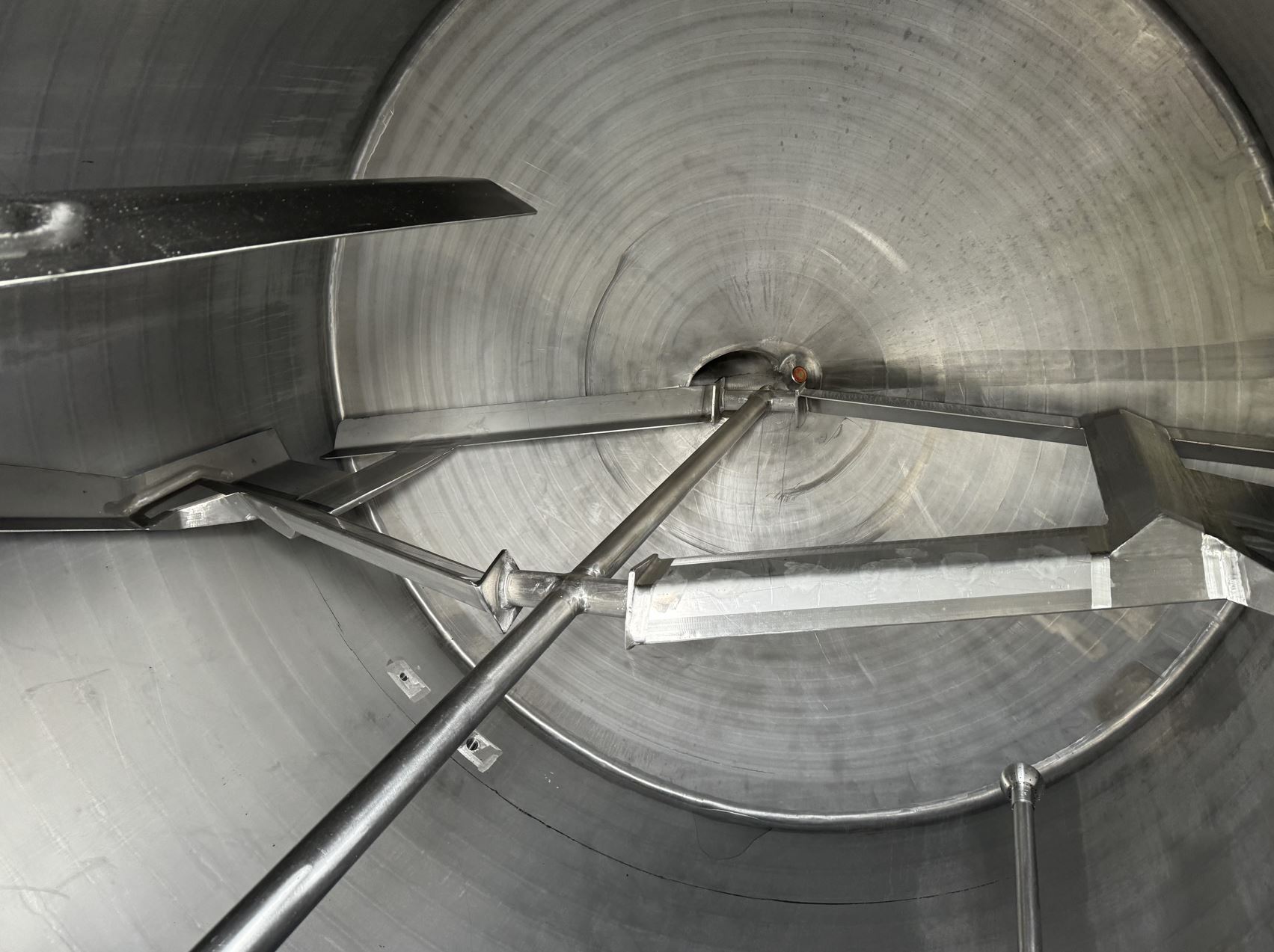

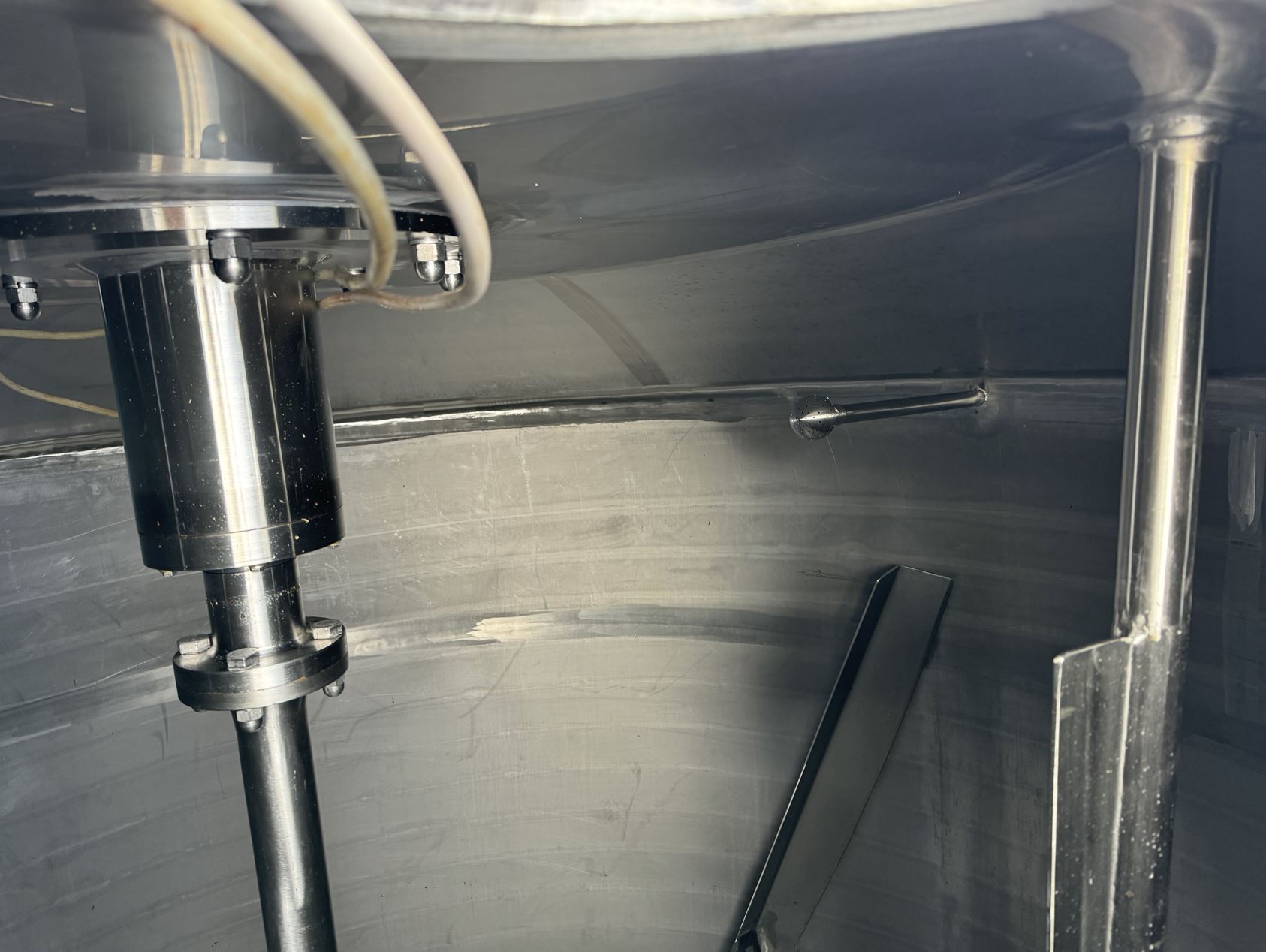

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Wall scraper

  • Agitator position

  • Head central

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

  • Note on supports

  • höhenverstellbar

Fixtures and fittings

  • Manway 1 size

  • 600 DN mm

  • Manway position

  • In head

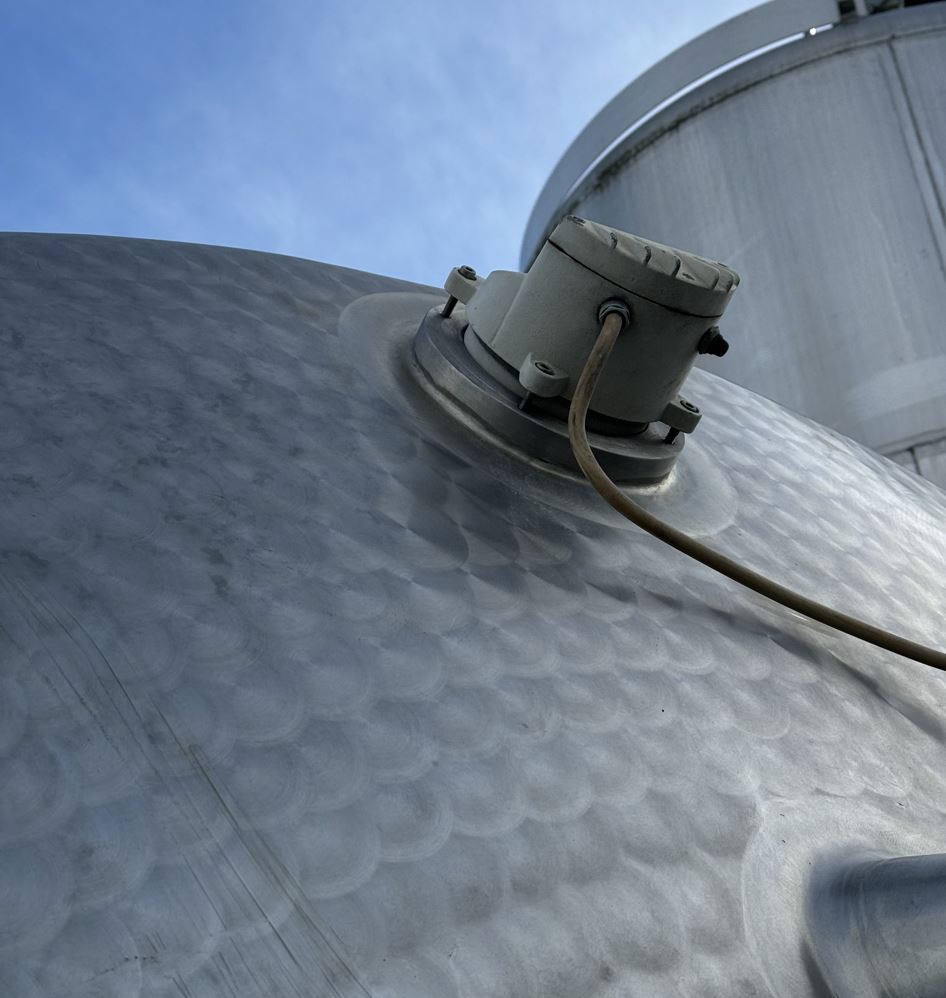

  • Nozzles/connectors in head

  • 1xDN65 (piece)

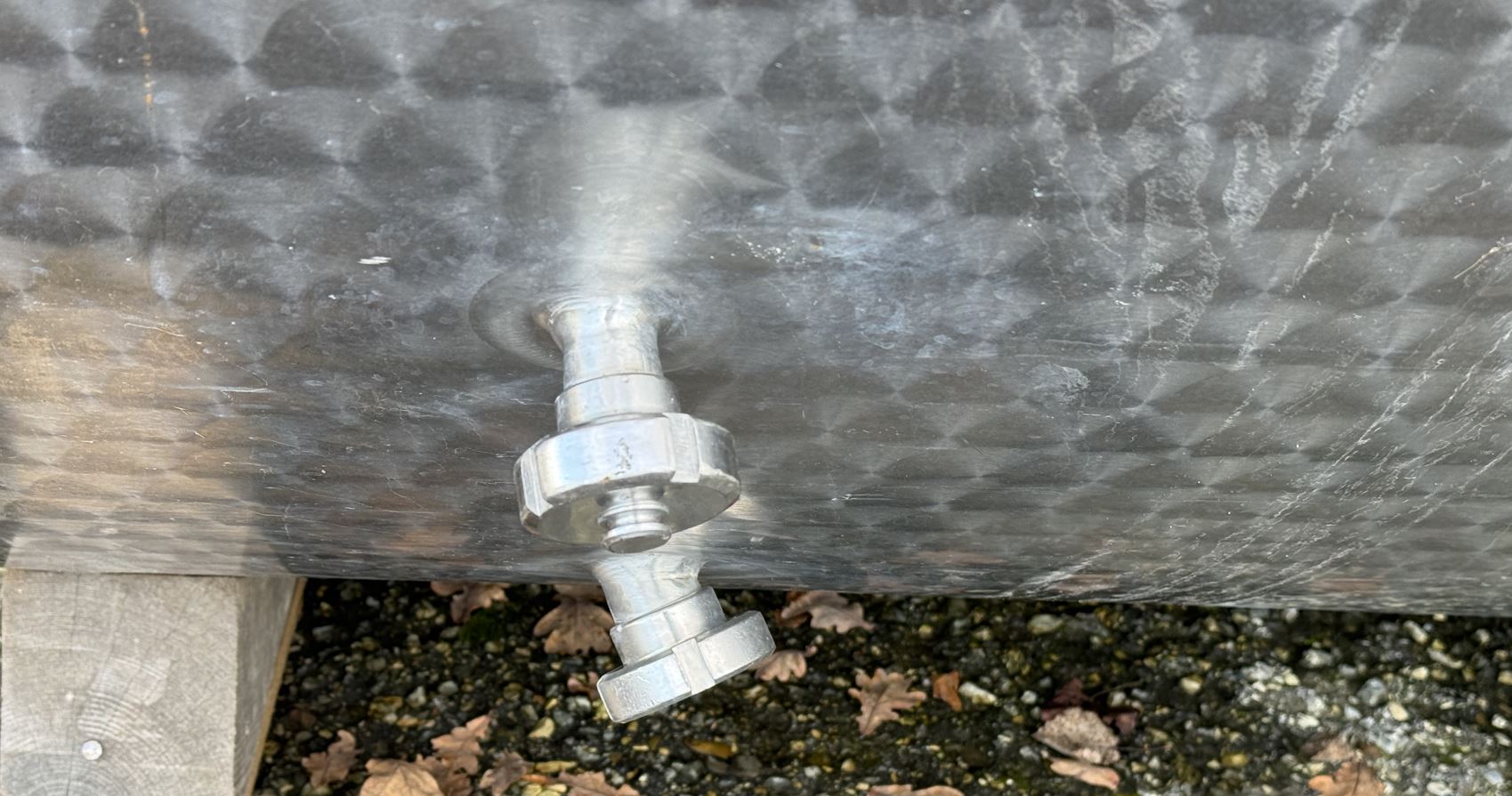

  • Outlet nozzle

  • 50

  • Cleaning/CIP nozzle

  • in shell and head

Technical documentation

  • Technical documentation

  • None

Other

  • Note

  • Temperierzone nur im Bodenbereich einsatzfähig.

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Fruit juice tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Mixing tank, Process tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Process tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Mixing tank, Process tank,
