Behälter 10.000 Liter aus V2A isoliert, gebraucht

Product no. M-3005

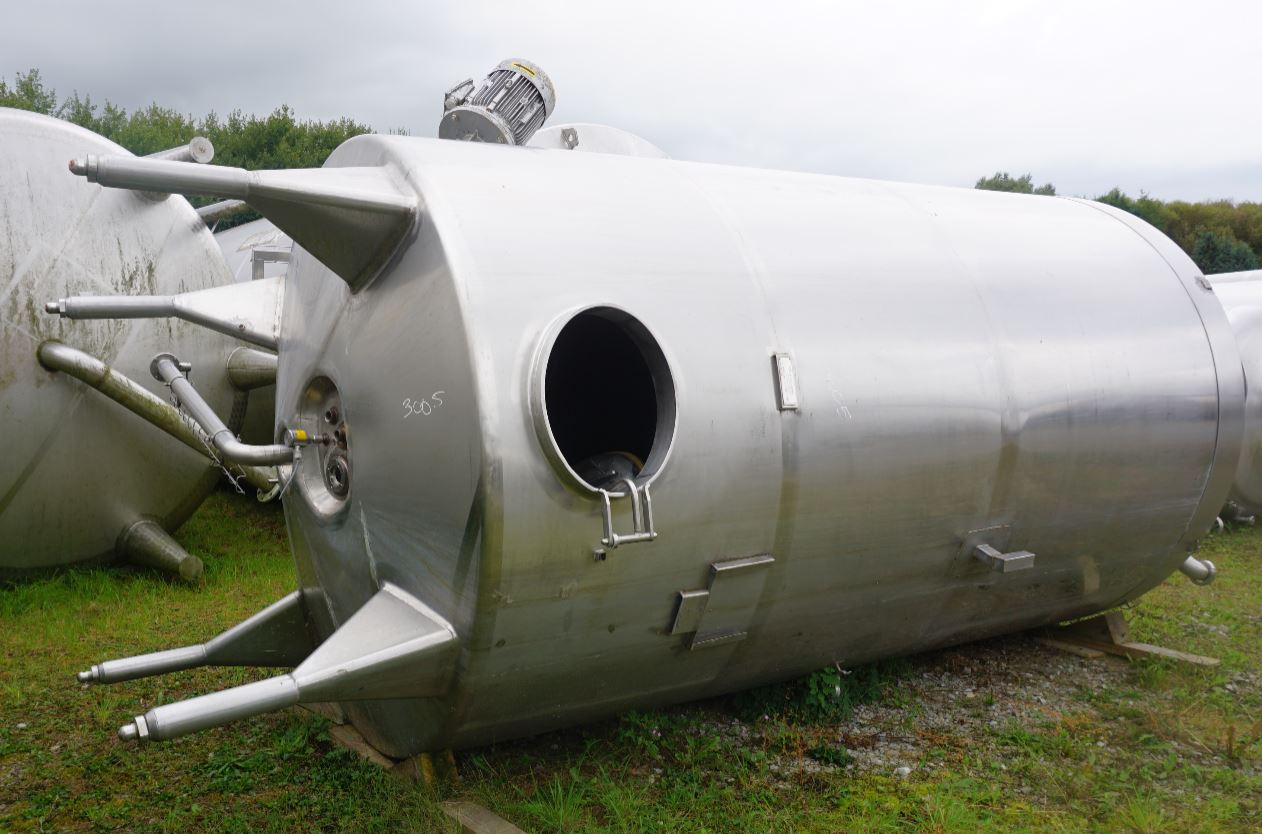

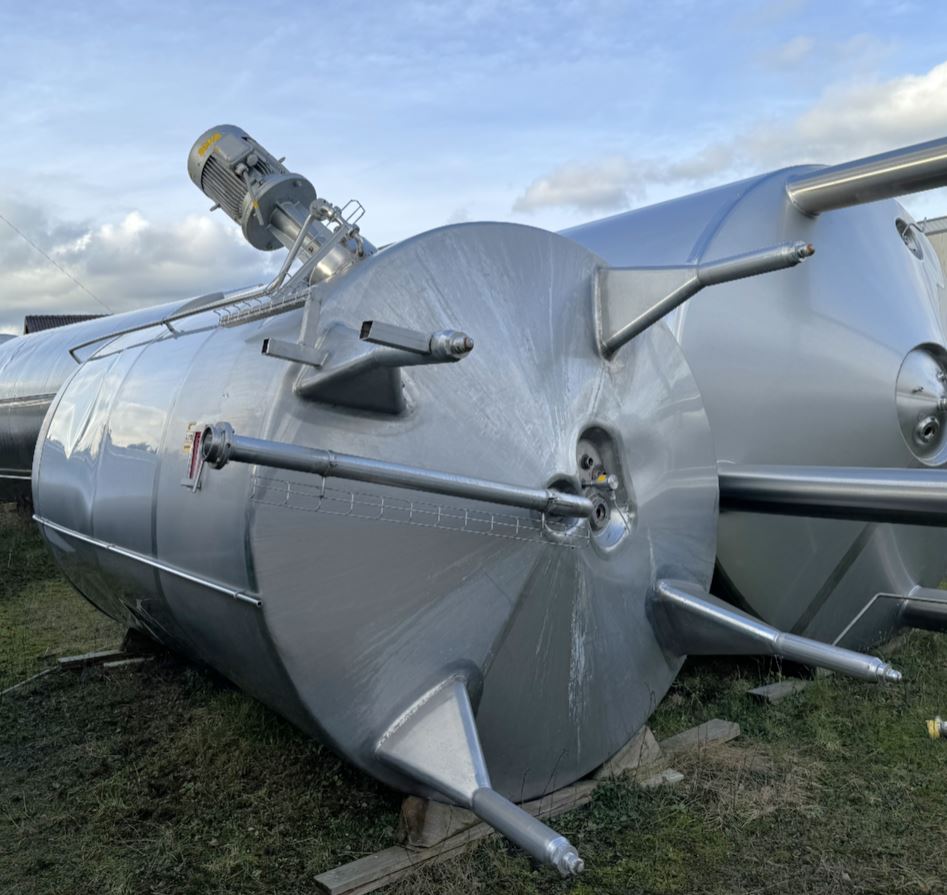

Container 10.000 liters made of V2A isolated, used, standing

Name: Behälter 10.000 Liter aus V2A isoliert, gebraucht
SKU: M-3005
Price: 5800 EUR

EUR 5.800,00

add. 19 % VAT excl. shipping costs

Volume approx. 10,000.00 litres

Behälter 10.000 Liter aus V2A isoliert, gebraucht

more details

Product description

Container 10.000 liters made of V2A isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 10,000.00 litres. The diameter inside includes 2,000 mm. Container 10.000 liters made of V2A isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

Volume approx.

10.000,00 litres

Structure

Standing

Year of manufacture

1979

Manufacturer

Alfa-Laval

Condition

Used

Dimensions approx.

Internal diameter

2.000 mm

External diameter

2.100 mm

Cyl. height

3.550 mm

Foot height

950 mm

Total height

4.900 mm

Design

Weight approx.

2.000,00 kg

Weight per unit volume approx.

1.000,00 kg/m³

Insulation

Insulated area

Shell and floor

Insulation cladding

Fully welded stainless steel

Floor type

Conical bottom

Head design

Conical bottom

Product chamber operating pressure

Atmospheric/unpressurised bar

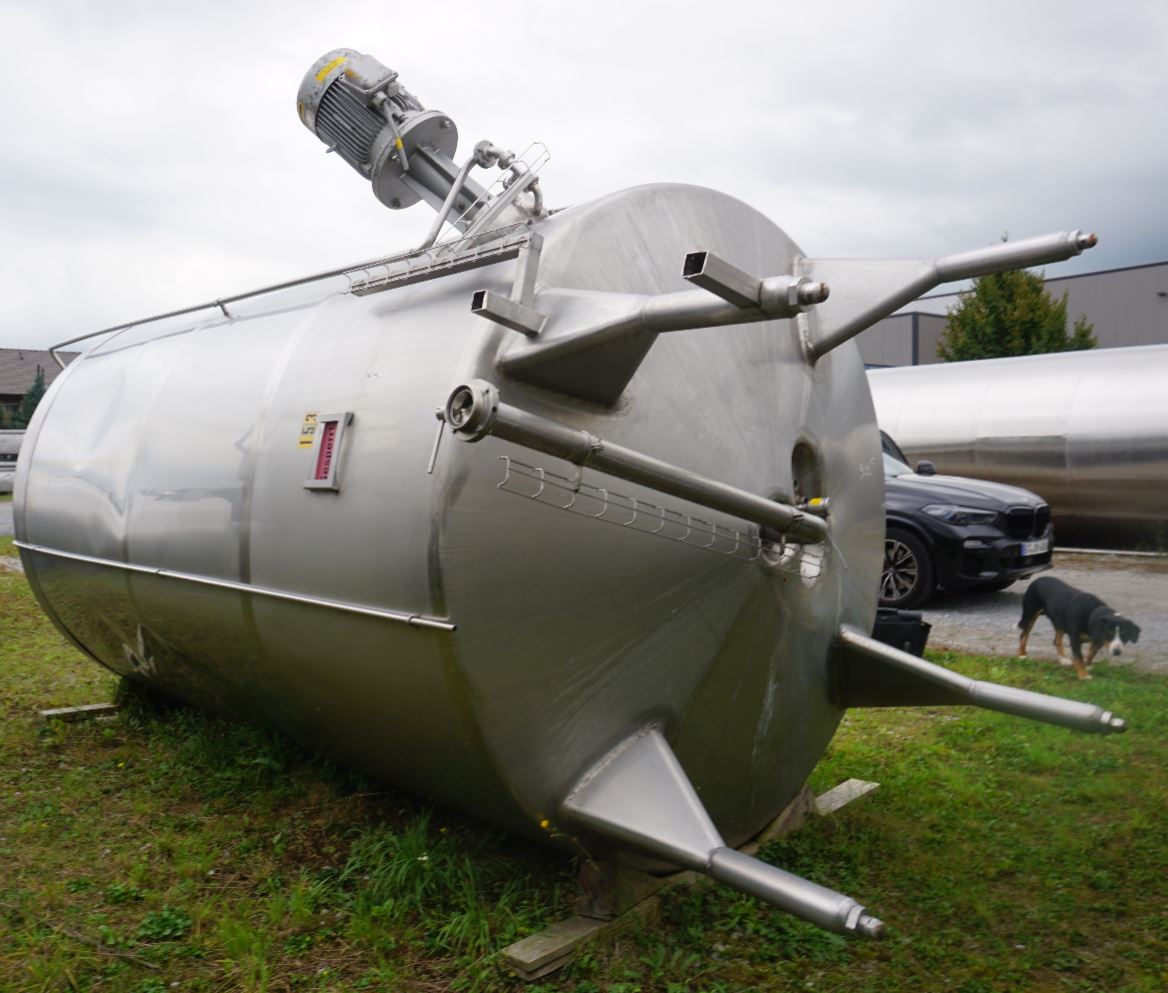

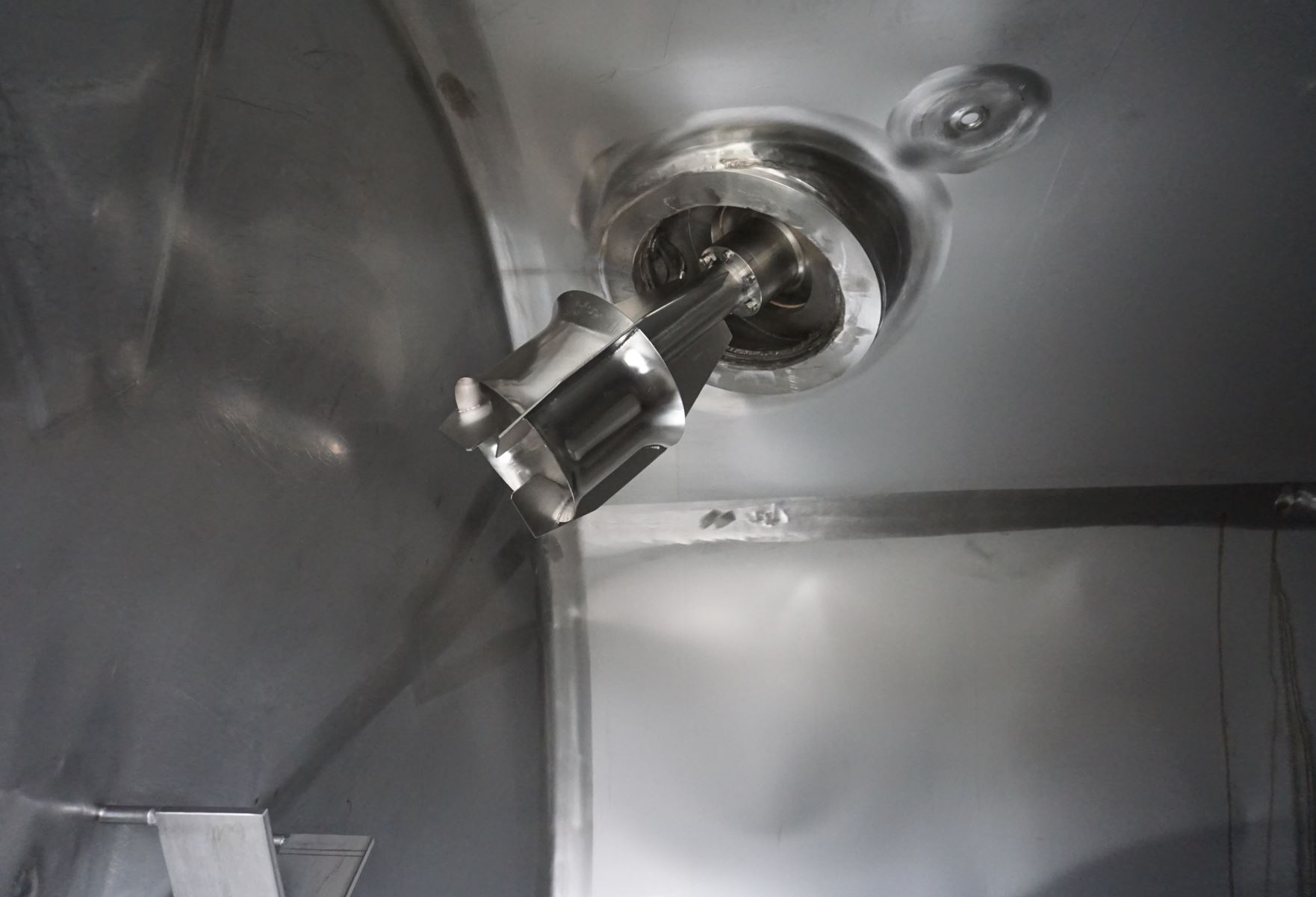

Agitator

Agitator quantity

1 (piece)

Agitator type

Agitator position

At bottom at the side in shell

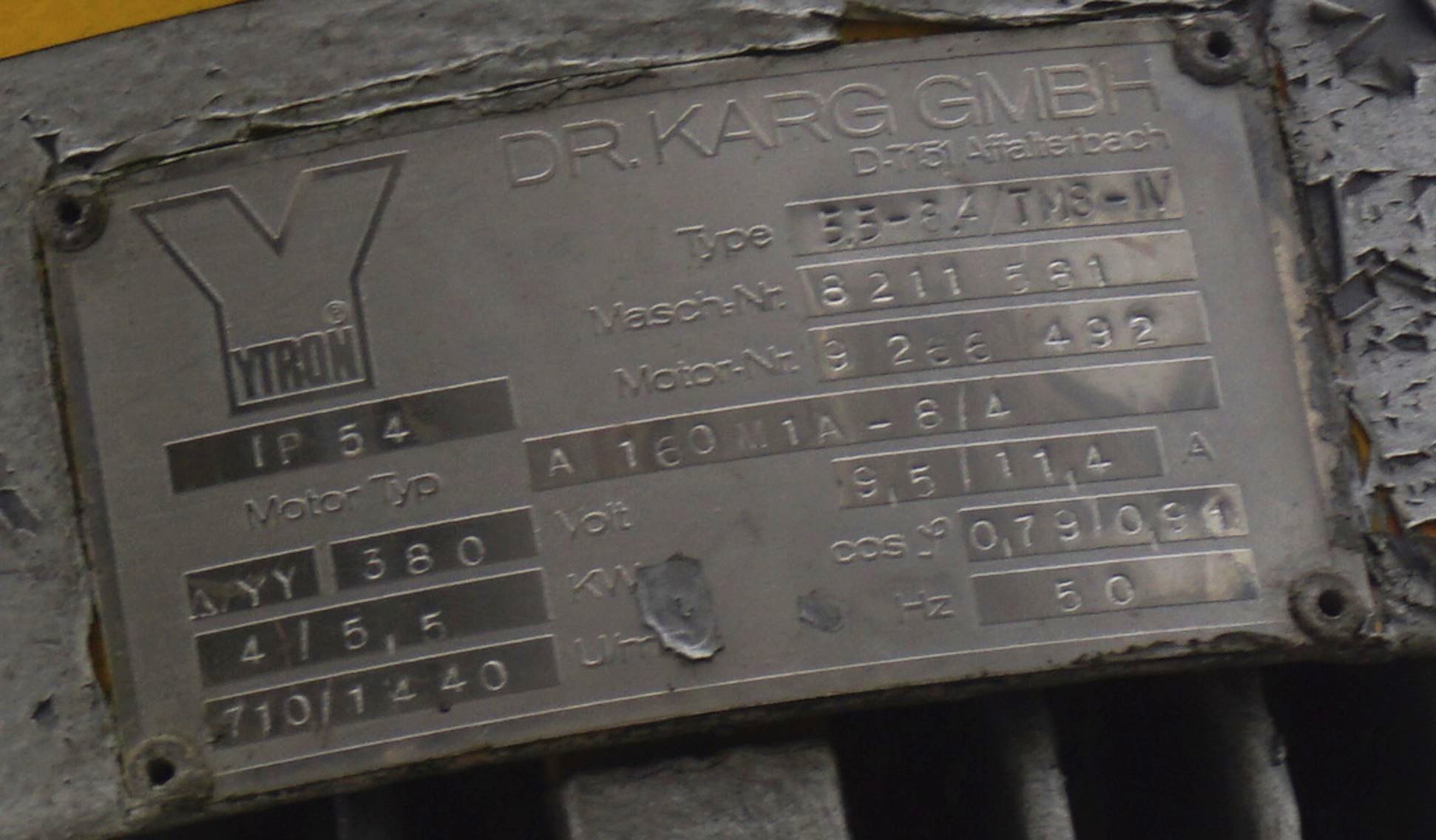

Agitator manufacturer

Ytron

Agitator 1 - Output

4 / 5,5 kW

Agitator 1 - RPM

710/1440 UpM

Agitator 1 - Voltage

380 V

Supports

Supports

Stainless steel feet

Number of feet

4 (piece)

Note on supports

höhenverstellbar

Fixtures and fittings

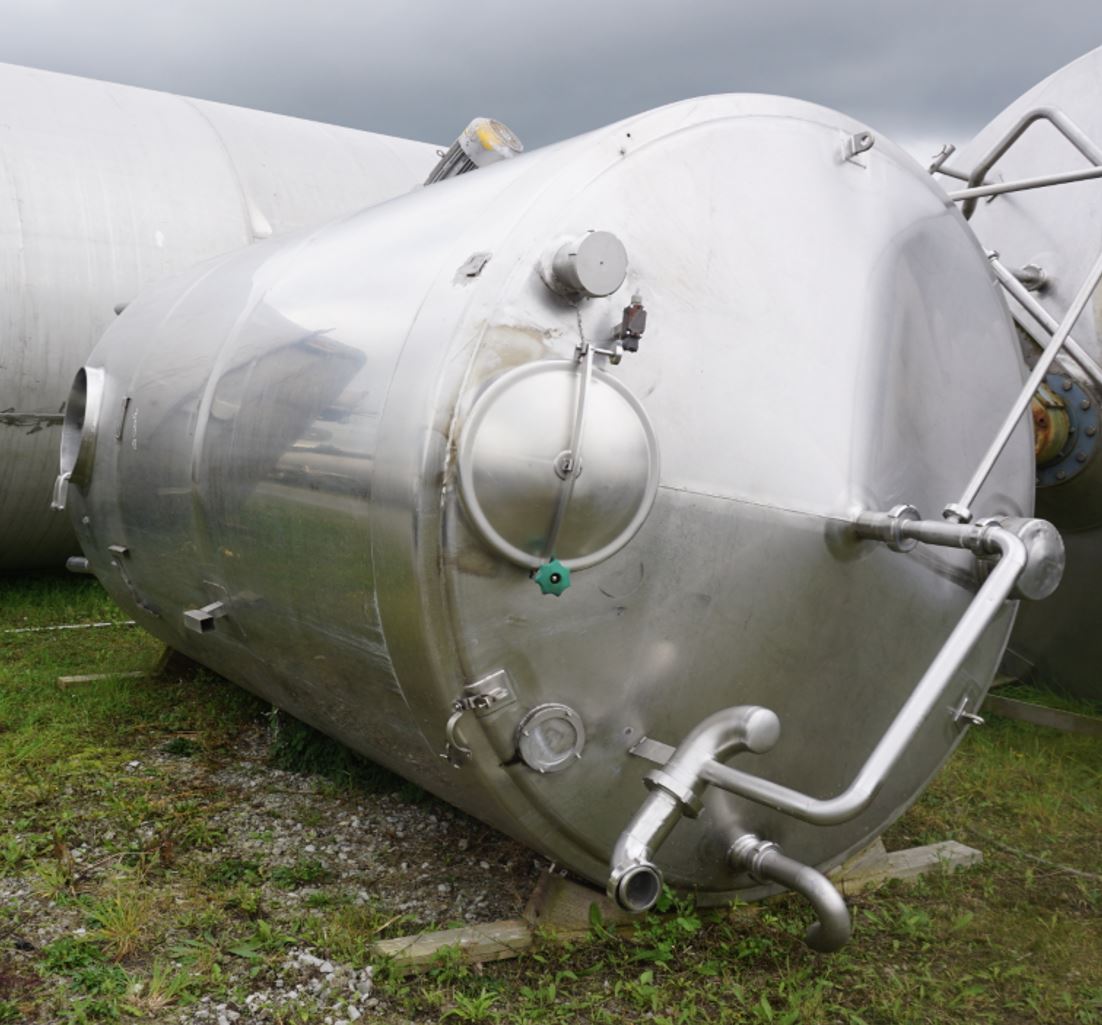

Manway position

In shell and head

Nozzles/connectors in head

1xDN80 1xDN65 (piece)

Outlet nozzle

Cleaning/CIP nozzle

in head

Fixtures and fittings

Lifting lugs

Additional fixtures and fittings

Air vent

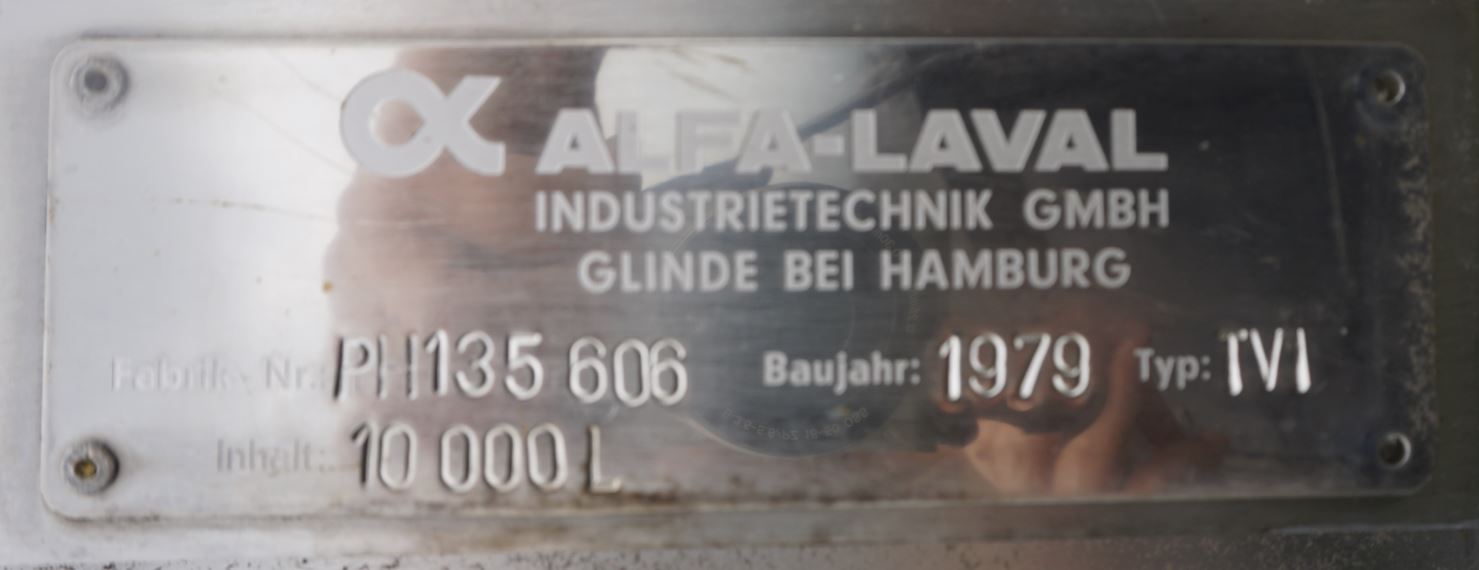

Nameplate

Technical documentation

Technical documentation

None

Other

Note

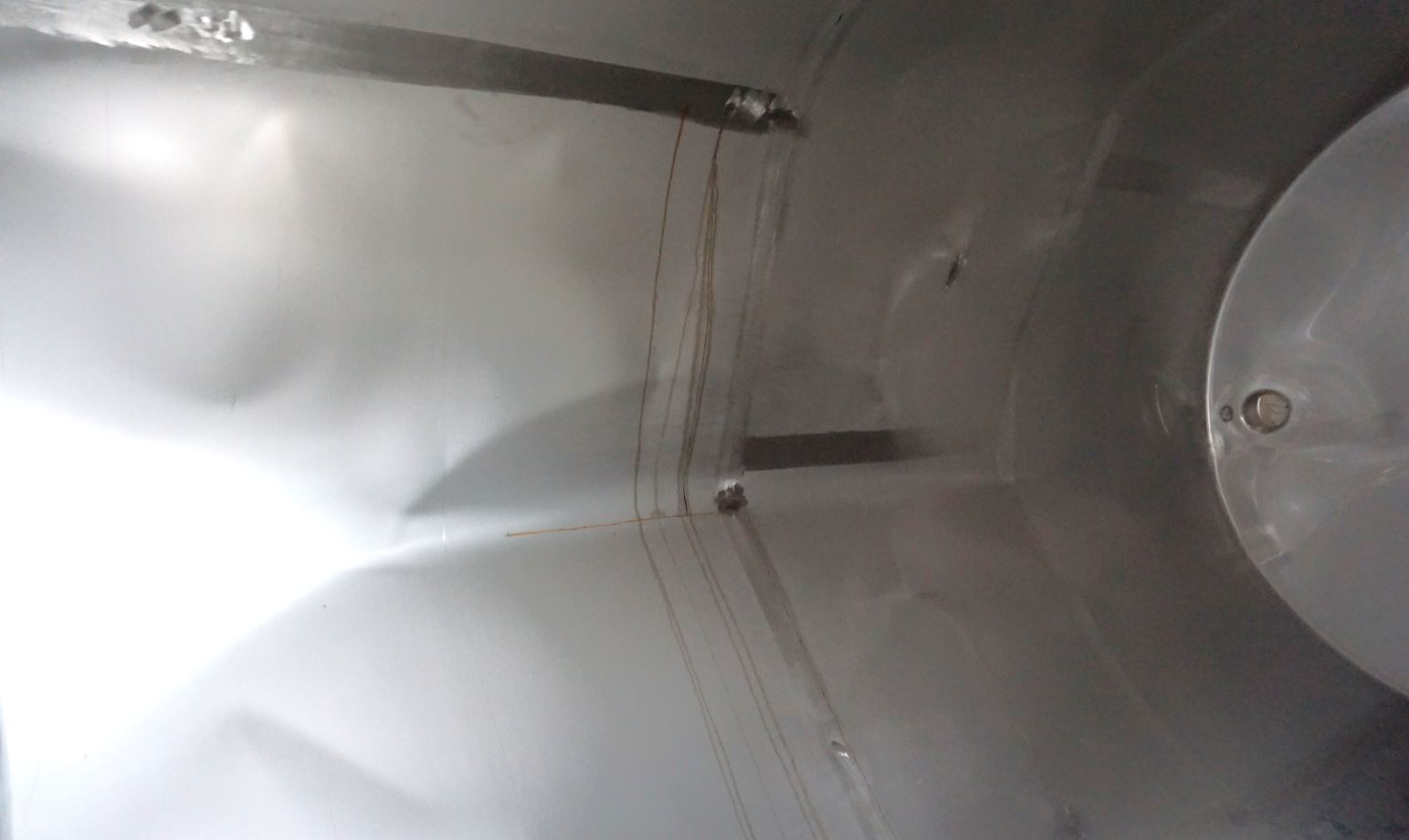

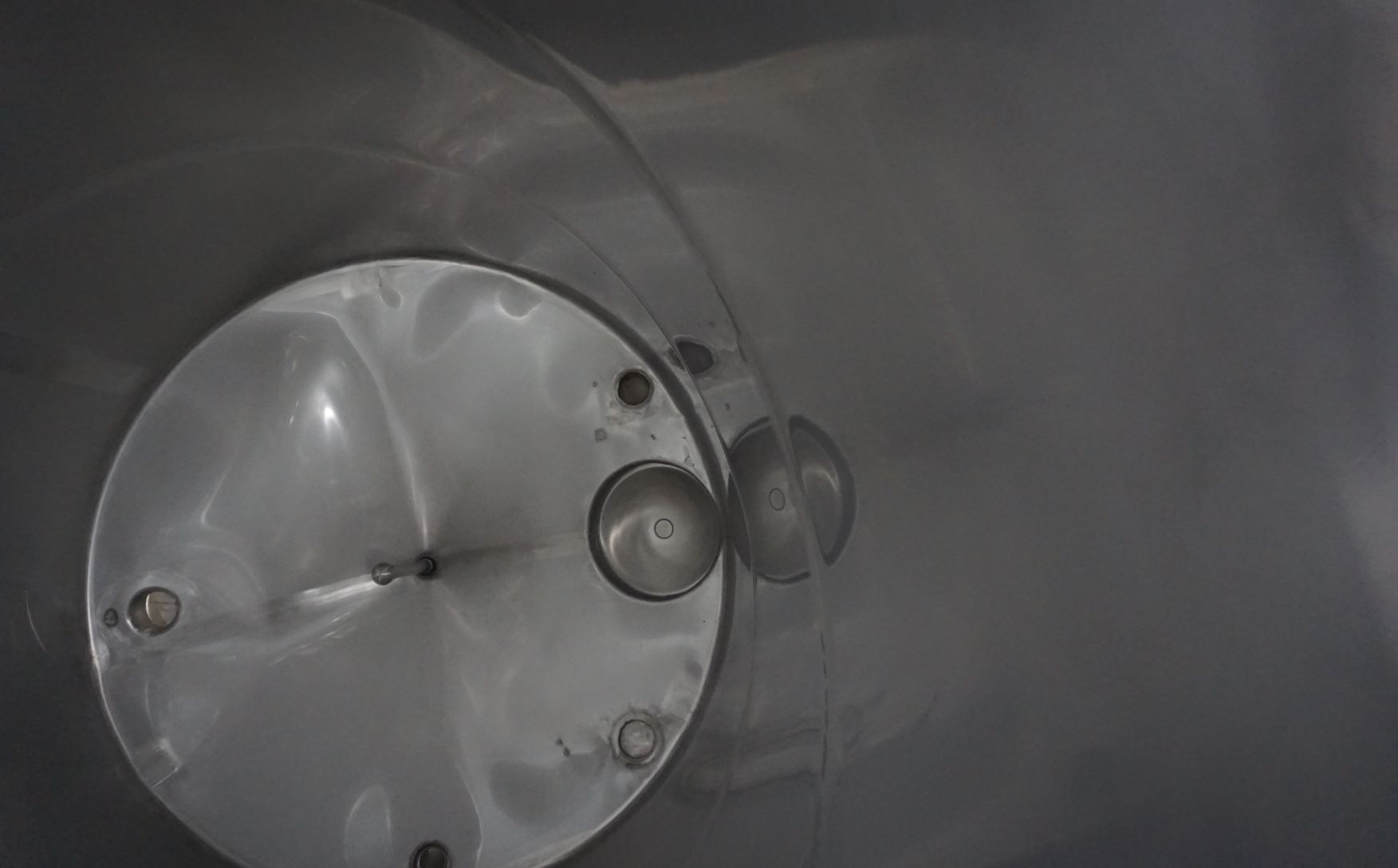

Innen Vakuumschaden, Material an einigen Stellen gerissen - siehe Foto.

Last usage

Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Hot water tank,

Chemistry and pharmaceuticals : Storage tank, Pre-buffer tank, Settling tank, Mixing tank, Thermal buffer, Cold water tank,
