Product no. M-2916

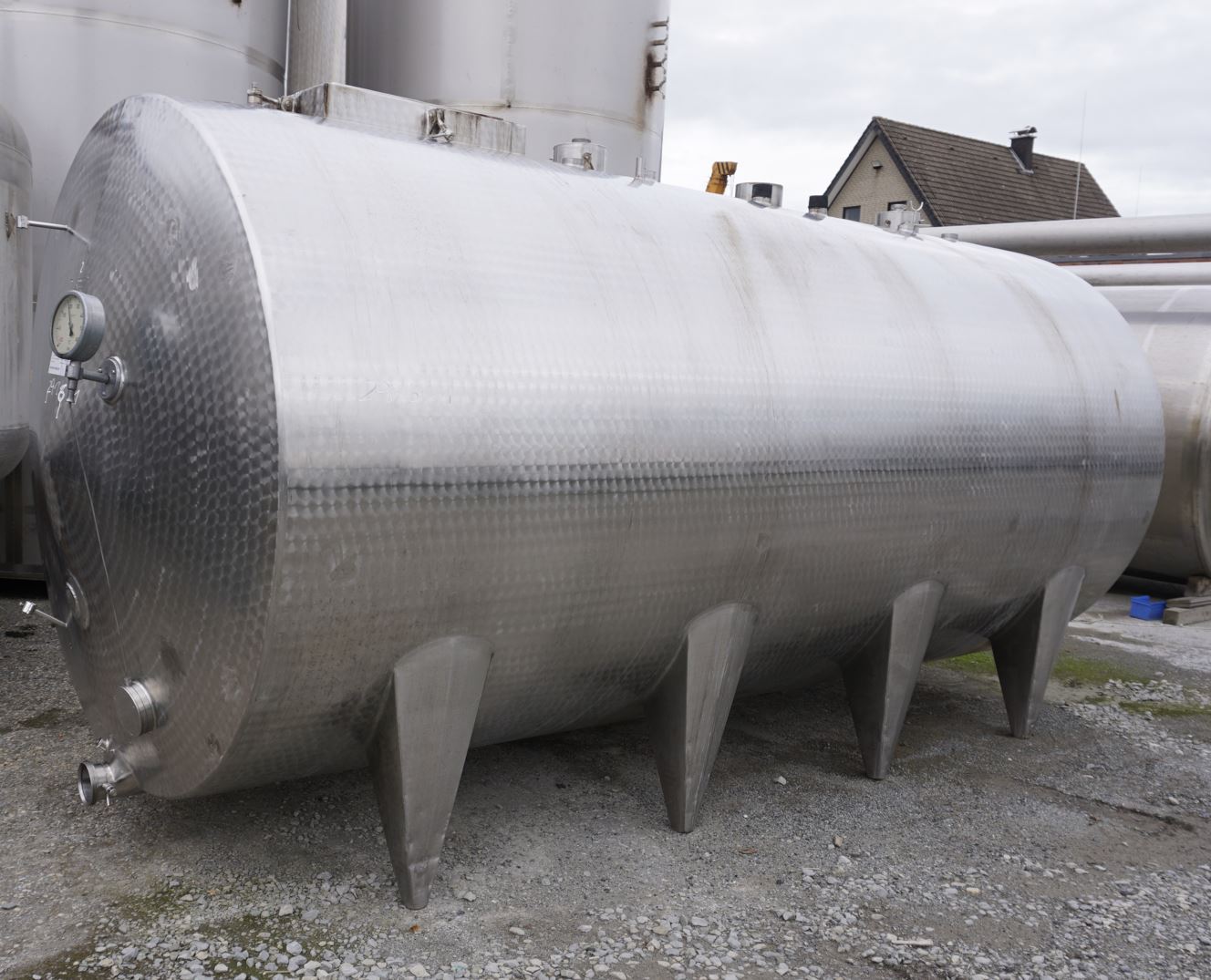

Container 10.000 liters made of V2A, isolated, used, horizontal

EUR 5.900,00

add. 19 % VAT excl. shipping costs


Volume approx. 10,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 10.000 liters made of V2A, isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 10,000.00 litres. The diameter inside includes 1,800 mm.  Container 10.000 liters made of V2A, isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 10.000,00 litres

  • Structure

  • Horizontal

  • Manufacturer

  • Astra

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.800 mm

  • External diameter

  • 2.000 mm

  • Cyl. length

  • 4.060 mm

  • Outlet height

  • 250 mm

  • Total height

  • 2.800 mm

  • Total length

  • 4.630 mm

Design

  • Weight approx.

  • 1.600,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • yes

  • Insulated area

  • Complete

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Marbled

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

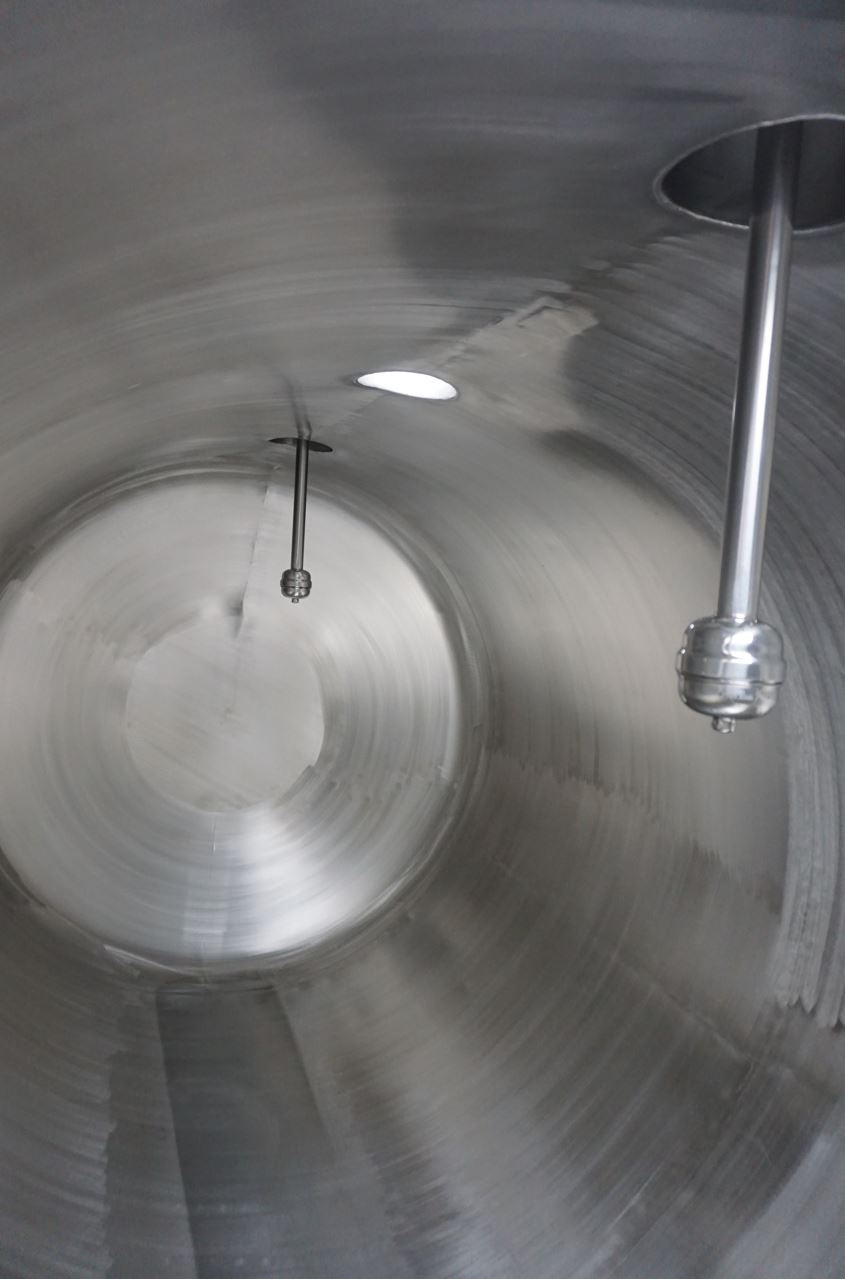

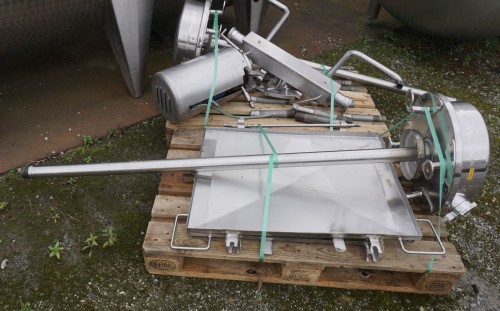

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Agitator position

  • Head off-centre

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 8 (piece)

  • Note on supports

  • höhenverstellbar

Fixtures and fittings

  • Manway position

  • In head

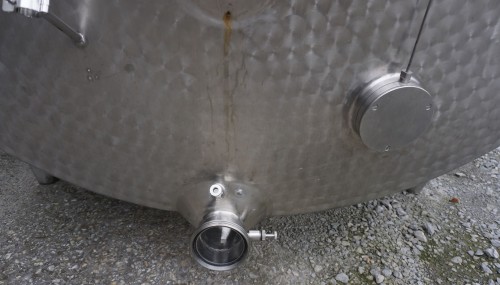

  • Nozzles/connectors in floor

  • 1xDN100 (piece)

  • Outlet nozzle

  • 100

  • Cleaning/CIP nozzle

  • in head

  • Additional fixtures and fittings

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Note

  • Kratzer/Beulen außen im Isoliermantel, innen einige Reparaturstellen

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Fruit juice tank, Milk tank, Whey tank, Storage tank, Buffer tank, Settling tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank,
