Product no. M-3009

Container 10.000 liters made of V2A, single-walled, used, horizontal

EUR 5.200,00

add. 19 % VAT excl. shipping costs

Volume approx. 10,000.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 10.000 liters made of V2A, single-walled, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 10,000.00 litres.  Container 10.000 liters made of V2A, single-walled, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage,

General

  • Volume approx.

  • 10.000,00 litres

  • Structure

  • Horizontal

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 2.000 mm

  • Cyl. length

  • 3.000 mm

  • Outlet height

  • 200 mm

  • Total height

  • 2.500 mm

  • Total length

  • 3.500 mm

Design

  • Weight approx.

  • 1.000,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 6 (piece)

Fixtures and fittings

  • Manway position

  • Front face

  • Outlet nozzle

  • 27

Technical documentation

  • Technical documentation

  • None

Other

  • Note

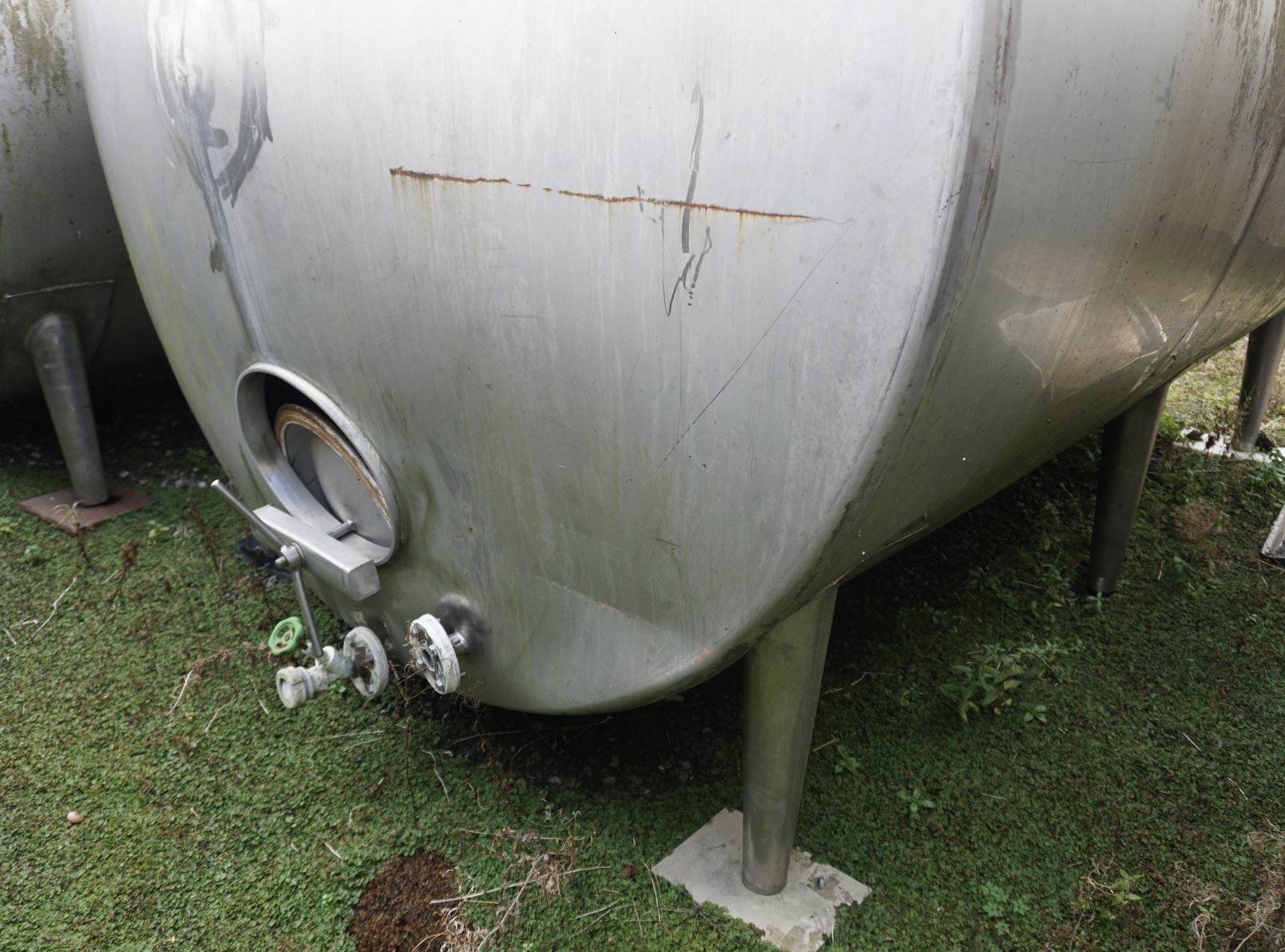

  • 2 Füße leicht in Mantel eingedrückt, kleine Beule stirnseitig

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank, Cold water tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank,

Chemistry and pharmaceuticals : Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank, Cold water tank,
