Product no. M-2851

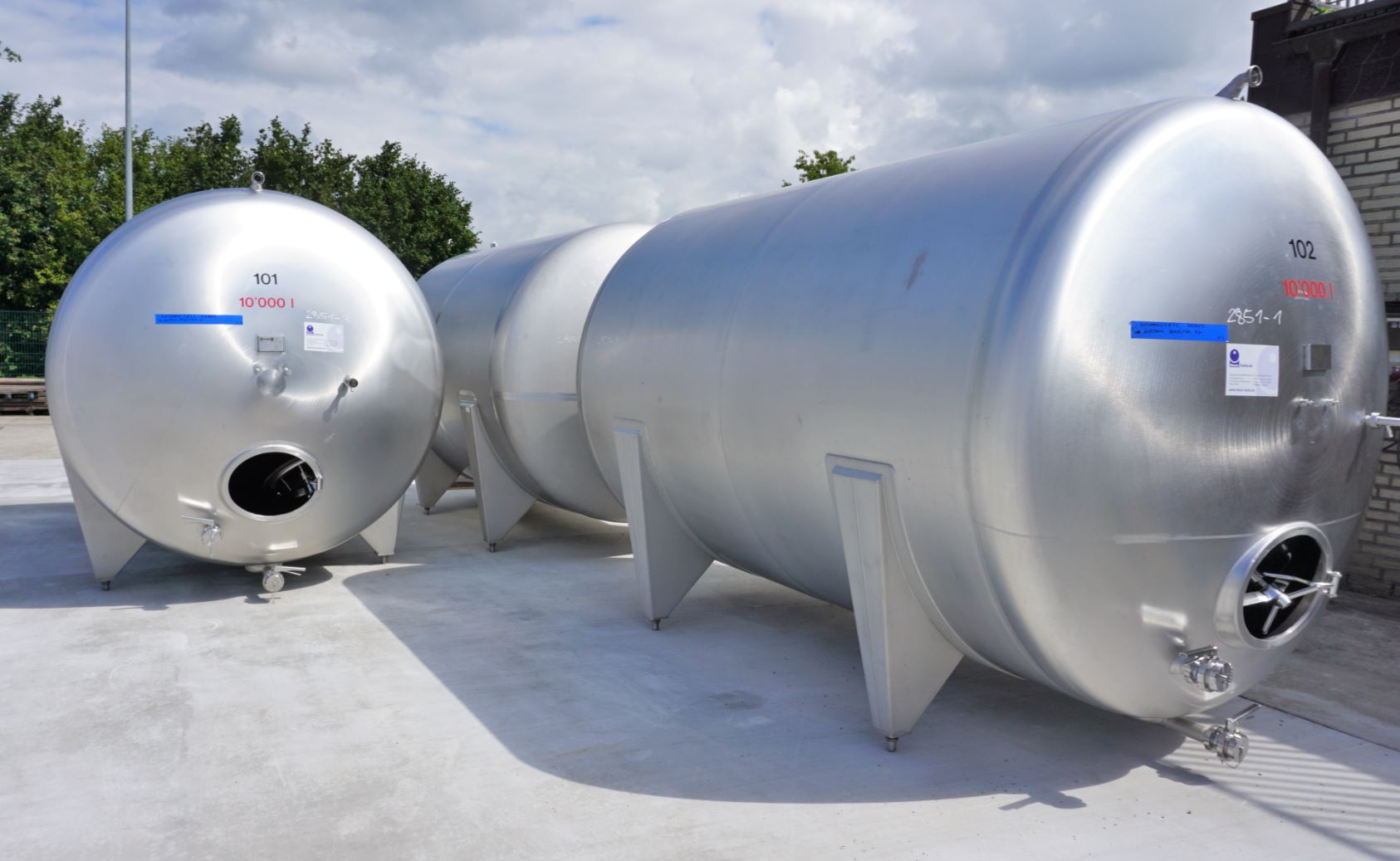

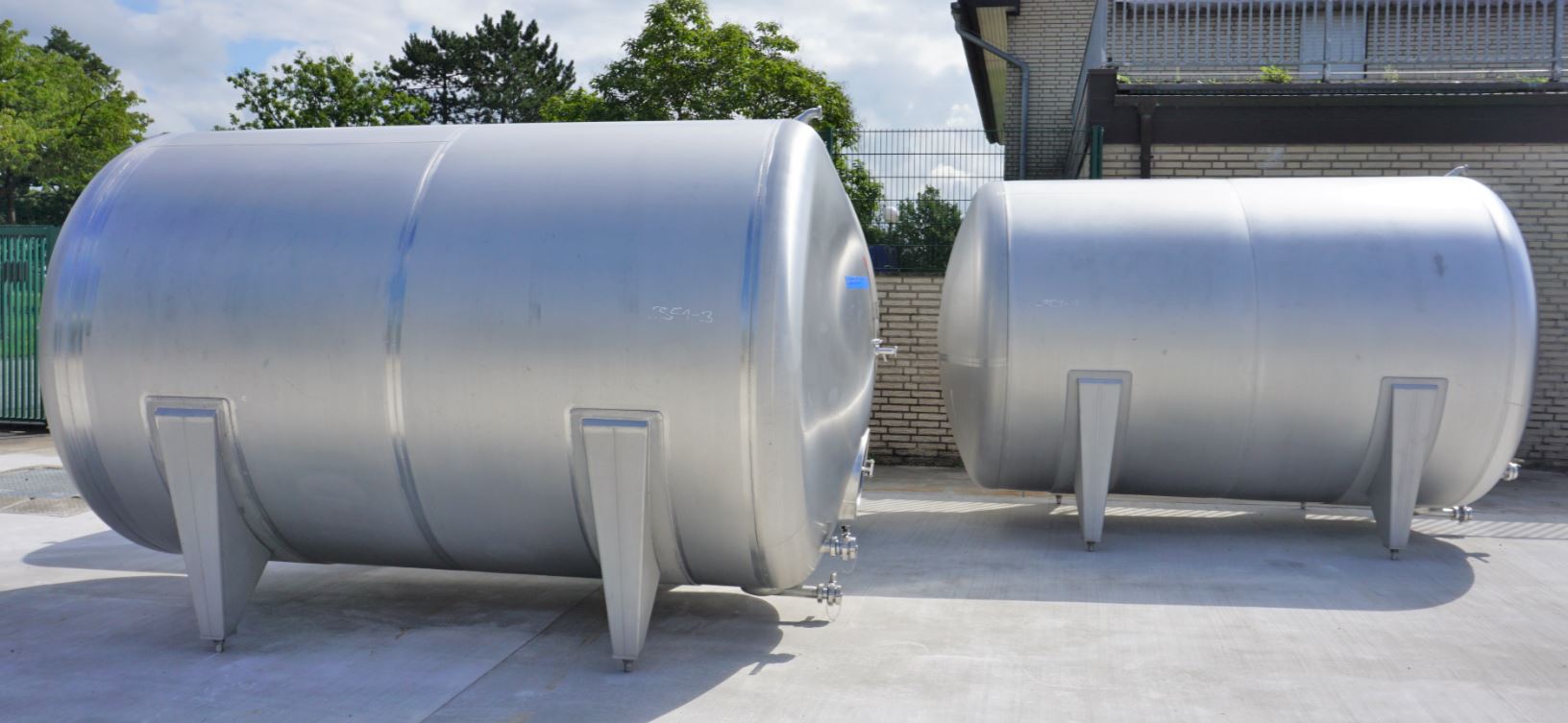

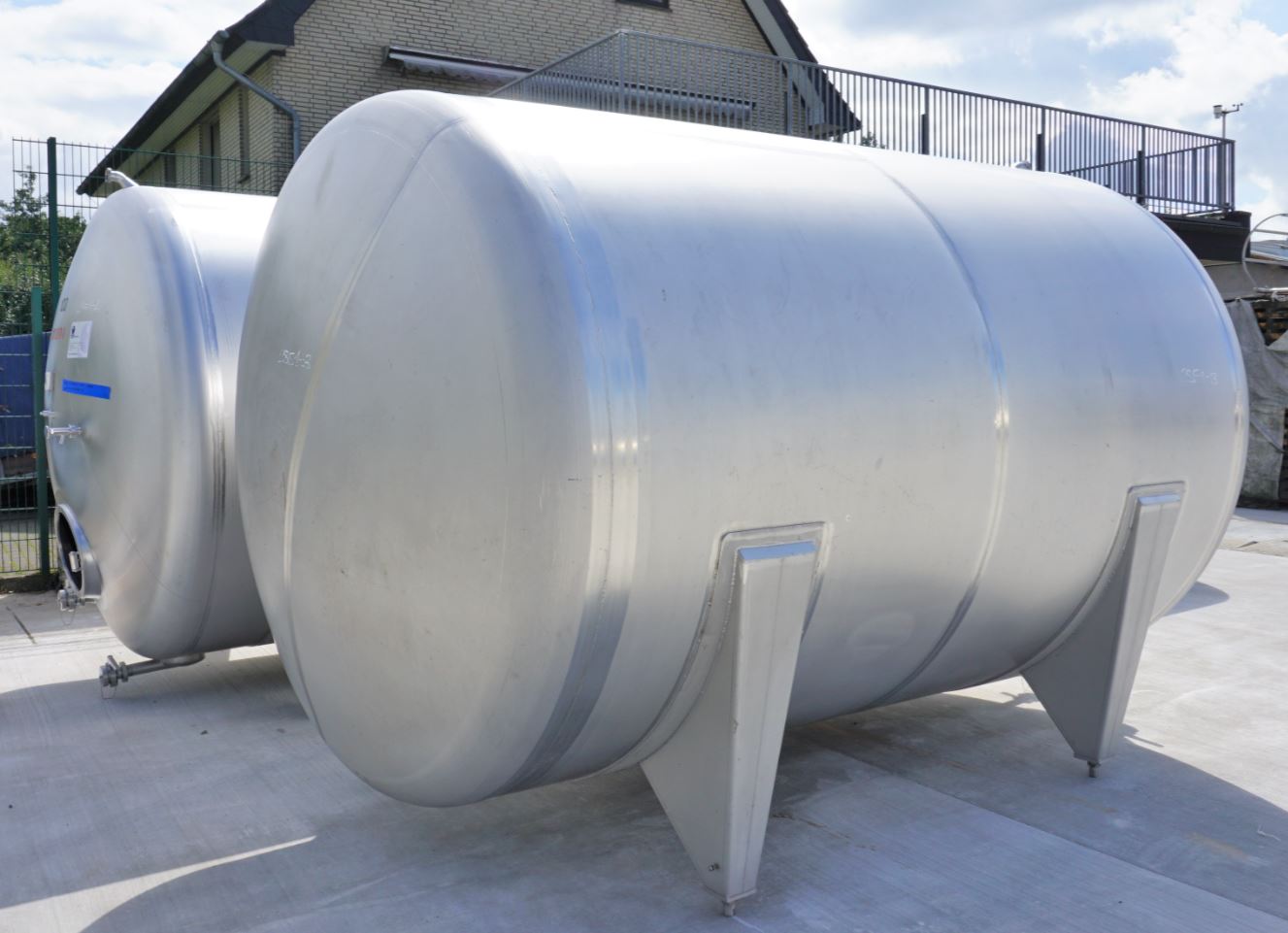

Container 10.000 liters made of V2A, single-walled, used, horizontal
EUR 10.500,00
add. 19 % VAT excl. shipping costs
Volume approx. 10,000.00 litres
Product description
Container 10.000 liters made of V2A, single-walled, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 10,000.00 litres. Container 10.000 liters made of V2A, single-walled, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage,General
Volume approx.
10.000,00 litres
Structure
Horizontal
Year of manufacture
2008
Manufacturer
Hablutzel CH-Wilchingen
Condition
Used
Dimensions approx.
External diameter
2.000 mm
Cyl. length
2.700 mm
Outlet height
230 mm
Total height
2.430 mm
Total length
3.500 mm
Design
Weight approx.
1.200,00 kg
Weight per unit volume approx.
1.000,00 kg/m³
Insulation
no

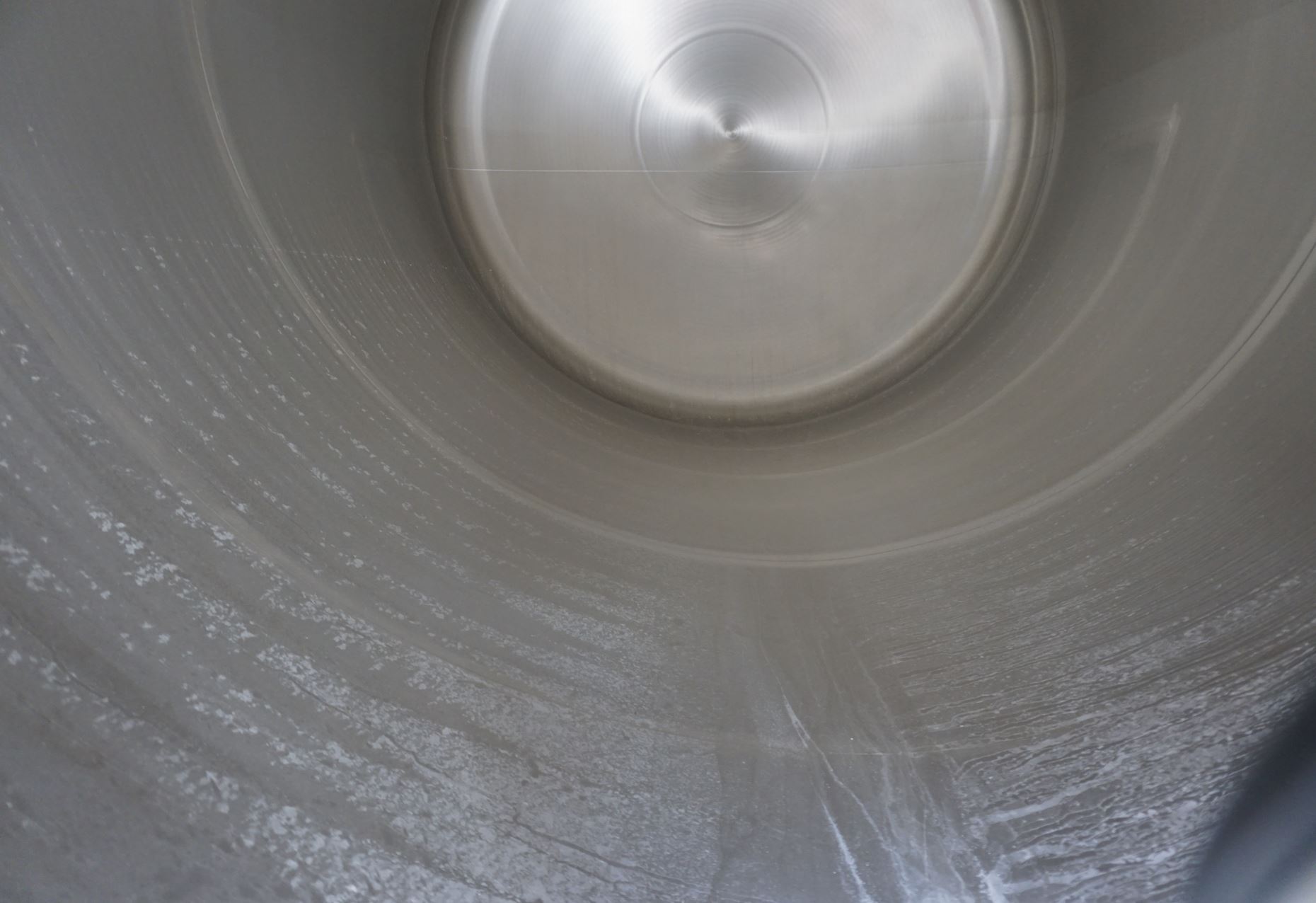

Interior surface
Smoothed
Exterior surface
Smoothed
Floor type
Torispherical bottom

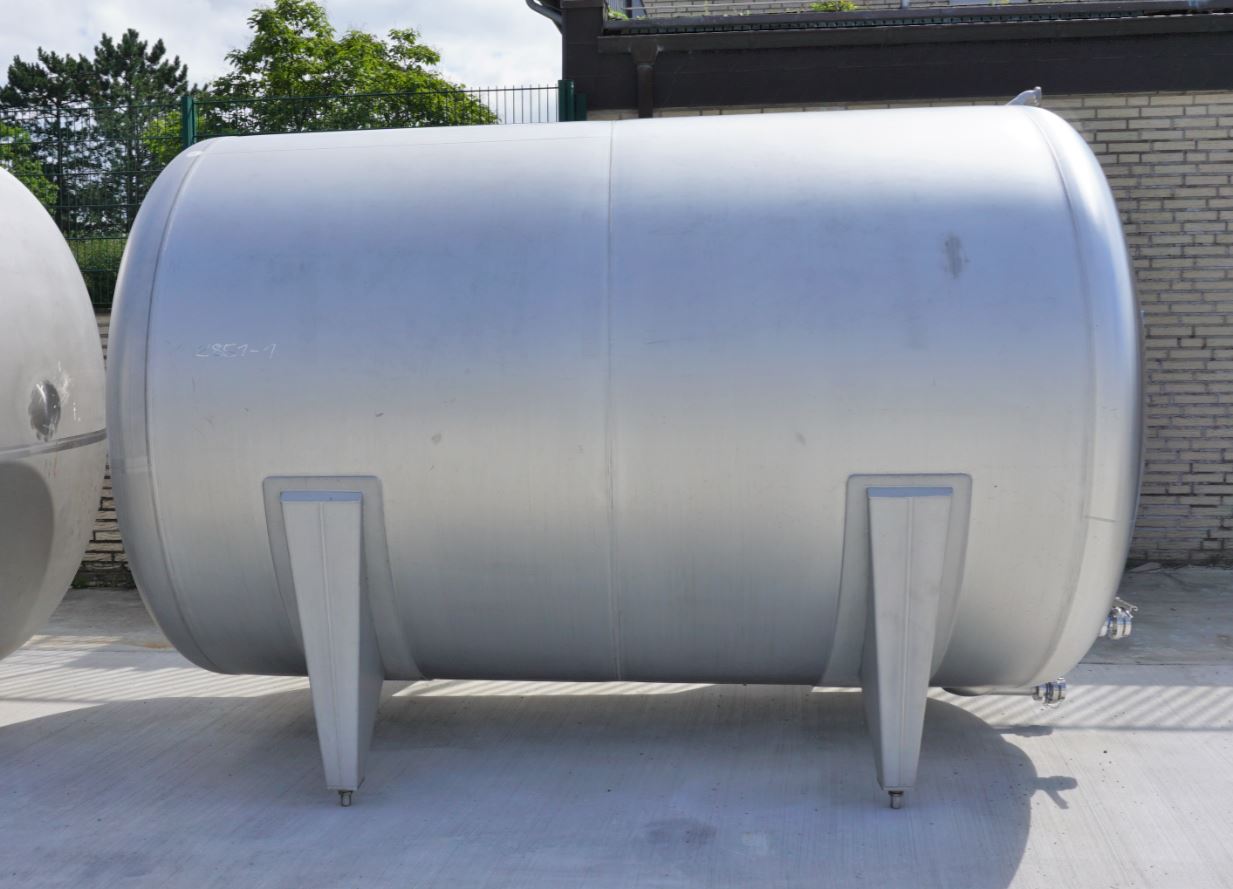

Supports
Supports
Stainless steel feet
Number of feet
4 (piece)
Note on supports
hoehenverstellbar

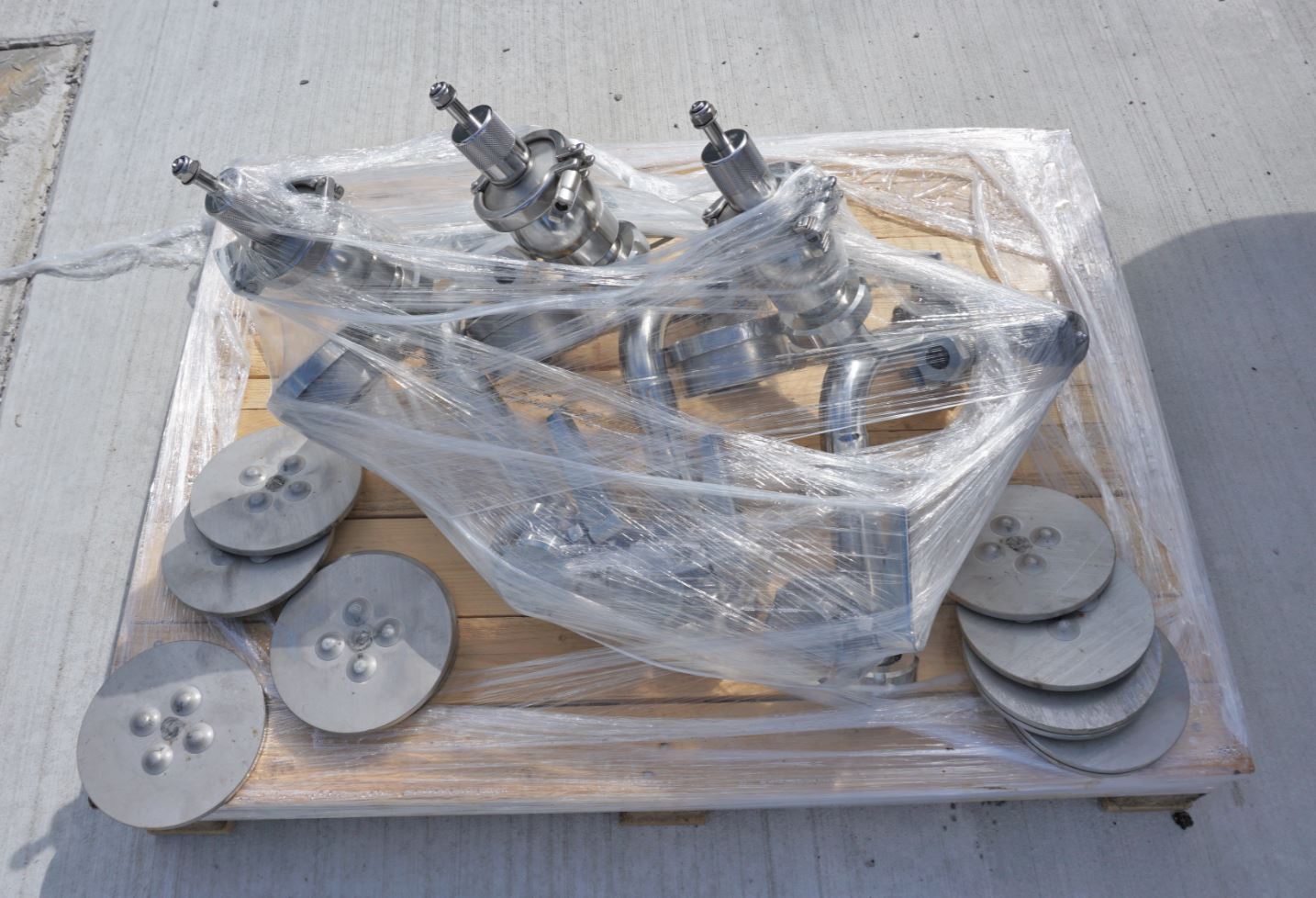

Fixtures and fittings
Manway position
Front face
Nozzle connector
Screw thread
Nozzles/connectors in head
1xDN50 (piece)
Outlet nozzle
50
Fixtures and fittings

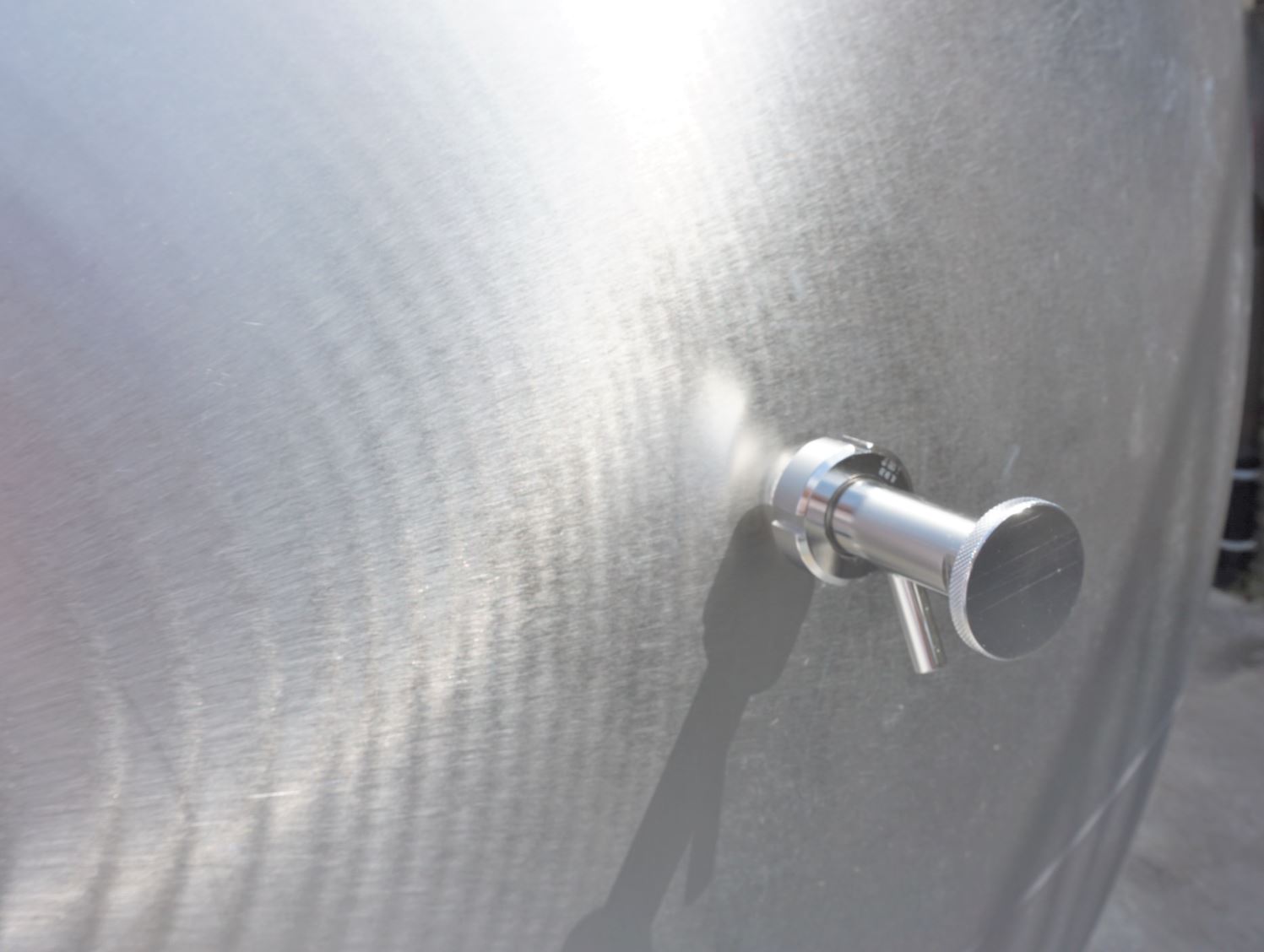

Sample taking
Additional fixtures and fittings

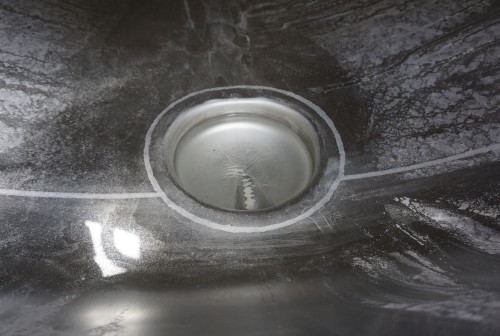

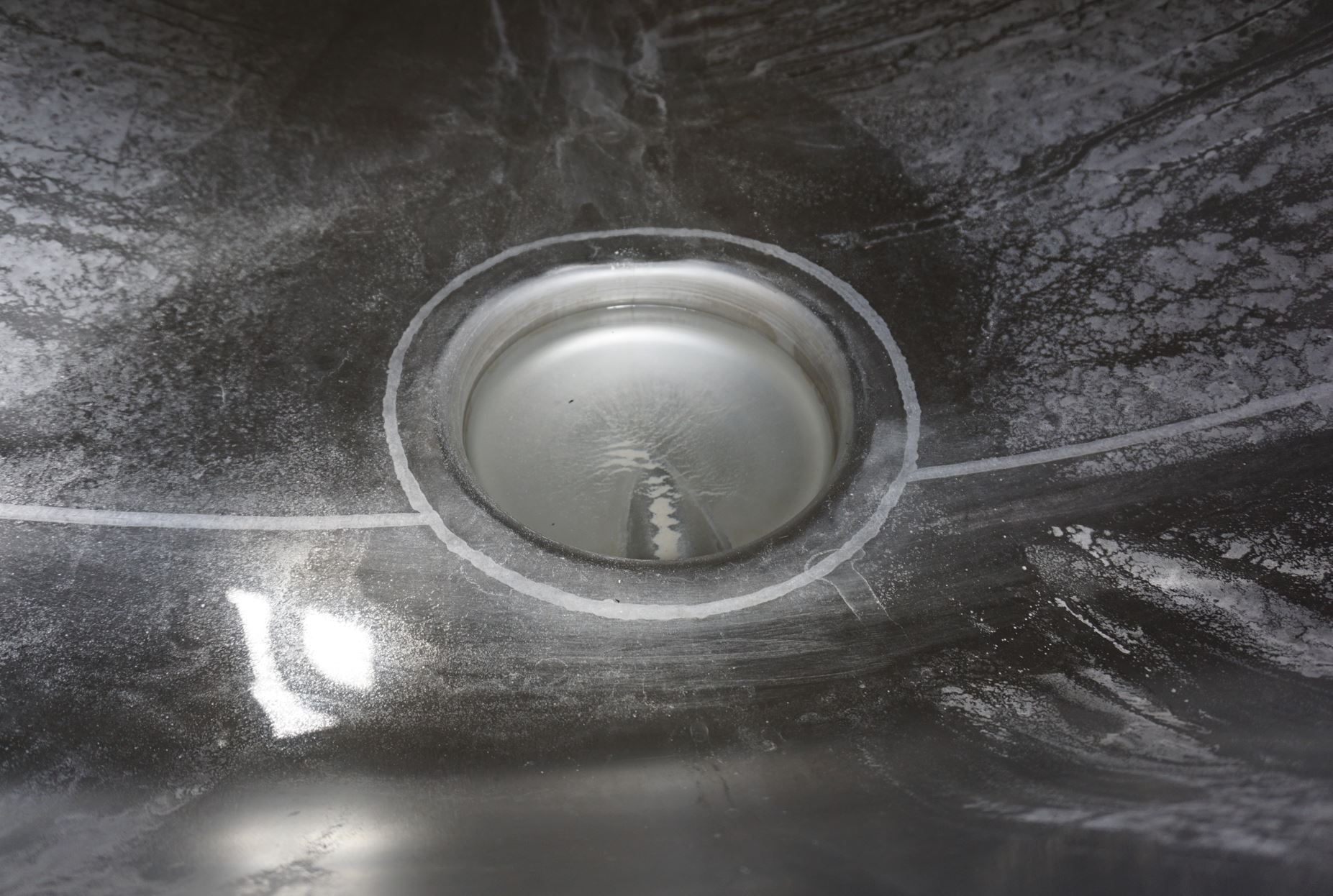

Drain port

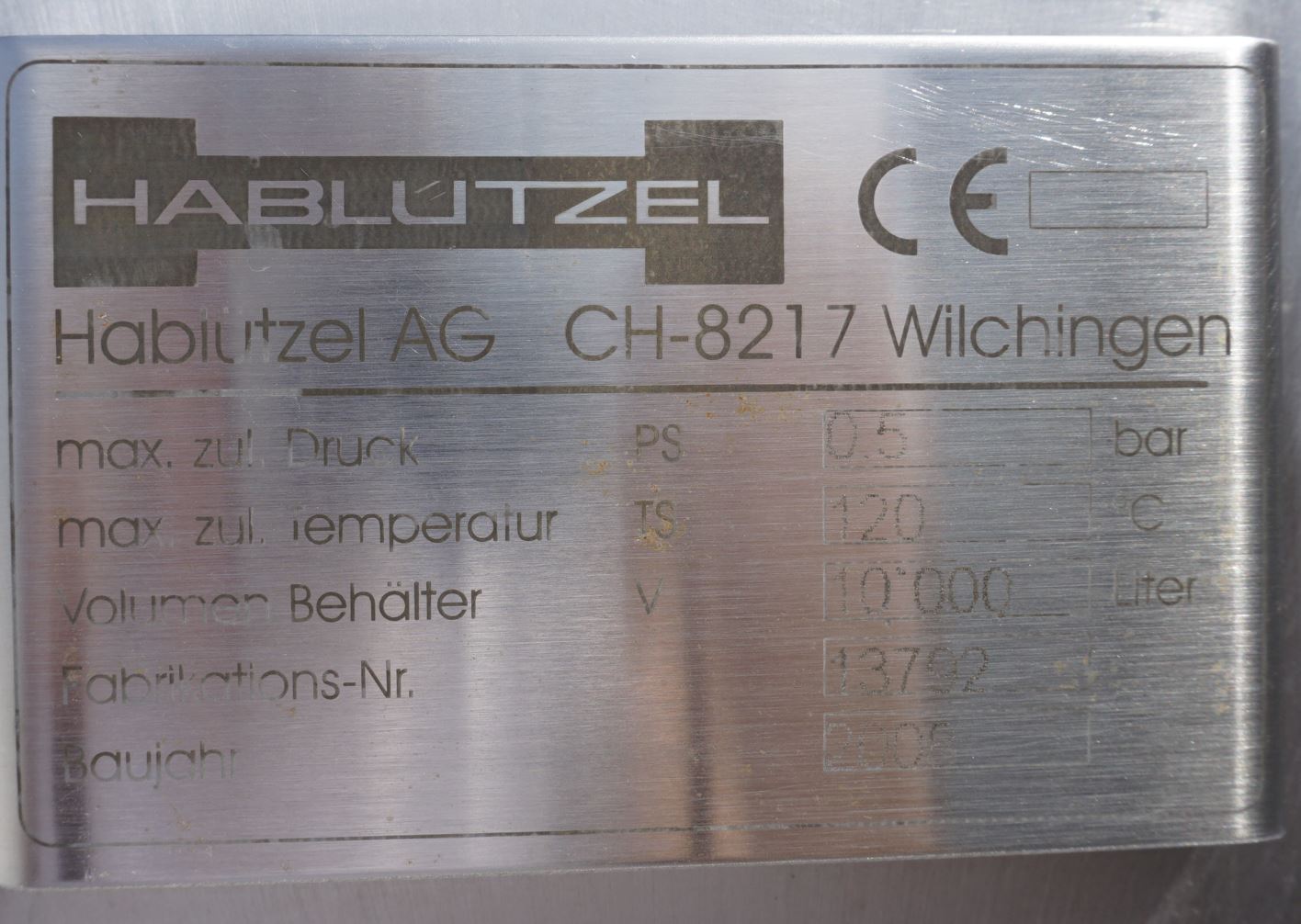

Nameplate
Technical documentation
Technical documentation
None
Other
Last usage
Foodstuffs
This product is suitable for use as:
Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank, Hot water tank, Thermal buffer, Cold water tank,
Agriculture: Substrate tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank, Hot water tank,
Chemistry and pharmaceuticals : Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank, Hot water tank, Thermal buffer, Cold water tank,
