Behälter 1.500 Liter aus V2A isoliert, gebraucht

Product no. M-2747

Container 1.500 liters made of V2A isolated, used, standing

Name: Behälter 1.500 Liter aus V2A isoliert, gebraucht
SKU: M-2747
Price: 2900 EUR

EUR 2.900,00

add. 19 % VAT excl. shipping costs

Volume approx. 1,500.00 litres

Behälter 1.500 Liter aus V2A isoliert, gebraucht

more details

Product description

Container 1.500 liters made of V2A isolated, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 1,500.00 litres. The diameter inside includes 1,700 mm. Container 1.500 liters made of V2A isolated, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage,

General

Volume approx.

1.500,00 litres

Structure

Standing

Year of manufacture

1997

Manufacturer

ABAB

Condition

Used

Dimensions approx.

Internal diameter

1.700 mm

External diameter

1.900 mm

Cyl. height

800 mm

Foot height

740 mm

Total height

2.100 mm

Design

Weight approx.

500,00 kg

Weight per unit volume approx.

1.000,00 kg/m³

Insulation

Insulated area

Shell and floor

Insulation cladding

Fully welded stainless steel

Interior surface

Smoothed

Exterior surface

Smoothed

Floor type

Conical bottom

Head design

Conical bottom

Product chamber operating pressure

Atmospheric/unpressurised bar

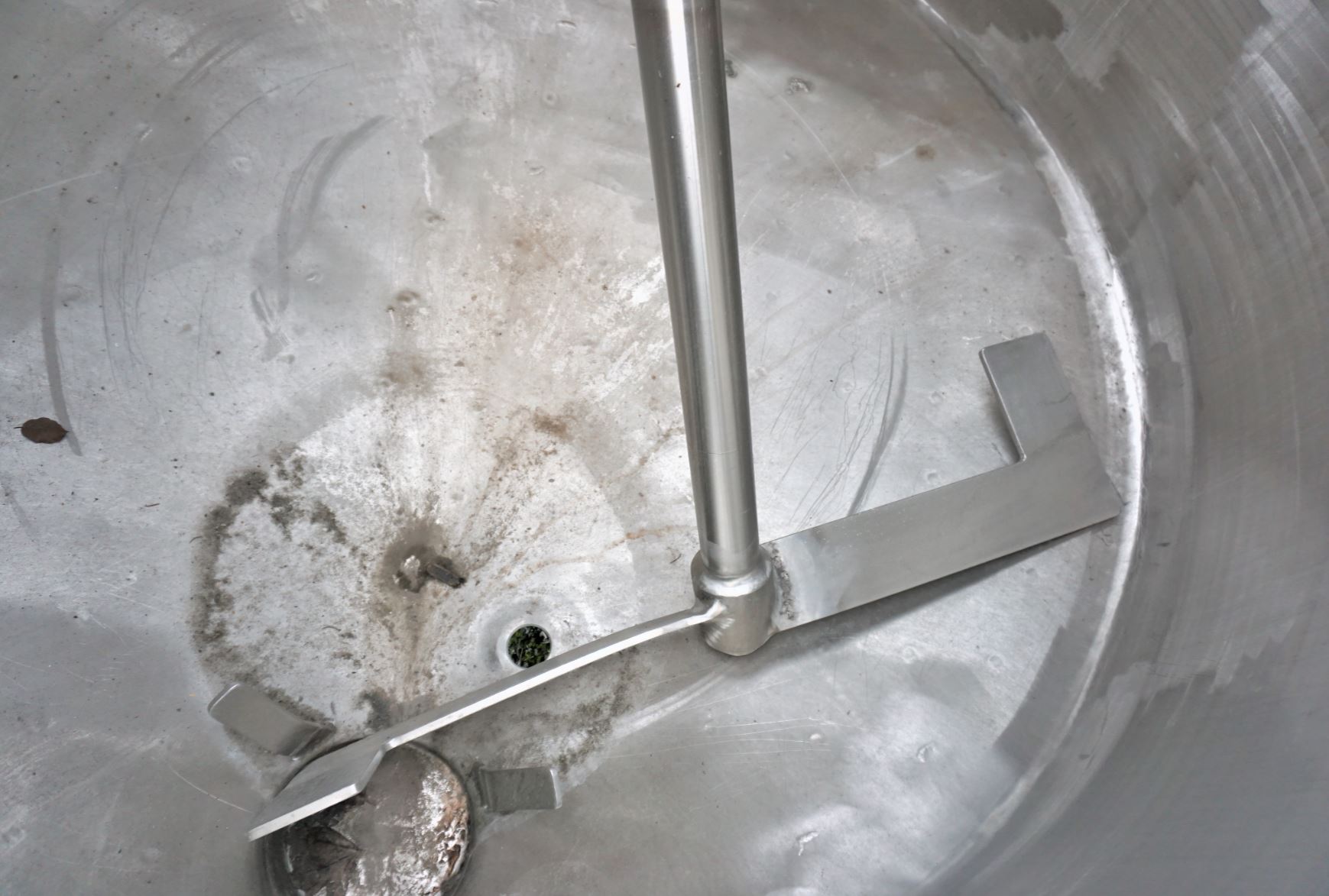

Agitator

Agitator quantity

1 (piece)

Note on agitator

Rührwerksantrieb nicht vorhanden

Agitator position

Head central

Supports

Supports

Stainless steel feet

Number of feet

4 (piece)

Note on supports

höhenverstellbar

Fixtures and fittings

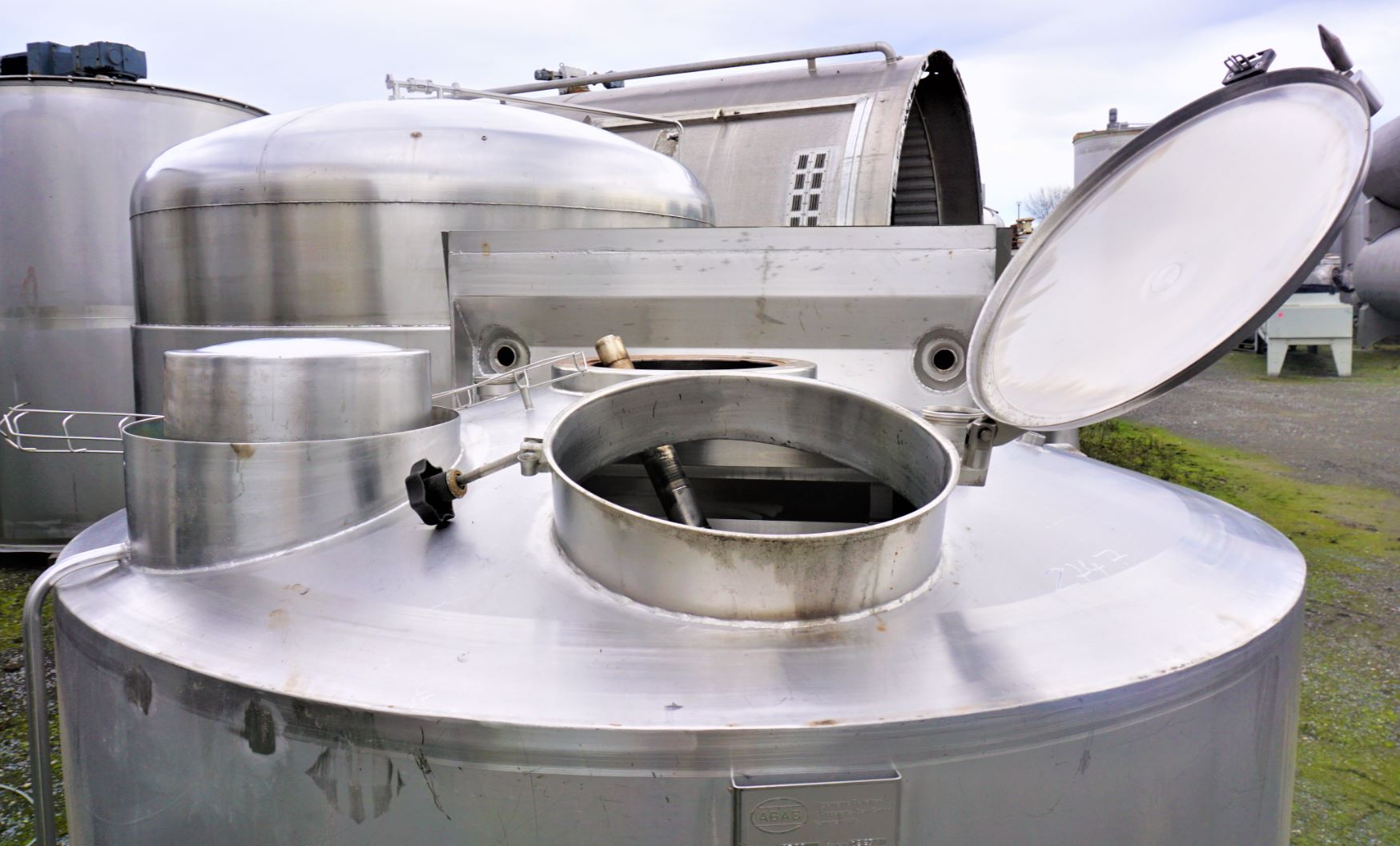

Manway position

In head

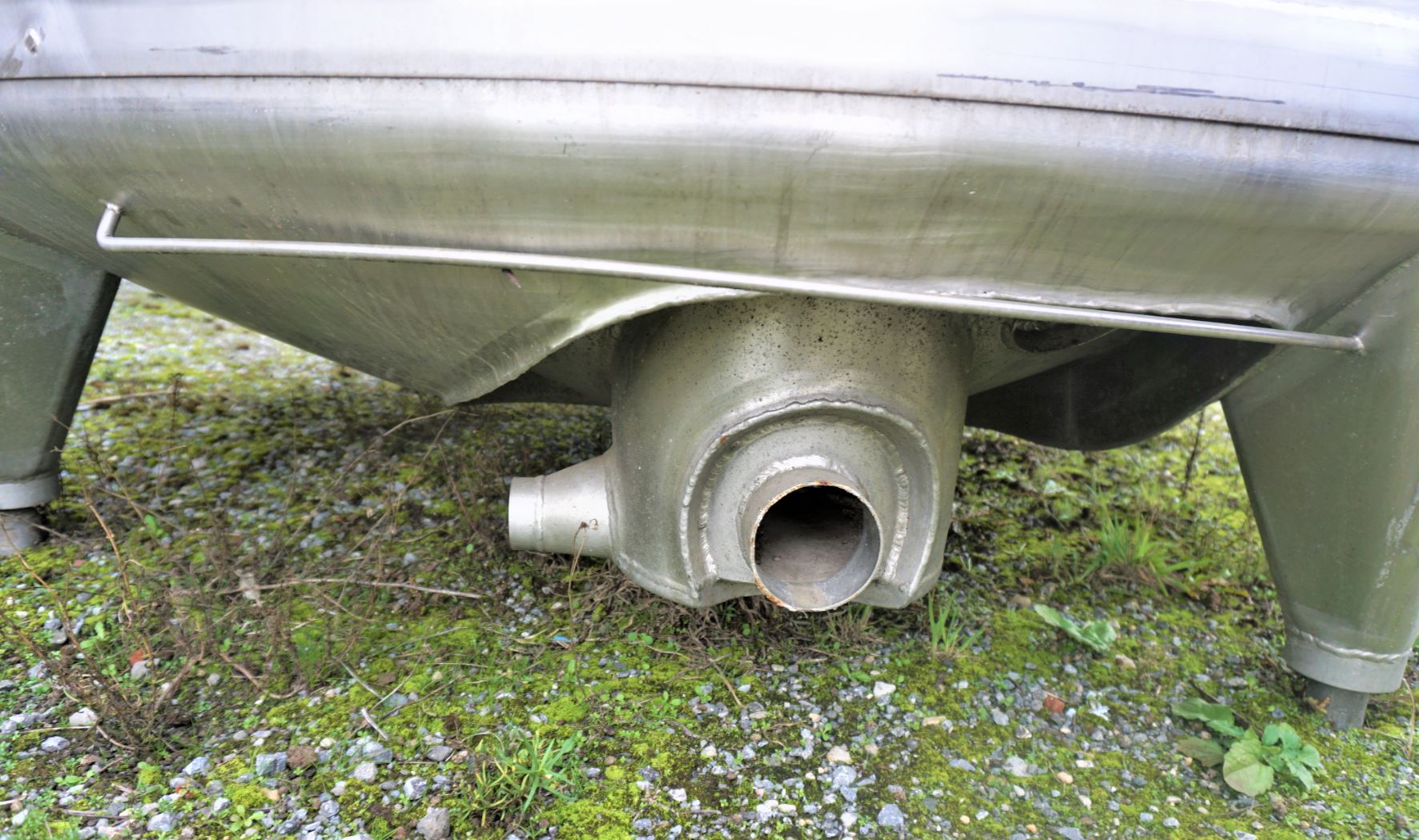

Outlet nozzle

Additional fixtures and fittings

Air vent

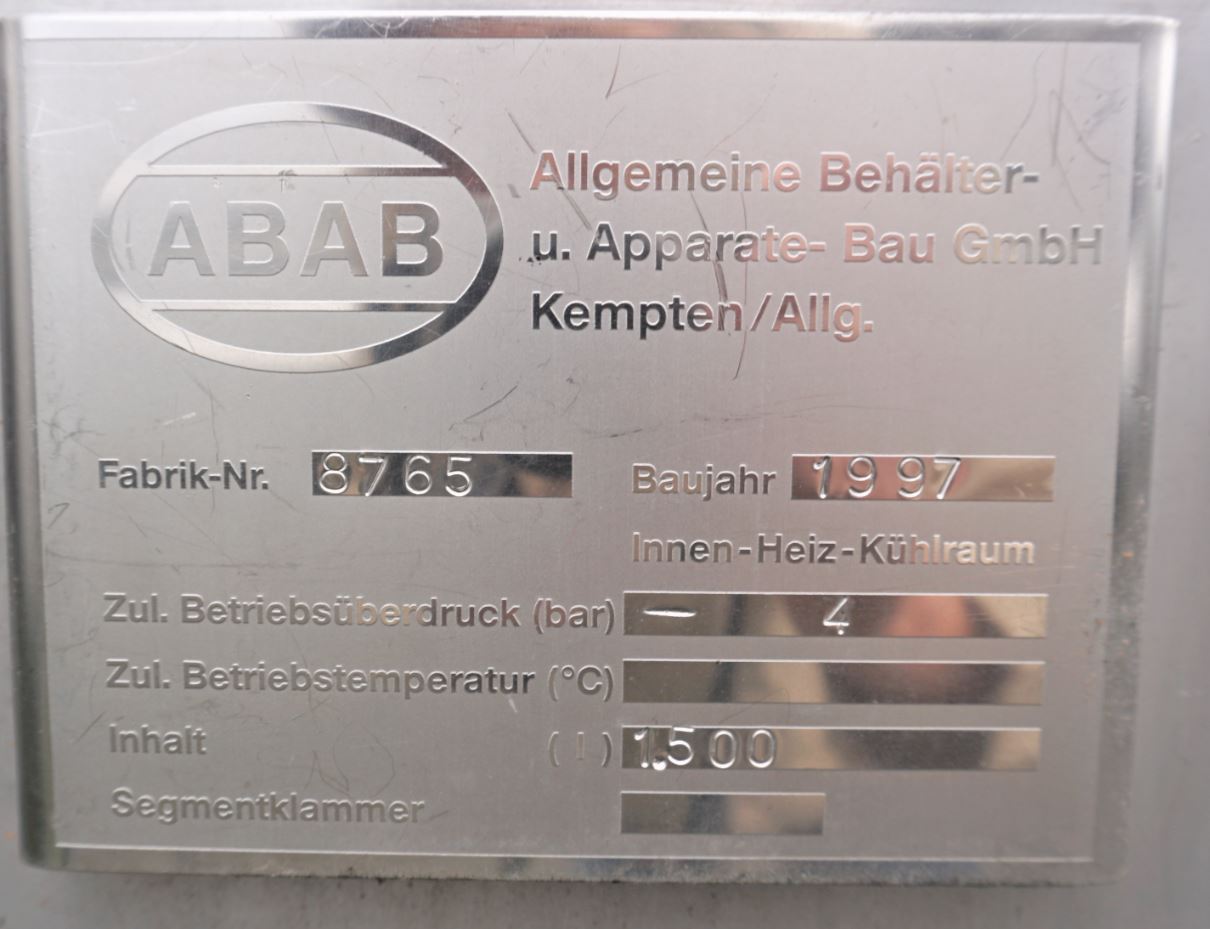

Nameplate

Technical documentation

Technical documentation

None

Other

Last usage

Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank,
