Product no. M-2751

Container 1.500 liters made of V2A, single-walled, temperature-controllable, used, hanging

EUR 2.100,00

add. 19 % VAT excl. shipping costs

Volume approx. 1,500.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 1.500 liters made of V2A, single-walled, temperature-controllable, used consists of the material 1.4301(AISI304) V2A. The volume is approx. 1,500.00 litres.  Container 1.500 liters made of V2A, single-walled, temperature-controllable, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 1.500,00 litres

  • Structure

  • Hanging

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 1.050 mm

  • Cyl. height

  • 1.900 mm

  • Total height

  • 2.800 mm

Design

  • Weight approx.

  • 300,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell and floor area

  • Temperature control system

  • Double shell

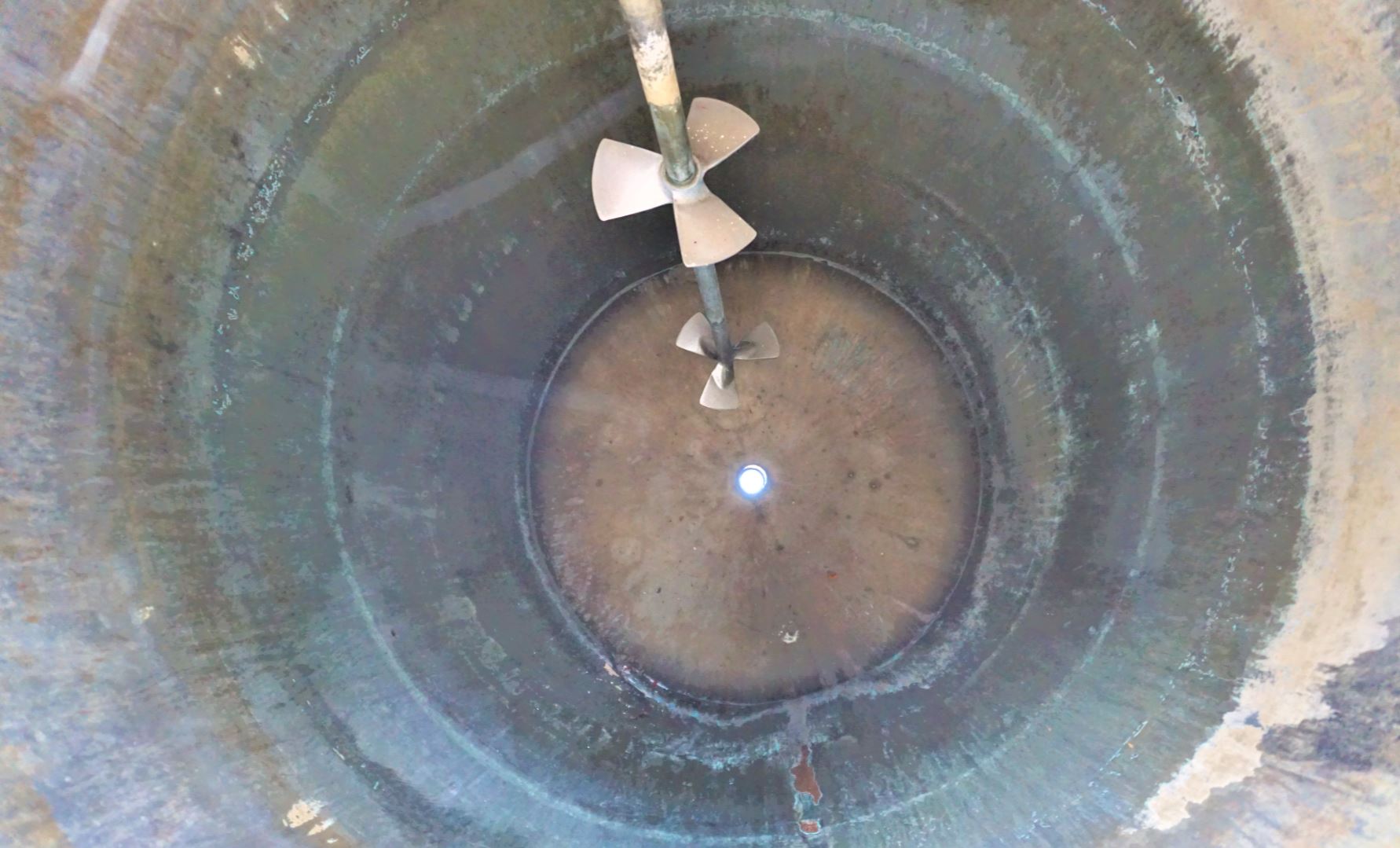

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Agitator position

  • Head off-centre

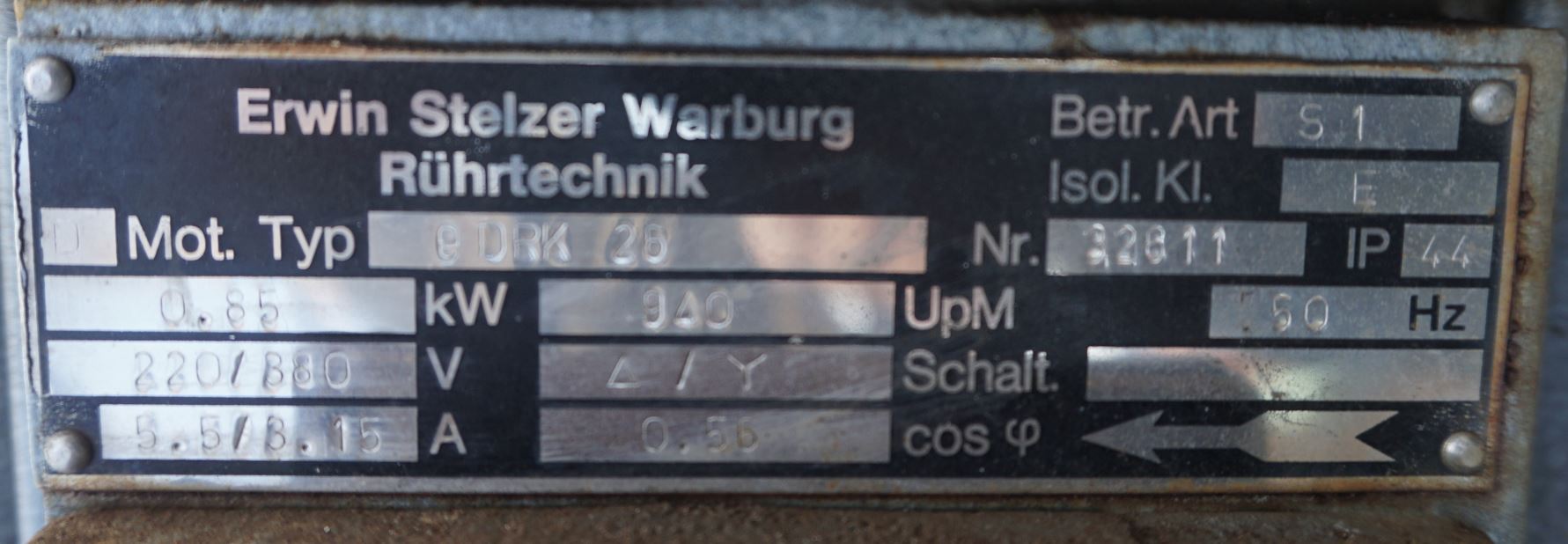

  • Agitator manufacturer

  • Stelzer

  • Agitator 1 - Output

  • 0,85 kW

  • Agitator 1 - RPM

  • 940 UpM

  • Agitator 1 - Voltage

  • 220/380 V

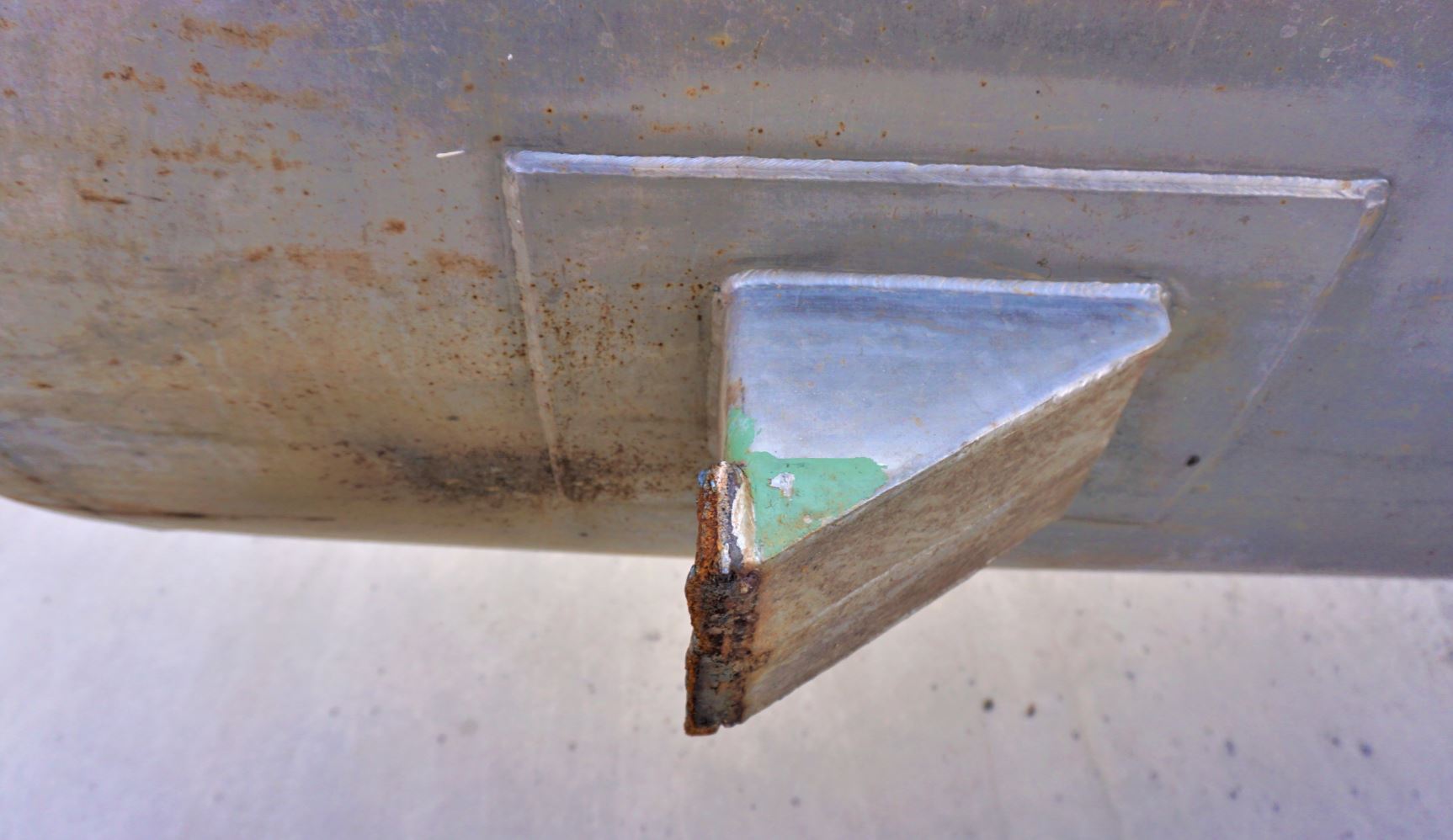

Supports

  • Supports

  • Bracket supports

  • Number of feet

  • 2 (piece)

Fixtures and fittings

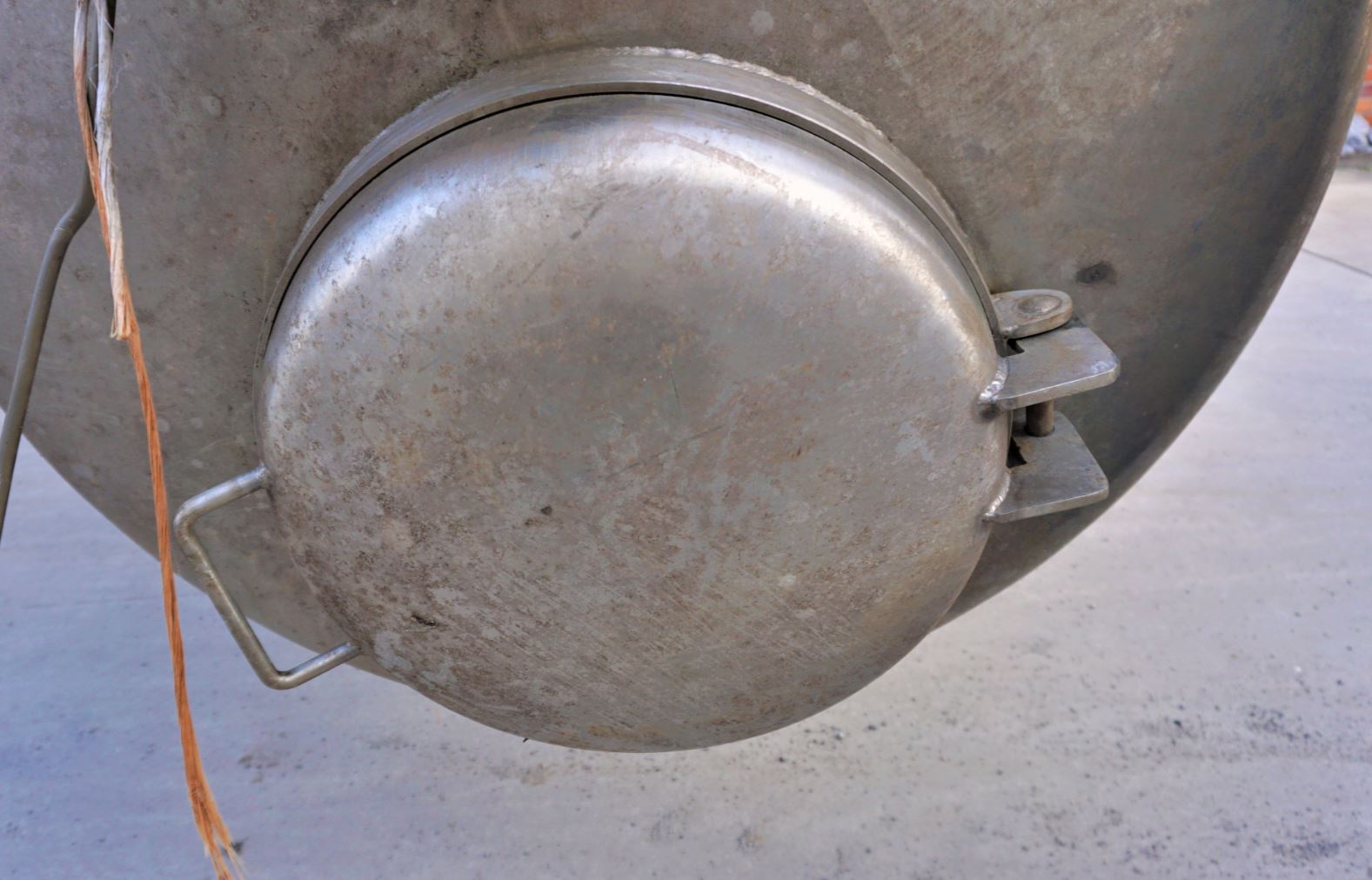

  • Manway 1 size

  • 440 DN mm

  • Manway position

  • In head

  • Outlet nozzle

  • 65

Technical documentation

  • Technical documentation

  • None

Other

  • Note

  • leichte Anhaftungen im Prod.raum

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Mixing tank, CIP tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, CIP tank, Cold water tank,
