Product no. M-2827

Container 1.350 liters made of V4A single-walled, used, standing

EUR 2.100,00

add. 19 % VAT excl. shipping costs


Volume approx. 1,350.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

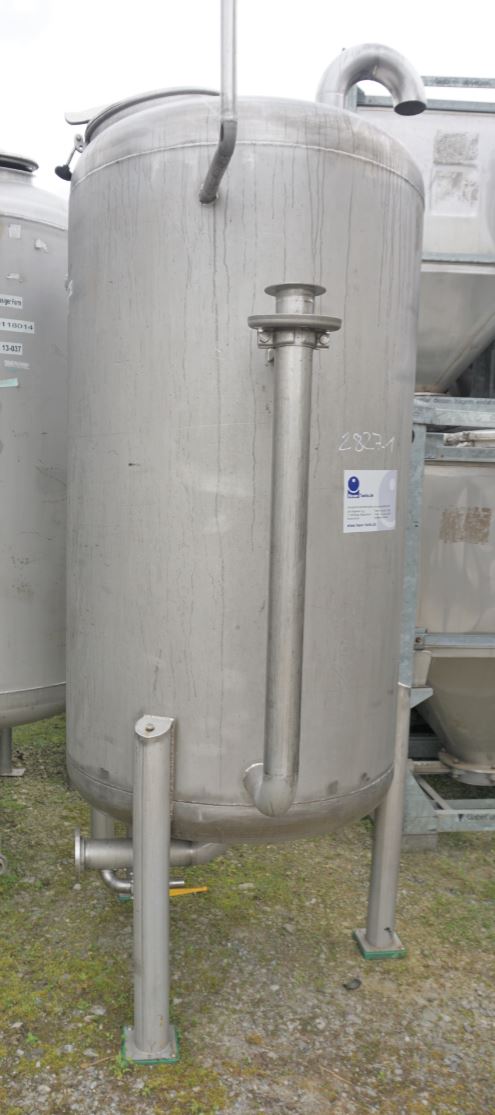

Container 1.350 liters made of V4A single-walled, used consists of the material 1.4571(AISI316) V4A. The volume is approx. 1,350.00 litres.  Container 1.350 liters made of V4A single-walled, used was last used in the following area: Cosmetics. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage,

General

  • Volume approx.

  • 1.350,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 2005

  • Manufacturer

  • CF Maschinenbau Wuppertal

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 1.000 mm

  • Cyl. height

  • 1.500 mm

  • Foot height

  • 670 mm

  • Total height

  • 2.700 mm

Design

  • Weight approx.

  • 400,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

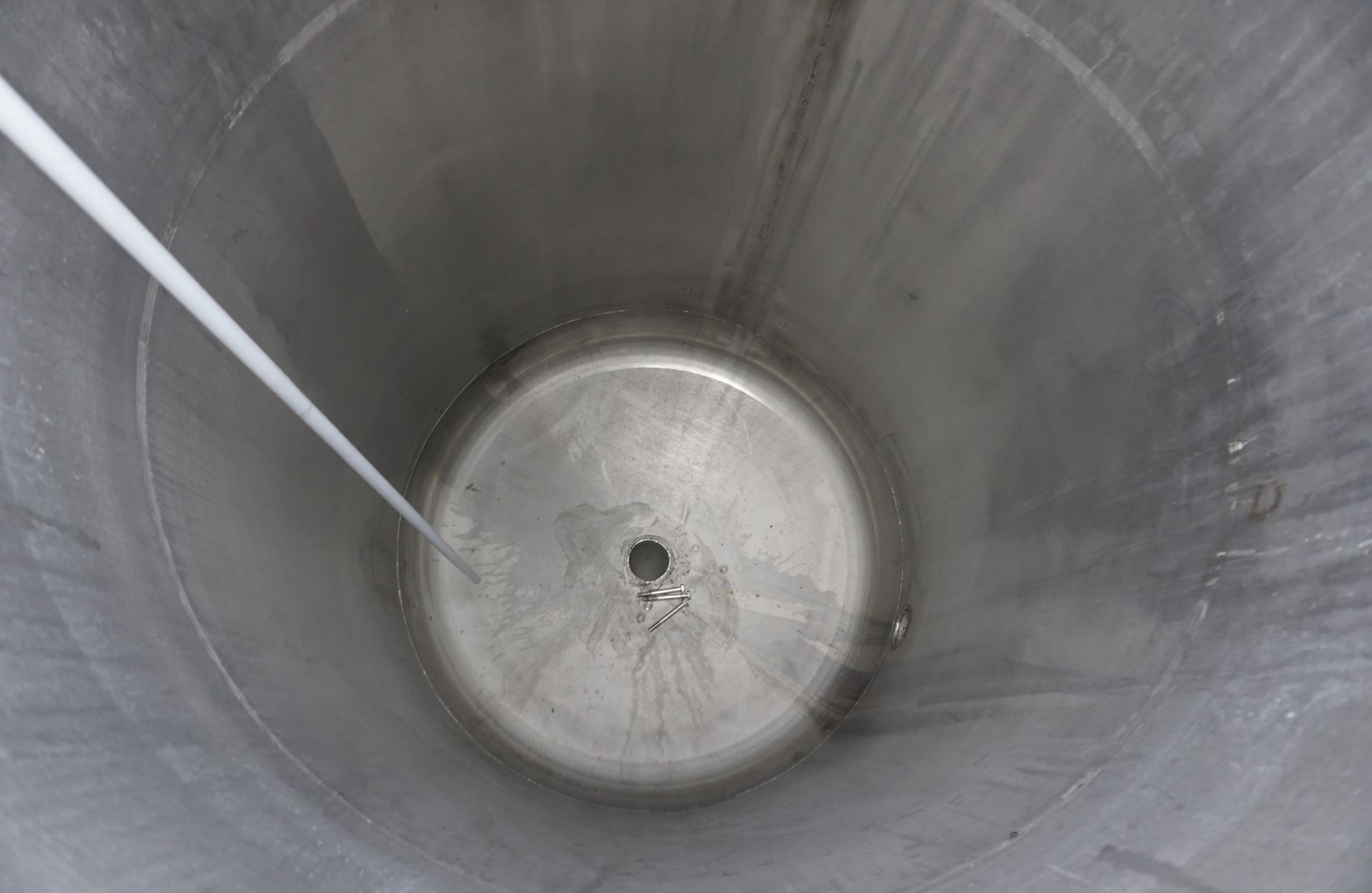

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 0,20 bar

  • Product chamber operating temperature

  • 60,00 °C

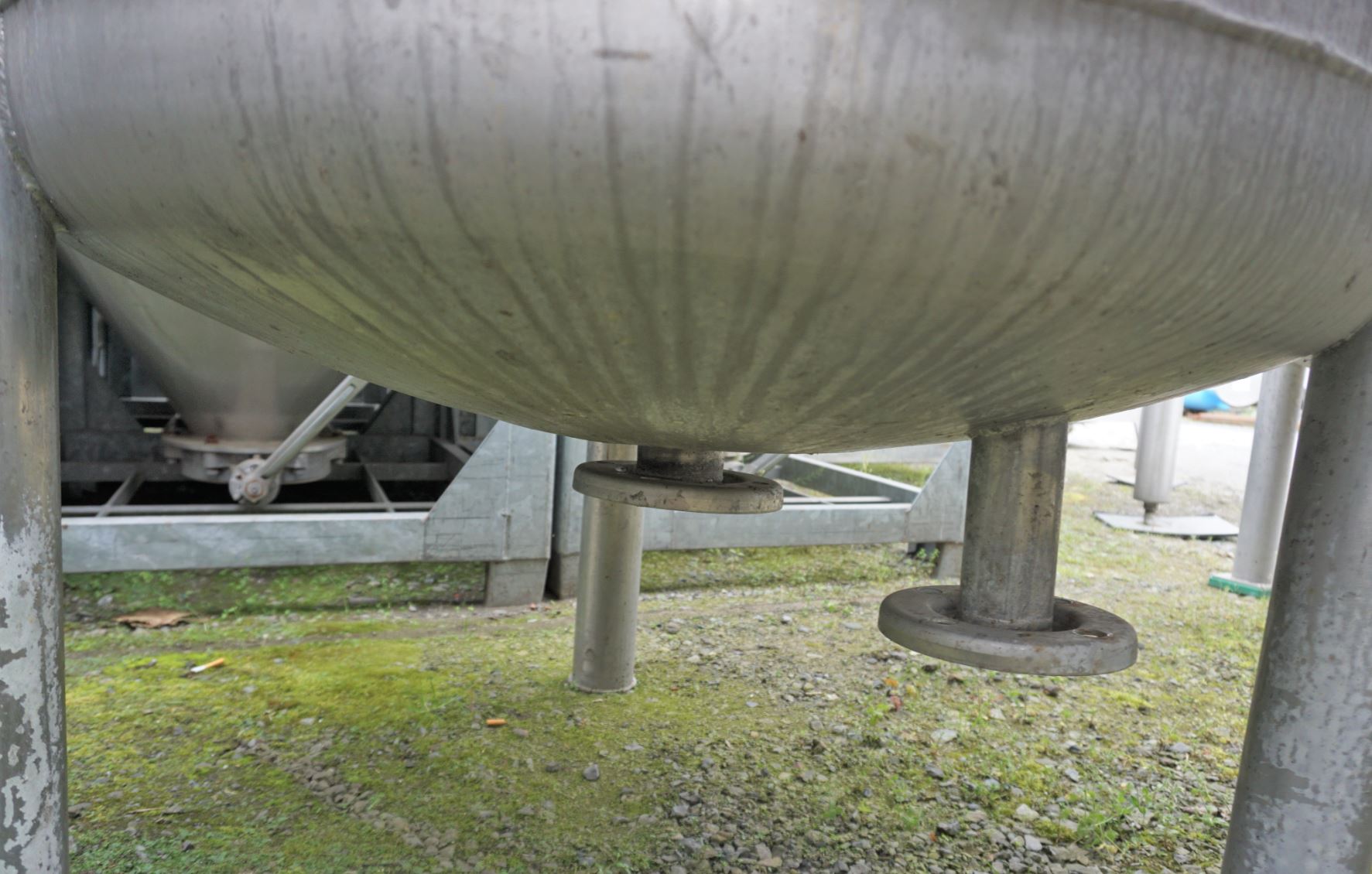

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

  • Note on supports

  • Bei einem Behaelter kleine Beule im Fuss!

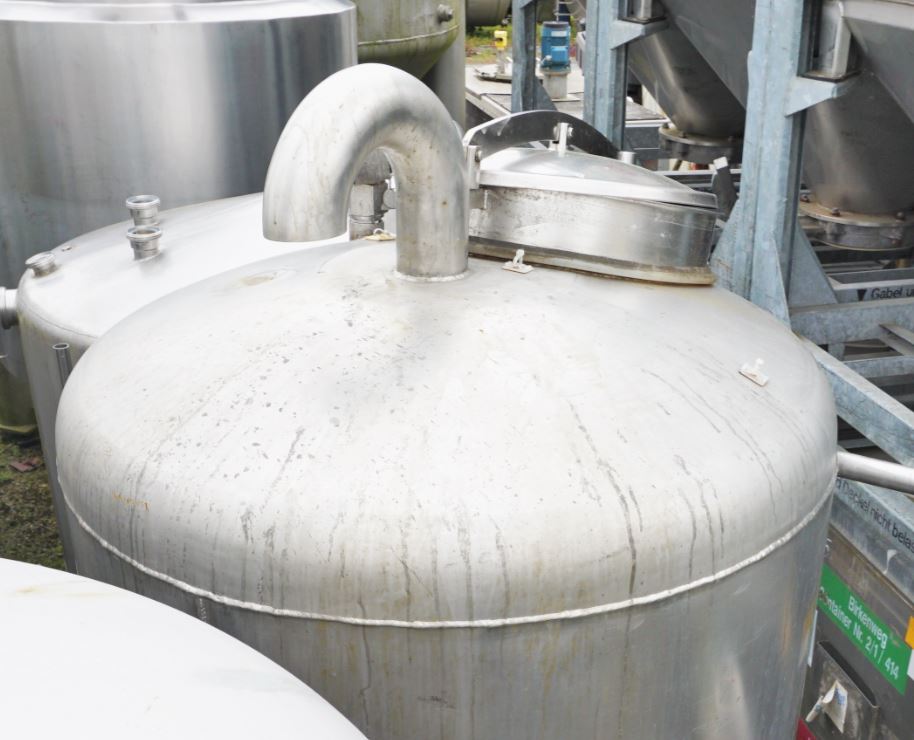

Fixtures and fittings

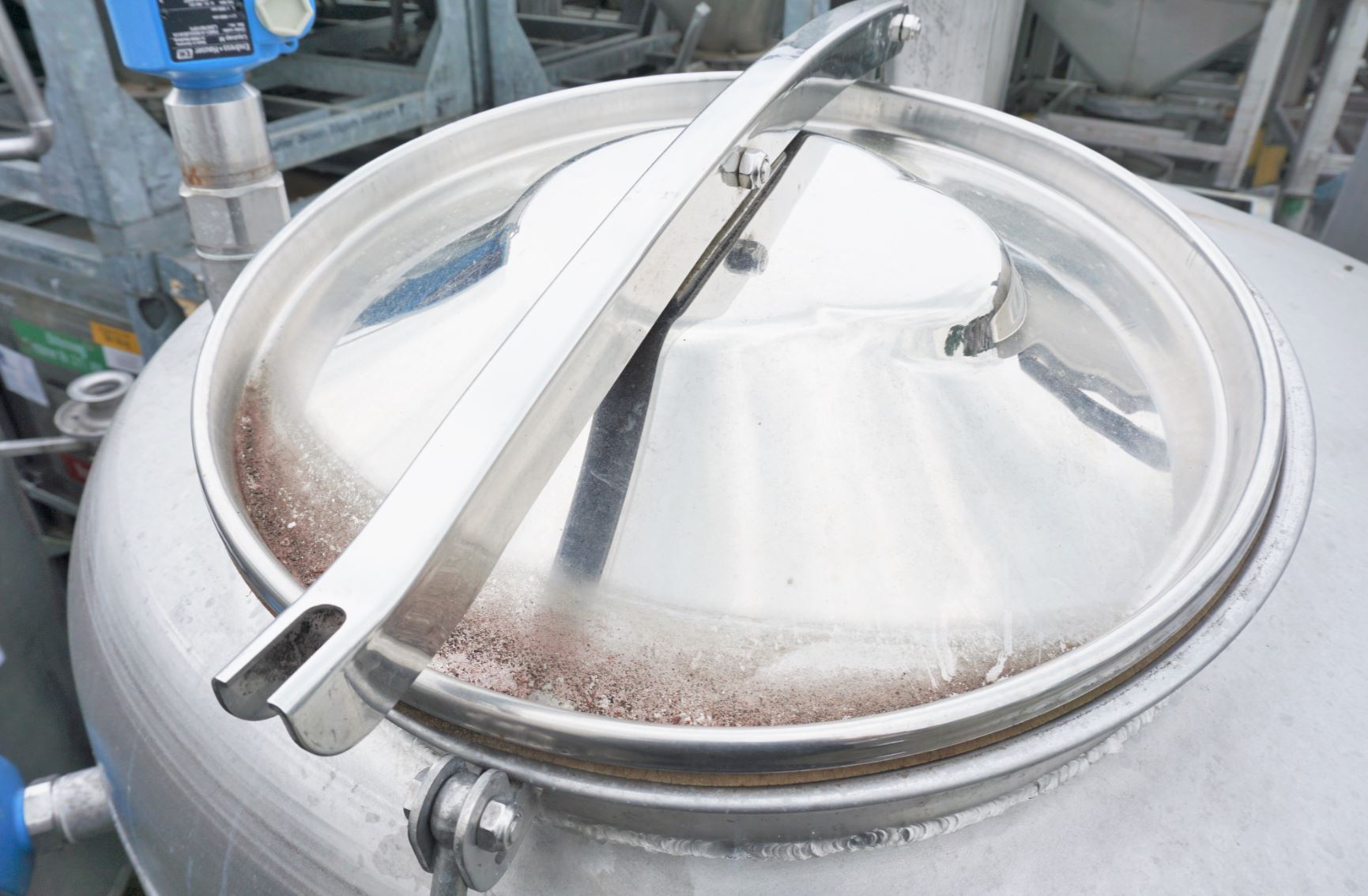

  • Manway 1 size

  • 430 DN mm

  • Manway position

  • In head

  • Nozzle connector

  • Flange

  • Nozzles/connectors in shell

  • 1xDN65 (piece)

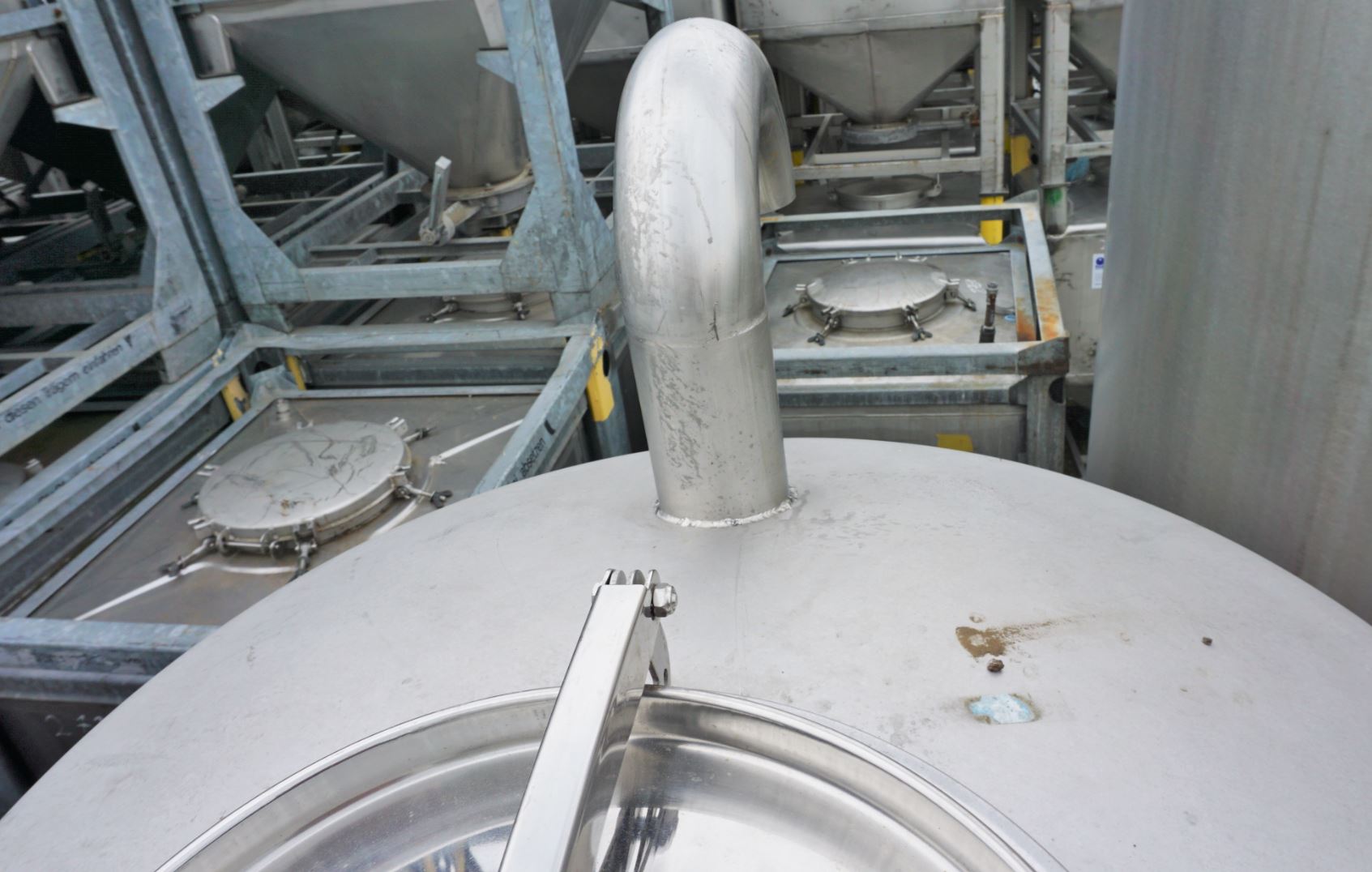

  • Nozzles/connectors in head

  • 1xDN80 (piece)

  • Outlet nozzle

  • 80/50

  • Additional fixtures and fittings

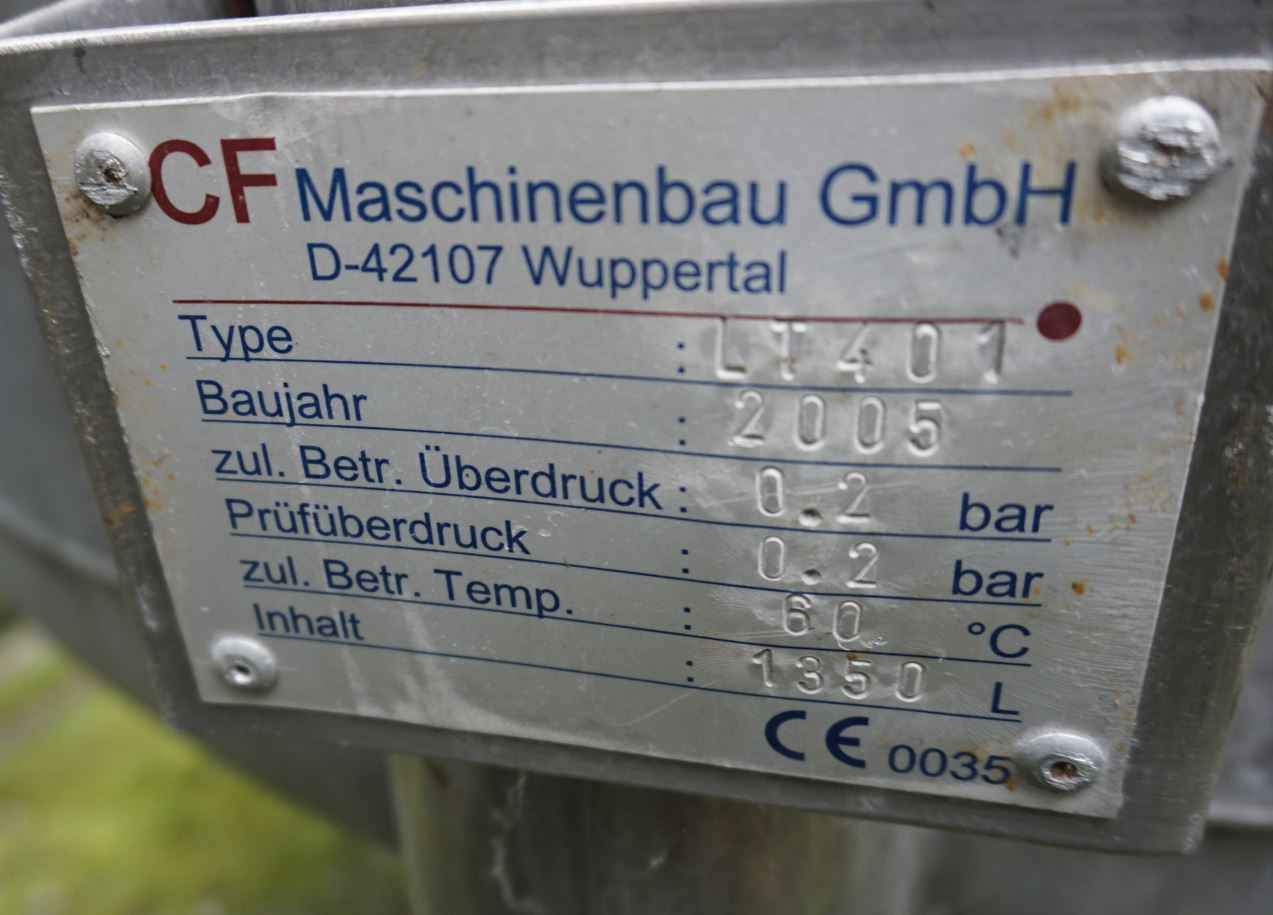

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Note

  • Behälter bauähnlich. 1 Behälter seitlich kleine Beule.

  • Last usage

  • Cosmetics

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Settling tank,
