Product no. M-2793

Container 1.250 liters made of V4A single-walled, used, standing

EUR 3.100,00

add. 19 % VAT excl. shipping costs


Volume approx. 1,250.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

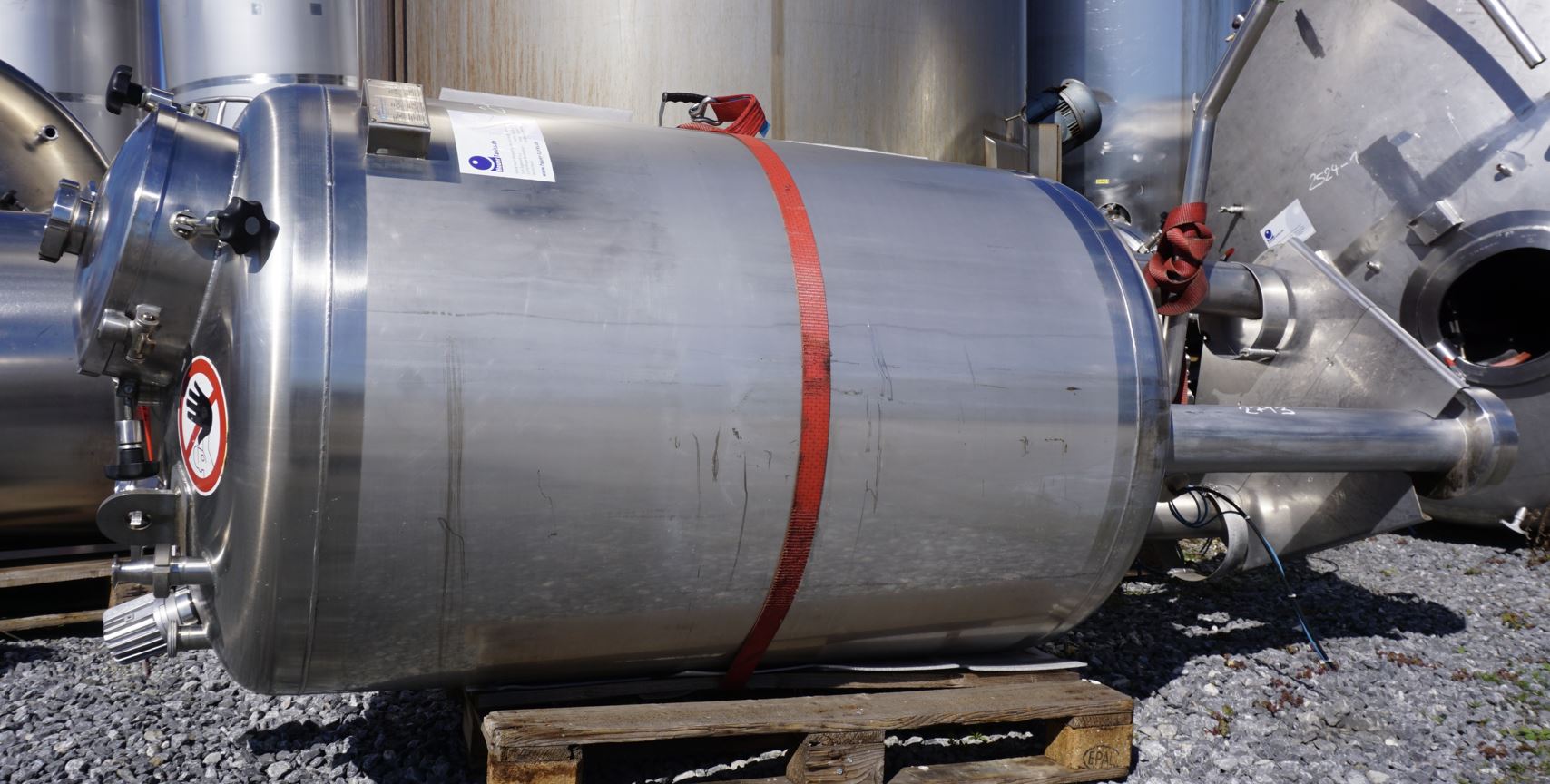

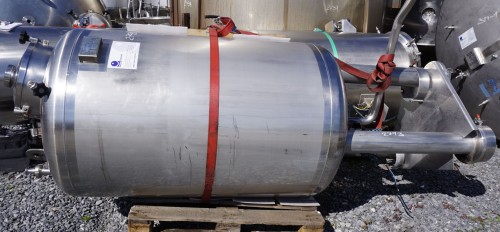

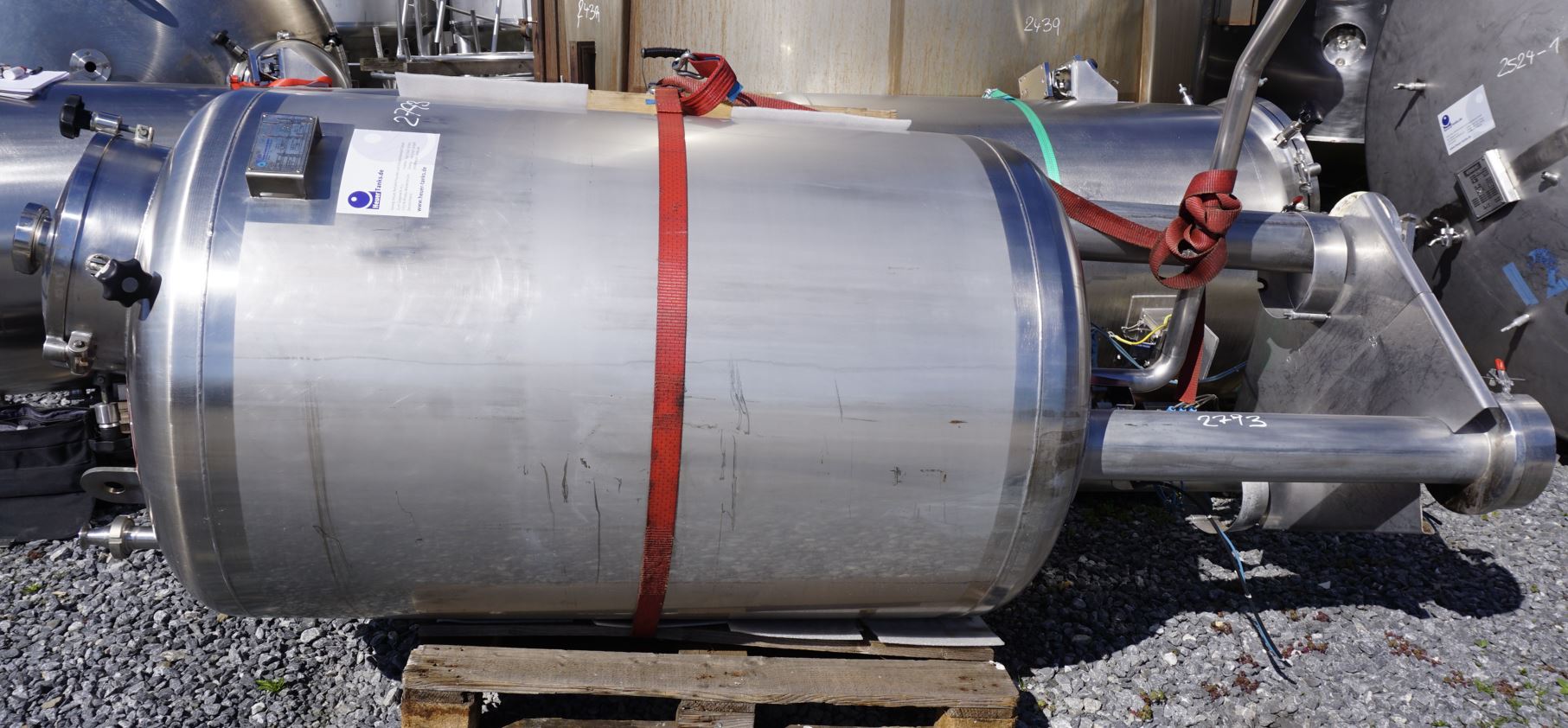

Container 1.250 liters made of V4A single-walled, used consists of the material 1.4401(AISI316) V4A. The volume is approx. 1,250.00 litres.  Container 1.250 liters made of V4A single-walled, used was last used in the following area: Cosmetics. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 1.250,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 2003

  • Manufacturer

  • e&e Verfahrenstechnik

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 1.100 mm

  • Cyl. height

  • 1.400 mm

  • Foot height

  • 1.100 mm

  • Total height

  • 2.900 mm

Design

  • Weight approx.

  • 400,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

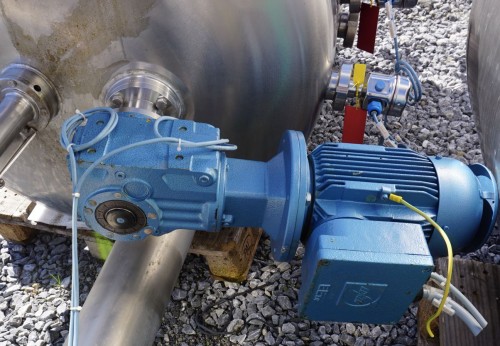

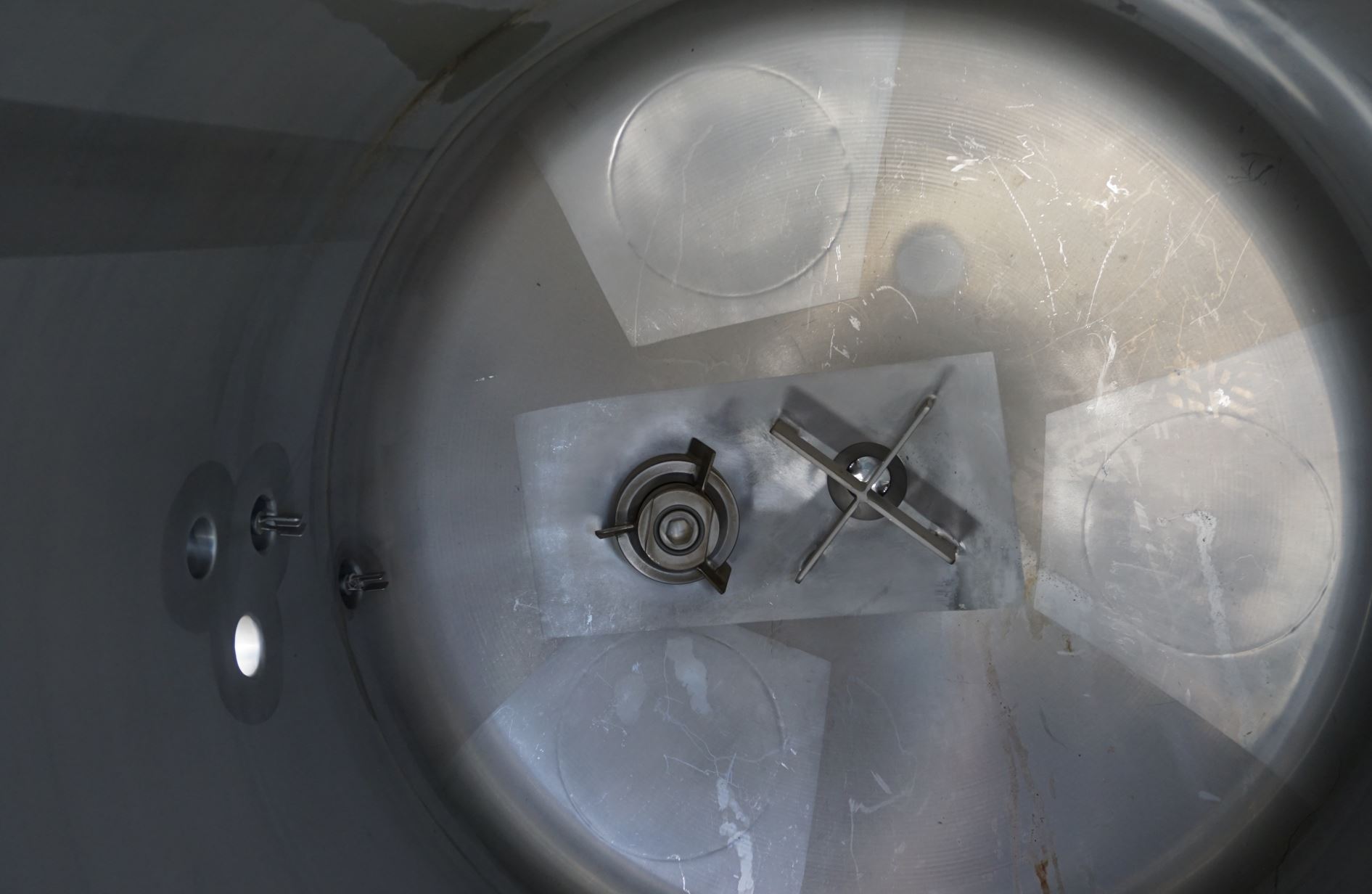

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator position

  • Floor

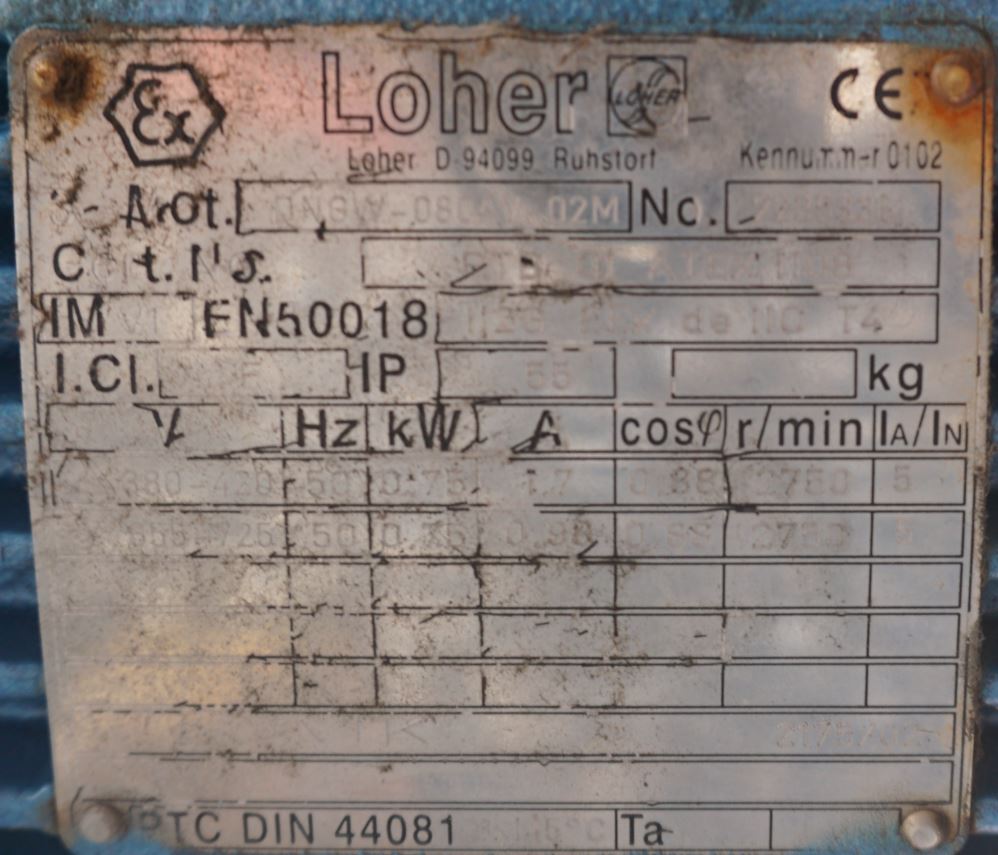

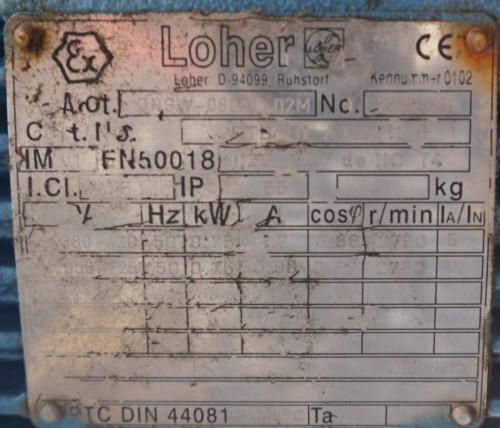

  • Agitator 1 - Output

  • 0,75 kW

  • Agitator 1 - RPM

  • 2750 UpM

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

  • Note on supports

  • ehem. Wiegenfuesse

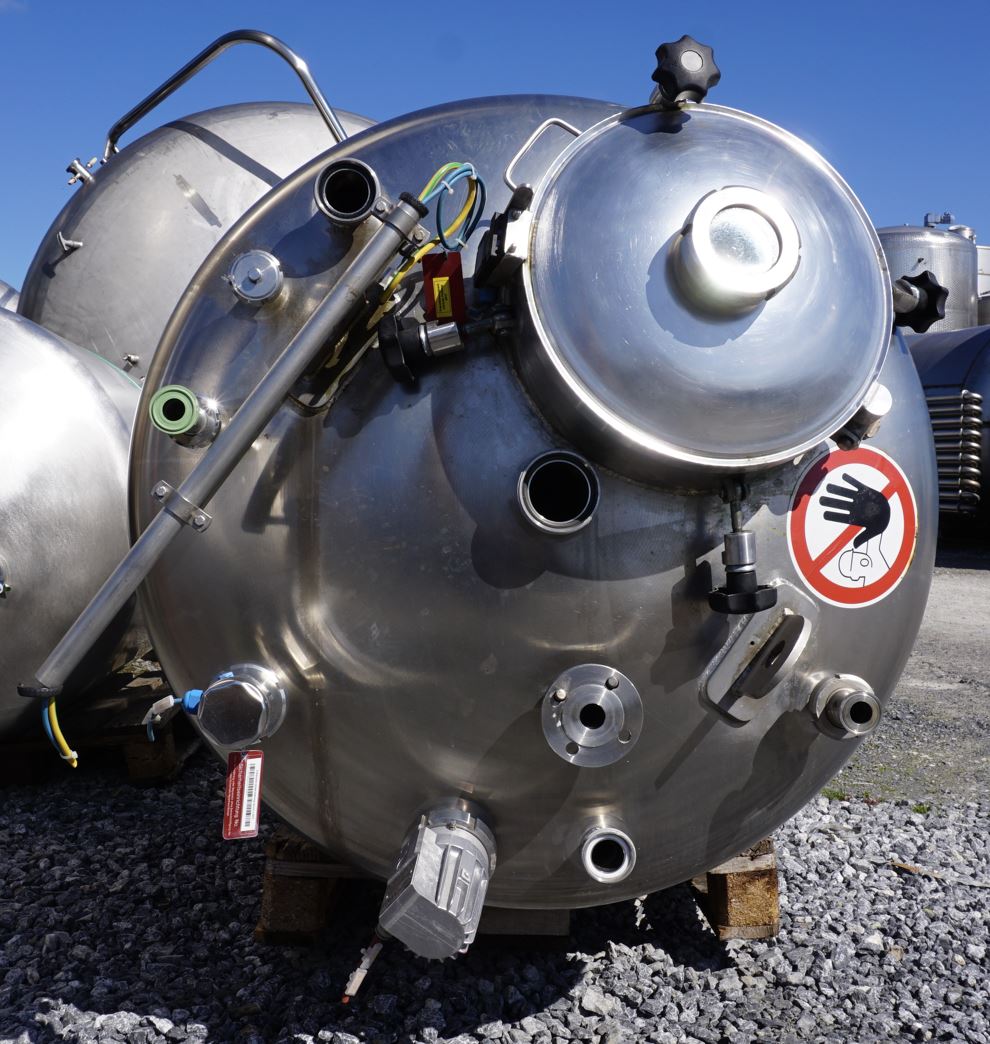

Fixtures and fittings

  • Manway position

  • In head

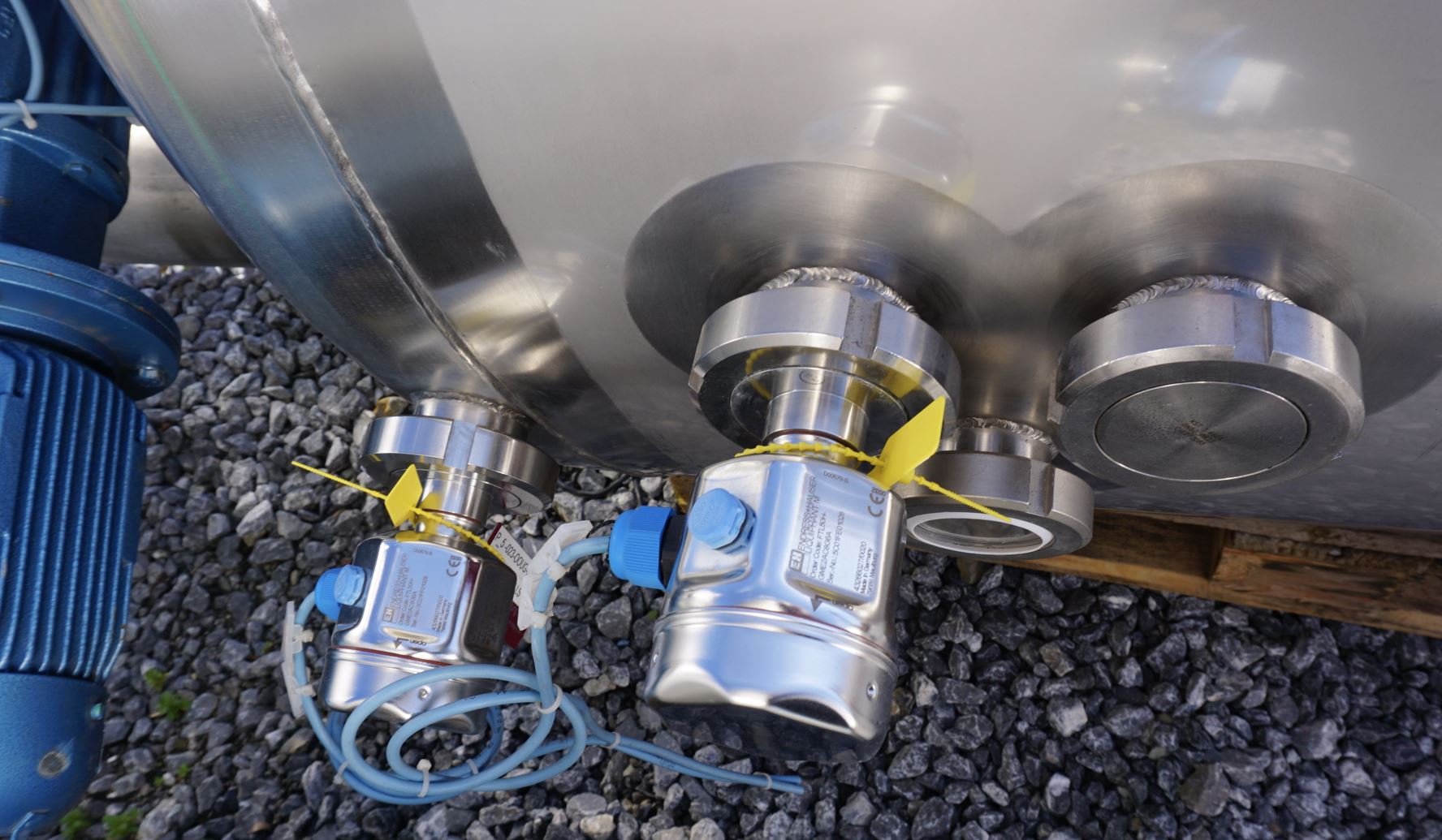

  • Nozzles/connectors in shell

  • 4xDN50 (piece)

  • Nozzles/connectors in head

  • 2xDN50 2xDN40 2xDN32 1xDN65 (piece)

  • Outlet nozzle

  • 50

  • Additional fixtures and fittings

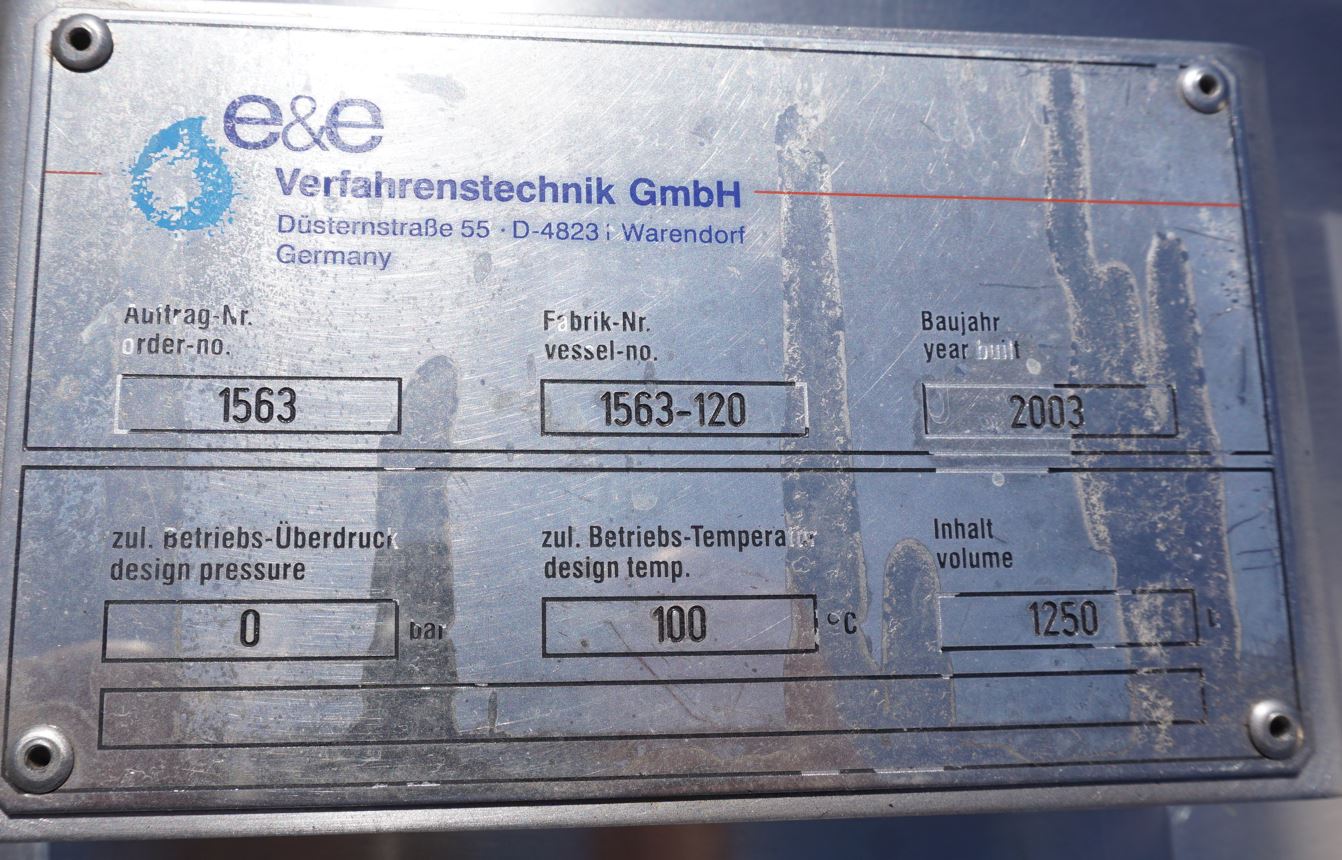

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Cosmetics

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank,

Chemistry and pharmaceuticals : Pharmaceuticals tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Mixing tank, Cold water tank,
