Product no. M-2732

Container 1.200 liters made of V2A, single-walled, used, hanging

EUR 2.200,00

add. 19 % VAT excl. shipping costs


Volume approx. 1,200.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Container 1.200 liters made of V2A, single-walled, used consists of the material 1.4541(AISI321). The volume is approx. 1,200.00 litres.  Container 1.200 liters made of V2A, single-walled, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage,

General

  • Volume approx.

  • 1.200,00 litres

  • Structure

  • Hanging

  • Manufacturer

  • Große-Lohmann KG

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 850 mm

  • Cyl. height

  • 2.000 mm

  • Total height

  • 2.700 mm

Design

  • Weight approx.

  • 400,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Supports

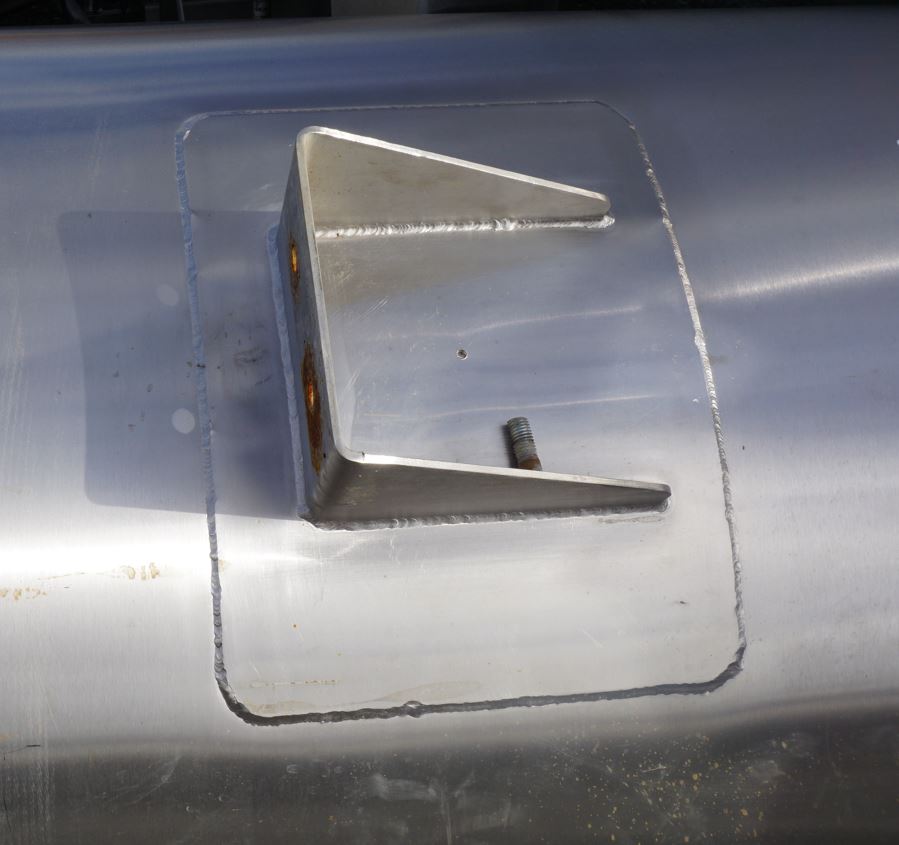

  • Supports

  • Bracket supports

  • Number of feet

  • 2 (piece)

Fixtures and fittings

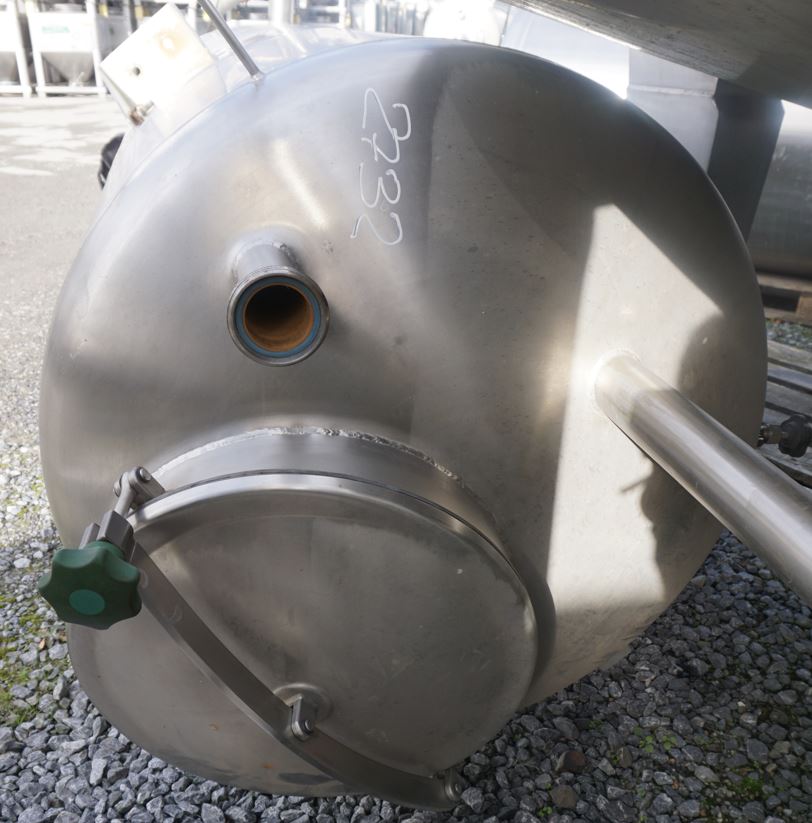

  • Manway position

  • In head

  • Nozzles/connectors in shell

  • 1xDN65 (piece)

  • Nozzles/connectors in head

  • 2xDN50 (piece)

  • Nozzles/connectors in floor

  • 1xDN65 (piece)

  • Outlet nozzle

  • 40

  • Cleaning/CIP nozzle

  • in shell

  • Additional fixtures and fittings

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, CIP tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank, Cold water tank,
