Product no. M-2412

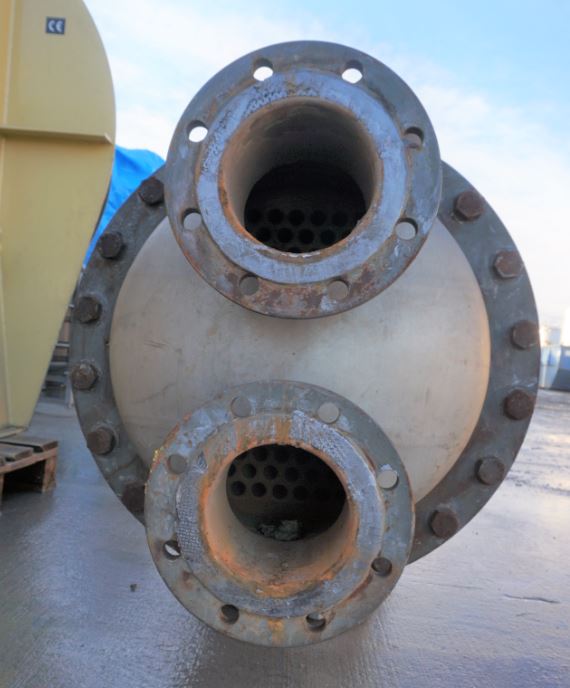

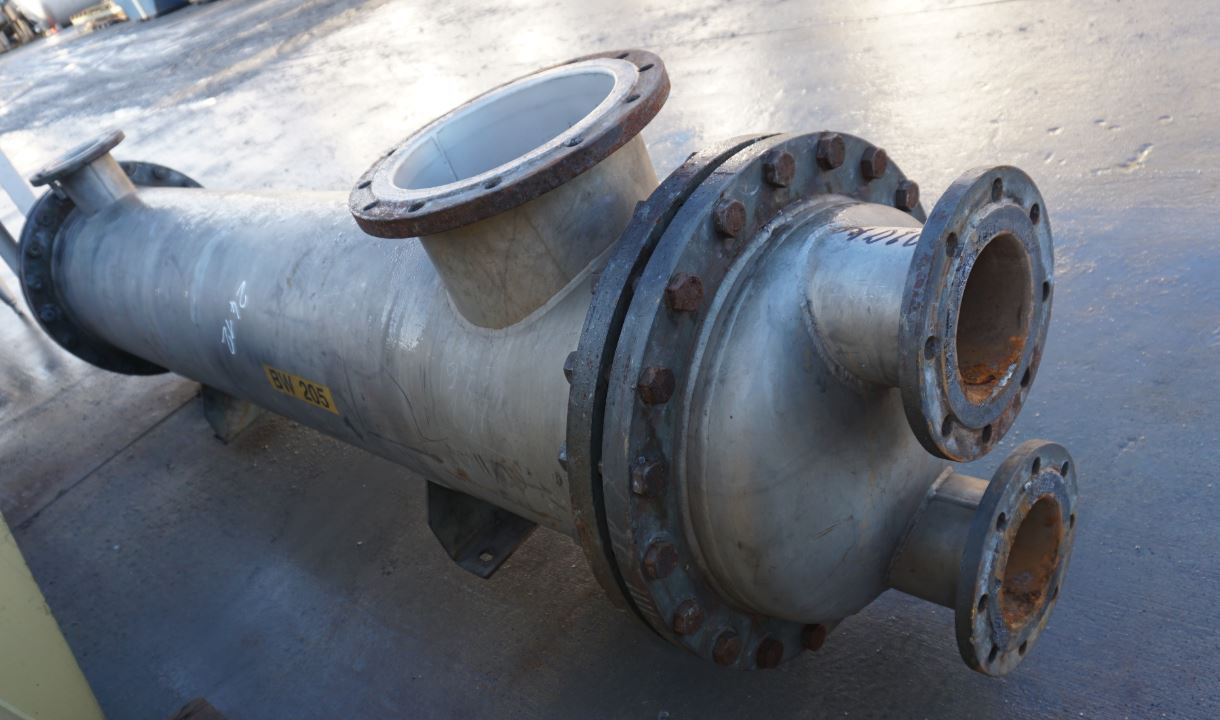

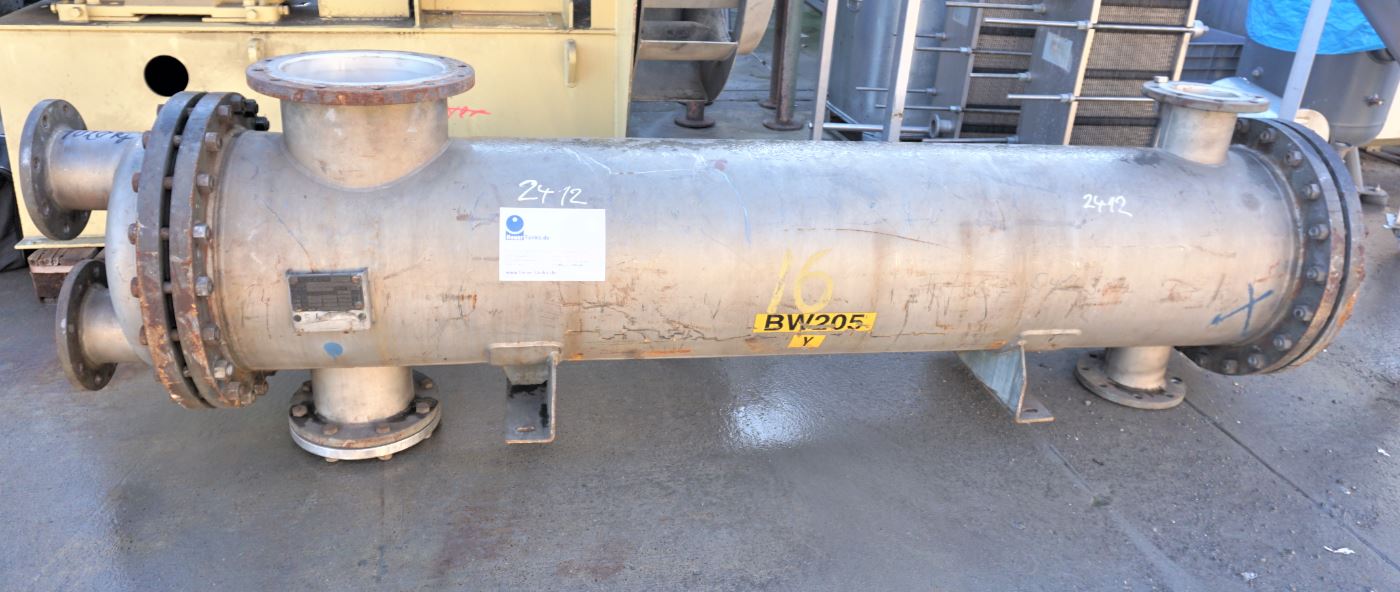

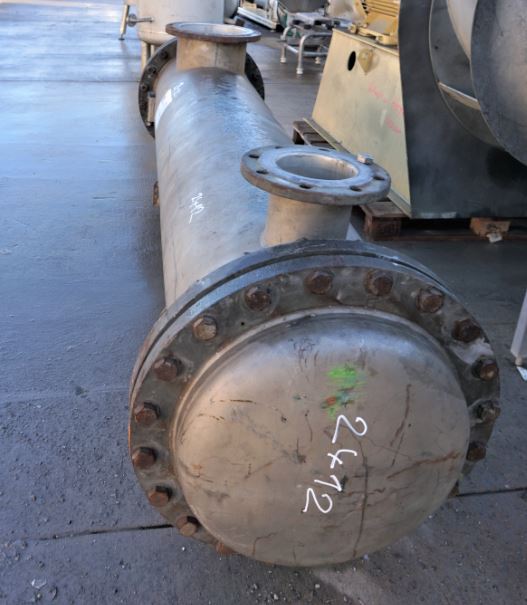

Heat exchanger made of V4A, horizontal

EUR 4.300,00

add. 19 % VAT excl. shipping costs


Volume approx. 310.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Heat exchanger made of V4A consists of the material 1.4571(AISI316) V4A. The volume is approx. 310.00 litres.  Heat exchanger made of V4A was last used in the following area: Chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Tempering,

General

  • Volume approx.

  • 310,00 litres

  • Structure

  • Horizontal

  • Year of manufacture

  • 1978

  • Manufacturer

  • Thies KG

Dimensions approx.

  • External diameter

  • 480 mm

Design

  • Insulation

  • no

  • Product chamber operating over-pressure

  • 6,00 bar

  • Product chamber operating under-pressure

  • -1 bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Interior

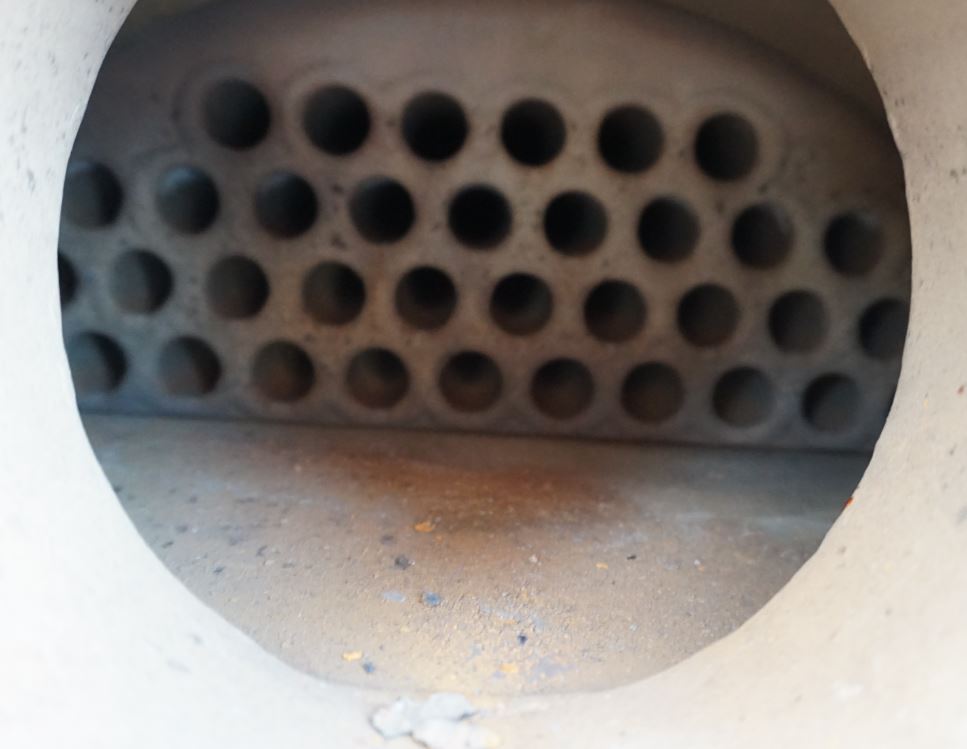

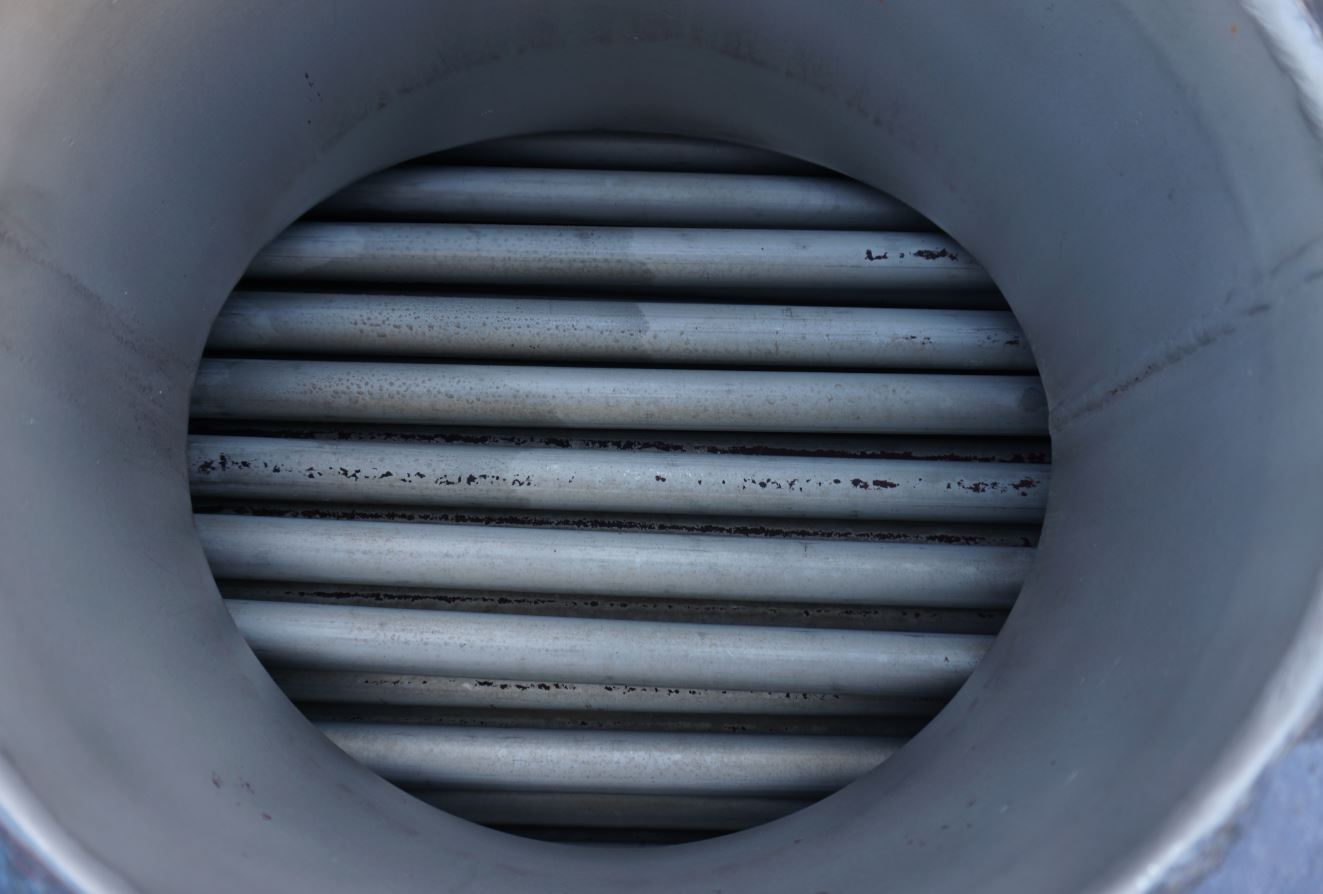

  • Temperature control system

  • Interior pipe coils

  • Operating temperature

  • -10 / 200 °C

  • Temperature control system operating pressure/pipe chamber

  • -1 / 6 bar

  • Temperature control system operating temperature/pipe chamber

  • -10 / 200 °C

  • Temperature control system/pipe chamber capacity

  • 203 litres

Supports

  • Supports

  • Stainless steel storage consoles

  • Number of feet

  • 2 (piece)

Fixtures and fittings

  • Nozzles/connectors in shell

  • 1xDN31 2xDN150 1xDN200 (piece)

  • Nozzles/connectors in floor

  • 2xDN150 (piece)

  • Additional fixtures and fittings

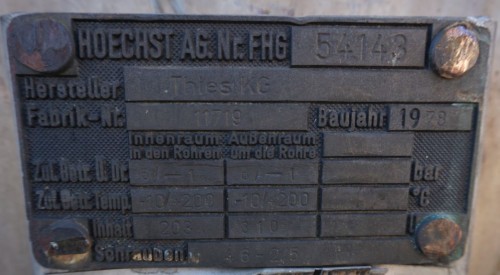

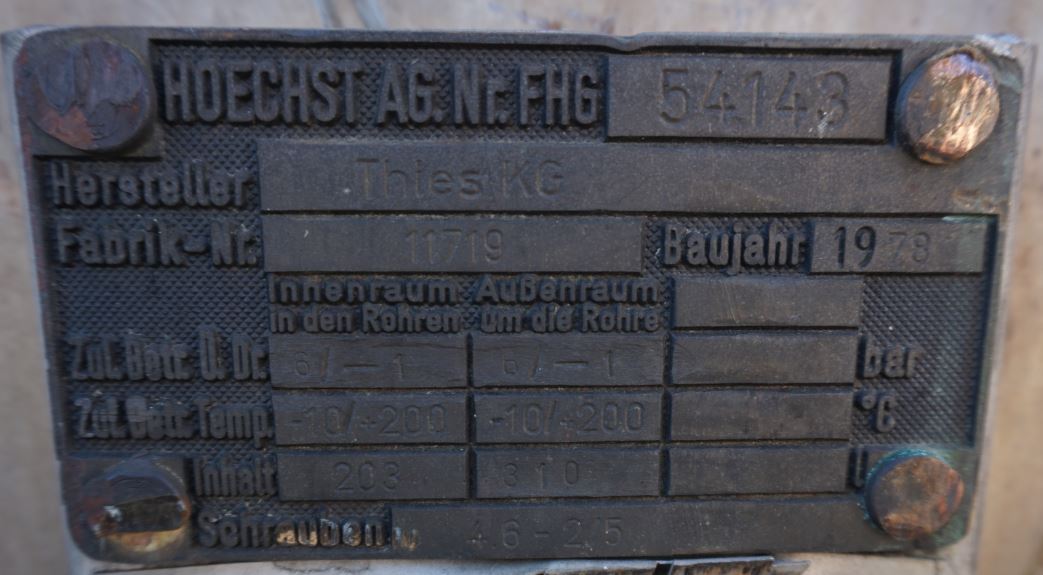

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Chemistry

This product is suitable for use as:

Foodstuffs:

Agriculture:

Chemistry and pharmaceuticals :
