Product no. M-2782

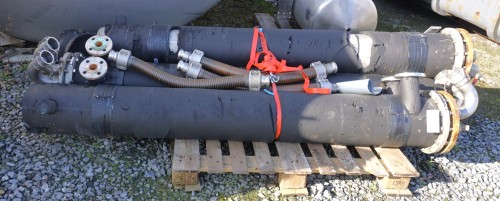

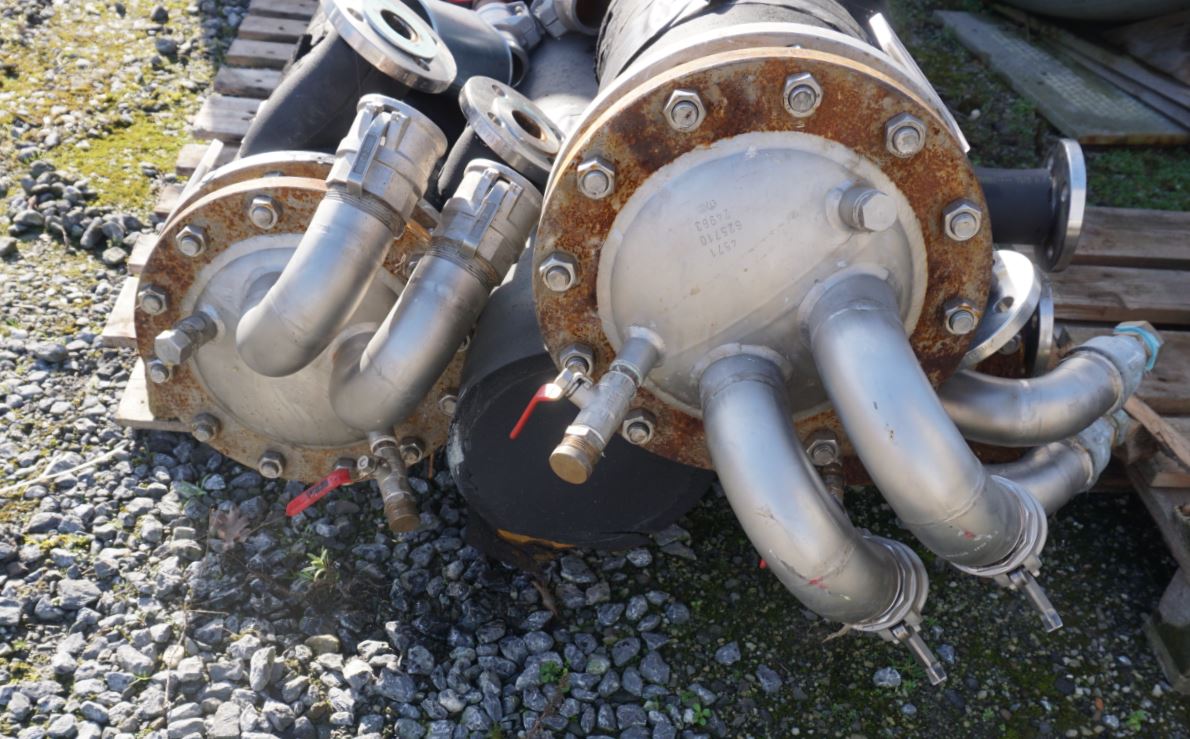

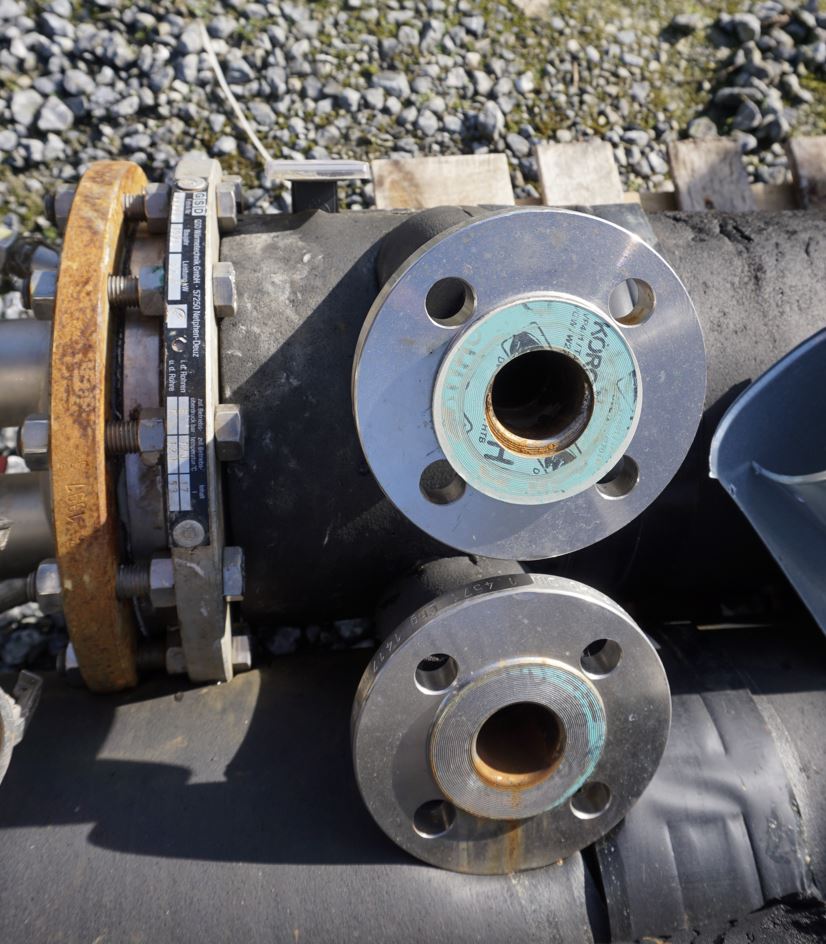

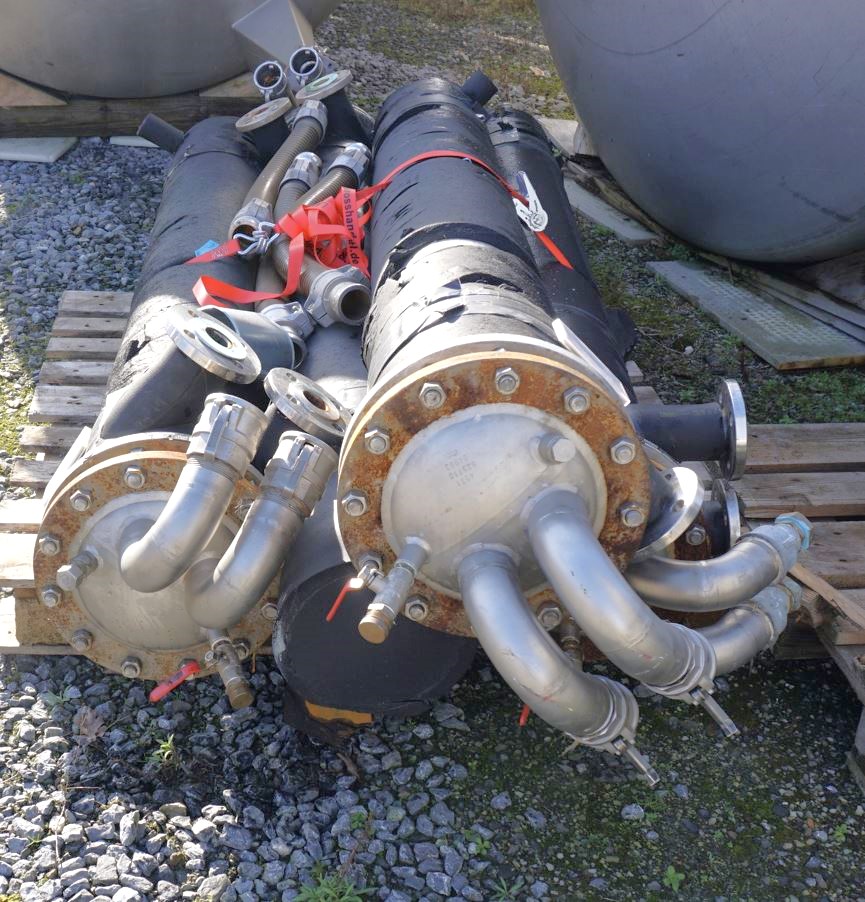

Heat exchanger 32,6 kW made of V4A, used, horizontal

EUR 2.700,00

add. 19 % VAT excl. shipping costs


Volume approx. 53.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

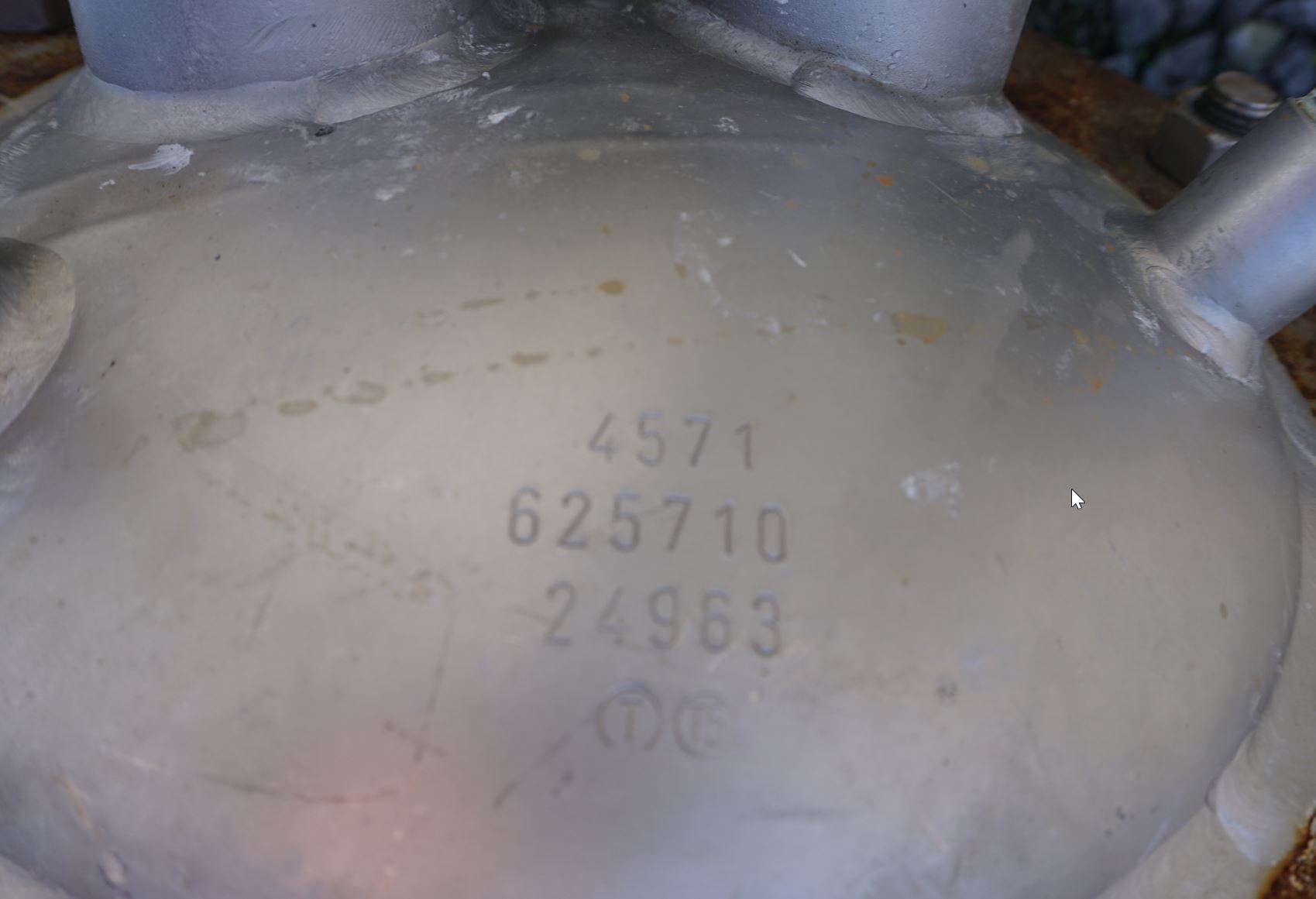

Heat exchanger 32,6 kW made of V4A, used consists of the material 1.4571(AISI316) V4A. The volume is approx. 53.00 litres.  Heat exchanger 32,6 kW made of V4A, used was last used in the following area: Cosmetics. Delivery can take place worldwide.

This product is suitable for the following applications:

Tempering, Under/over-pressure, Processes,

General

  • Volume approx.

  • 53,00 litres

  • Structure

  • Horizontal

  • Year of manufacture

  • 1996

  • Manufacturer

  • GSD Wärmetschnik

  • Condition

  • Used

Dimensions approx.

Design

  • Weight approx.

  • 200,00 kg

  • Insulation

  • yes

  • Product chamber operating over-pressure

  • 6,00 bar

Equipment

  • Temperature-controllable

  • Yes

  • Operating temperature

  • 120 °C

  • Heat exchanger output

  • 32 kW

  • Temperature control system operating pressure/pipe chamber

  • 6,0 bar

  • Temperature control system operating temperature/pipe chamber

  • 120 °C

  • Temperature control system/pipe chamber capacity

  • 17 litres

Fixtures and fittings

  • Additional fixtures and fittings

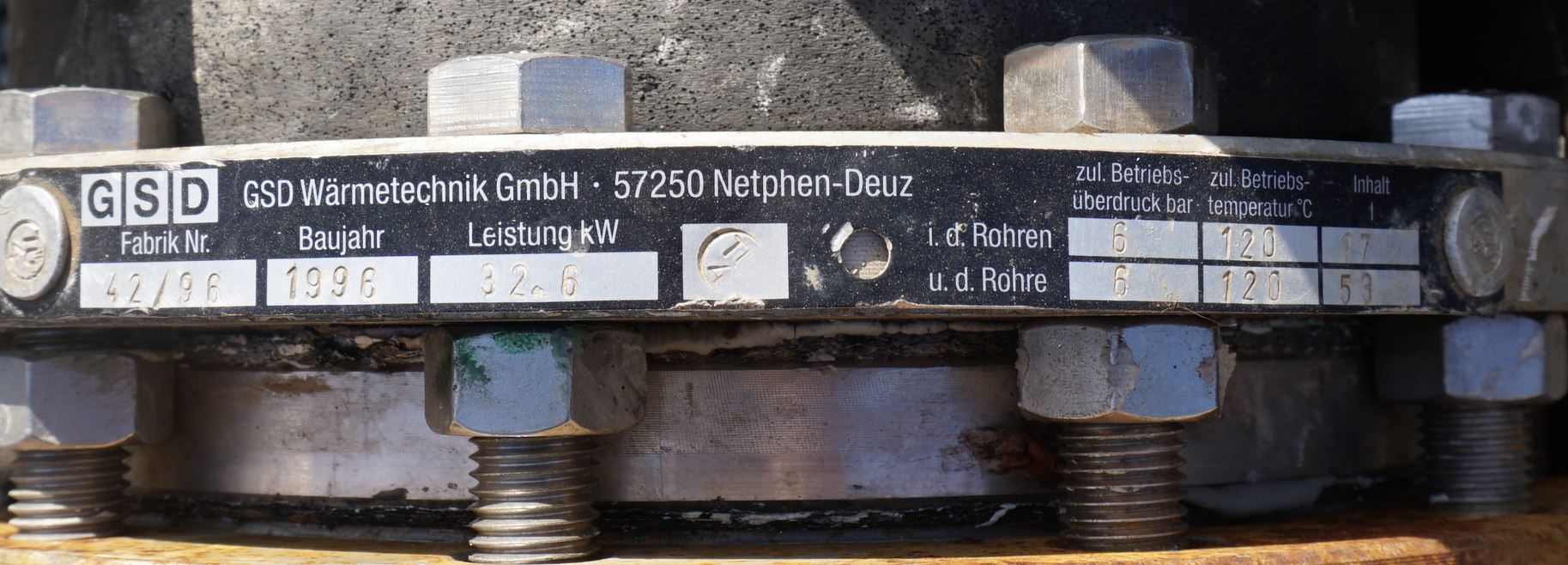

  • Nameplate

Other

  • Last usage

  • Cosmetics

This product is suitable for use as:

Foodstuffs:

Agriculture:

Chemistry and pharmaceuticals :
