Rohrbündelwärmetauscher / Kondensator aus V4A, gebraucht
Rohrbündelwärmetauscher / Kondensator aus V4A, gebraucht

Product no. M-3022

Bundle of pipeswärmetauscher / Kondensator made of V4A, used,

EUR 2.900,00

add. 19 % VAT excl. shipping costs

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Bundle of pipeswärmetauscher / Kondensator made of V4A, used consists of the material 1.4571(AISI316) V4A. The volume is approx. 0.00 litres.  Bundle of pipeswärmetauscher / Kondensator made of V4A, used was last used in the following area: Chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Tempering, Under/over-pressure,

General

  • Volume approx.

  • 0,00 litres

  • Year of manufacture

  • 1997

  • Manufacturer

  • Friedrich Gruber GmbH

Dimensions approx.

  • External diameter

  • 219 mm

  • Cyl. height

  • 1.735 mm

  • Total height

  • 2.040 mm

  • Wall thickness of product chamber head

  • 4,00 mm

  • Wall thickness of product chamber shell

  • 4,00 mm

  • Wall thickness of product chamber floor

  • 4,00 mm

Design

  • Weight approx.

  • 145,00 kg

  • Insulation

  • no

  • Product chamber operating over-pressure

  • 6,30 bar

  • Product chamber operating under-pressure

  • -1 bar

  • Product chamber operating temperature

  • 250,00 °C

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Interior

  • Operating pressure

  • 6,30 bar

  • Operating temperature

  • 250 °C

  • Temperature control system operating pressure/pipe chamber

  • 6,3 bar

  • Temperature control system operating temperature/pipe chamber

  • 250 °C

  • Temperature control system/pipe chamber capacity

  • 28 litres

Supports

  • Supports

  • Bracket supports

  • Number of feet

  • 2 (piece)

Fixtures and fittings

  • Additional fixtures and fittings

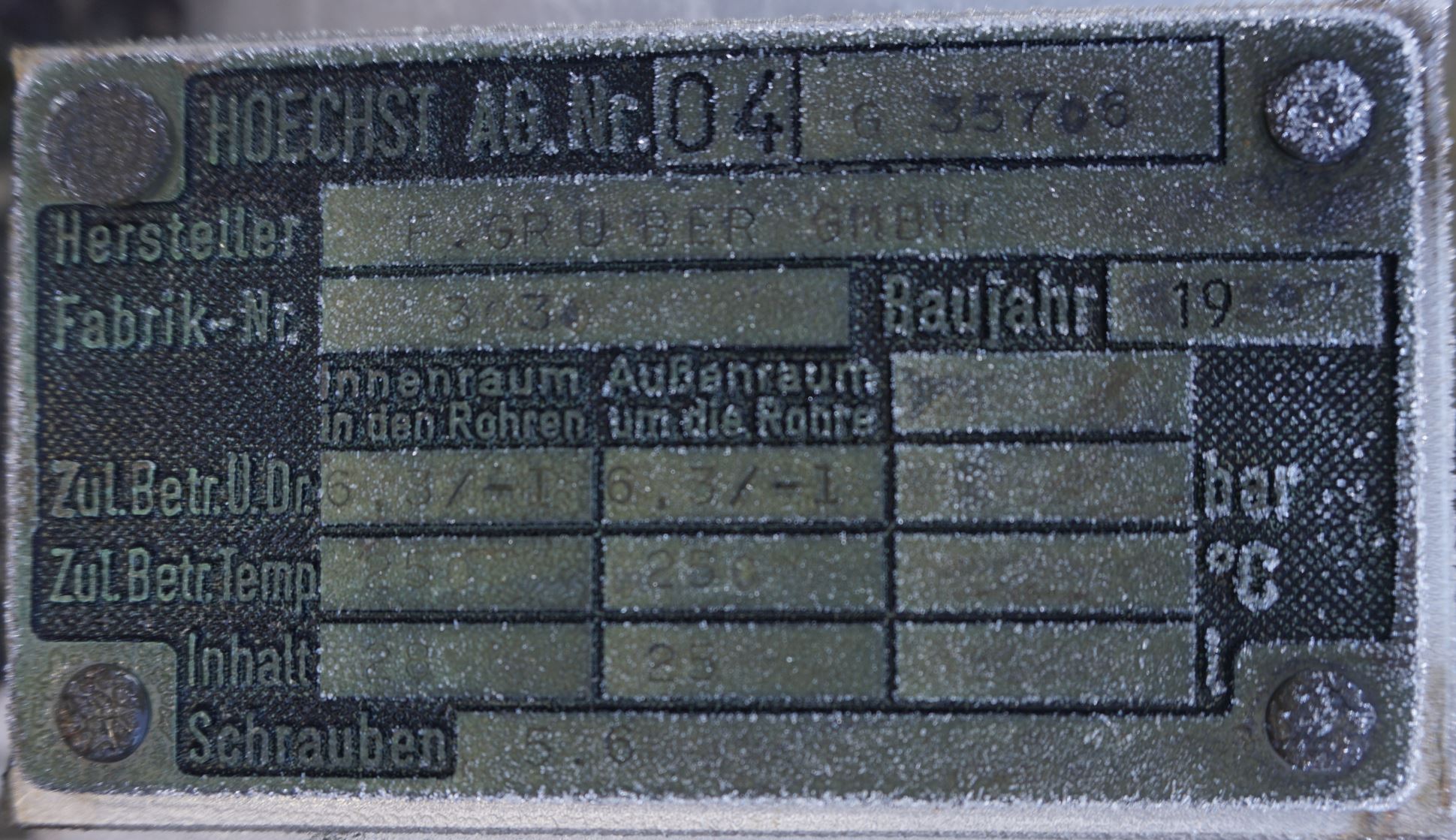

  • Nameplate

Technical documentation

  • Technical documentation

  • Designation

  • Pressure test certificate

Other

  • Last usage

  • Chemistry

This product is suitable for use as:

Foodstuffs:

Agriculture:

Chemistry and pharmaceuticals :
