Product no. M-2822

Container 1.000 liters made of V4A single-walled, used, standing

EUR 1.200,00

add. 19 % VAT excl. shipping costs


Volume approx. 1,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

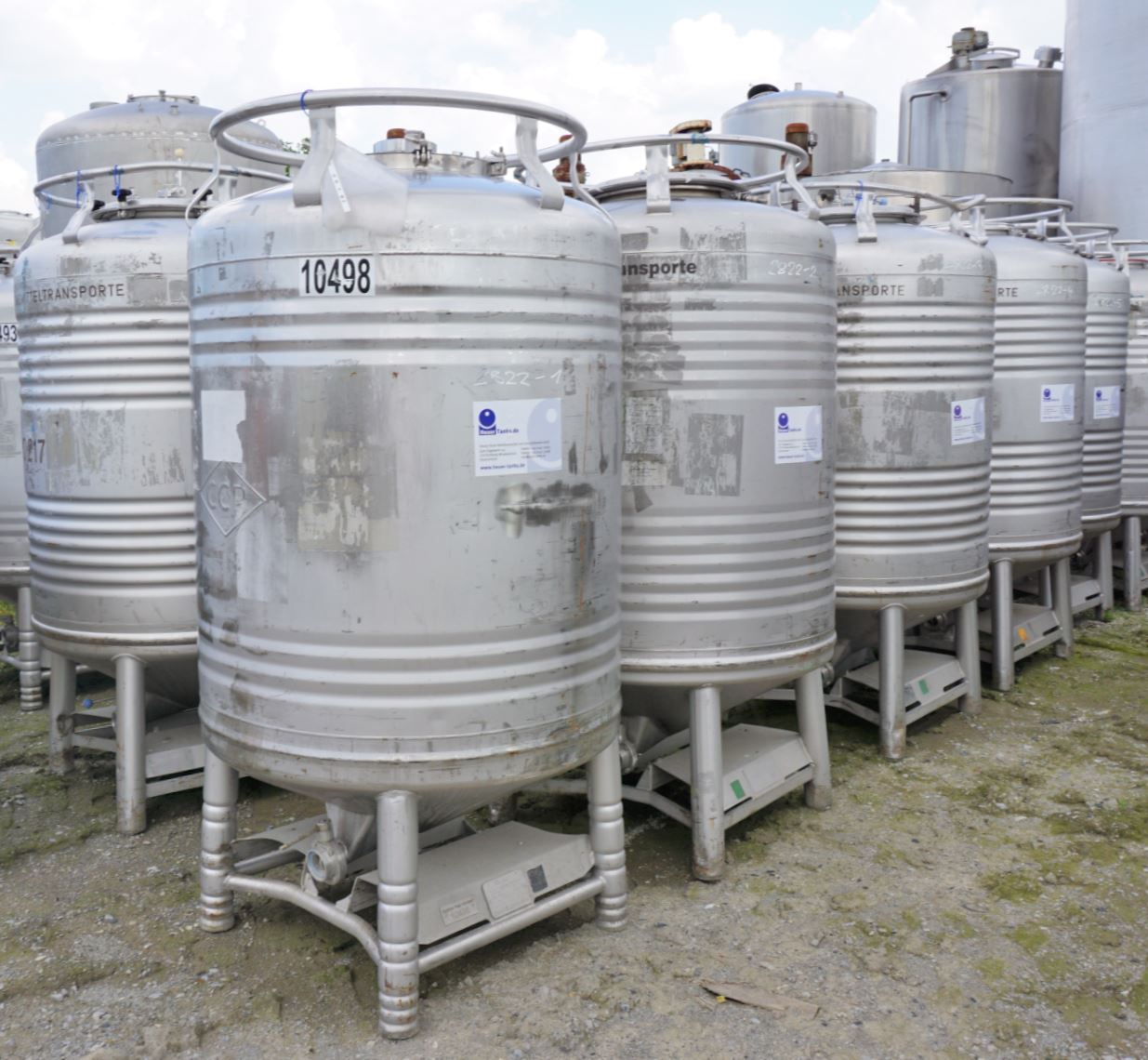

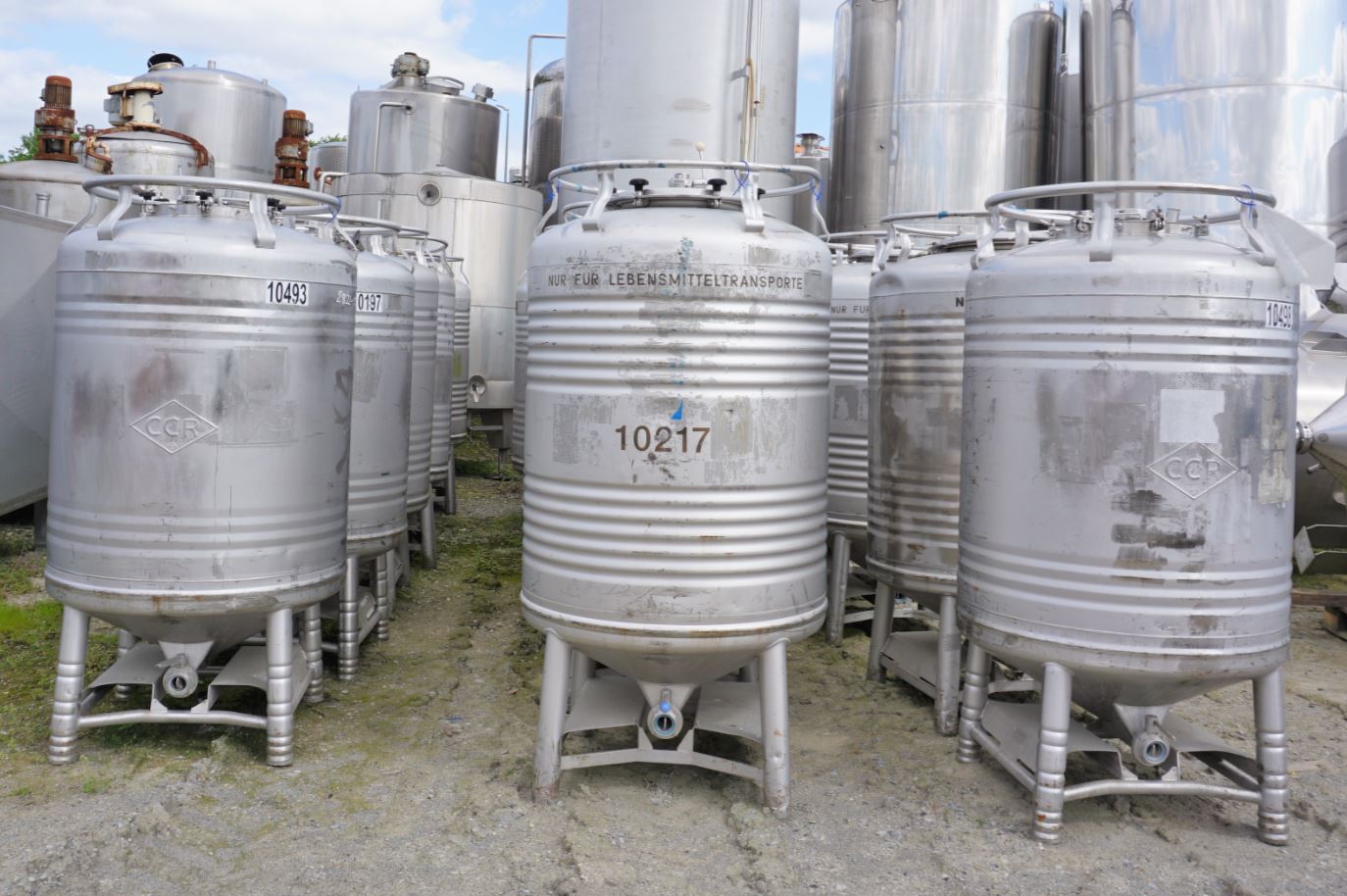

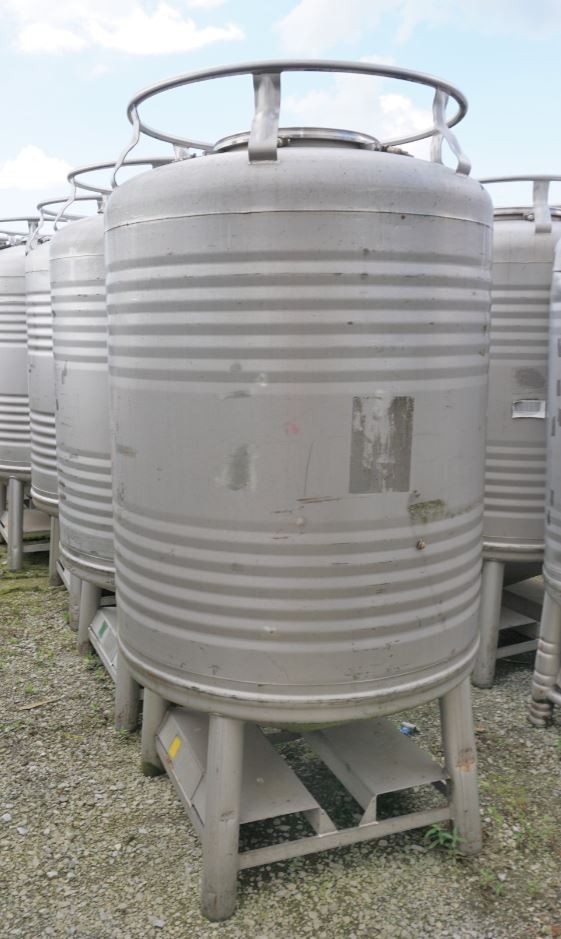

Container 1.000 liters made of V4A single-walled, used consists of the material 1.4571(AISI316) V4A. The volume is approx. 1,000.00 litres.  Container 1.000 liters made of V4A single-walled, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Under/over-pressure,

General

  • Volume approx.

  • 1.000,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 2009

  • Manufacturer

  • Ucon

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 950 mm

  • Cyl. height

  • 1.000 mm

  • Total height

  • 1.900 mm

Design

  • Weight approx.

  • 136,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Interior surface

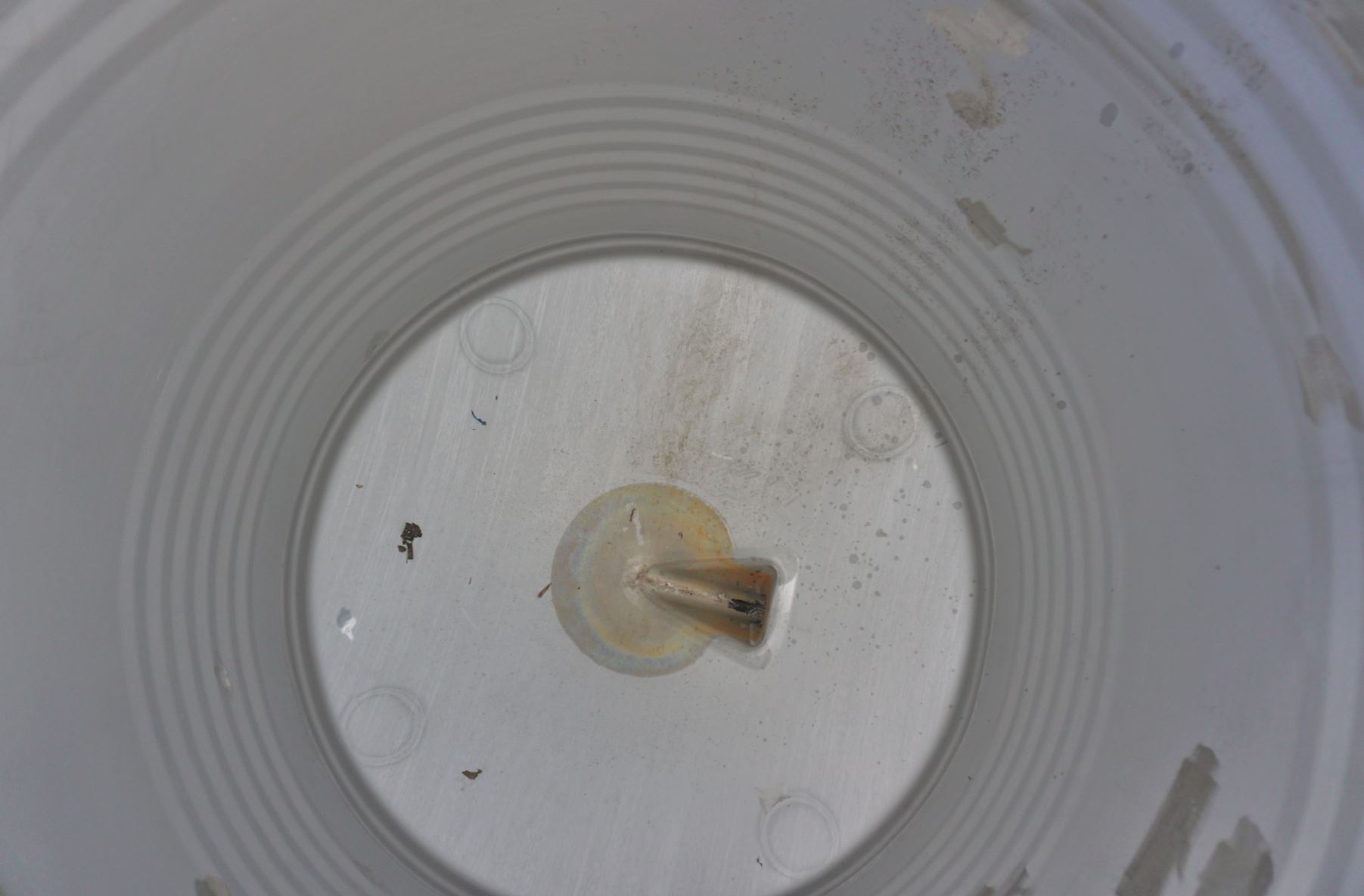

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

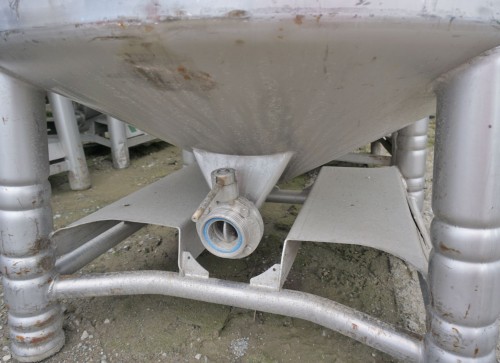

  • Conical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 1,00 bar

Supports

  • Supports

  • Stainless steel feet with undercarriage

  • Number of feet

  • 4 (piece)

Fixtures and fittings

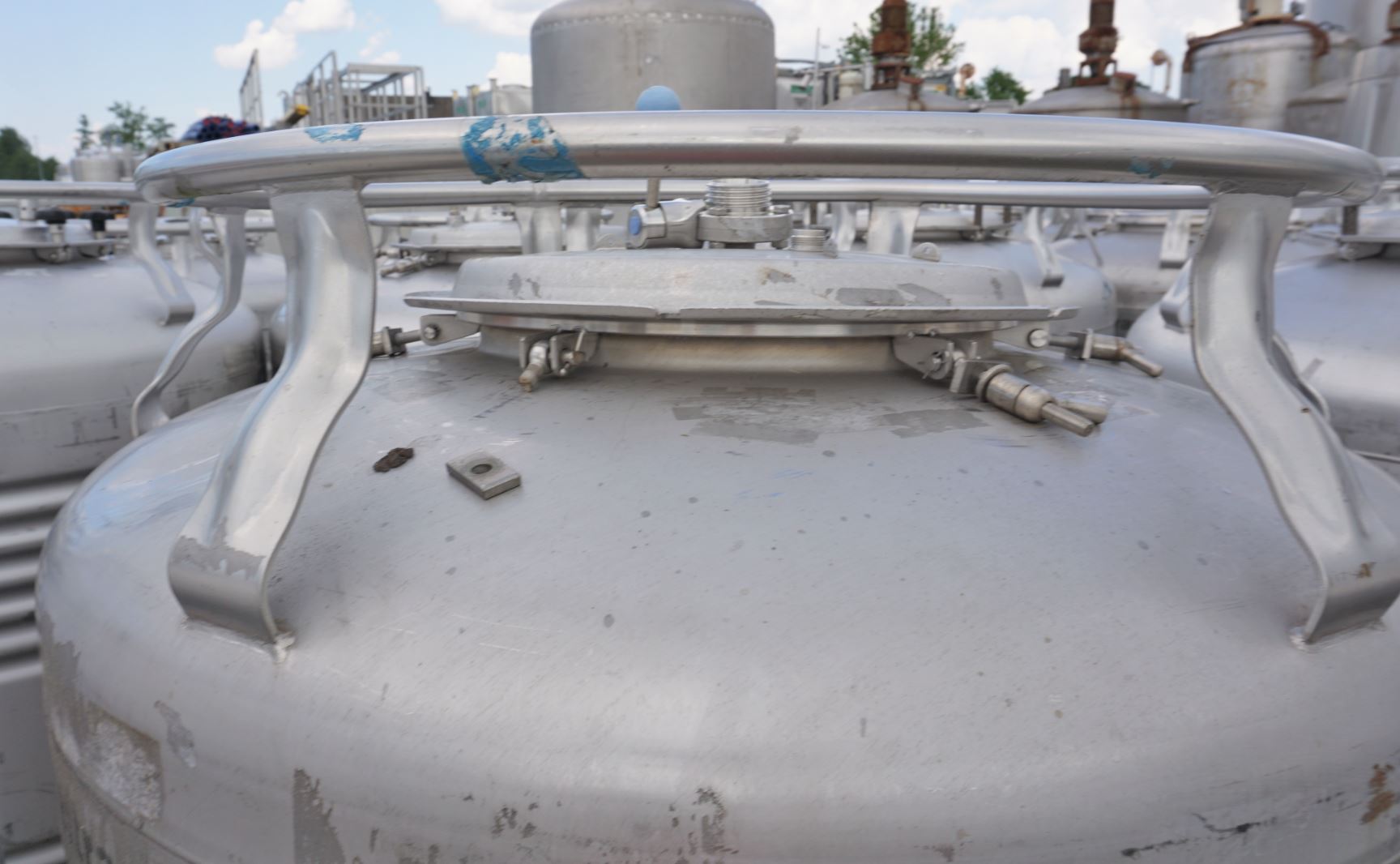

  • Manway 1 size

  • 400 DN mm

  • Manway position

  • In head

  • Outlet nozzle

  • 50

  • Additional fixtures and fittings

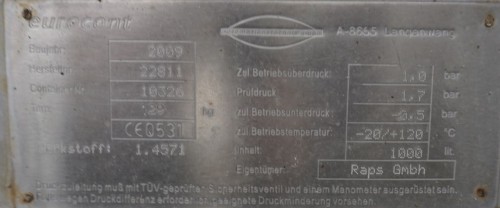

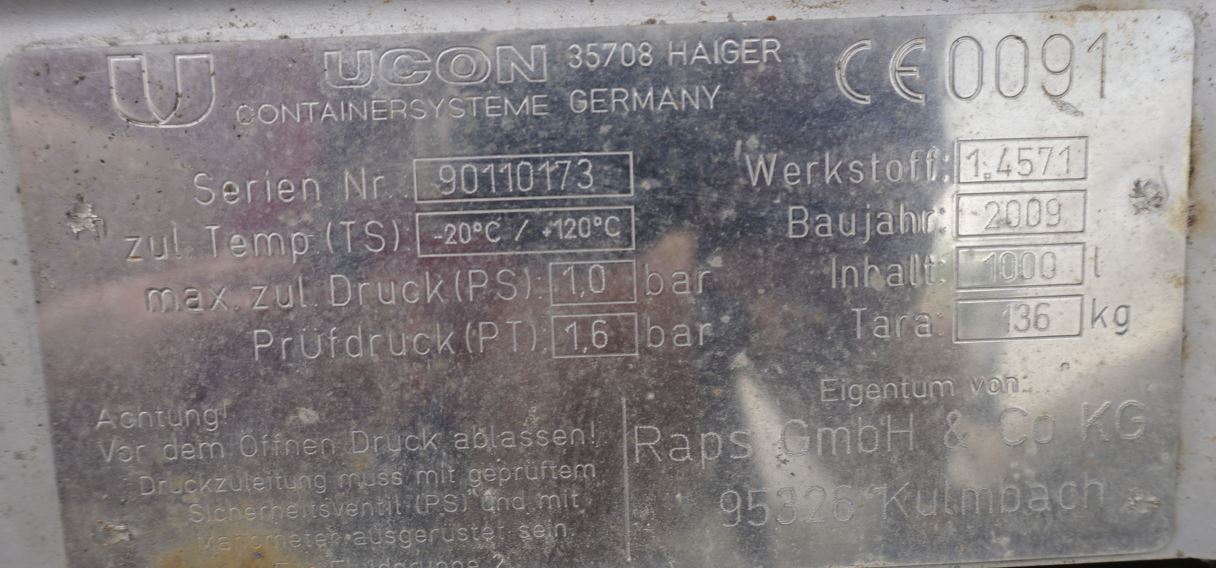

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Note

  • Teilweise kleine Beulen, unterschiedliche Hersteller und Baujahre

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Milk tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Process tank, CIP tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Process tank, CIP tank,

Chemistry and pharmaceuticals : Storage tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Process tank,
