Behälter 5.500 Liter aus V2A einwandig

Product no. M-2289

Container 5.500 liters made of V2A single-walled, standing

EUR 4.100,00

add. 19 % VAT excl. shipping costs

Volume approx. 5,500.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

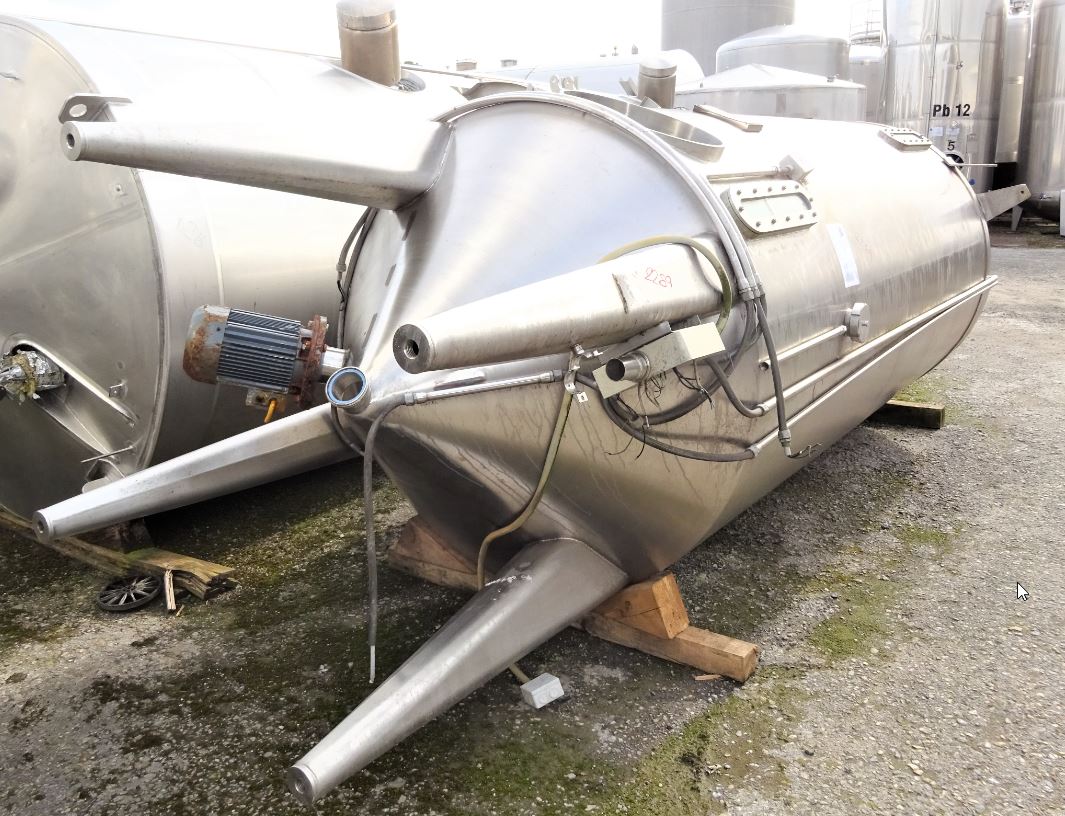

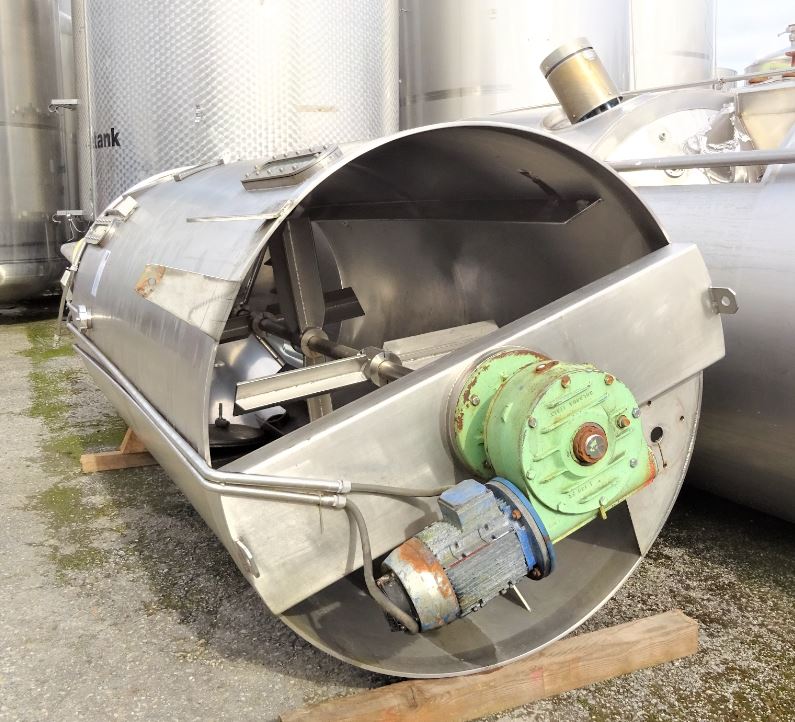

Container 5.500 liters made of V2A single-walled consists of the material 1.4301(AISI304) V2A. The volume is approx. 5,500.00 litres. The diameter inside includes 1,500 mm.  Container 5.500 liters made of V2A single-walled was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Mixing,

General

  • Volume approx.

  • 5.500,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 1.500 mm

  • Cyl. height

  • 3.000 mm

  • Foot height

  • 1.200 mm

  • Total height

  • 4.700 mm

Design

  • Weight approx.

  • 500,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Cone

  • Head design

  • Open

  • Product chamber operating pressure

  • Atmospheric/unpressurised bar

Agitator

  • Agitator quantity

  • 2 (piece)

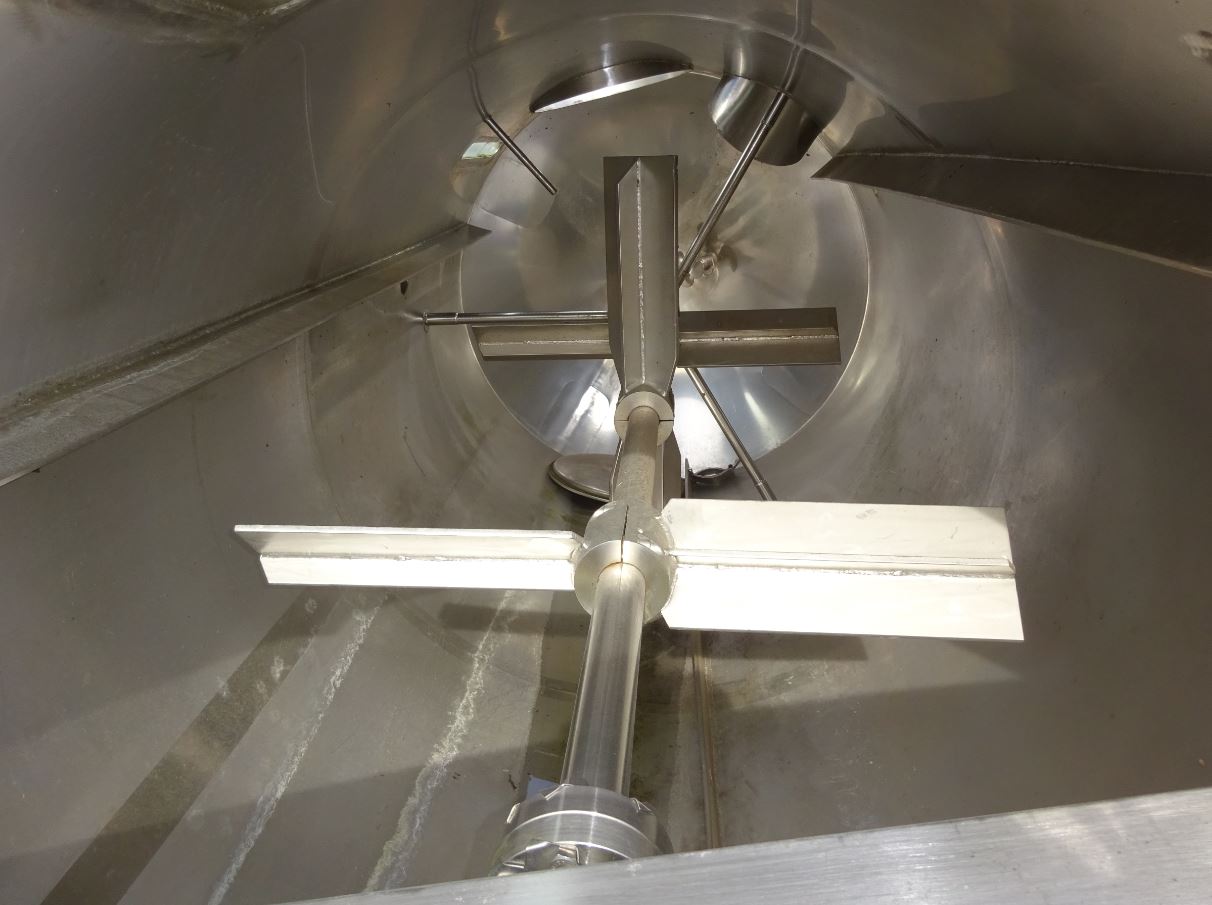

  • Agitator type

  • Paddle agitator

  • Agitator position

  • Head central

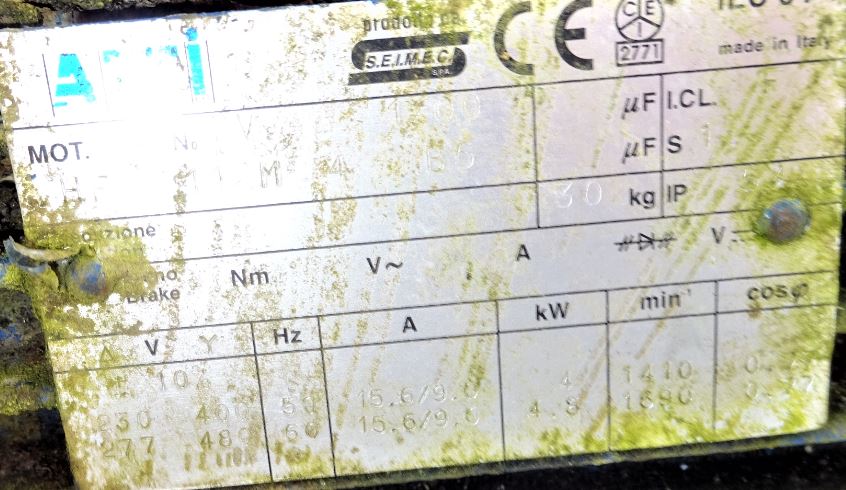

  • Agitator 1 - Output

  • 4,4 kW

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Manway position

  • In shell

  • Outlet nozzle

  • 80

Technical documentation

  • Technical documentation

  • None

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Milk tank, Whey tank, Mixing tank,

Agriculture: Storage tank, Buffer tank, Mixing tank,

Chemistry and pharmaceuticals : Buffer tank, Mixing tank,
