Product no. M-1651

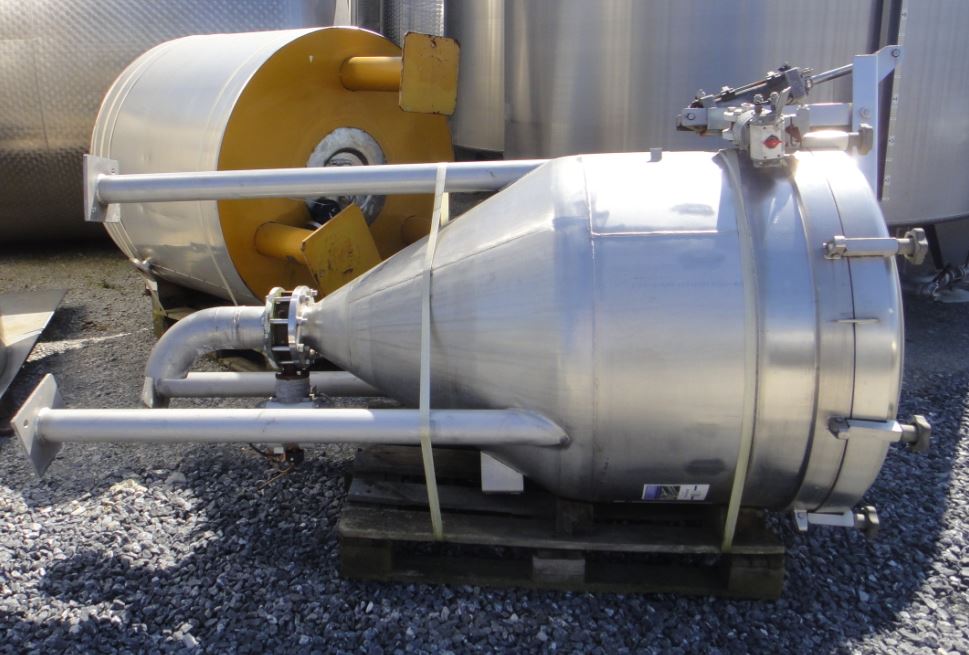

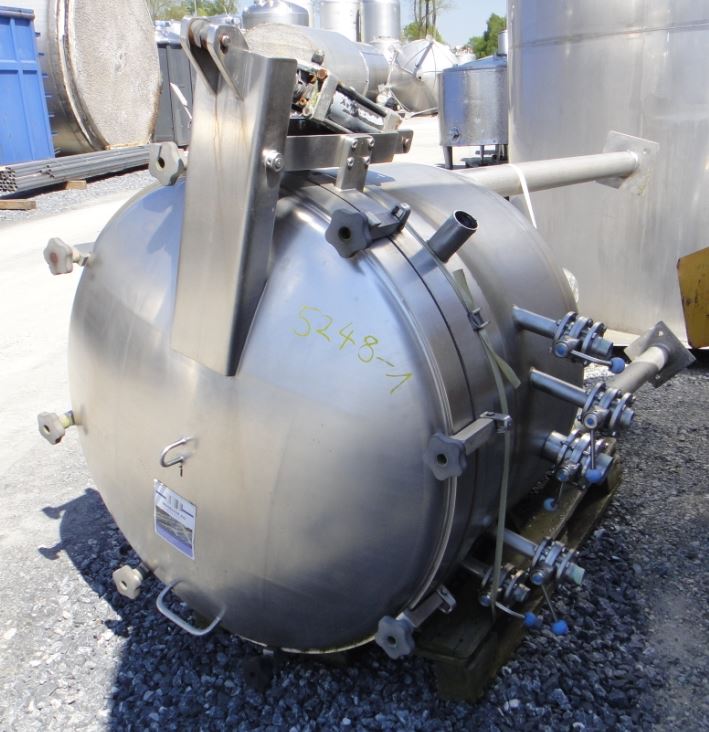

Pressure tank 810 liters made of V2A, used, single-walled, standing

EUR 2.950,00

add. 19 % VAT excl. shipping costs

Volume approx. 810.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Pressure tank 810 liters made of V2A, used, single-walled consists of the material 1.4301(AISI304) V2A. The volume is approx. 810.00 litres. The diameter inside includes 990 mm.  Pressure tank 810 liters made of V2A, used, single-walled was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Under/over-pressure, Cleaning/CIP,

General

  • Volume approx.

  • 810,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 990 mm

  • Cyl. height

  • 570 mm

  • Total height

  • 2.550 mm

Design

  • Insulation

  • no

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Cone

  • Head design

  • Hinged lid

  • Product chamber operating over-pressure

  • 2 bar

  • Product chamber operating temperature

  • 119 °C

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

Fixtures and fittings

  • Manway position

  • In head

  • Outlet nozzle

  • 125

  • Additional fixtures and fittings

  • Nameplate

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Fruit juice tank, Spirituous beverages tank, Syrup tank, Molasses tank/liquid sugar tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Sprinkler tank, Pressure tank, CIP tank, Cold water tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank, CIP tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Septic tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank, CIP tank,
