Product no. M-2409

Pressure tank 500 liters made of V4A, single-walled, standing

EUR 1.900,00

add. 19 % VAT excl. shipping costs


Volume approx. 500.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

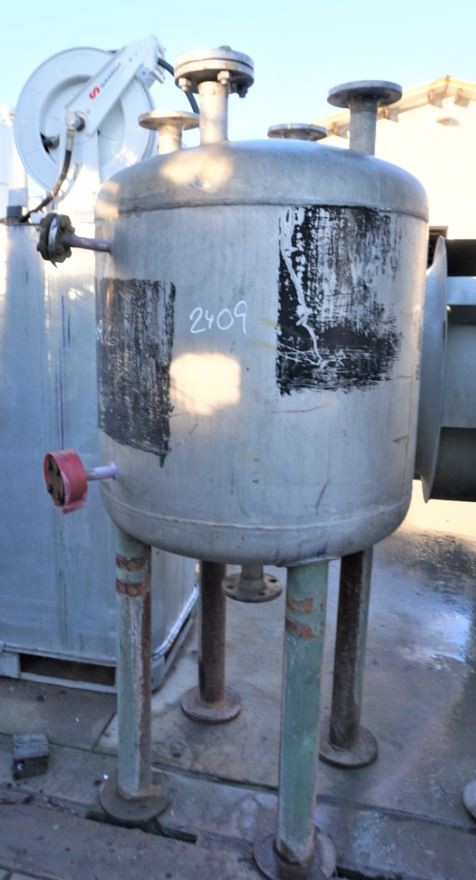

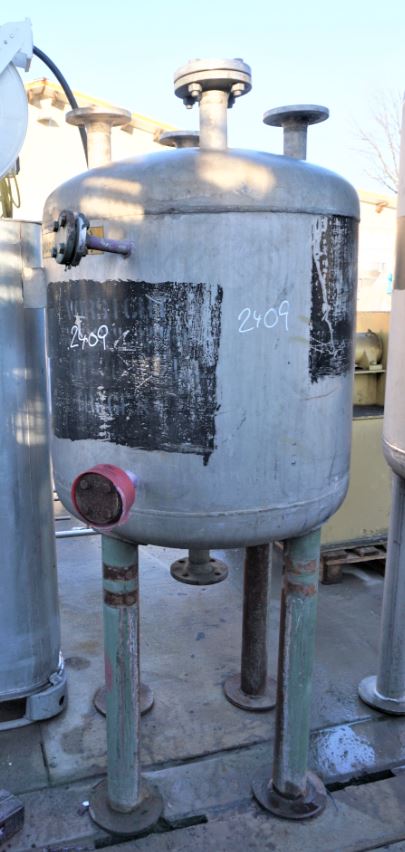

Pressure tank 500 liters made of V4A, single-walled consists of the material 1.4571(AISI316) V4A. The volume is approx. 500.00 litres.  Pressure tank 500 liters made of V4A, single-walled was last used in the following area: Chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Under/over-pressure,

General

  • Volume approx.

  • 500,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1976

  • Manufacturer

  • Weisstaler

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 800 mm

  • Cyl. height

  • 6.700 mm

  • Foot height

  • 700 mm

  • Outlet height

  • 550 mm

  • Total height

  • 1.800 mm

  • Wall thickness of product chamber head

  • 4,00 mm

  • Wall thickness of product chamber shell

  • 3,00 mm

  • Wall thickness of product chamber floor

  • 4,00 mm

Design

  • Weight approx.

  • 130,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Matt

  • Exterior surface

  • Matt

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 6,00 bar

  • Product chamber operating under-pressure

  • VAK bar

Supports

  • Supports

  • Steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Nozzles/connectors in shell

  • 2xDN20 (piece)

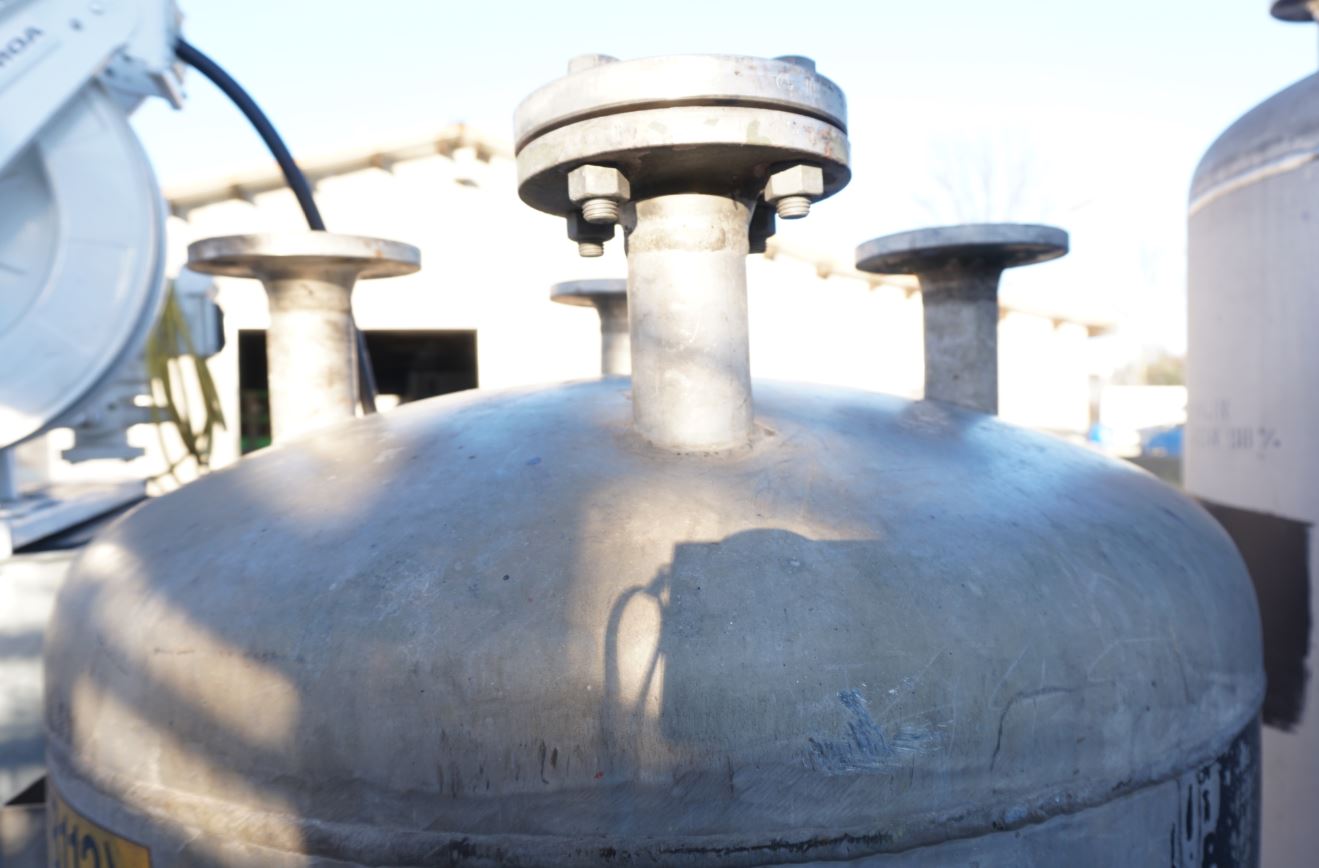

  • Nozzles/connectors in head

  • 4xDN50 (piece)

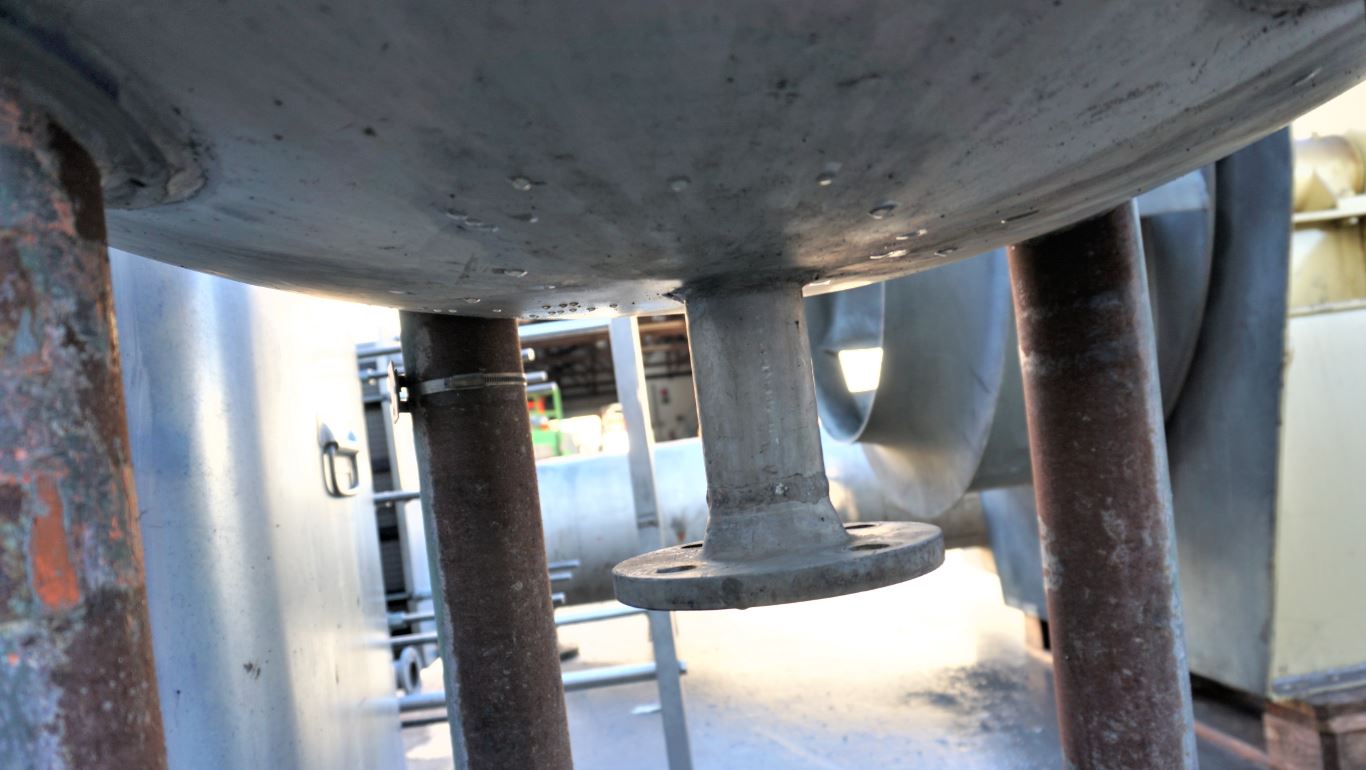

  • Outlet nozzle

  • 50

  • Additional fixtures and fittings

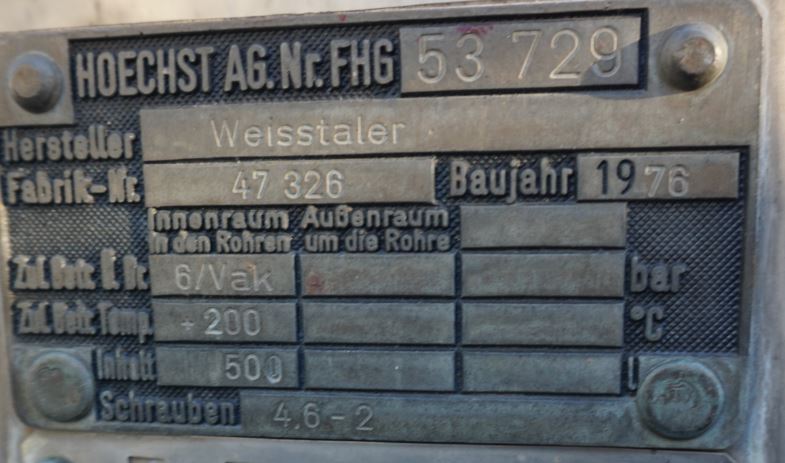

  • Nameplate

Technical documentation

  • Technical documentation

  • Designation

  • Pressure test certificate

Other

  • Last usage

  • Chemistry

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Pressure tank,

Chemistry and pharmaceuticals : Storage tank, Buffer tank, Pre-buffer tank, Pressure tank,
