Product no. M-2476

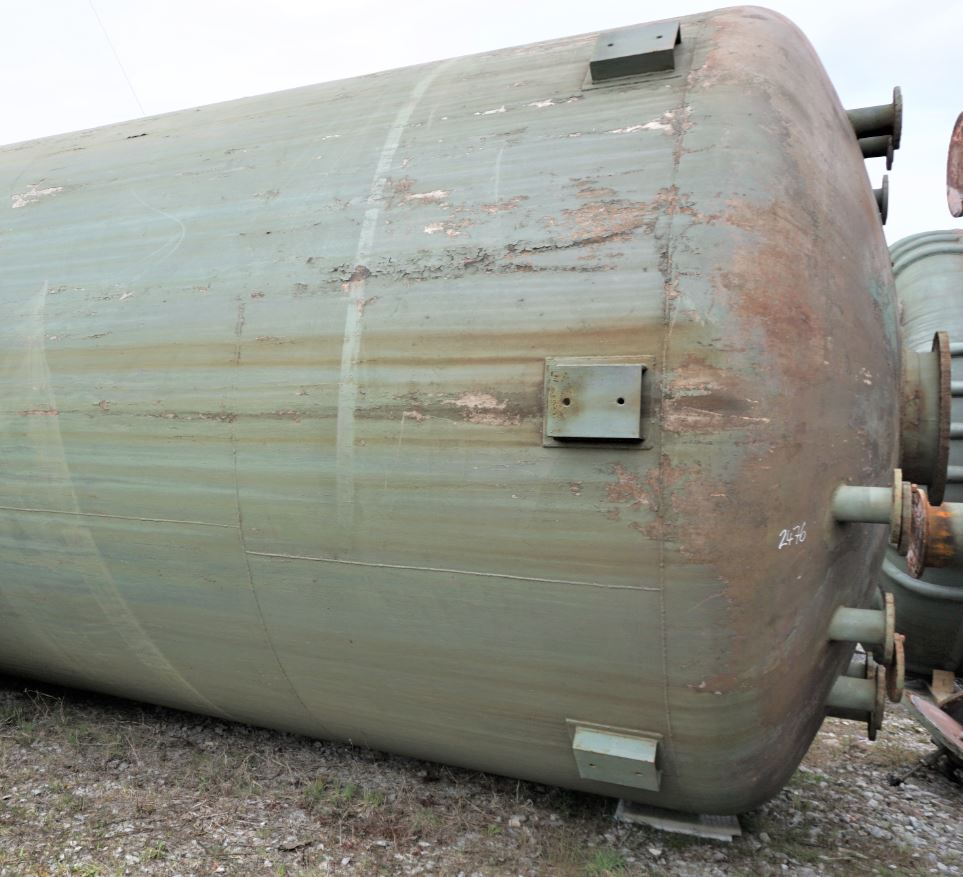

Pressure tank 50.000 liters made of V2A single-walled, used, standing

EUR 23.800,00

add. 19 % VAT excl. shipping costs


Volume approx. 50,000.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Pressure tank 50.000 liters made of V2A single-walled, used consists of the material 1.4541(AISI321). The volume is approx. 50,000.00 litres. The diameter inside includes 3,200 mm.  Pressure tank 50.000 liters made of V2A single-walled, used was last used in the following area: Chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Under/over-pressure,

General

  • Volume approx.

  • 50.000,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1960

  • Manufacturer

  • Stahlbau Lavis

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 3.200 mm

  • External diameter

  • 3.350 mm

  • Cyl. height

  • 5.900 mm

  • Outlet height

  • 650 mm

  • Total height

  • 8.100 mm

  • Wall thickness of product chamber head

  • 8,00 mm

  • Wall thickness of product chamber shell

  • 6,00 mm

  • Wall thickness of product chamber floor

  • 8,00 mm

Design

  • Weight approx.

  • 5.500,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Interior surface

  • Matt

  • Exterior surface

  • Matt

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 3,20 bar

Supports

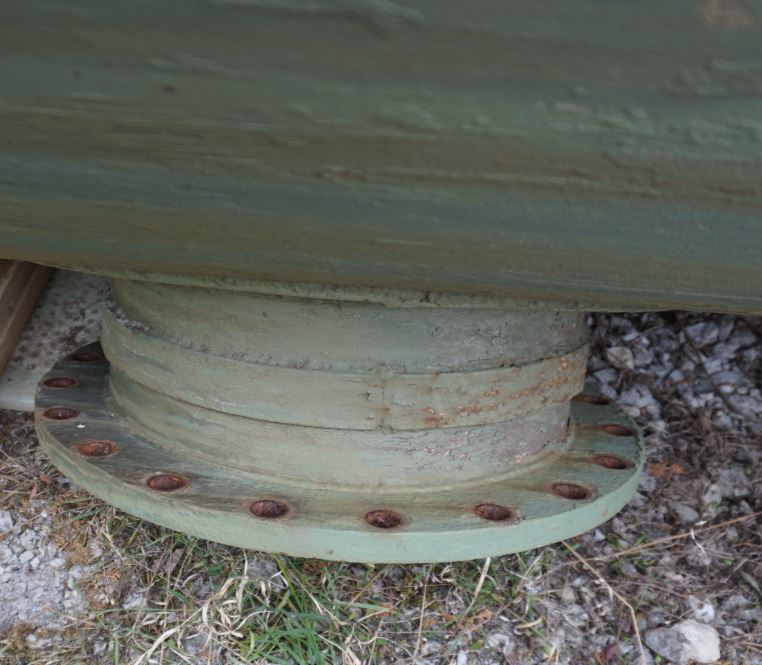

  • Supports

  • Steel feet

  • Number of feet

  • 4 (piece)

Fixtures and fittings

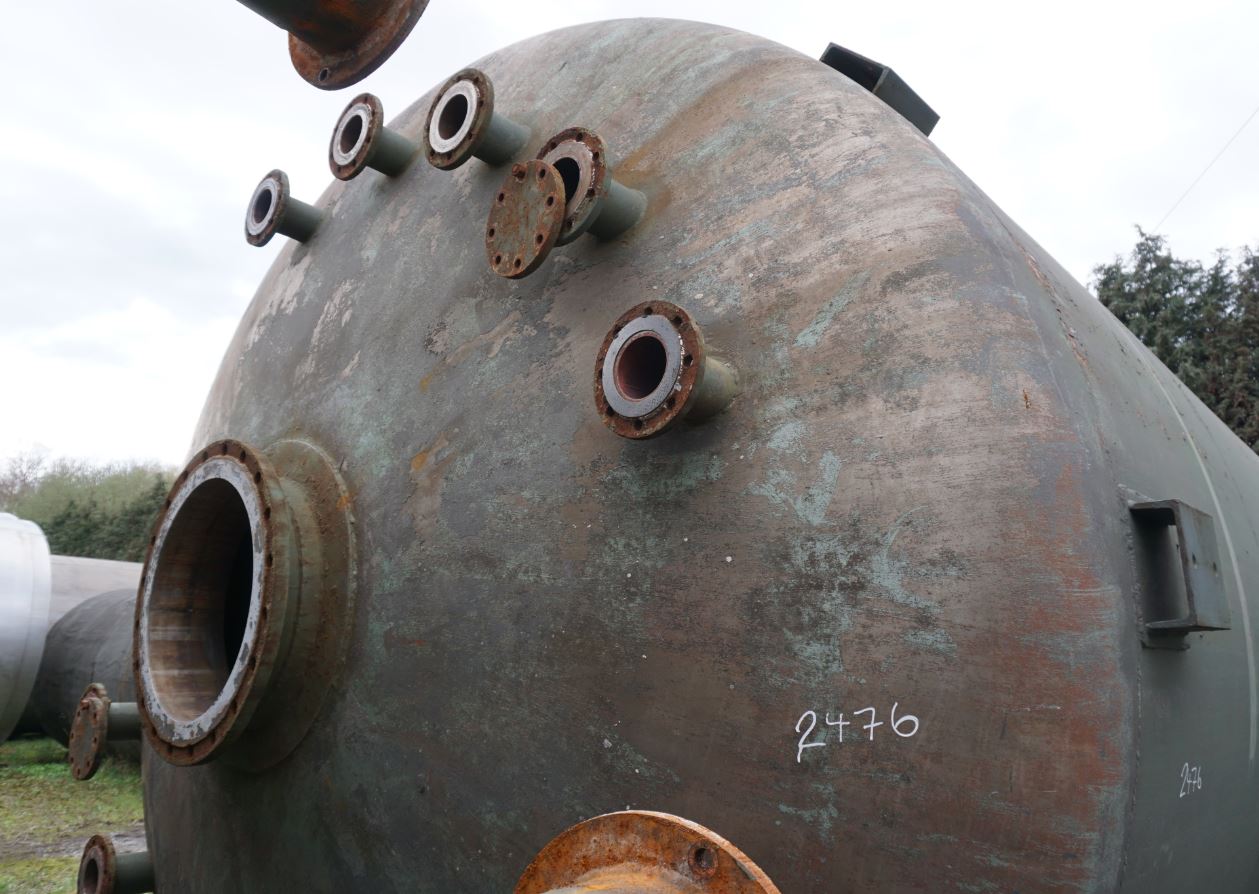

  • Manway 1 size

  • 500 DN mm

  • Manway 2 size

  • 500 DN mm

  • Manway position

  • In shell and head

  • Nozzle connector

  • Flange

  • Outlet nozzle

  • 50

  • Fixtures and fittings

  • Lifting lugs

  • Additional fixtures and fittings

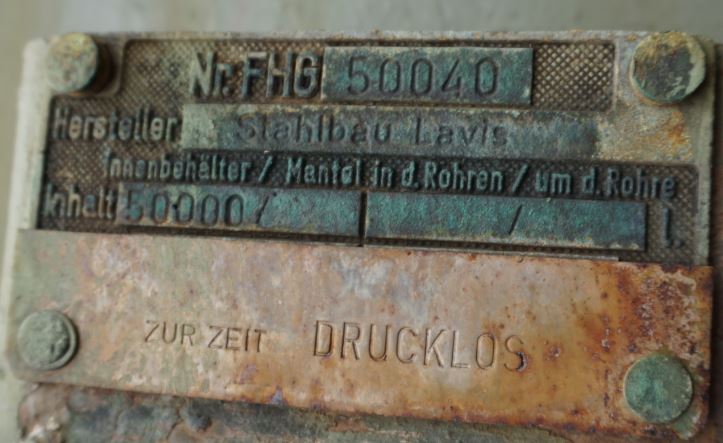

  • Nameplate

Technical documentation

  • Technical documentation

  • Designation

  • Pressure test certificate

Other

  • Note

  • Außendurchmesser = Transportmaß.

  • Last usage

  • Chemistry

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Pressure tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Buffer tank, Pre-buffer tank, Pressure tank,
