Product no. M-1662

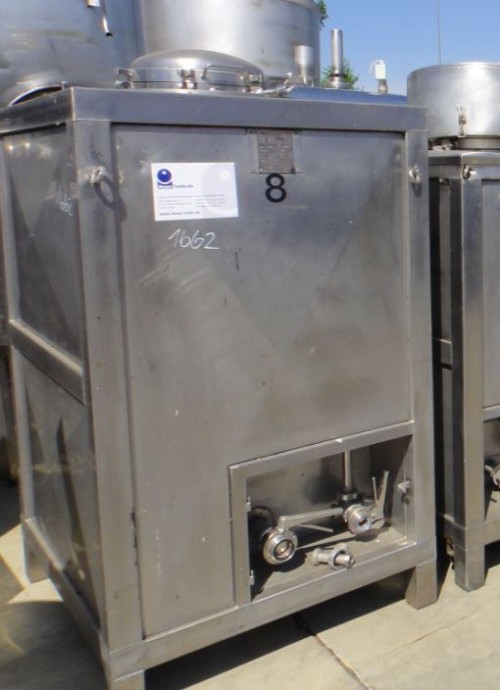

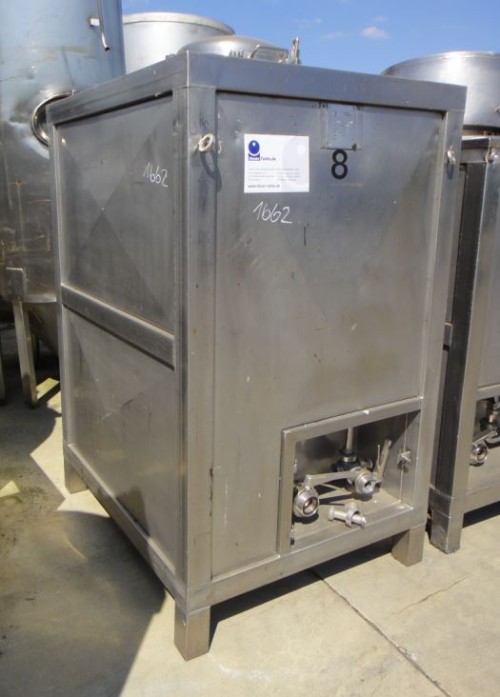

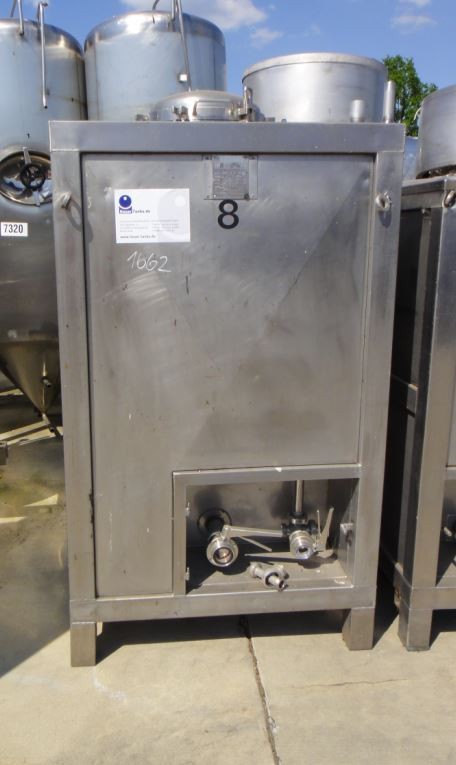

Pressure tank 491 liters made of V2A, used, isolated, standing

EUR 2.100,00

add. 19 % VAT excl. shipping costs

Volume approx. 491.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Pressure tank 491 liters made of V2A, used, isolated consists of the material 1.4301(AISI304) V2A. The volume is approx. 491.00 litres. The diameter inside includes 800 mm. Pressure tank 491 liters made of V2A, used, isolated has the following dimensions: length 1,200 mm, width 1,000 mm,  Pressure tank 491 liters made of V2A, used, isolated was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Under/over-pressure, Cleaning/CIP,

General

  • Volume approx.

  • 491,00 litres

  • Structure

  • Standing

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 800 mm

  • Cyl. height

  • 620 mm

  • Total height

  • 1.900 mm

  • Length

  • 1.200 mm

  • Width

  • 1000 mm

Design

  • Insulation

  • yes

  • Insulated area

  • Complete

  • Insulation cladding

  • Fully welded stainless steel

  • Interior surface

  • Smoothed

  • Exterior surface

  • Smoothed

  • Floor type

  • Conical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 3 bar

  • Product chamber operating temperature

  • 20 °C

Supports

  • Supports

  • Stainless steel frame

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Manway position

  • In head

  • Outlet nozzle

  • 50

  • Additional fixtures and fittings

  • Nameplate

Technical documentation

  • Technical documentation

  • Designation

  • Pressure test certificate

Other

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Molasses tank/liquid sugar tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Transport tank, Settling tank, Pressure tank, CIP tank, Thermal buffer, Cold water tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Transport tank, Settling tank, Pressure tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Chemical tank, Buffer tank, Pre-buffer tank, Transport tank, Settling tank, Pressure tank, Anaerobic digestion tank, Cold water tank,
