Product no. M-1803

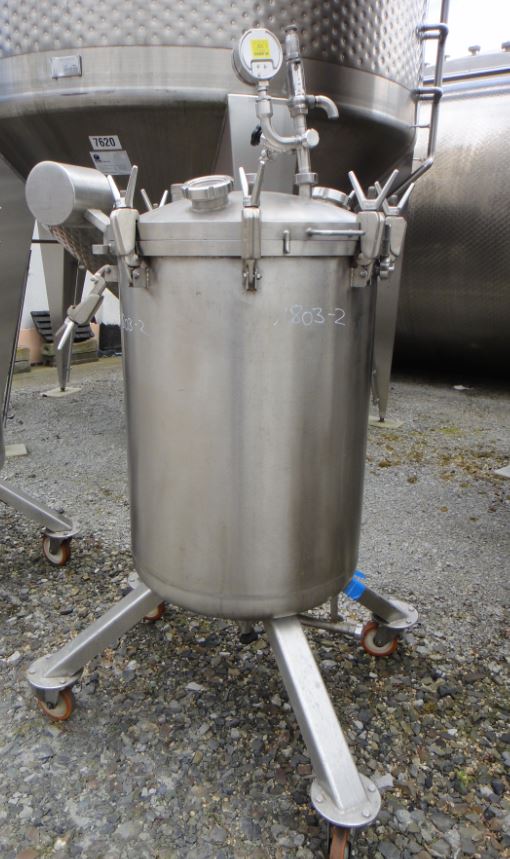

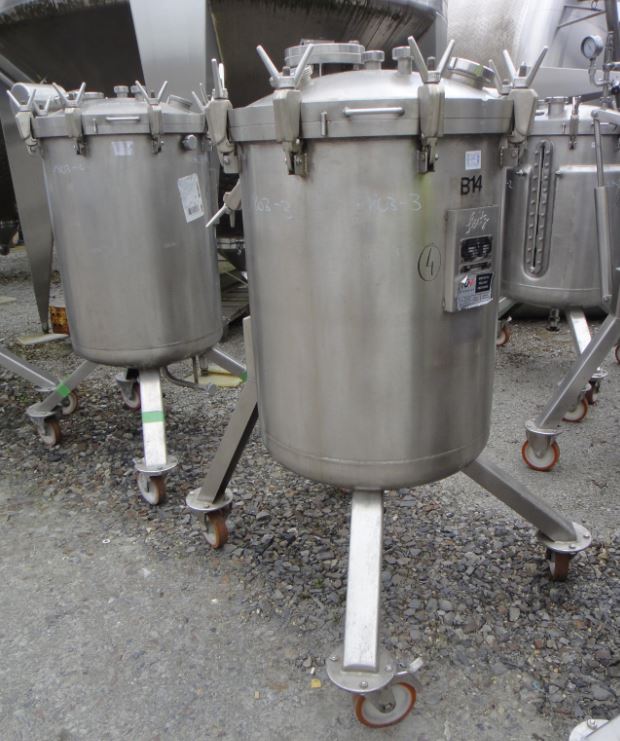

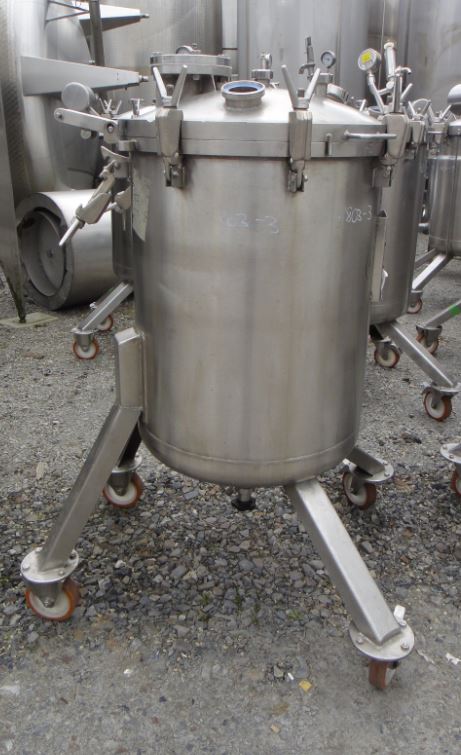

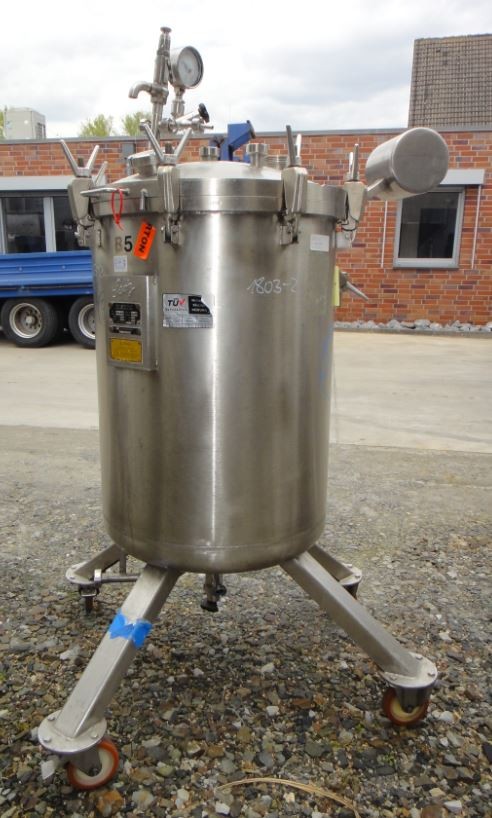

Pressure tank 283 liters made of V4A, used, single-walled, standing

EUR 2.290,00

add. 19 % VAT excl. shipping costs


Volume approx. 283.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Pressure tank 283 liters made of V4A, used, single-walled consists of the material 1.4571(AISI316) V4A. The volume is approx. 283.00 litres.  Pressure tank 283 liters made of V4A, used, single-walled was last used in the following area: Pharmaceuticals. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Under/over-pressure,

General

  • Volume approx.

  • 283,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1976

  • Manufacturer

  • Seitz-Werke Bad Kreuznach

  • Condition

  • Used

Dimensions approx.

  • External diameter

  • 638 mm

  • Cyl. height

  • 715 mm

  • Total height

  • 1.600 mm

  • Wall thickness of product chamber head

  • 4 mm

  • Wall thickness of product chamber shell

  • 3 mm

  • Wall thickness of product chamber floor

  • 3 mm

Design

  • Insulation

  • no

  • Interior surface

  • Polished

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Hinged lid

  • Product chamber operating over-pressure

  • 3 bar

  • Product chamber operating temperature

  • -20 bis 200 °C

Supports

  • Supports

  • Feet with castors (mobile)

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Nozzle connector

  • Screw thread

  • Nozzles/connectors in head

  • 3xDN65 2xDN32 (piece)

  • Outlet nozzle

  • 50

  • Additional fixtures and fittings

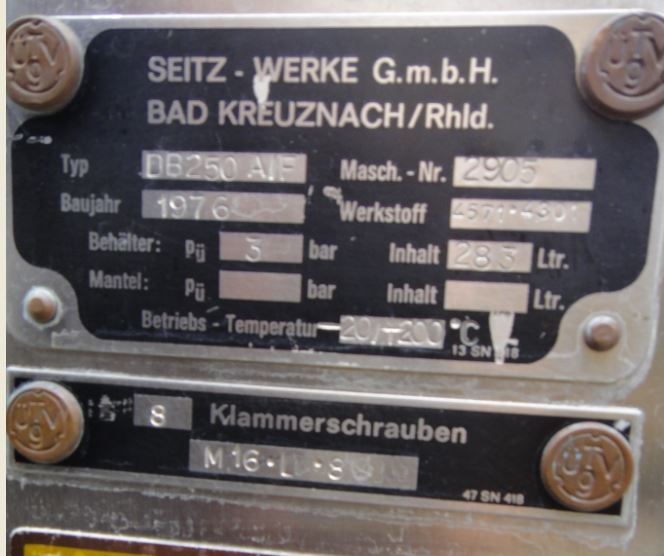

  • Nameplate

Technical documentation

  • Technical documentation

  • Designation

  • Pressure test certificate

Other

  • Last usage

  • Pharmaceuticals

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank,

Chemistry and pharmaceuticals : Chemical tank, Pharmaceuticals tank, Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank,
