Product no. M-2404

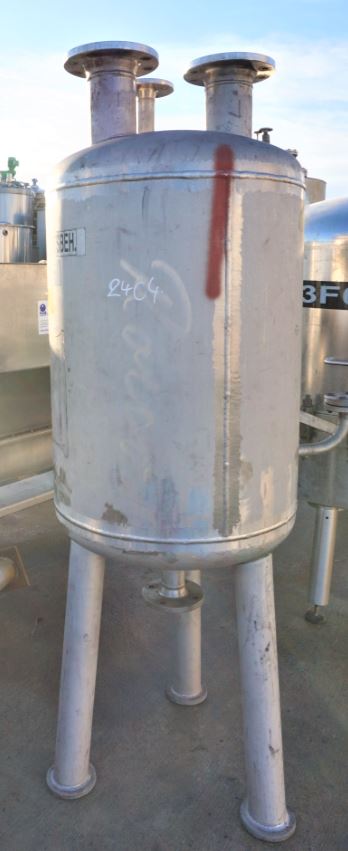

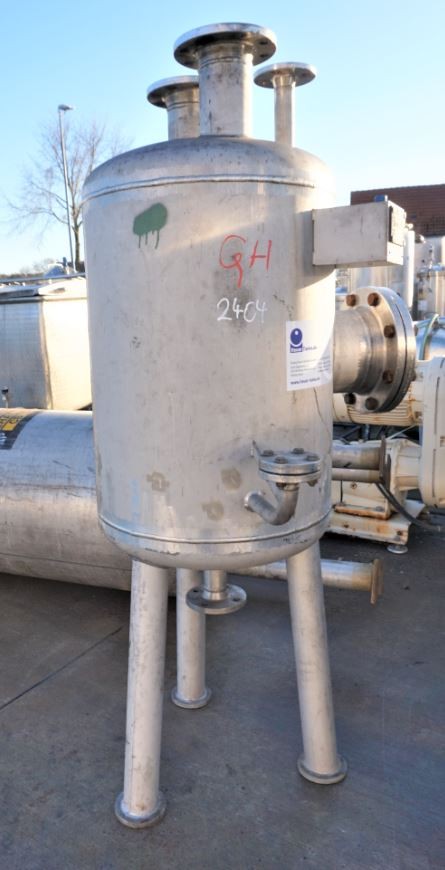

Pressure tank 200 liters made of V4A single-walled, standing

EUR 2.800,00

add. 19 % VAT excl. shipping costs


Volume approx. 200.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Pressure tank 200 liters made of V4A single-walled consists of the material 1.4571(AISI316) V4A. The volume is approx. 200.00 litres. The diameter inside includes 610 mm.  Pressure tank 200 liters made of V4A single-walled was last used in the following area: Chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Under/over-pressure,

General

  • Volume approx.

  • 200,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1993

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 610 mm

  • Cyl. height

  • 750 mm

  • Foot height

  • 860 mm

  • Outlet height

  • 500 mm

  • Total height

  • 1.855 mm

  • Wall thickness of product chamber head

  • 5,00 mm

  • Wall thickness of product chamber shell

  • 4,00 mm

  • Wall thickness of product chamber floor

  • 5,00 mm

Design

  • Weight approx.

  • 160,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

  • Floor type

  • Torispherical bottom

  • Head design

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 6,00 bar

  • Product chamber operating under-pressure

  • -1 bar

  • Product chamber operating temperature

  • 200,00 °C

Supports

  • Supports

  • Stainless steel feet

  • Number of feet

  • 3 (piece)

Fixtures and fittings

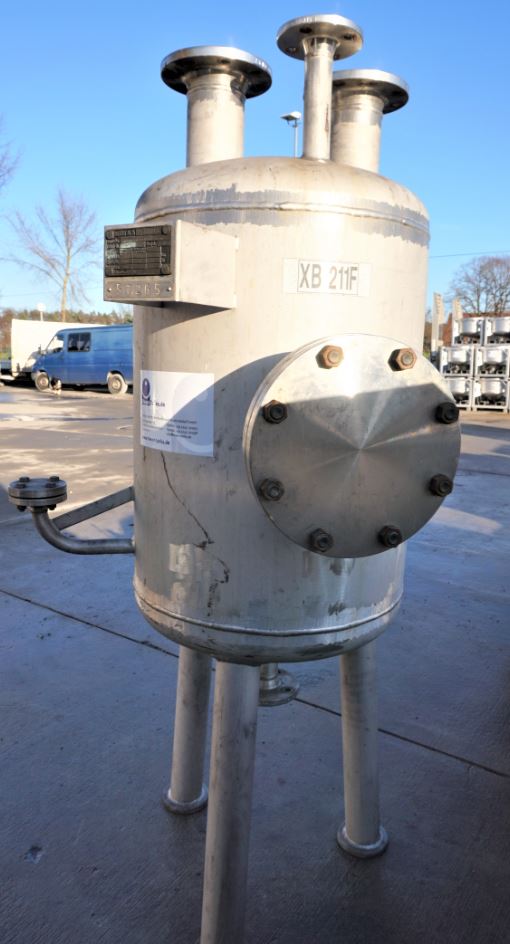

  • Manway 1 size

  • 200 DN mm

  • Manway position

  • In shell

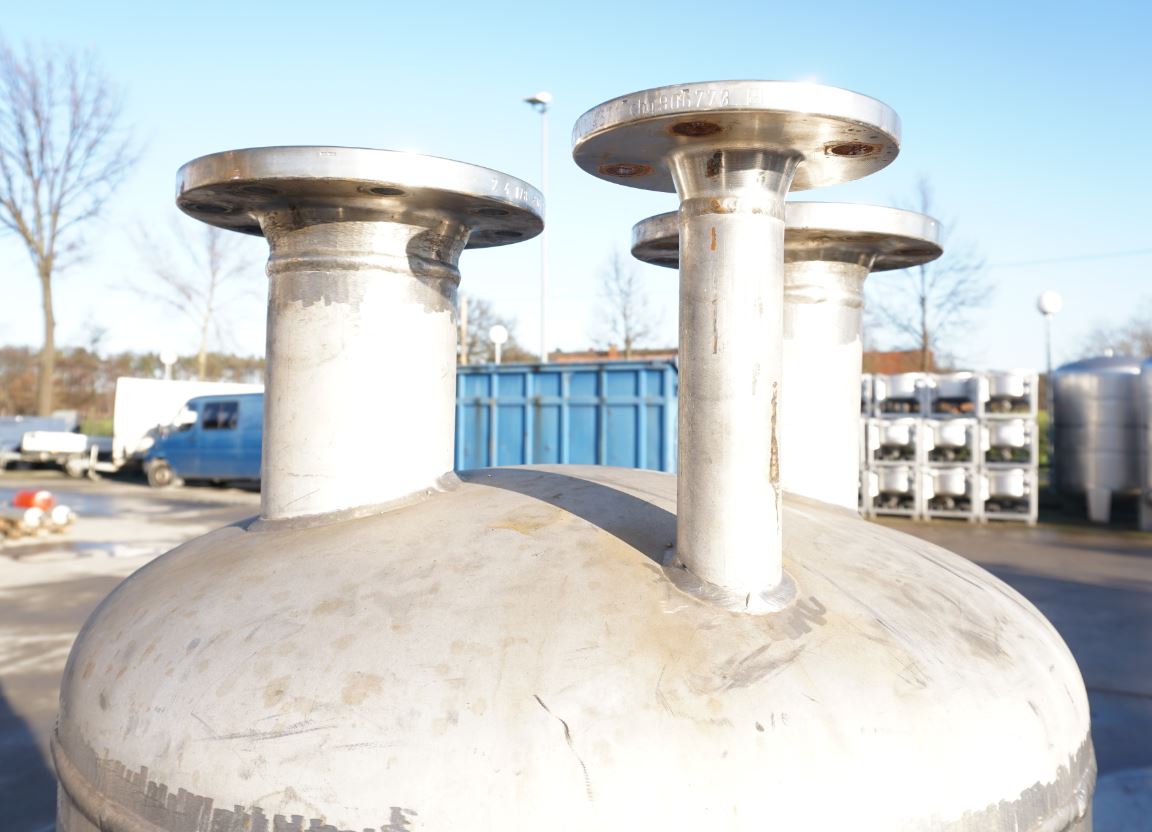

  • Nozzles/connectors in head

  • 2xDN100 1xDN40 (piece)

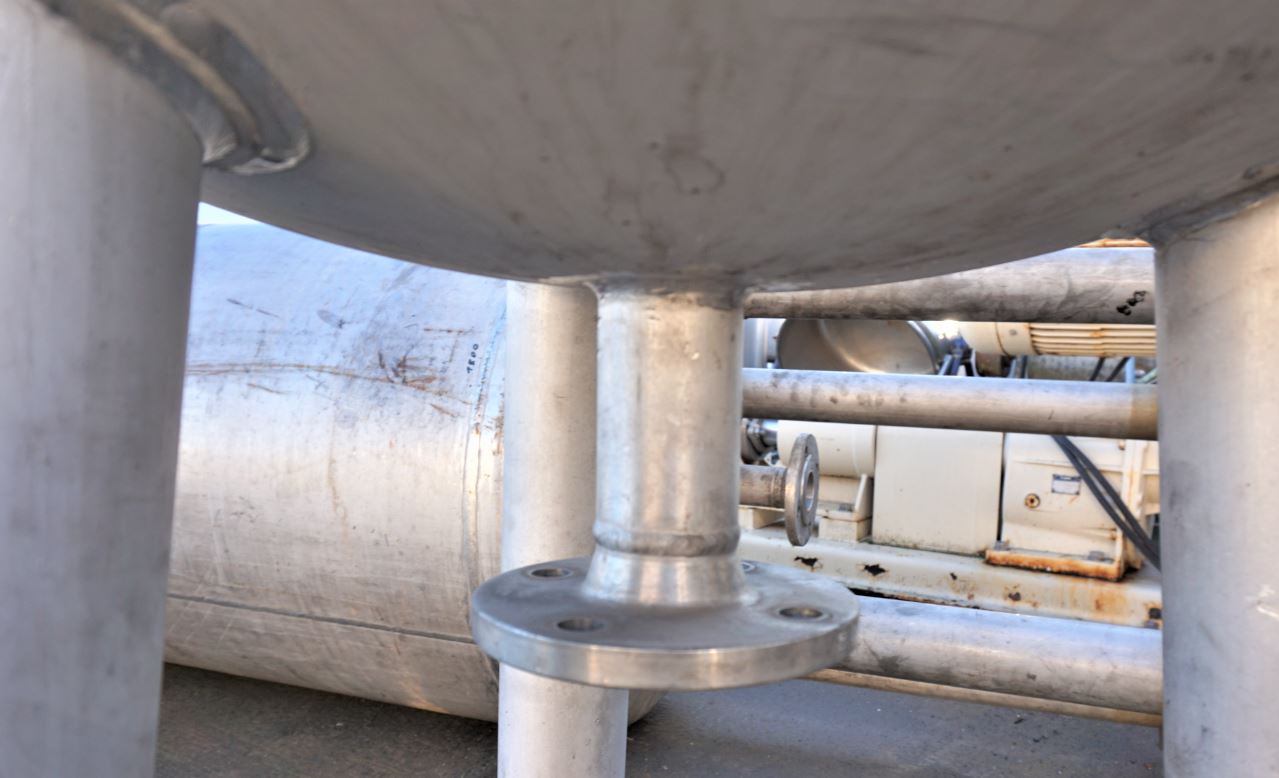

  • Outlet nozzle

  • 1xDN50

  • Additional fixtures and fittings

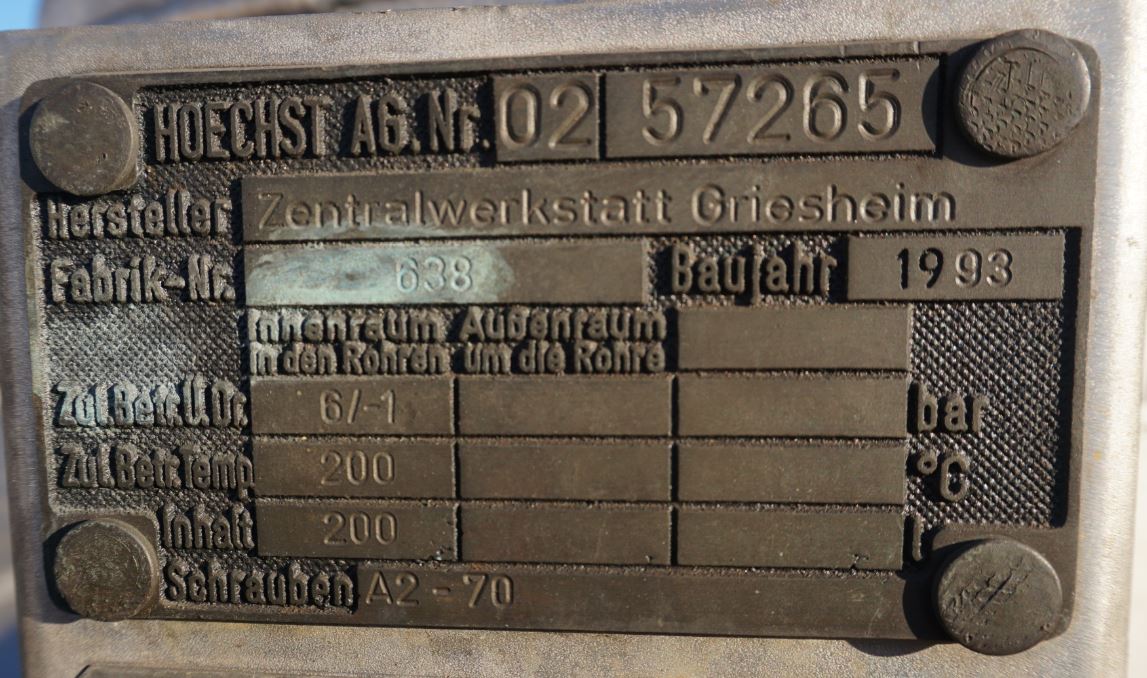

  • Nameplate

Technical documentation

  • Technical documentation

  • Designation

  • Pressure test certificate

  • Test certificate

Other

  • Last usage

  • Chemistry

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Pressure tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Buffer tank, Pre-buffer tank, Pressure tank,
