Product no. M-1805

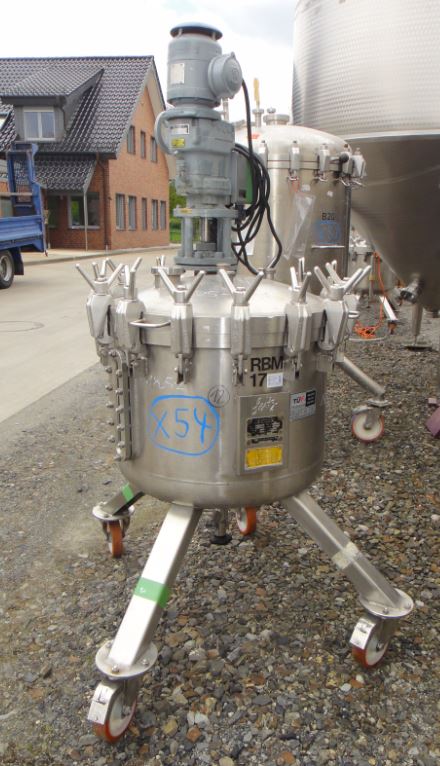

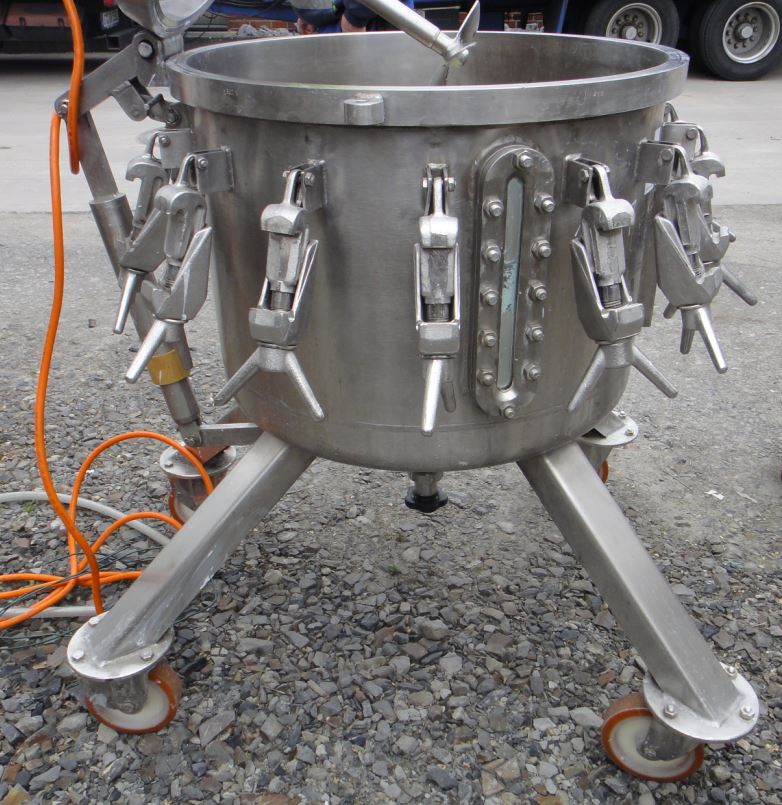

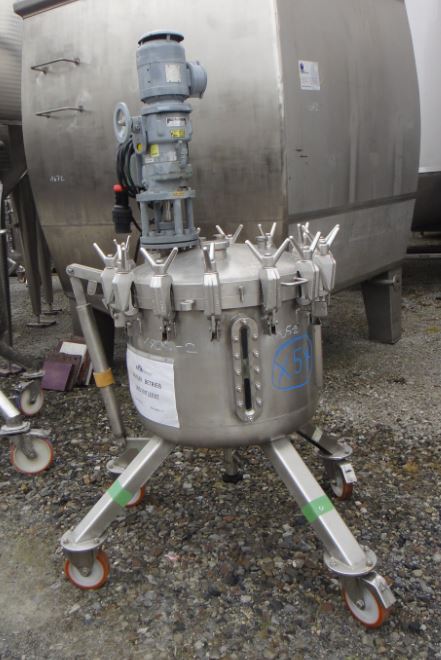

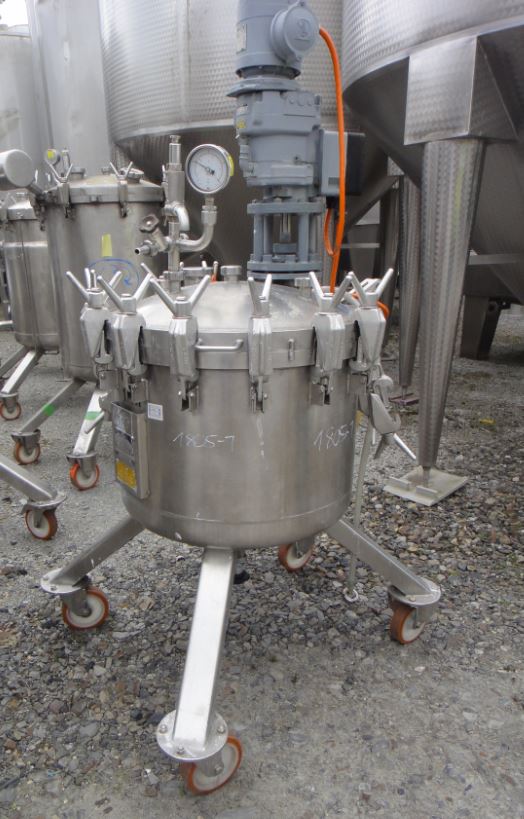

Pressure tank 192 liters made of V4A, used, temperature-controllable, standing

EUR 4.200,00

add. 19 % VAT excl. shipping costs

Volume approx. 192.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Pressure tank 192 liters made of V4A, used, temperature-controllable consists of the material 1.4571(AISI316) V4A. The volume is approx. 192.00 litres. The diameter inside includes 650 mm.  Pressure tank 192 liters made of V4A, used, temperature-controllable was last used in the following area: Pharmaceuticals. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Hot water, Boiling, Cooling, Tempering, Under/over-pressure, Processes, Reactor,

General

  • Volume approx.

  • 192,00 litres

  • Structure

  • Standing

  • Year of manufacture

  • 1976

  • Manufacturer

  • Seitz-Werke Bad Kreuznach

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 650 mm

  • Cyl. height

  • 370 mm

  • Total height

  • 1.800 mm

  • Wall thickness of product chamber head

  • 5 mm

  • Wall thickness of product chamber shell

  • 4 mm

  • Wall thickness of product chamber floor

  • 4 mm

Design

  • Insulation

  • no

  • Interior surface

  • Polished

  • Exterior surface

  • Smoothed

  • Floor type

  • Torispherical bottom

  • Head design

  • Hinged lid

  • Product chamber operating over-pressure

  • 6 bar

  • Product chamber operating under-pressure

  • -1 bar

  • Product chamber operating temperature

  • 200 °C

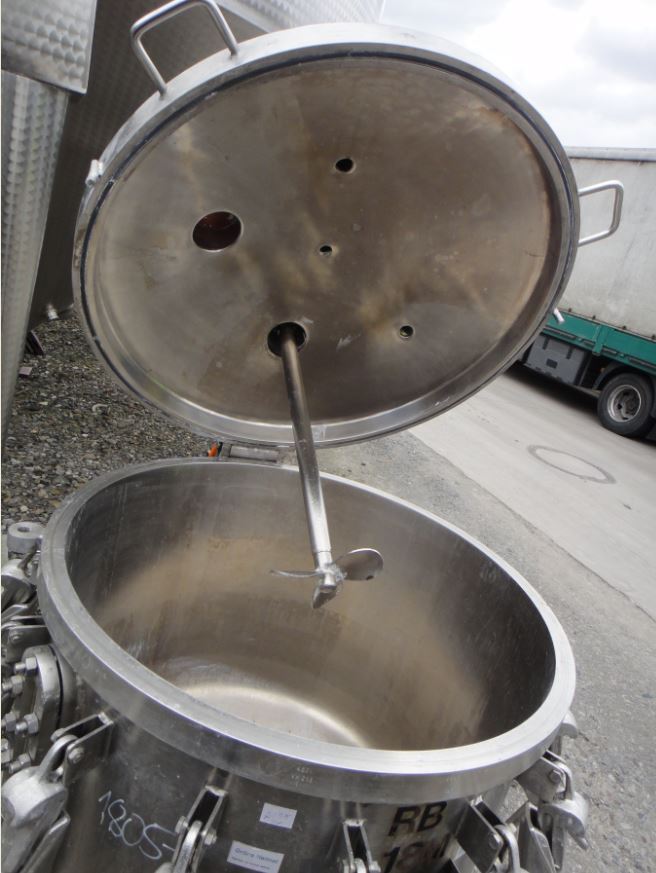

Agitator

  • Agitator quantity

  • 1 (piece)

  • Agitator type

  • Propeller

  • Agitator position

  • Head off-centre

  • Agitator manufacturer

  • Tubo Müller

  • Agitator 1 - Output

  • 0,55 kW

  • Agitator 1 - RPM

  • 75-375 UpM

  • Agitator 1 - Voltage

  • 220/380 V

Supports

  • Supports

  • Feet with castors (mobile)

  • Number of feet

  • 4 (piece)

Fixtures and fittings

  • Nozzle connector

  • Screw thread

  • Nozzles/connectors in head

  • 1xDN65 3xDN32 (piece)

  • Outlet nozzle

  • 50

  • Additional fixtures and fittings

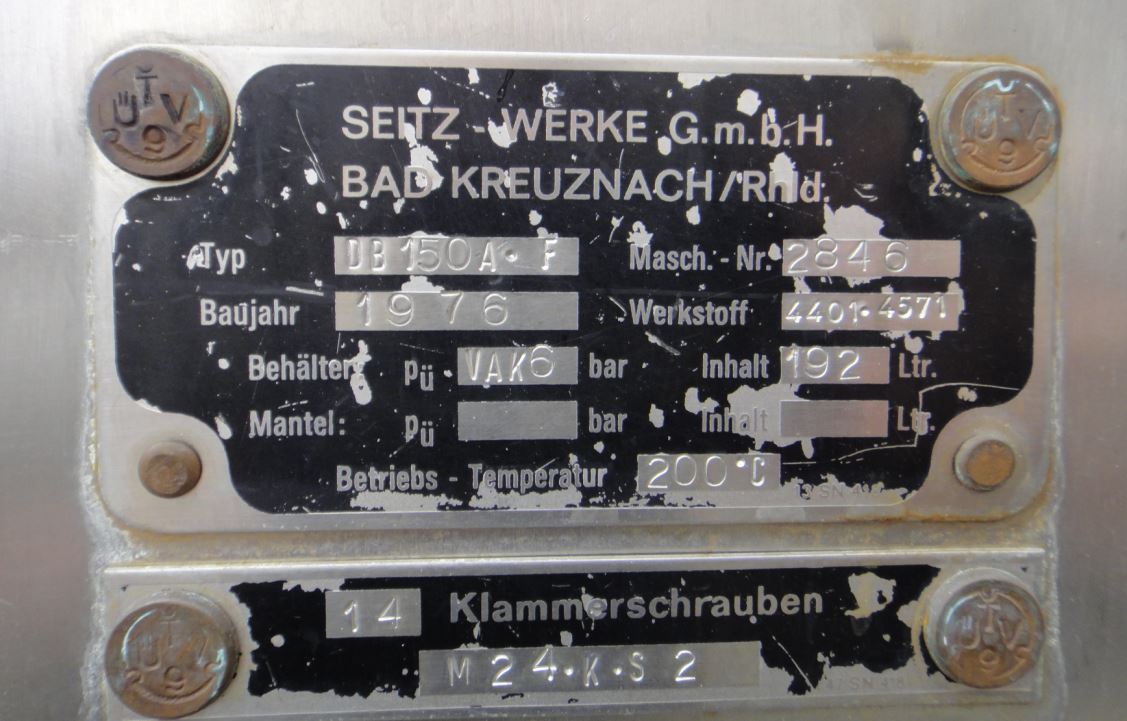

  • Nameplate

Technical documentation

  • Technical documentation

  • Designation

  • Pressure test certificate

Other

  • Last usage

  • Pharmaceuticals

This product is suitable for use as:

Foodstuffs:

Agriculture: Substrate tank, Storage tank, Buffer tank, Pre-buffer tank, Transport tank, Settling tank, Sprinkler tank, Pressure tank, Process tank,

Chemistry and pharmaceuticals : Chemical tank, Pharmaceuticals tank, Storage tank, Septic tank, Acid tank, Lye tank, Chemical tank, Reactor tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank, Process tank, Reactor/reaction tank, Cooling tank,
