Product no. M-2524

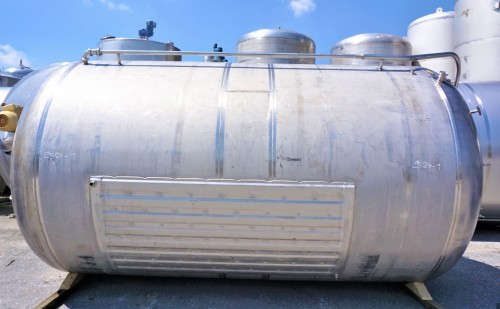

Pressure tank 18.430 liters made of V2A single-walled, temperature-controllable, used, horizontal

EUR 13.900,00

add. 19 % VAT excl. shipping costs


Volume approx. 18,430.00 litres



Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Pressure tank 18.430 liters made of V2A single-walled, temperature-controllable, used consists of the material 1.4541(AISI321). The volume is approx. 18,430.00 litres. The diameter inside includes 2,350 mm.  Pressure tank 18.430 liters made of V2A single-walled, temperature-controllable, used was last used in the following area: Foodstuffs. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Tempering, Under/over-pressure,

General

  • Volume approx.

  • 18.430,00 litres

  • Structure

  • Horizontal

  • Year of manufacture

  • 1978

  • Manufacturer

  • Ludwig Edel

  • Condition

  • Used

Dimensions approx.

  • Internal diameter

  • 2.350 mm

  • Cyl. length

  • 3.400 mm

  • Total length

  • 4.600 mm

Design

  • Weight approx.

  • 2.500,00 kg

  • Weight per unit volume approx.

  • 1.000,00 kg/m³

  • Insulation

  • no

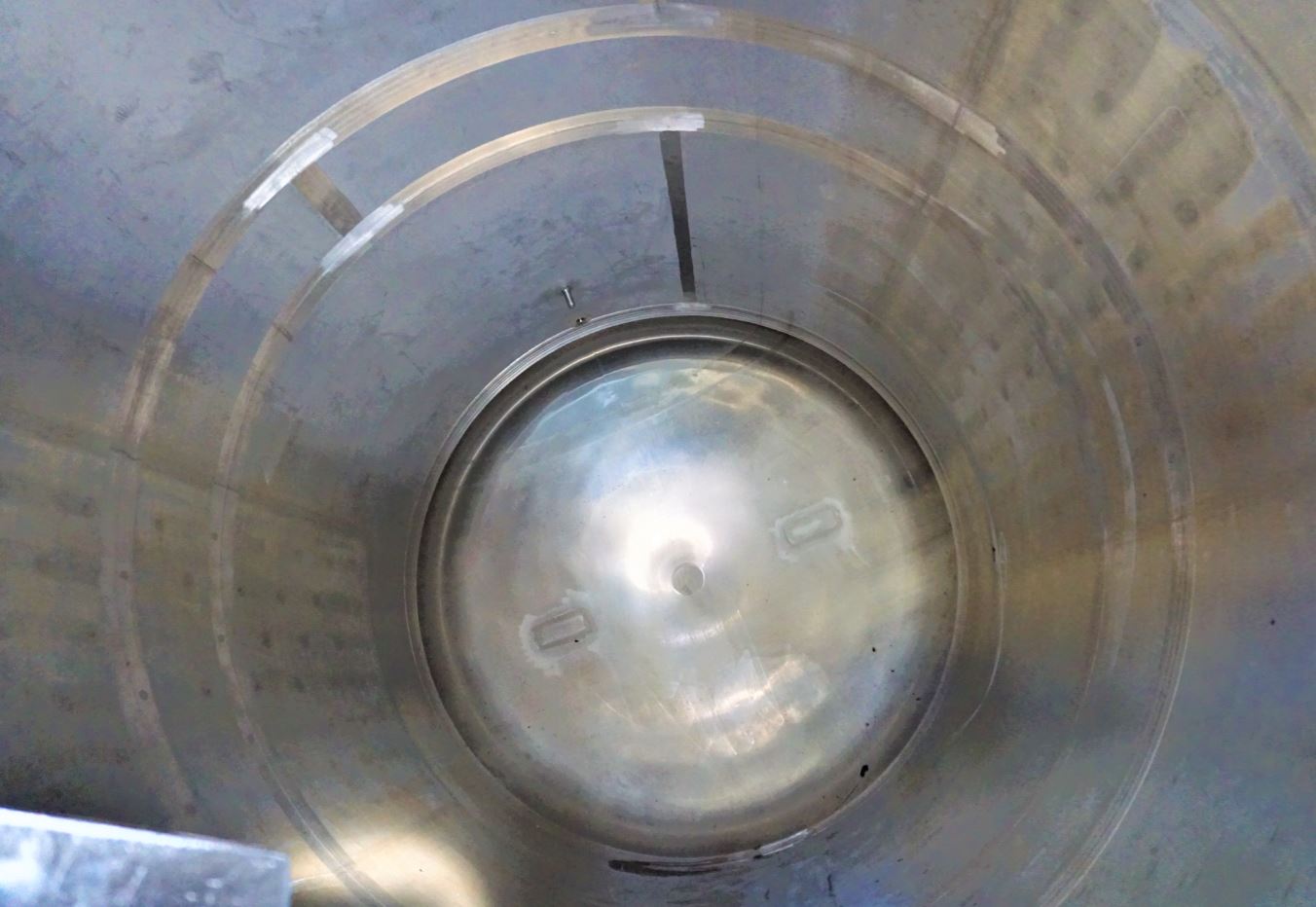

  • Interior surface

  • Smoothed

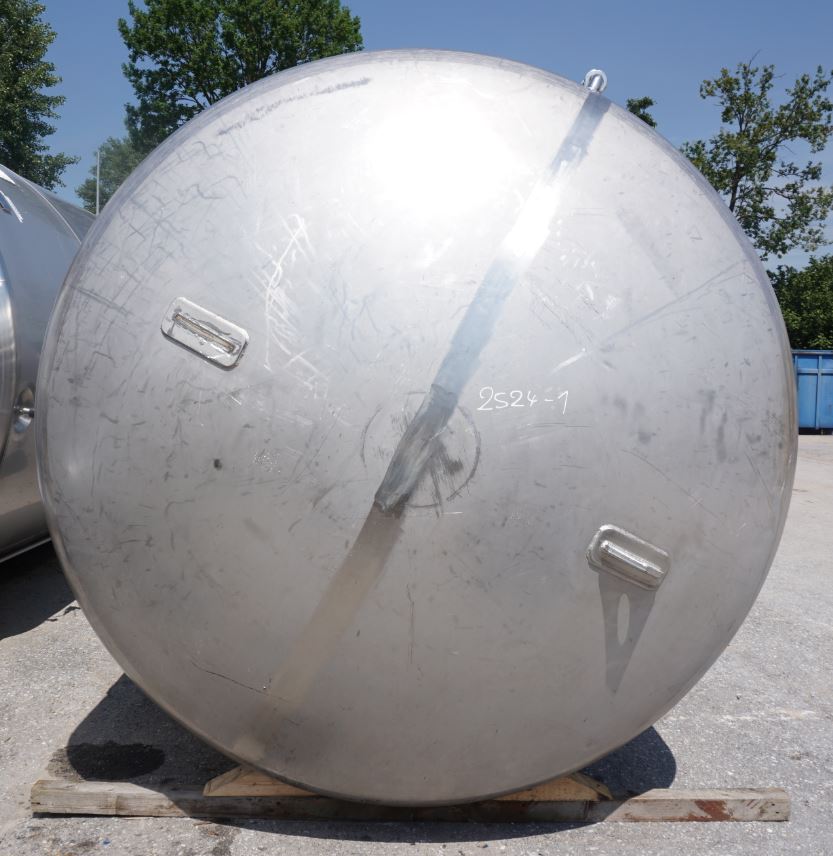

  • Floor type

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 4,50 bar

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell area

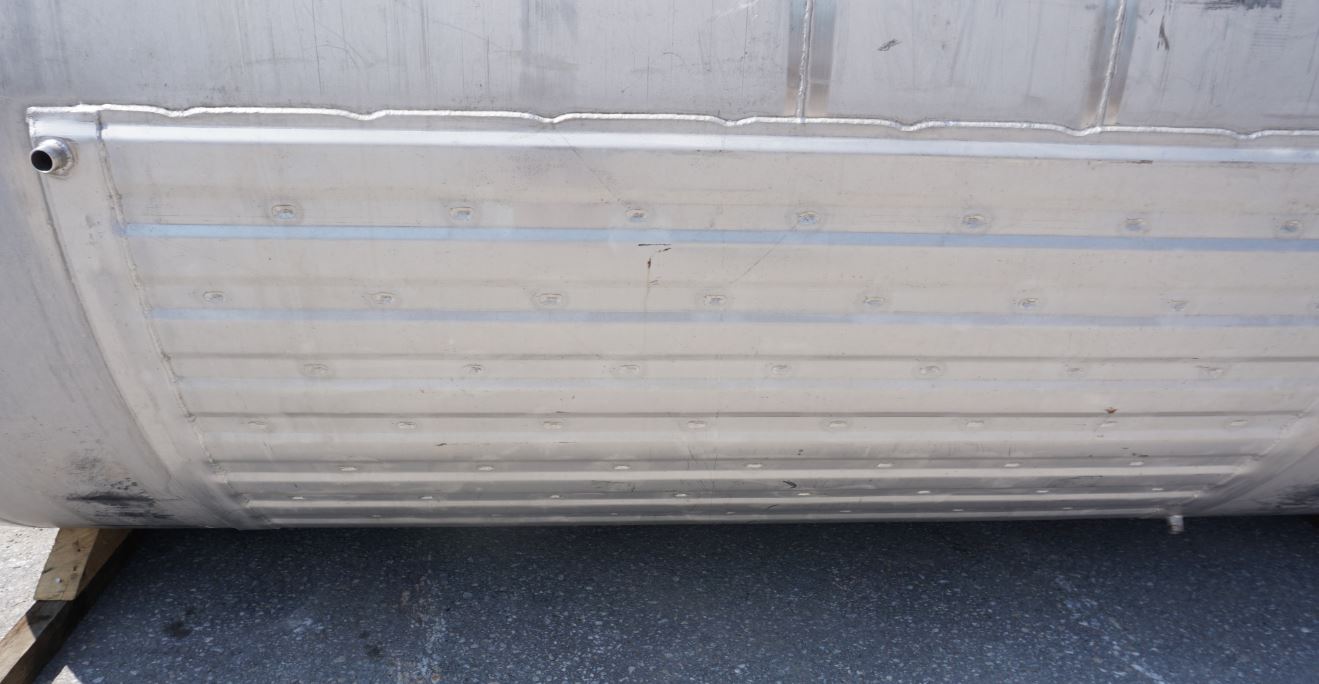

  • Temperature control system

  • Cooling pockets

  • Operating pressure

  • 4,50 bar

  • Temperature control system operating pressure/pipe chamber

  • 2 bar

  • Temperature control system operating temperature/pipe chamber

  • 0 °C

Fixtures and fittings

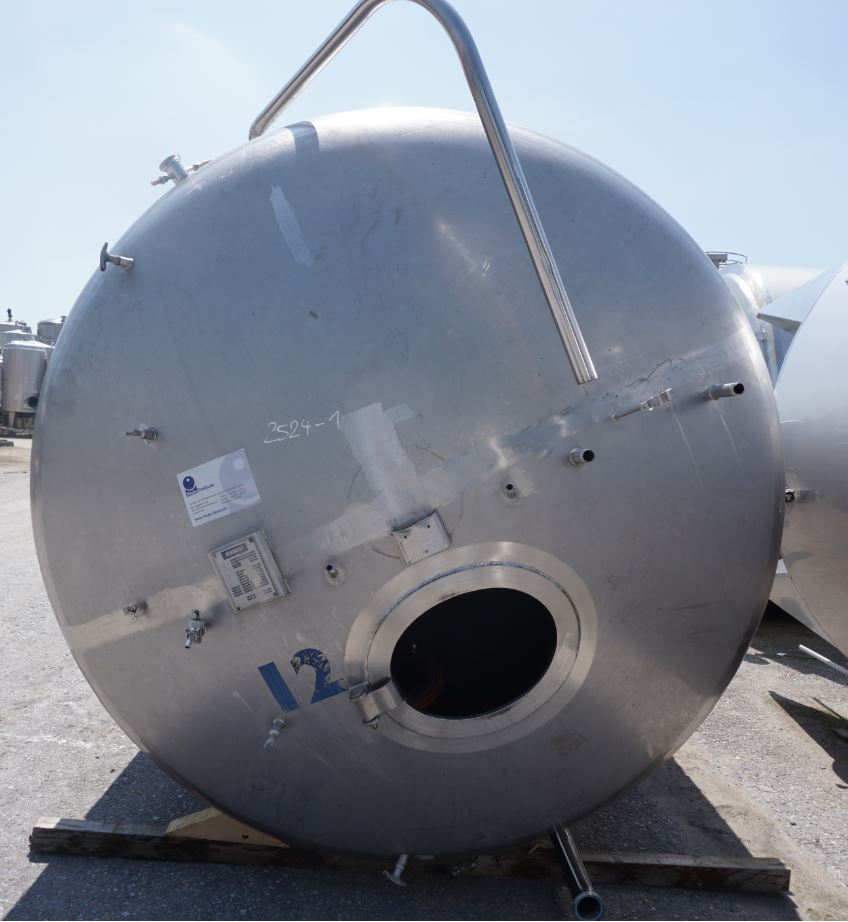

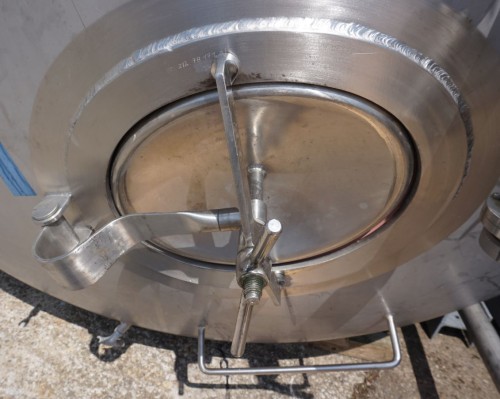

  • Manway position

  • Front face

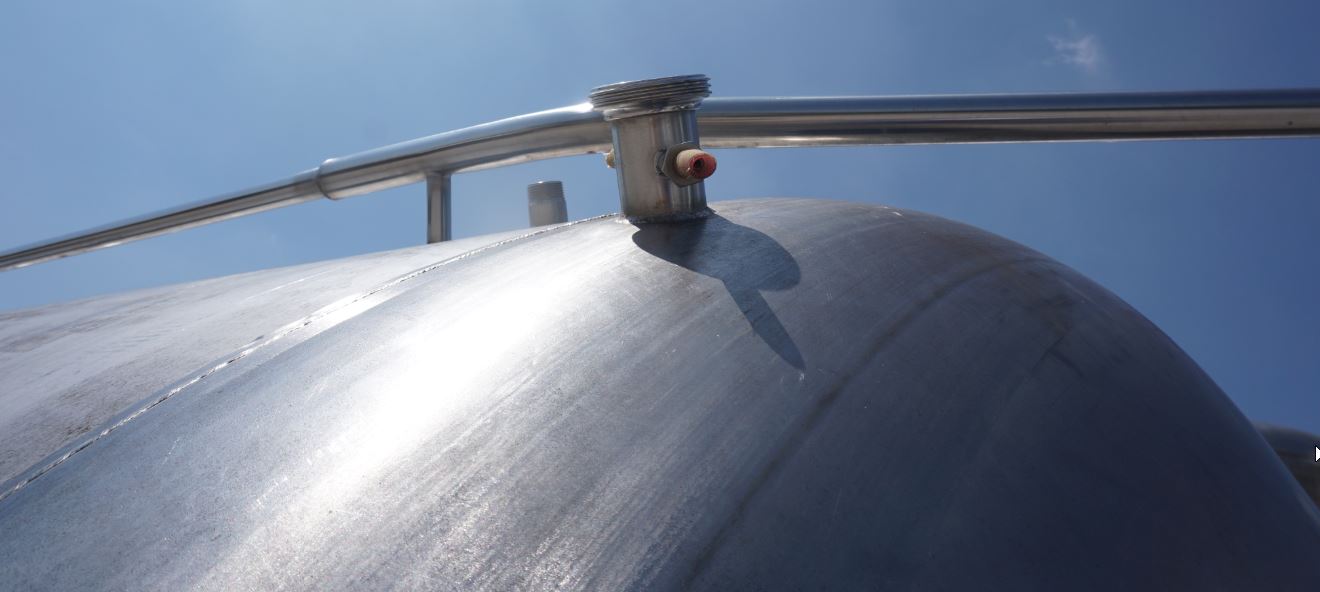

  • Nozzles/connectors in head

  • 1xDN50 (piece)

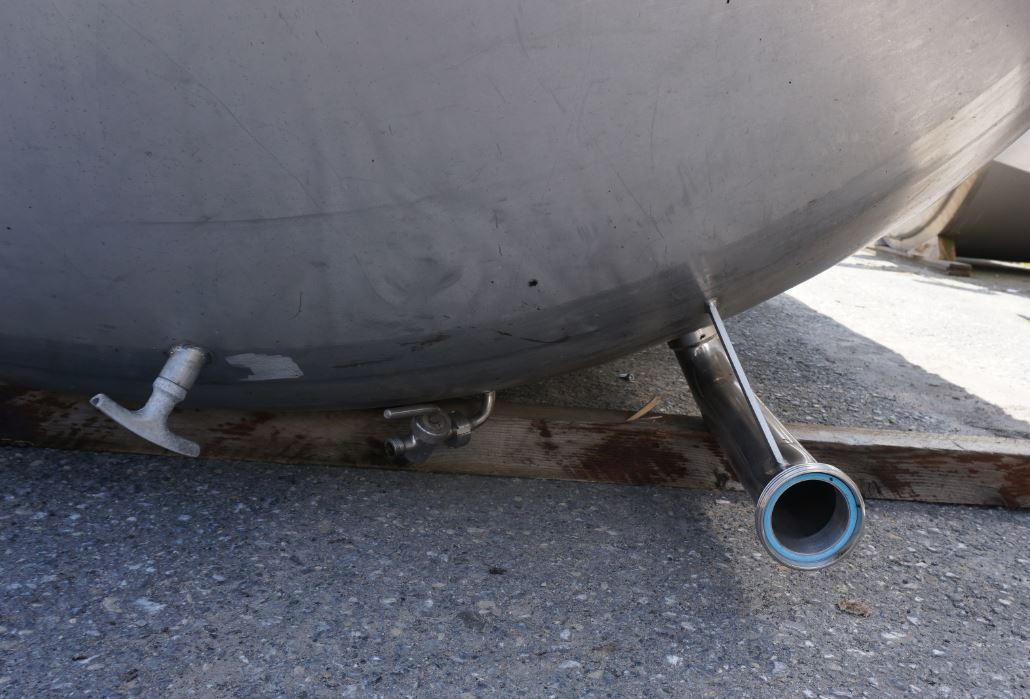

  • Outlet nozzle

  • 50

  • Fixtures and fittings

  • Lifting lugs

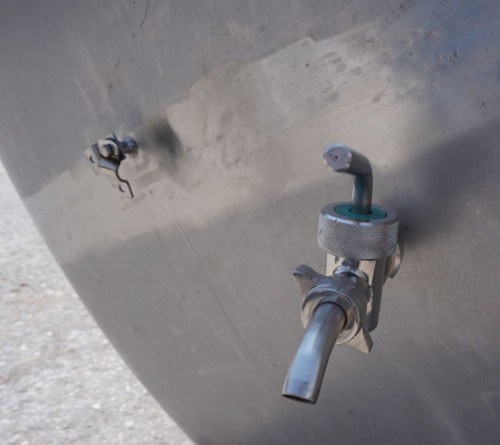

  • Sample taking

  • Additional fixtures and fittings

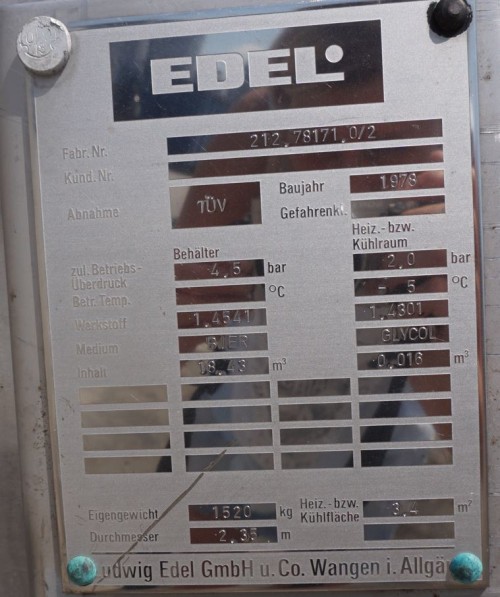

  • Nameplate

Technical documentation

  • Technical documentation

  • None

Other

  • Note

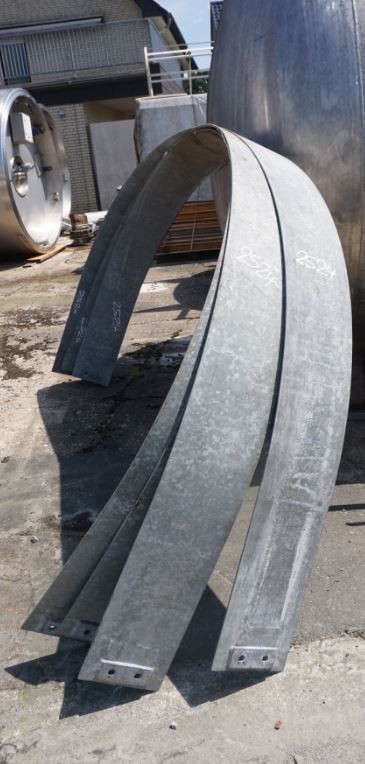

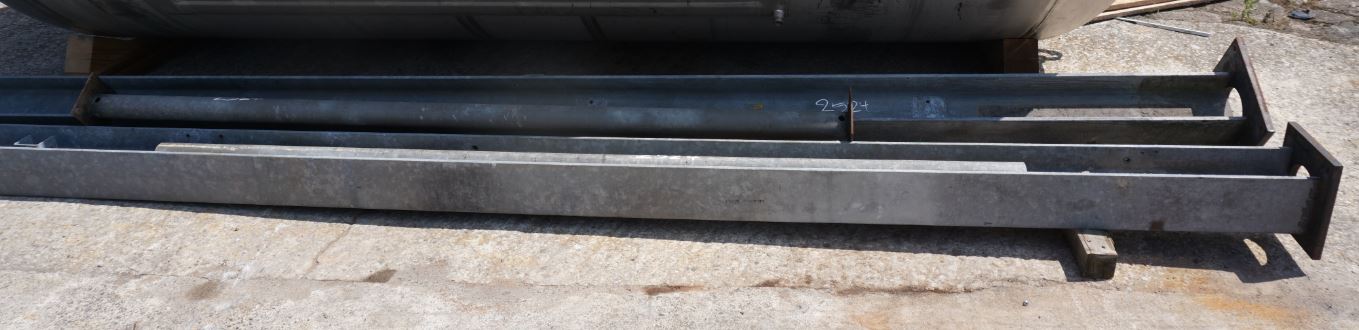

  • Trägerkonstruktion muss bauseits angepasst werden

  • Last usage

  • Foodstuffs

This product is suitable for use as:

Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Fruit juice tank, Spirituous beverages tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank, Process tank, Anaerobic digestion tank,

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank, Process tank,

Chemistry and pharmaceuticals : Storage tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, Pressure tank, Process tank, Anaerobic digestion tank,
