Product no. M-1874

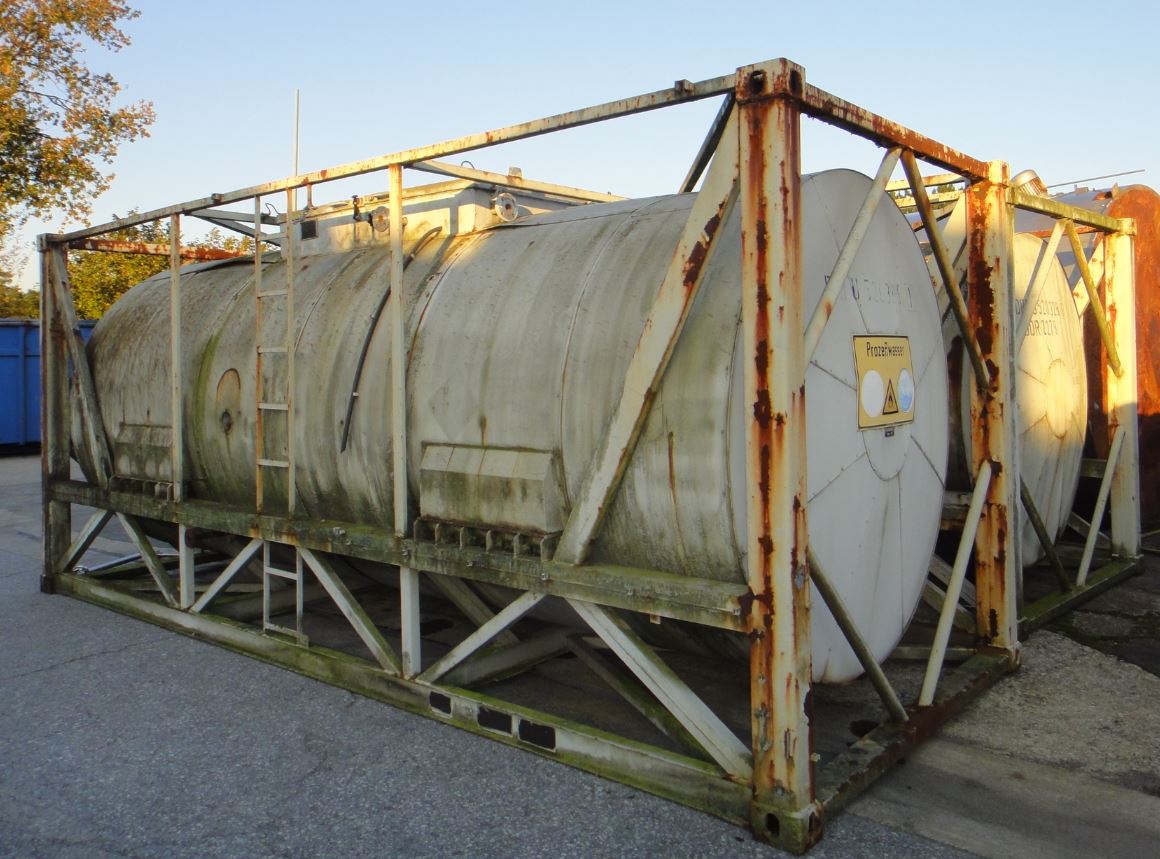

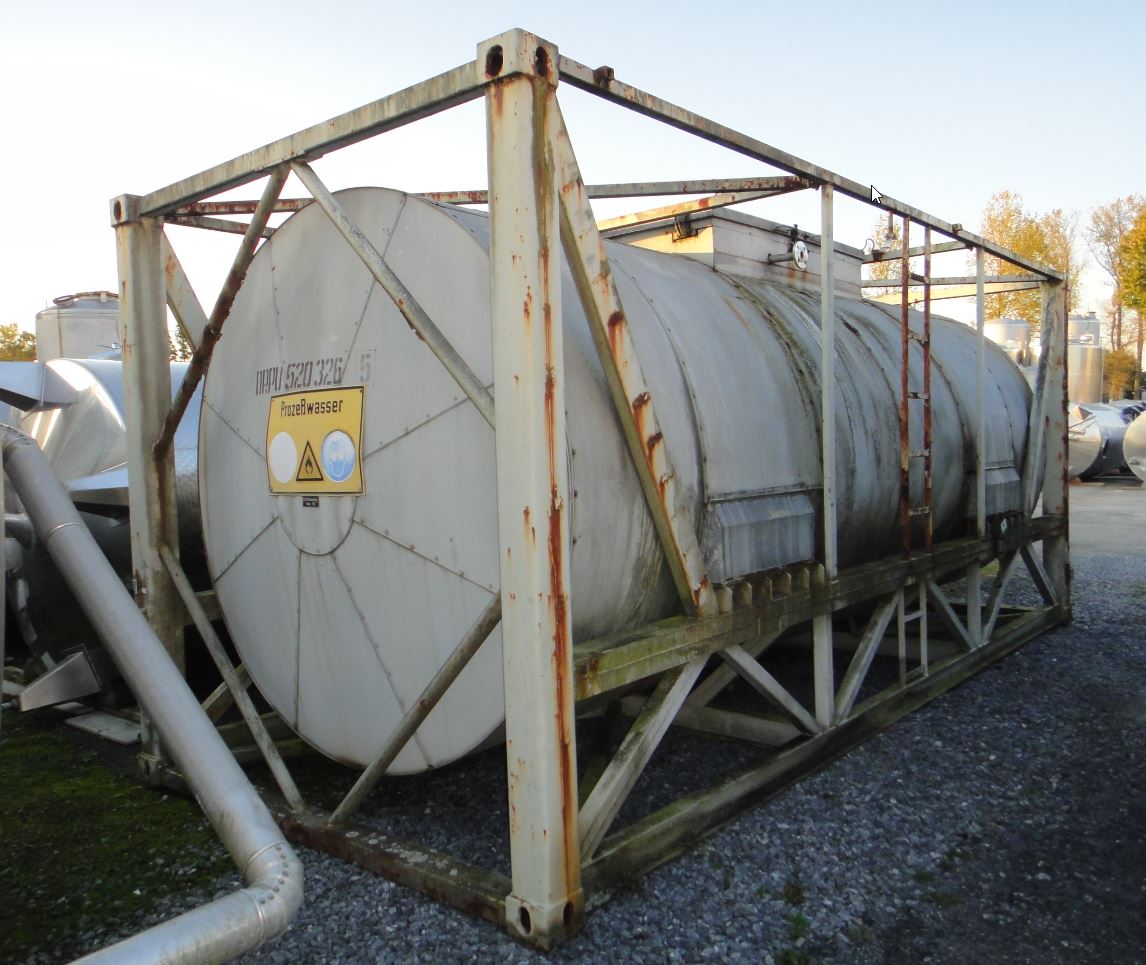

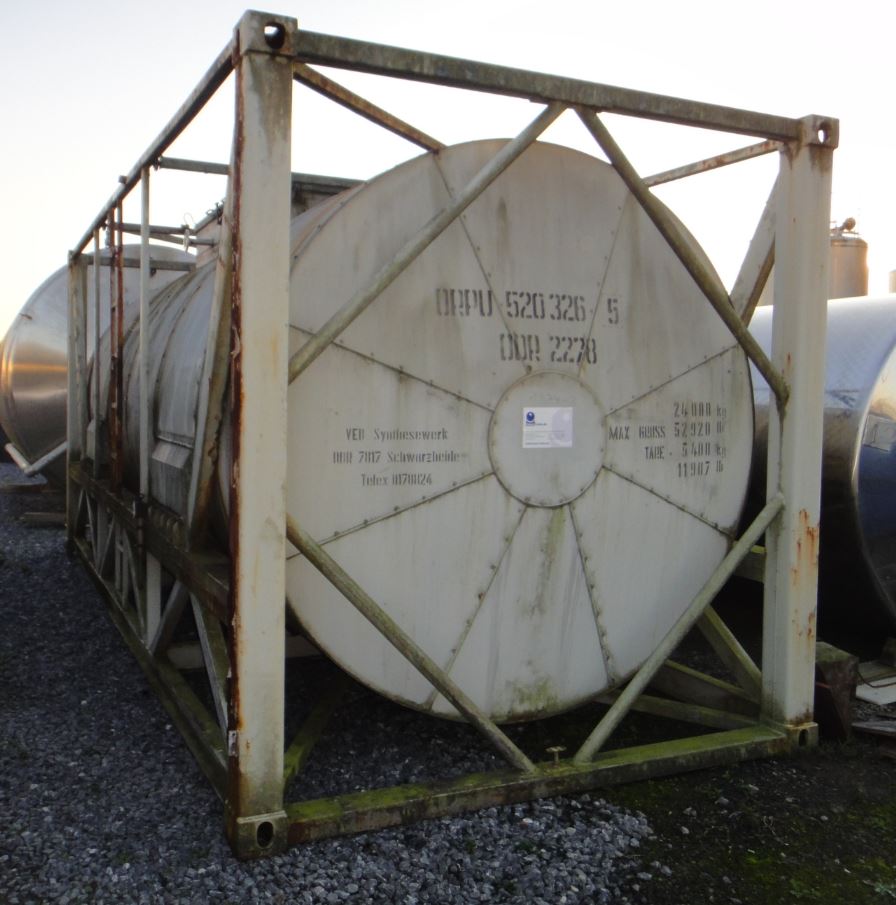

Pressure tank 16.200 liters made of V2A, used, isolated, temperature-controllable, horizontal

EUR 7.200,00

add. 19 % VAT excl. shipping costs

Volume approx. 16,200.00 litres

» Send product request » Product data sheet (PDF)

Please note:

A sale is only made to entrepreneurs, traders, freelancers, public institutions and not to consumers i. S.v. § 13 BGB.

  more details

Product description

Pressure tank 16.200 liters made of V2A, used, isolated, temperature-controllable consists of the material 1.4541(AISI321). The volume is approx. 16,200.00 litres. Pressure tank 16.200 liters made of V2A, used, isolated, temperature-controllable has the following dimensions: length 6,057 mm, width 2,438 mm,  Pressure tank 16.200 liters made of V2A, used, isolated, temperature-controllable was last used in the following area: Chemistry. Delivery can take place worldwide.

This product is suitable for the following applications:

Storage, Hot water, Cooling, Tempering,

General

  • Volume approx.

  • 16.200,00 litres

  • Structure

  • Horizontal

  • Condition

  • Used

Dimensions approx.

  • Total height

  • 2.590 mm

  • Length

  • 6.057 mm

  • Width

  • 2438 mm

Design

  • Weight approx.

  • 5.400,00 kg

  • Insulation

  • yes

  • Insulated area

  • Complete

  • Insulation cladding

  • Bolted steel

  • Interior surface

  • Brushed

  • Exterior surface

  • Lacquered

  • Floor type

  • Torispherical bottom

  • Product chamber operating over-pressure

  • 3 bar

  • Product chamber operating temperature

  • 80 °C

Equipment

  • Temperature-controllable

  • Yes

  • Temperature control area

  • Shell area

  • Temperature control system

  • Cooling pockets

  • Operating pressure

  • 3,00 bar

  • Operating temperature

  • 80 °C

Supports

  • Supports

  • Stacking frame in steel

Fixtures and fittings

  • Manway position

  • In head

Technical documentation

  • Technical documentation

  • Designation

  • Pressure test certificate

Other

  • Last usage

  • Chemistry

This product is suitable for use as:

Foodstuffs:

Agriculture: Storage tank, Buffer tank, Pre-buffer tank, Transport tank, Settling tank, Sprinkler tank,

Chemistry and pharmaceuticals : Chemical tank, Storage tank, Acid tank, Lye tank, Transport tank, Settling tank, CIP tank, Thermal buffer,
