Product no. M-2044

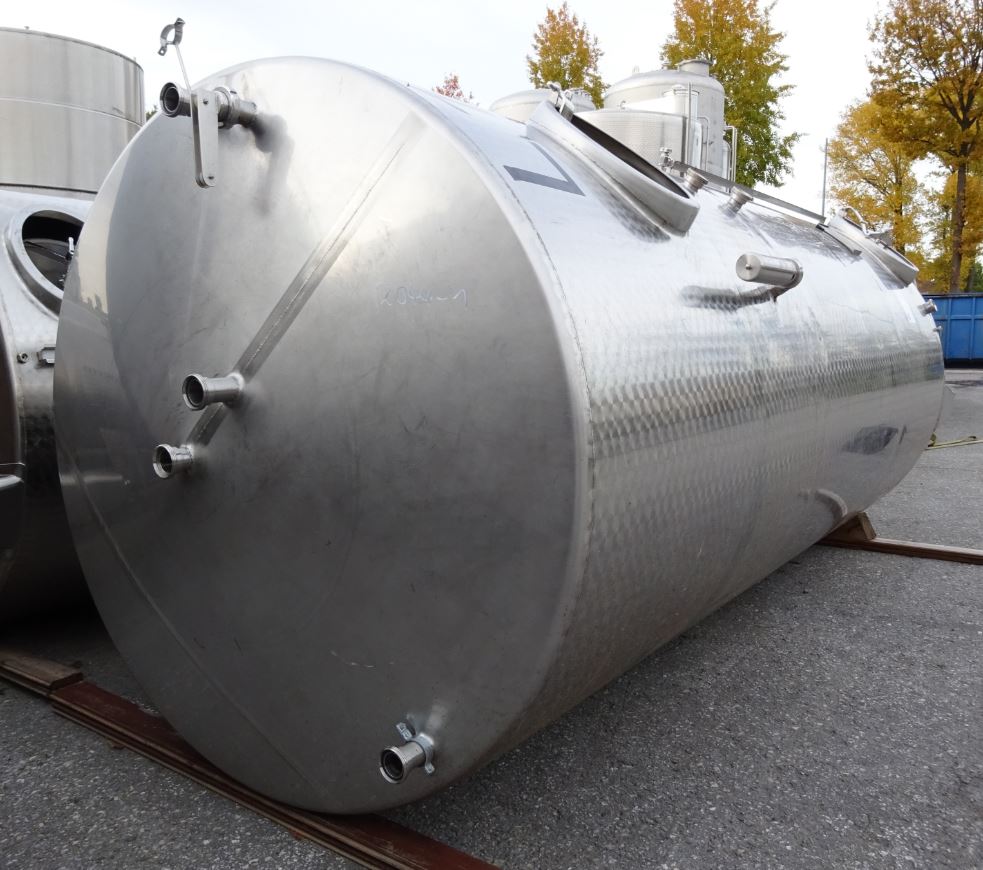

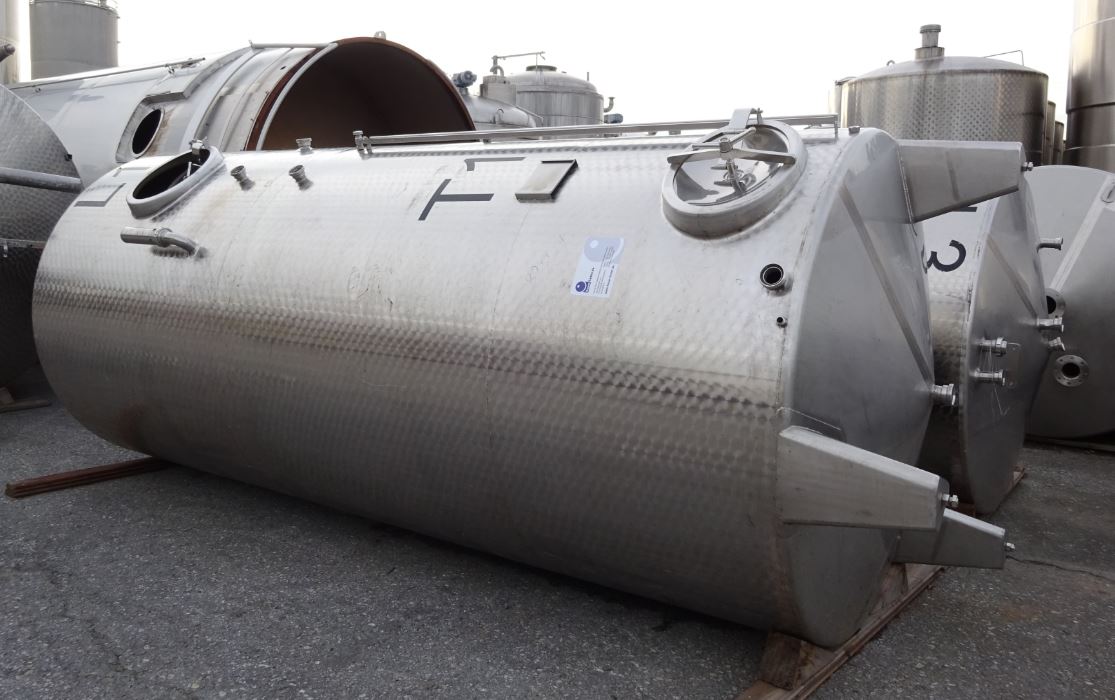

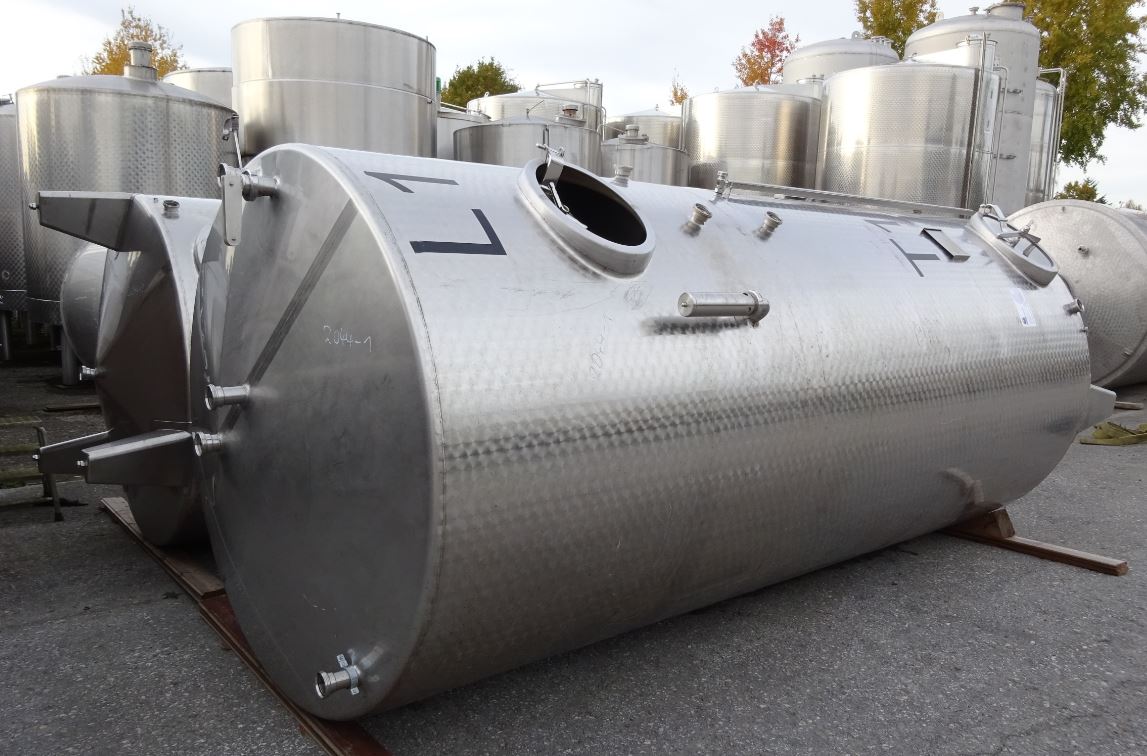

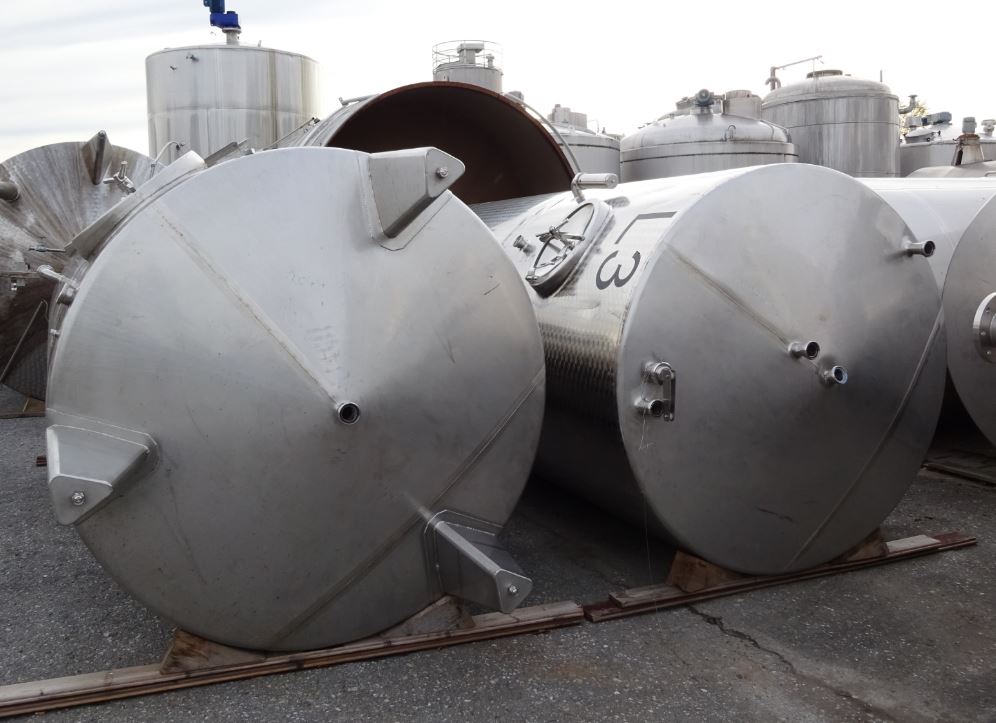

Double chamber tank 8.000 liters made of V2A, used, single-walled, standing
EUR 7.200,00
add. 19 % VAT excl. shipping costs
Volume approx. 8,000.00 litres
Product description
Double chamber tank 8.000 liters made of V2A, used, single-walled consists of the material 1.4301(AISI304) V2A. The volume is approx. 8,000.00 litres. Double chamber tank 8.000 liters made of V2A, used, single-walled was last used in the following area: Pharmaceuticals. Delivery can take place worldwide.
This product is suitable for the following applications:
Storage, Cleaning/CIP,General
Volume approx.
8.000,00 litres
Chamber volume 1
6500 litres
Chamber volume 2
2500 litres
Structure
Standing
Condition
Used
Dimensions approx.
External diameter
1.800 mm
Cyl. height
4.000 mm
Foot height
470 mm
Total height
4.870 mm
Design
Weight approx.
1.000,00 kg

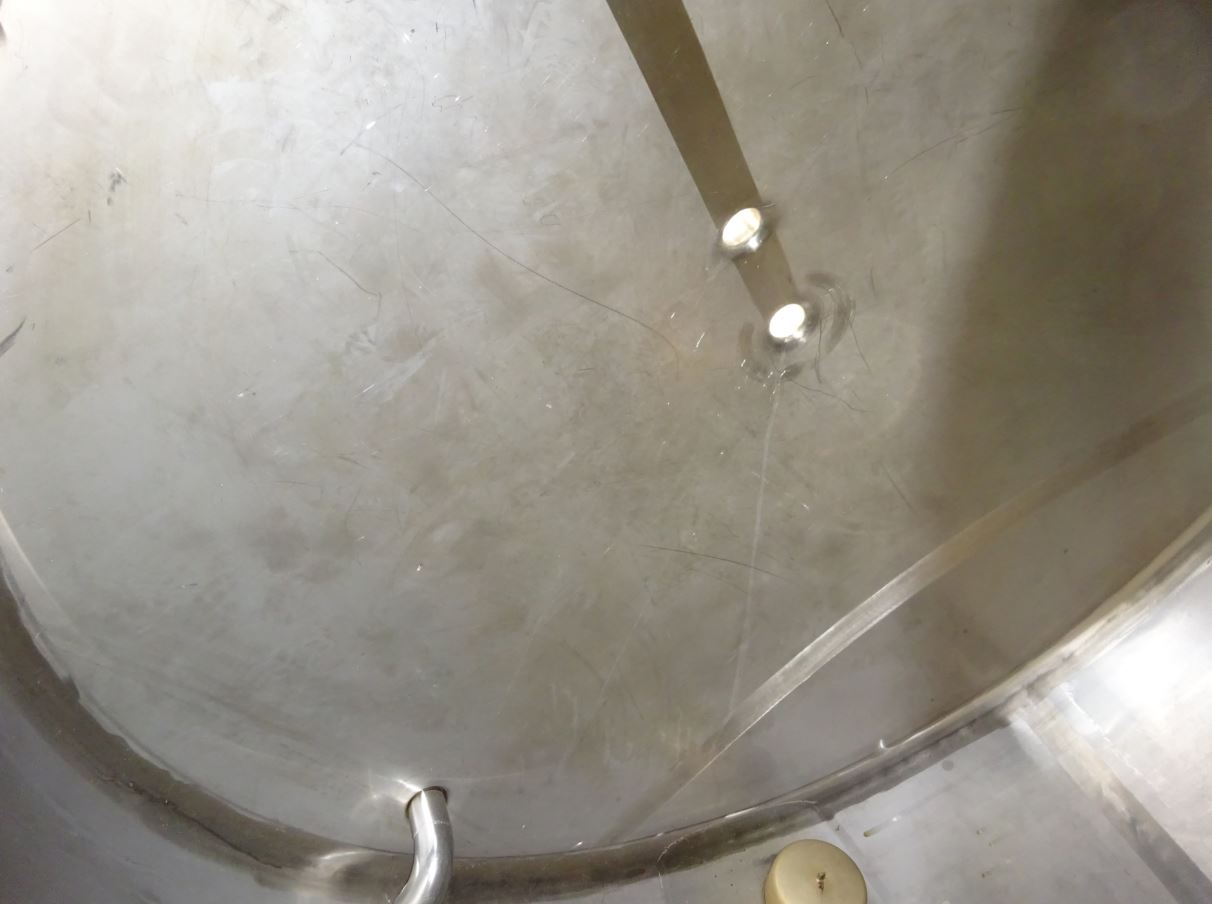

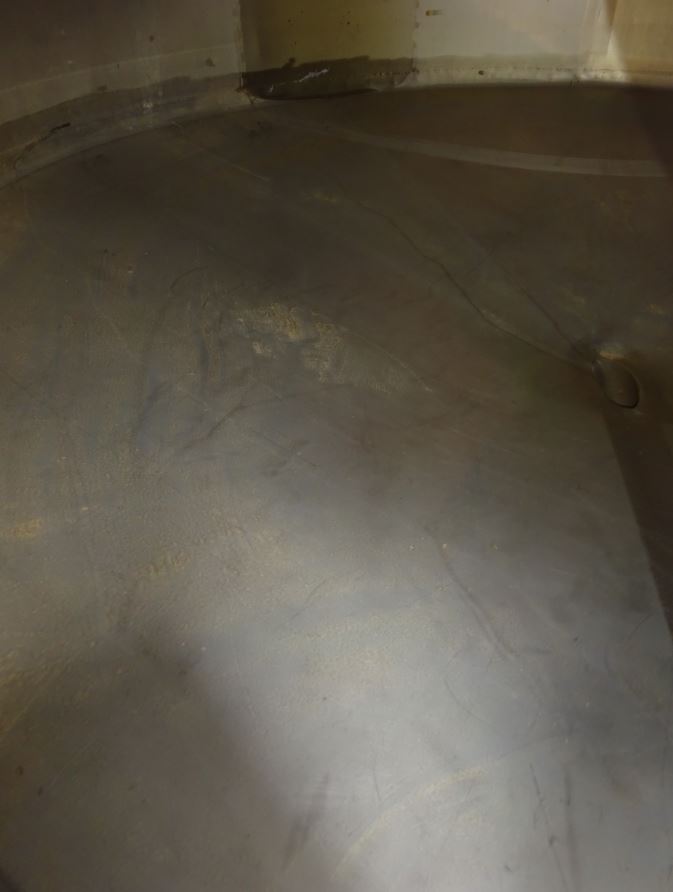

Interior surface
Smoothed
Exterior surface
Marbled
Floor type
Conical bottom
Head design
Conical bottom
Supports
Supports
Stainless steel feet
Number of feet
3 (piece)
Fixtures and fittings
Manway position
In shell
Nozzle connector
Screw thread
Nozzles/connectors in head
4xDN50 (piece)
Outlet nozzle
50
Fixtures and fittings
Fill level pipes
Additional fixtures and fittings
Drain port
Technical documentation
Technical documentation
None
Other
Last usage
Pharmaceuticals
This product is suitable for use as:
Foodstuffs: Foodstuffs tank, Water tank, Wine tank, Mash tank, Fruit juice tank, Spirituous beverages tank, Syrup tank, Molasses tank/liquid sugar tank, Whey tank, Storage tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank, Cold water tank,
Agriculture: Slurry tank, Storage tank, Buffer tank, Pre-buffer tank, Transport tank, Settling tank, CIP tank,
Chemistry and pharmaceuticals : Chemical tank, Storage tank, Septic tank, Acid tank, Lye tank, Buffer tank, Pre-buffer tank, Settling tank, CIP tank,
